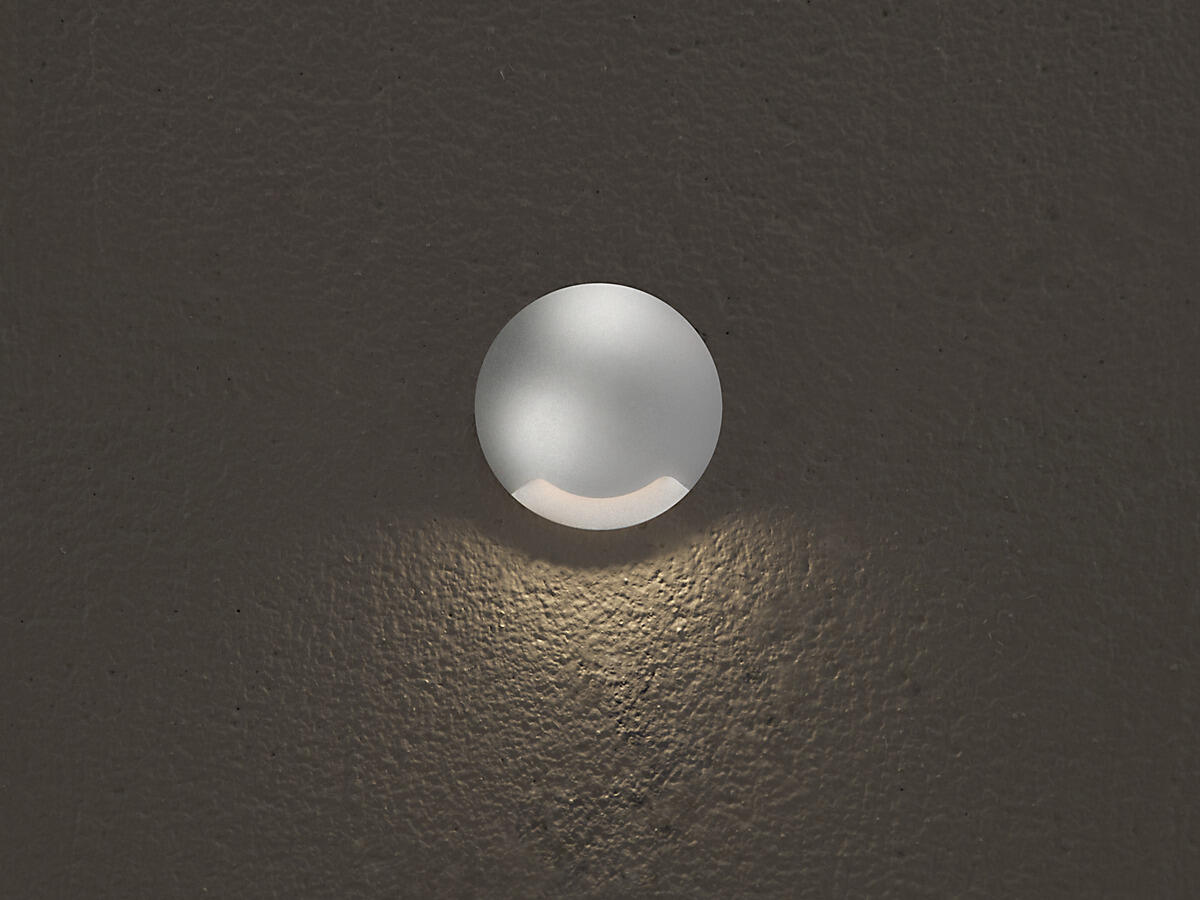

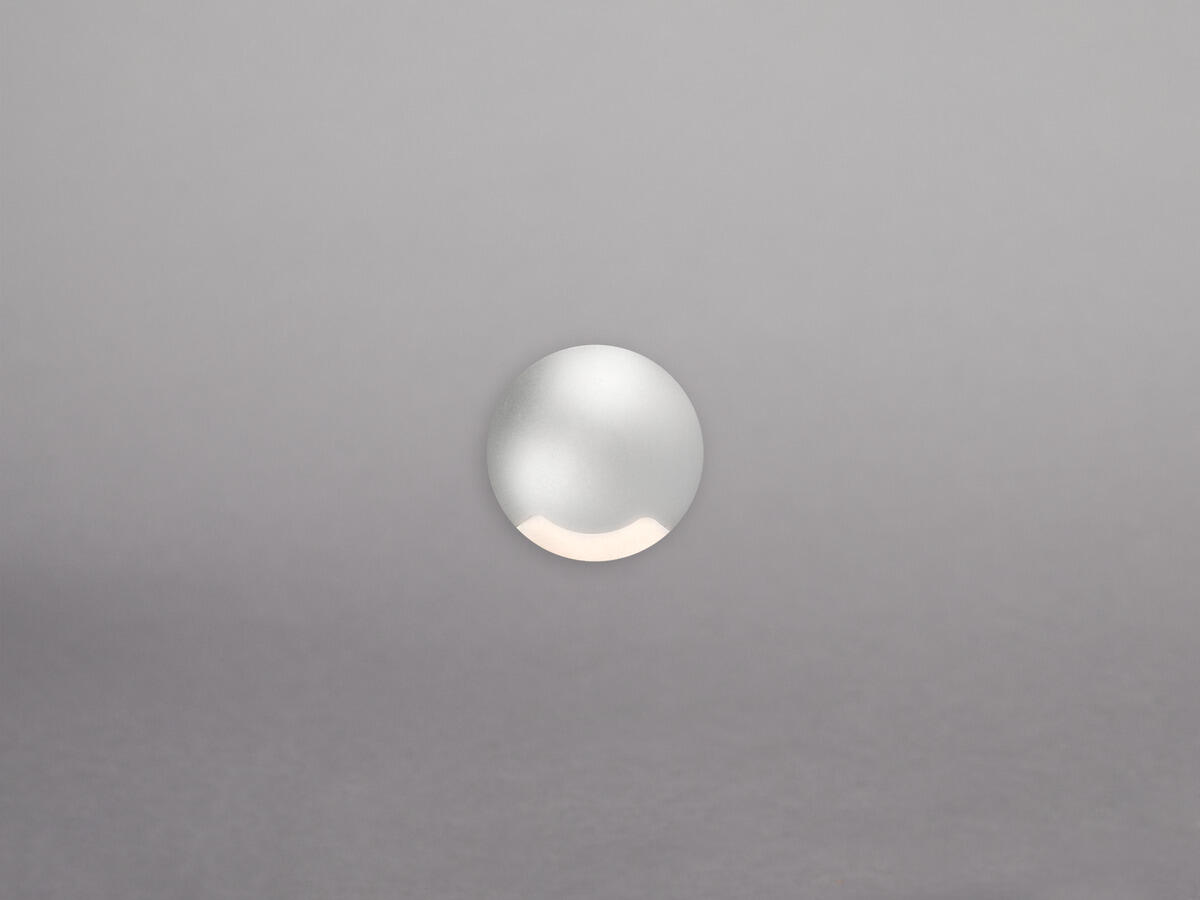

Steplight Garden

Can be combined with other luminaires in the Garden range, simple installation with a common connection system

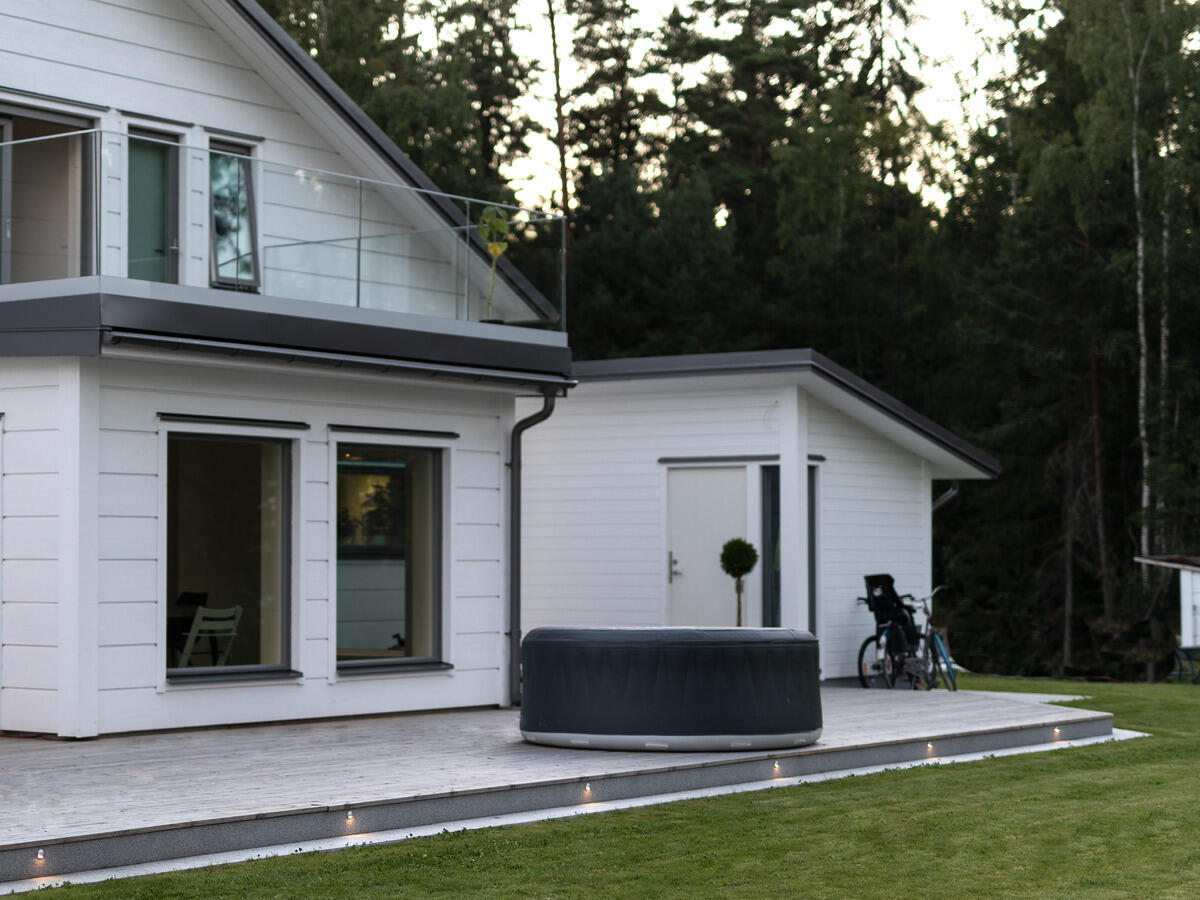

Decorative step lighting with low energy consumption. Create striking staircase lighting, for example on patios and decks. Comes with 2×0.5 m rubber cables with screw connections. As an accessory there is also a transformer and 1 or 5 meter extension cables. Can be combined with Spotlight Garden and Decklight Garden thanks to the common coupling system.

Description: GTIN 7392971133140

Item Name Steplight Garden

Warranty 5 years

Type .
Light Technical Data: Luminaire Lumen (lm) 3

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Light sharing Asymmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L70

LLMF @ 50 000h 0,7
Technical data: Voltage (type) DC

Voltage Interval (V) 12...12

Voltage Nominal (V) 12

Voltage Forward (Vf) 9

Power Luminaire (W) 0,8

System Power (W) 0,8

Efficiency Luminaire (lm/W) 4

Efficiency System (lm/W) 4
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included No

Driver Model Constant Voltage

Connection (type) Screw Connection, Cable

Length Connection (cm) 50

Connection (mm2) 2x0,5

Through Wiring Yes

Operating Temperature -25…+45

Max. Tc (°C) 80
Color and material: Material Aluminium

Color Aluminum
Measurement and installation: Operating Environment Outdoor

IP Degree of Protection 67

Protection Class III

Installation Built-in

Mounting Installation Tension Spring

Max. Pressure (kg) 100

Approval Marks CE

Height (mm) 34

Diameter (mm) 36

Weight (kg) 0,07

Min. Built-in (mm) Ø28x25

Height Recessed Part (mm) 23

Height Exterior Part (mm) 13

Built-in Ø (mm) 28
