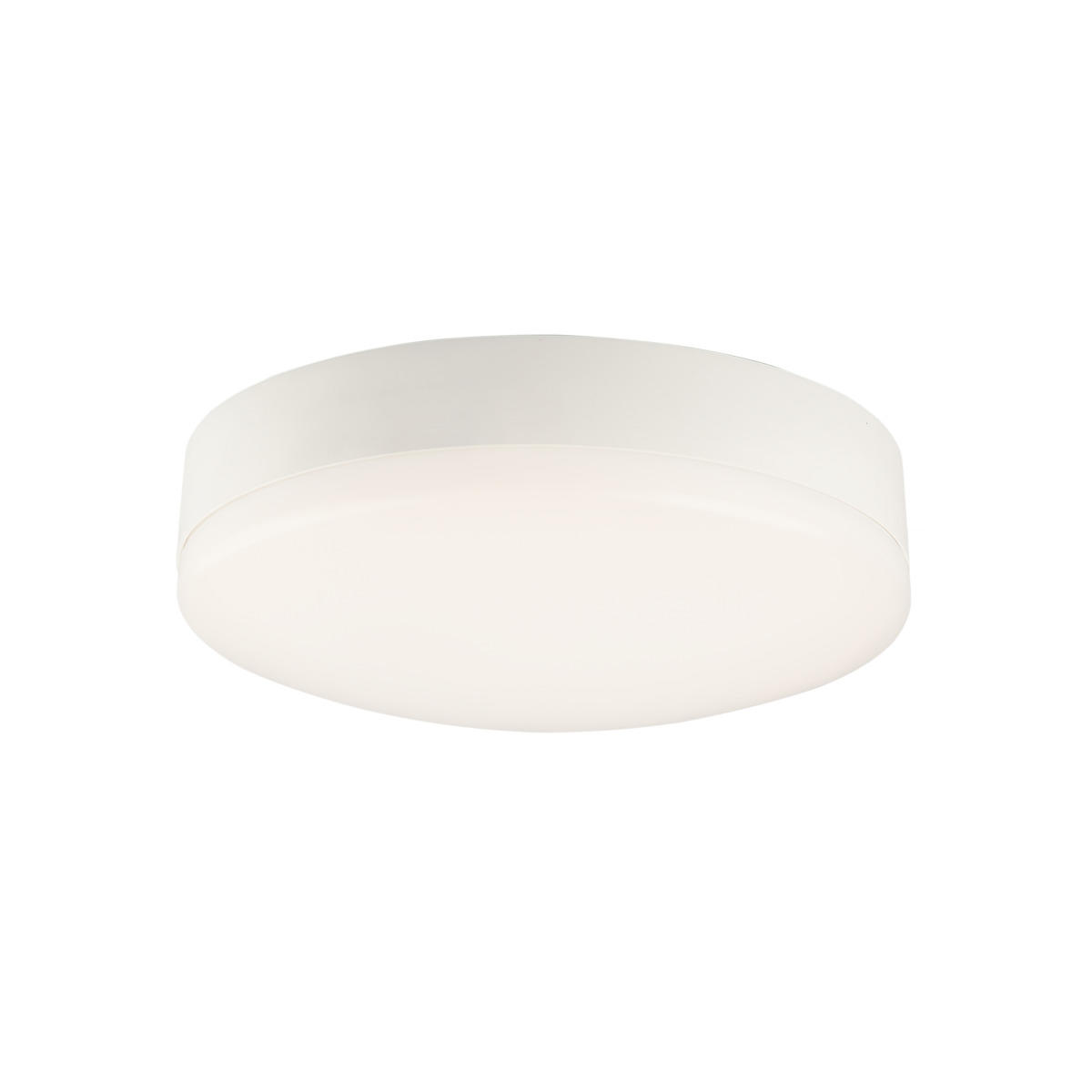

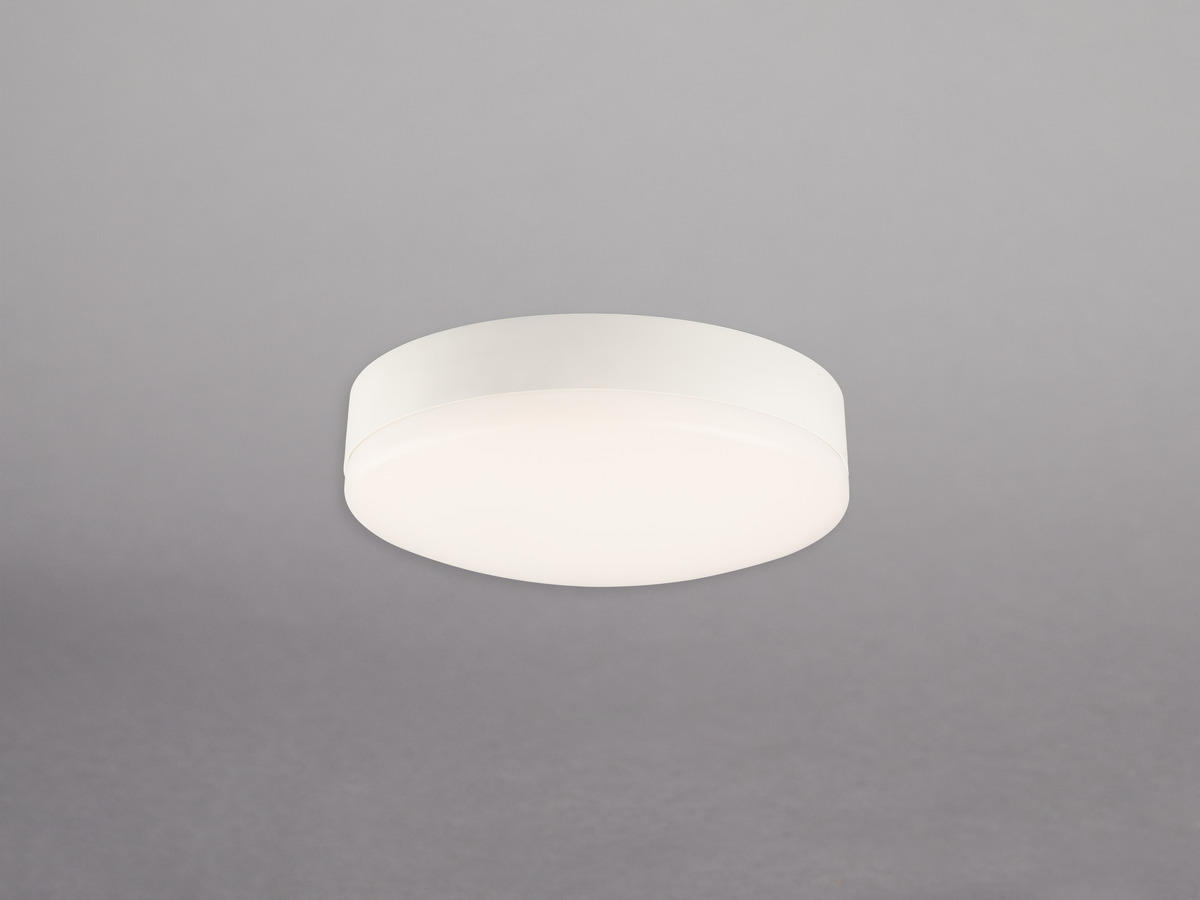

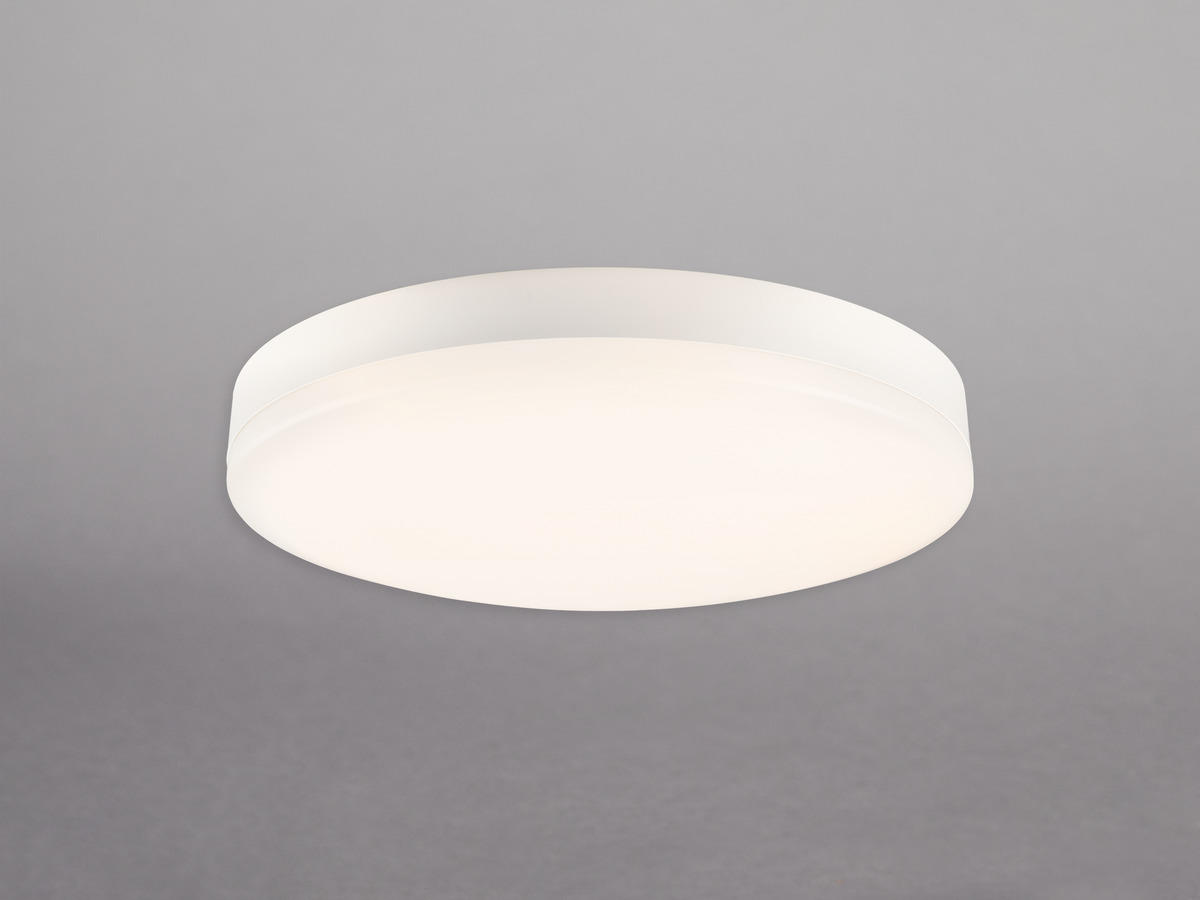

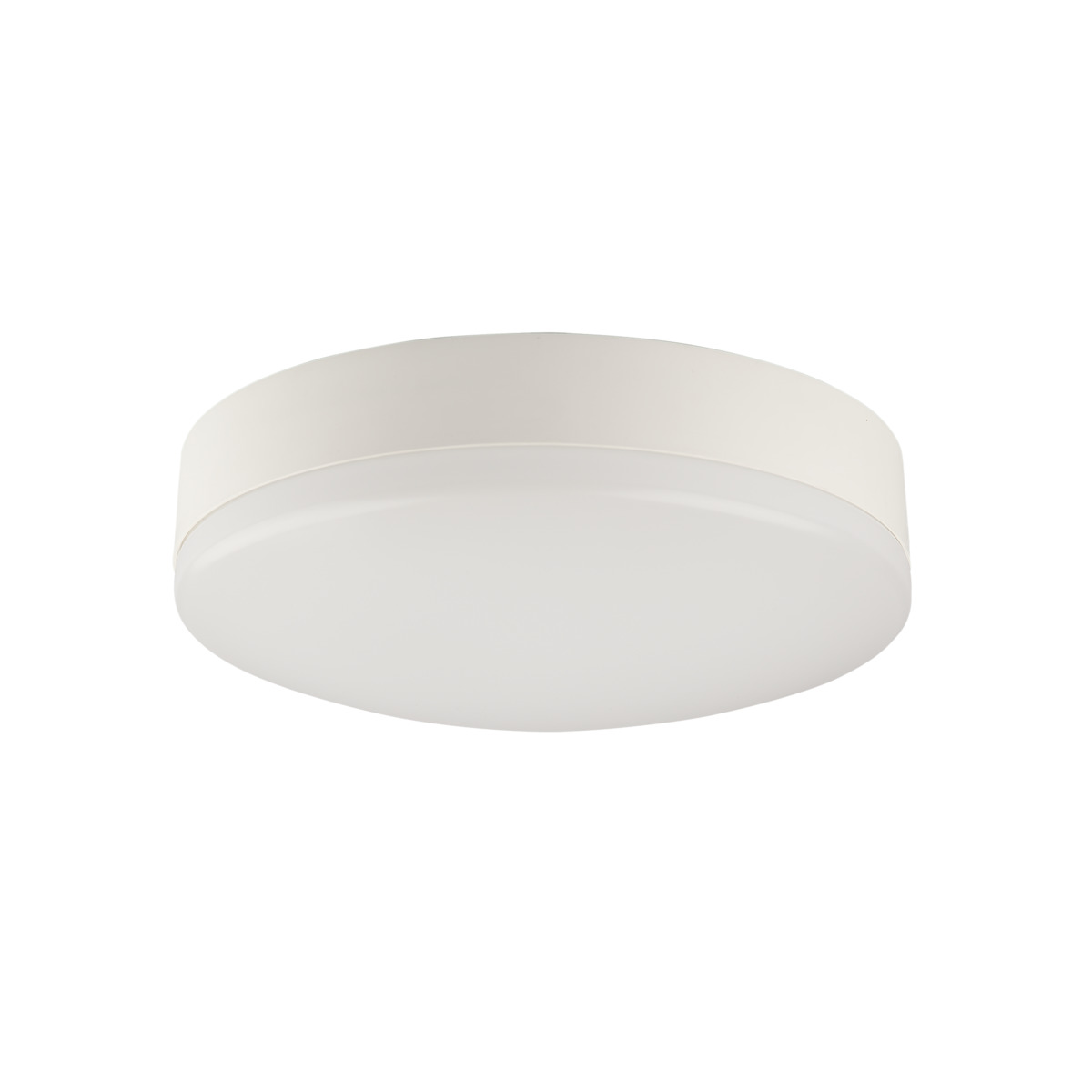

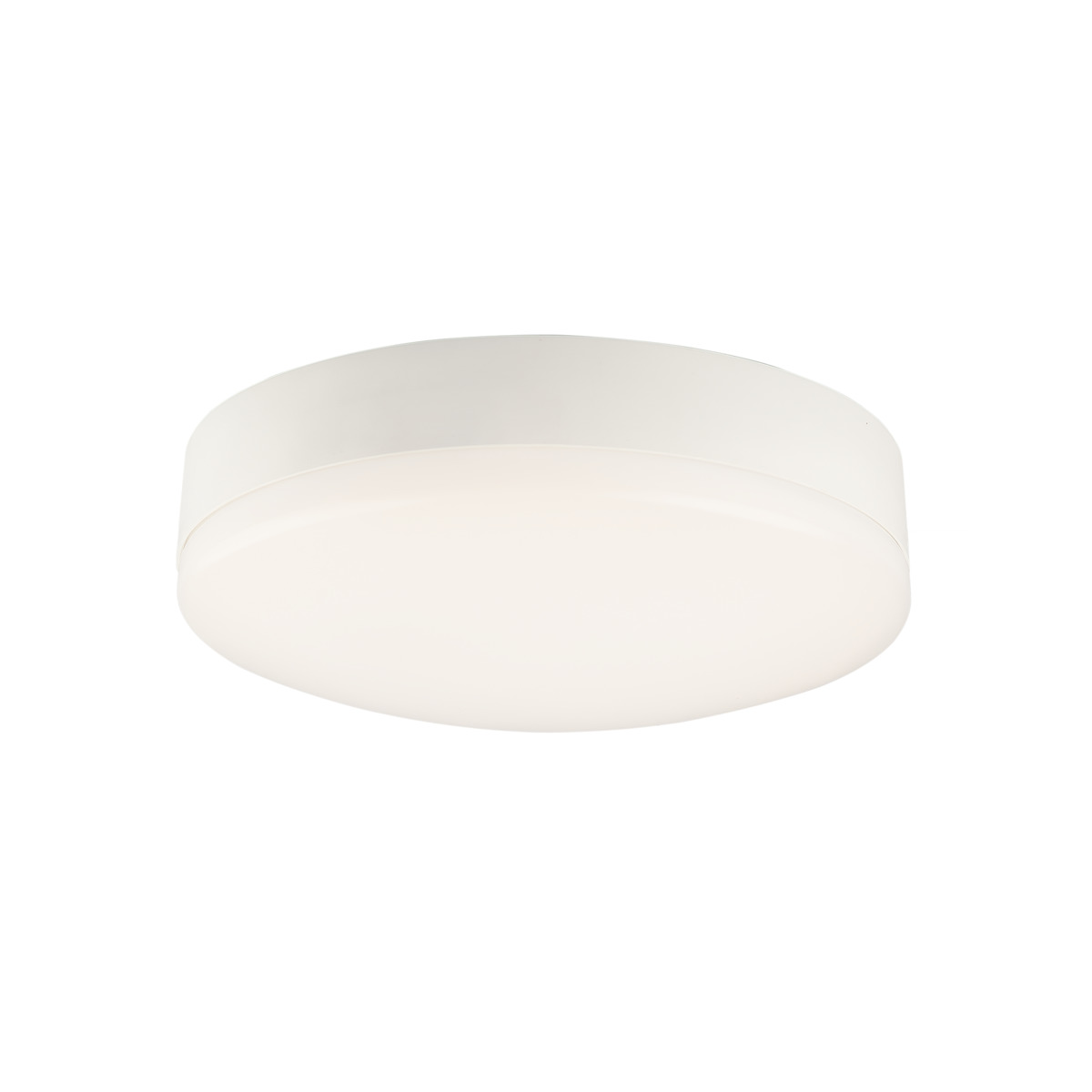

Moon Pro S

Adjusted for concealed or surface mounted cable routing
Microwave sensor for presence control, settings via DIP-switch for range, dusk control and time delay

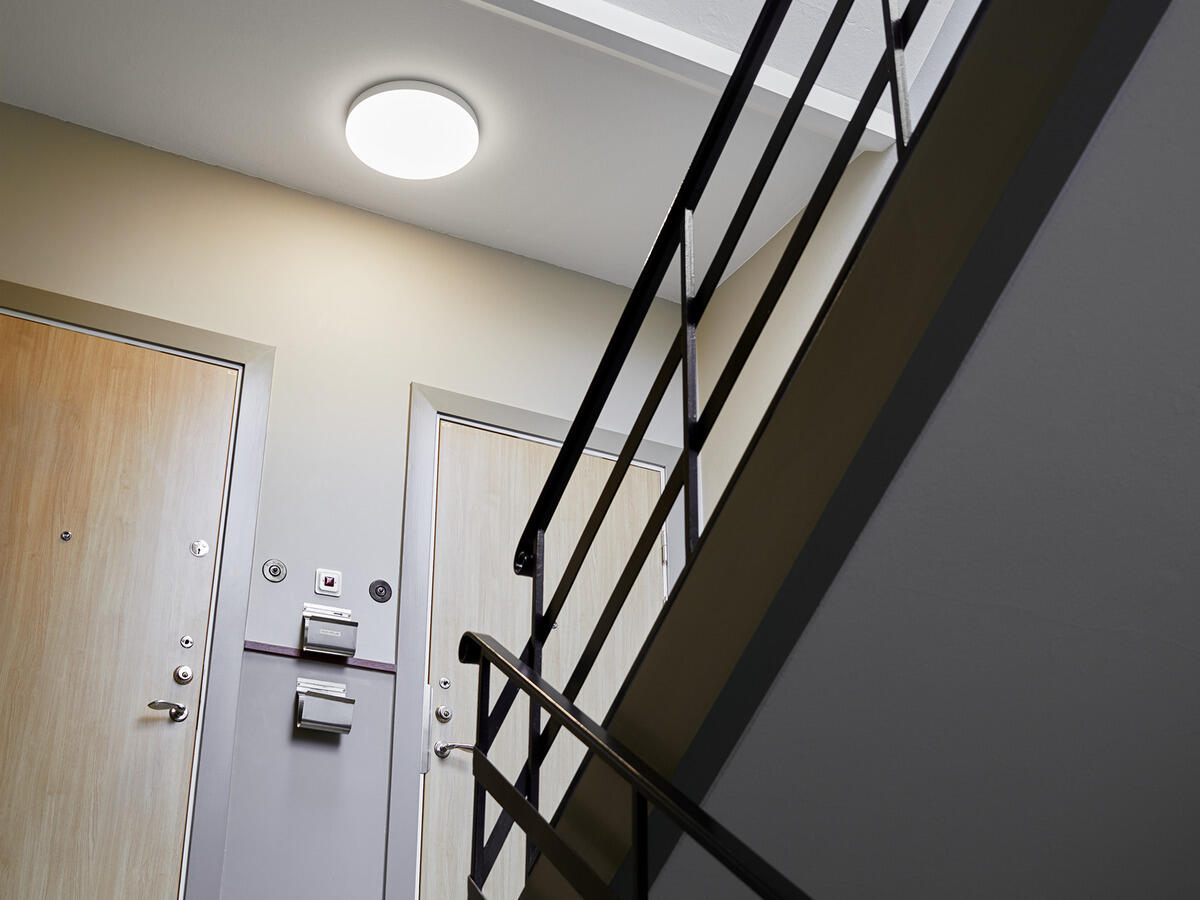

LED luminaire for installation flat on the ceiling or wall. High lumen output and good efficiency that meets with tough market demands and requires fewer luminaires per installation. IP44 and class II to suit many indoor milieus. Easily installed long-life luminaire with microwave sensor for presence control with dip switch for setting range, dusk control and time delay. Possibility of surface mounted cable routing.

Description: GTIN 7392971129853

Item Name Moon Pro 255 S 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1000

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

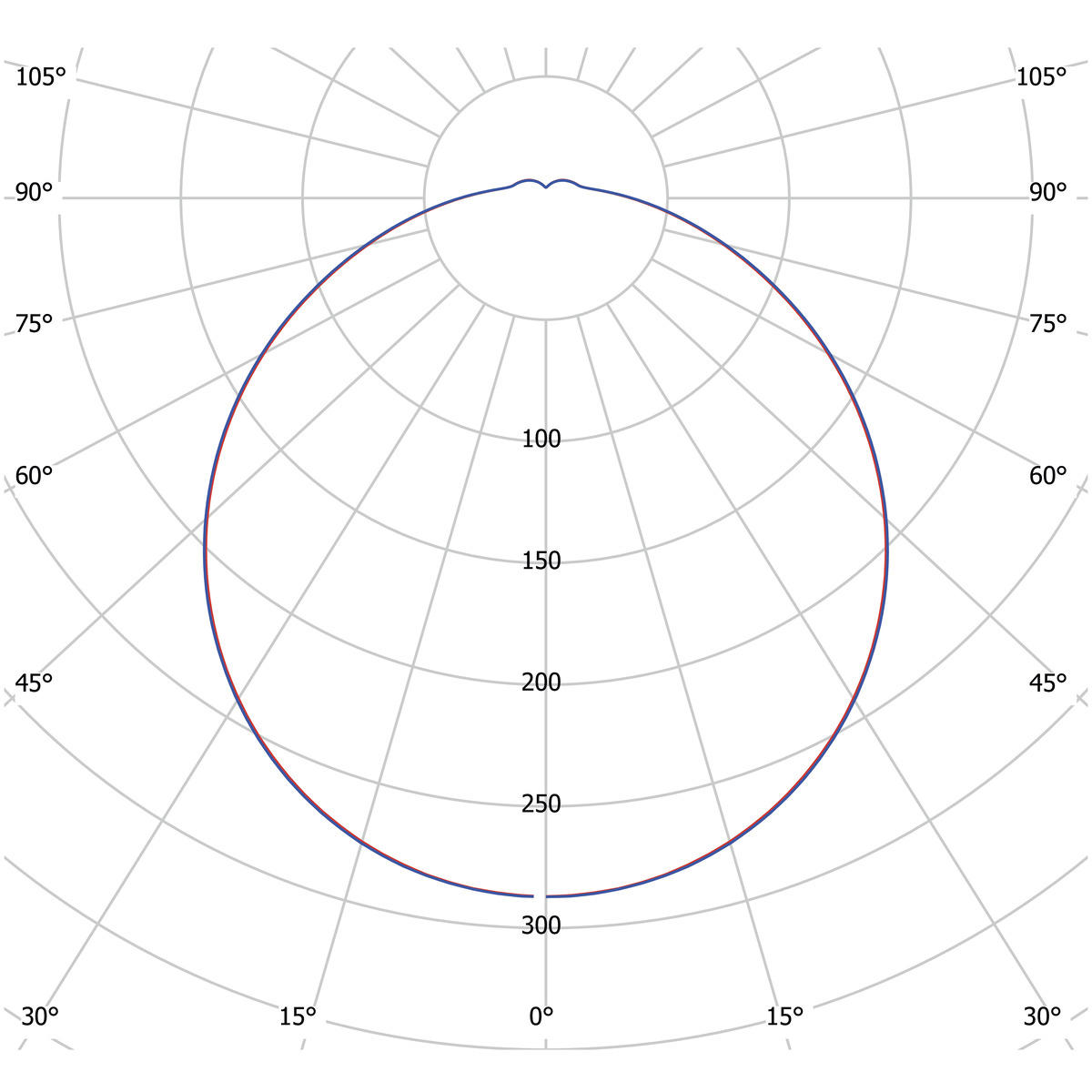

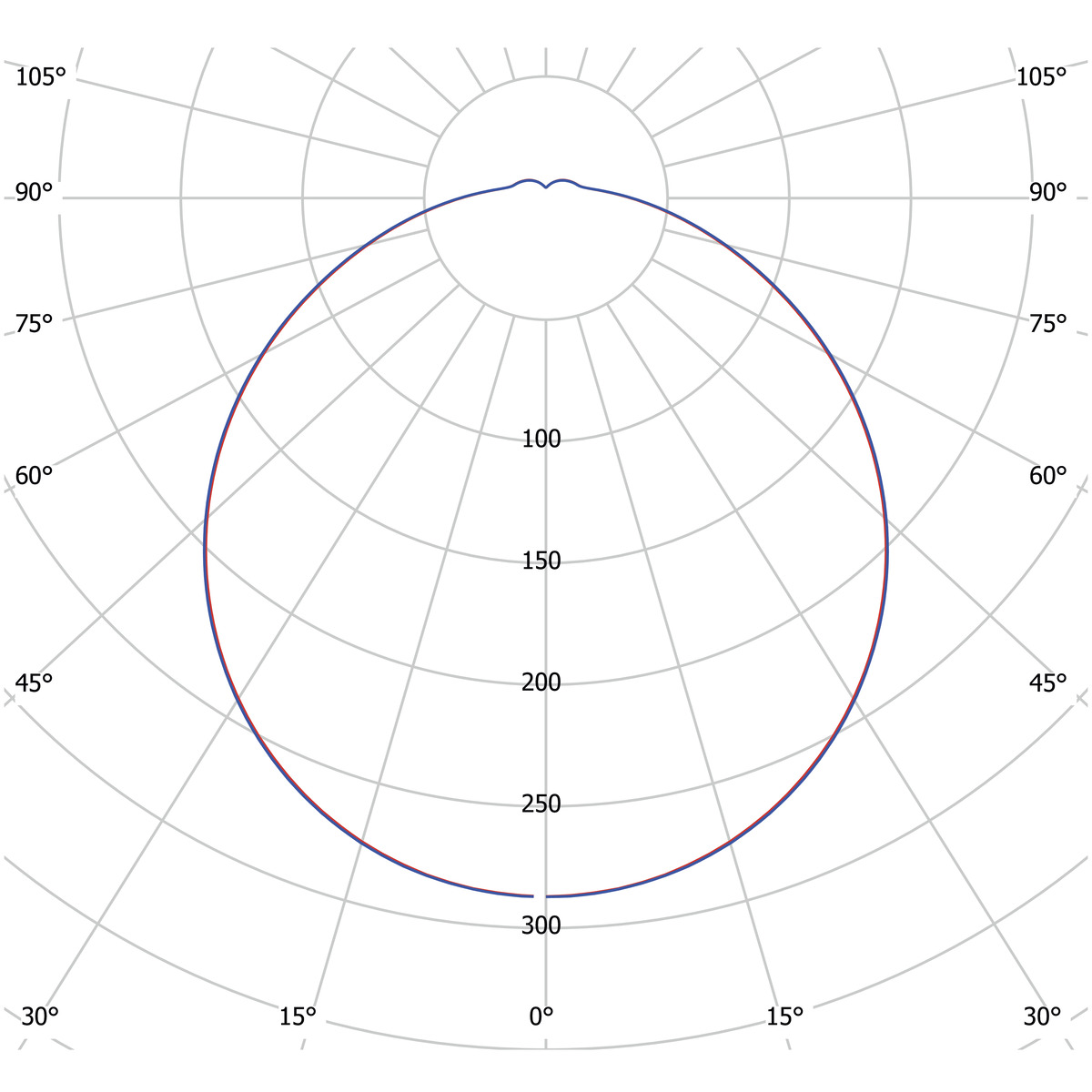

Luminous Intensity (cd) 300

Beam Angle (°) 115

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 63

Life Time L90 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L96

Lumen maintenance 100 000h L94

LLMF @ 50 000h 0,96

LLMF @ 100 000h 0,94

Life Time Driver 50 000h/5%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power Luminaire (W) 11

System Power (W) 11

Efficiency Luminaire (lm/W) 91

Efficiency System (lm/W) 91

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable No

Type of Dimming Microwave Sensor

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Standby Power 0,5

Operating Temperature -15...+40

Fuse B10 (pcs) 50

Fuse B16 (pcs) 75

Fuse C10 (pcs) 60

Fuse C16 (pcs) 93
Color and material: Material PMMA, Polycarbonate, ABS plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class II

Installation Surface mounted

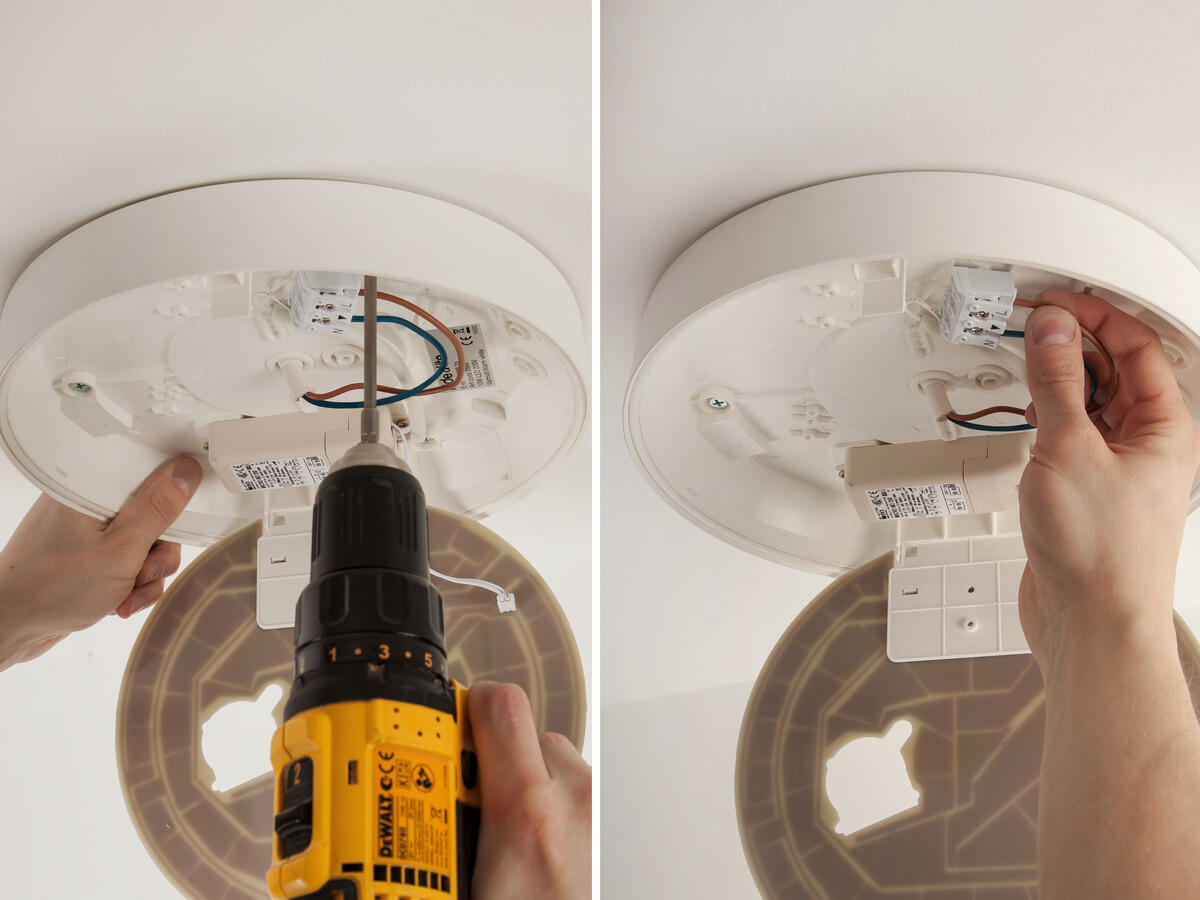

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK06

Filament Test IEC 695-2-1(°C) 650

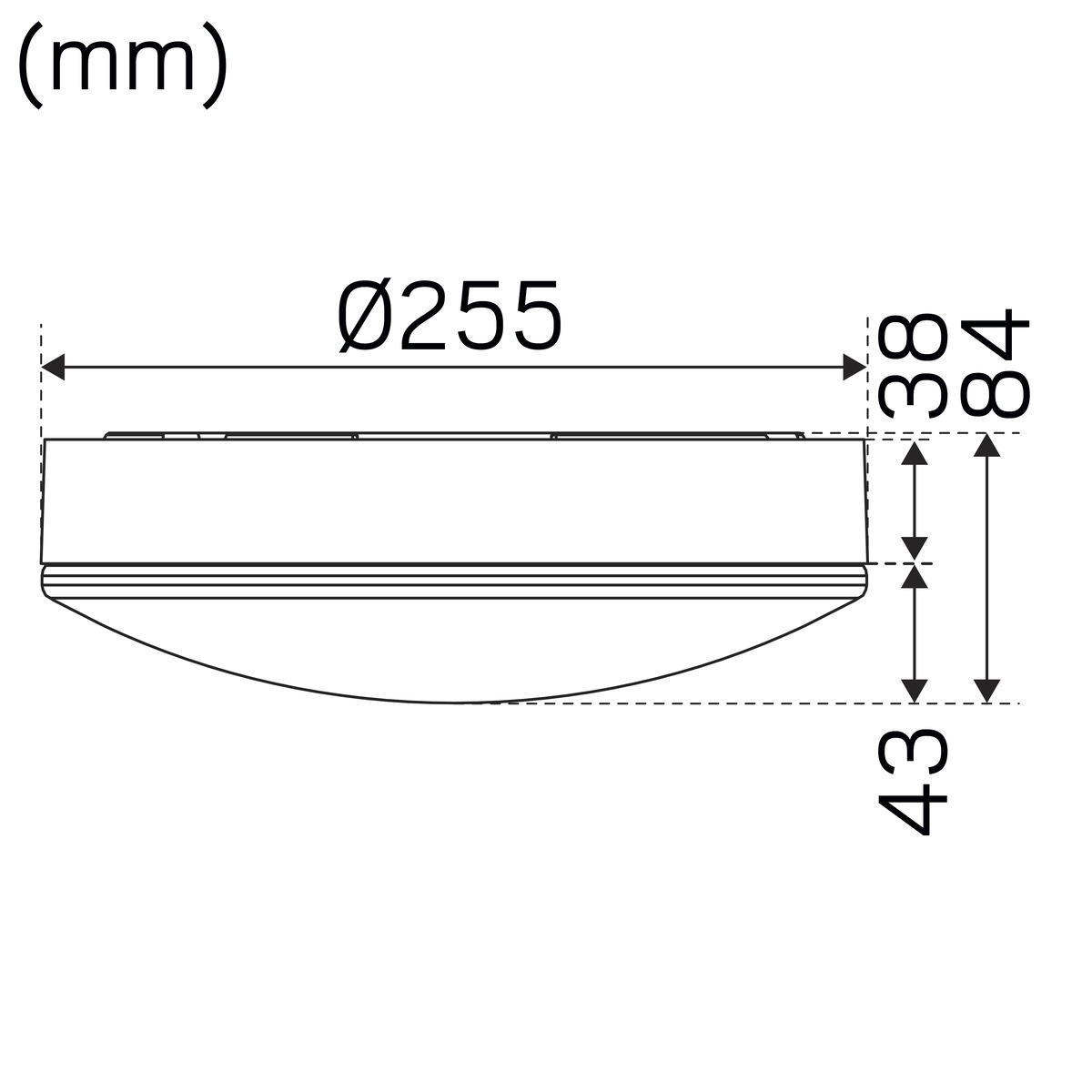

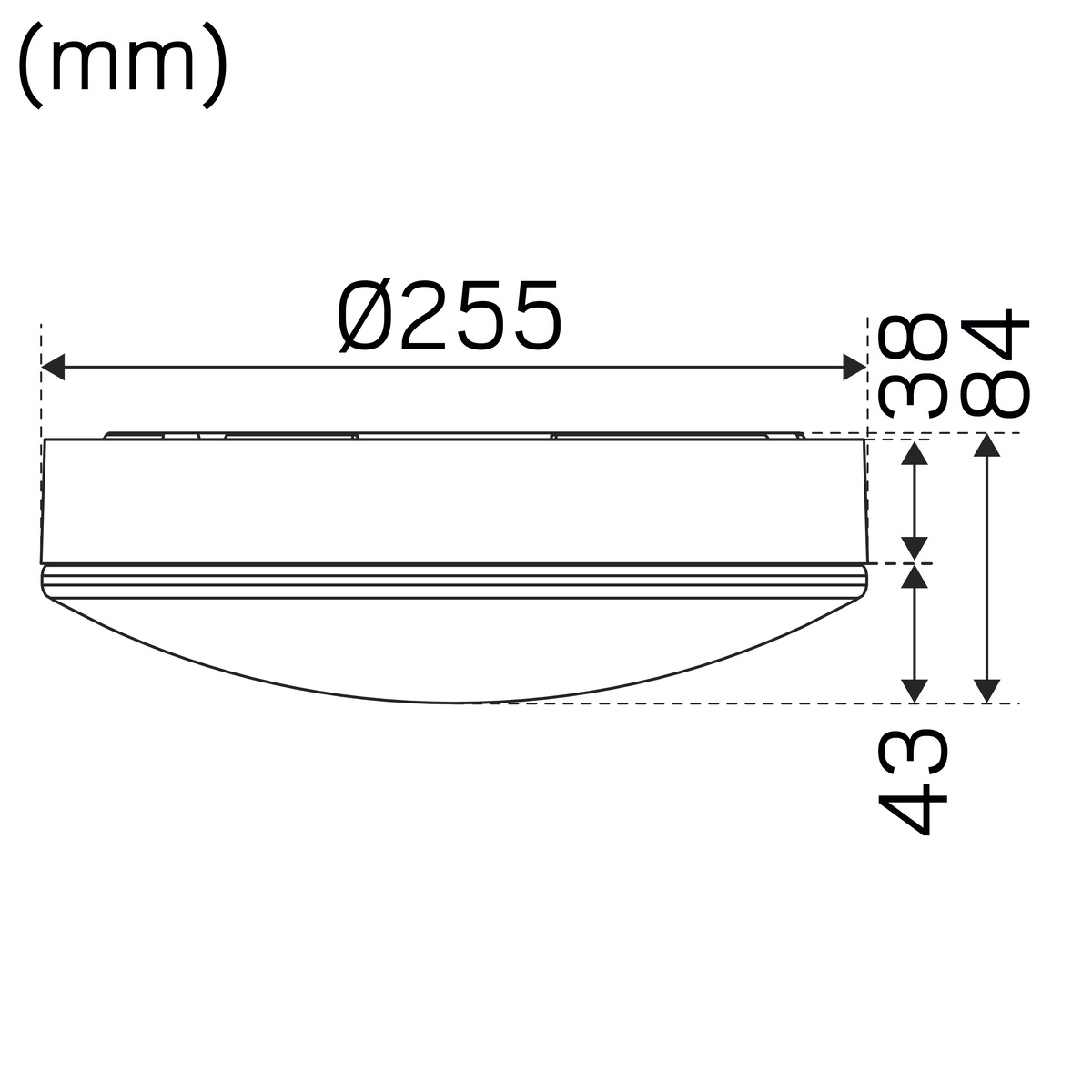

Height (mm) 84

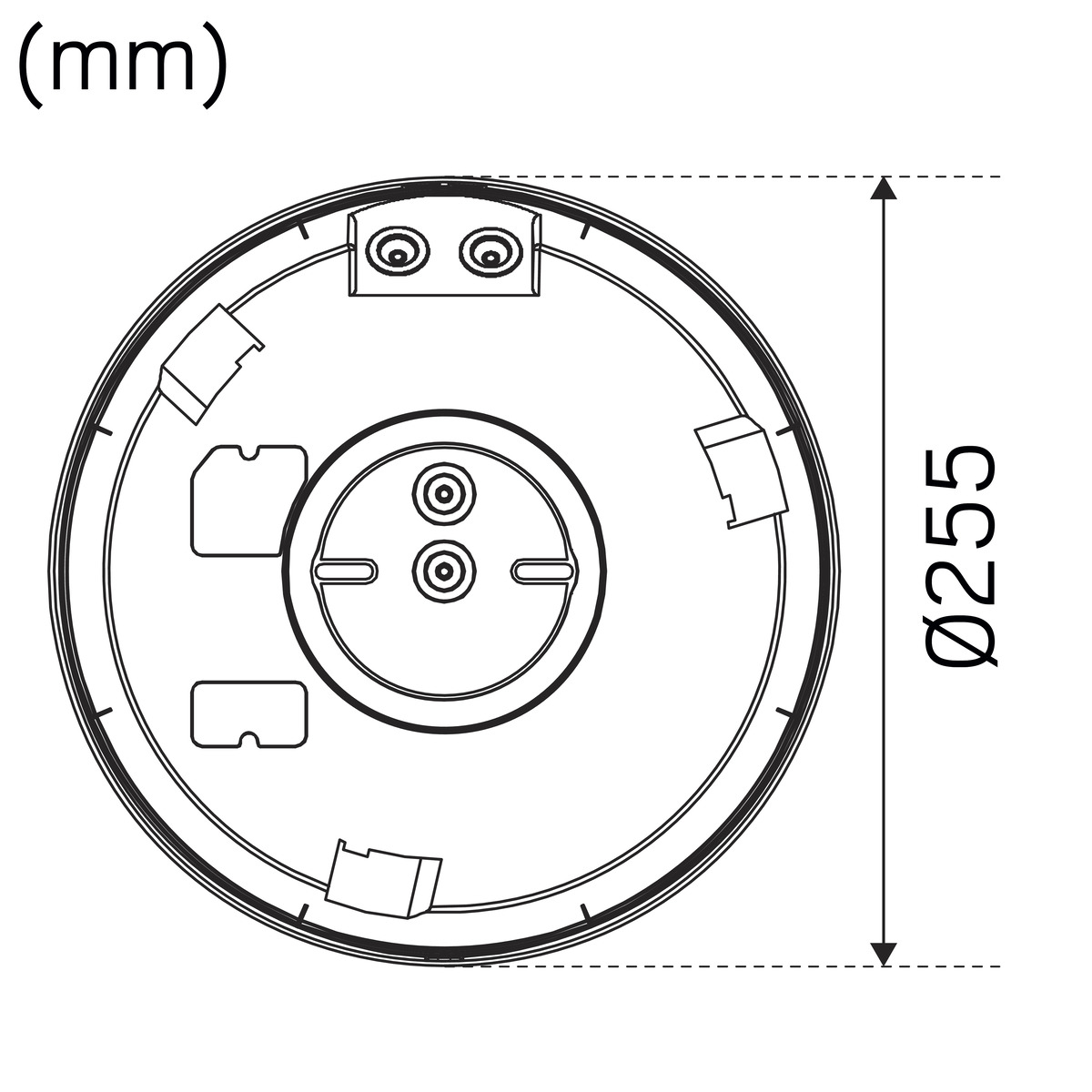

Diameter (mm) 255

Weight (kg) 0,67
