Comfort G3 Tilt

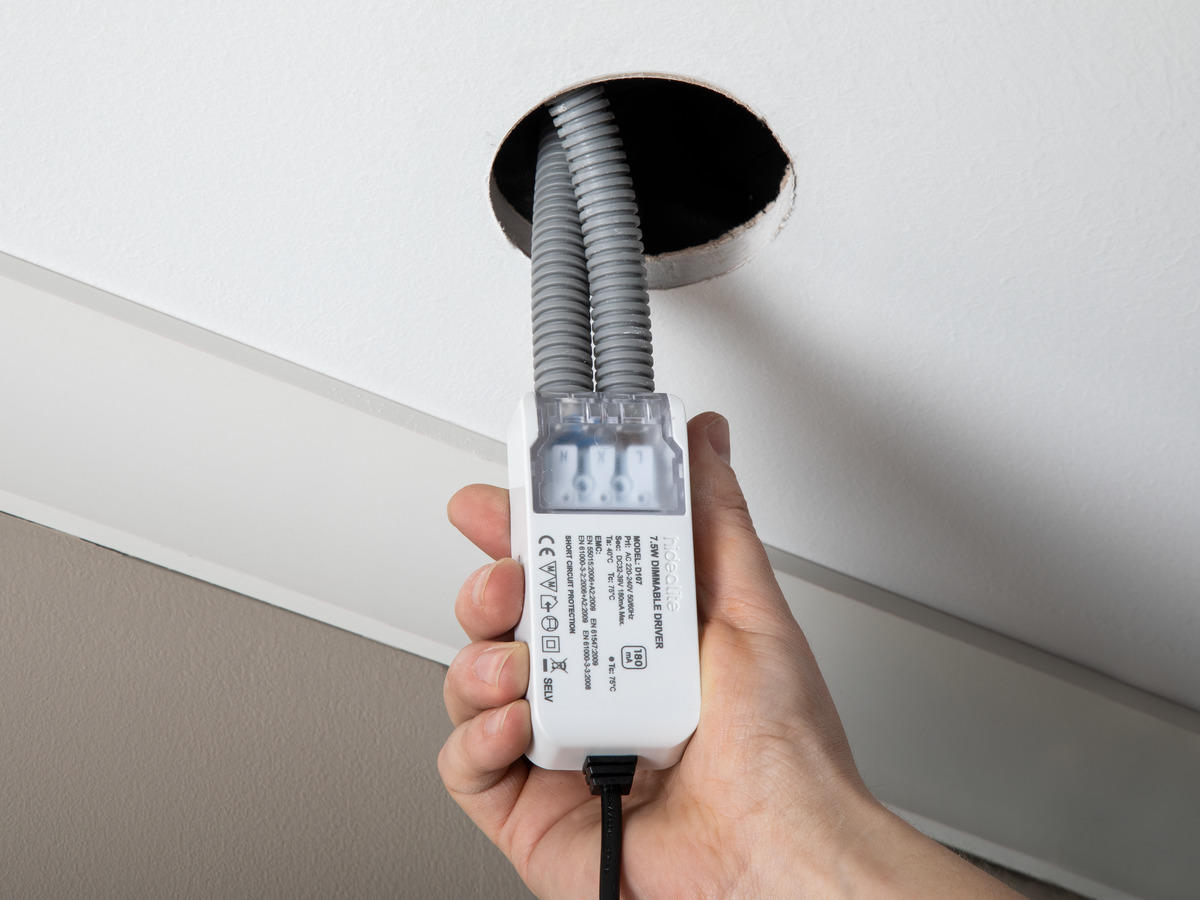

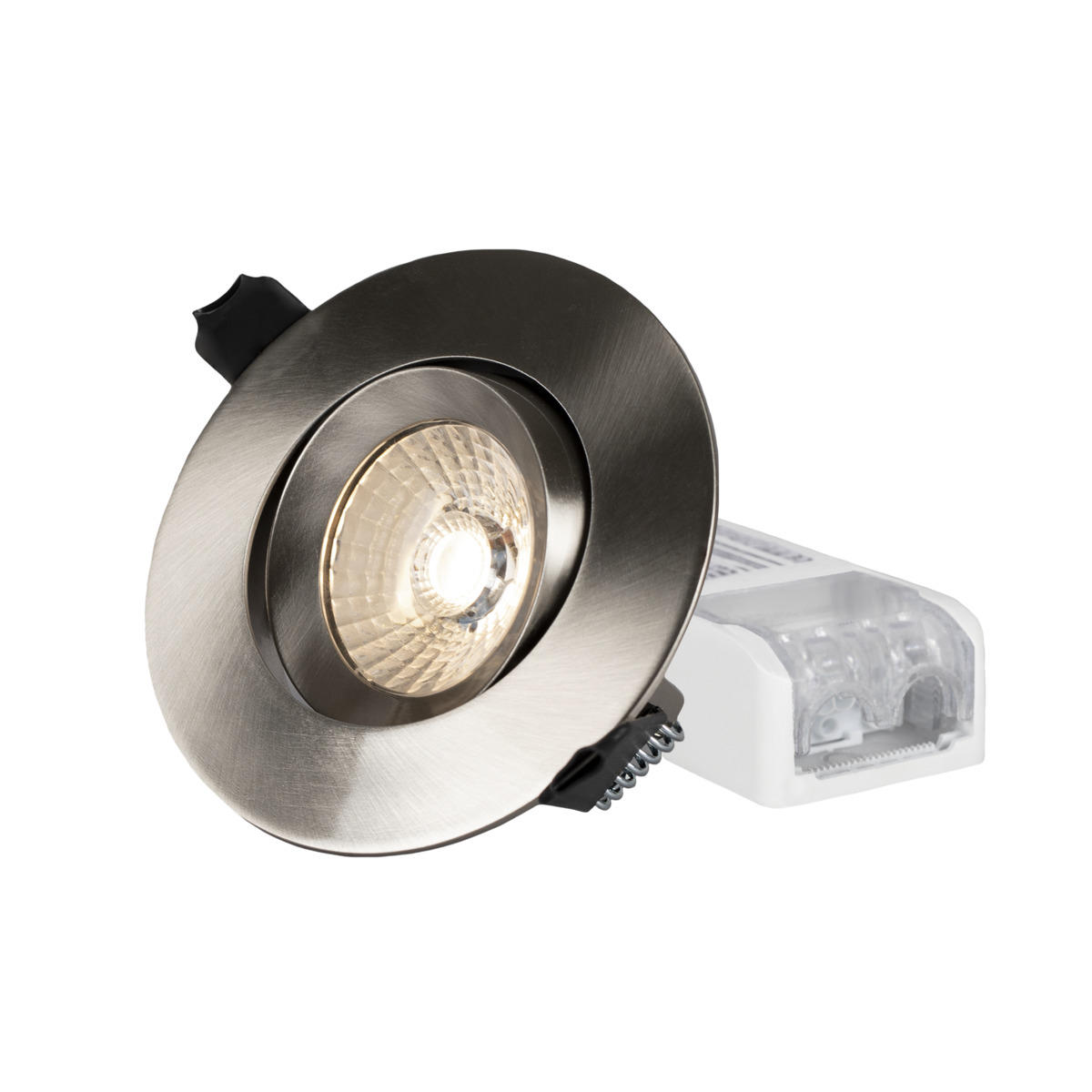

- Comes complete with mains dimmable driver for cable or flex hose 16mm

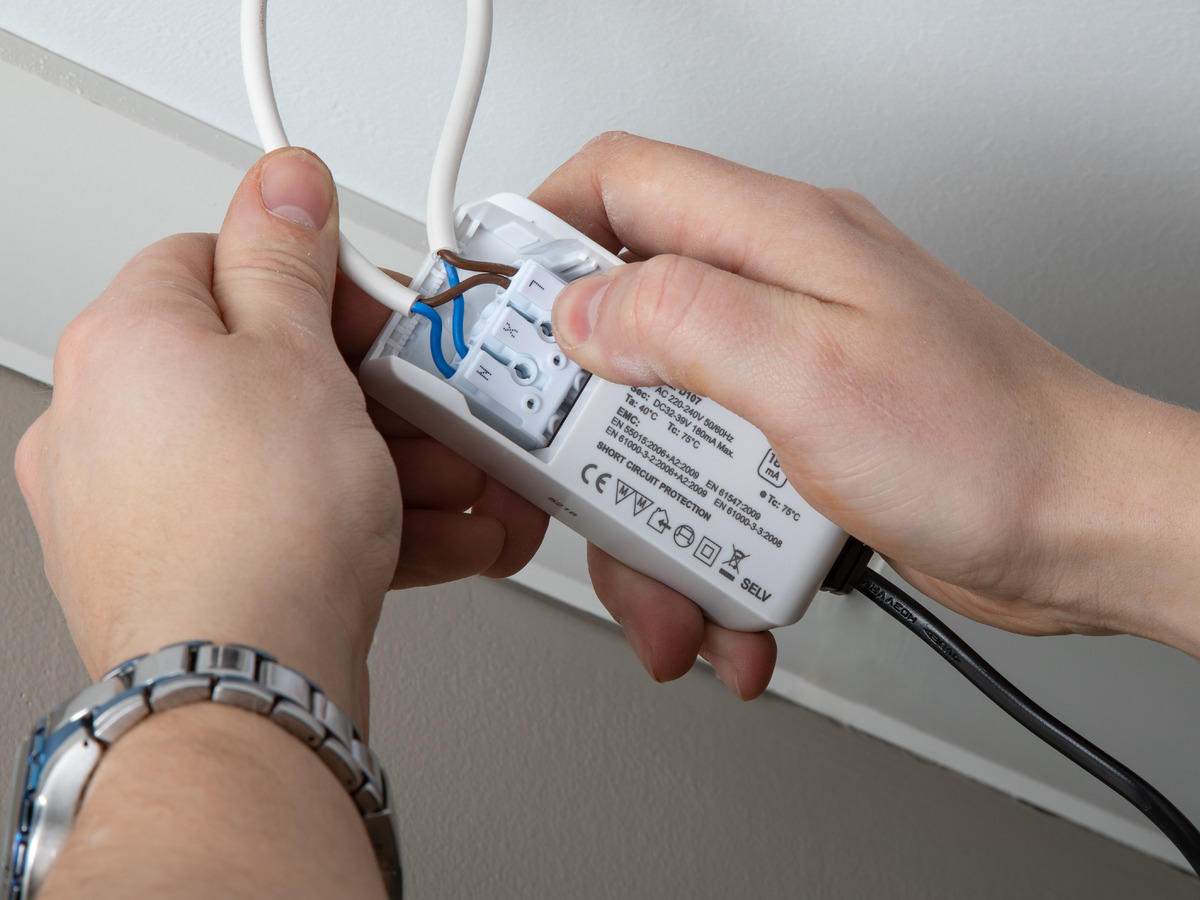

- Push-in, loop-in, loop-out terminal block and screwless strain relief

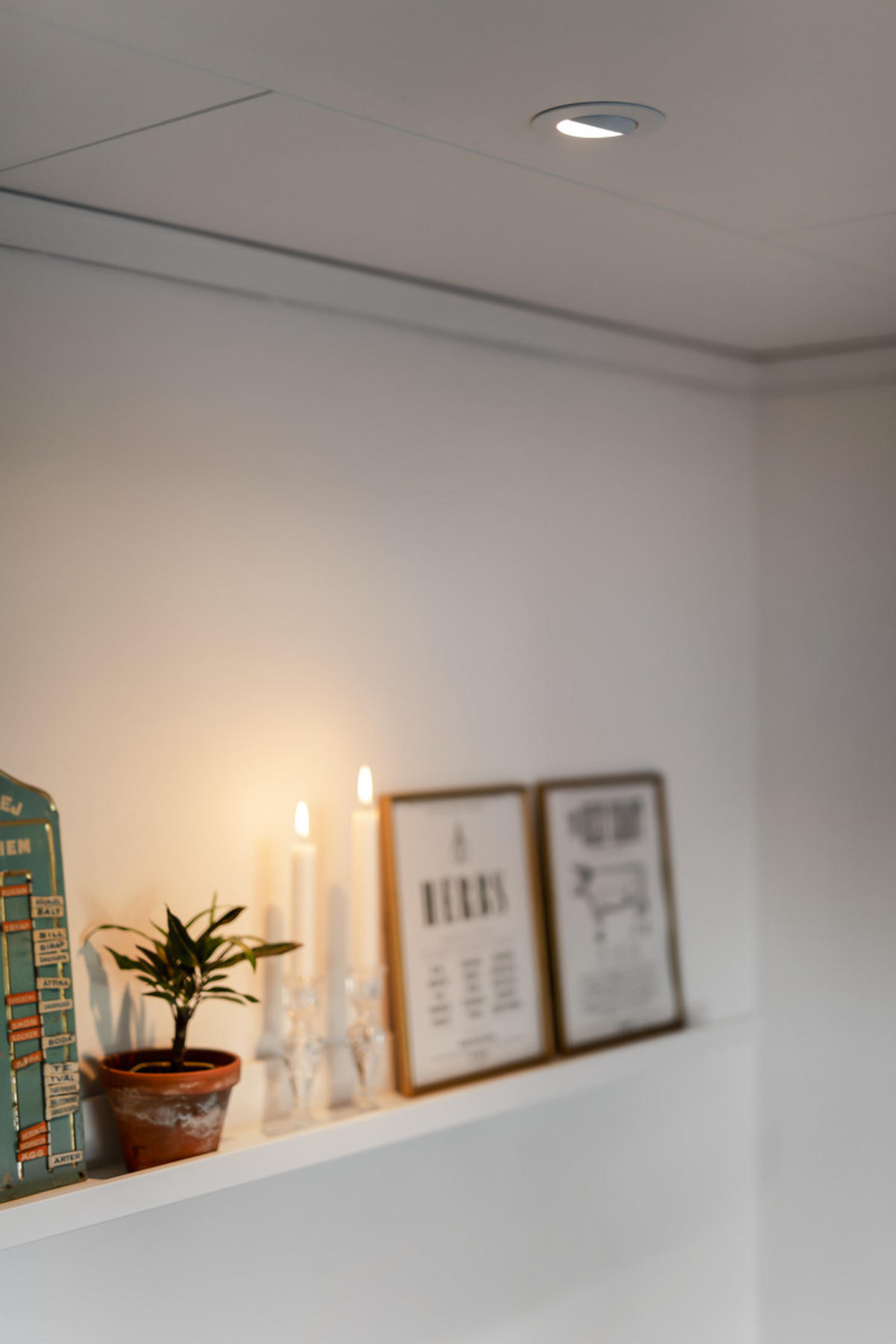

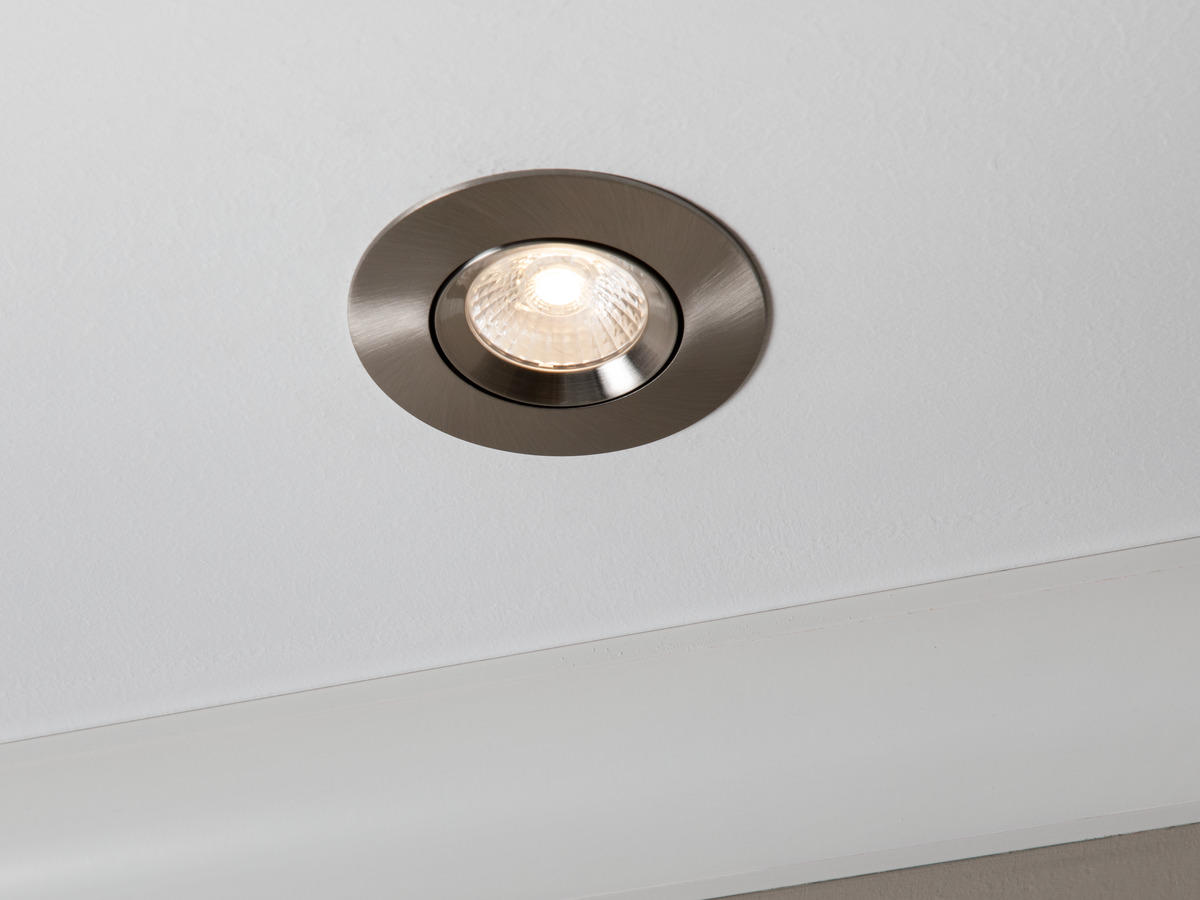

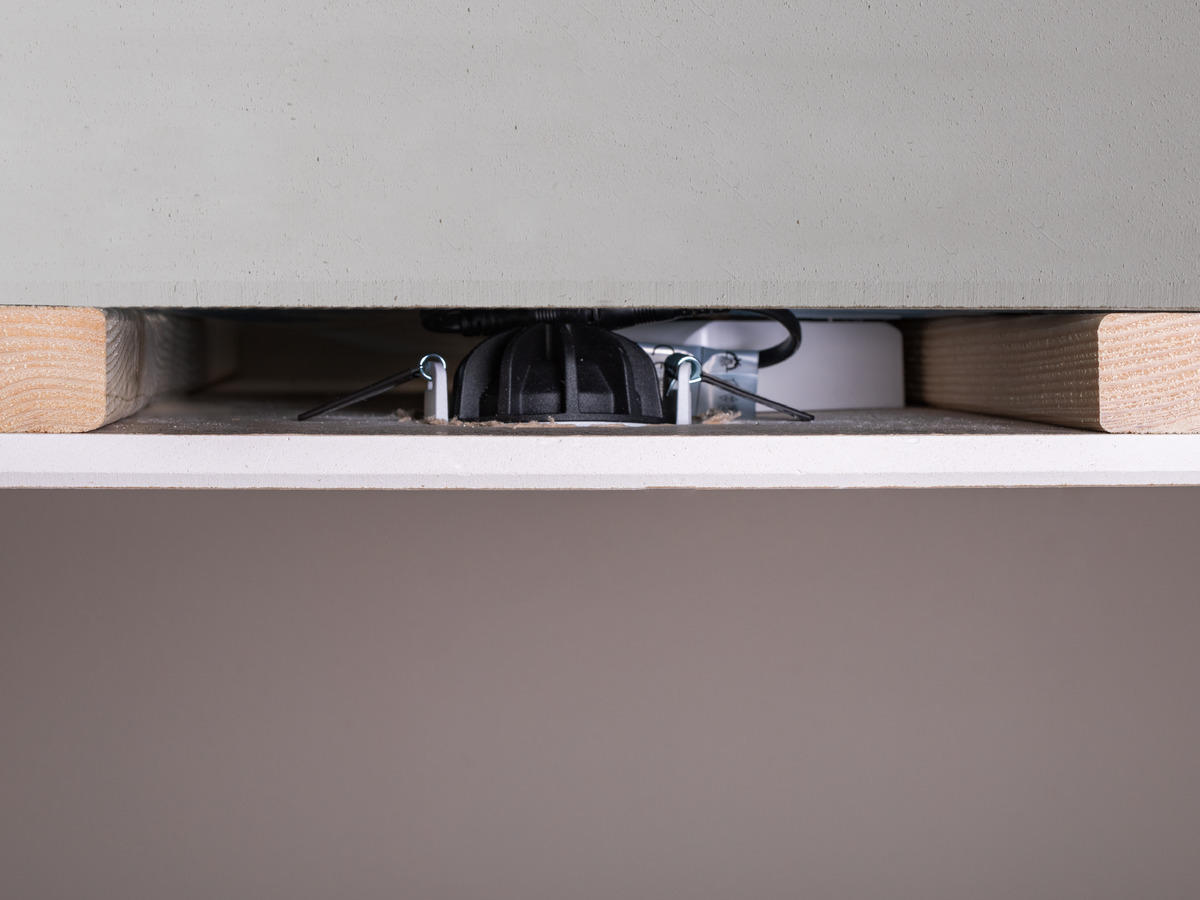

With its high lumen output, fantastic colour rendering and high efficiency, Comfort G3 is in a class of its own. High performance IP44 downlight, just as good for general lighting at home as in public spaces. Luminaire with Ø73-84mm cut-out. Can be installed in 28mm secondary spaced boarding with 13mm gypsum and Ø90mm cut-out. Complete with mains dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with the most commonly available dimmers on the market. Can be delivered with Converter DALI.

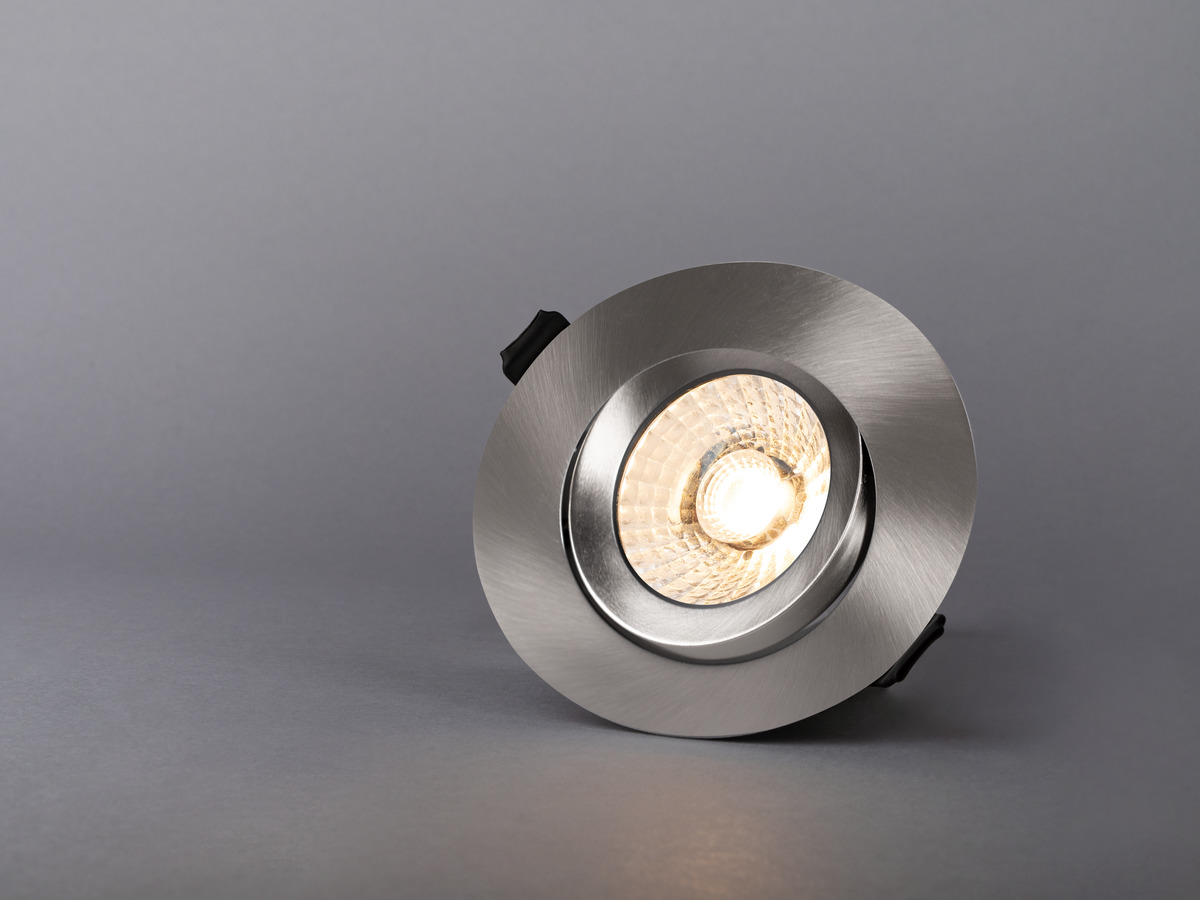

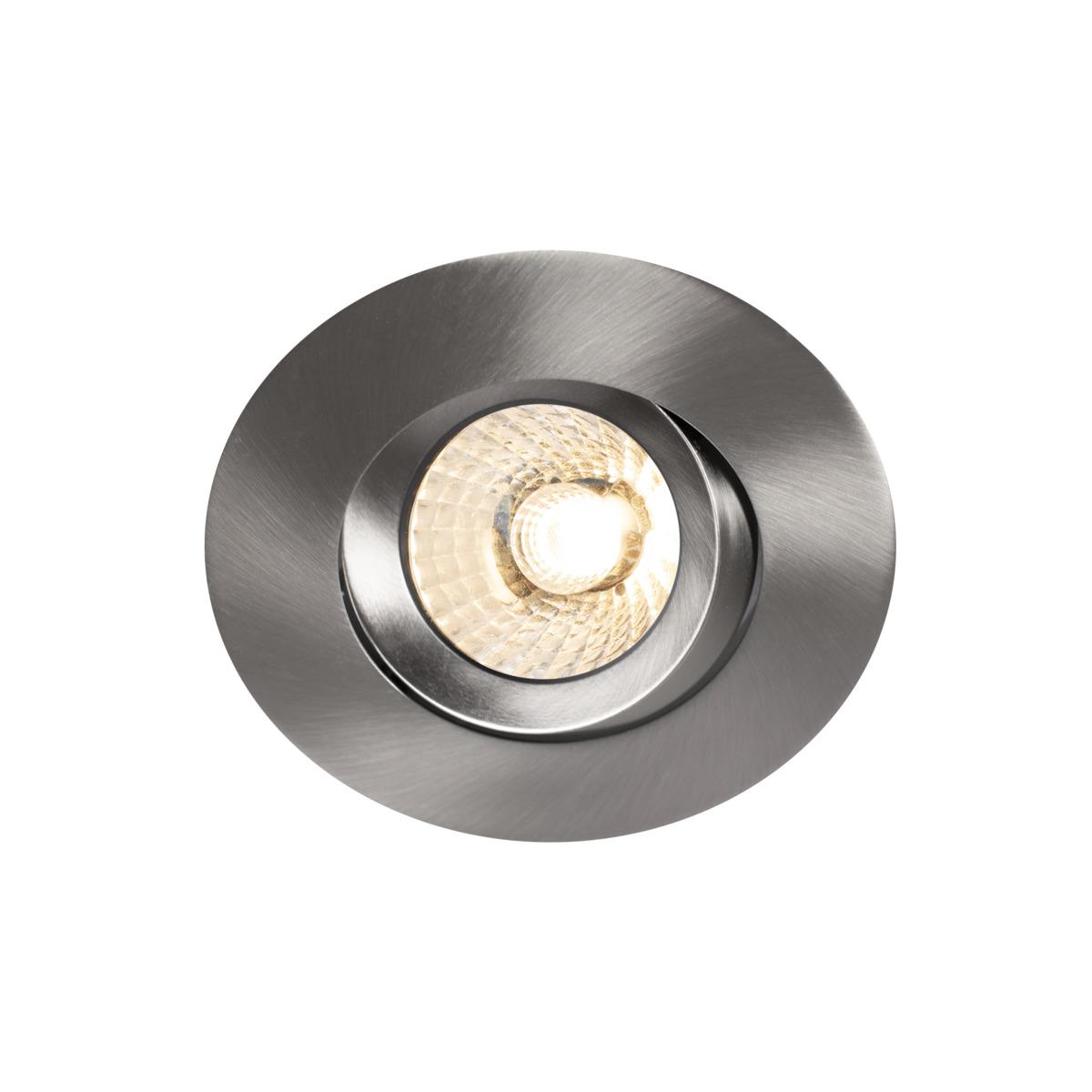

Comfort G3 Tilt Brushed steel 3000K
-
GTIN 7392971136004Item Name Comfort G3 Tilt Brushed steel 3000KWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 690Light Source LEDLight Source Included YesReplaceability Non-replaceaable LED, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >97Colour Consistency (SDCM) 3Luminous Intensity (cd) 1540Beam Angle (°) 36Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 50000Lumen maintenance 50 000h L90Lumen maintenance 75 000h L86Lumen maintenance 100 000h L82LLMF @ 50 000h 0,9LLMF @ 100 000h 0,82Life Time Driver 50 000h/10%
- Technical data
-
Adjustable YesTiltable (°) 25Voltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 6,5Power Luminaire (W) 7,5System Power (W) 7,5Efficiency Luminaire (lm/W) 92Efficiency System (lm/W) 92Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesType of Dimming Trailing Edge, Leading EdgeDriver Included YesDriver Model Constant CurrentDriver Type Stand AloneConnection (type) Quick TerminalConnection (mm2) 3x0,5-2,5Through Wiring YesStrain Relief YesConstant Current (mA) 180Operating TemperatureMax. Tc (°C) 85Dimming secondary side AMMemory Function Power Failure NoFuse B10 (pcs) 55Fuse B16 (pcs) 87Fuse C10 (pcs) 91Fuse C16 (pcs) 146
- Color and material
-
Material Diecasted, AluminiumColor Brushed SteelEnvironmental Assessment SundaHus, Byggvarubedömningen
- Measurement and installation
-

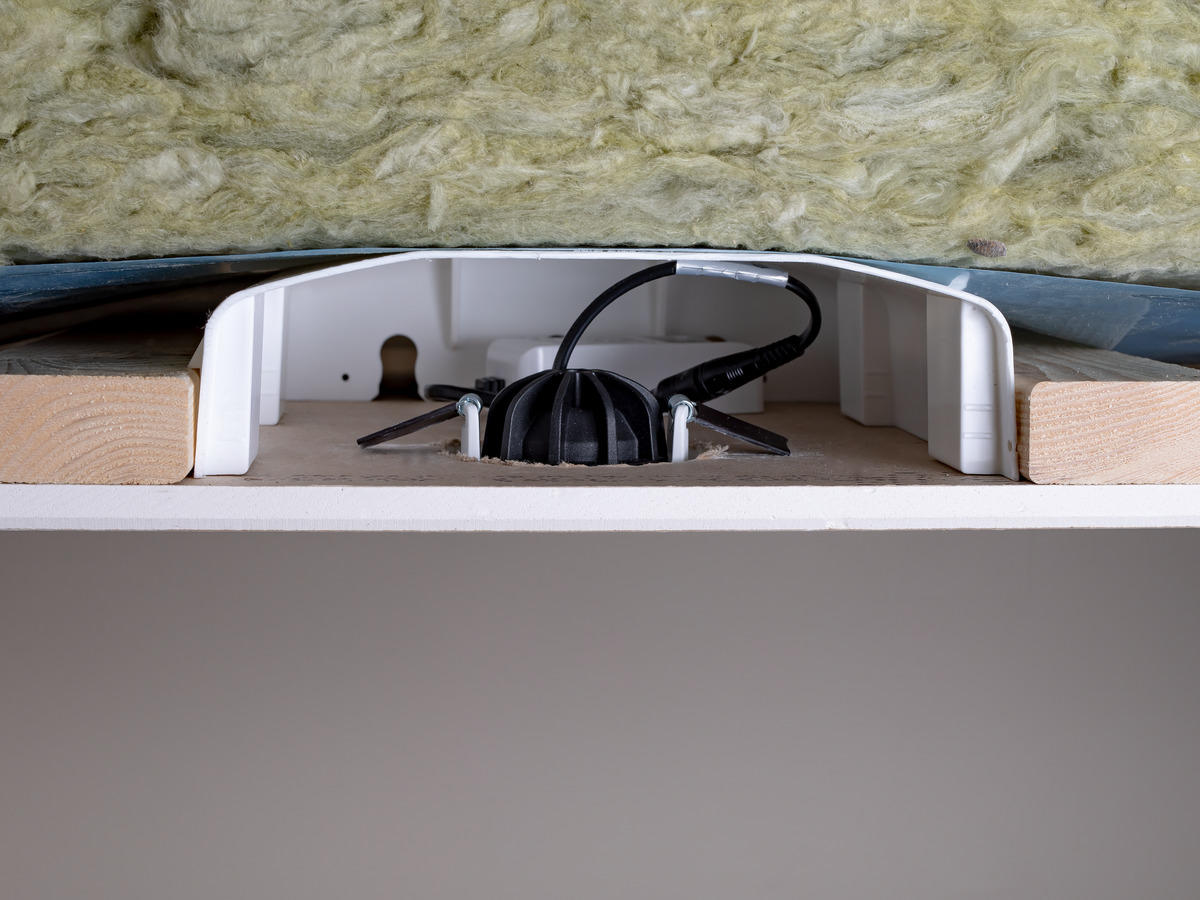

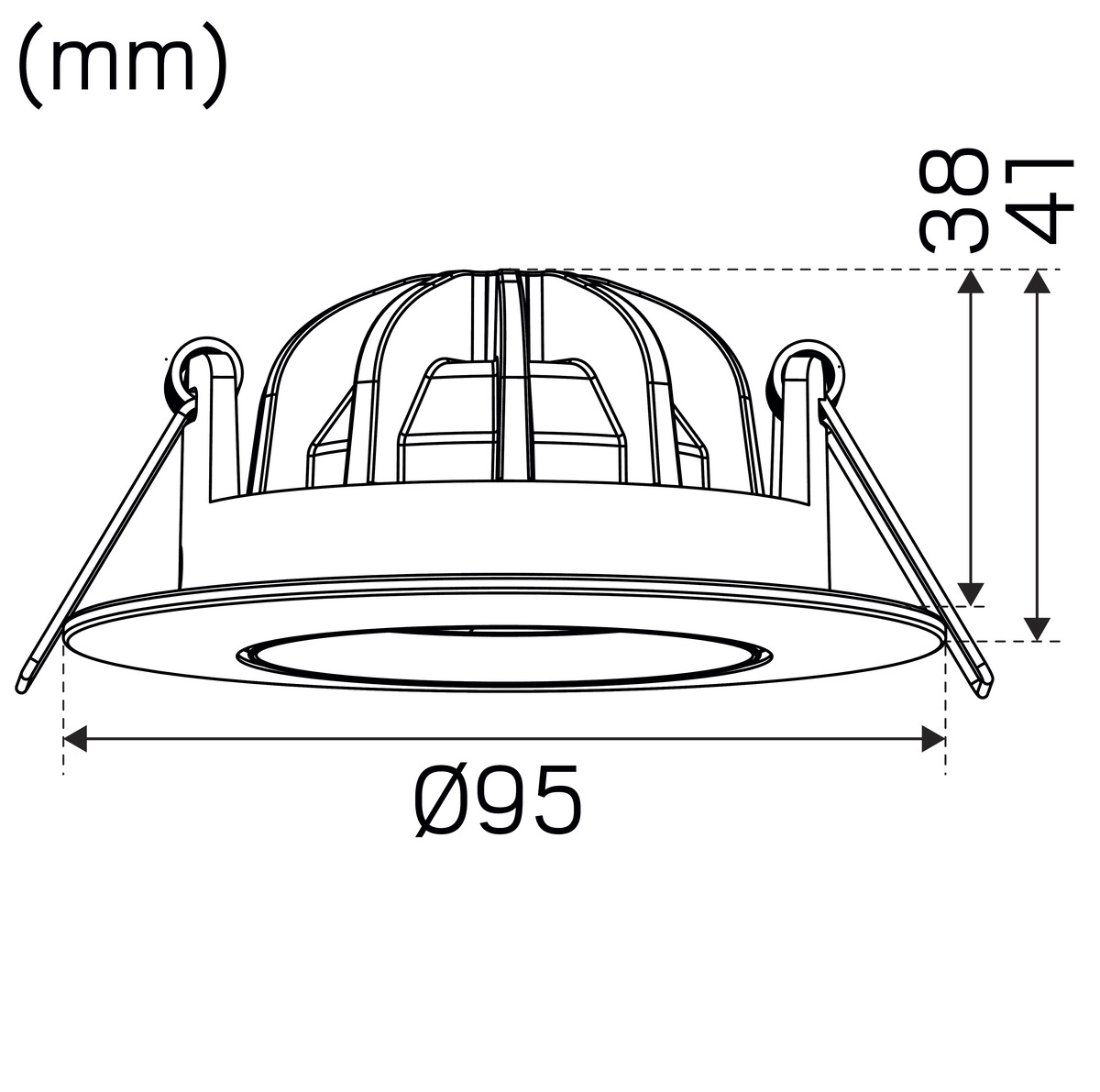

Operating EnvironmentIP Degree of Protection 44Protection Class IIInstallation Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-26Fire Safety Marks Not in insulation without protection coverProtection Cover 7466700, 7466701, 7466702Approval Marks CE, SELVHeight (mm) 41Diameter (mm) 95Weight (kg) 0,3Min. Built-in (mm) 400x230x28Height Recessed Part (mm) 38Height Exterior Part (mm) 3Built-in Ø (mm) 73-84
