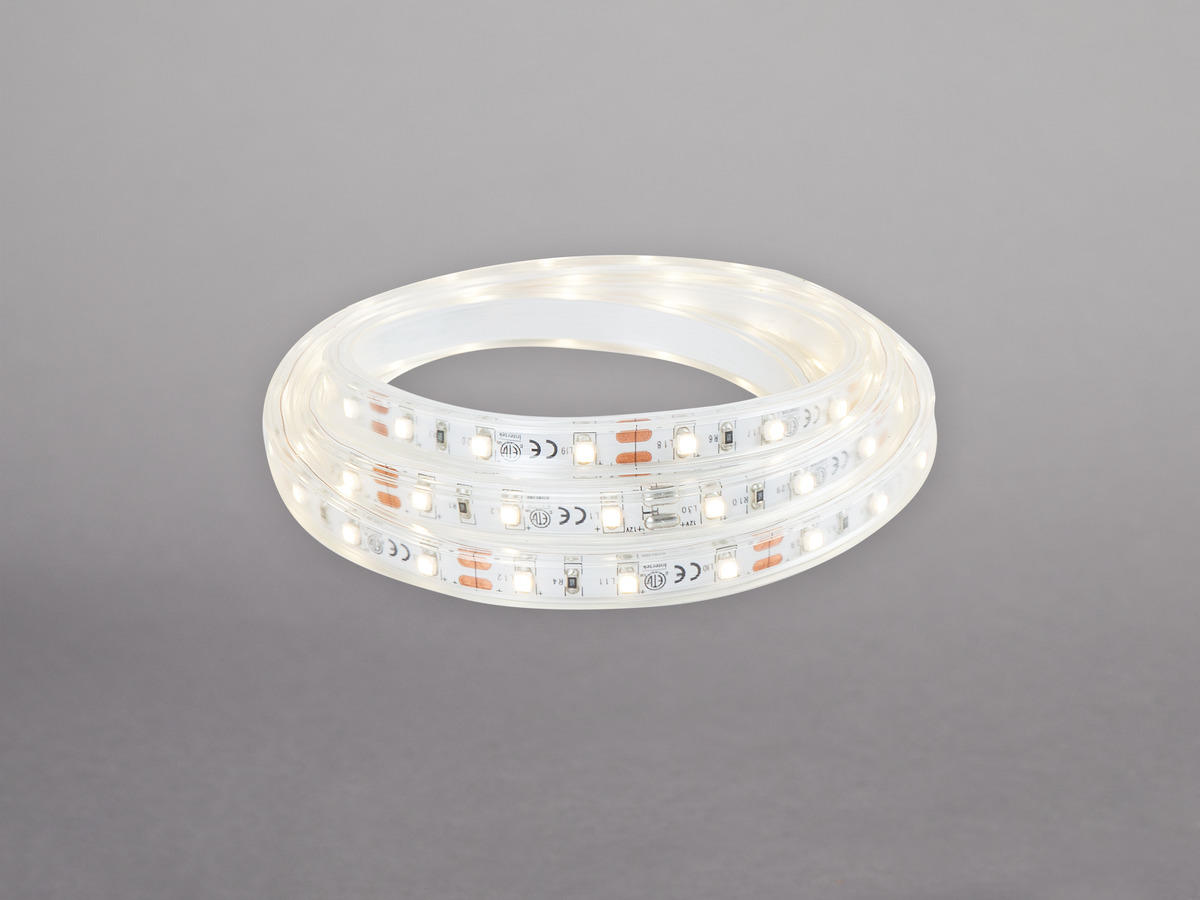

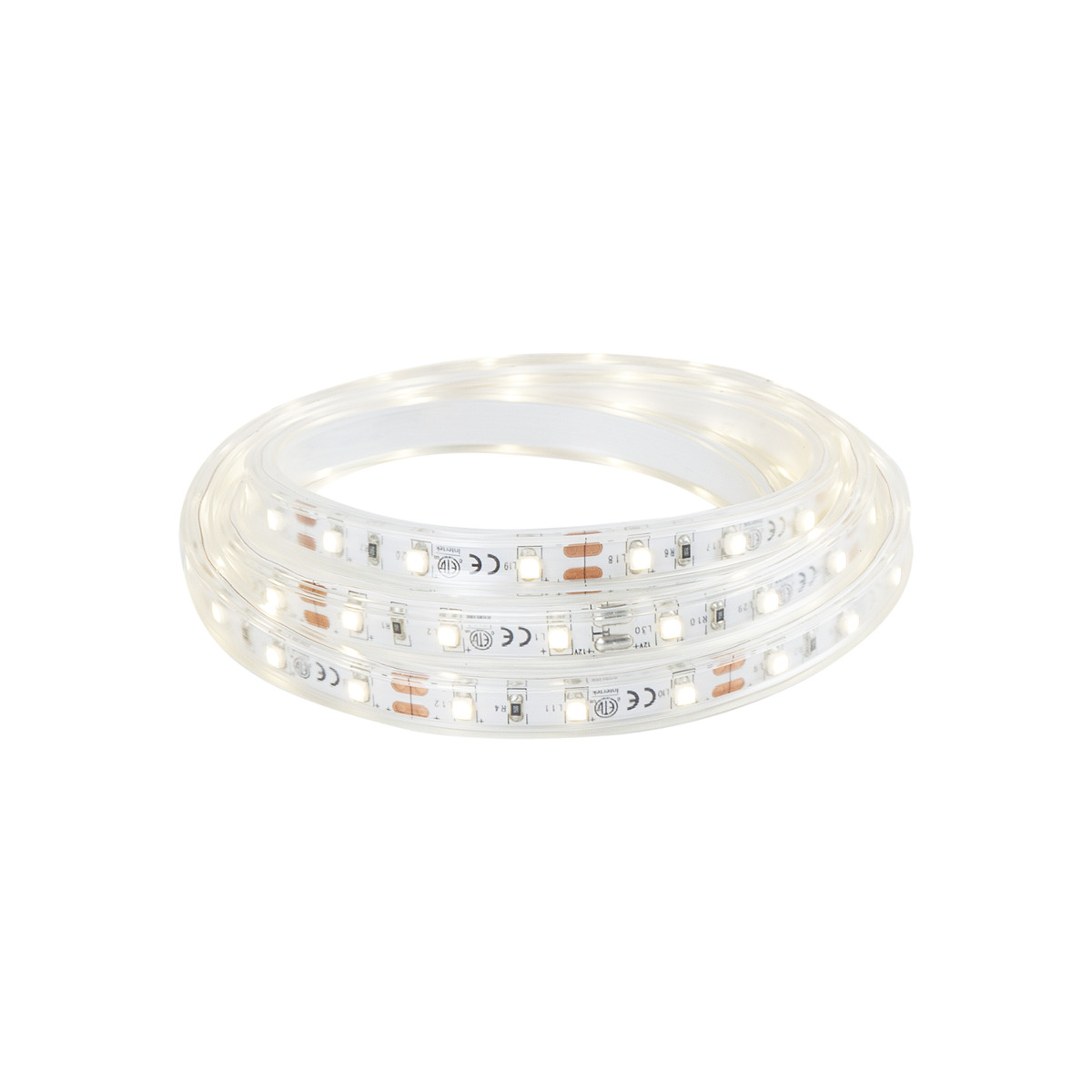

LEDstrip 12V R IP67

Comes with self-adhesive tape, clips and quick connection (5m)
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

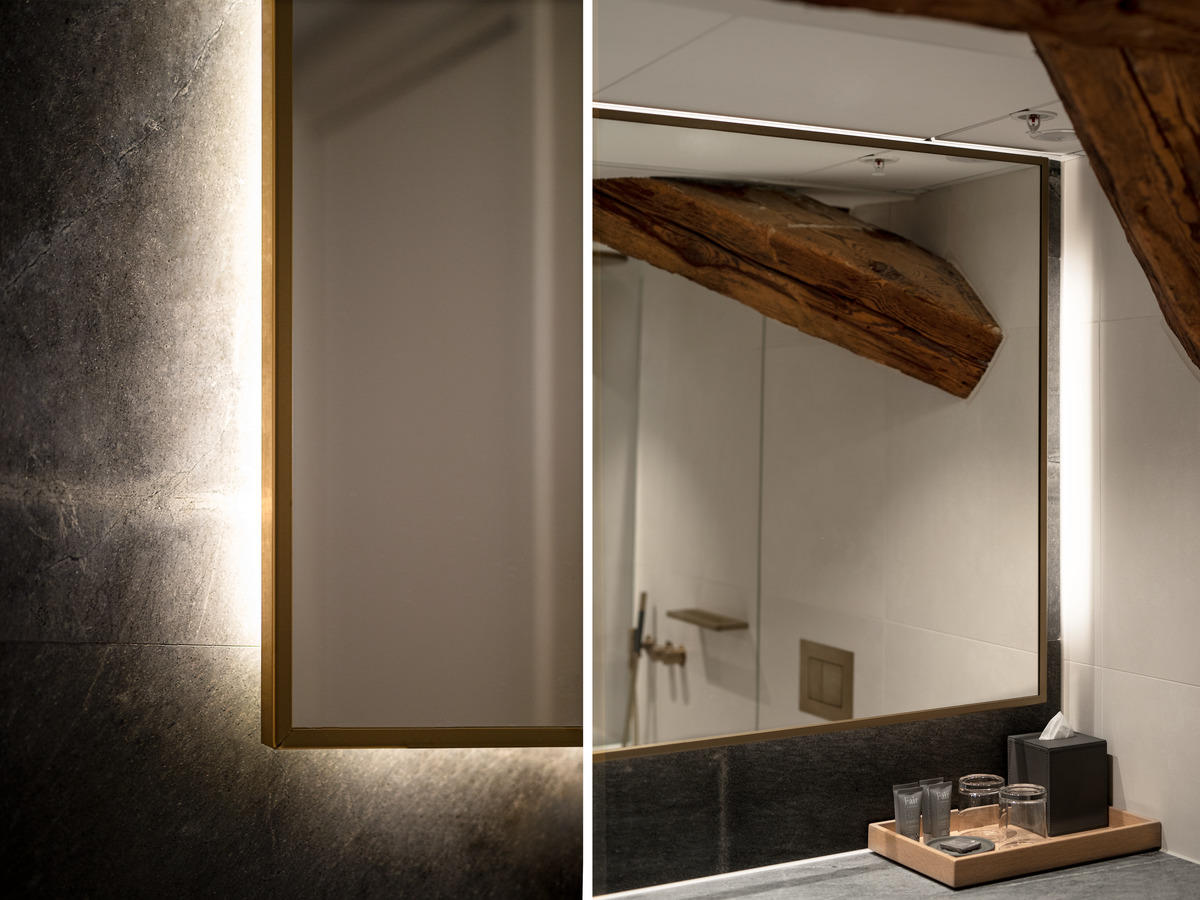

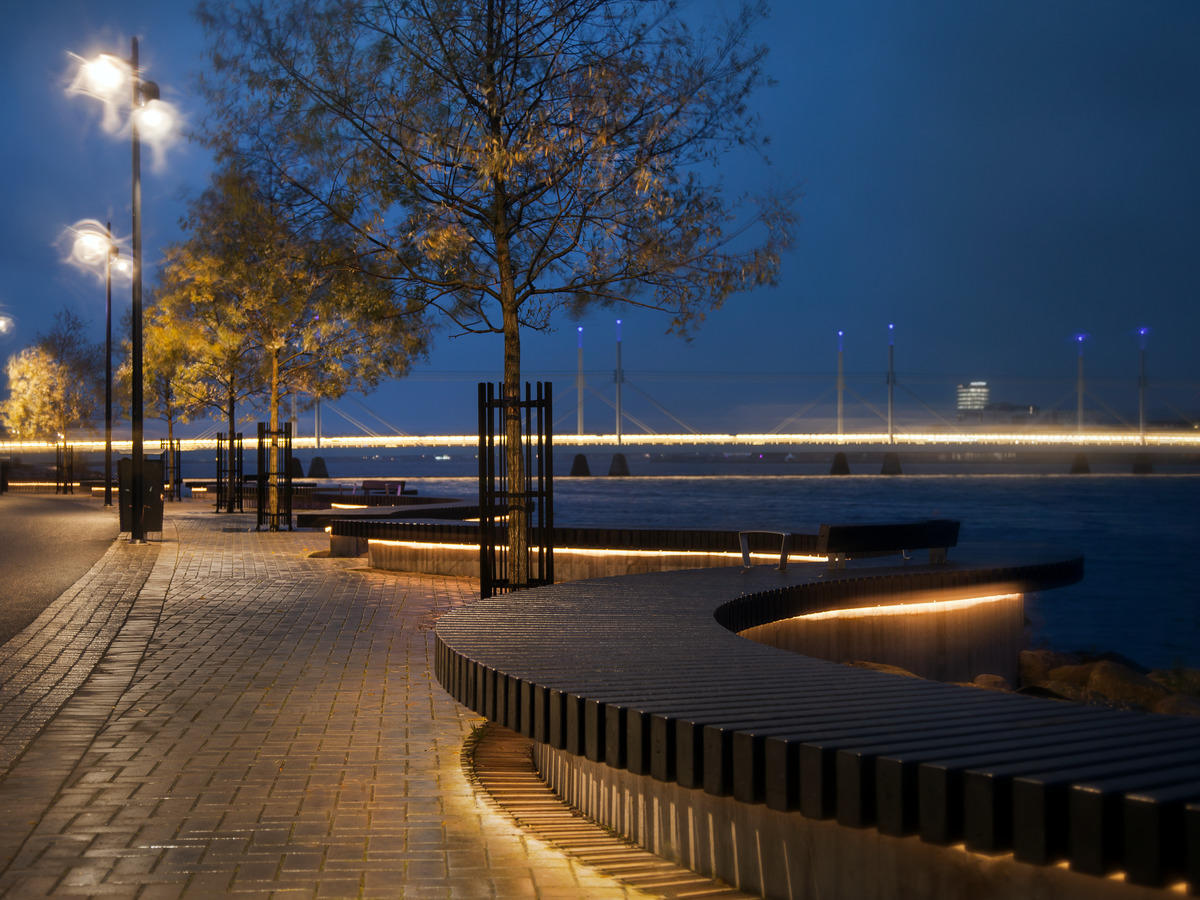

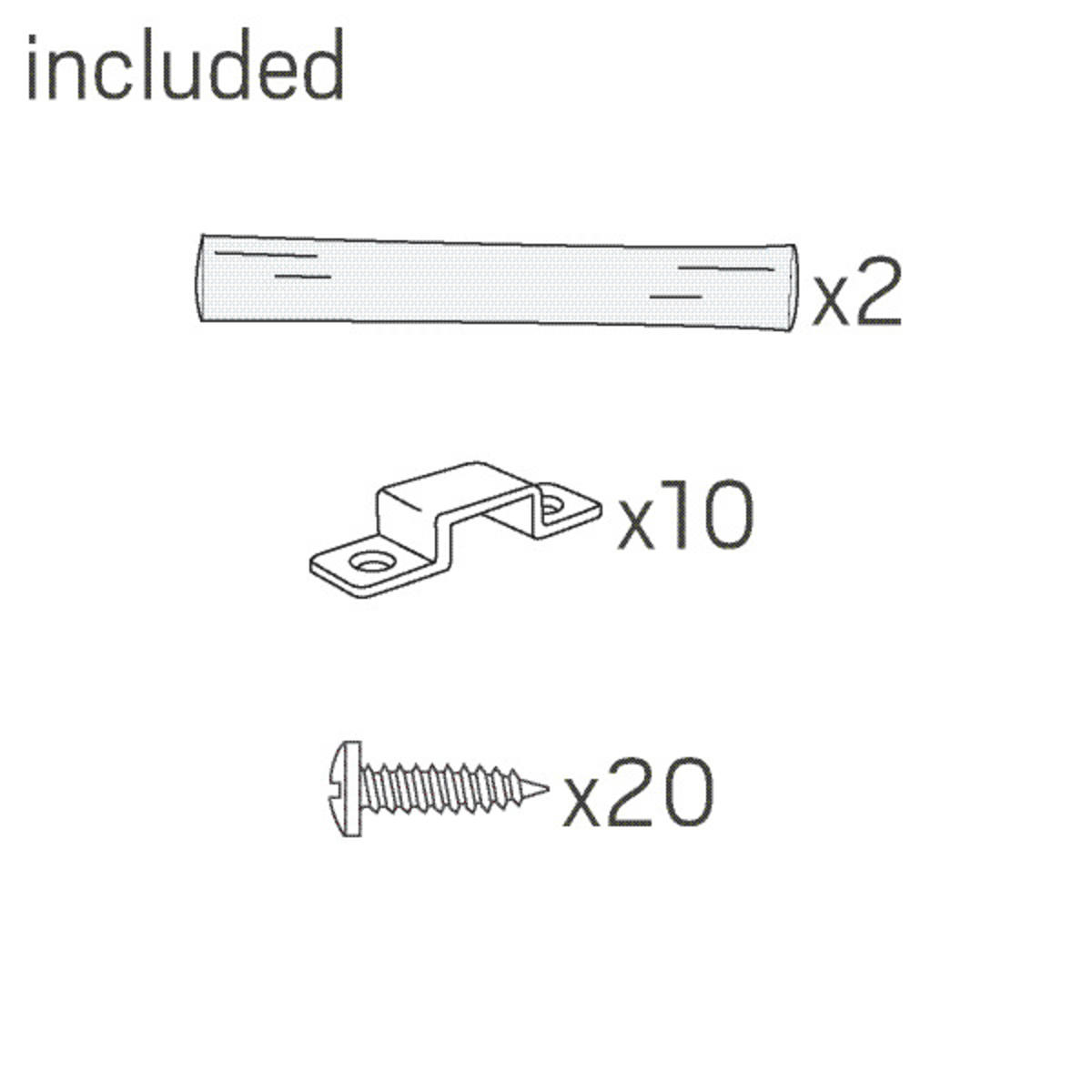

Flexible LED strips with very good colour rendering, Ra>90, and lumen output adjusted to attain a beautiful fill and raking light. The high IP degree of protection means it is suitable as decoration lighting for both indoor and outdoor use, such as a stair rail or illuminating lines around a shop window. Suits our range of aluminium profiles perfectly. Comes with 2 m of connecting cable at each end, 2pcs shrink hoses, 10pcs clips, 20pcs screws and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. LEDstrip 12V has a somewhat lower lumen output than LEDstrip 24V. Drivers are ordered separately according to required dimmer technology and placing.

Variants	GTIN	Item Name	Luminaire Lumen (lm)
	7392971125602	LEDstrip R IP67 12V 3000K 5m	1275
	7392971125619	LEDstrip R IP67 12V 3000K lpm	255

Description: GTIN 7392971125602

Item Name LEDstrip R IP67 12V 3000K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1275

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 75

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 300

LED Pitch (mm) 16

Life Time L70 40 000h Ta 25°C

Nominel Life Time (h) 40000
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 12...12

Voltage Nominal (V) 12

Power Luminaire (W) 24

System Power (W) 26,4

Efficiency Luminaire (lm/W) 53

Efficiency System (lm/W) 48

Energy Efficiency Class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 2x0,5

Length Connection Secondary (cm) 200

Operating Temperature -20…+40
Color and material: Material Copper, PVC

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

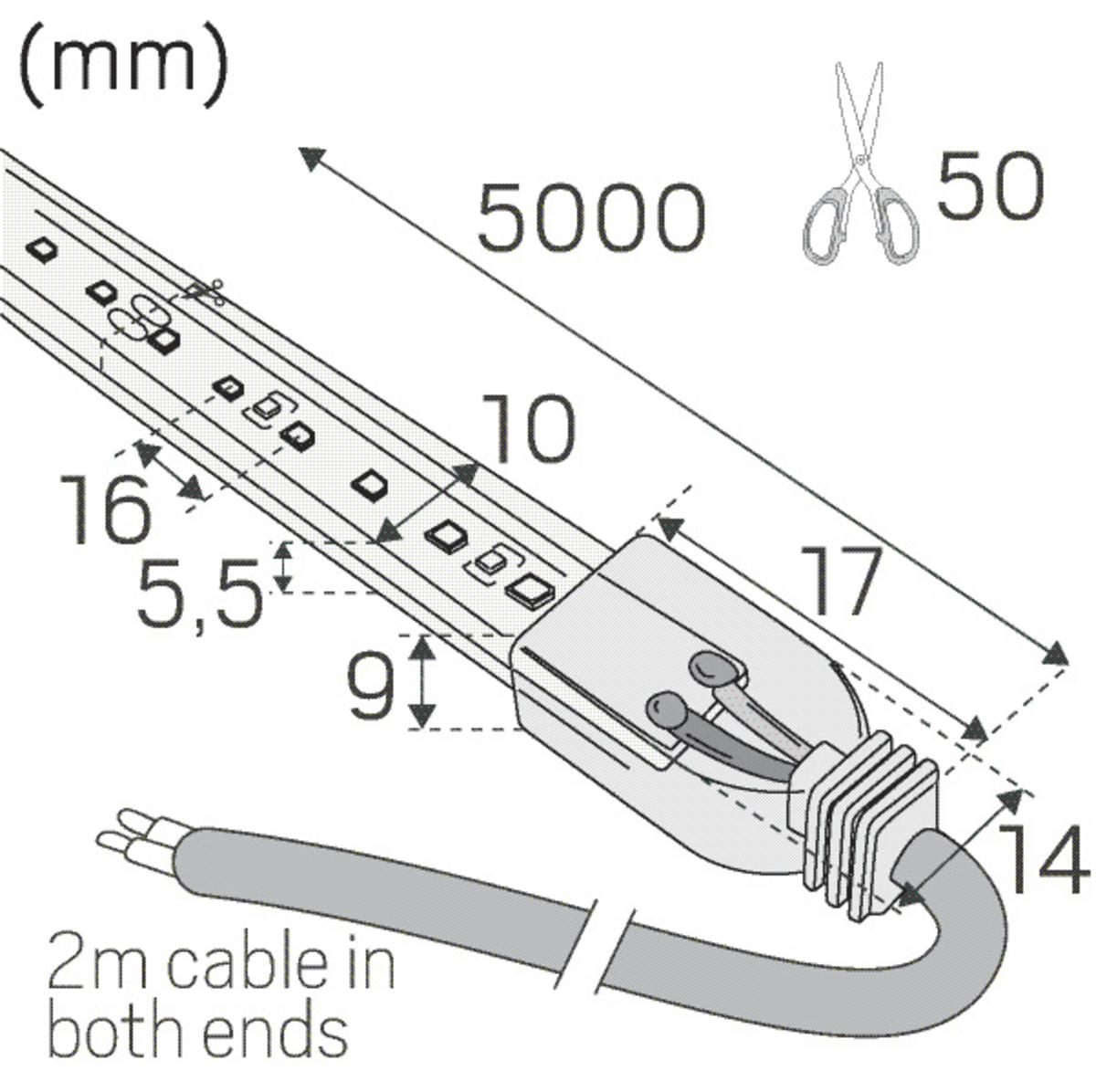

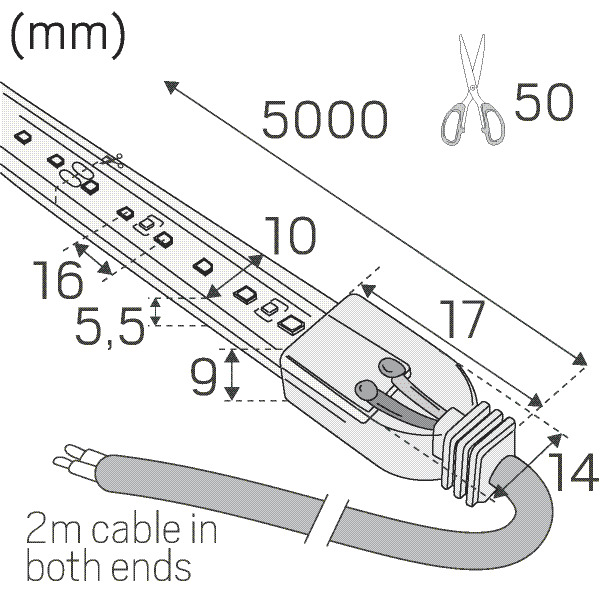

Length (mm) 5000

Width (mm) 10

Height (mm) 6

Weight (kg) 0,36
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,05

Max. Length (m) 10

Cutting Increments (mm) 50
