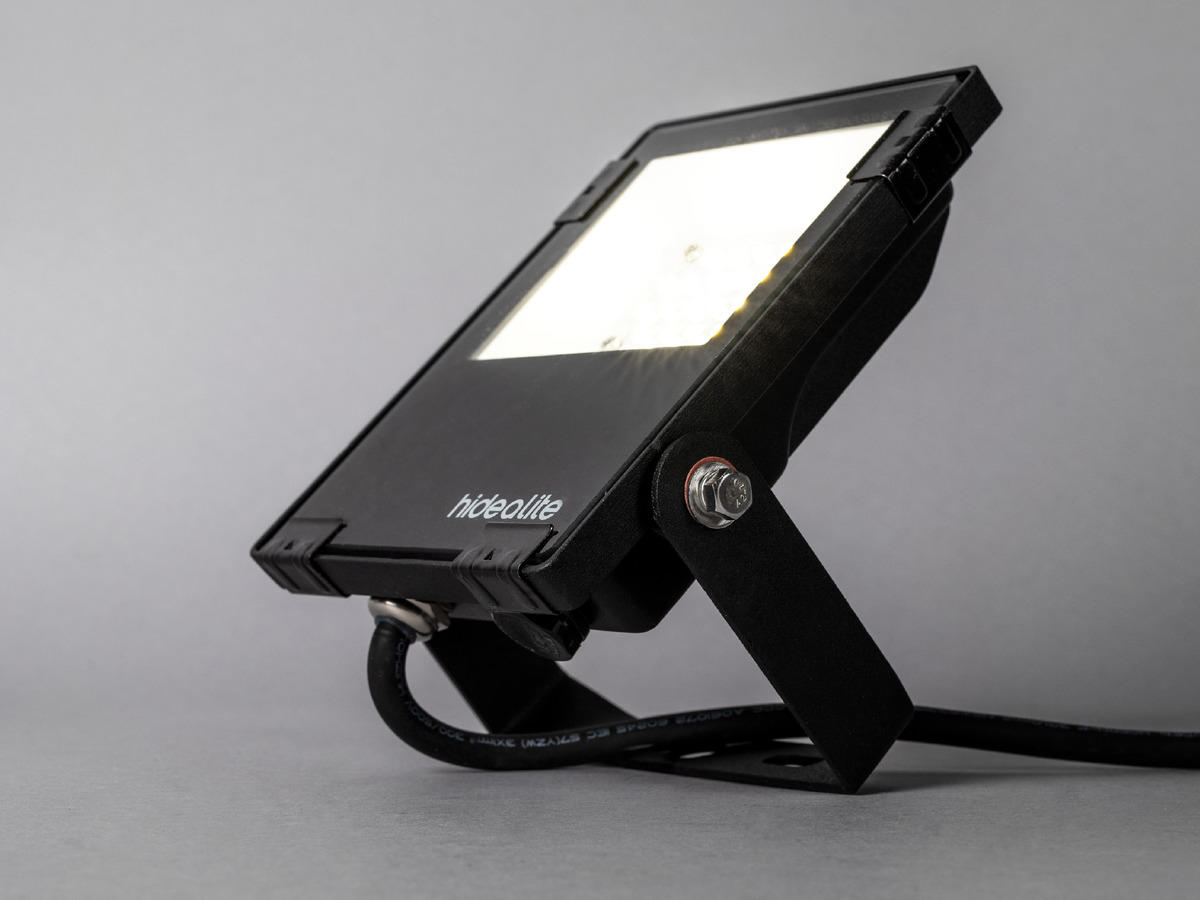

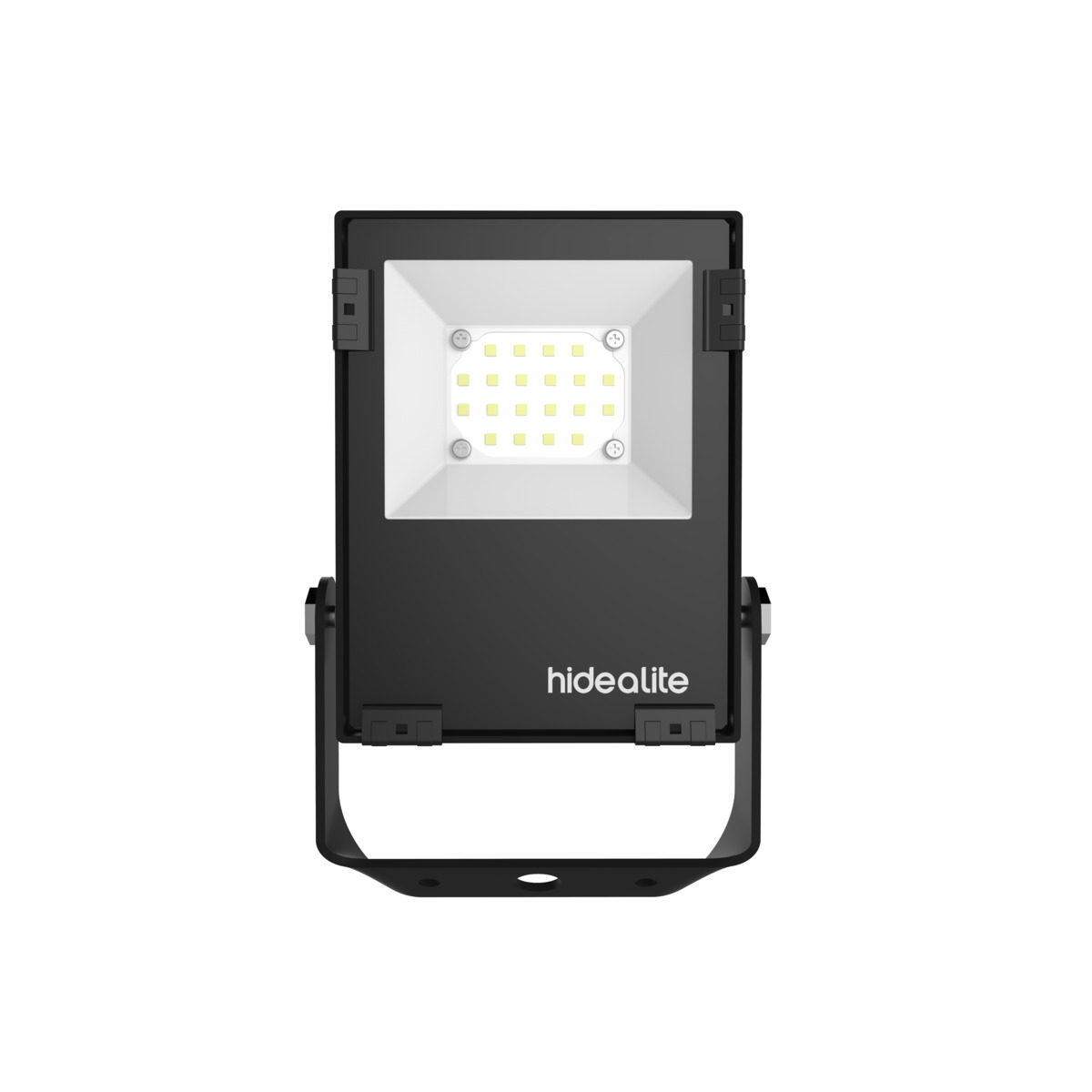

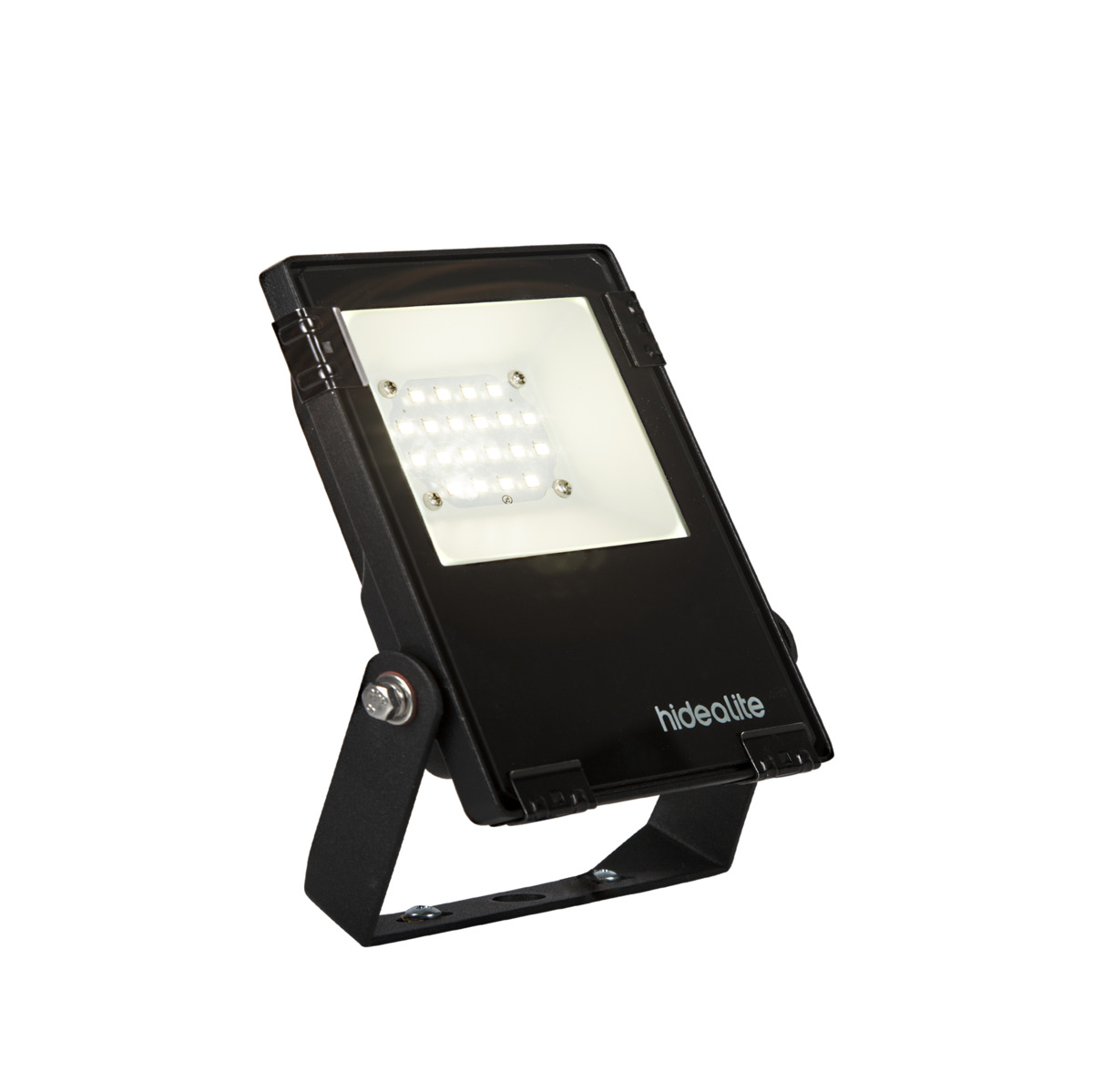

Scout 10

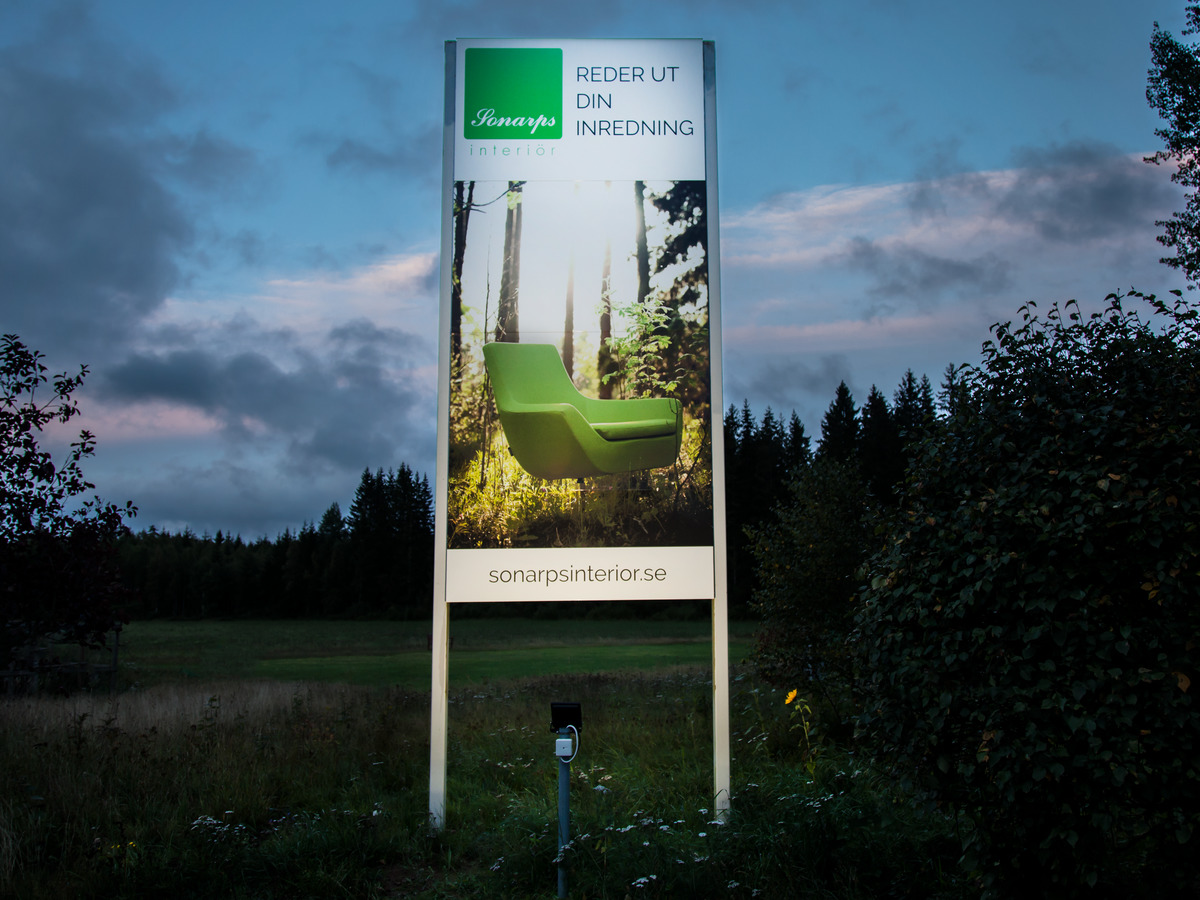

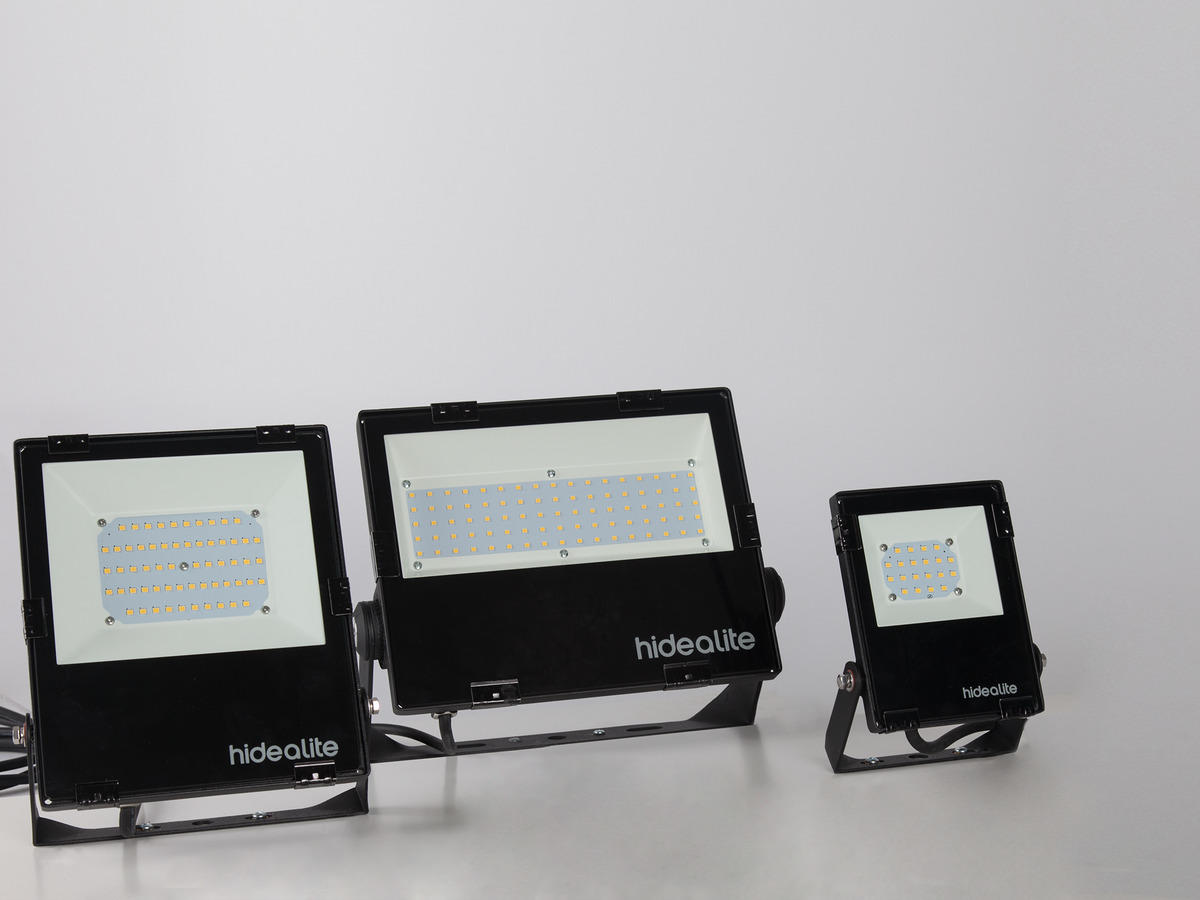

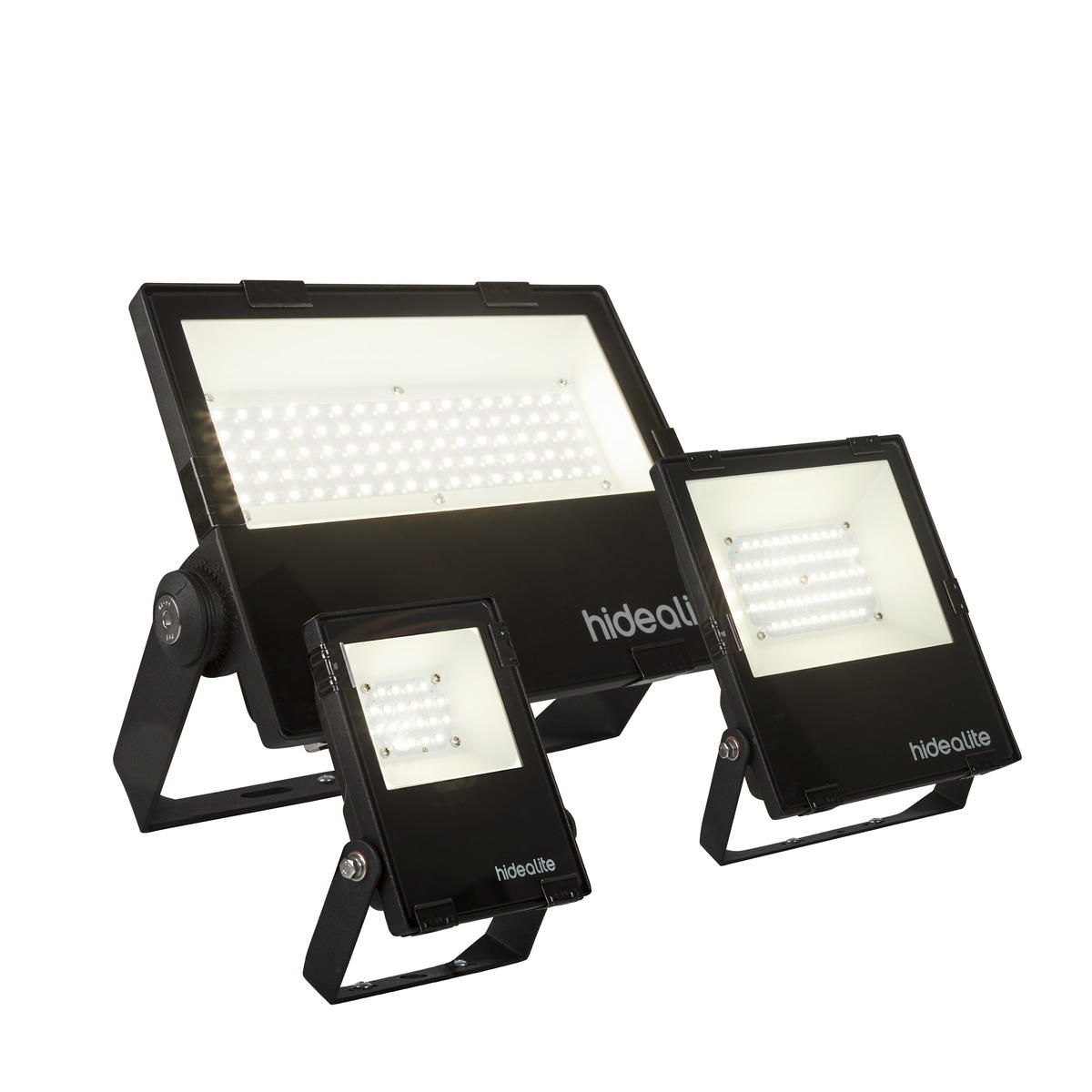

Floodlight in three sizes. High lumen output, low cost and long lifetime. Robust design and high IP rating makes Scout suitable for tougher outdoor environments such as car park, facade or sign illumination. Symmetric and even light distribution thanks to LED card design. Scout has an angled bracket to facilitate installation with a screwdriver and can be directed up to 180°. Comes complete with integrated driver and 2m rubber cable for direct 230V connection.

Description: GTIN 7392971131450

Item Name Scout 10 1100/840

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1100

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 6

Luminous Intensity (cd) 430

Beam Angle (°) 115

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 20

Life Time L90 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L93

LLMF @ 50 000h 0,93

Life Time Driver 50 000h/5%
Technical data: Adjustable Yes

Tiltable (°) 180

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 8,5

Power Luminaire (W) 10

System Power (W) 10

Efficiency Luminaire (lm/W) 110

Efficiency System (lm/W) 110

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 3x1,5

Through Wiring No

Strain Relief Yes

Operating Temperature -25…+50

Max. Tc (°C) 90

Protection Against Short Circuit, Overheating 110°C

Fuse B10 (pcs) 45

Fuse B16 (pcs) 68

Fuse C10 (pcs) 53

Fuse C16 (pcs) 80
Color and material: Material Aluminium

Color Black

Environmental Assessment SundaHus
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK07

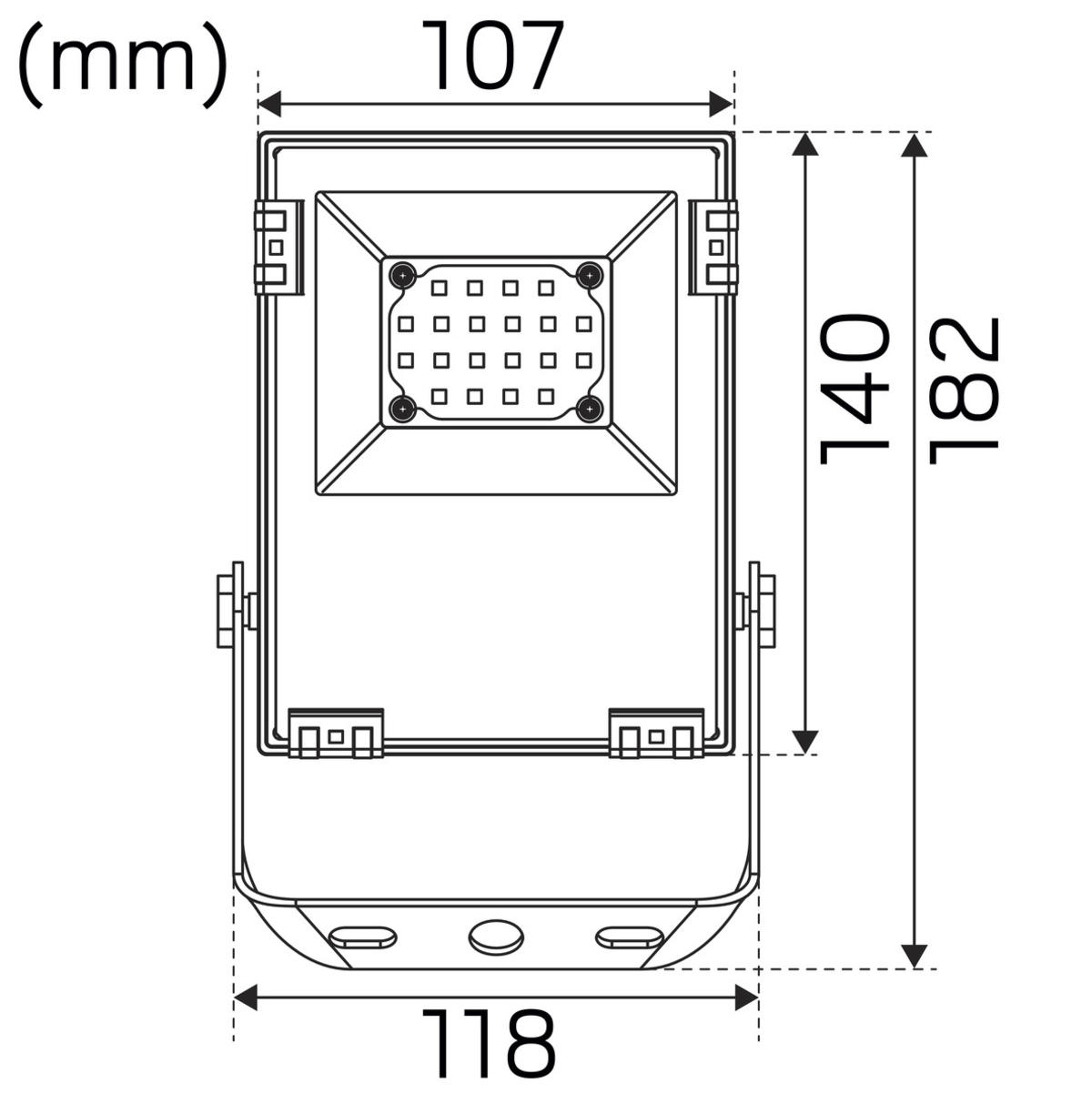

Length (mm) 182

Width (mm) 118

Depth (mm) 34

Weight (kg) 0,66
