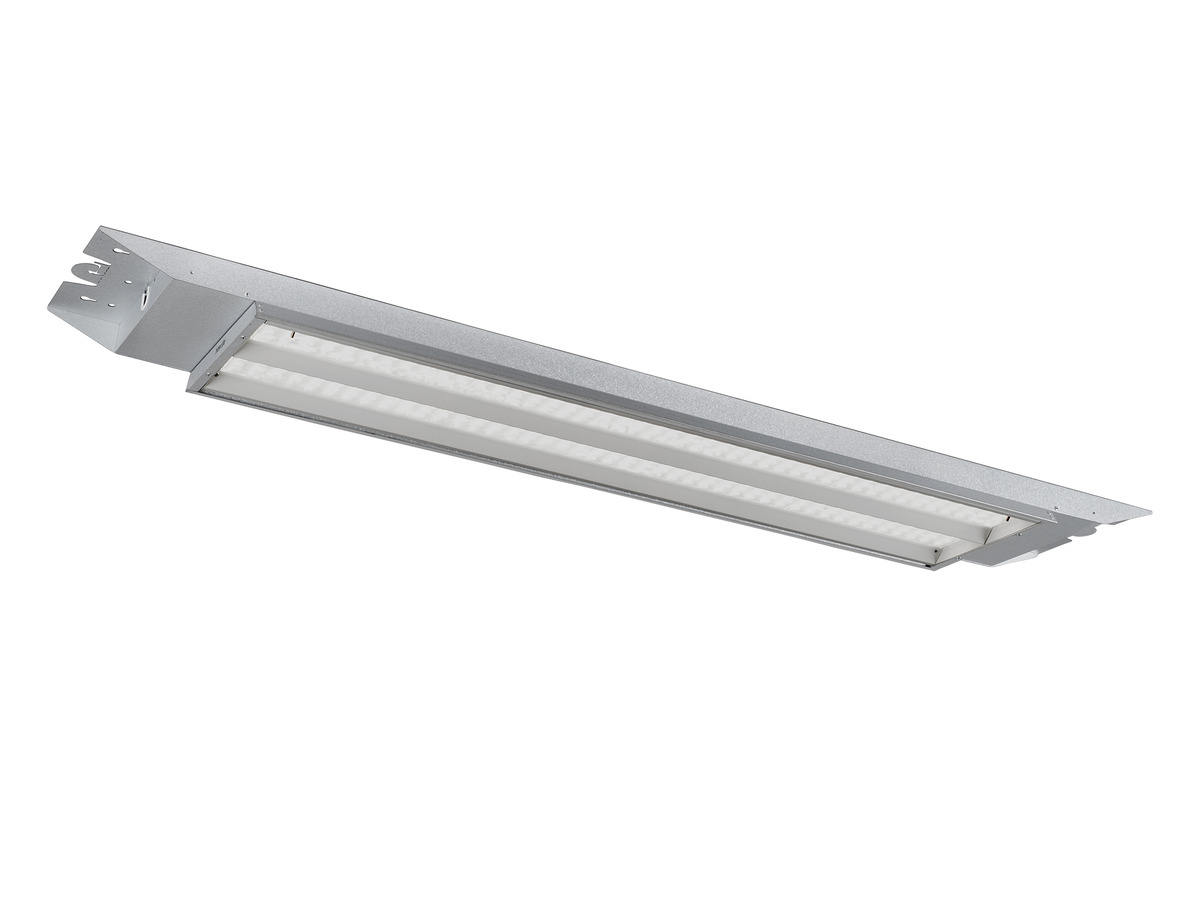

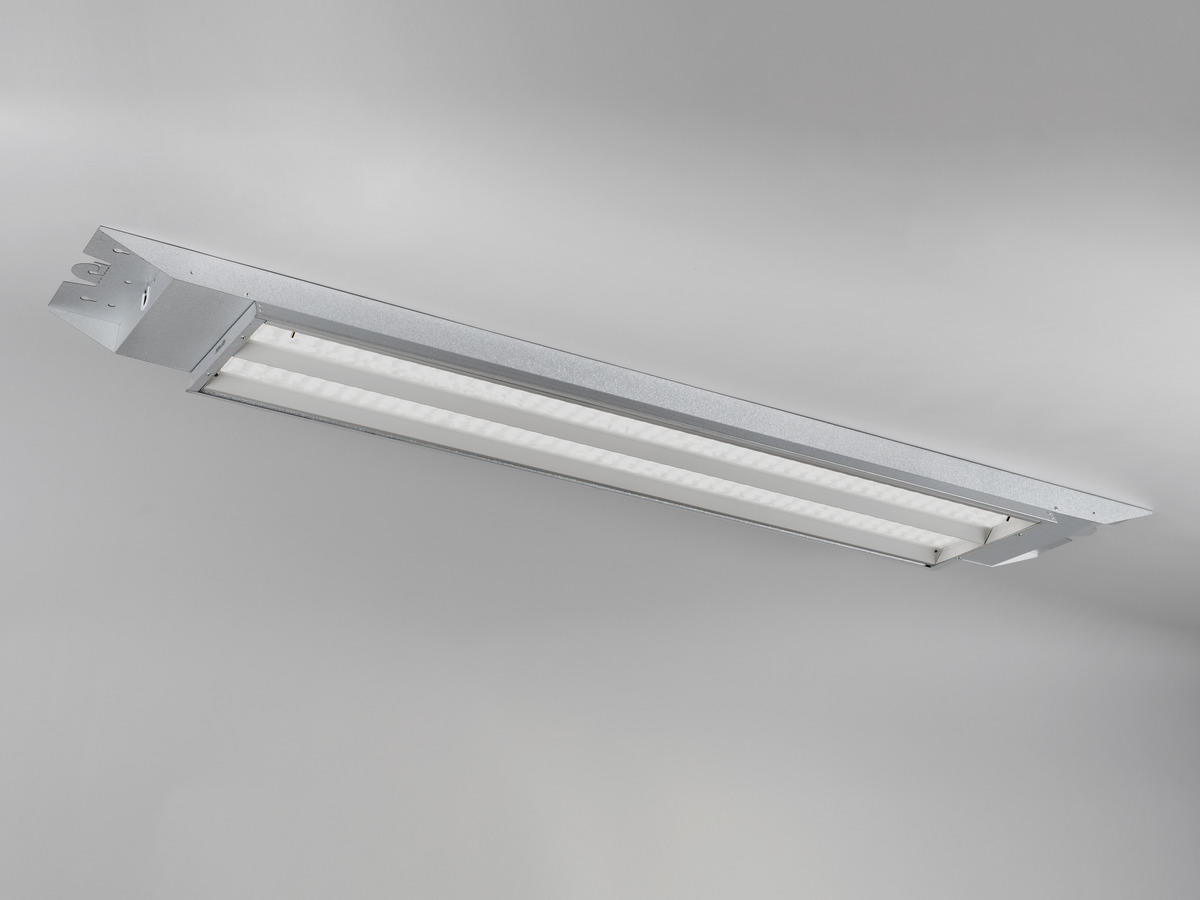

Indline IP23

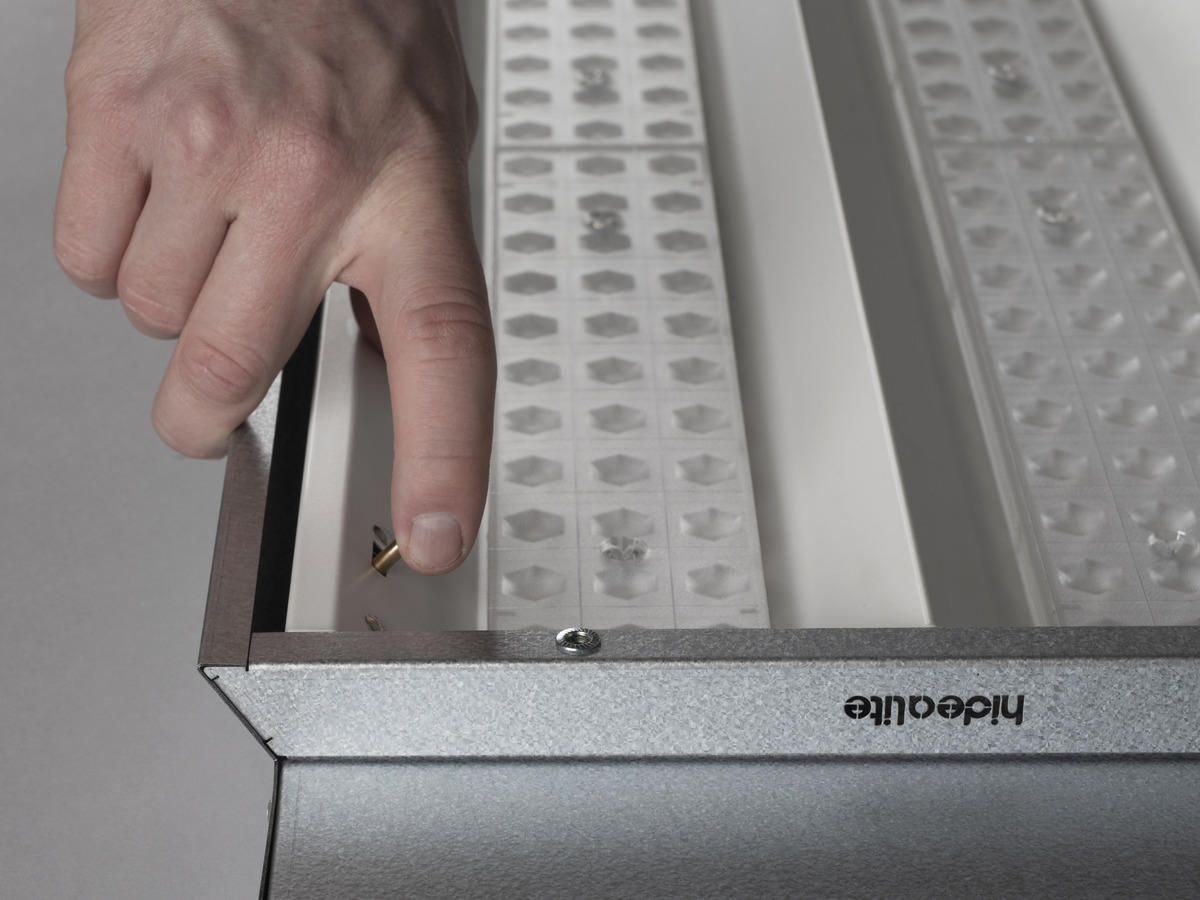

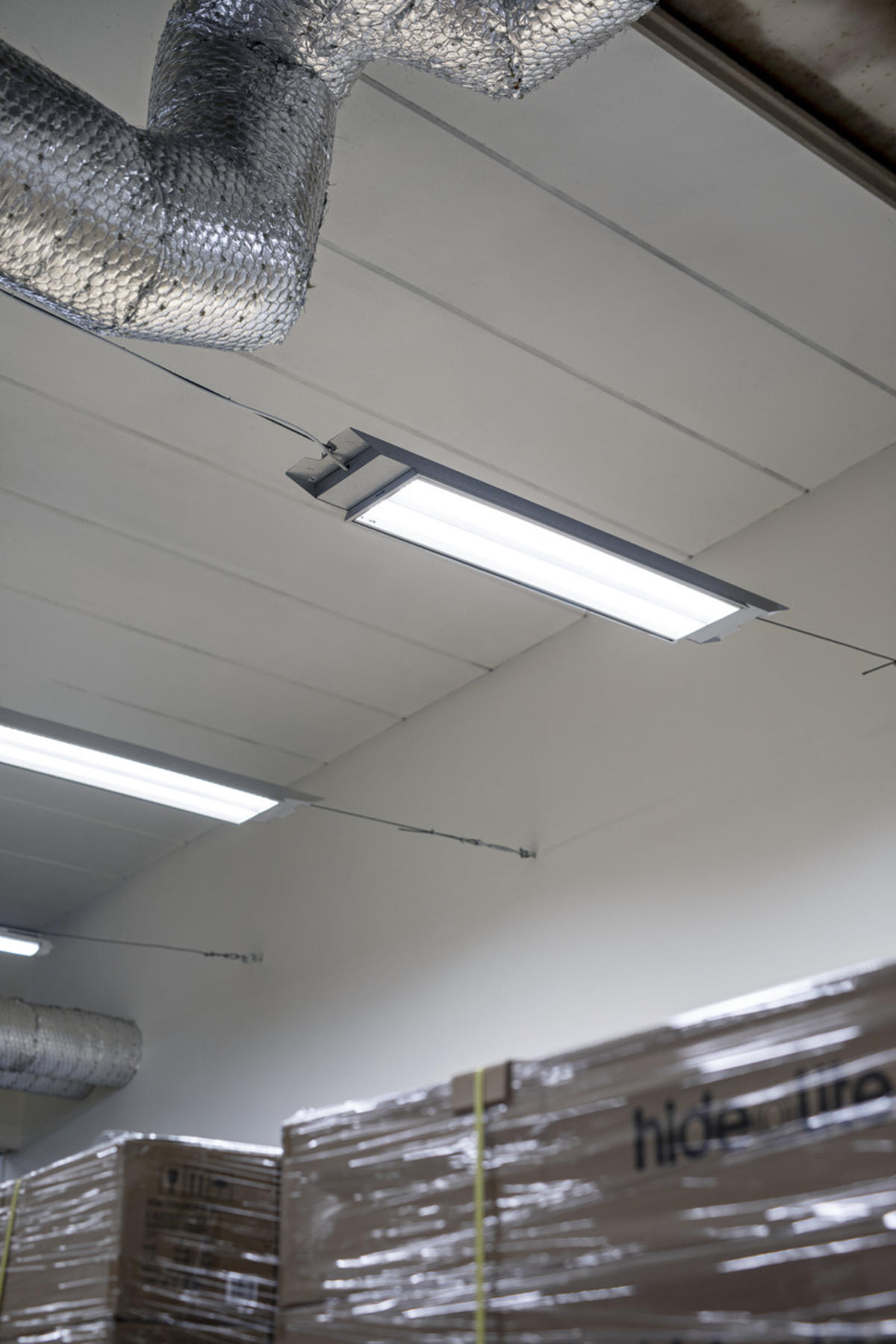

Industrial luminaire in steel with high efficiency that meets the industry’s needs for flexibility and long life time. Replaces T5 and T8 luminaires with lower energy consumption and reduced maintenance. Push-in terminals strategically placed on both sides of the fitting make is possible to use existing cables (doesn't apply to Indline M). Well-planned design enabling replacement of both LED and driver. Control the lighting via DALI/Push or On/Off. On/Off can be adjusted to a lower lumen output and wattage via DIP-switch Power. The luminaire is adapted for mounting on a luminaire rail and has key holes for ceiling installation. Integrated wire suspension with hook and hook lock for easy mounting on wire.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971145792	Indline IP23 XXL Wide 840 DALI	25100	Push 230V, DALI 2	90
7392971144214	Indline IP23 M Medium 840	8400	OnOff, DIP-Switch Power	60
7392971145402	Indline IP23 M Wide 840	8300	OnOff, DIP-Switch Power	90
7392971137285	Indline IP23 L Narrow 840	11100	DIP-Switch Power, OnOff	30
7392971137292	Indline IP23 L Medium 840	10700	DIP-Switch Power, OnOff	60
7392971137308	Indline IP23 L Wide 840	11100	DIP-Switch Power, OnOff	90
7392971137315	Indline IP23 L Narrow 840 DALI	11350	Push 230V, DALI 2	30
7392971137322	Indline IP23 L Medium 840 DALI	10700	Push 230V, DALI 2	60
7392971137339	Indline IP23 L Wide 840 DALI	11500	Push 230V, DALI 2	90
7392971137346	Indline IP23 XL Narrow 840	18400	DIP-Switch Power, OnOff	30
7392971137353	Indline IP23 XL Medium 840	18250	DIP-Switch Power, OnOff	60
7392971137360	Indline IP23 XL Wide 840	18600	DIP-Switch Power, OnOff	90
7392971137377	Indline IP23 XL Narrow 840 DALI	18630	Push 230V, DALI 2	30
7392971137384	Indline IP23 XL Medium 840 DALI	18400	Push 230V, DALI 2	60
7392971137391	Indline IP23 XL Wide 840 DALI	18800	Push 230V, DALI 2	90
7392971145747	Indline IP23 XXL Narrow 840	25600	OnOff, DIP-Switch Power	30
7392971145754	Indline IP23 XXL Medium 840	25900	OnOff, DIP-Switch Power	60
7392971145761	Indline IP23 XXL Wide 840	25100	OnOff, DIP-Switch Power	90
7392971145778	Indline IP23 XXL Narrow 840 DALI	25600	Push 230V, DALI 2	30
7392971145785	Indline IP23 XXL Medium 840 DALI	25900	Push 230V, DALI 2	60

Description: GTIN 7392971145792

Item Name Indline IP23 XXL Wide 840 DALI

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 25100

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

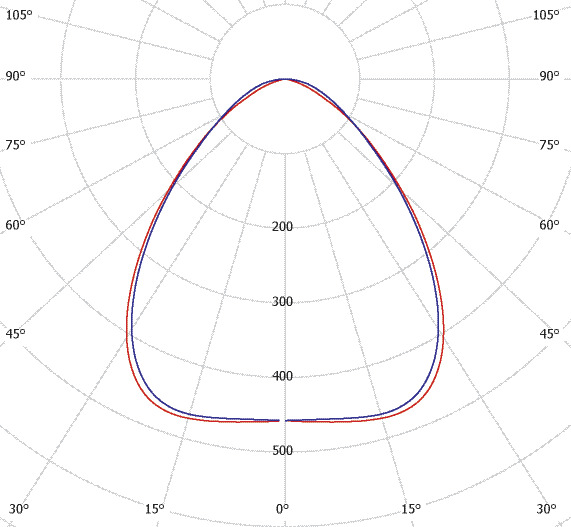

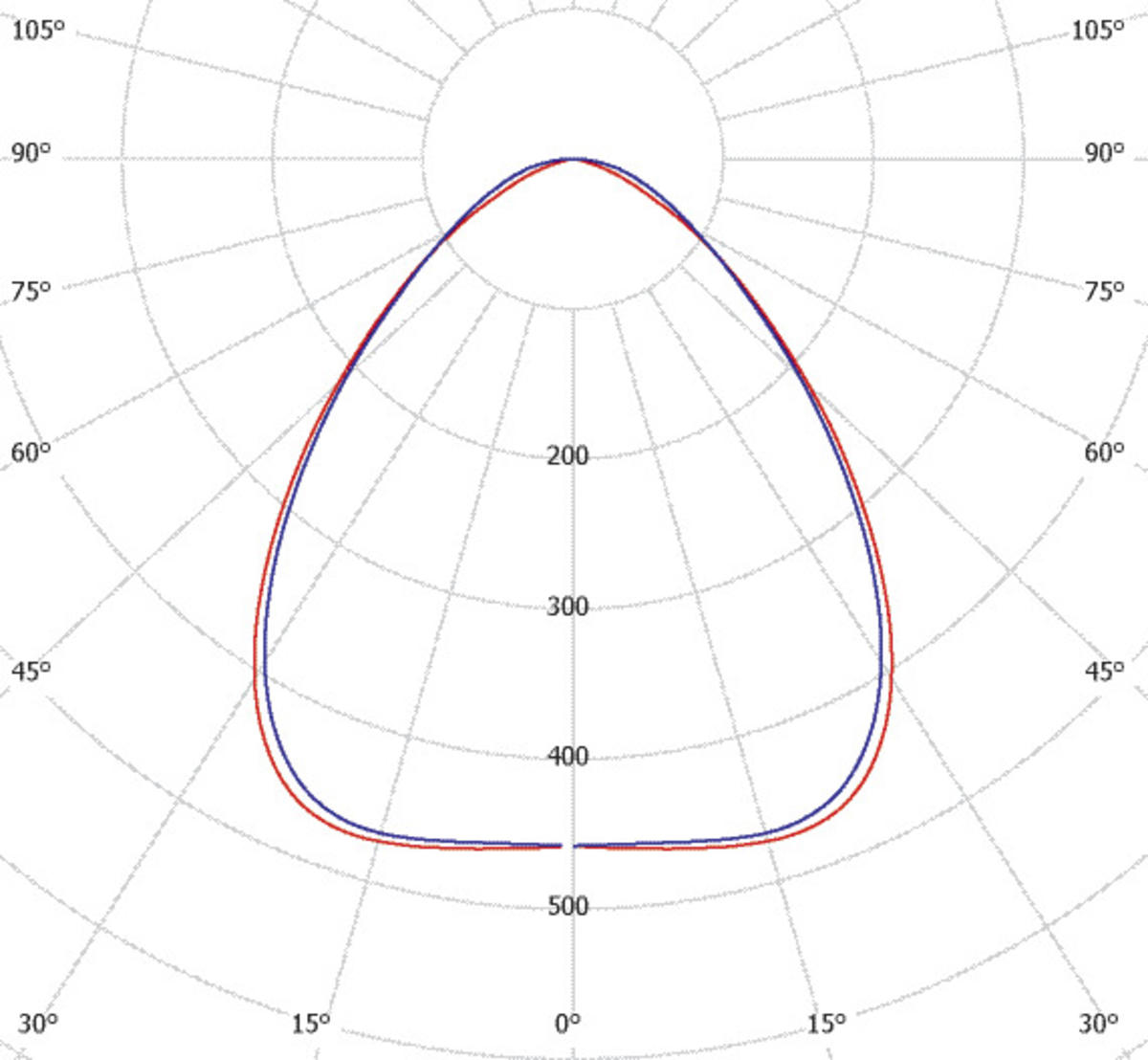

Luminous Intensity (cd) 10900

Beam Angle (°) 90

Light sharing Symmetric

Light Outlet Wide Beam

Number of Lamps (pcs) 2

Number of LED (pcs) 264

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L91

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,91

LLMF @ 100 000h 0,82

Life Time Driver 100 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 145,4

Power Luminaire (W) 150

System Power (W) 150

Efficiency Luminaire (lm/W) 167

Efficiency System (lm/W) 167

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, DALI 2

Driver Included Yes

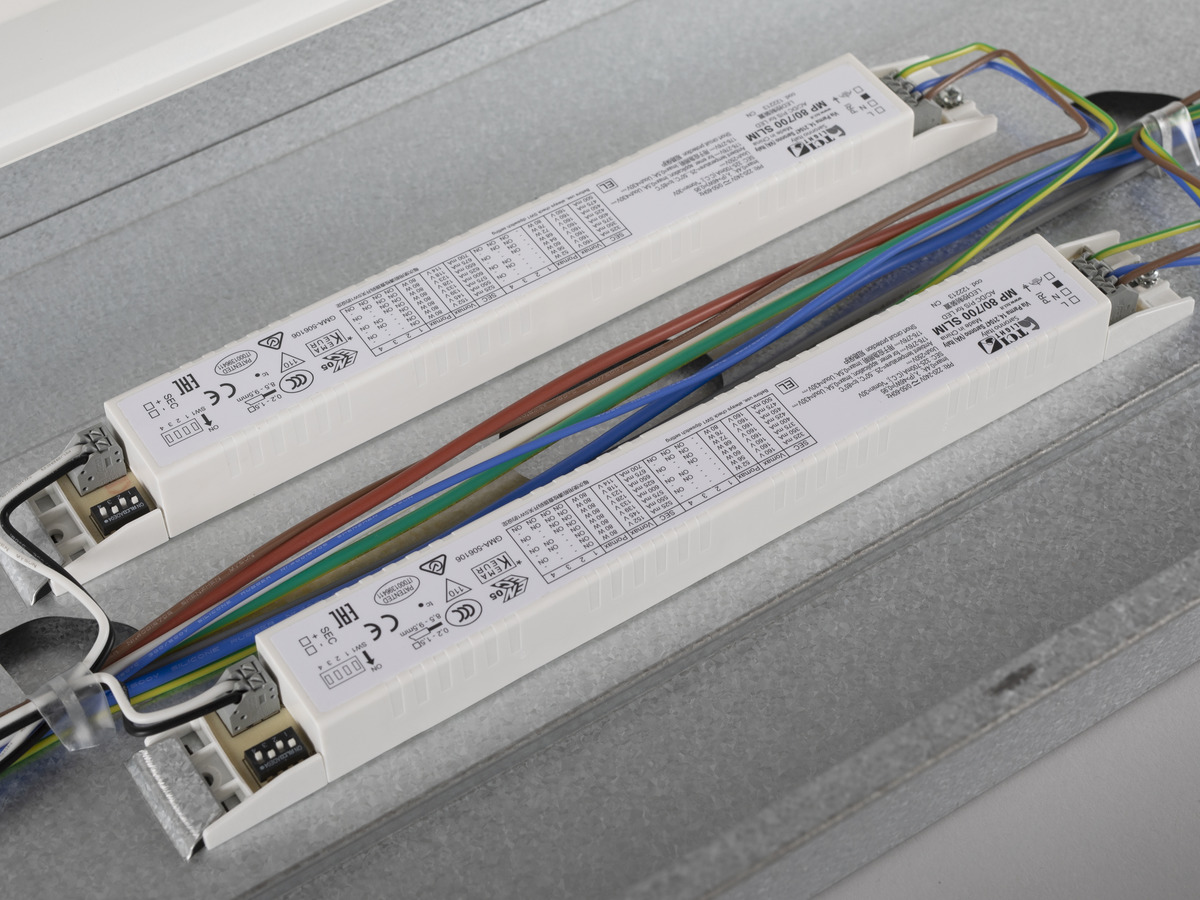

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer TCI

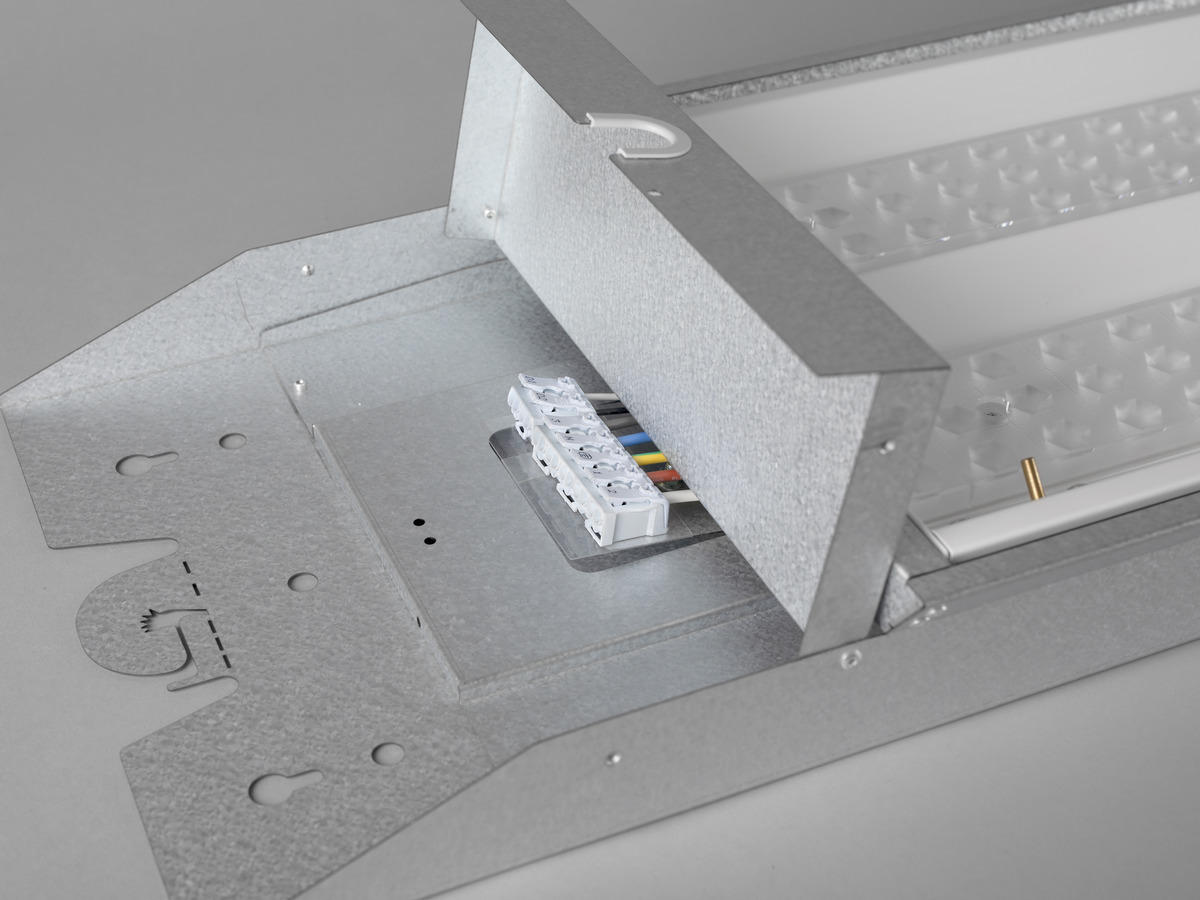

Connection (type) Quick Terminal

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 95

Power loss (W) 16

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

THD (%) 20

Standby Power 0,5

Constant Current (mA) 575

Operating Temperature -25…+50

Max. Tc (°C) 85

Dimming secondary side AM

Suitable for random switching Yes

Memory Function Power Failure Yes

Inrush current (max/time) 5,1A 760µs

Mains surge protection DM (kV) 2

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 10

Fuse B16 (pcs) 16

Fuse C10 (pcs) 16

Fuse C16 (pcs) 27
Color and material: Material Metal, Sheet metal, PMMA

Color Aluzinc

Color Cover Ring White

Color Code Cover Ring (RAL) 9016
Measurement and installation: Operating Environment Indoor / damp locations

IP Degree of Protection 23

Protection Class I

Installation Surface mounted, Wire-cable installation

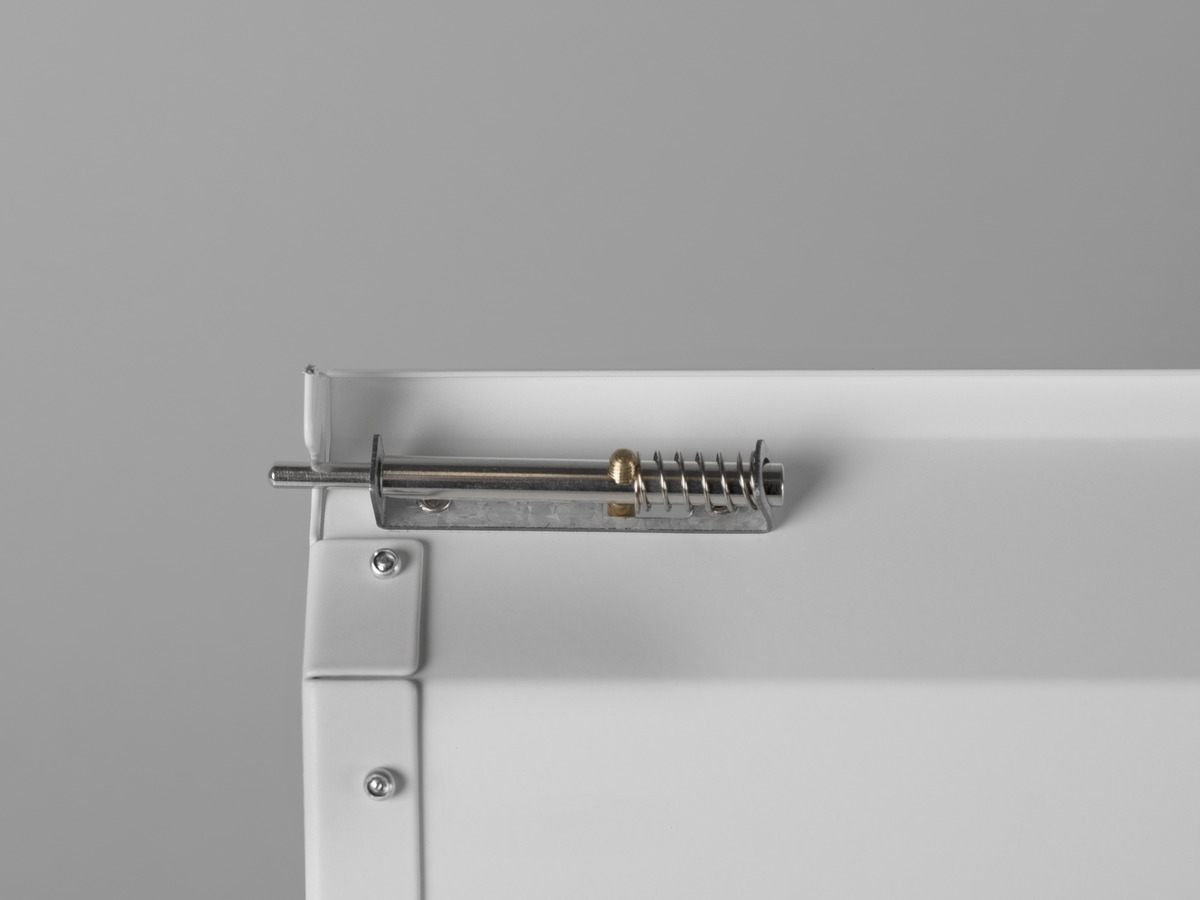

Mounting Installation Screw Mounting, Hook

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

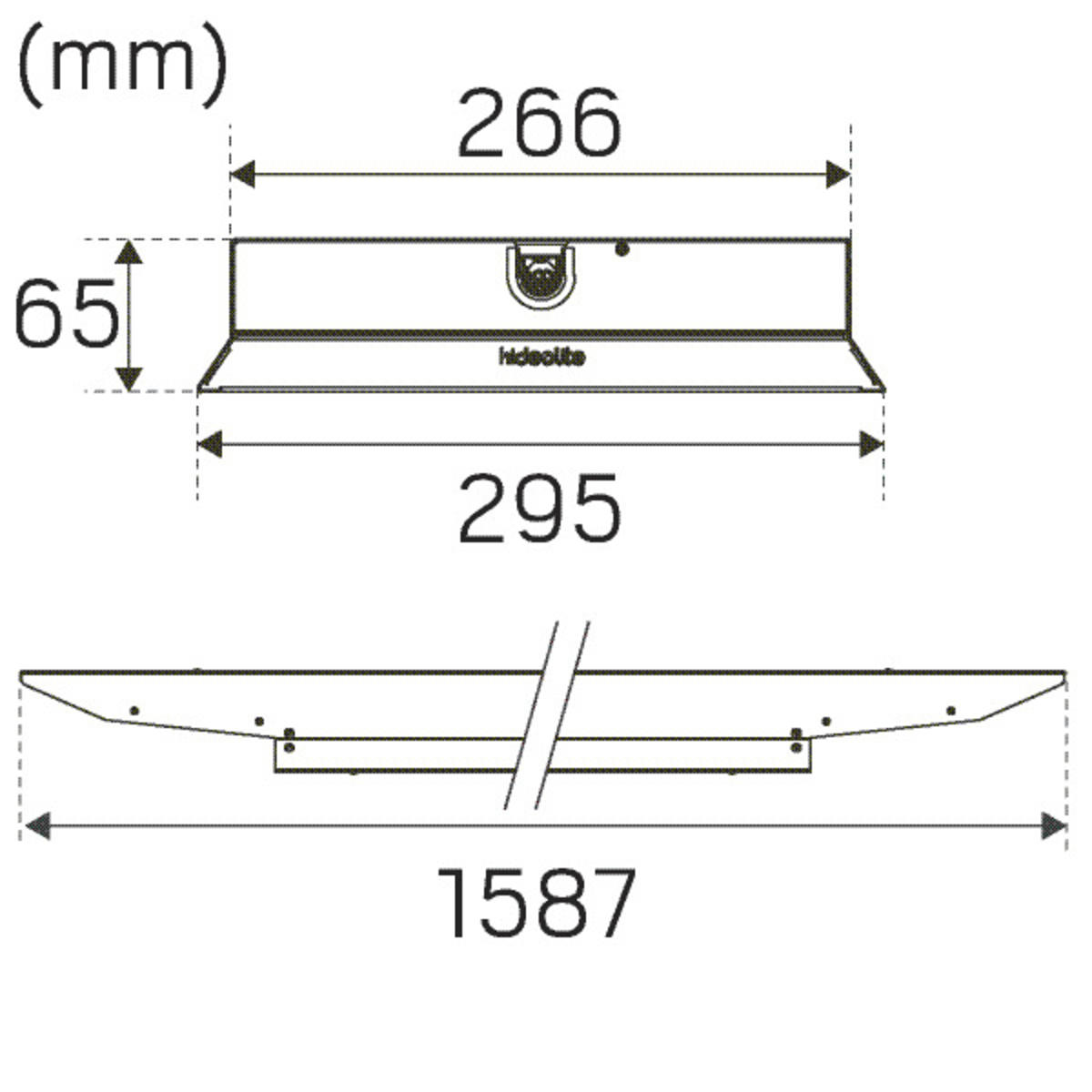

Length (mm) 1587

Width (mm) 295

Height (mm) 65

Weight (kg) 8,74
