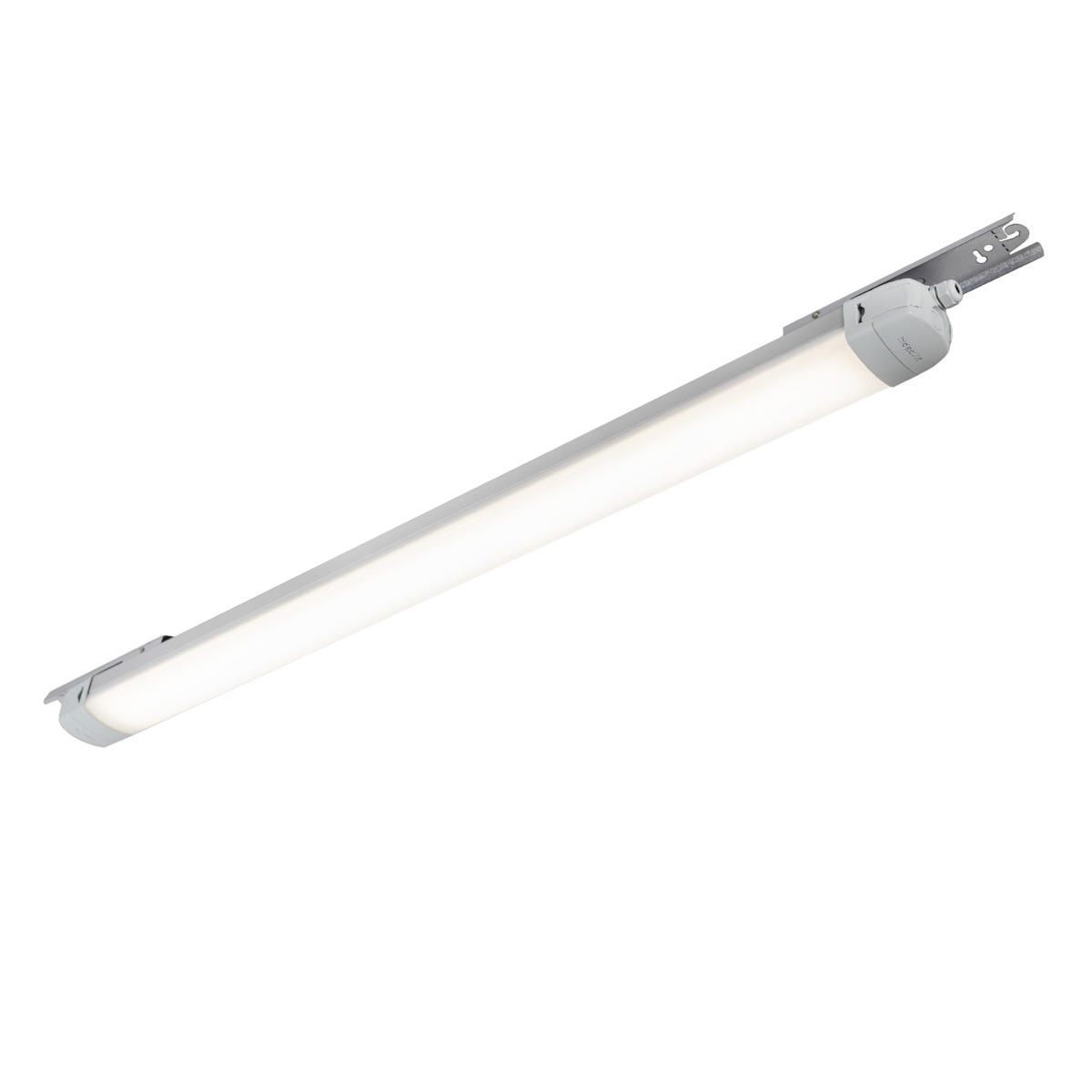

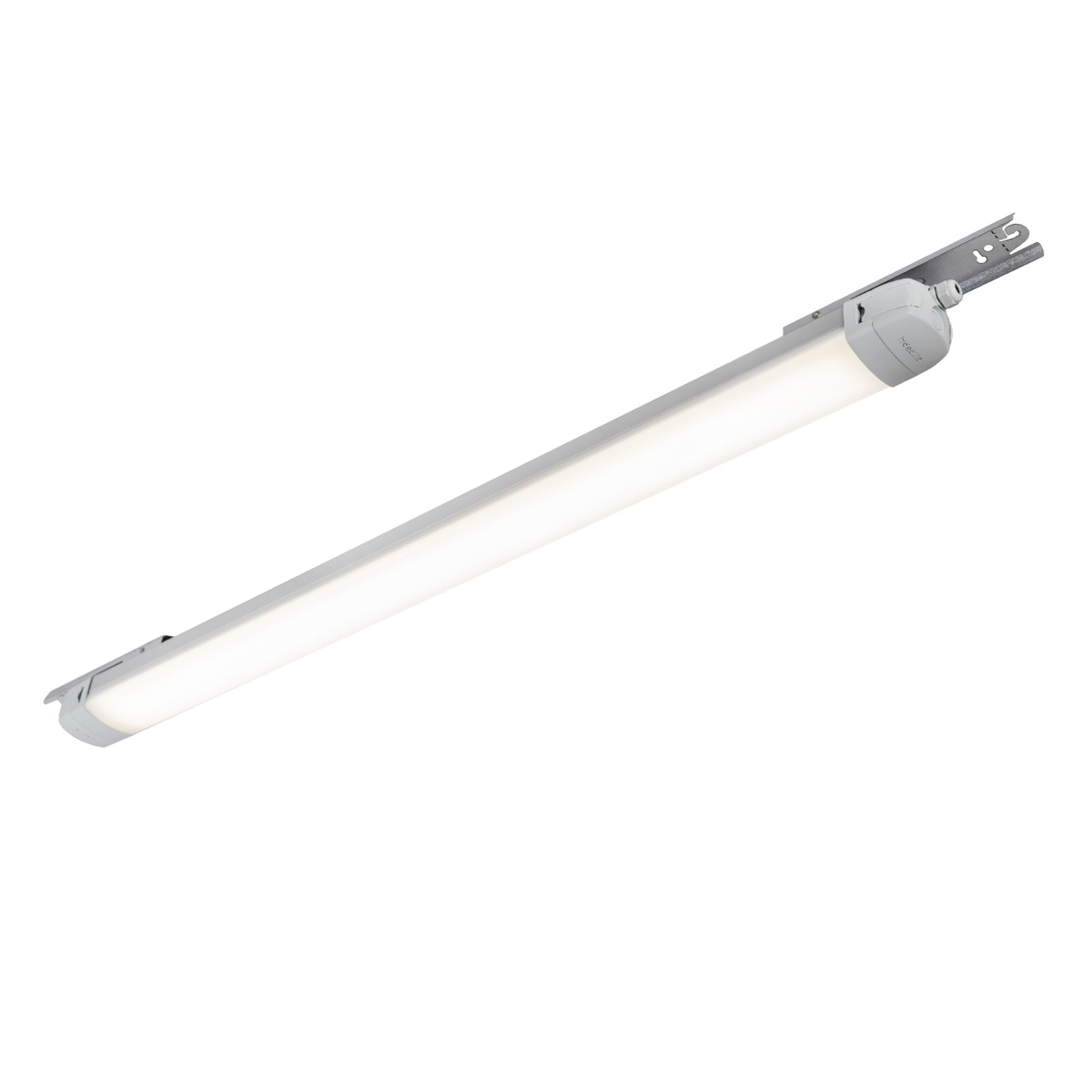

Liteline IP65 1500

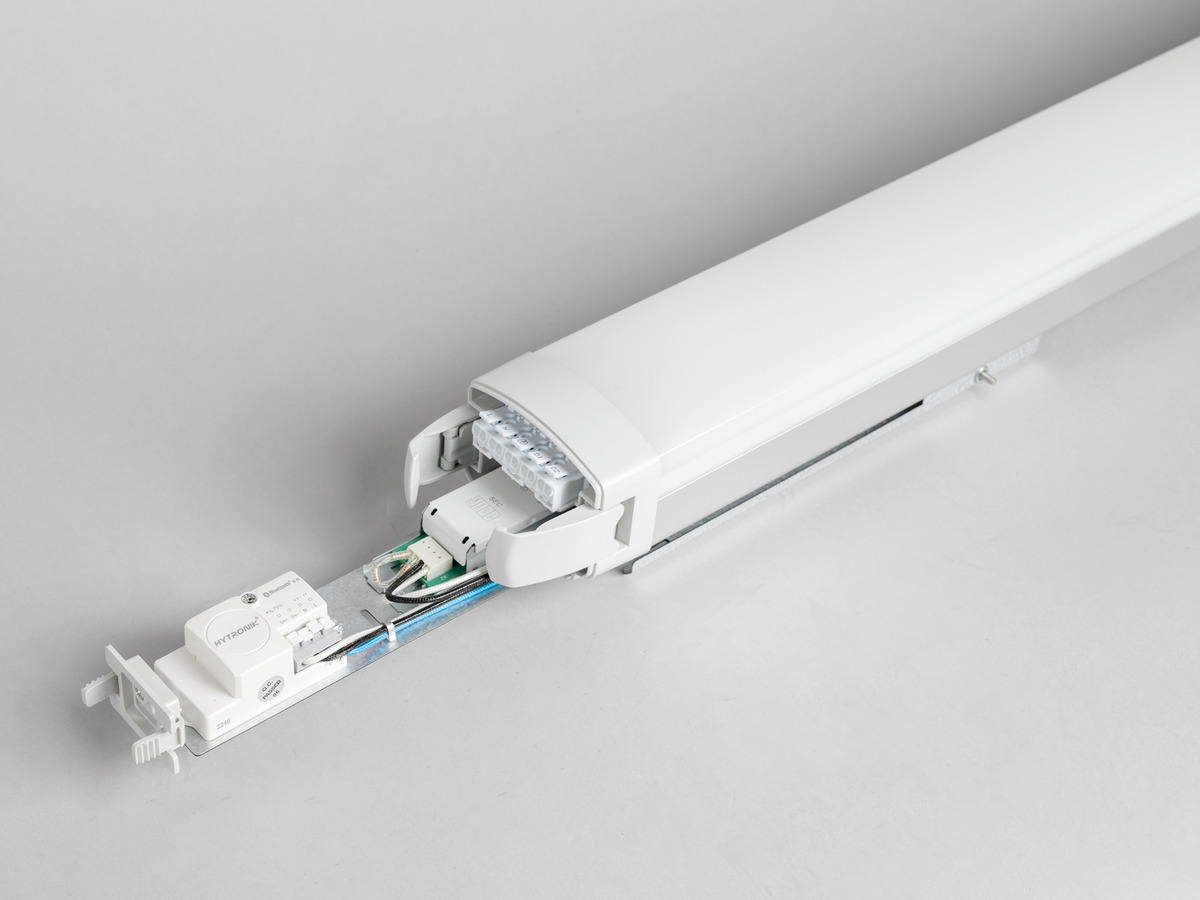

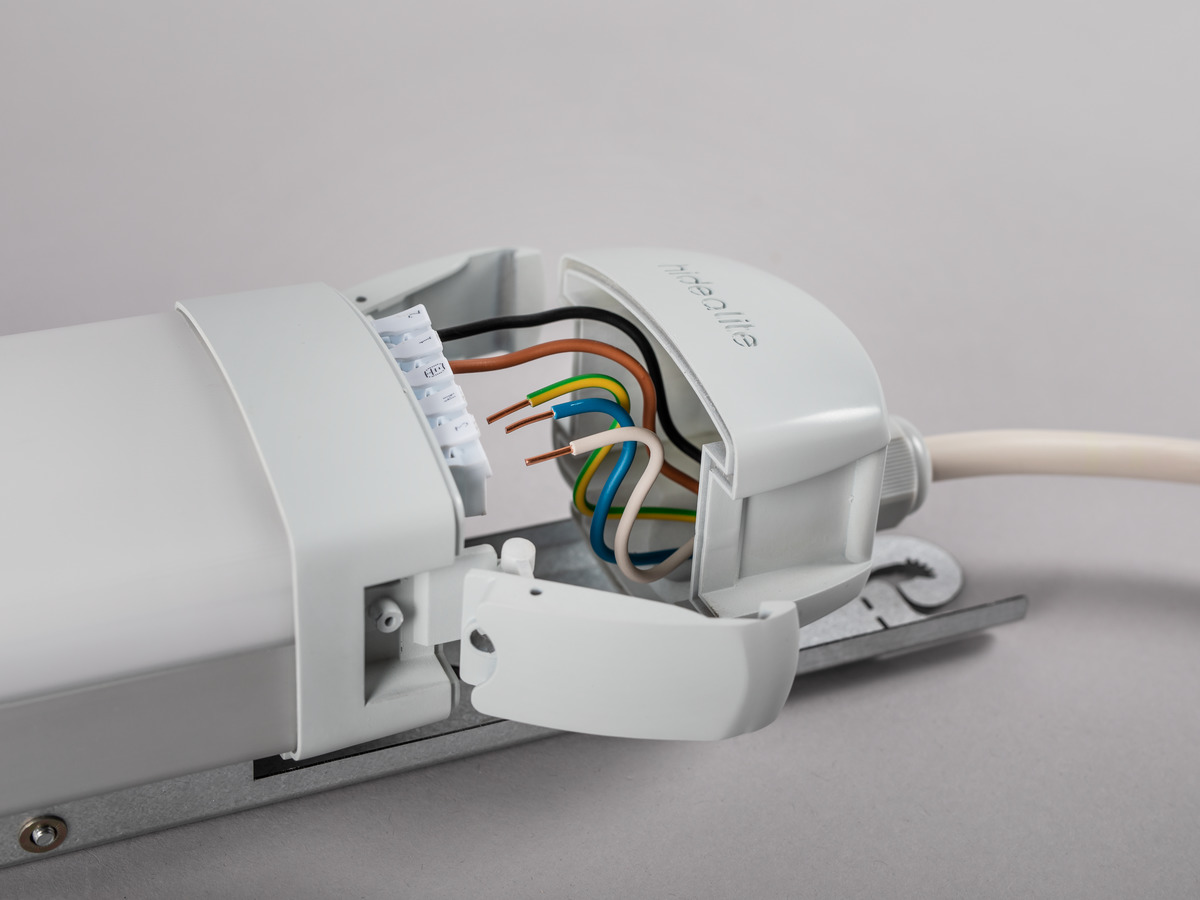

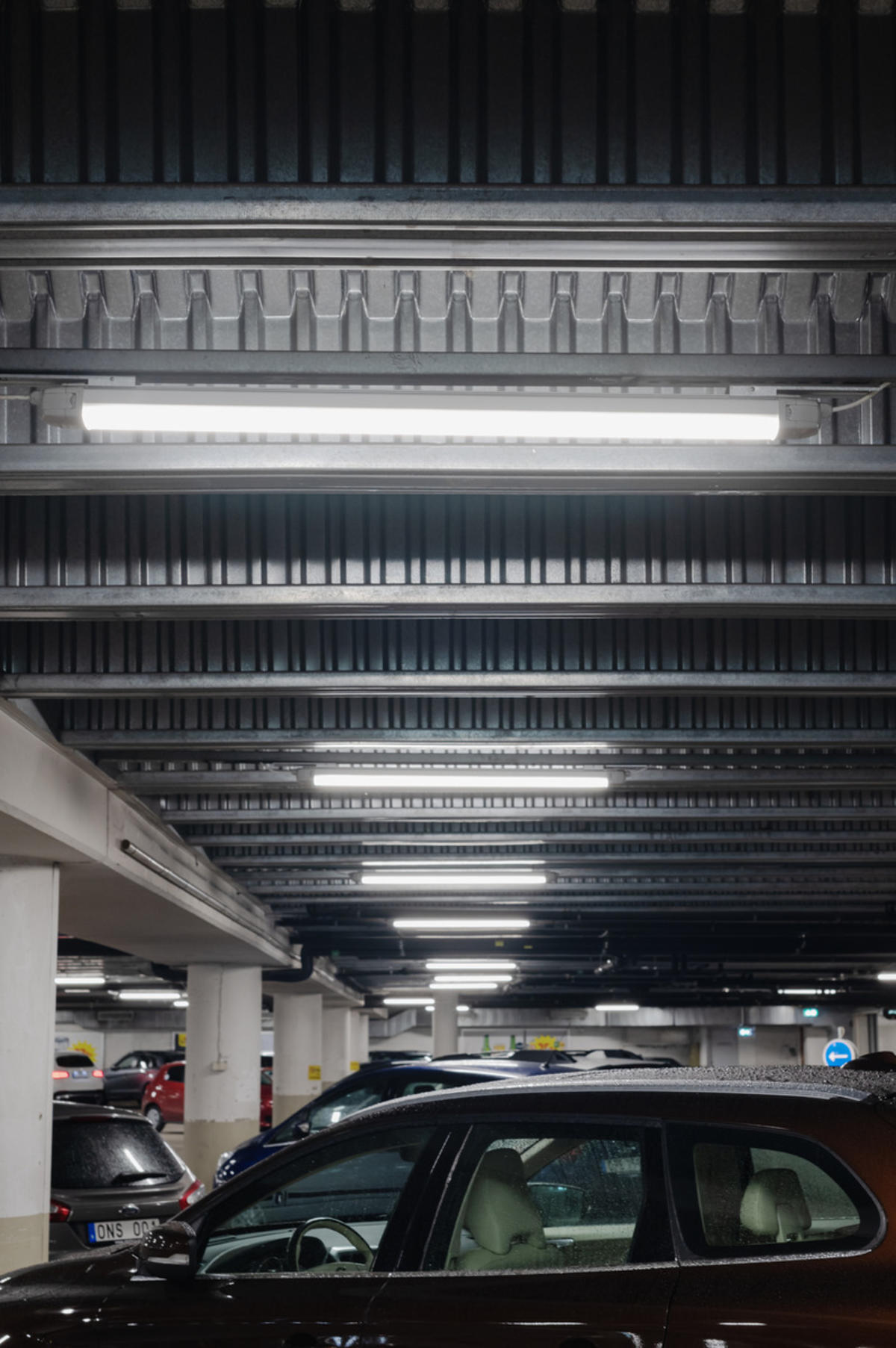

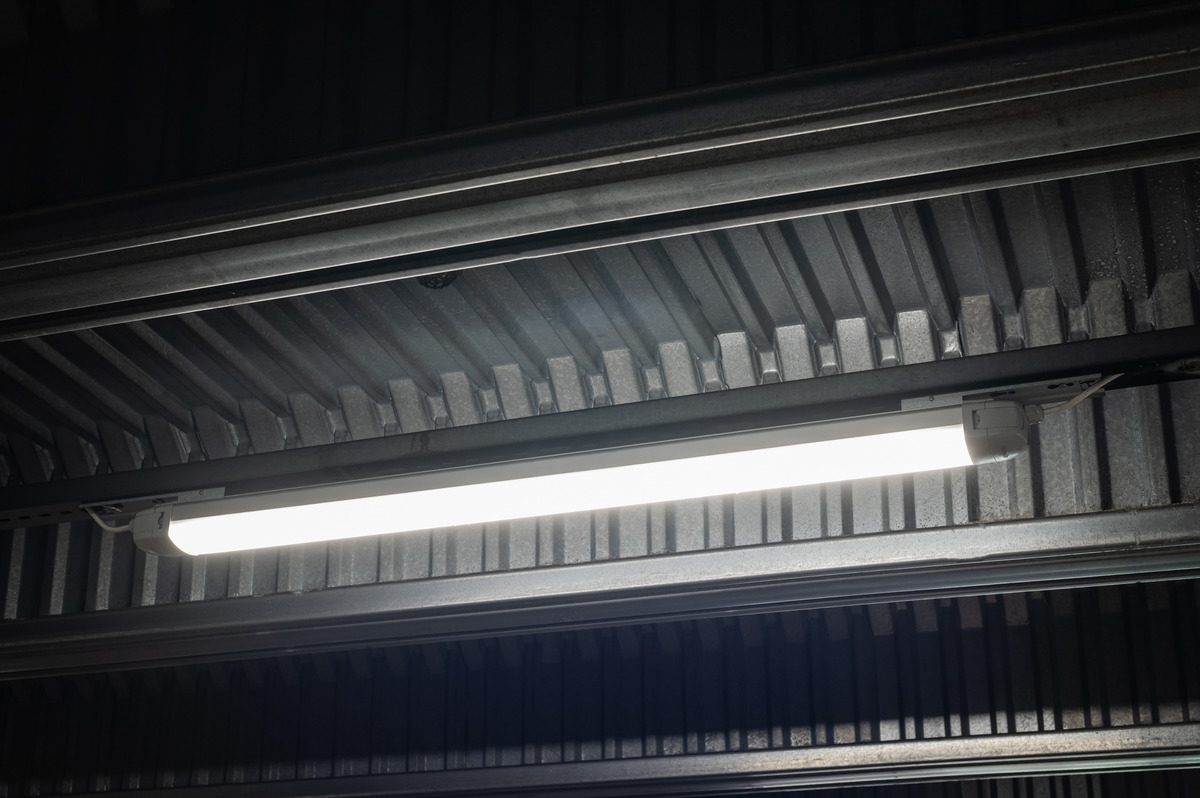

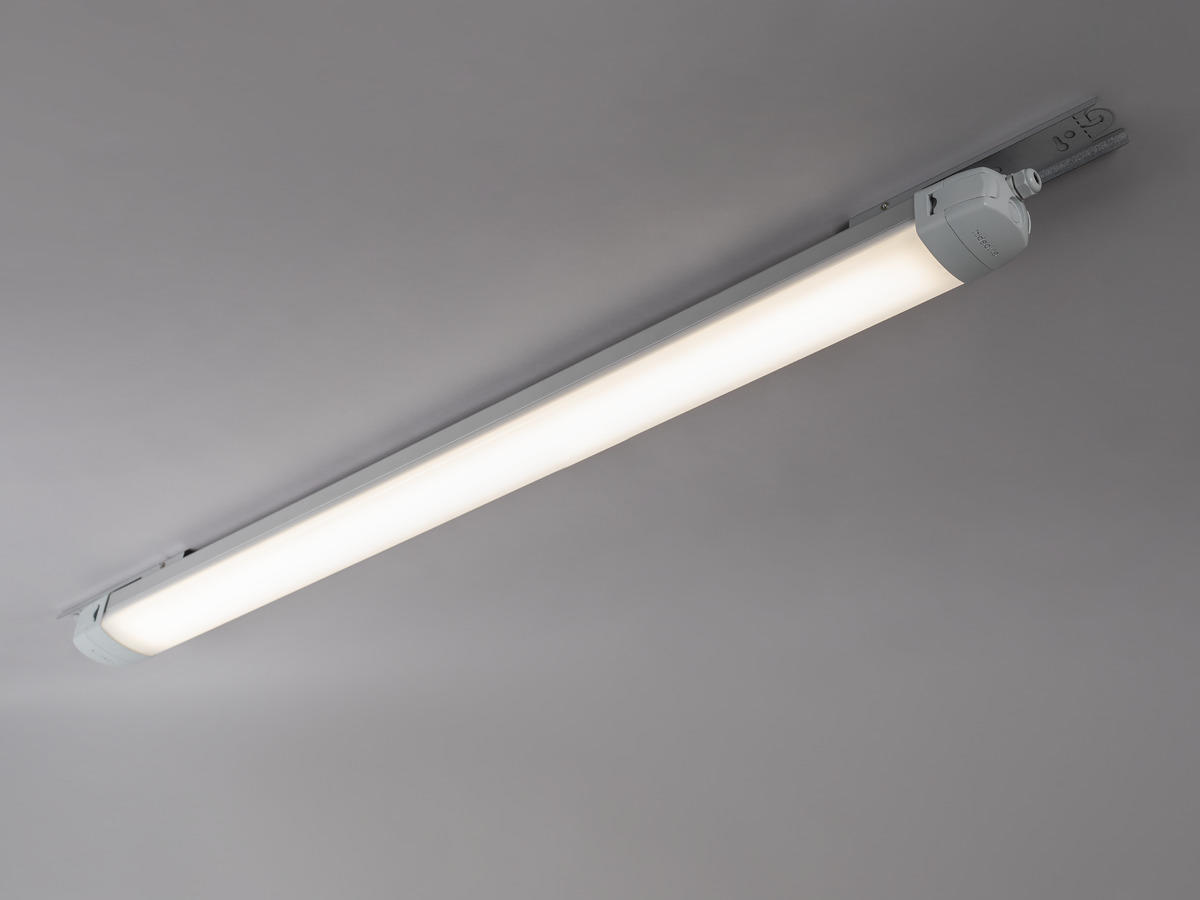

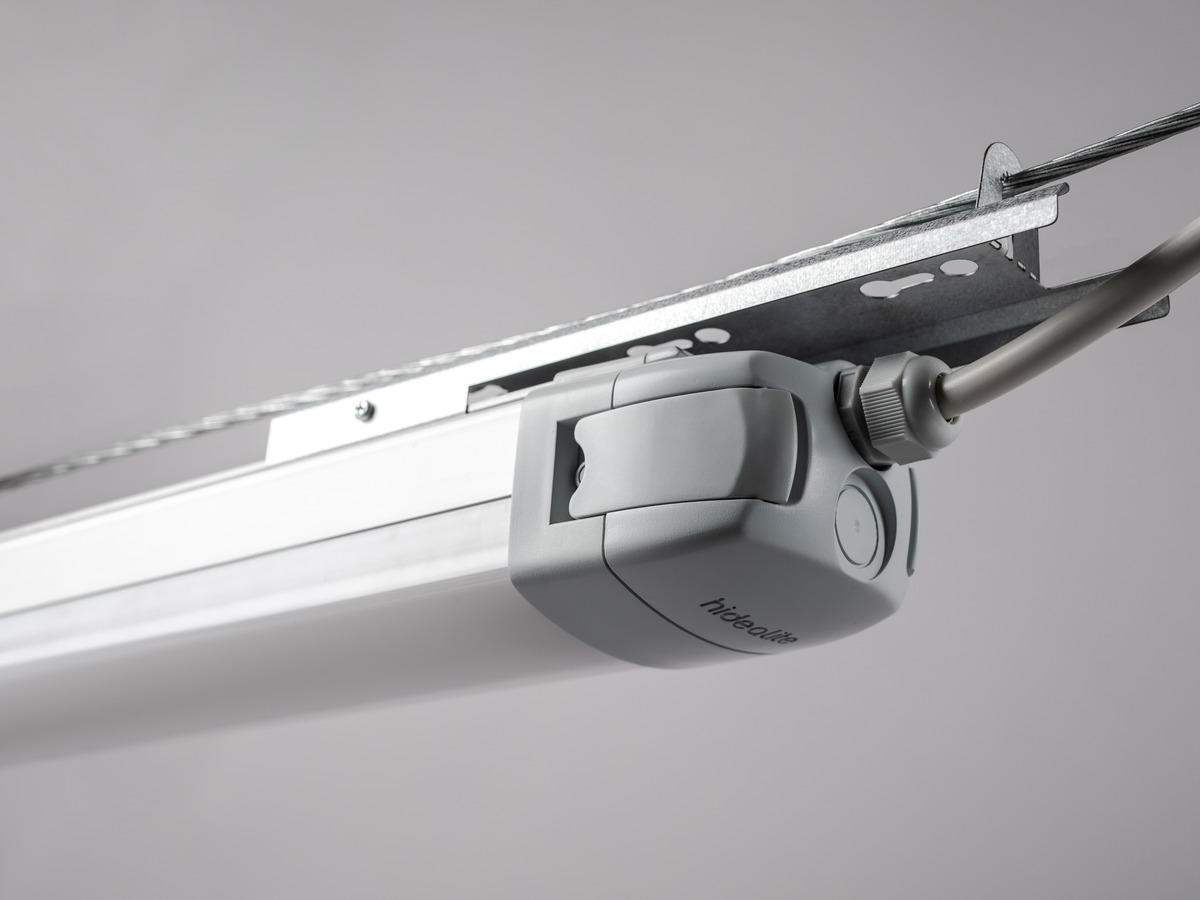

Highly efficient fluorescent tube replacement. Sliding multi-fasteners and separate connection space in end caps. 5x2.5mm2 push-in terminals for through wiring as standard, M20 fitting and knockouts in each end cap for easy installation. Adapted for installation on luminaire rail, keyhole for installation in ceiling and integrated wire suspension with hook and hook lock. D-marked, IP65 and IK09-classed for installation in rougher environments and areas with heightened fire risk. Adjustable lumen output via DIP-switch Power (On/Off and S). Suitable for example in car parks and dusty and dirty industries.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming
7392971146898	Liteline IP65 1500 840 Bluetooth	6850	Bluetooth, Push 230V, DALI 2
7392971138954	Liteline IP65 1500 840	7800	OnOff, DIP-Switch Power
7392971138961	Liteline IP65 1500 840 S	7800	DIP-Switch Power, Microwave Sensor
7392971140384	Liteline IP65 1500 840 DALI	6850	Push 230V, DALI 2

Description: GTIN 7392971146898

Item Name Liteline IP65 1500 840 Bluetooth

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 6850

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 2040

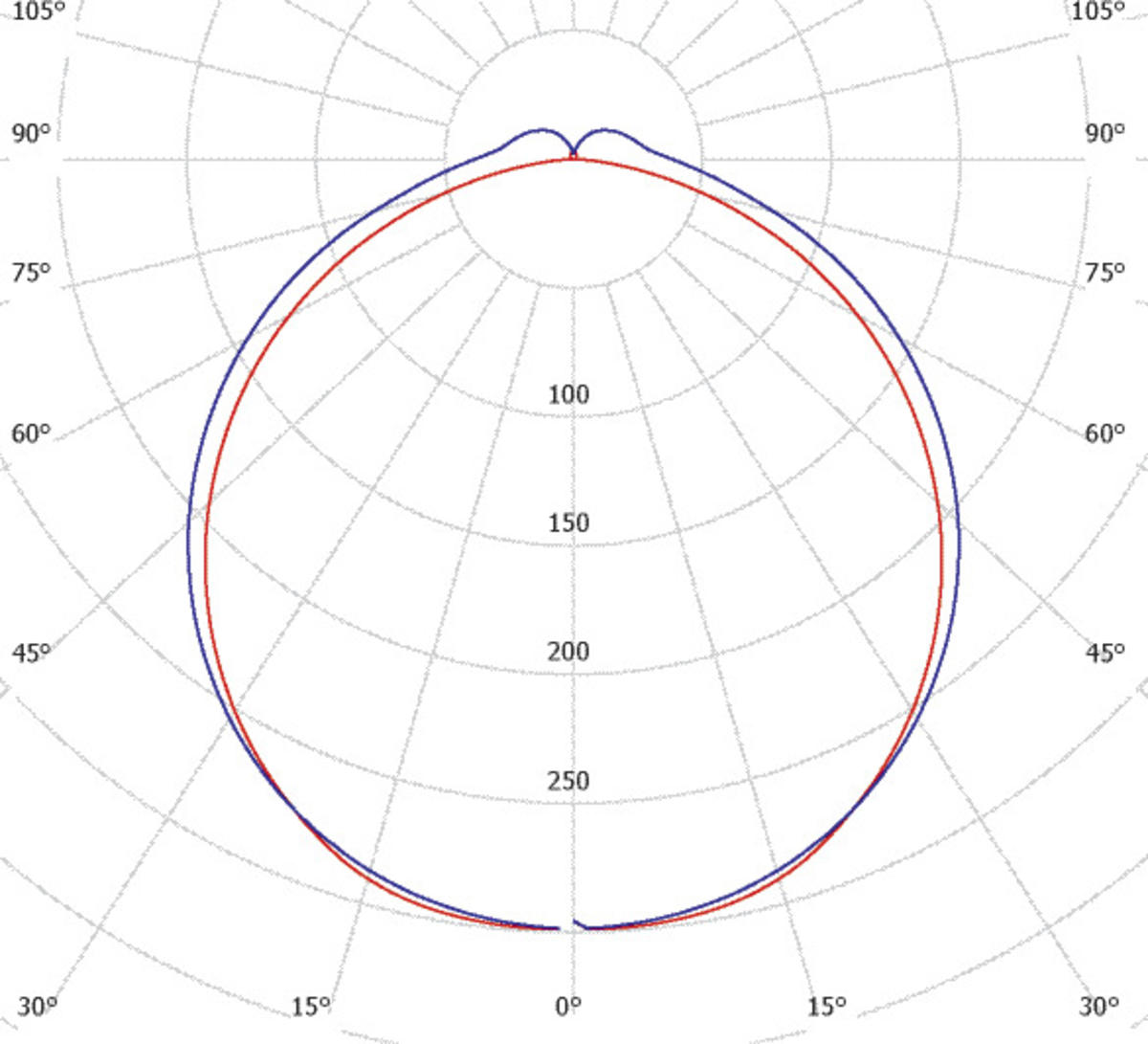

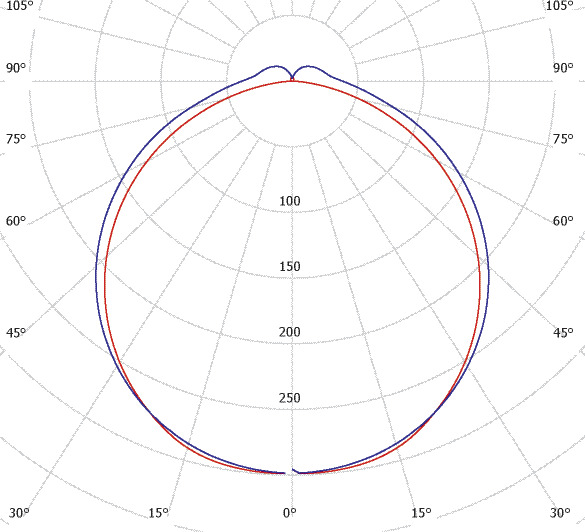

Beam Angle (°) 115

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 368

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L88

Lumen maintenance 75 000h L84

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0,88

LLMF @ 100 000h 0,8

Life Time Driver 100 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 45

Power Luminaire (W) 50

System Power (W) 50

Efficiency Luminaire (lm/W) 137

Efficiency System (lm/W) 137

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable Yes

Type of Dimming Bluetooth, Push 230V, DALI 2

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Tridonic

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,95

Efficiency (%) 89

Power loss (W) 0,4

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,35

THD (%) 10

Standby Power 0,5

Constant Current (mA) 350

Operating Temperature -25…+50

Max. Tc (°C) 60

Dimming secondary side AM

Memory Function Power Failure No

Protection Against Short Circuit, Overload

Inrush current (max/time) 31A 262µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 10

Fuse B16 (pcs) 17

Fuse C10 (pcs) 16

Fuse C16 (pcs) 28
Color and material: Material Extruded, Aluminium, Plastic, Polycarbonate

Color Aluminum/Light Grey
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted, Wire-cable installation

Mounting Installation Screw Mounting, Hook

Fire Safety Marks D-mark

Approval Marks CE

Impact Strength IK09

Filament Test IEC 695-2-1(°C) 850

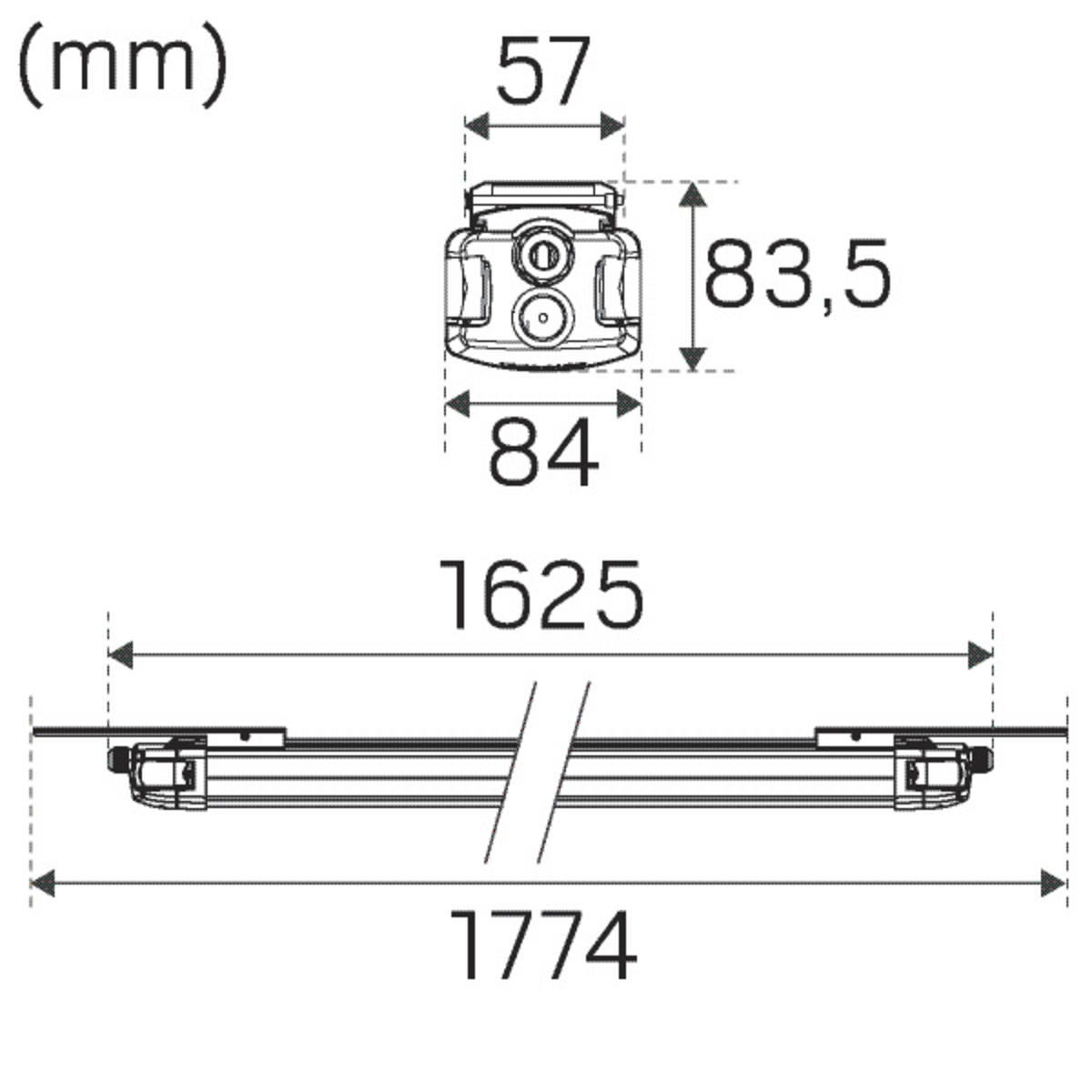

Length (mm) 1625

Width (mm) 84

Height (mm) 83

Weight (kg) 3,29

Spare parts

If you need spare parts, contact our customer support

Driver Liteline IP65 1500 Bluetooth X318
