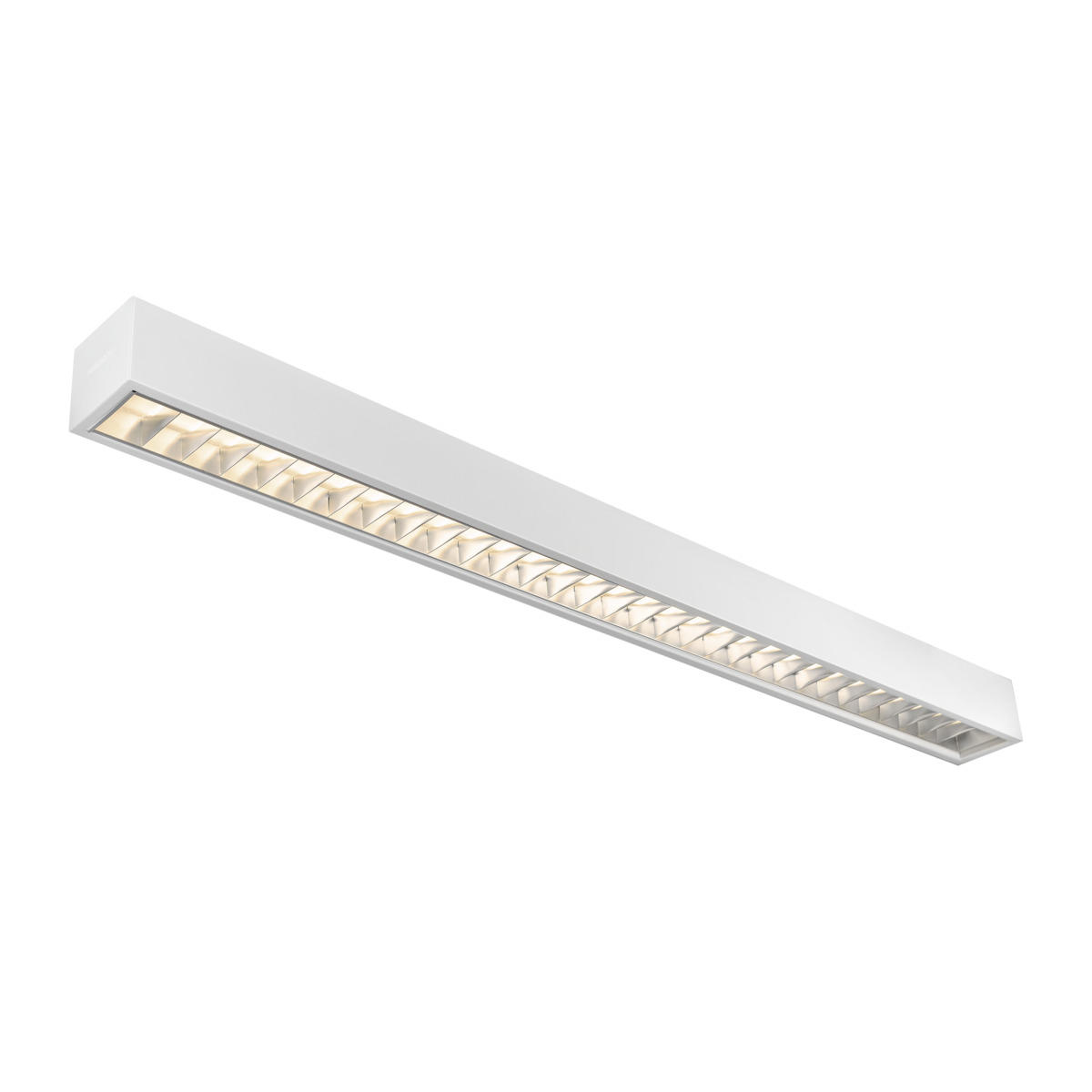

Actor Ceiling

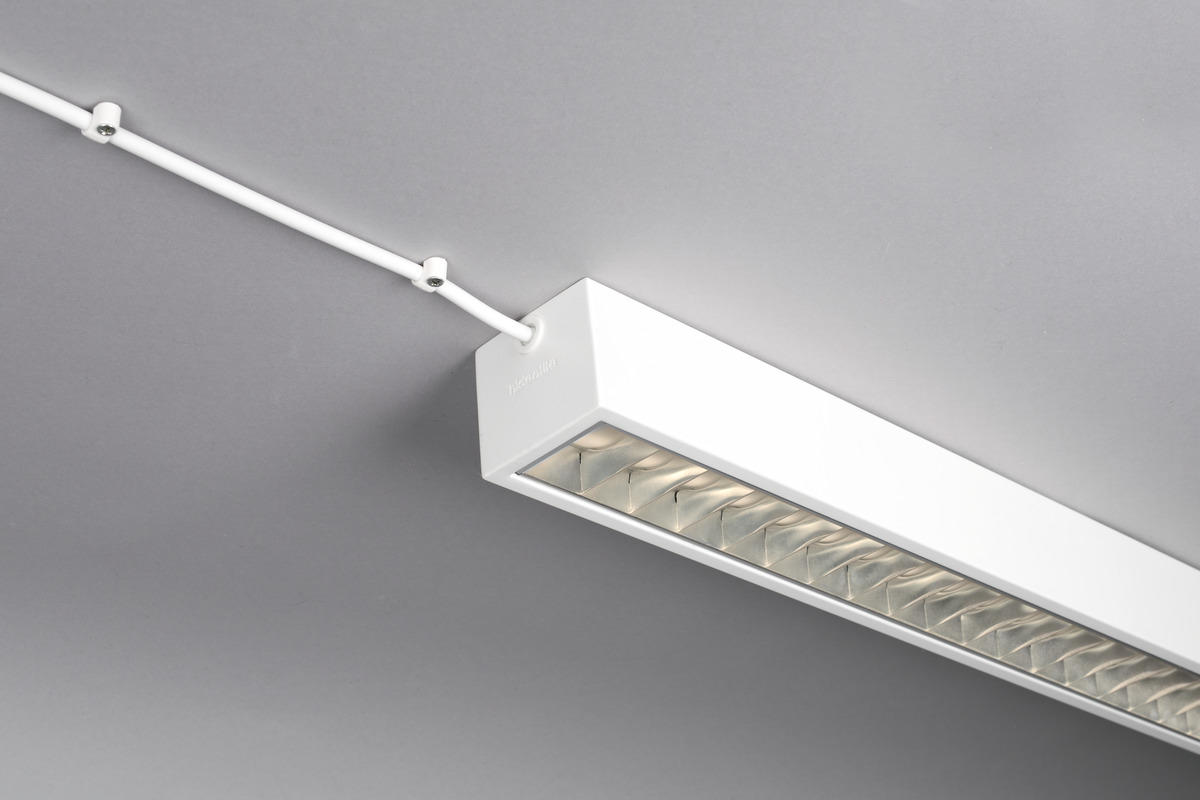

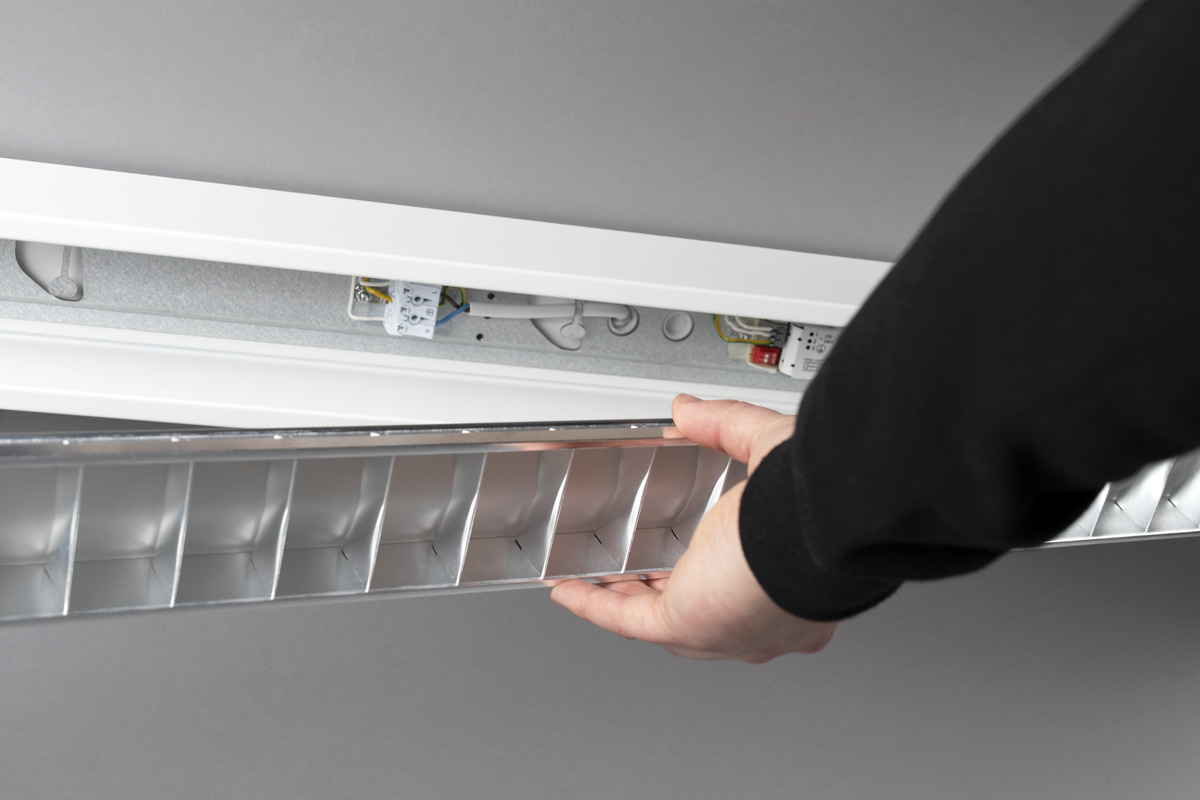

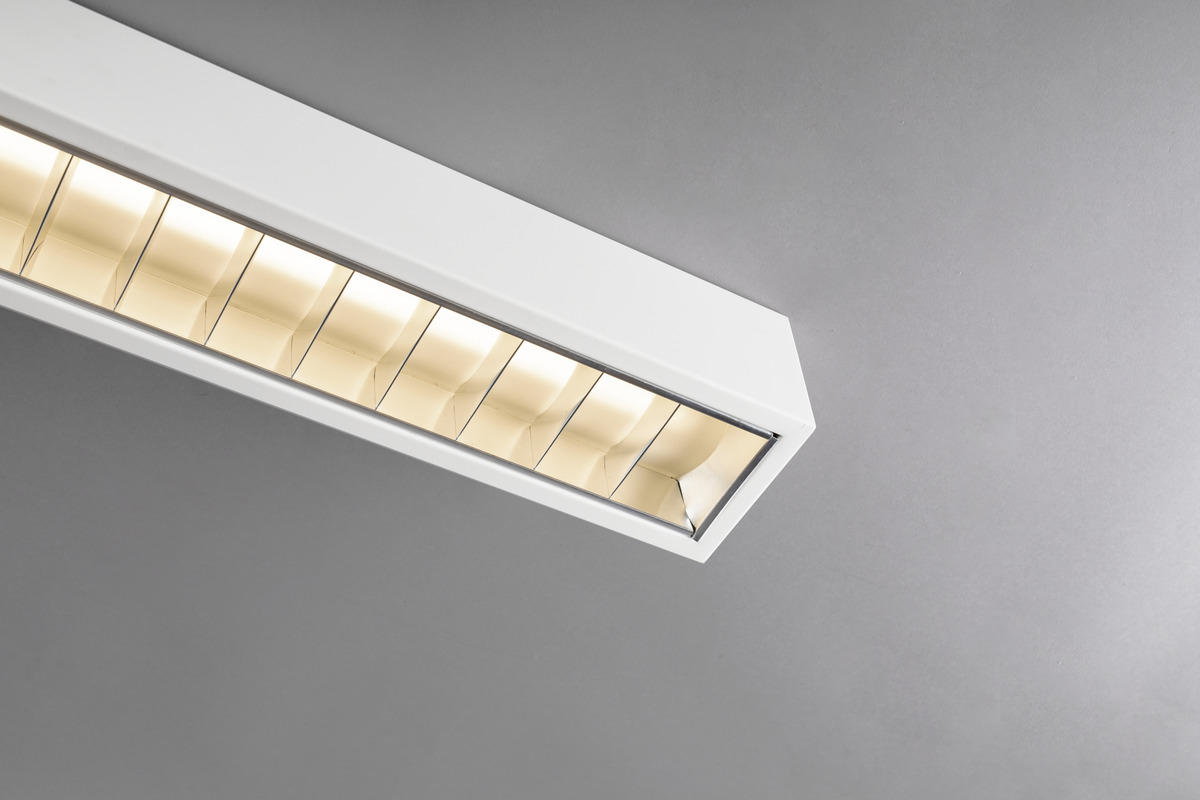

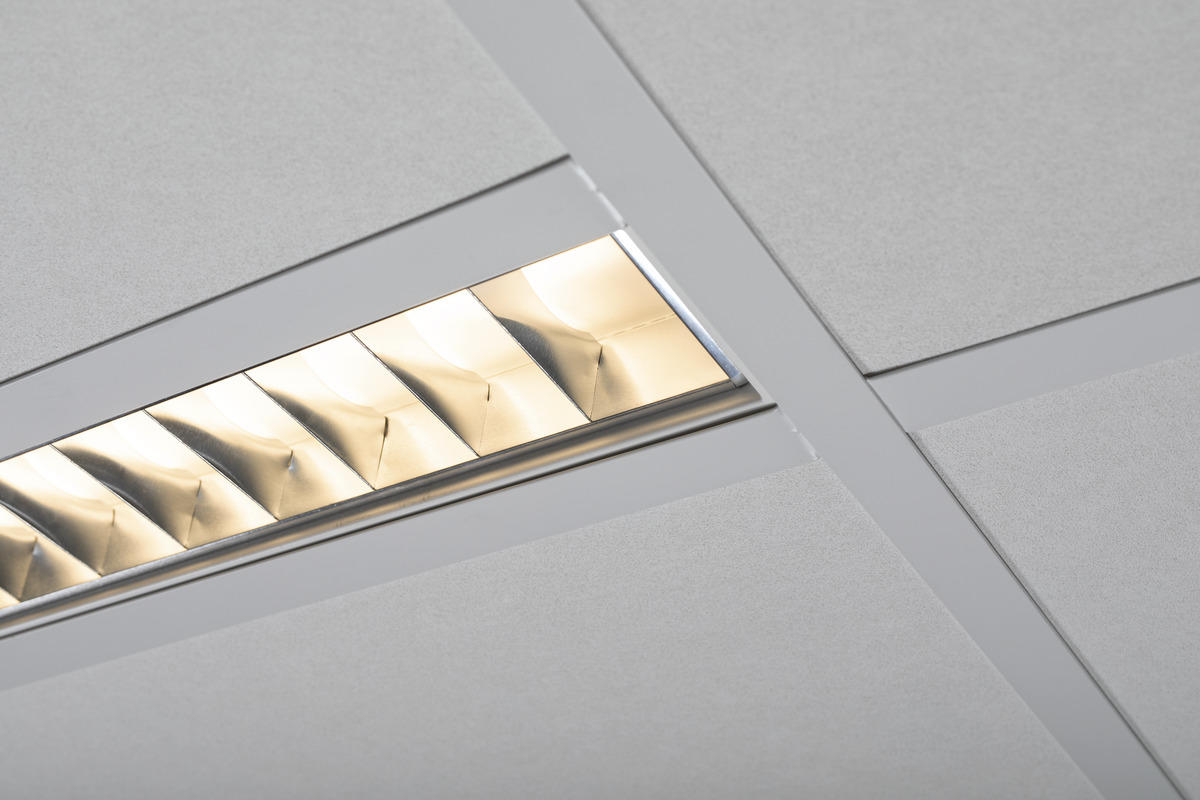

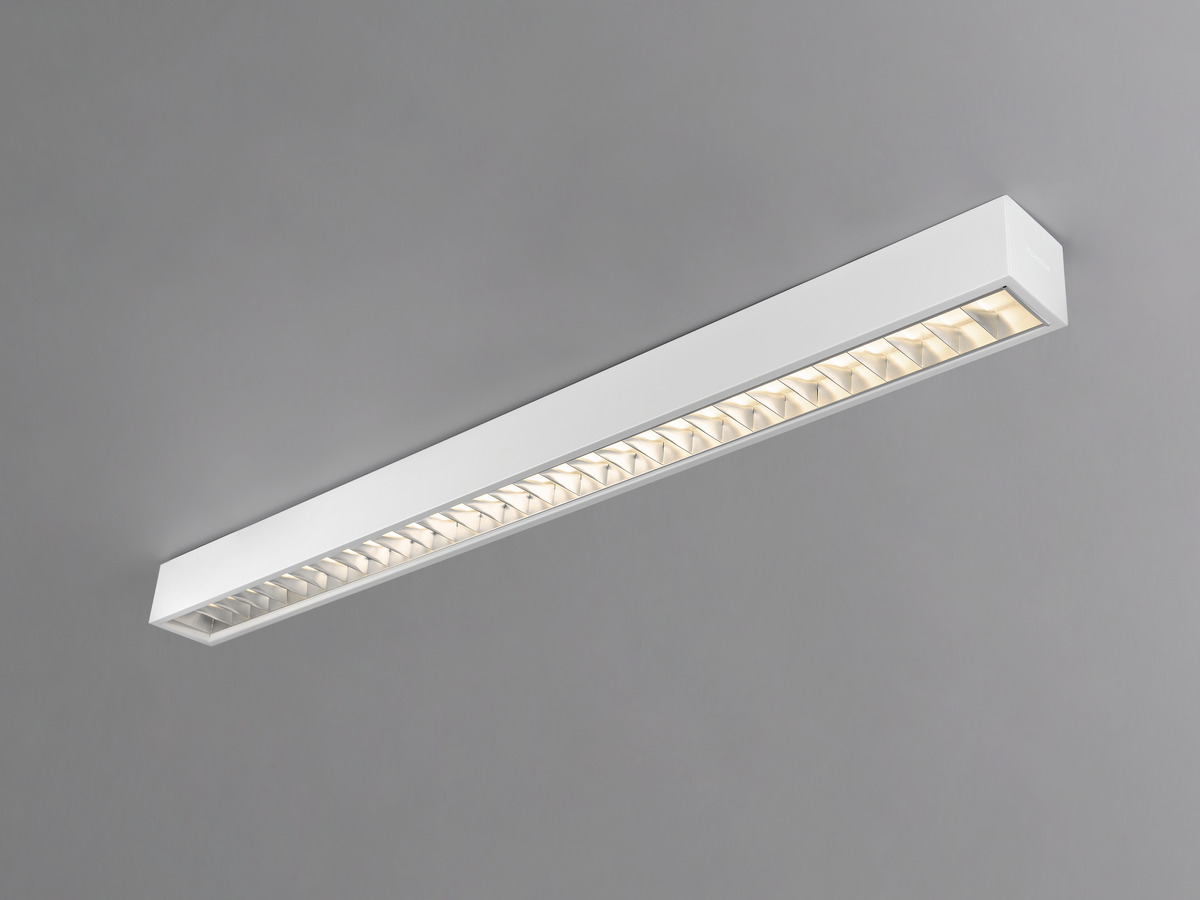

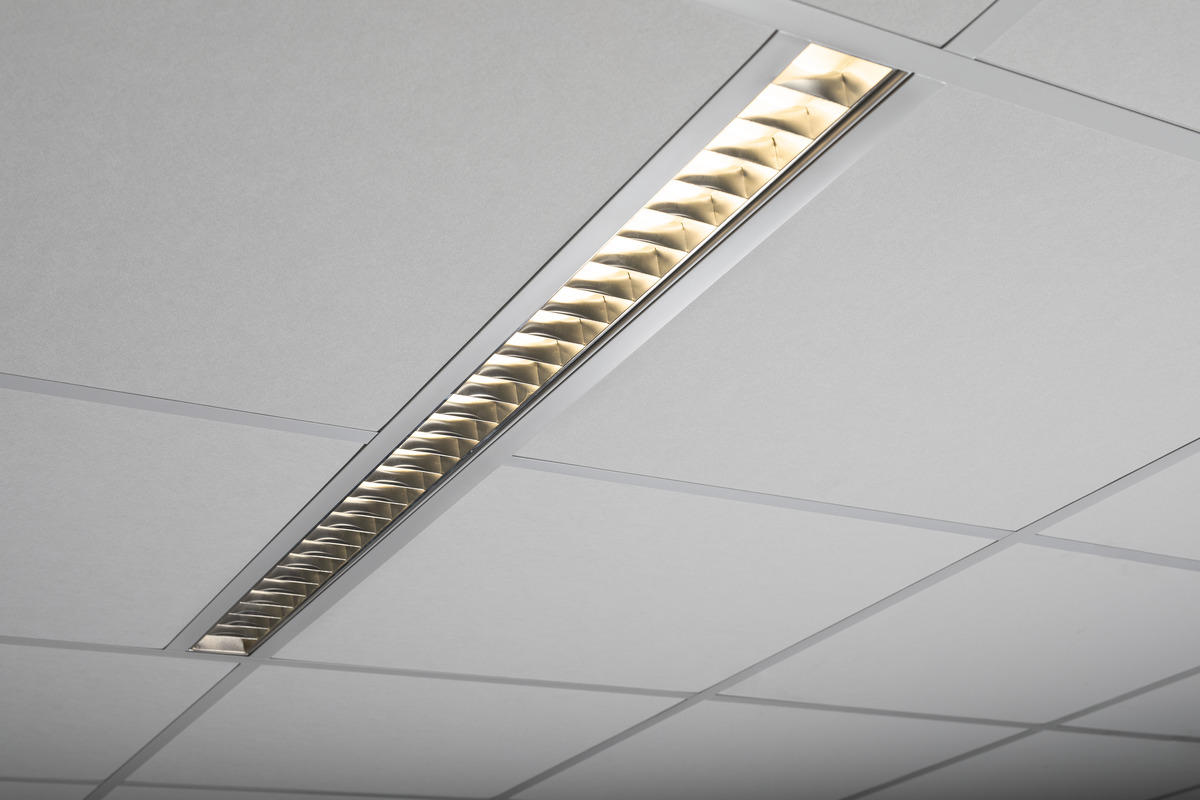

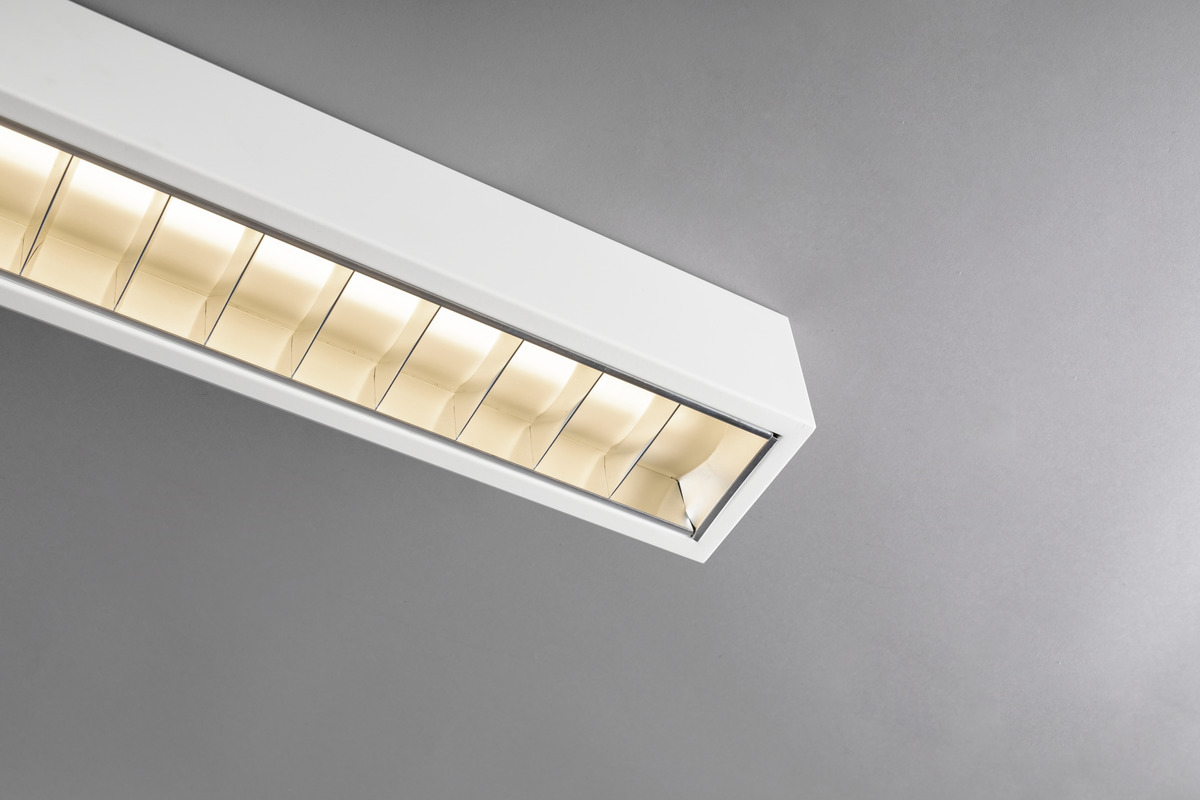

Luminaire for surface mounting in fixed ceiling or for recessed, without accessories, in ceiling with visible support profile. The LED light source is integrated with the anti-glare shield which is lowered and creates plenty of space for installation. Adapted for recessed installation without accessories in a ceiling with visible support profile. Provides a discrete and elegant impression in the ceiling. Meets screen and UGR requirements in standard conditions. Set the light level for different scenes via DALI/Push or control the lighting On/Off via an external switch.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) | Type of Dimming |
|---|---|---|---|---|---|
|
7392971137186 | Actor Ceiling DP 830 | 3000 | 4000 | OnOff |
|
7392971137193 | Actor Ceiling DP 840 | 4000 | 4260 | OnOff |
|
7392971137209 | Actor Ceiling DP 830 DALI | 3000 | 4000 | Push 230V, DALI 2 |
|
7392971137216 | Actor Ceiling DP 840 DALI | 4000 | 4260 | Push 230V, DALI 2 |
Actor Ceiling DP 830
-
GTIN 7392971137186Item Name Actor Ceiling DP 830Warranty 5 years

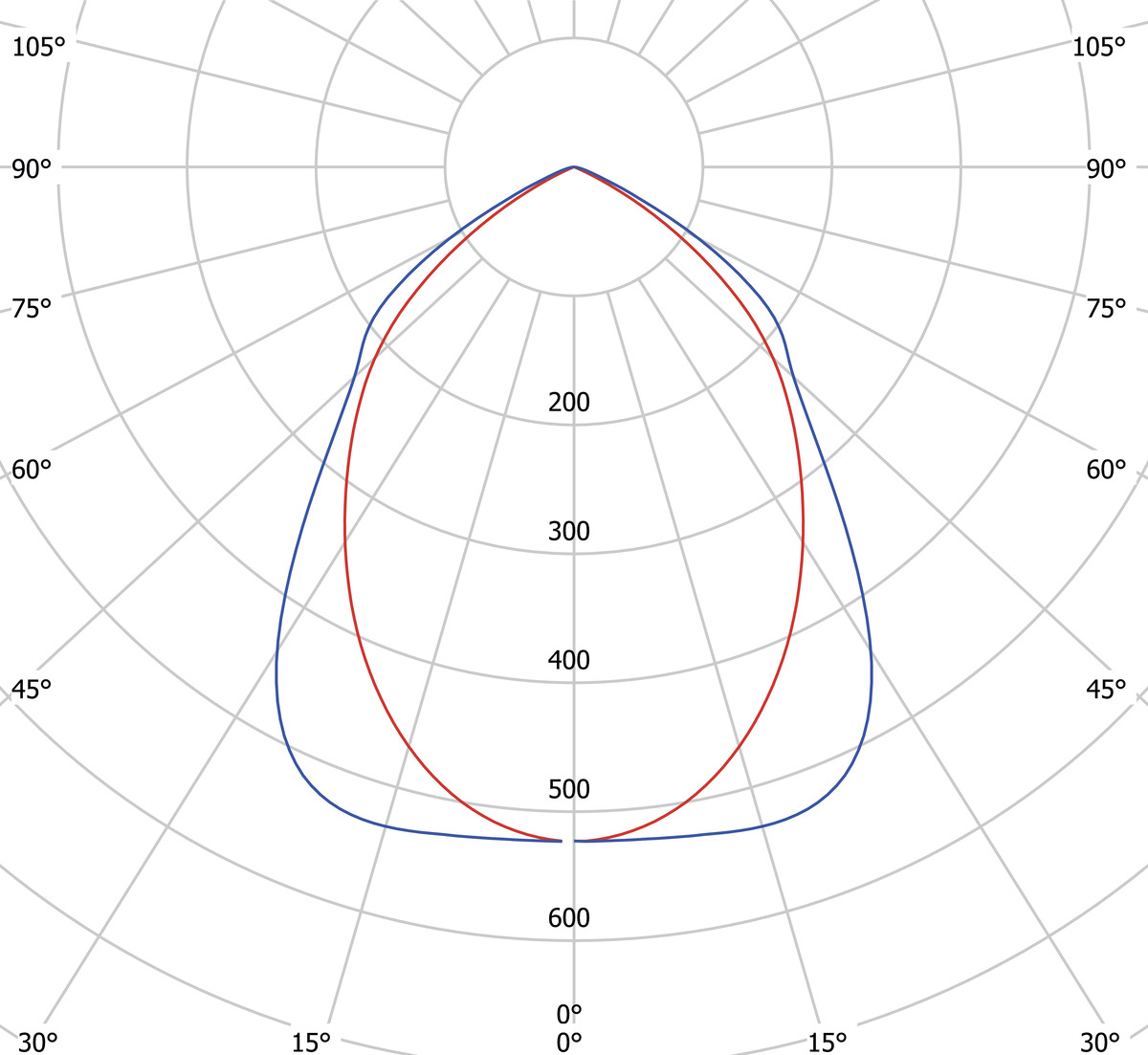

- Light Technical Data
-

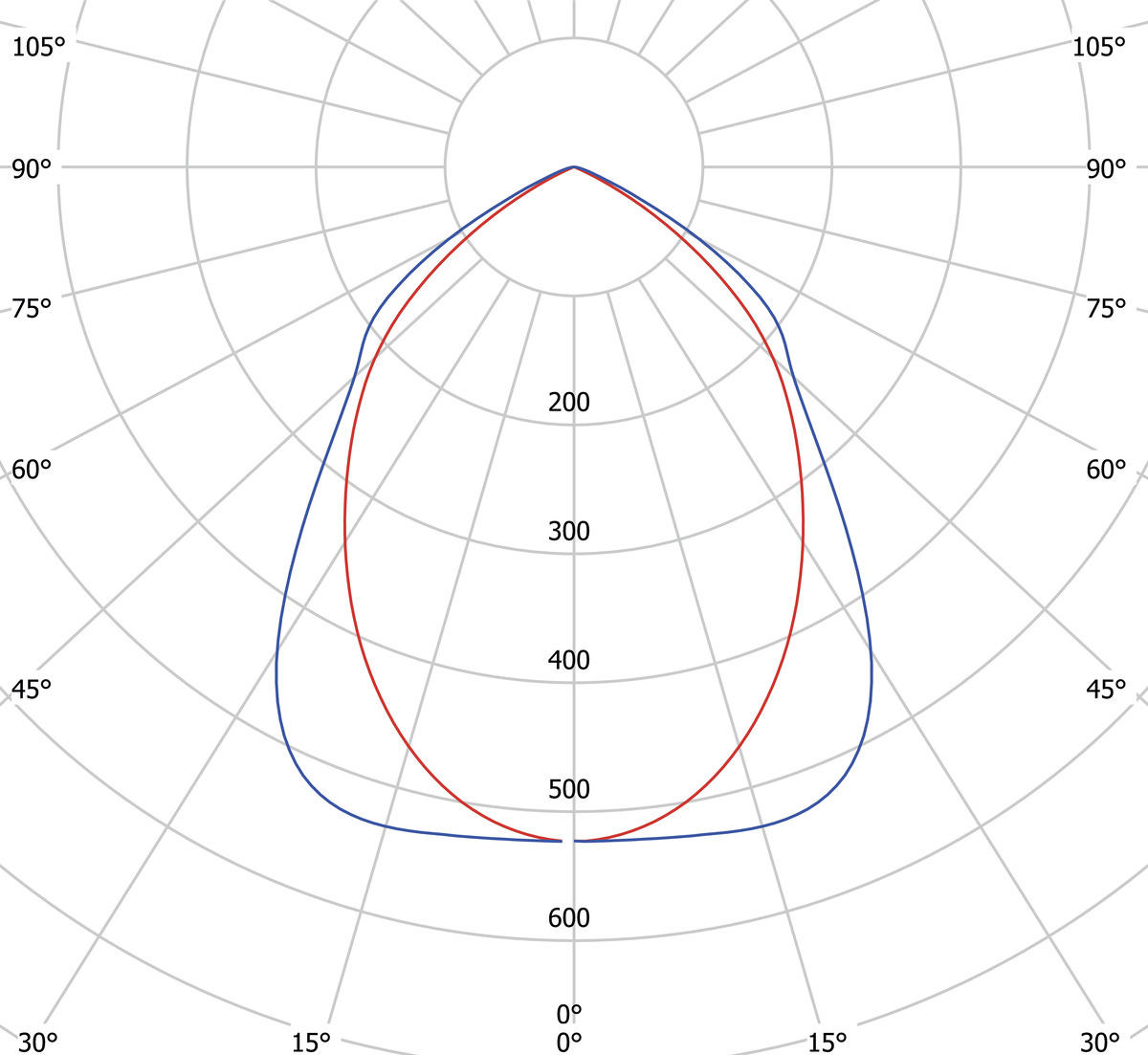

Luminaire Lumen (lm) 4000Light Source LEDLight Source Included YesReplaceability Non-replaceaable LED, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 2130Beam Angle (°) 90Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 168Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L90Lumen maintenance 100 000h L80LLMF @ 50 000h 0,9LLMF @ 100 000h 0,8Life Time Driver 50 000h/10%Flicker (PstLM) 0,1Stroboscopic effect (SVM) 0,1
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50, 60Power Luminaire (W) 36System Power (W) 36Efficiency Luminaire (lm/W) 111Efficiency System (lm/W) 111Containing light source energy efficiency class (EU) 2019/2015 C
- Operation and Connection
-
Dimmable NoType of Dimming OnOffDriver Included YesDriver Model Constant CurrentDriver Type Built-inDriver Manufacturer OsramConnection (type) Quick TerminalConnection (mm2) 3x0,5-2,5Through Wiring YesStrain Relief YesPower Factor ʎ 0,98Constant Current (mA) 800Operating TemperatureMax. Tc (°C) 80Fuse B10 (pcs) 14Fuse B16 (pcs) 23Fuse C10 (pcs) 24Fuse C16 (pcs) 39
- Color and material
-
Material Metal, Sheet metal, SteelColor WhiteEnvironmental Assessment Byggvarubedömningen
- Measurement and installation
-

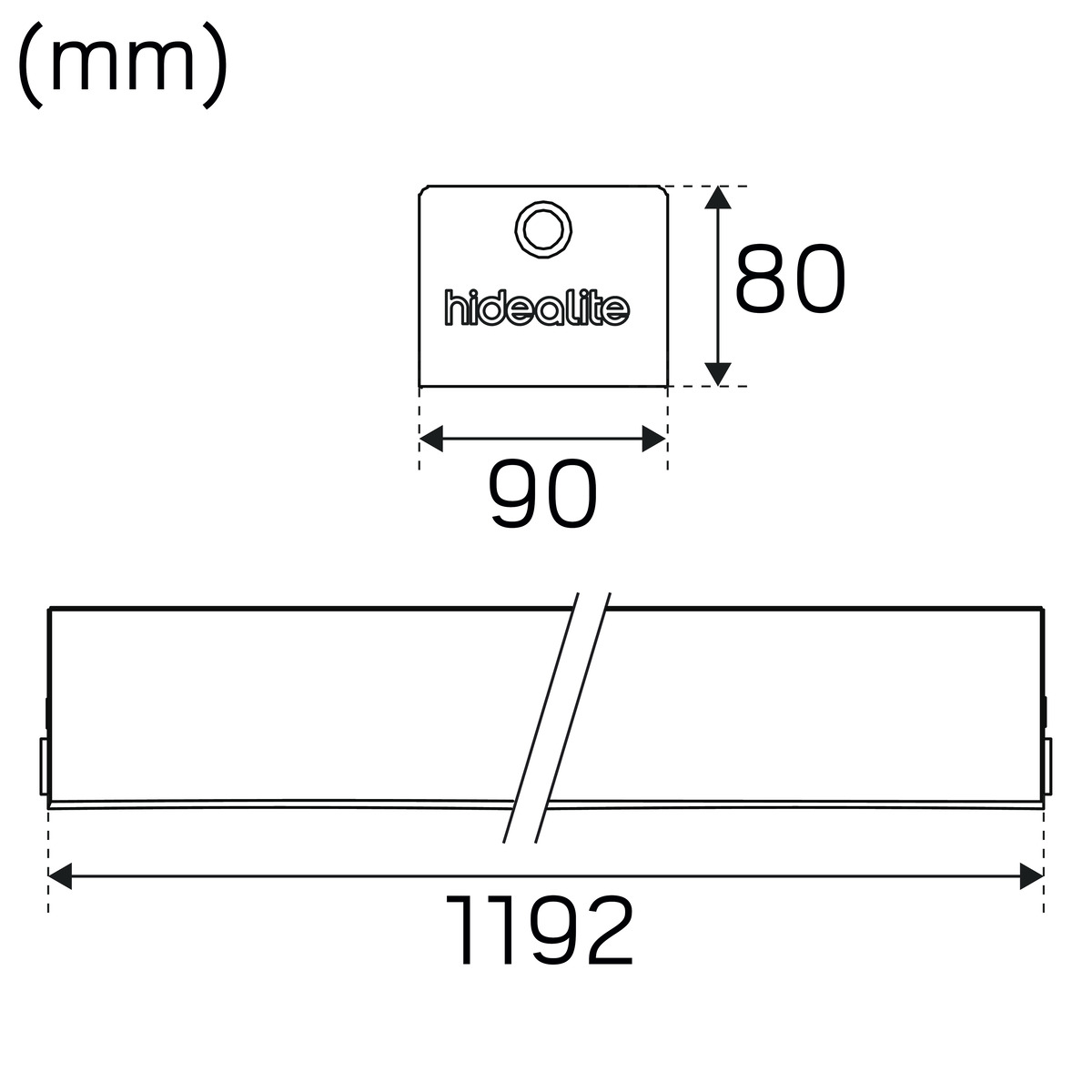

Operating EnvironmentIP Degree of Protection 20Protection Class IInstallation Built-in, Surface mountedMounting Installation Screw MountingFire Safety Marks Not in insulation without protection coverApproval Marks CELength (mm) 1192Width (mm) 90Height (mm) 80Weight (kg) 3,04Built-in LxB (mm) Manual
