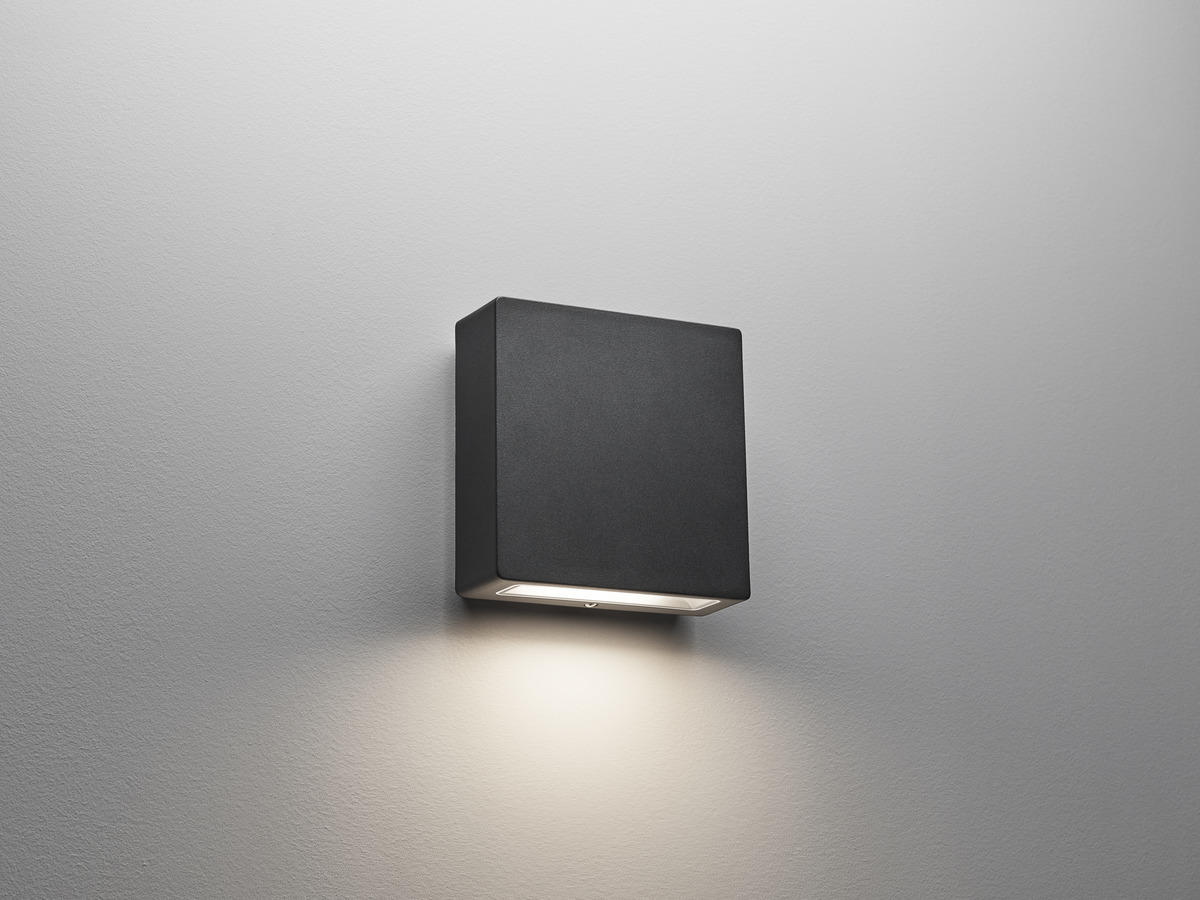

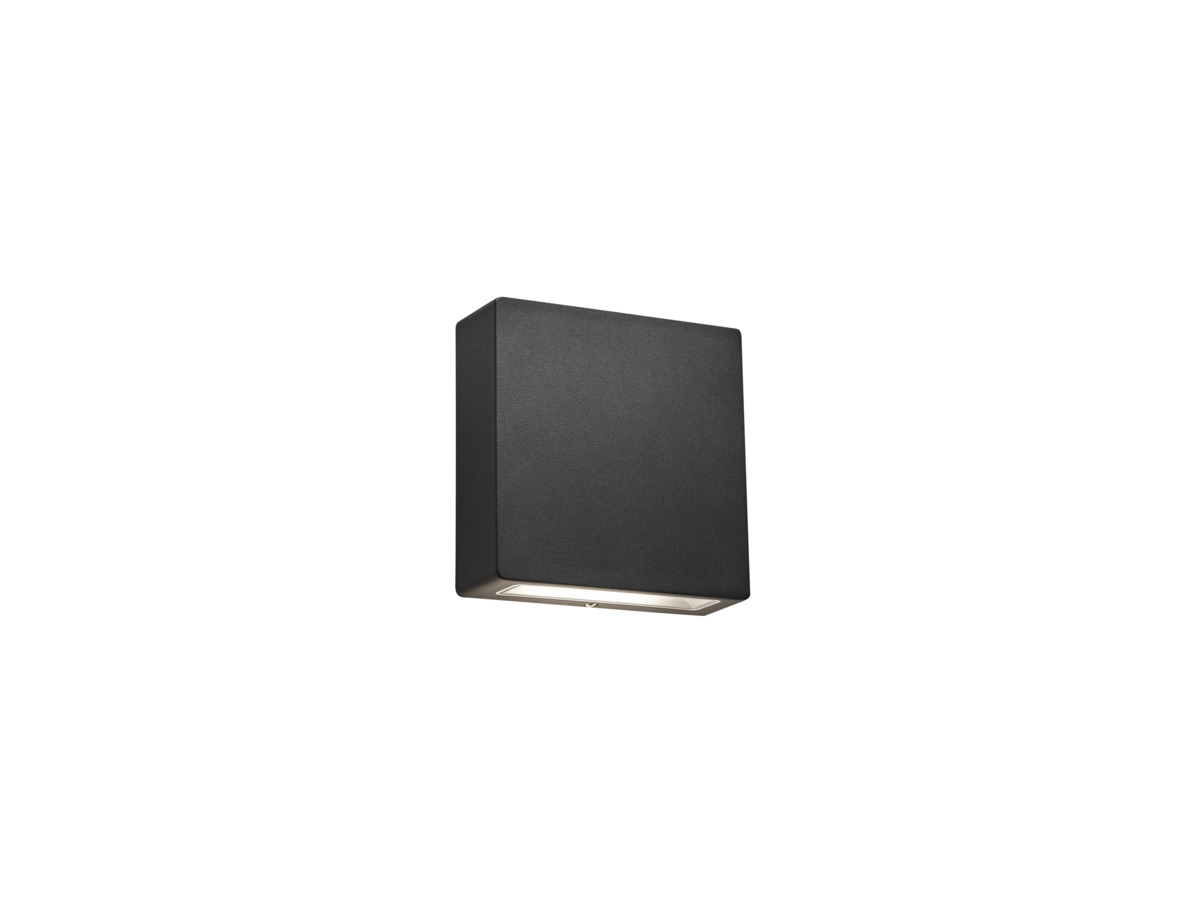

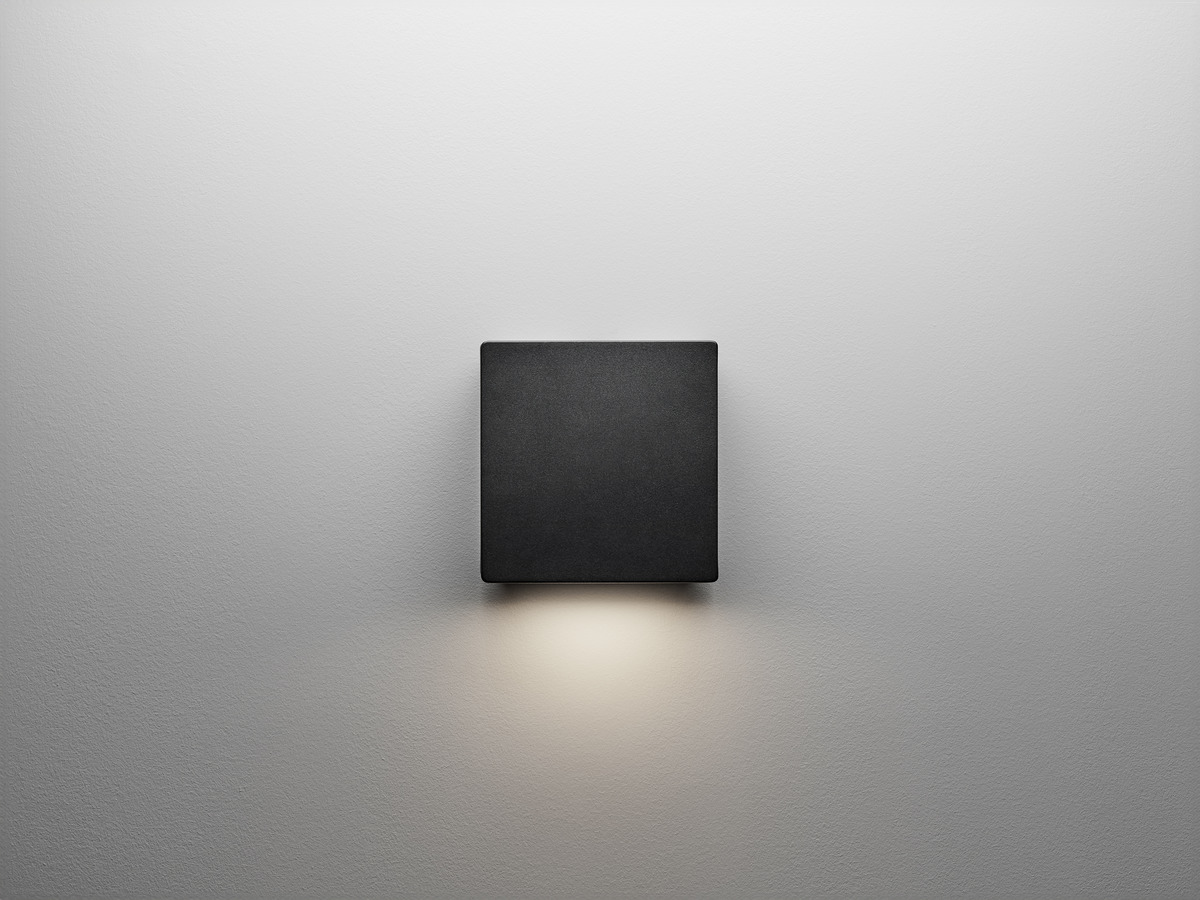

Pixo M I Pixo M I Black

Adjustable lumen output via DIP-Switch Power, see manual for levels
Selectable colour temperature via DIP-Switch ColourTemp
With accessories such as decor front, you can change the appearance and colour of your luminaire
Replaceable LED and driver
IK10, IP65 and durable powder coating

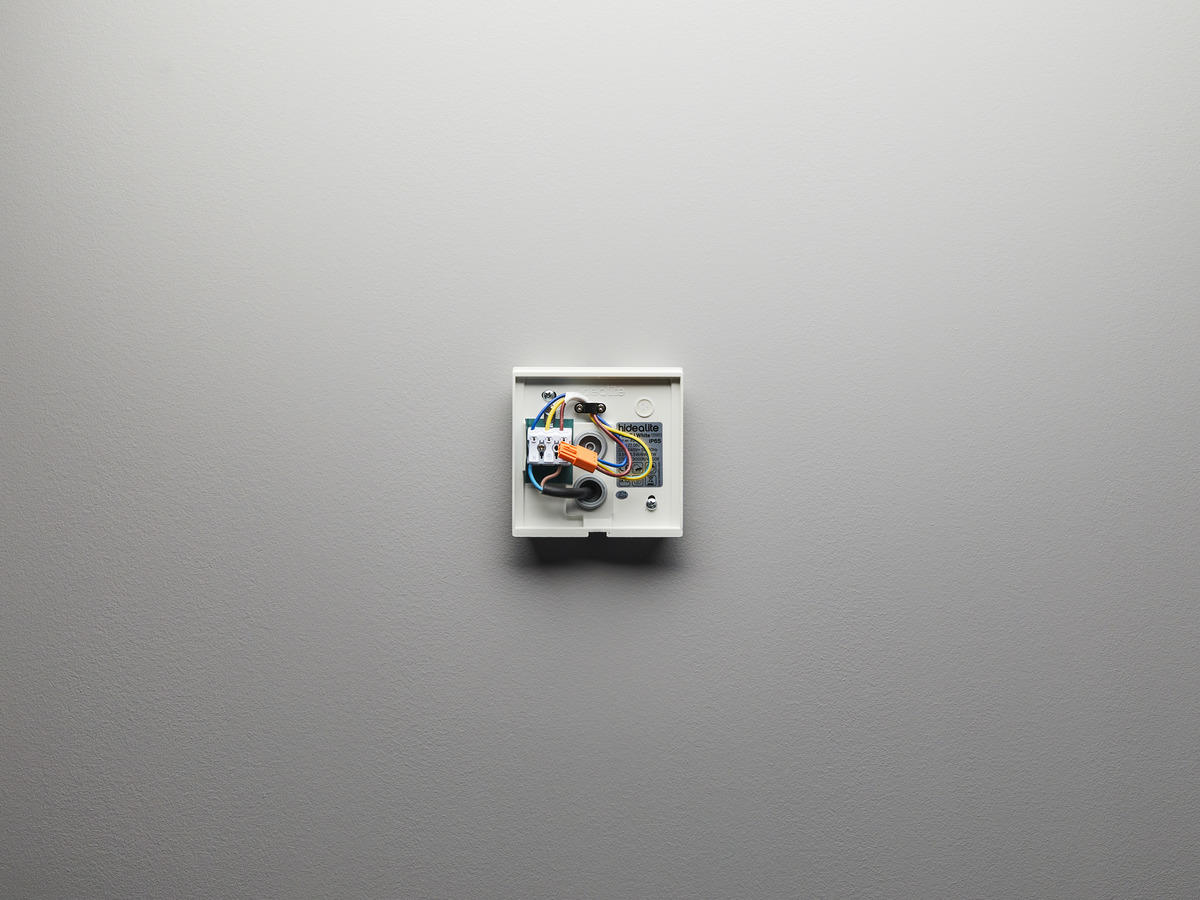

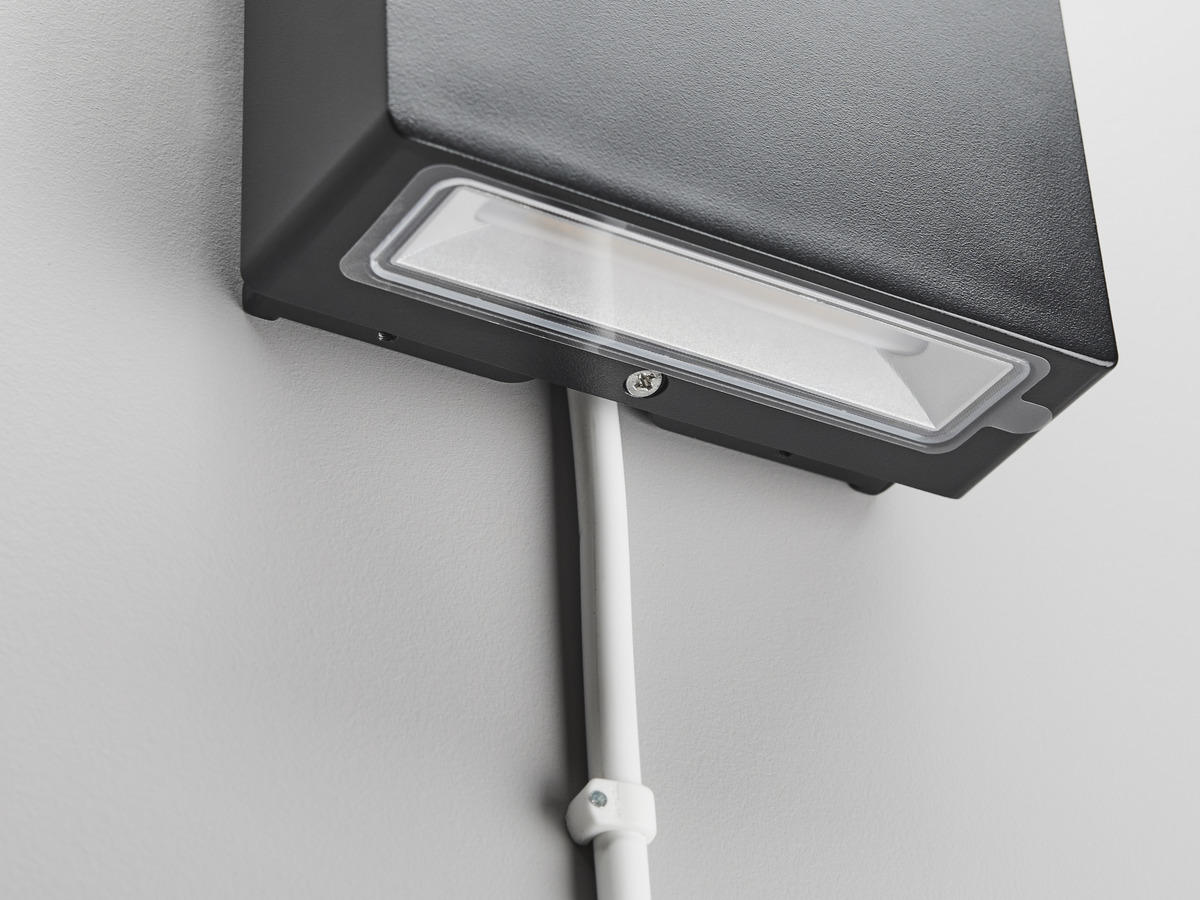

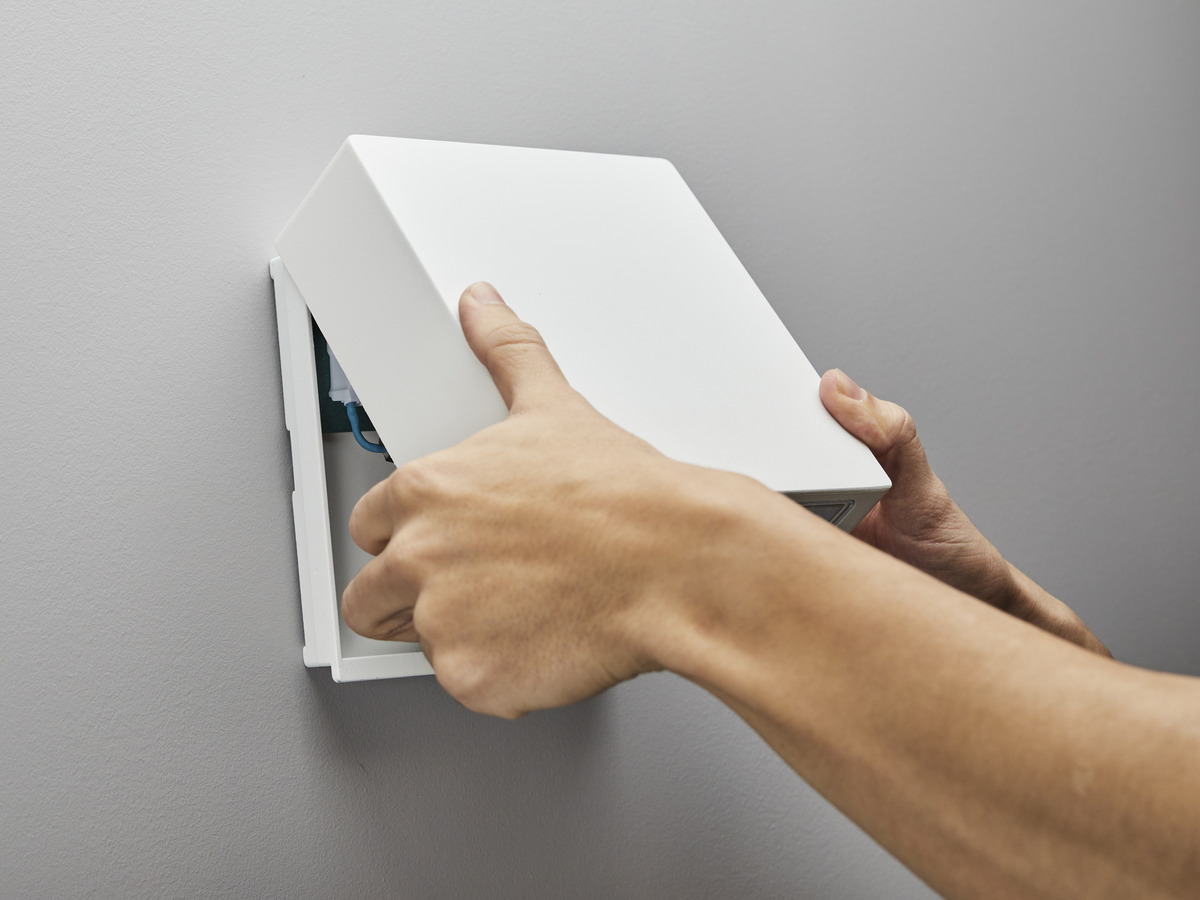

Separate rear element with built in input for installation of surface-mounted cables

Pixo isn’t just a wall luminaire, it’s a style icon – an ultimate luminaire for indoor or outdoor use in private and public environments. It lights up not only your wall, but also your taste for Nordic design. Easily installed dimmable luminaire in two sizes for direct connection to 230V. Separate rear element and built in spacer frame in which the rear element is equipped with cable inlets to enable surface-mounted cabling. Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. Pixo is designed for IP65, IK10 and has durable powder coating for tough outdoor environments. With accessories such as decor fronts, you creates a glare-free light distribution and change its appearance to create a unique style that harmonises with your facade’s aesthetics. The decor fronts can be supplied in a choice of colours on request.

GTIN	Item Name	Color
7392971149127	Pixo M I Black	Black
7392971149103	Pixo M I White	White
7392971149110	Pixo M I Grey	Grey

Description: GTIN 7392971149127

Item Name Pixo M I Black

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1790

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700, 3000, 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 960

Beam Angle (°) 90

Light sharing Symmetric

Light Outlet Direct

Number of LED (pcs) 1

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 35 000h L89

Lumen maintenance 50 000h L89

Lumen maintenance 75 000h L84

Lumen maintenance 100 000h L79

LLMF @ 50 000h 0,89

LLMF @ 100 000h 0,79

Life Time Driver 100 000h/20%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 9

Power LED (W) 18

Power Luminaire (W) 21

System Power (W) 21

Efficiency Luminaire (lm/W) 85

Efficiency System (lm/W) 85

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming DIP-Switch Power, Trailing Edge

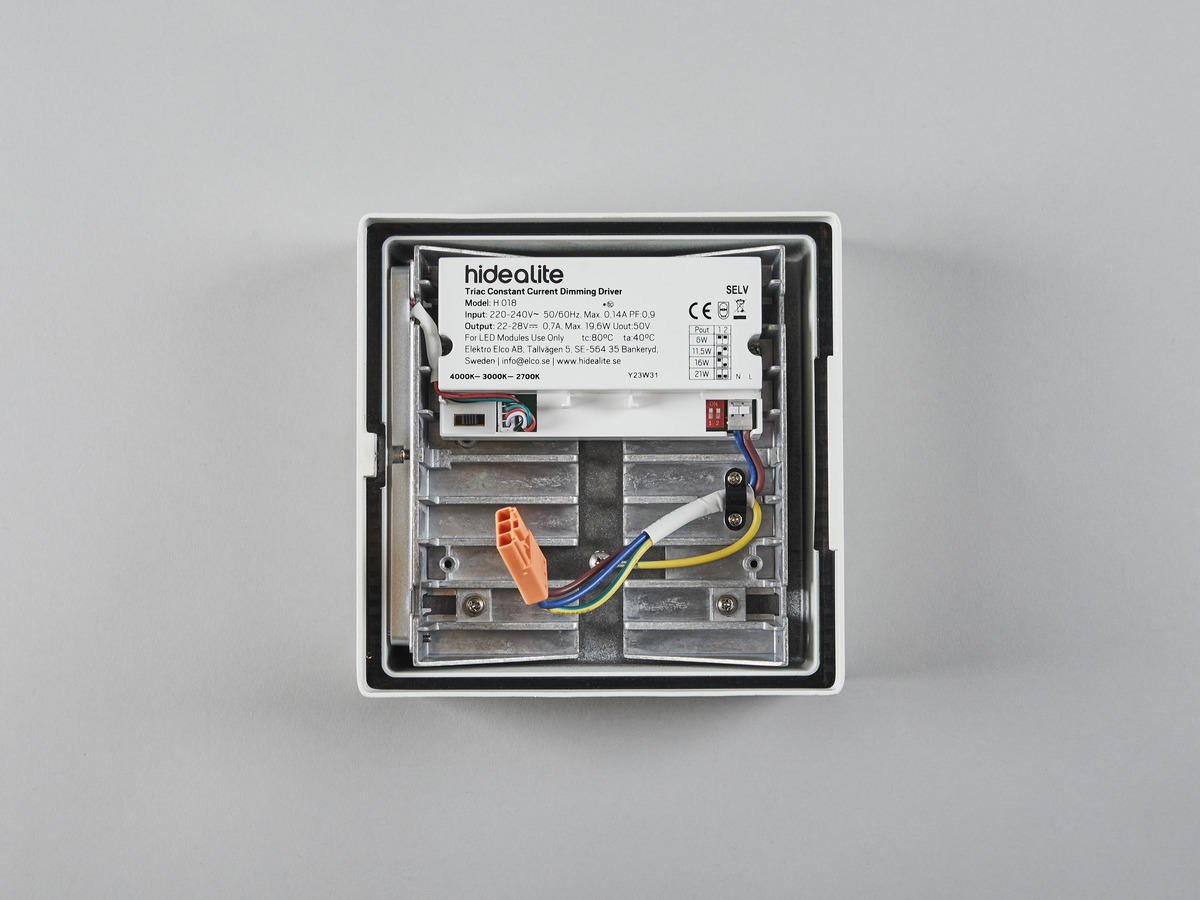

Driver Included Yes - replaceable

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief No

Power Factor ʎ 0,9

Efficiency (%) 84

Power loss (W) 3,6

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,13

THD (%) 30

Constant Current (mA) 200, 390, 540, 700

Operating Temperature -20…+40

Max. Tc (°C) 80

Dimming secondary side AM

Protection Against Short Circuit, Overload

Inrush current (max/time) 2,5A 70µs

Mains surge protection DM (kV) 2

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 61

Fuse B16 (pcs) 98

Fuse C10 (pcs) 61

Fuse C16 (pcs) 98
Color and material: Material Aluminium

Color Black

Environmental Assessment SundaHus, Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / dry locations, Indoor / damp locations, Indoor / wet locations, Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 65

Protection Class I

Installation Wall

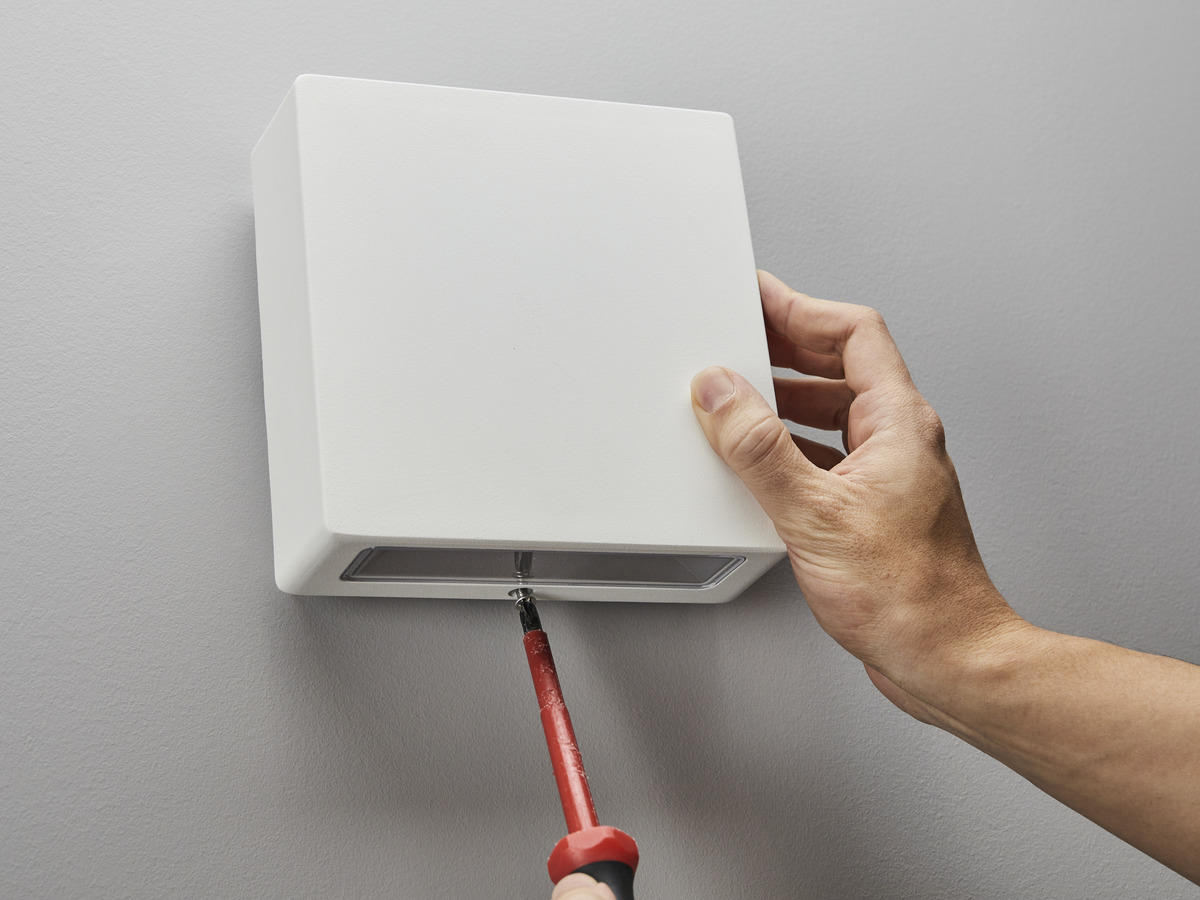

Mounting Installation Screw Mounting

Approval Marks CE, a Hide-a-lite Choice

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 650

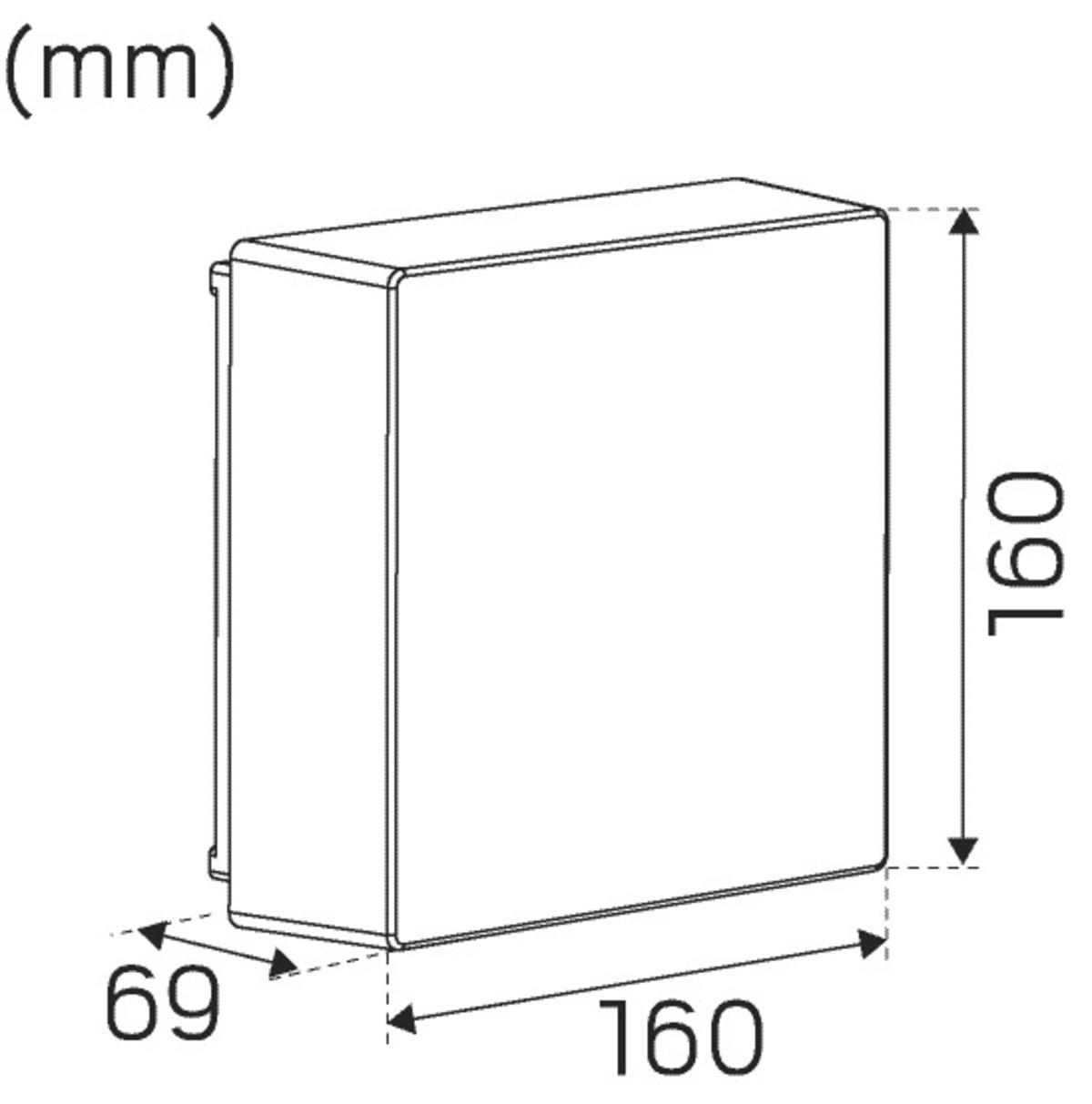

Width (mm) 160

Height (mm) 160

Depth (mm) 68

Weight (kg) 1,24

Spare parts

If you need spare parts, contact our customer support

LED-Module Pixo M X290
Driver Pixo M I X339
