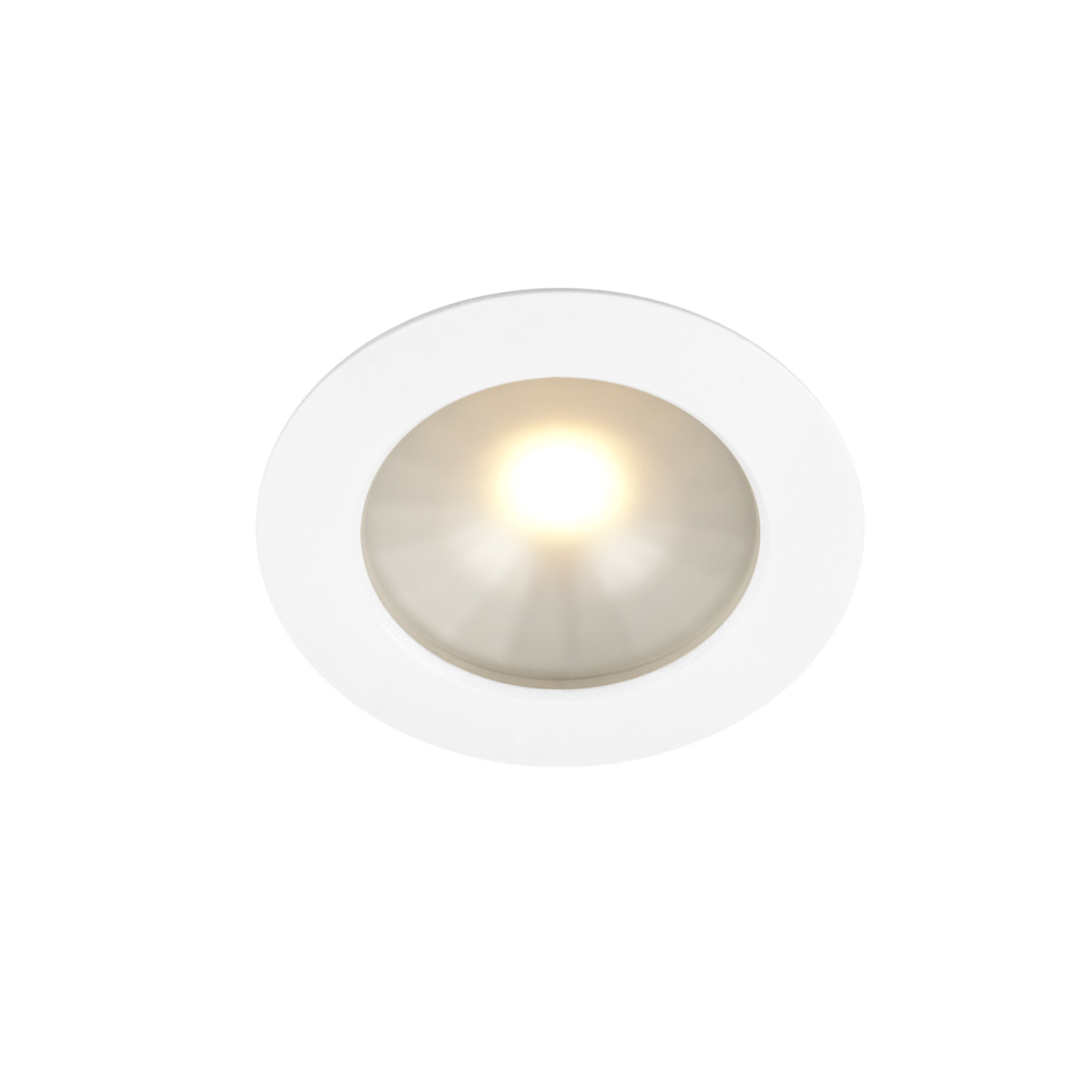

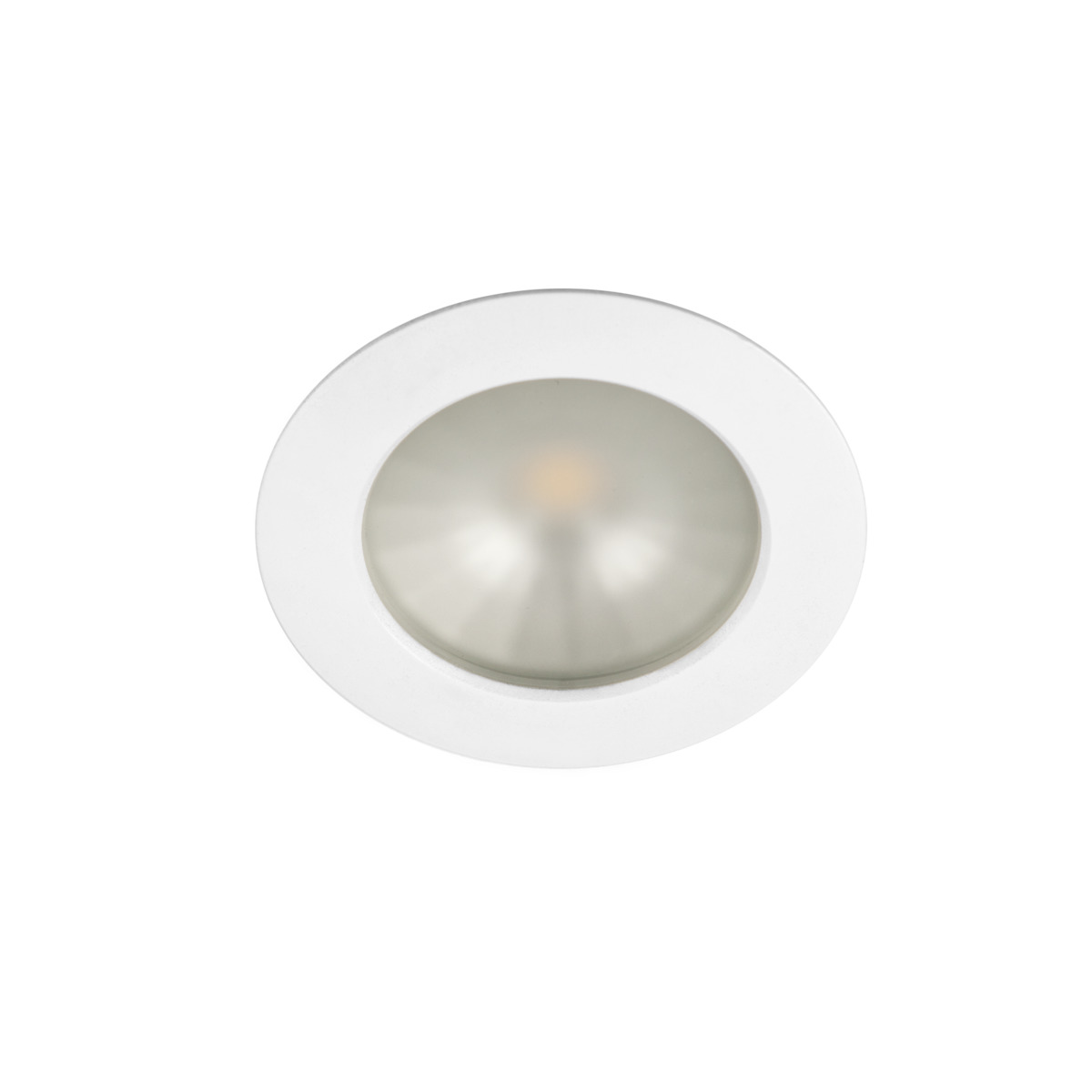

1202 12V

Retain existing wiring as well as transformers and dimmers
Connects to 12V, AC or DC. Only dimmable with AC
Push-in terminal (0,2-0,75mm²) for easy installation
List of recommended dimmers/trafos, see www.hidealite.se

This luminaire makes it easier than ever to replace old halogen fittings with energy-efficient LED technology. Push-in terminals integrated with the heat sink enable you to use existing wiring and connect the fitting to your old transformer and dimmer. The luminaire can be installed in existing recesses (57-60 mm) and has an IP44 rating for use in different environments. Connects to 12V AC/DC (only dimmable with AC). Can be dimmed very low with standard dimmers, see our dimmer list for more info.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971129327	1202 12V White 2700K	White	2700	290
7392971129310	1202 12V White 3000K	White	3000	300
7392971135267	1202 12V White 4000K	White	4000	365
7392971129334	1202 12V Brushed steel 2700K	Brushed Steel	2700	290
7392971129341	1202 12V Brushed steel 3000K	Brushed Steel	3000	300
7392971135274	1202 12V Brushed steel 4000K	Brushed Steel	4000	365

Description: GTIN 7392971129327

Item Name 1202 12V White 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 290

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 280

Beam Angle (°) 70

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 4

Life Time L70 75 000h Ta 25°C

Nominel Life Time (h) 75000
Technical data: Adjustable No

Voltage (type) AC, DC

Voltage Nominal (V) 12

Power Luminaire (W) 4,3

System Power (W) 4,7

Efficiency Luminaire (lm/W) 67

Efficiency System (lm/W) 61

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes (only AC)

Driver Included No

Driver Model Constant Voltage, Halogen Transformer

Connection (type) Quick Terminal

Connection (mm2) 2x0,2-0,75

Through Wiring No

Strain Relief No

Operating Temperature -20…+40

Max. Tc (°C) 96
Color and material: Material Diecasted, Aluminium

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in, Surface mounted

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 5

Fire Safety Marks MM-mark, Not in insulation without protection cover

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE

Height (mm) 19

Diameter (mm) 70

Weight (kg) 0,054

Min. Built-in (mm) Ø58x17

Height Recessed Part (mm) 17

Height Exterior Part (mm) 2

Built-in Ø (mm) 58
