1218 12V

Connects to 12V AC/DC (only dimmable with AC)
List of recommended dimmers, see www.hidealite.se

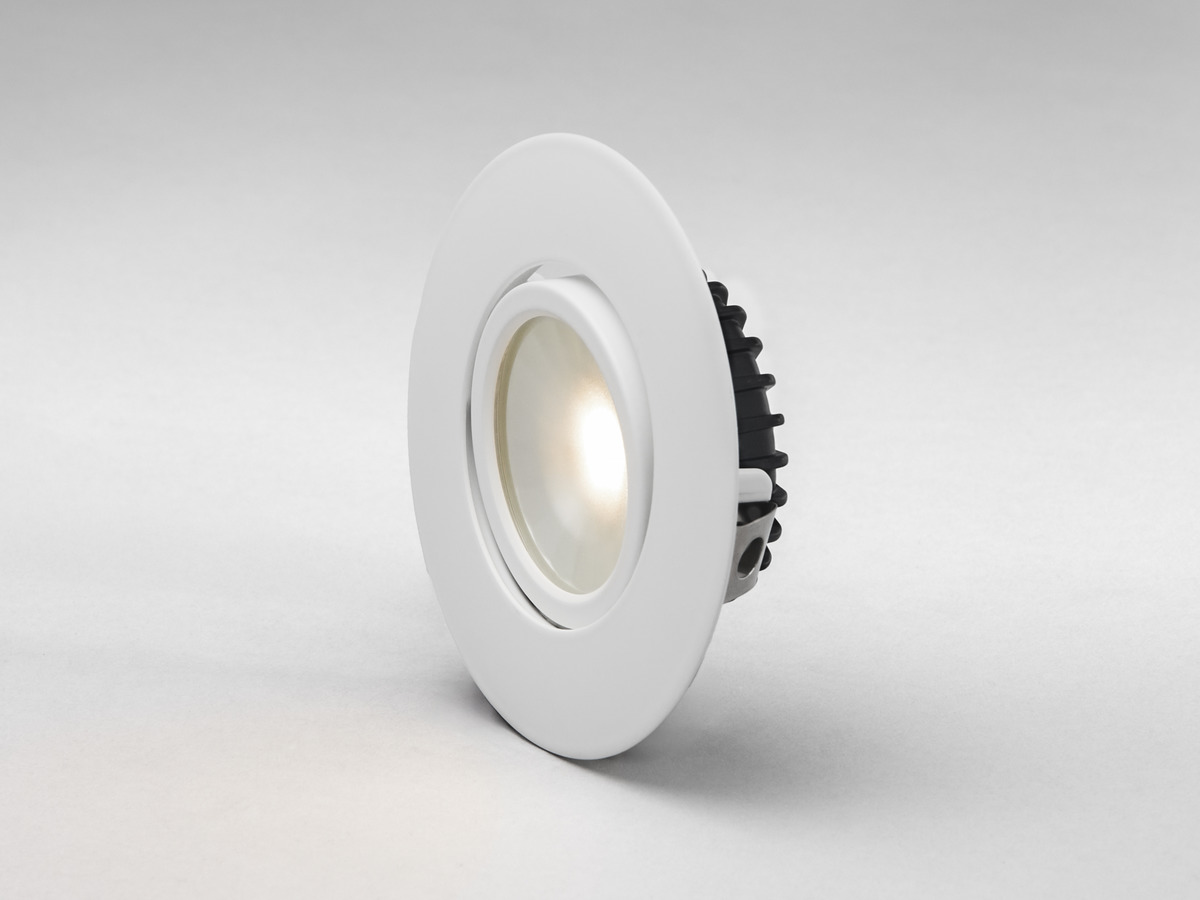

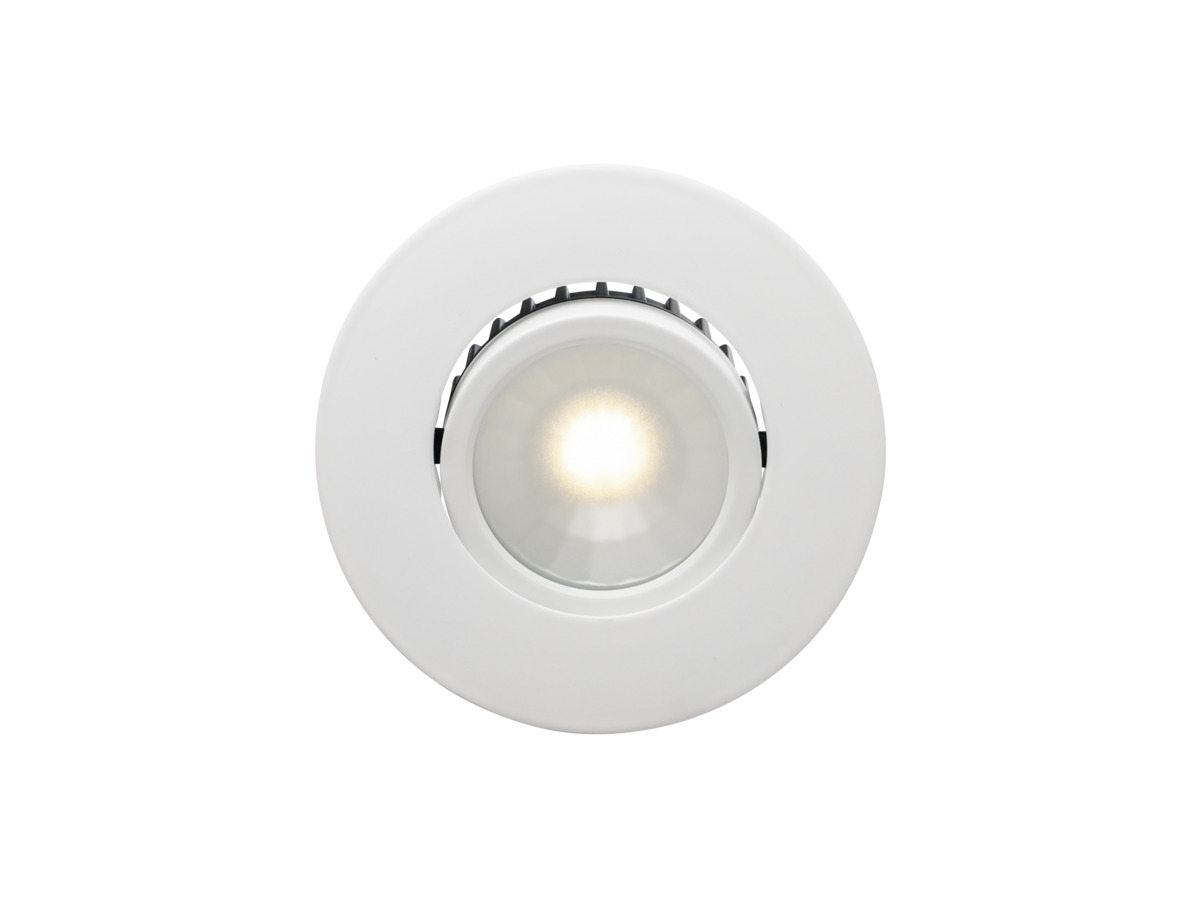

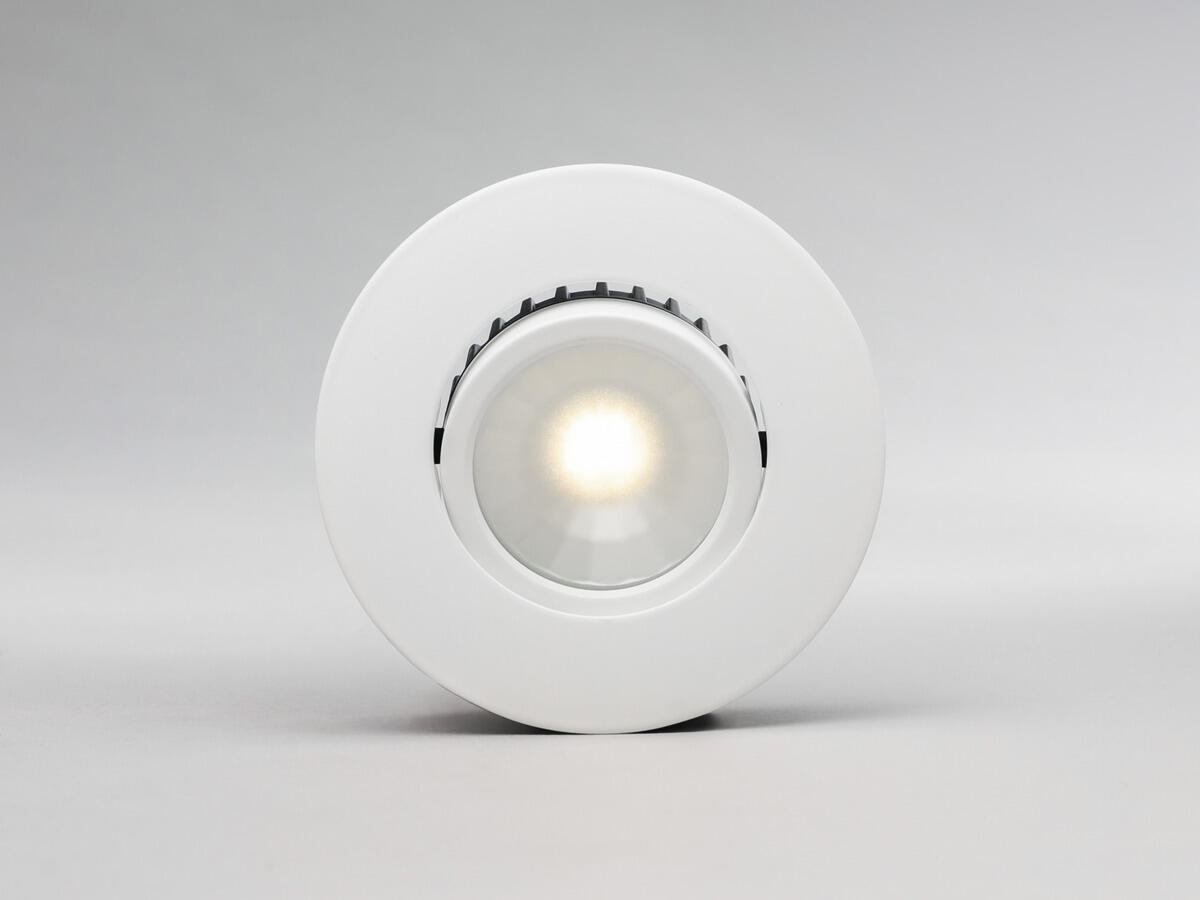

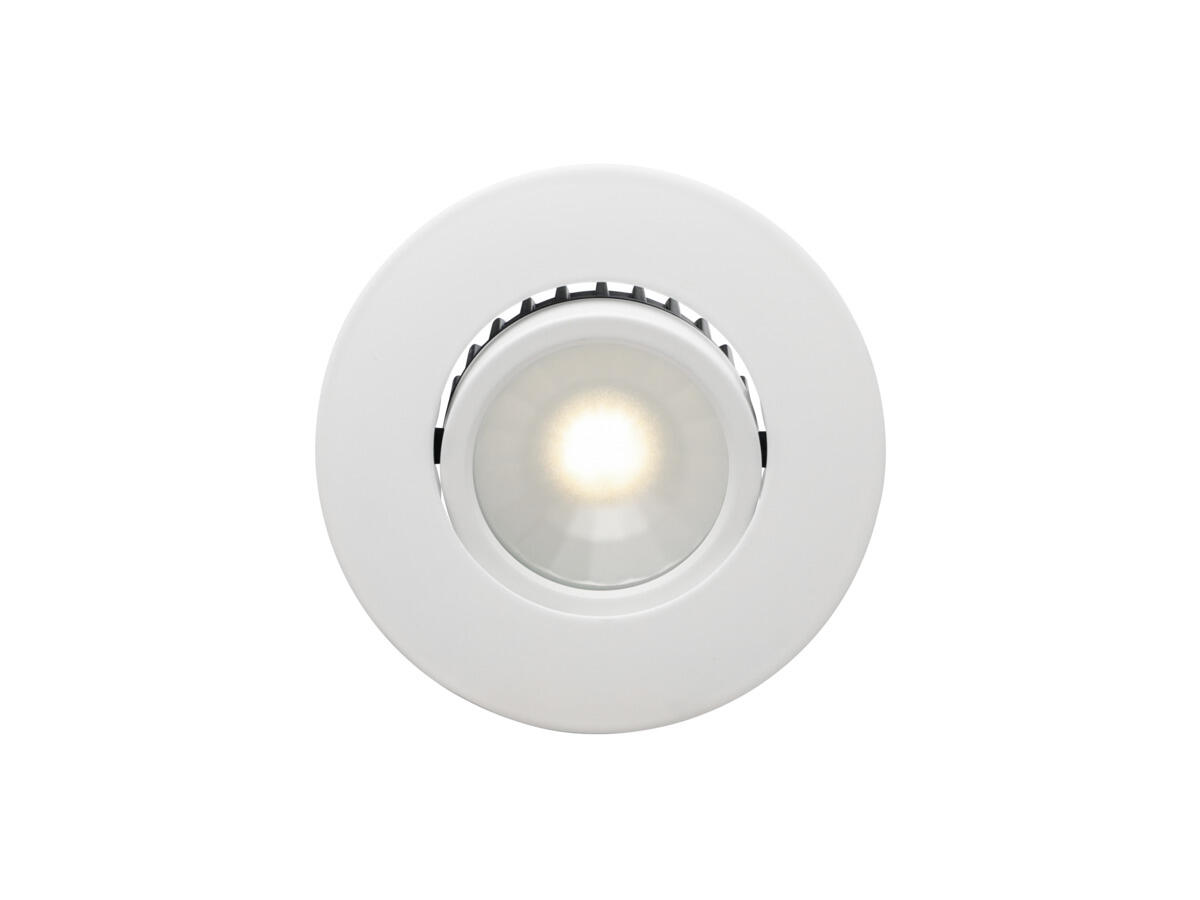

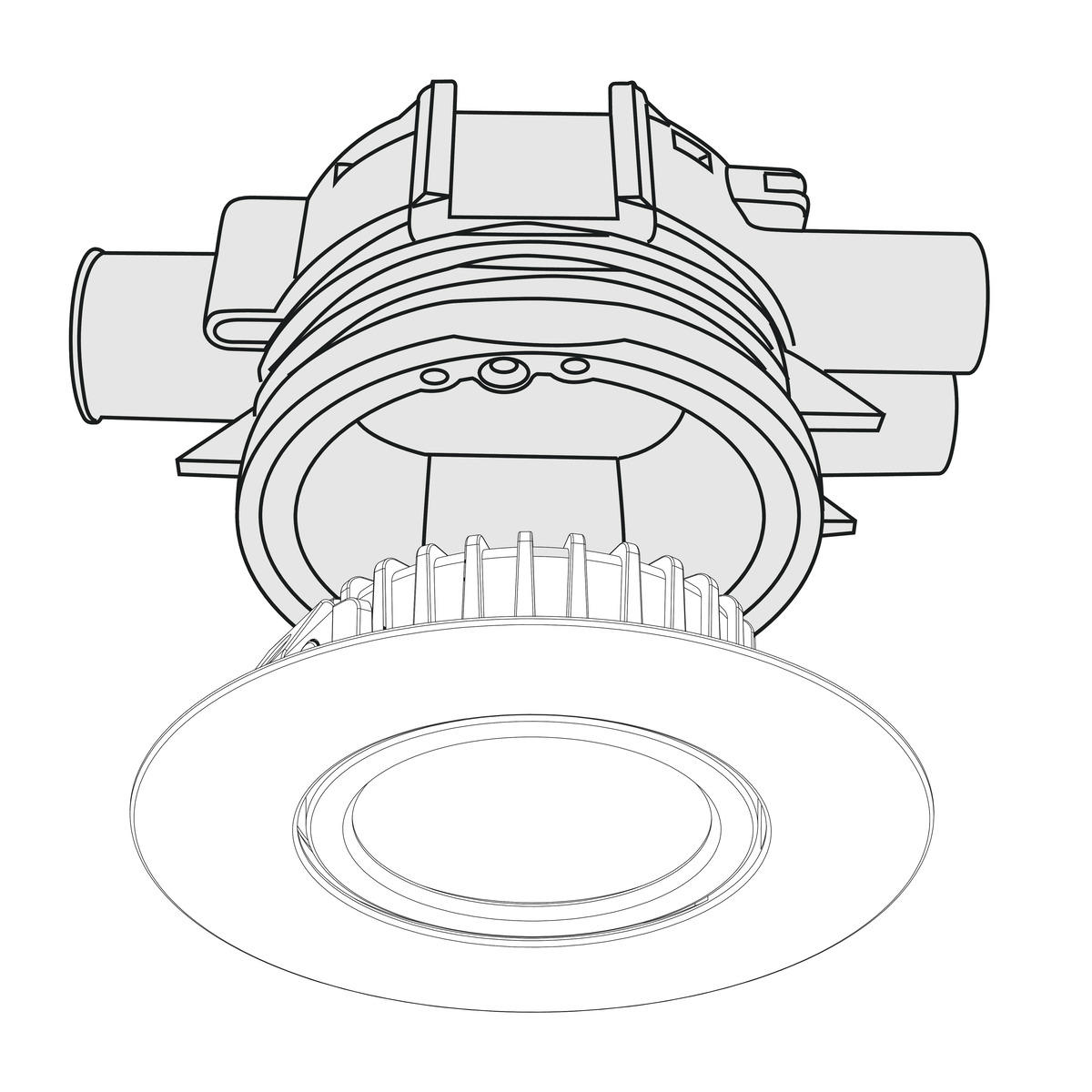

Dimmable LED downlight IP44 for connection to 12V AC/DC. Tiltable fixture for installation in appliance box or in normal 57-60mm cut-out with tension springs. Push-in terminals integrated in the back cover makes it easy to use existing wiring, transformer and dimmer when changing older halogen fittings. Connects to 12V AC/DC (only dimmable with AC). Can be dimmed very low with standard dimmers, see our dimmer list for more info.

Variants	GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
	7392971131825	1218 12V White 3000K	3000	360
	7392971131818	1218 12V White 2700K	2700	350

Description: GTIN 7392971131825

Item Name 1218 12V White 3000K

Warranty 5 years

Type .
Light Technical Data: Luminaire Lumen (lm) 360

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 220

Beam Angle (°) 70

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 4

Life Time L70 75 000h Ta 25°C

Nominel Life Time (h) 75000
Technical data: Adjustable Yes

Tiltable (°) 15

Voltage (type) AC, DC

Voltage Interval (V) 12...12

Voltage Nominal (V) 12

Power LED (W) 3,6

Power Luminaire (W) 4,7

System Power (W) 5,2

Efficiency Luminaire (lm/W) 77

Efficiency System (lm/W) 69

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes (only AC)

Driver Included No

Driver Model Constant Voltage, Halogen Transformer

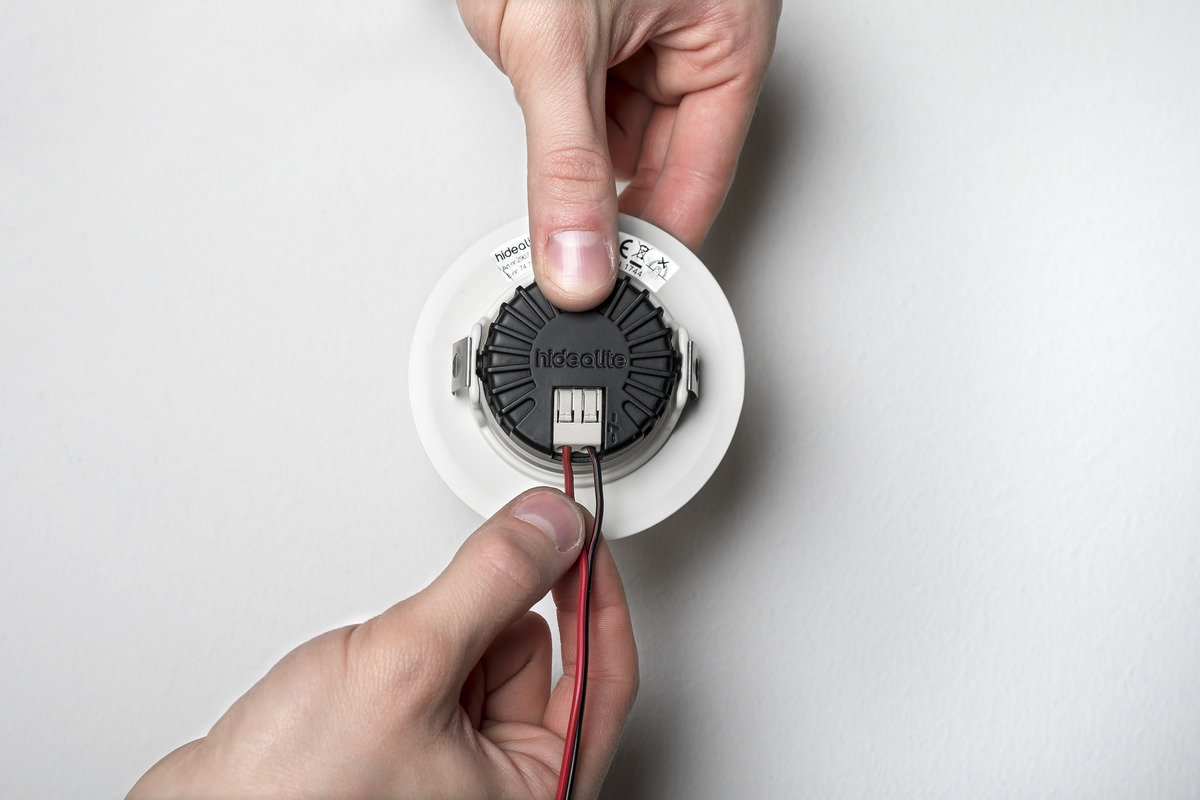

Connection (type) Quick Terminal

Connection (mm2) 2x0,5-1,5

Strain Relief No

Operating Temperature -15...+40

Max. Tc (°C) 105
Color and material: Material Diecasted, Aluminium

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in, Surface mounted

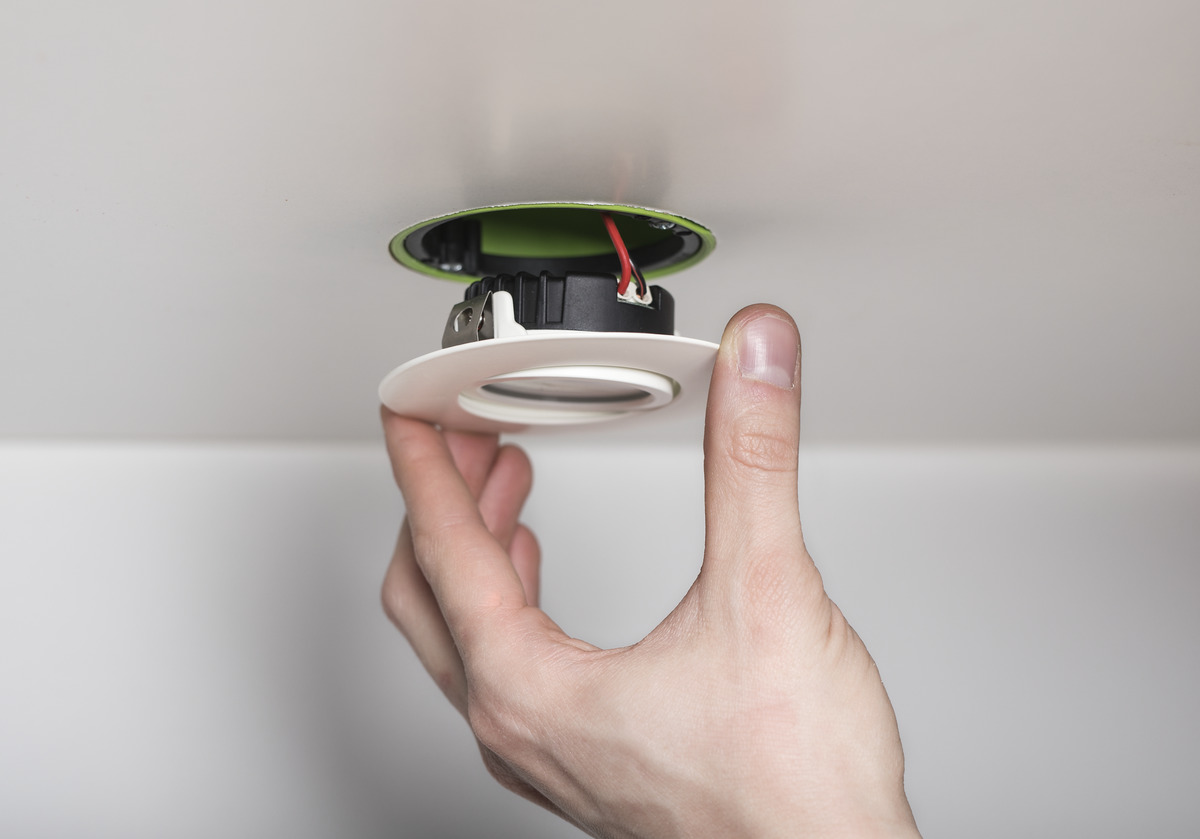

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 5

Fire Safety Marks MM-mark, Not in insulation without protection cover

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE

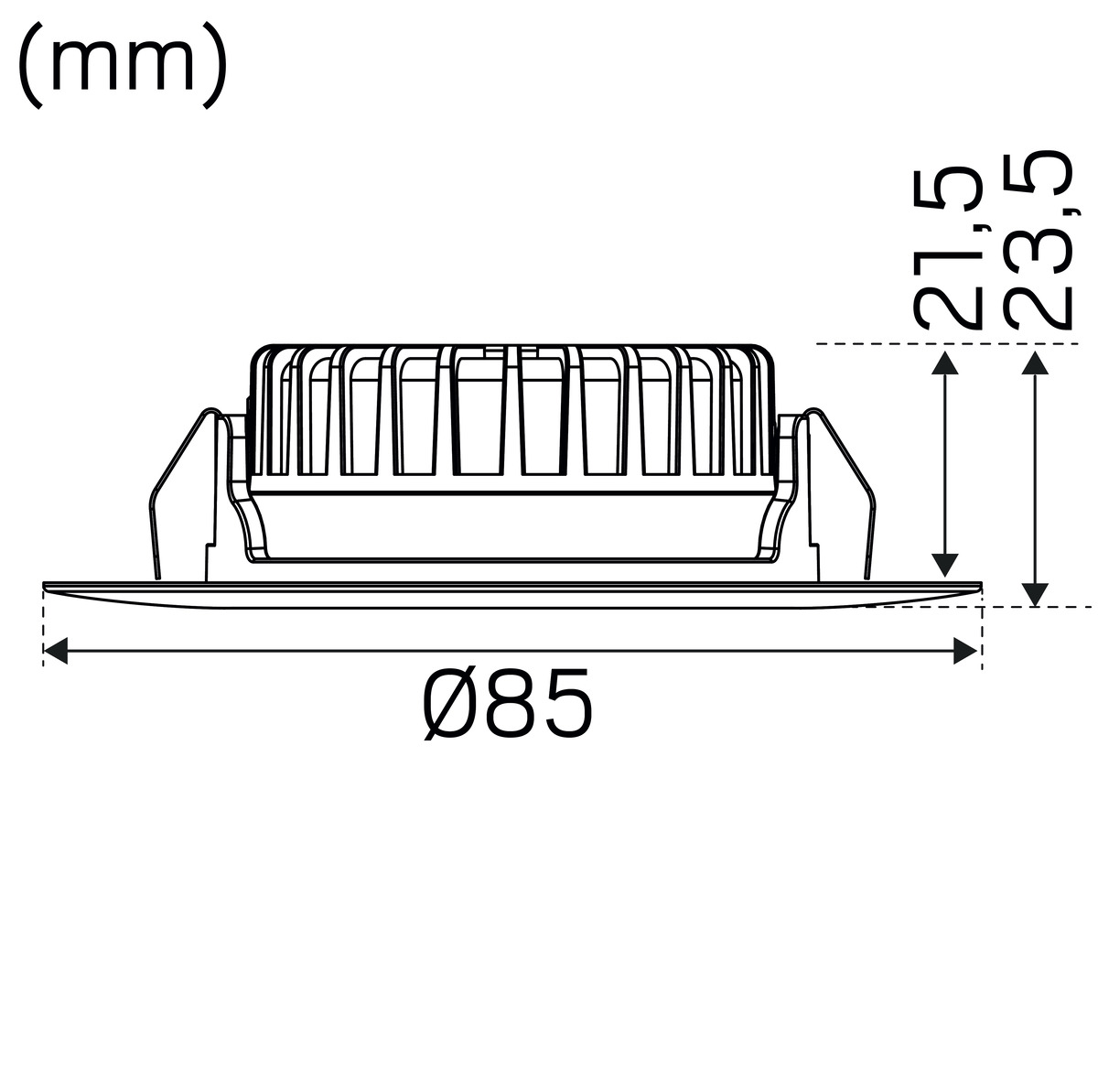

Height (mm) 23

Diameter (mm) 85

Weight (kg) 0,084

Min. Built-in (mm) Ø58x22

Height Recessed Part (mm) 22

Height Exterior Part (mm) 2

Built-in Ø (mm) 58-62
