Comfort Quick ISO

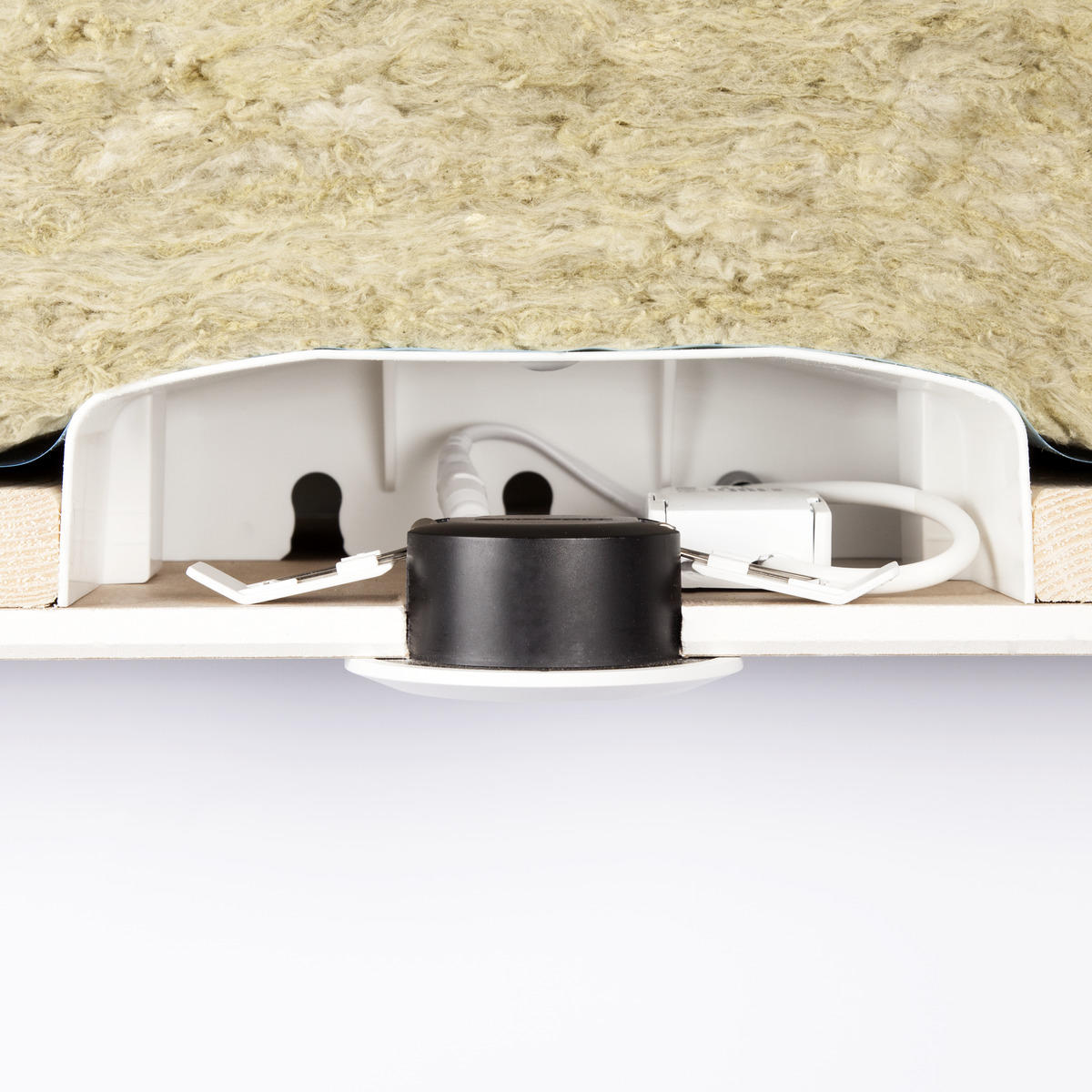

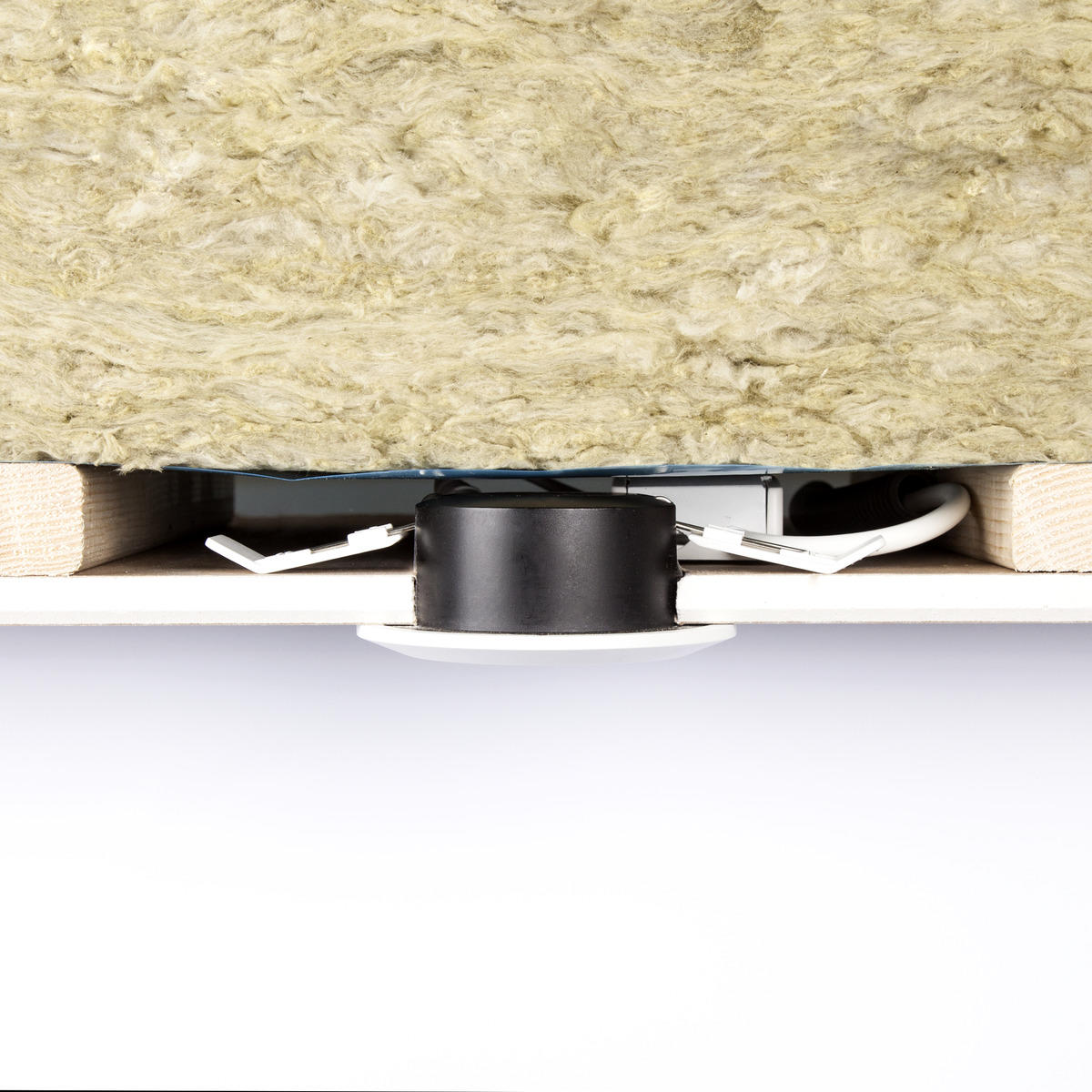

Approved for installation directly against insulation
Can be installed both indoors and outdoors

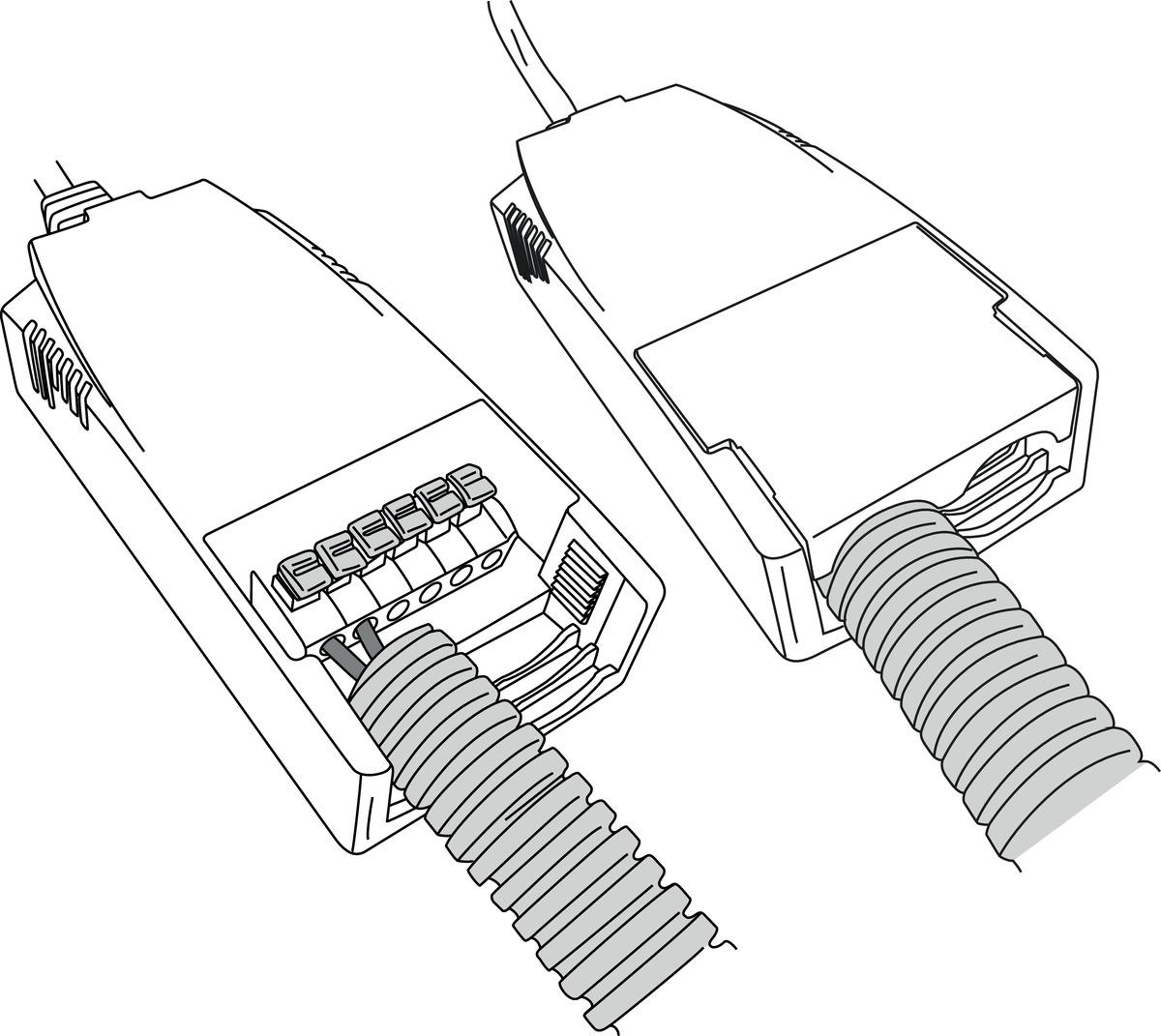

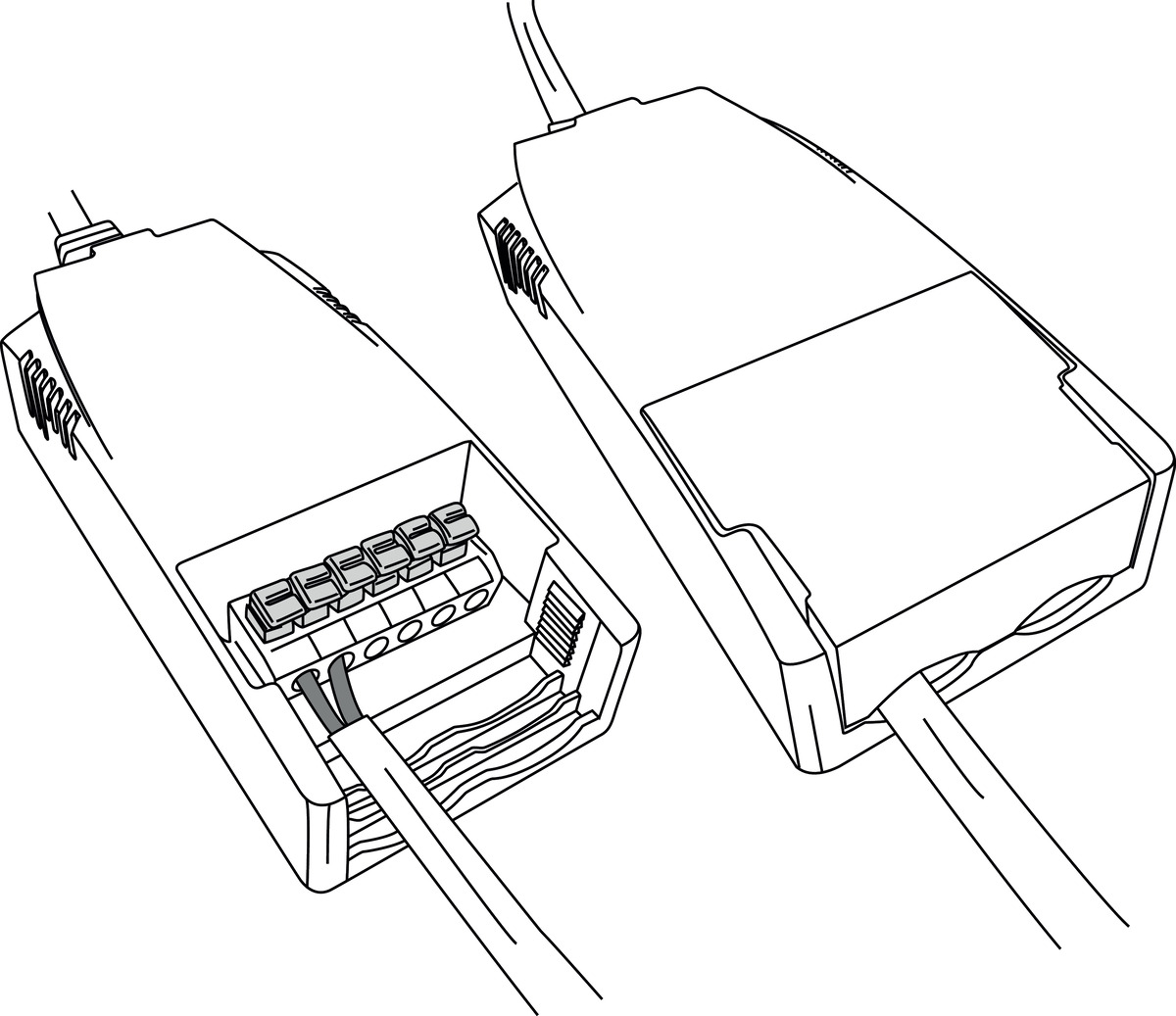

Push-in, loop-in, loop-out terminal block and screwless strain relief

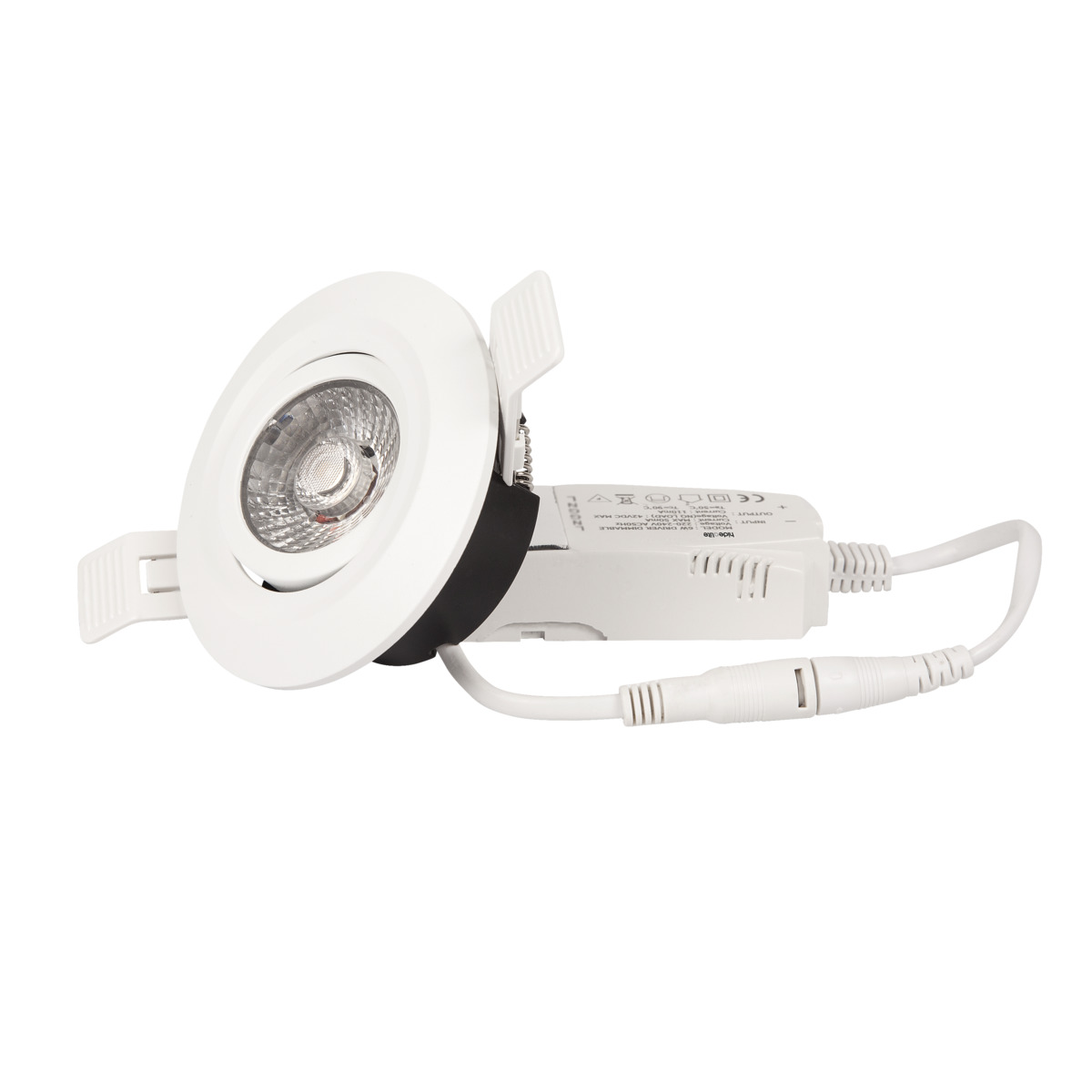

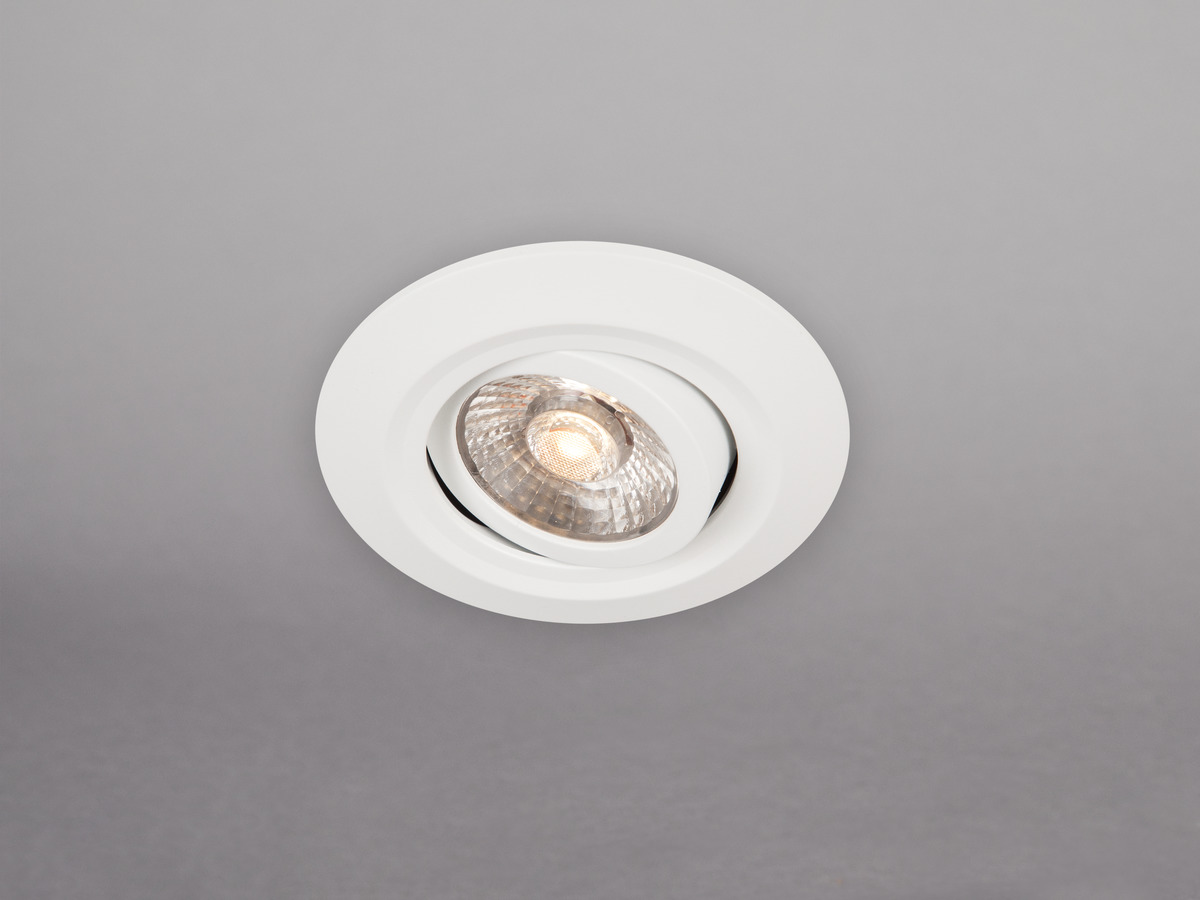

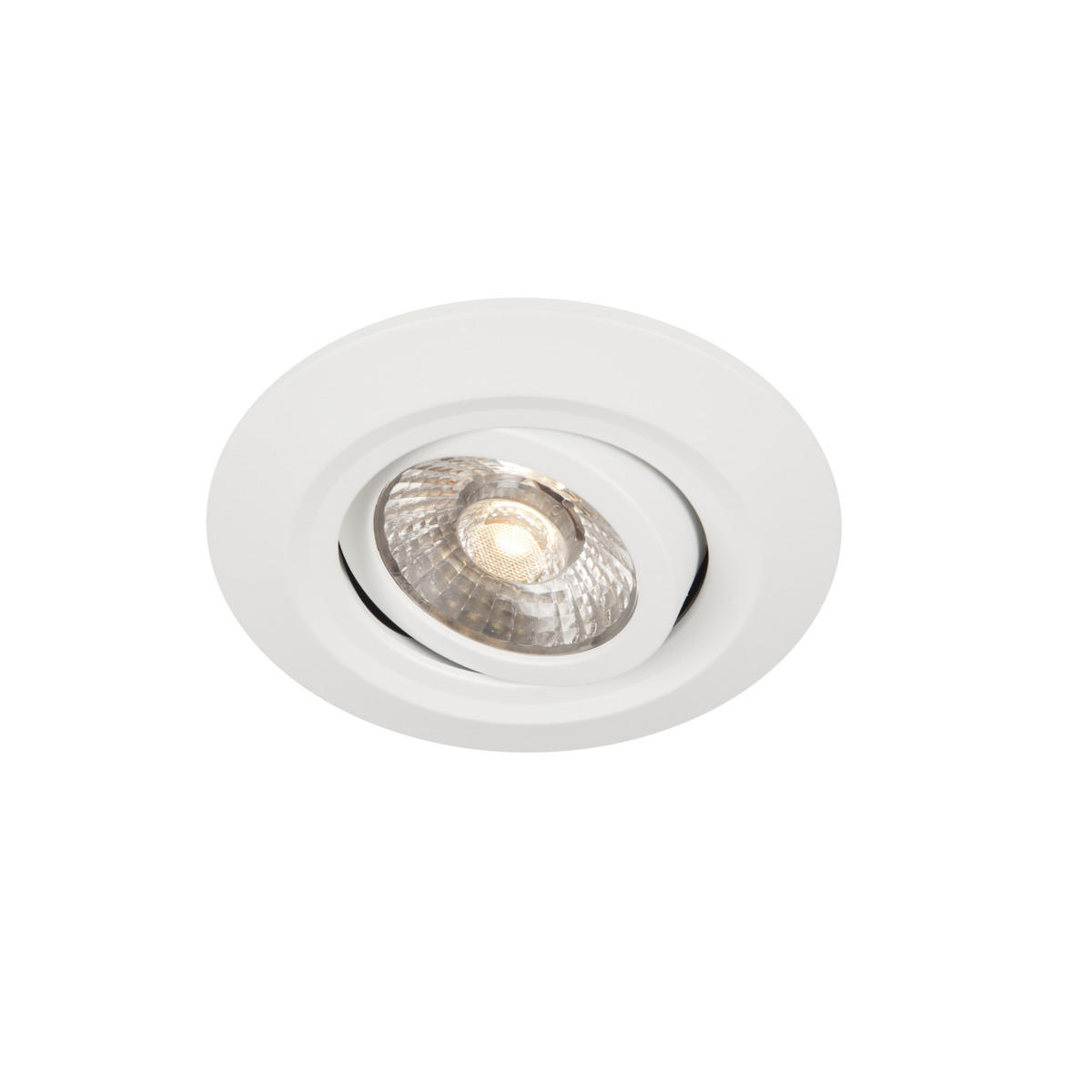

Low-build LED downlight, installation height of just 32 mm, approved by Nemko for installation directly against insulation. The latest LED technology and Comfort Lens provides superb light quality with high luminous comfort. Complete with mains dimmable driver, push-in, loop-in, loop-out terminals and strain relief for cable or flex hose 16 mm. Dimmable with the most commonly available dimmers on the market.

Variants	GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
	7392971126852	Comfort Quick ISO White 2700K	2700	425
	7392971128733	Comfort Quick ISO White 3000K	3000	435

Description: GTIN 7392971126852

Item Name Comfort Quick ISO White 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 425

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 830

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Flicker (PstLM) 0,021

Stroboscopic effect (SVM) 0,374
Technical data: Adjustable Yes

Tiltable (°) 15

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power Luminaire (W) 6

System Power (W) 6

Efficiency Luminaire (lm/W) 71

Efficiency System (lm/W) 71

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 2x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Constant Current (mA) 110

Operating Temperature -20…+45

Max. Tc (°C) 85

Dimming secondary side AM

Fuse B10 (pcs) 68

Fuse B16 (pcs) 110

Fuse C10 (pcs) 114

Fuse C16 (pcs) 184
Color and material: Material Aluminium

Material Housing/Enclosure Plastic

Color White

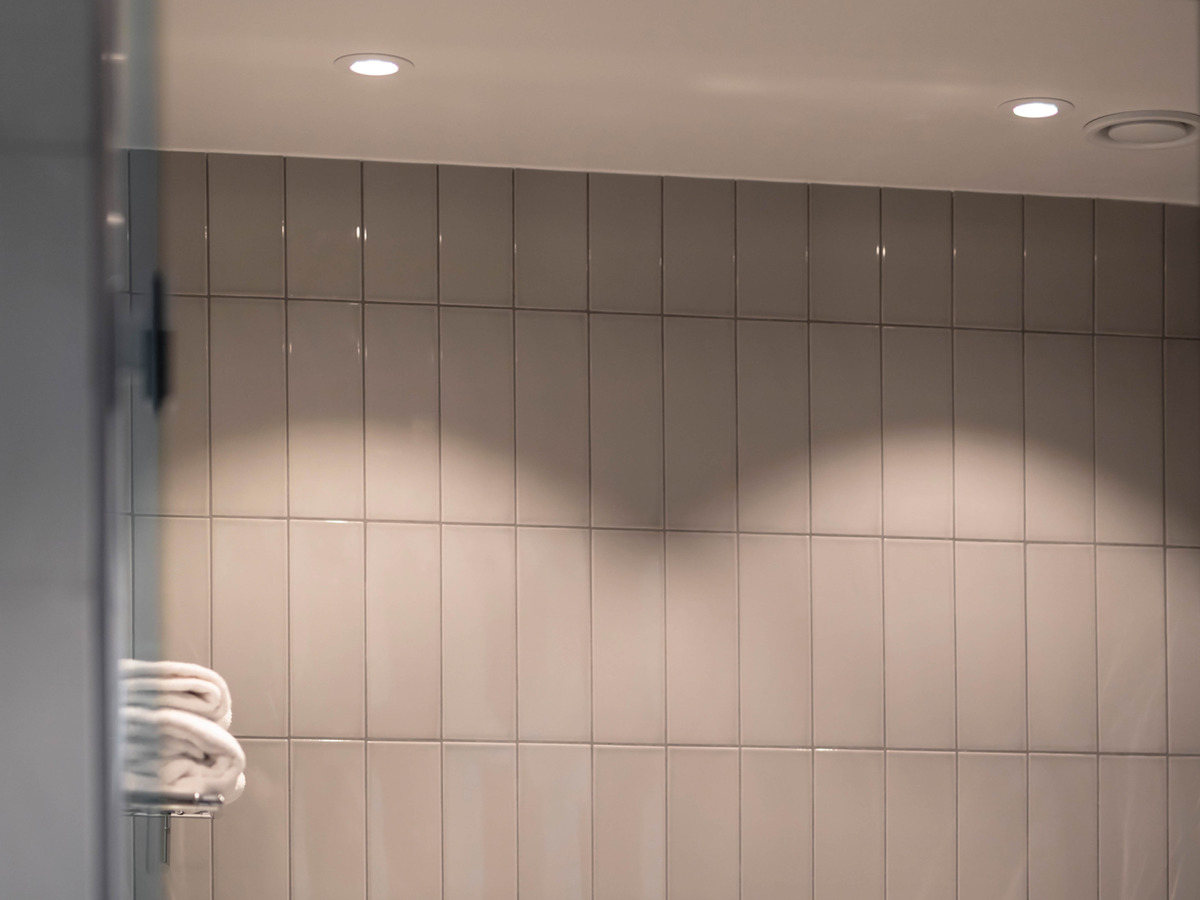

Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

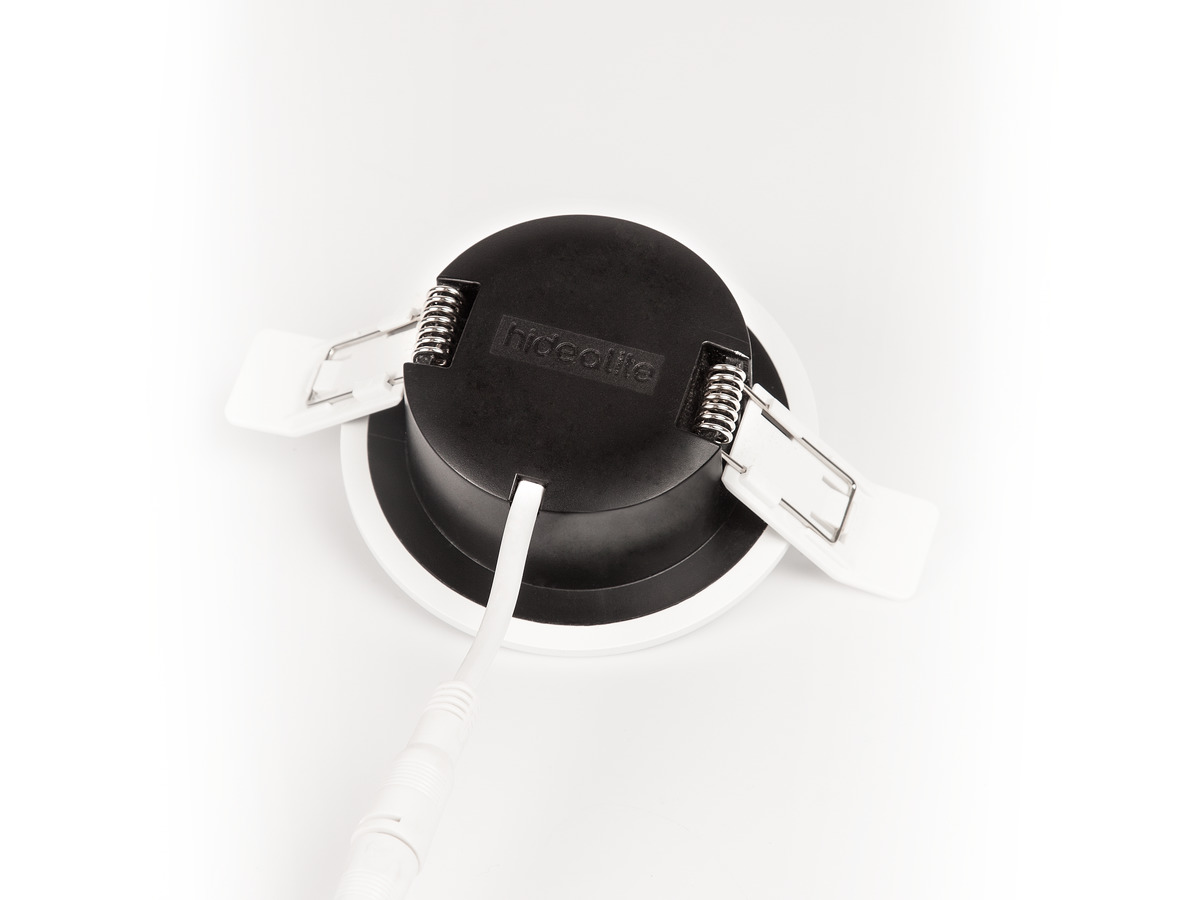

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Approved for installation against insulation

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, Nemko, SELV

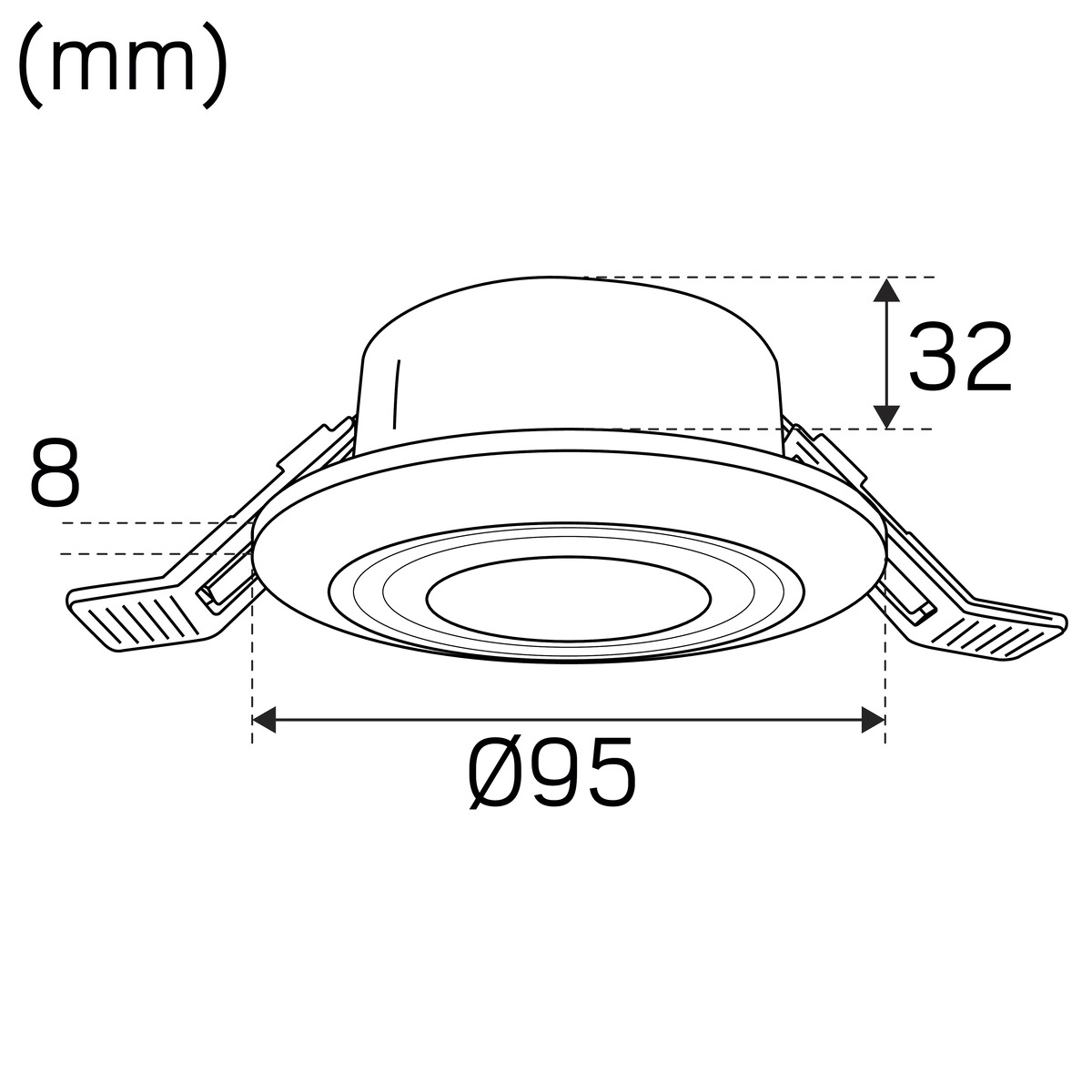

Height (mm) 40

Diameter (mm) 95

Weight (kg) 0,29

Min. Built-in (mm) 170x75x32

Height Recessed Part (mm) 32

Height Exterior Part (mm) 8

Built-in Ø (mm) 73-85
