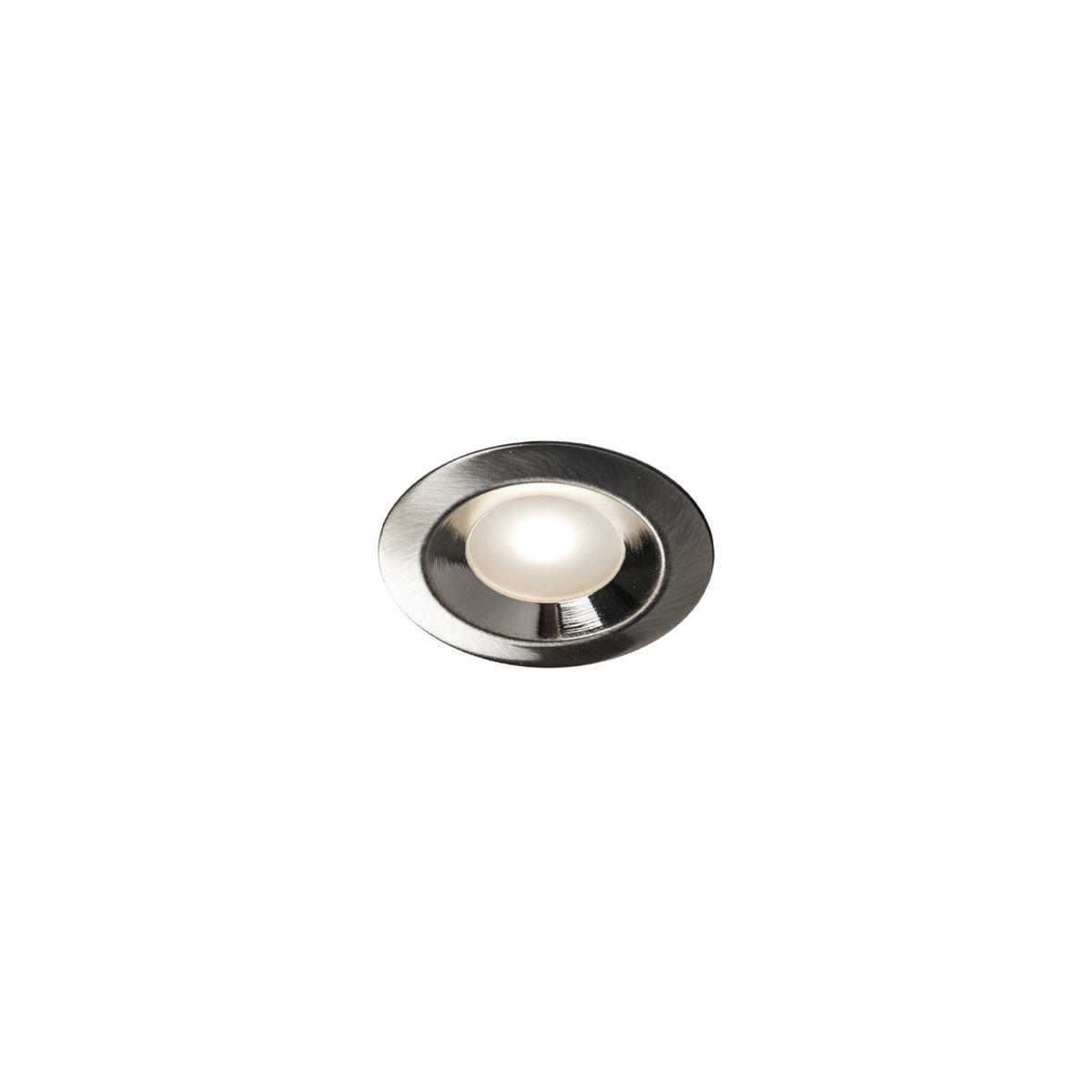

Core Smart 120°

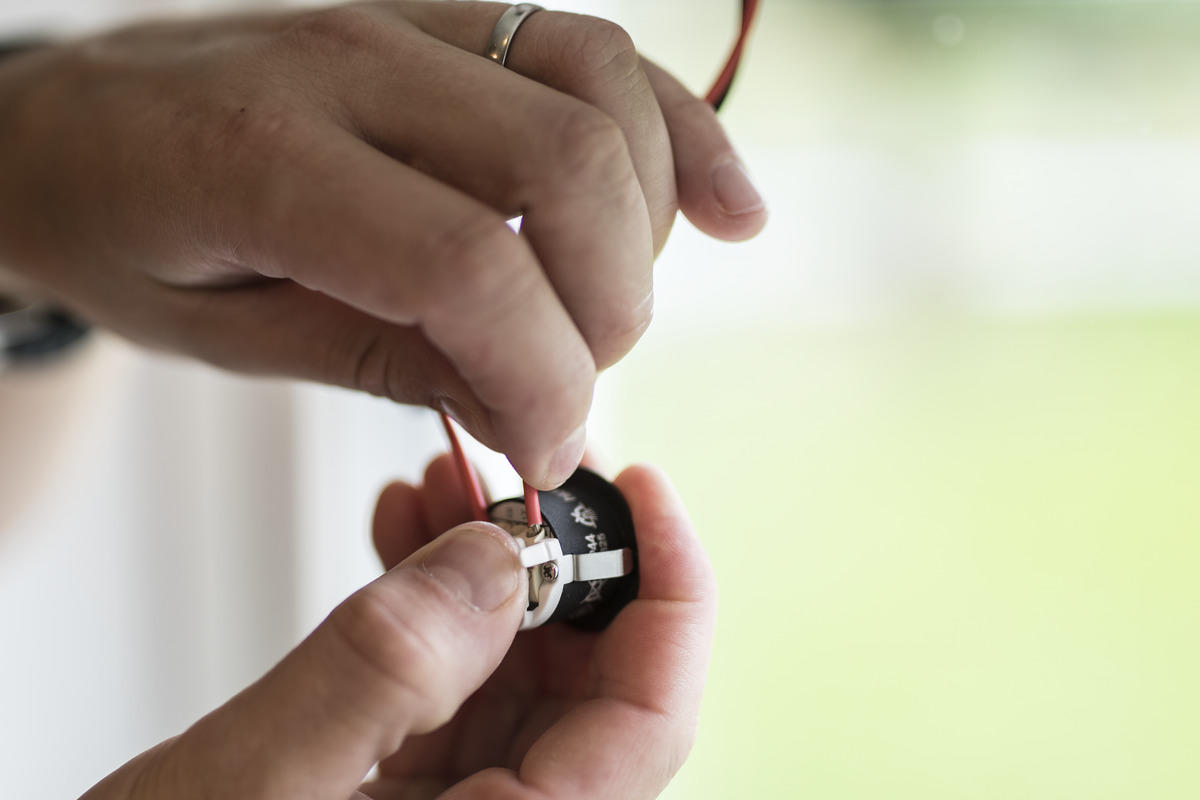

Integrated push-in terminal for easy and smart series connection

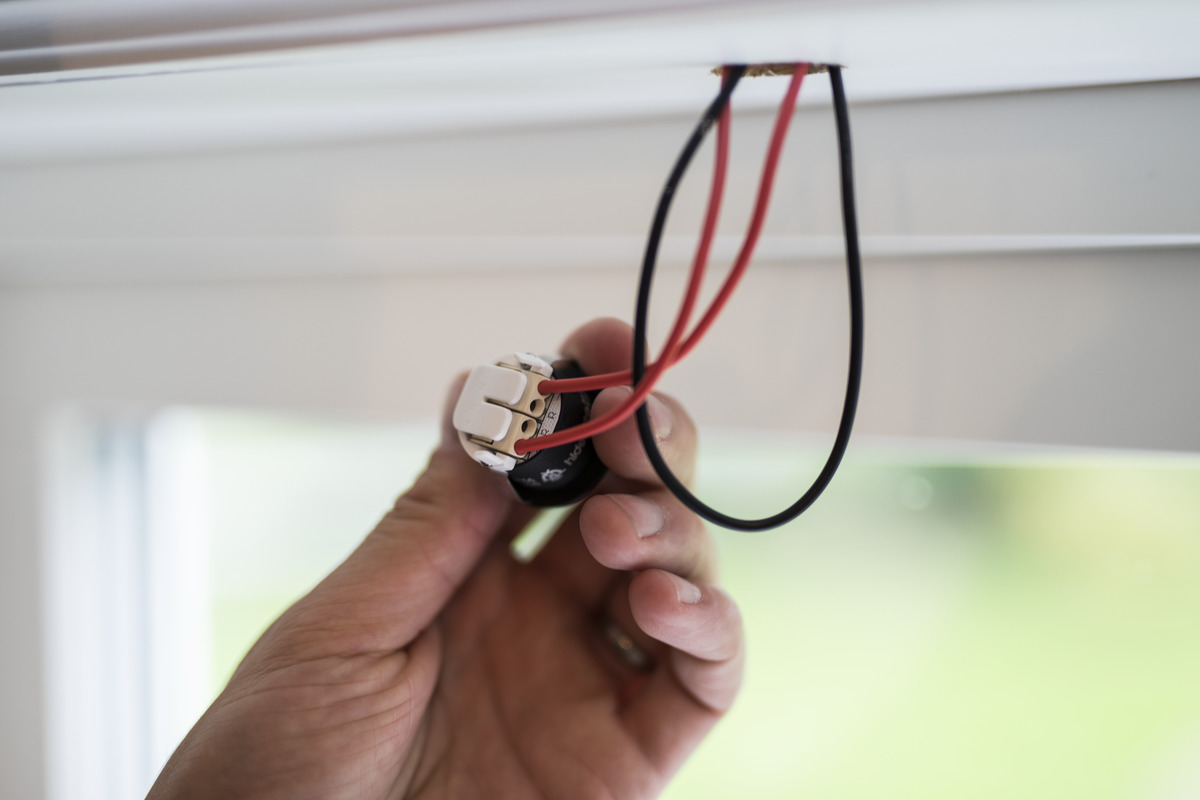

Use pre-wired cabling, avoid external joints and couple directly to the luminaire

Small, exclusive accent luminaire of the highest quality for indoor use with integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of faults and simplifies troubleshooting. Recessed light spot makes the luminaire glare free. A good alternative when a 120° beam angle is wanted. Attractive as a decor light recessed into window nooks, shelves and furniture, or for surface mounting with the Core Smart Spacer Ring accessory.

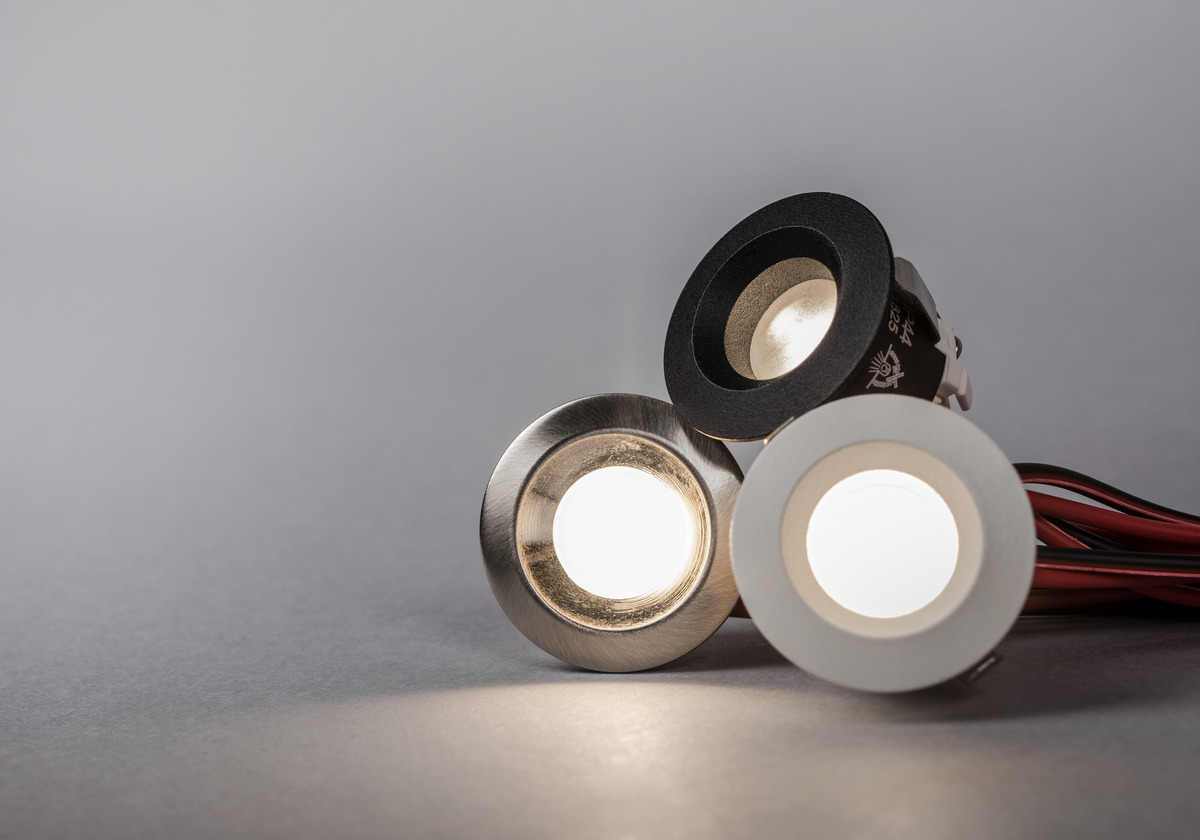

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971134222	Core Smart 120° Brushed steel 3000K	Brushed Steel	3000	65
7392971134192	Core Smart 120° White 2700K	White	2700	70
7392971134208	Core Smart 120° White 3000K	White	3000	70
7392971134215	Core Smart 120° Brushed steel 2700K	Brushed Steel	2700	65
7392971134239	Core Smart 120° Black 2700K	Black	2700	55
7392971134246	Core Smart 120° Black 3000K	Black	3000	55

Description: GTIN 7392971134222

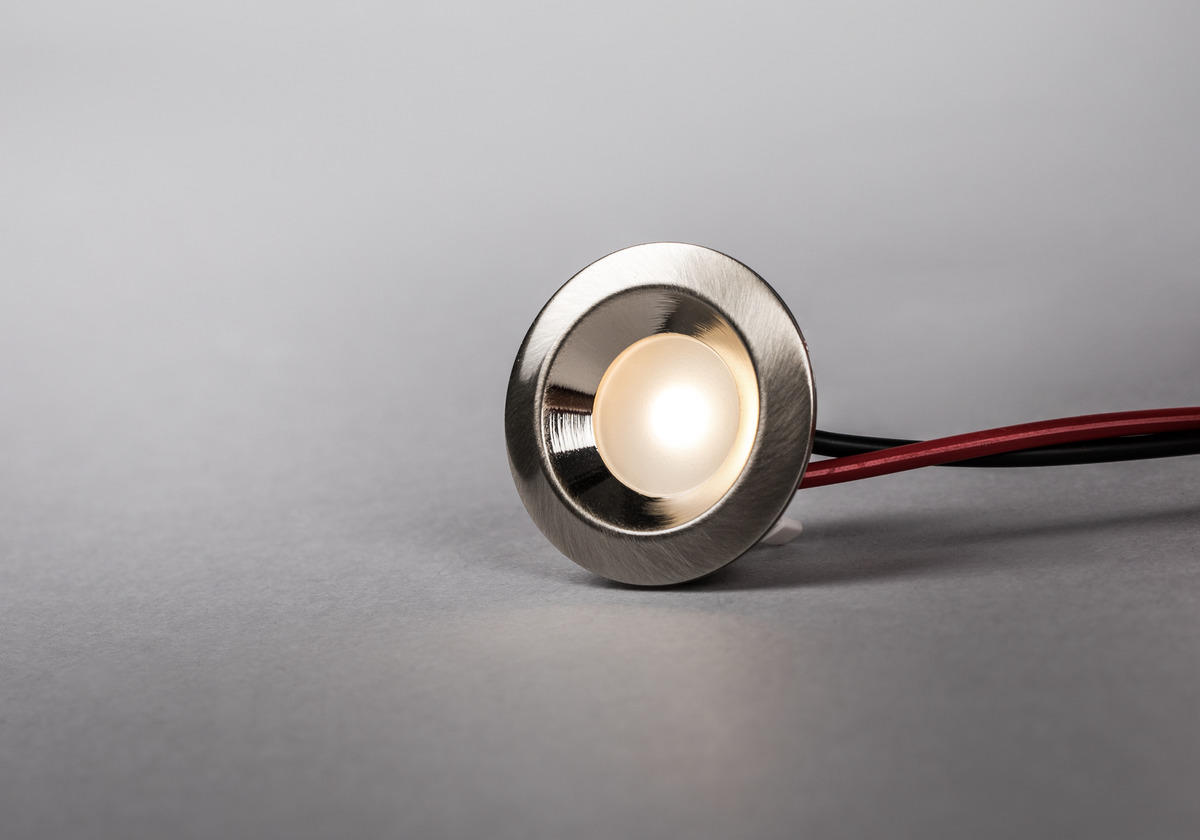

Item Name Core Smart 120° Brushed steel 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 65

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 35

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 90 000h Ta 25°C

Nominel Life Time (h) 90000
Technical data: Adjustable No

Voltage Forward (Vf) 3

Power Luminaire (W) 1,2

System Power (W) 1,3

Efficiency Luminaire (lm/W) 54

Efficiency System (lm/W) 50

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

Connection (type) Quick Terminal

Connection (mm2) 2x0,2-0,75

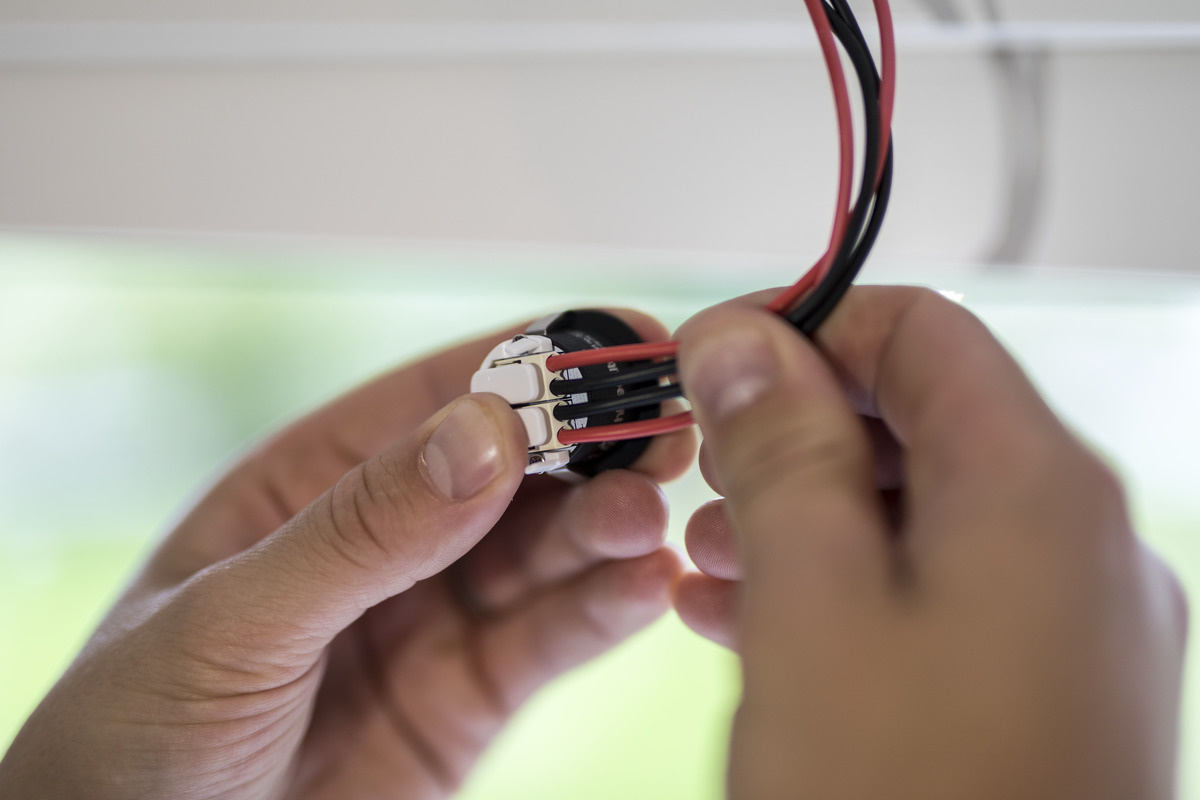

Through Wiring Yes

Constant Current (mA) 350

Operating Temperature -20…+45

Max. Tc (°C) 80
Color and material: Material Aluminium

Color Brushed Steel

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 3

Height Surface Mounted (mm) 30

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

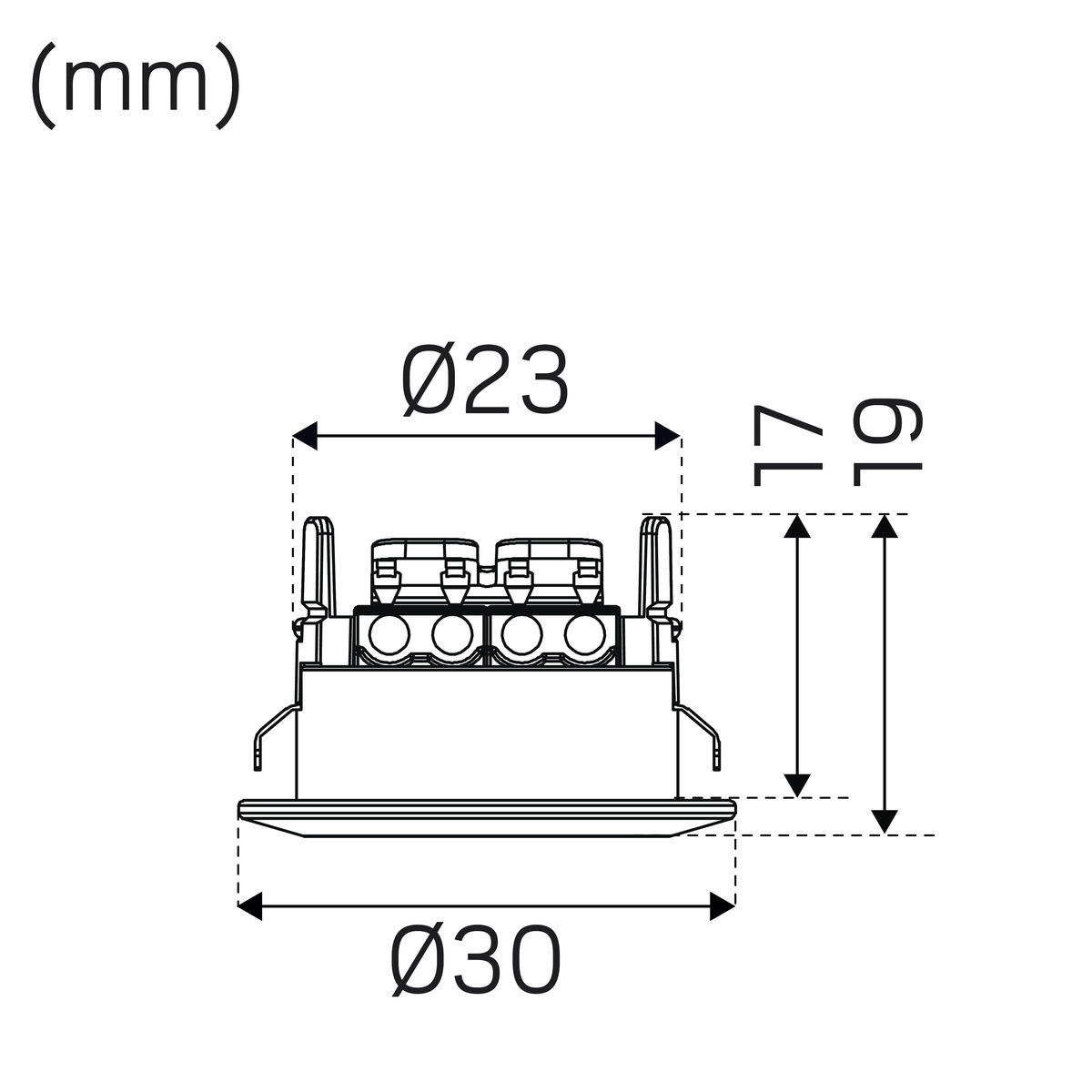

Height (mm) 19

Diameter (mm) 30

Weight (kg) 0,0105

Min. Built-in (mm) Ø25x13

Height Recessed Part (mm) 17

Height Exterior Part (mm) 3

Built-in Ø (mm) 25
