Core Smart 45°

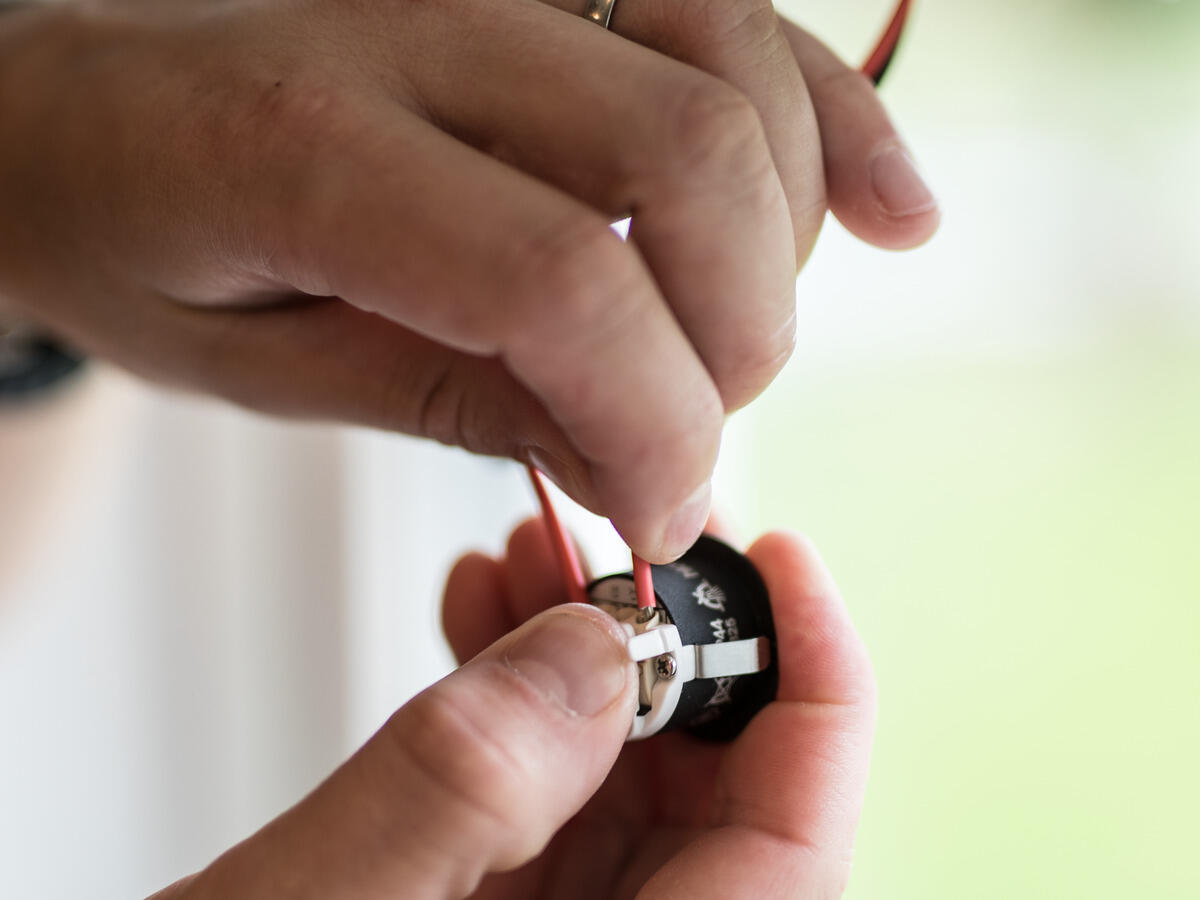

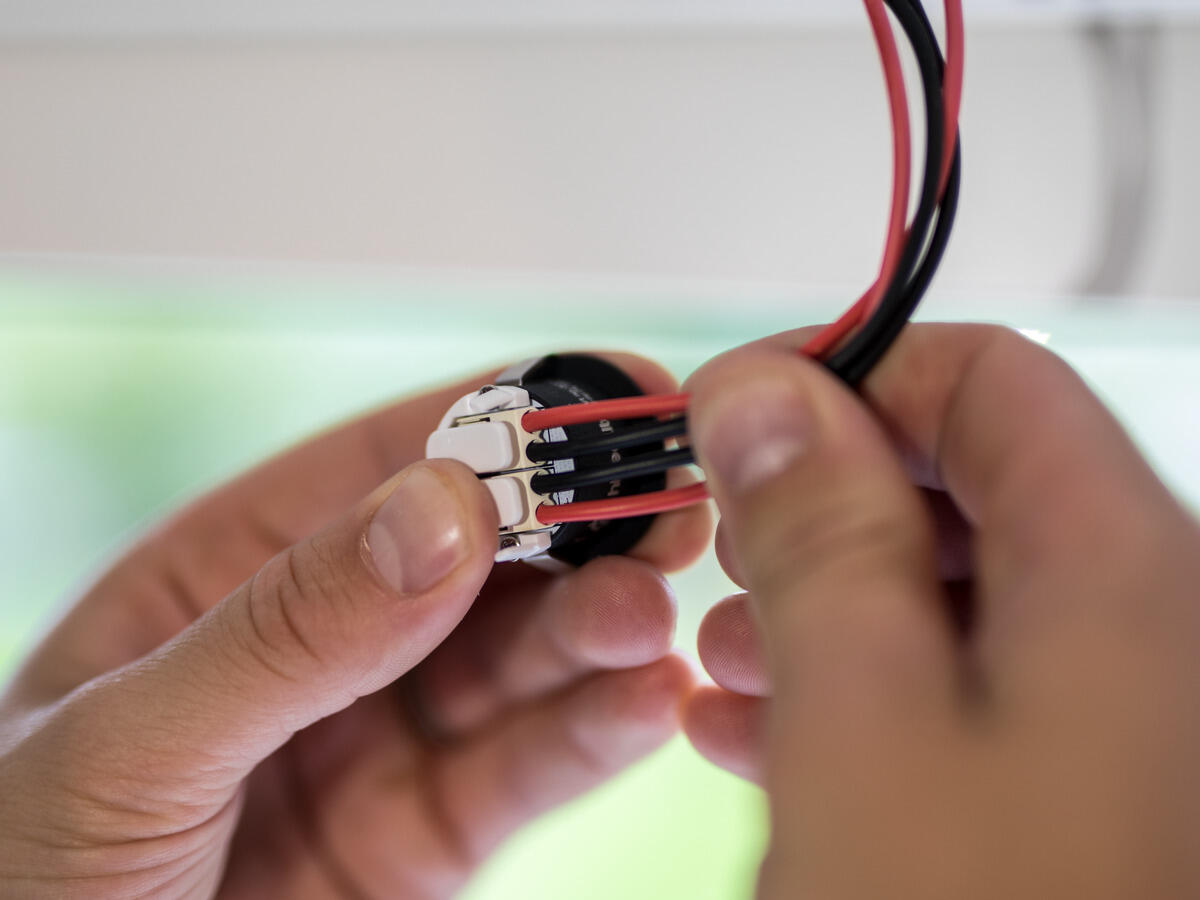

Integrated push-in terminal for easy and smart series connection

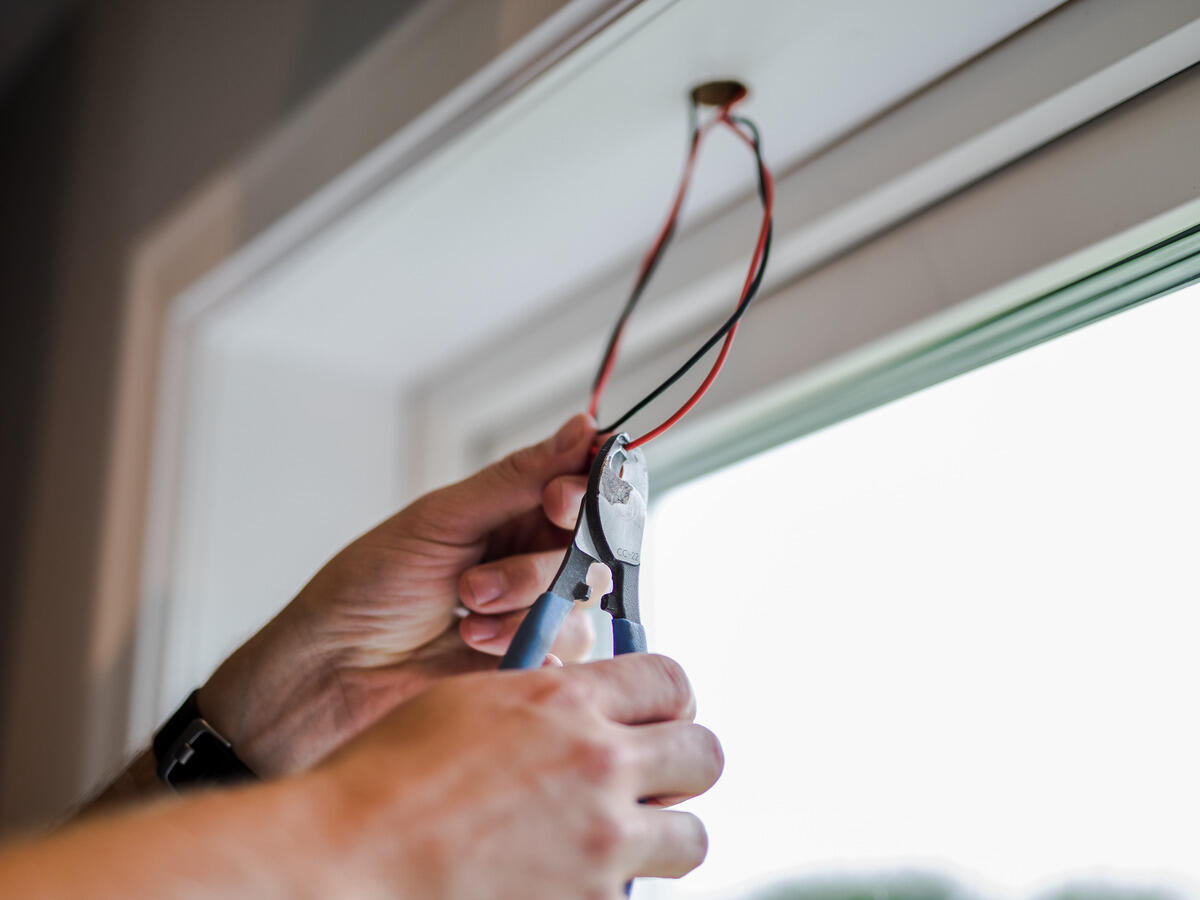

Use pre-wired cabling, avoid external joints and couple directly to the luminaire

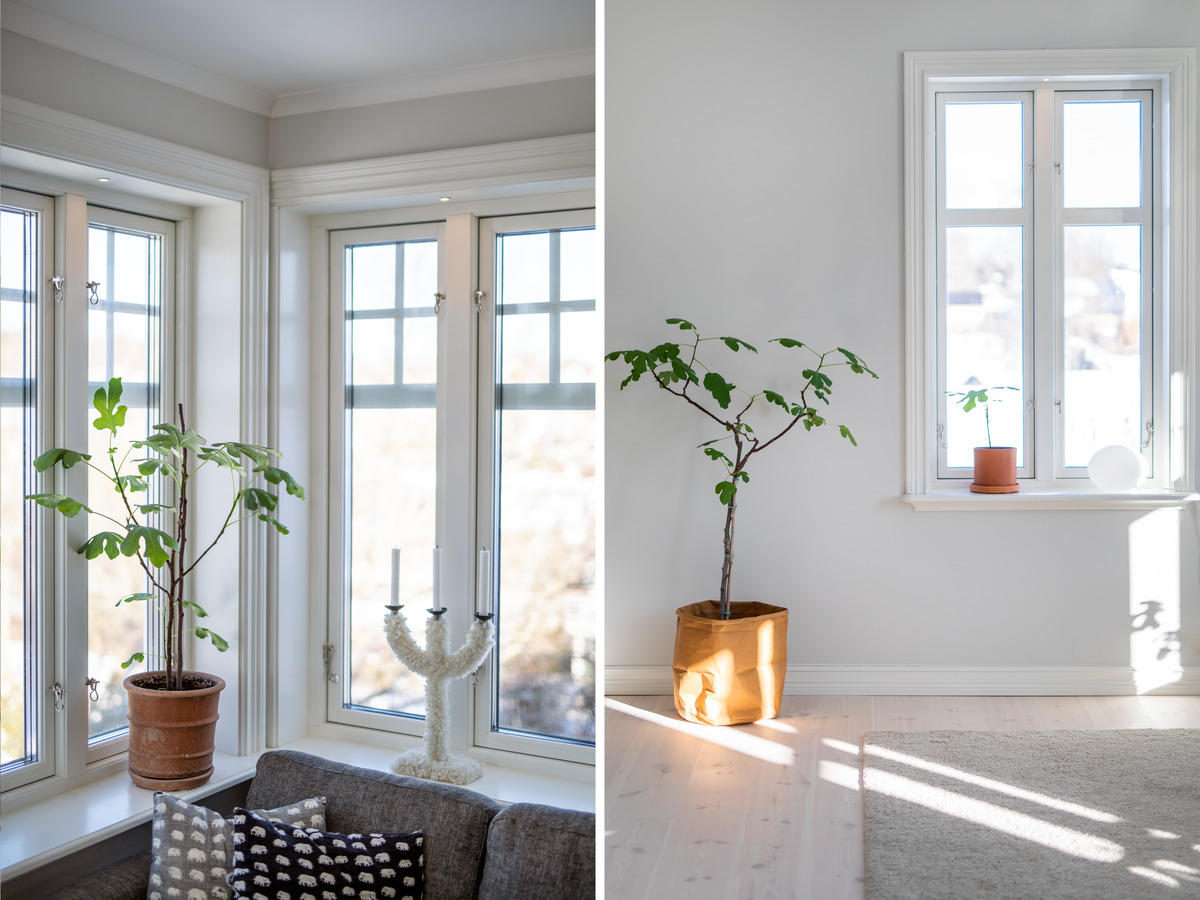

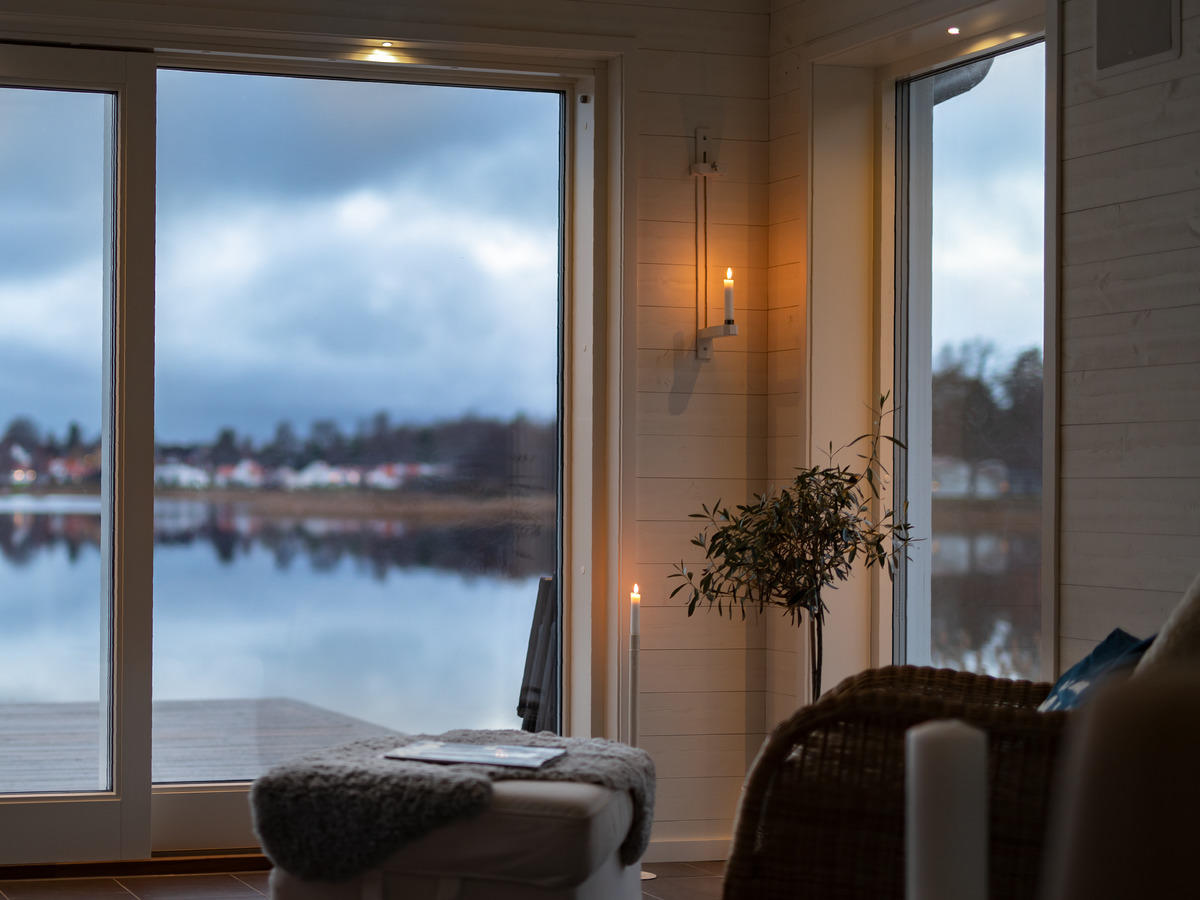

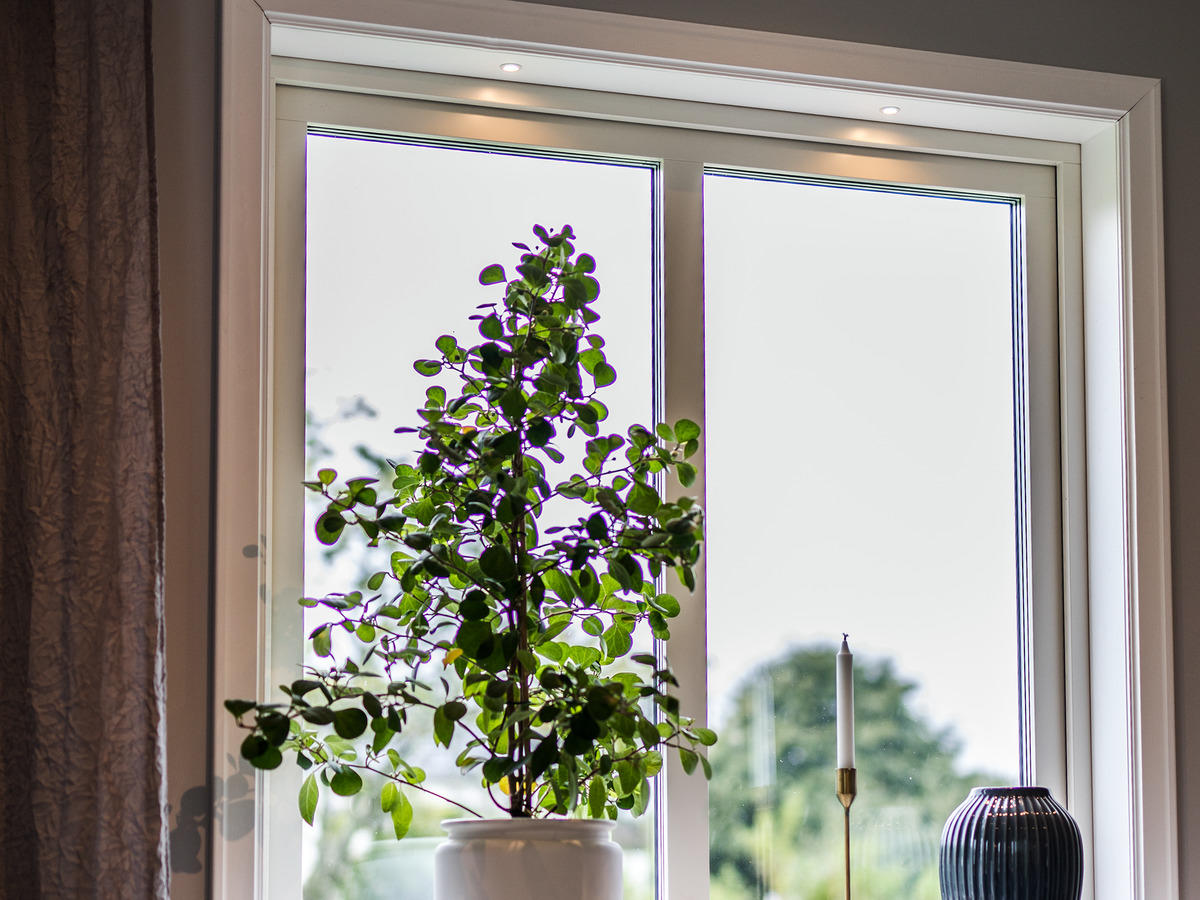

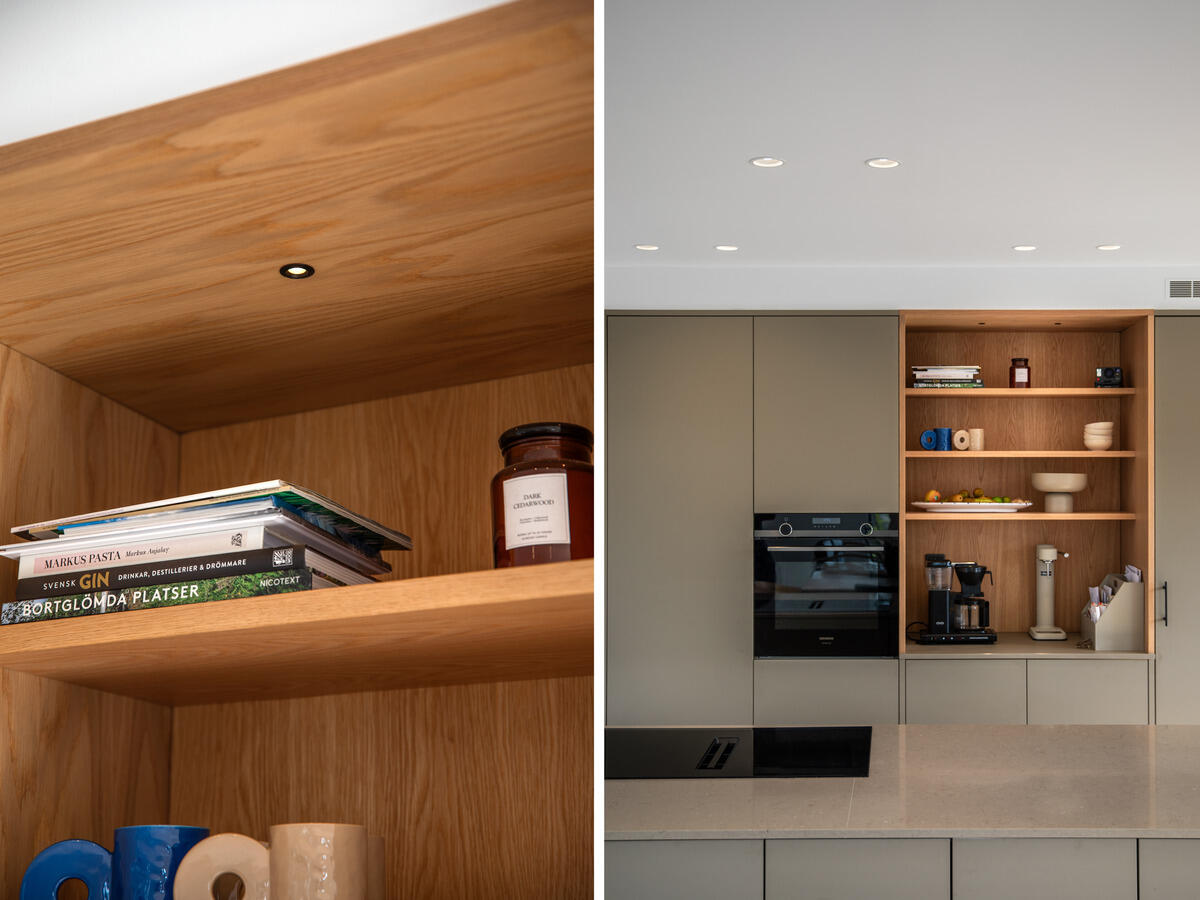

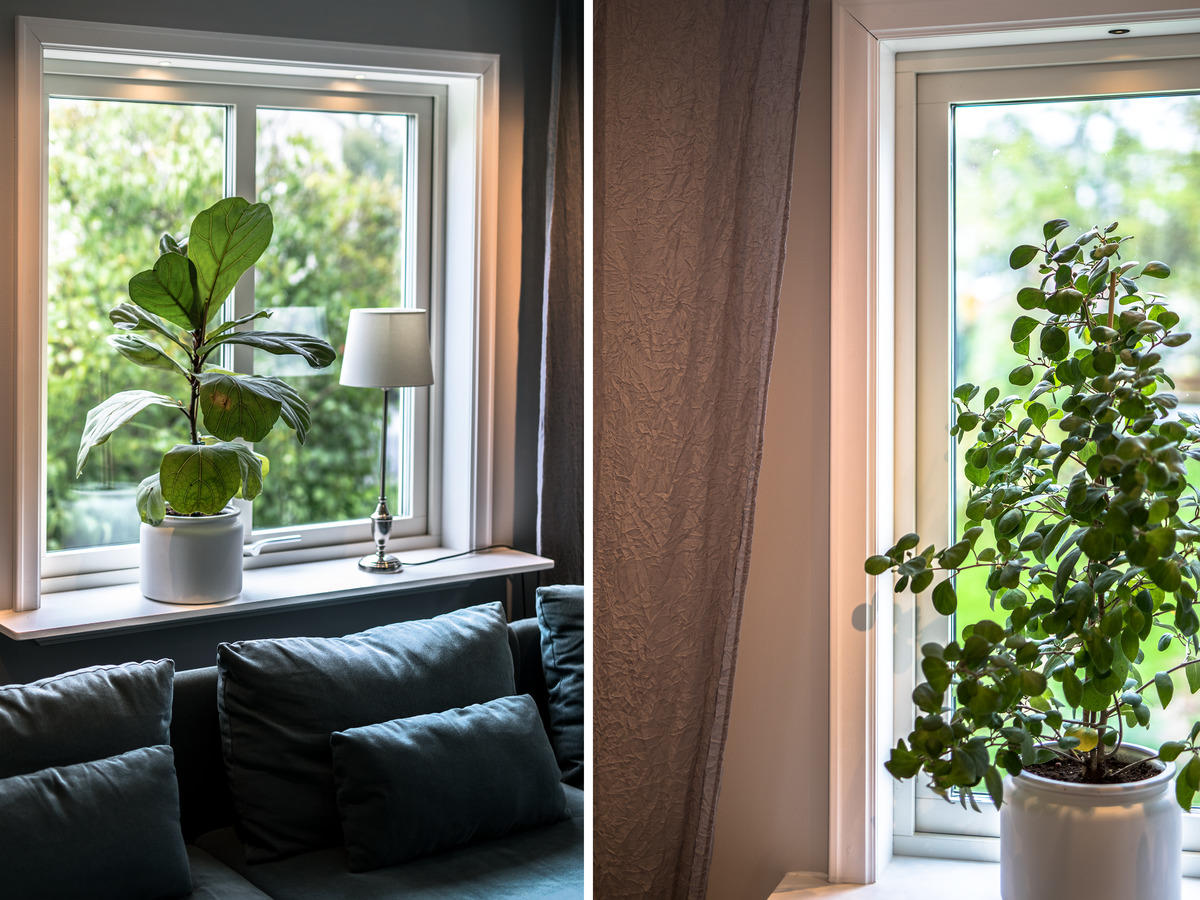

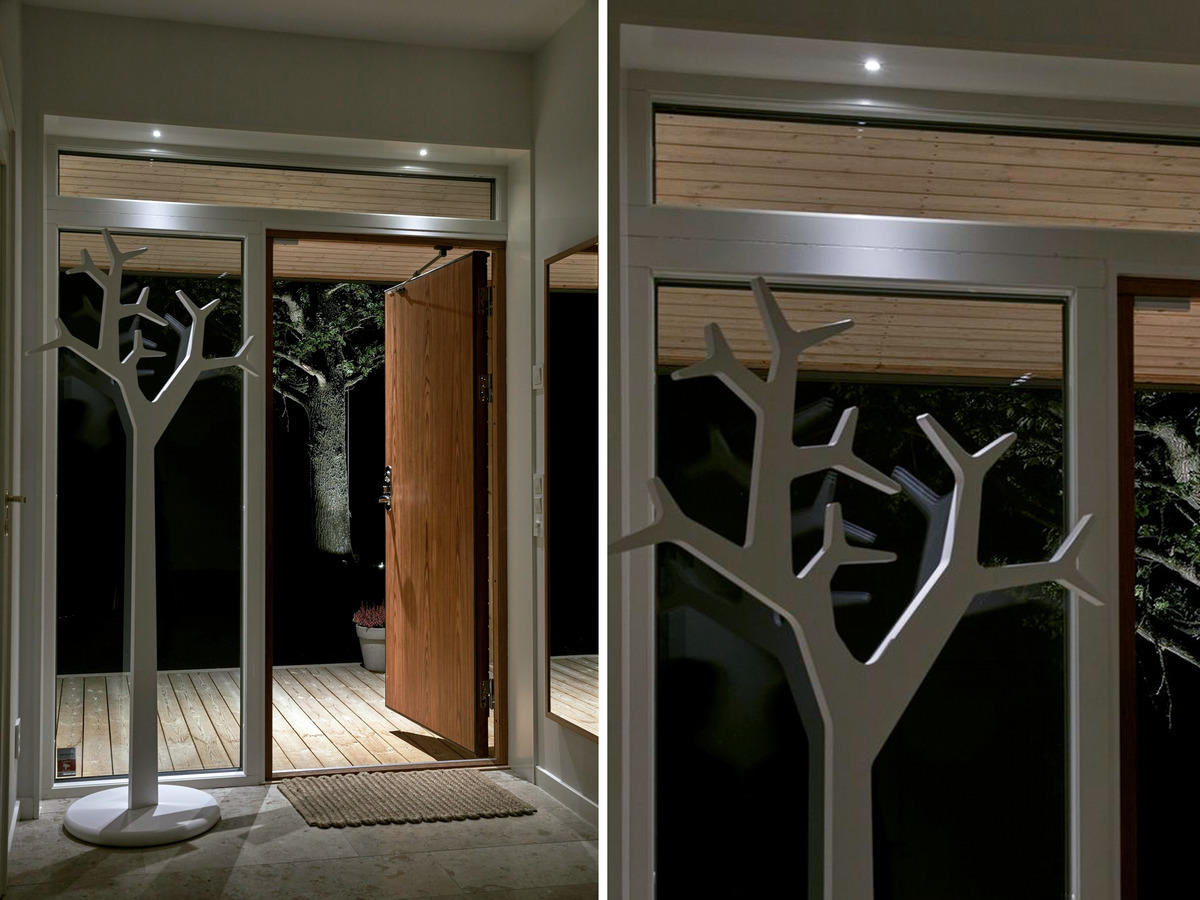

Small, exclusive accent luminaire of the highest quality for indoor use with integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of faults and simplifies troubleshooting. Recessed light spot makes the luminaire glare free. A good alternative when a 45° beam angle is wanted. Attractive as a decor light recessed into window nooks and furniture or for surface mounting with Core Smart Spacer Ring accessory.

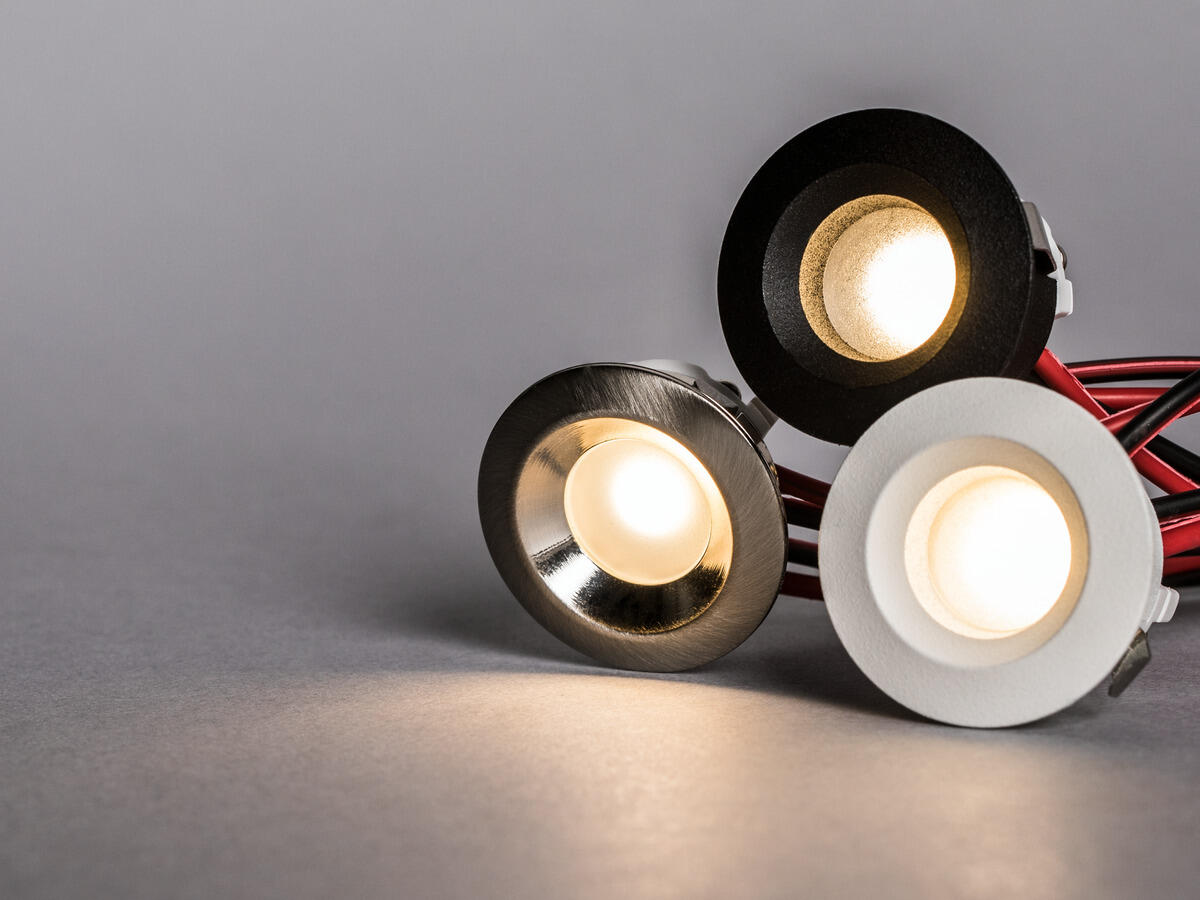

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971134178	Core Smart 45° Black 2700K	Black	2700	40
7392971134130	Core Smart 45° White 2700K	White	2700	60
7392971134147	Core Smart 45° White 3000K	White	3000	60
7392971134154	Core Smart 45° Brushed steel 2700K	Brushed Steel	2700	60
7392971134161	Core Smart 45° Brushed steel 3000K	Brushed Steel	3000	60
7392971134185	Core Smart 45° Black 3000K	Black	3000	40

Description: GTIN 7392971134178

Item Name Core Smart 45° Black 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 40

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 90

Beam Angle (°) 45

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 90 000h Ta 25°C

Nominel Life Time (h) 90000
Technical data: Adjustable No

Voltage Forward (Vf) 3

Power Luminaire (W) 1,2

System Power (W) 1,3

Efficiency Luminaire (lm/W) 33

Efficiency System (lm/W) 31

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

Connection (type) Quick Terminal

Connection (mm2) 2x0,2-0,75

Through Wiring Yes

Constant Current (mA) 350

Operating Temperature -20…+45

Max. Tc (°C) 80
Color and material: Material Aluminium

Color Black

Environmental Assessment Byggvarubedömningen

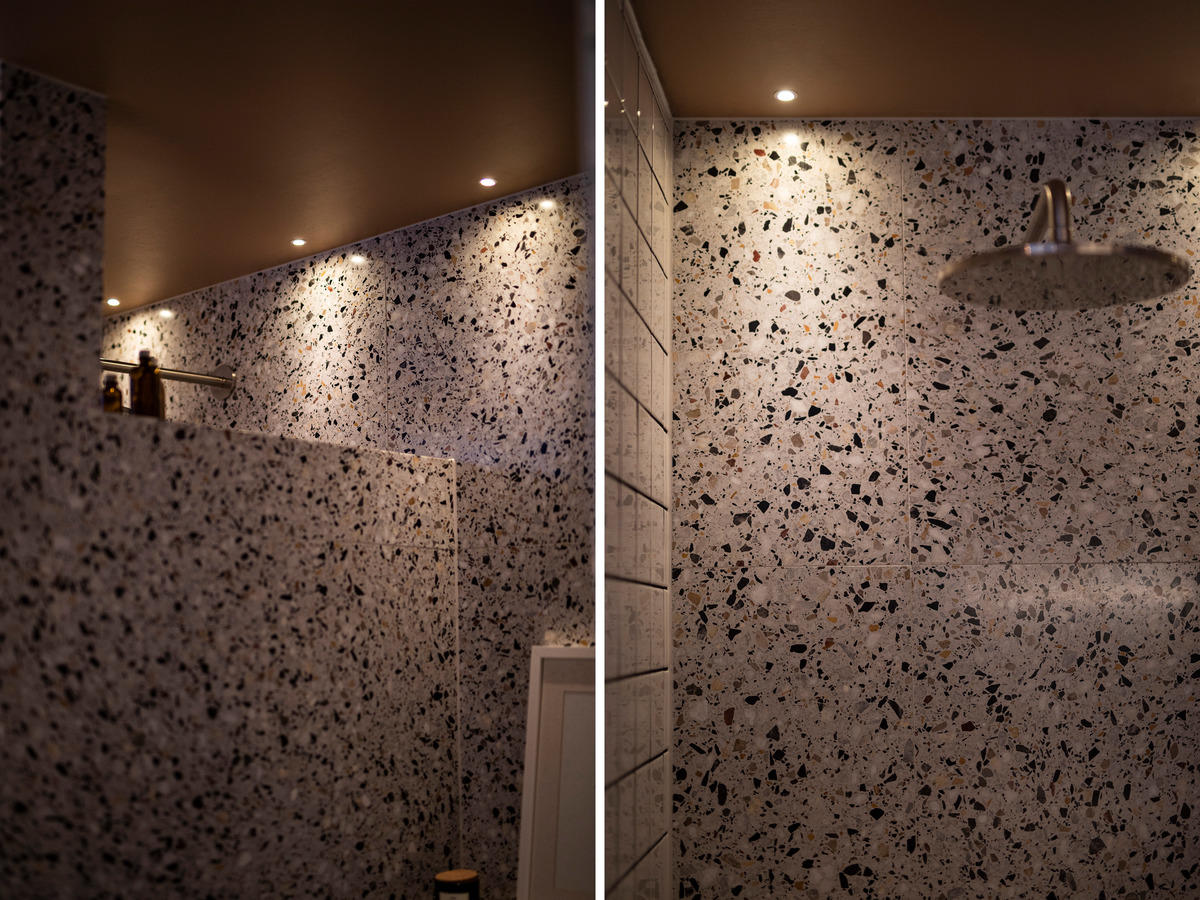

Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 3

Height Surface Mounted (mm) 30

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Height (mm) 26

Diameter (mm) 30

Weight (kg) 0,015

Min. Built-in (mm) Ø25x20

Height Recessed Part (mm) 24

Height Exterior Part (mm) 3

Built-in Ø (mm) 25
