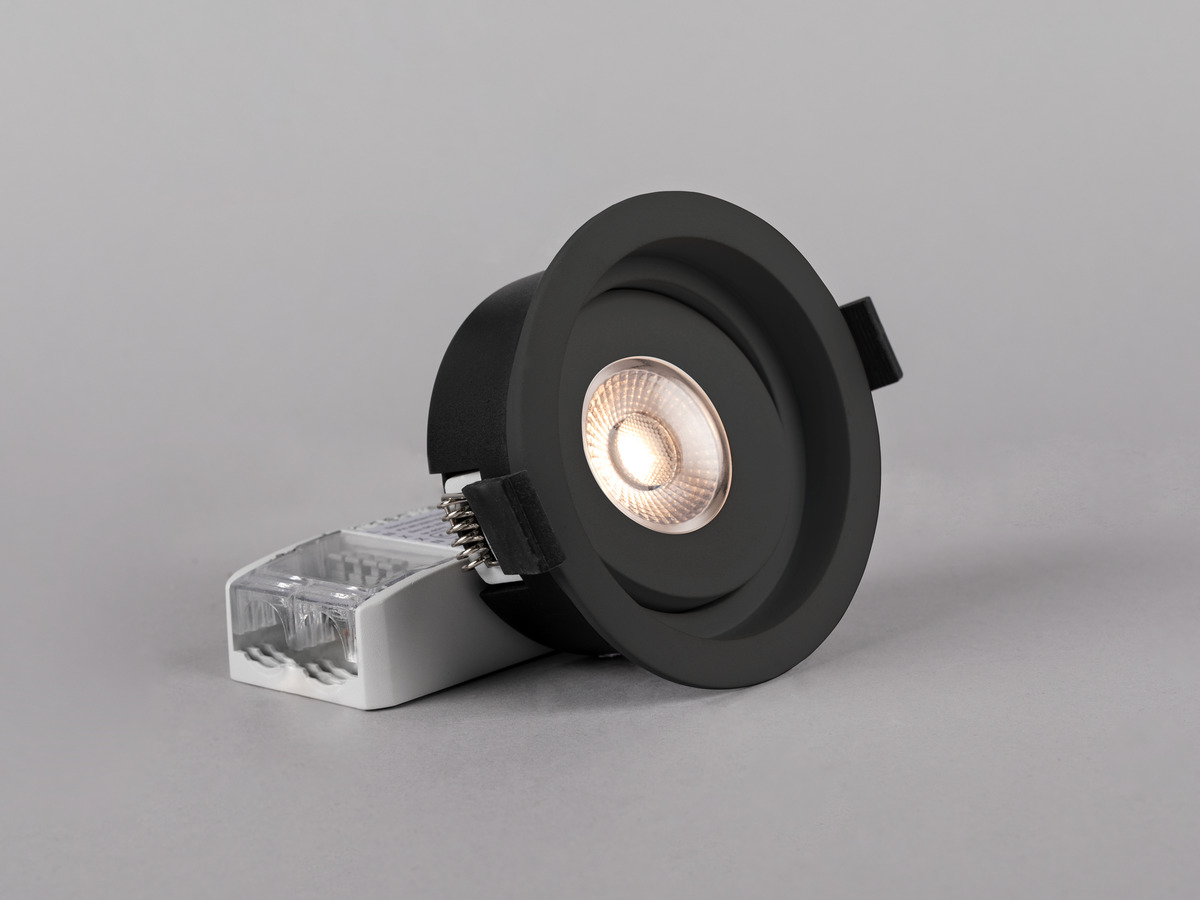

Level Quick ISO Level Quick ISO Black 2700K

Approved for installation directly against insulation
Can be installed both indoors and outdoors
Push-in, loop-in, loop-out terminal block and screwless strain relief

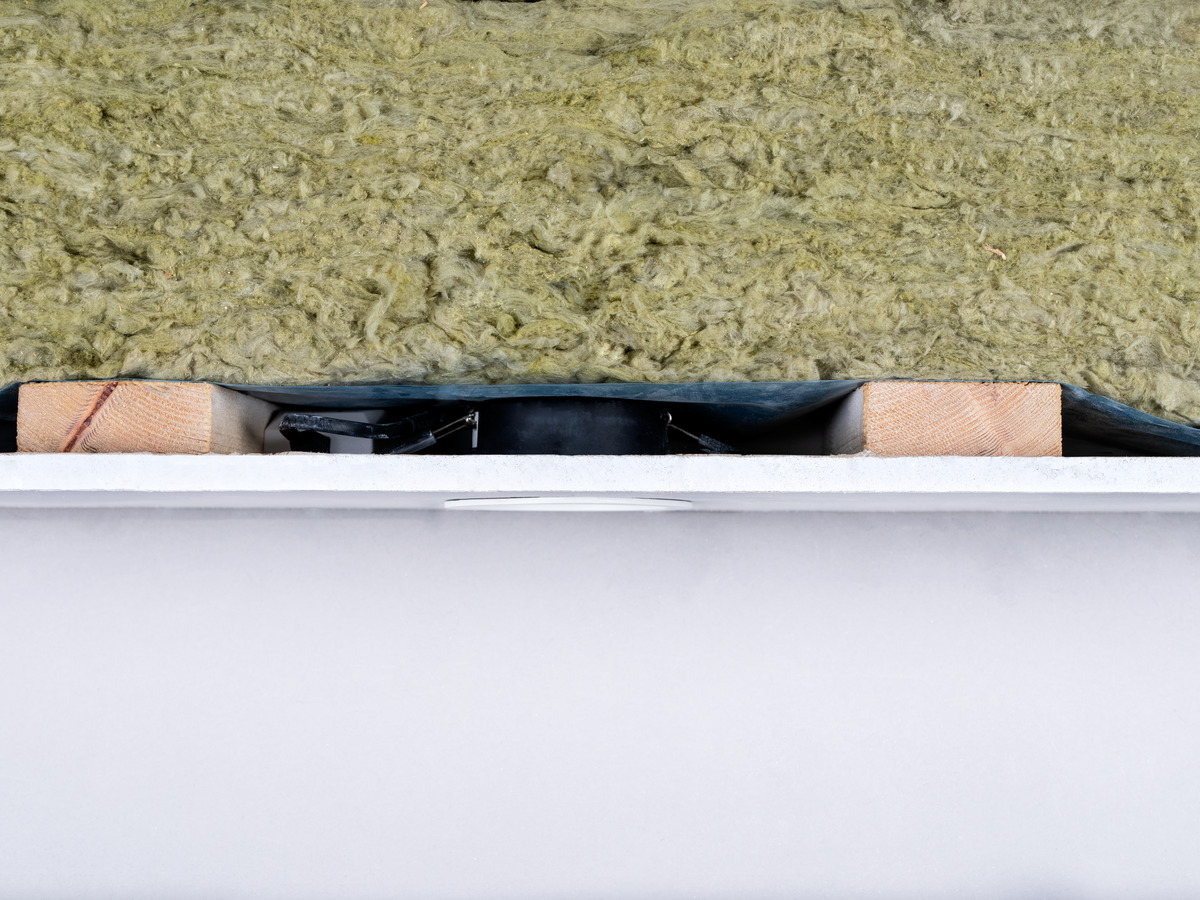

Effective and low-build for installation in 28mm secondary spaced boarding with 13mm plasterboard, approved for installation directly against insulation. An easily installed tiltable luminaire with a modern expression. Lens technology and recessed light source giving a discrete and glare free light with very good colour rendering, Ra>95. IP44 rated for installation both indoors and outdoors. Mains dimmable driver, 3-pole push-in terminal for through wiring and screwless strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971140018	Level Quick ISO Black 2700K	Black	2700	480
7392971139968	Level Quick ISO White Tune	White	2700	350

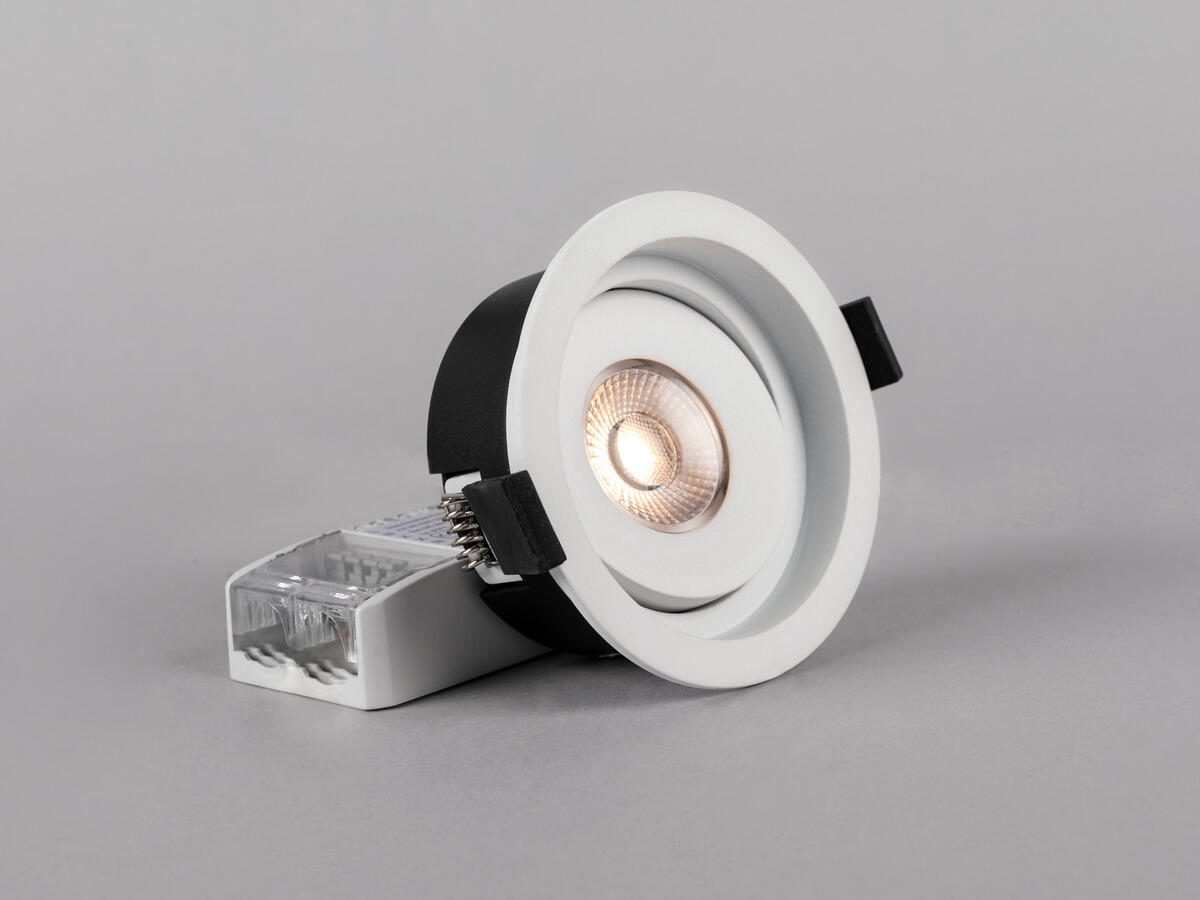

7392971139975	Level Quick ISO White 2700K	White	2700	510
7392971139982	Level Quick ISO White 3000K	White	3000	550
7392971139999	Level Quick ISO White 4000K	White	4000	560
7392971140001	Level Quick ISO Black Tune	Black	2700	330
7392971140025	Level Quick ISO Black 3000K	Black	3000	520
7392971140032	Level Quick ISO Black 4000K	Black	4000	530

Description: GTIN 7392971140018

Item Name Level Quick ISO Black 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 480

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 760

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L91

Lumen maintenance 75 000h L87

Lumen maintenance 100 000h L83

LLMF @ 50 000h 0,91

LLMF @ 100 000h 0,83

Life Time Driver 50 000h/5%
Technical data: Tiltable (°) 20

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 4,6

Power Luminaire (W) 6

System Power (W) 6

Efficiency Luminaire (lm/W) 80

Efficiency System (lm/W) 80

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

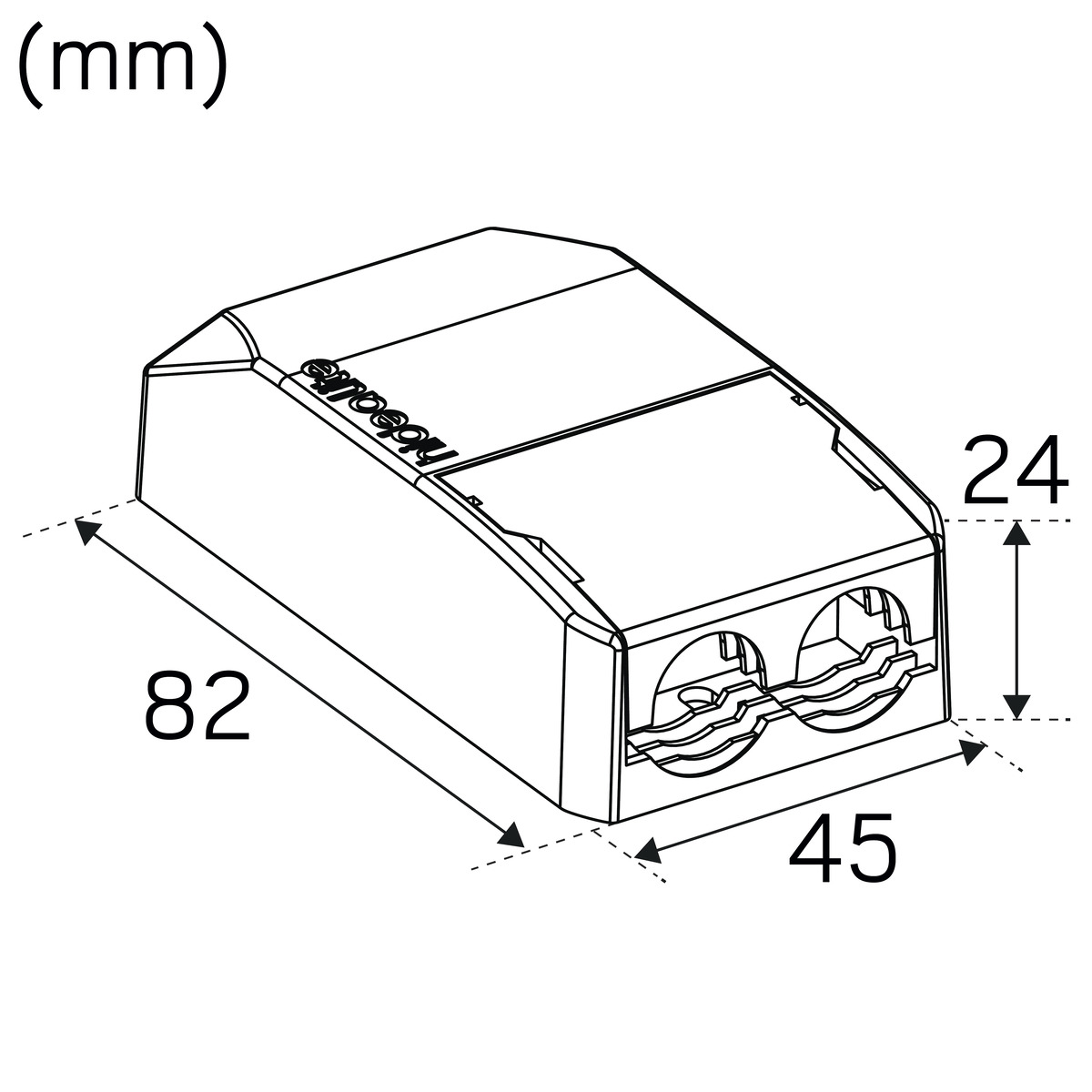

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 81

Power loss (W) 1,1

Constant Current (mA) 145

Operating Temperature -20…+40

Max. Tc (°C) 90

Dimming secondary side AM

Fuse B10 (pcs) 100

Fuse B16 (pcs) 160

Fuse C10 (pcs) 100

Fuse C16 (pcs) 160
Color and material: Material Aluminium

Color Black

Environmental Assessment Byggvarubedömningen

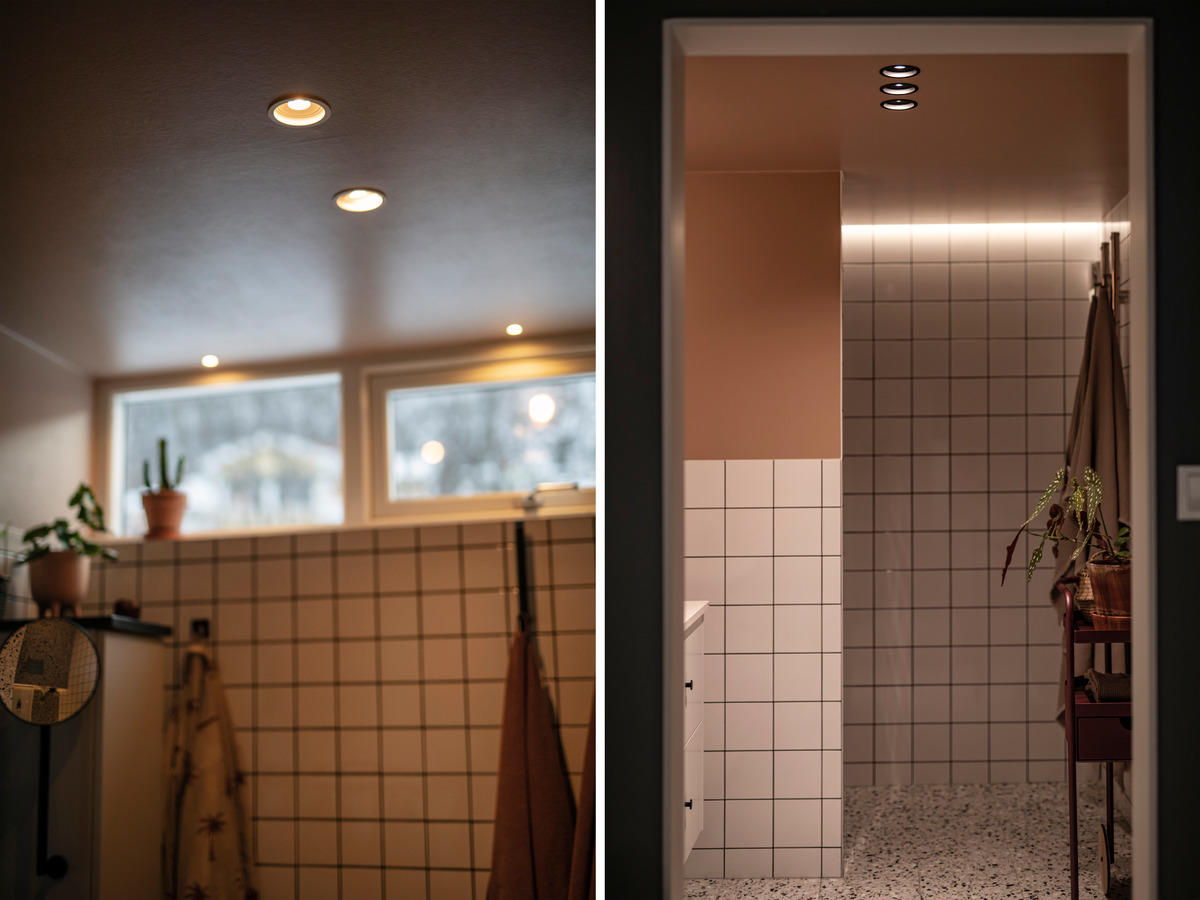

Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Ceiling

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Approved for installation against insulation

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV

Filament Test IEC 695-2-1(°C) 650

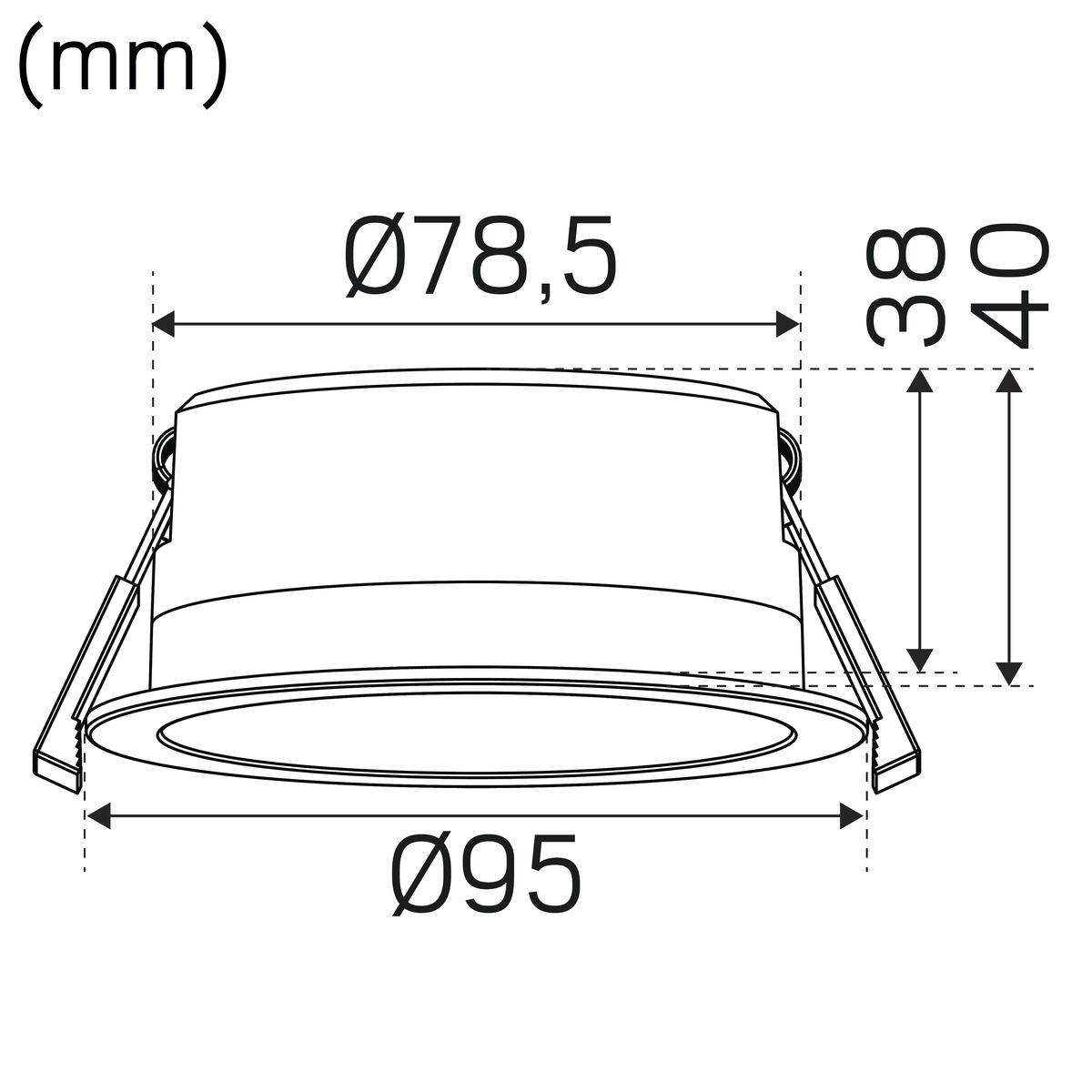

Height (mm) 40

Diameter (mm) 95

Weight (kg) 0,23

Min. Built-in (mm) 180x150x28

Height Recessed Part (mm) 38

Height Exterior Part (mm) 2

Built-in Ø (mm) 80-85

Optic Quick Deep ISO

Downlight with reflector technology and deeply recessed light source approved for installation directly against insulation. Gives a discrete and glare free light with very good colour rendering, up to Ra>95. Suitable in both private and public environments where a pleasant general lighting is desired. Black front ring available as an accessory. Complete with phase dimmable driver, 3-pole push-in terminal for through wiring, strain relief for cable or flex hose 16mm. Dimmable with most common dimmers on the market.

Comfort G4 Quick ISO Tilt

High-performance downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Comfort G4 Quick ISO Tilt is a downlight with lens technology, high lumen output and ISO cover for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Easily installed with very good colour rendering, Ra>95, that is just as good indoors as outdoors. Tiltable version (30°) is the perfect choice of luminaire for sloping ceilings. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.

Optic S Quick ISO

Low-build tiltable downlight, made for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Cut-out between 55-63mm – perfect replacement for old halogen fittings in renovation and maintenance work. Reflector technology, highly glare-free light distribution and extremely good colour rendering, Ra>95. IP44 rated for installation indoors or outdoors. Complete with phase dimmable driver, 3-pole push-in terminal for through wiring and screwless strain relief for cable or flex hose 230V. Dimmable with most common dimmers on the market.

Level Quick ISO

Level Quick ISO Black 2700K
