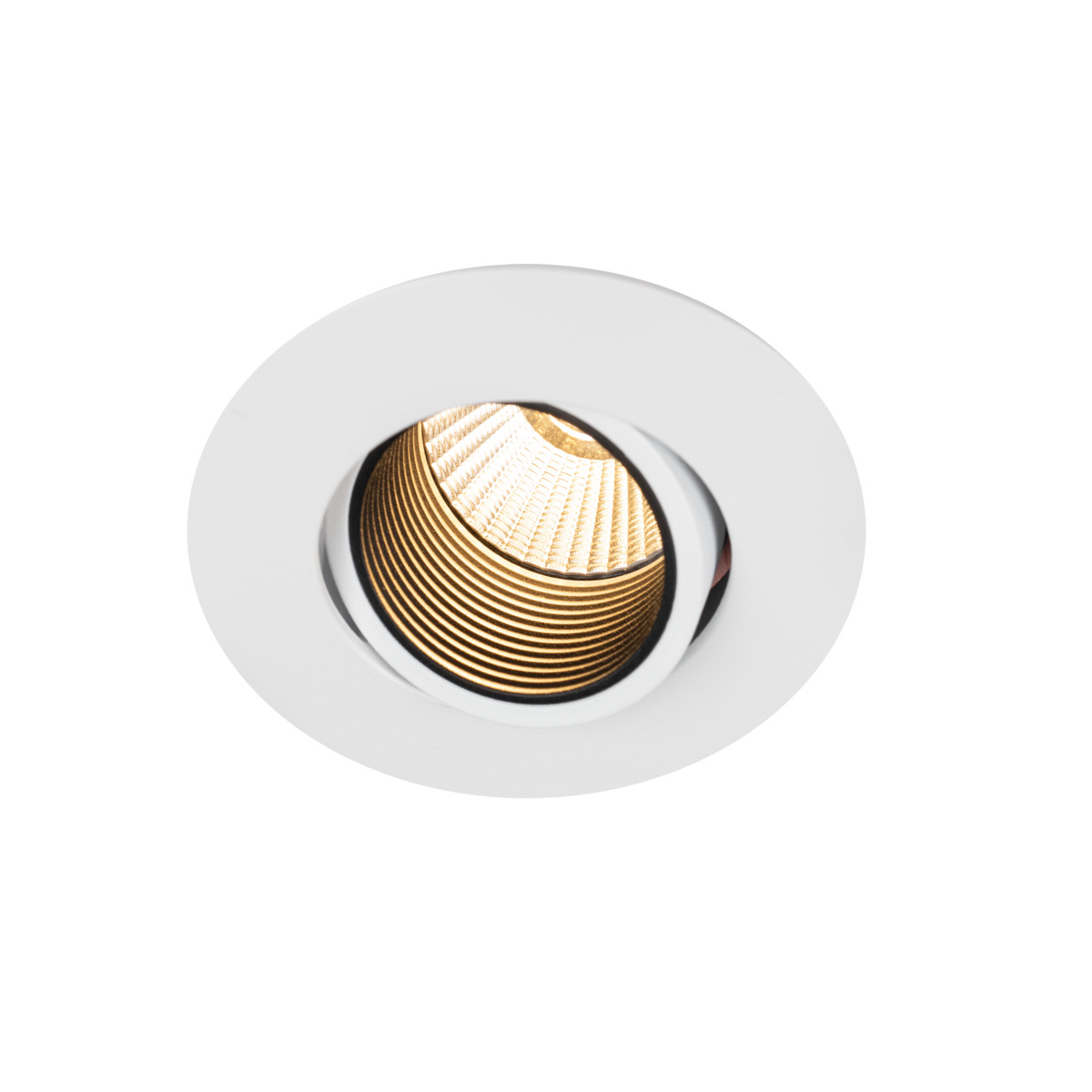

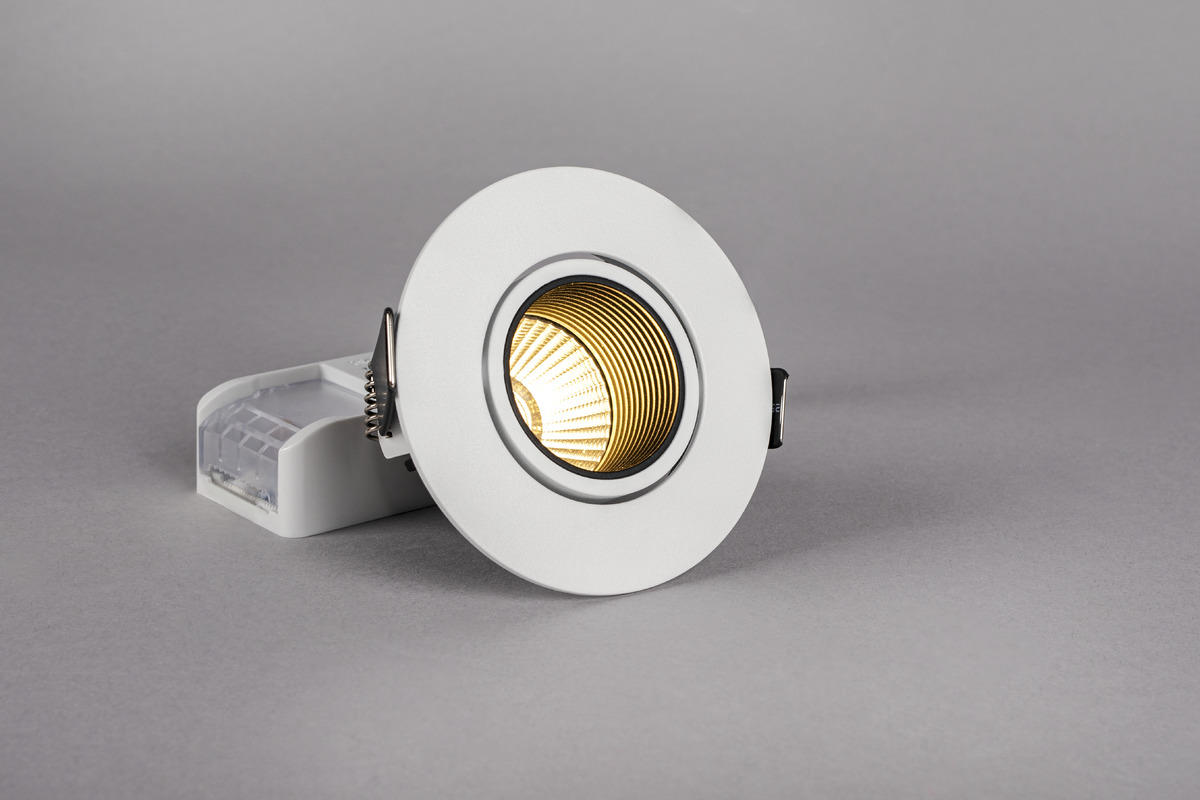

Optic Focus

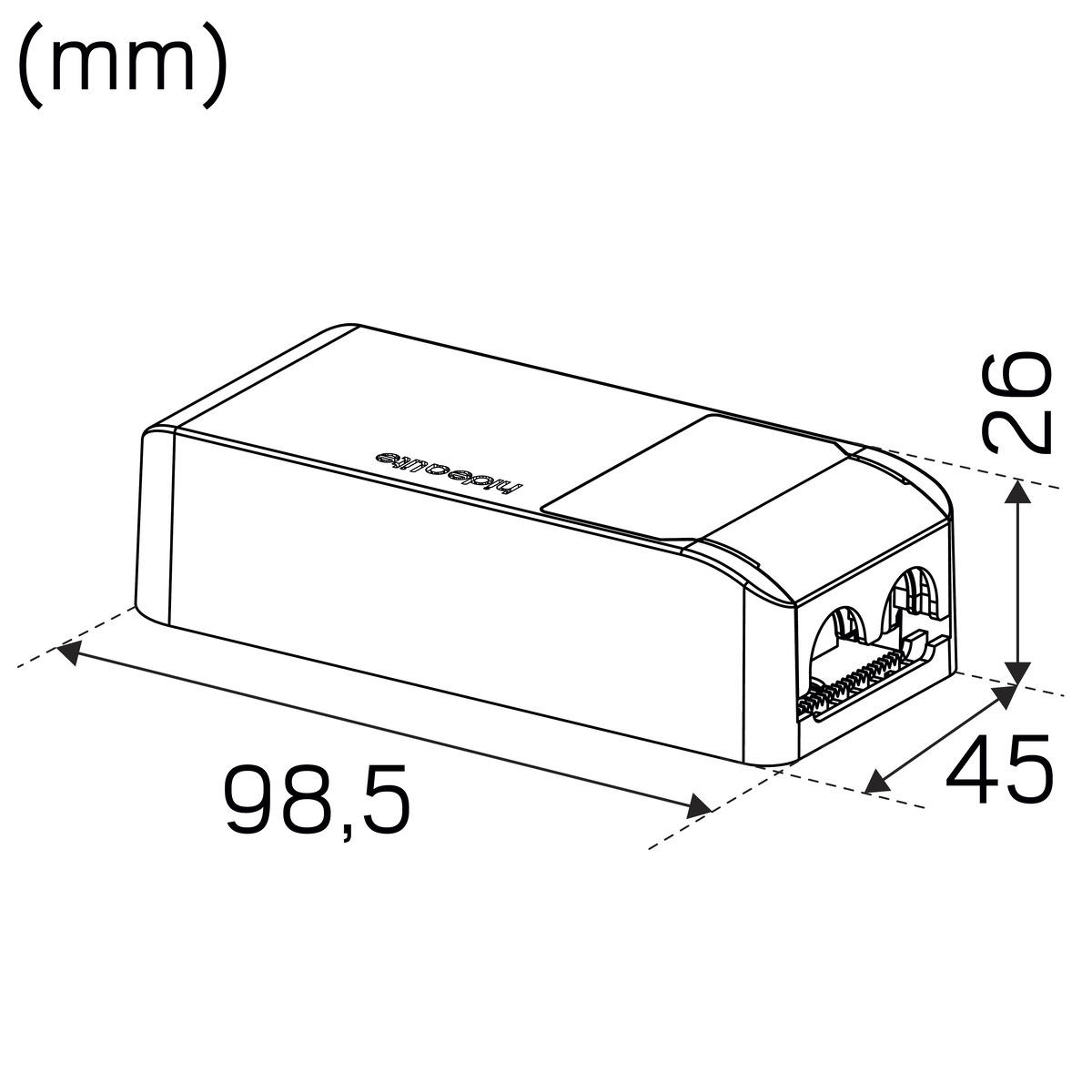

  • Complete with phase dimmable driver with push-in terminal and screwless strain relief
  • Well-developed reflector technology with distinct light distribution
  • Recessed light source and black inside for good glare-free lighting
Complete 230V downlight with deeply placed light source and black interior for an extra glare-free light. The reflector technology and design gives a distinct, well-defined light distribution. Comfortable general lighting in both private and public environments. Comes in several colour temperatures and Tune. Very good colour rendering, Ra>90, Tune Ra>95. Can be installed under moisture barrier with our Spot Guard Gles. Complete with phase dimmable driver with push-in terminal and screwless strain relief. Dimmable with the most commonly available dimmers on the market.
Exists in one color
Variants GTIN Item Name Colour Temperature (K) Luminaire Lumen (lm)
Optic Focus White 2700K 7392971137414 Optic Focus White 2700K 2700 385
Optic Focus White Tune 7392971137407 Optic Focus White Tune 3000 275
Optic Focus White 3000K 7392971137421 Optic Focus White 3000K 3000 425
Description
GTIN 7392971137414
Item Name Optic Focus White 2700K
Warranty 5 years
Light Technical Data
Technical data
Operation and Connection
Color and material

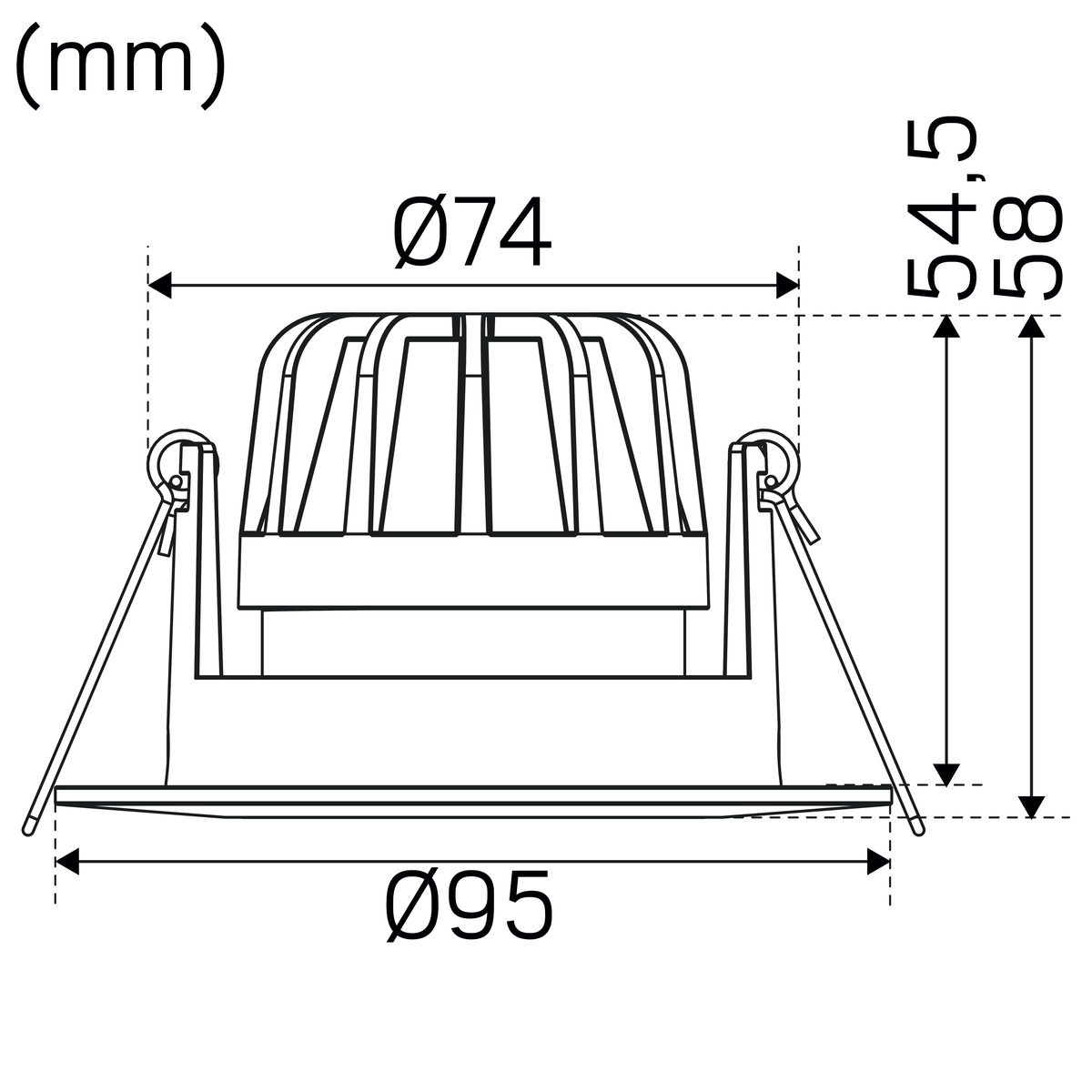

Measurement and installation

Downloads
