Optic G2 L Quick ISO 6 pack
- Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster
- Approved for installation directly against insulation
- Can be installed both indoors and outdoors

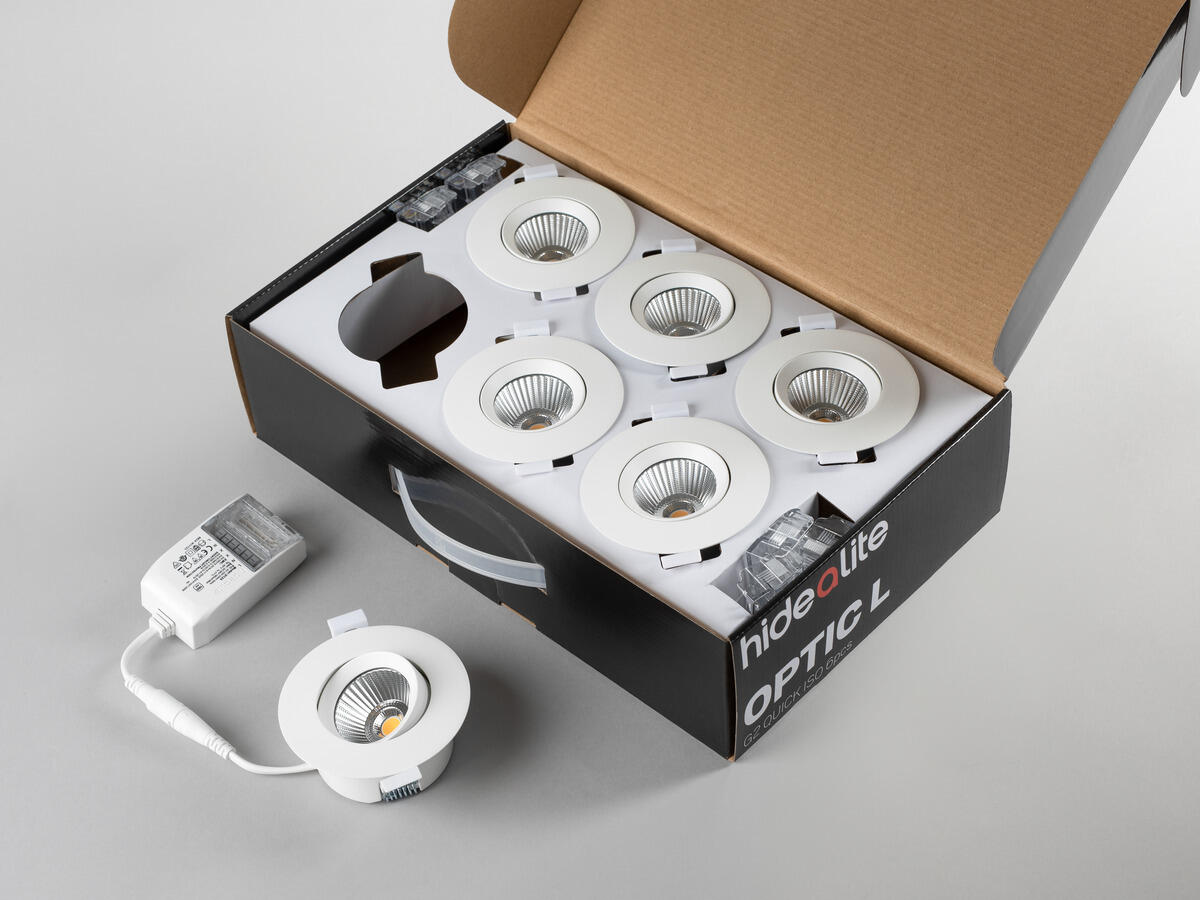

- Pack includes 6 luminaires with mains dimmable drivers
- Replaceable LED and driver

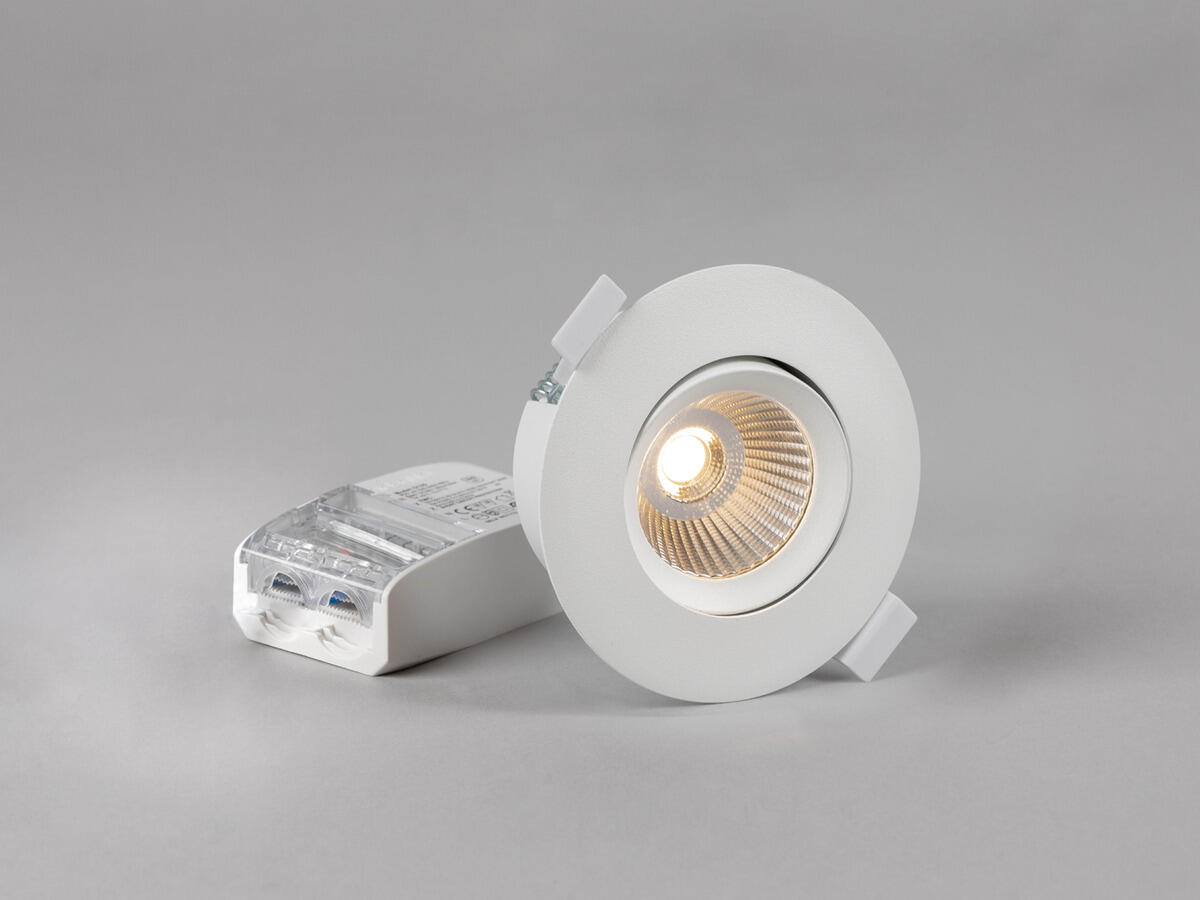

Versatile 6-pack for easier transport and fewer packages. Downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Big brother of the Optic family, perfect for high ceilings. Low build, suited for installation in 28mm secondary spaced boarding and directly against insulation. Modern LED and reflector technology with good glare-free light distribution and high lumen output. Tiltable 30°, which also makes it the perfect choice for sloping ceilings. Very good colour rendering, Ra>95. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971146980 | Optic G2 L Quick ISO 6-Pack White 36° Tune | 2700 | 460 |
|
7392971146997 | Optic G2 L Quick ISO 6-Pack White 36° 2700K | 2700 | 610 |
|
7392971147000 | Optic G2 L Quick ISO 6-Pack White 36° 3000K | 3000 | 640 |
Optic G2 L Quick ISO 6-Pack White 36° Tune
-
GTIN 7392971146980Item Name Optic G2 L Quick ISO 6-Pack White 36° TuneWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 460Light Source LEDLight Source Included YesReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour TuneColour Temperature (K) 2700Range Colour Temperature (K) Tune 2000-2700Colour Rendering Index (Ra) >95Colour Consistency (SDCM) 3Luminous Intensity (cd) 780Beam Angle (°) 36Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L91Lumen maintenance 75 000h L83Lumen maintenance 100 000h L82LLMF @ 50 000h 0,91LLMF @ 100 000h 0,82Life Time Driver 50 000h/10%
- Technical data
-
Adjustable YesTiltable (°) 30Voltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50Power LED (W) 6,5Power Luminaire (W) 7,5System Power (W) 7,5Efficiency Luminaire (lm/W) 61Efficiency System (lm/W) 61Containing light source energy efficiency class (EU) 2019/2015 F
- Operation and Connection
-
Dimmable YesType of Dimming Trailing EdgeDriver Included YesDriver Model Constant CurrentDriver Type Stand AloneDriver Manufacturer Hide-a-liteConnection (type) Quick TerminalConnection (mm2) 3x0,5-2,5Through Wiring YesStrain Relief YesPower Factor ʎ 0,95Efficiency (%) 80Power loss (W) 1Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05THD (%) 18Constant Current (mA) 180Operating TemperatureMax. Tc (°C) 85Dimming secondary side AMMemory Function Power Failure NoProtection Against Short Circuit, OverloadInrush current (max/time) 2,5A 30µsMains surge protection DM (kV) 500Mains surge protection CM (kV) 1000Fuse B10 (pcs) 55Fuse B16 (pcs) 87Fuse C10 (pcs) 91Fuse C16 (pcs) 146
- Color and material
-
Material AluminiumColor White
- Measurement and installation
-
Operating EnvironmentIP Degree of Protection 44Protection Class IIInstallation Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-26Fire Safety Marks Approved for installation against insulationProtection Cover 7466700, 7466701, 7466702Approval Marks CE, SELV, a Hide-a-lite ChoiceFilament Test IEC 695-2-1(°C) 650Height (mm) 41Diameter (mm) 95Weight (kg) 0,222Min. Built-in (mm) 170x120x38Height Recessed Part (mm) 38Height Exterior Part (mm) 3Built-in Ø (mm) 73-85
Spare parts
If you need spare parts, contact our customer support
- LED-Module Optic L G2 Tune X308
- Driver D125 FDIM 180mA X259
