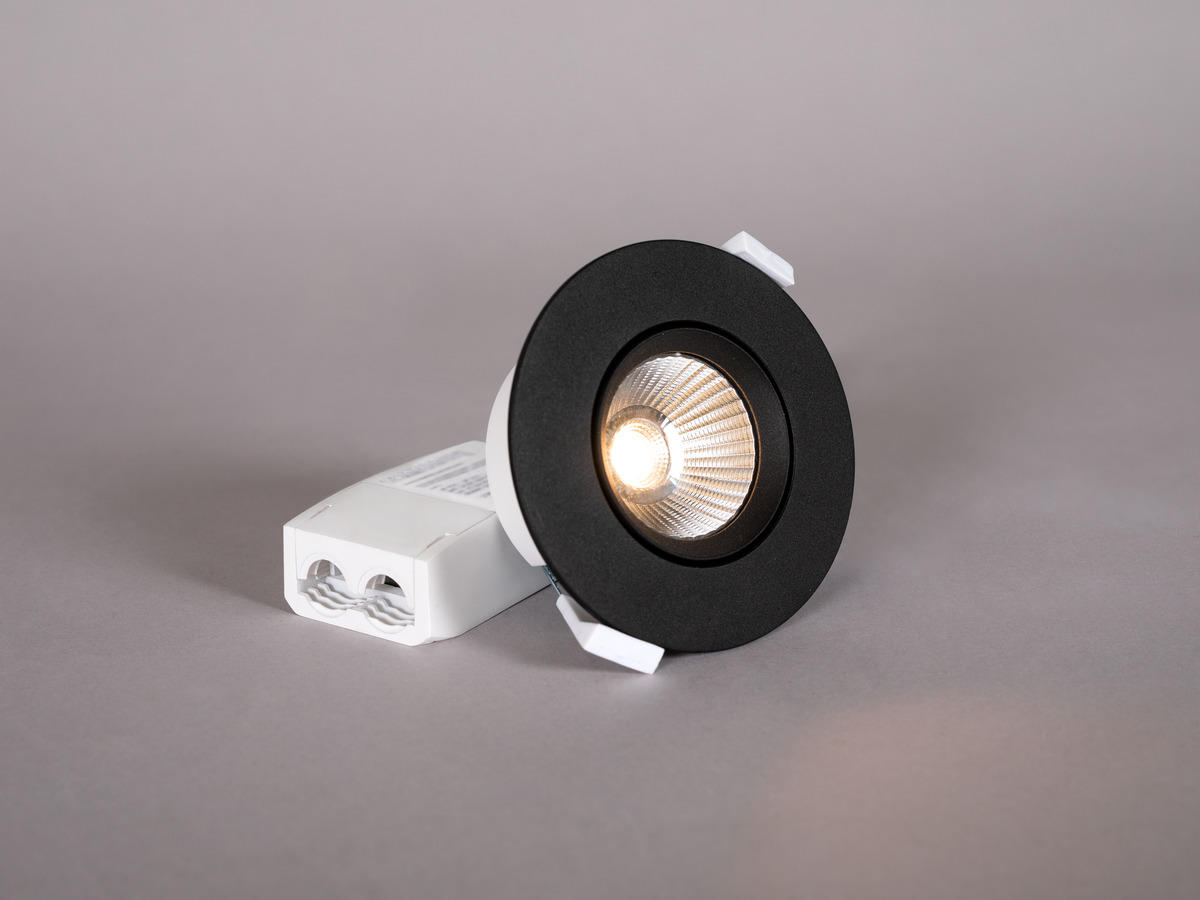

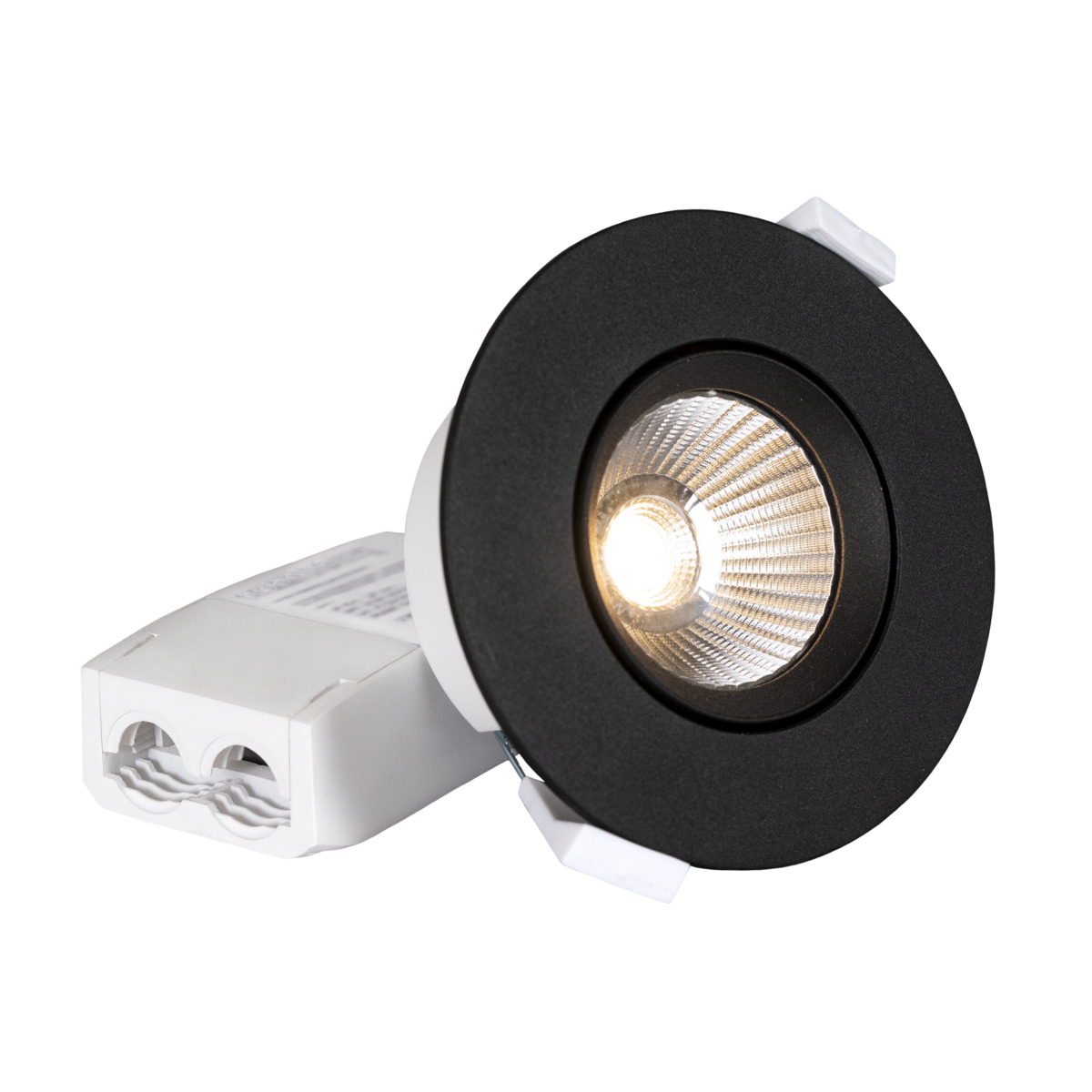

Optic L Quick ISO Optic L Quick ISO Black 3000K

Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster

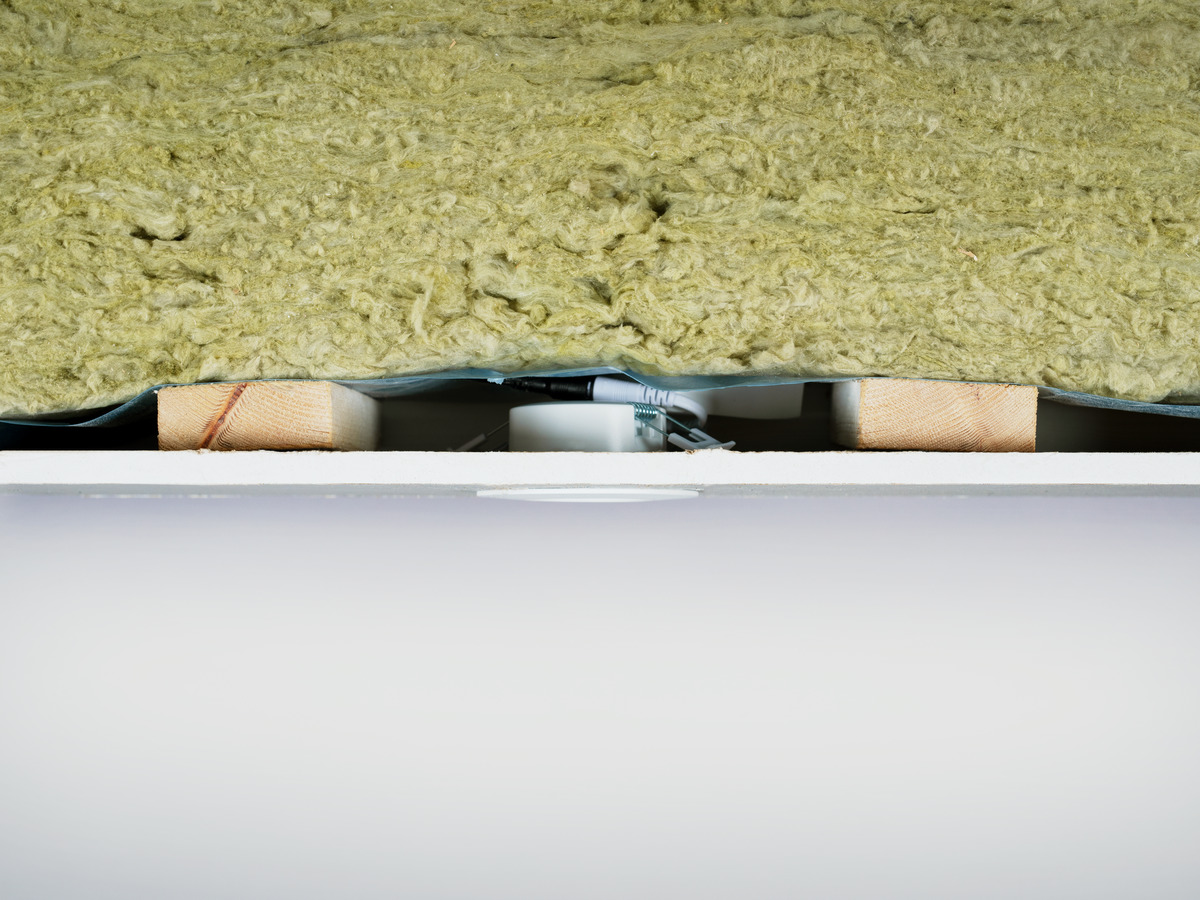

Approved for installation directly against insulation
Very good colour rendering, Ra>95
Can be installed both indoors and outdoors
Comes complete with mains dimmable driver for cable or flex hose 16mm

Low-build, effective and tiltable downlight, made for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Modern LED and reflector technology for a high luminous efficacy with distinct and glare-free light distribution with very good colour rendering, Ra>95. An easily installed IP44 luminaire, complete with a phase dimmable driver, 3-pole push-in terminal for through wiring and strain relief for cable or flex hose 16 mm. Dimmable with most common dimmers on the market.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971141435	Optic L Quick ISO Black 3000K	Black	3000	640
7392971141374	Optic L Quick ISO White Tune	White	2700	460

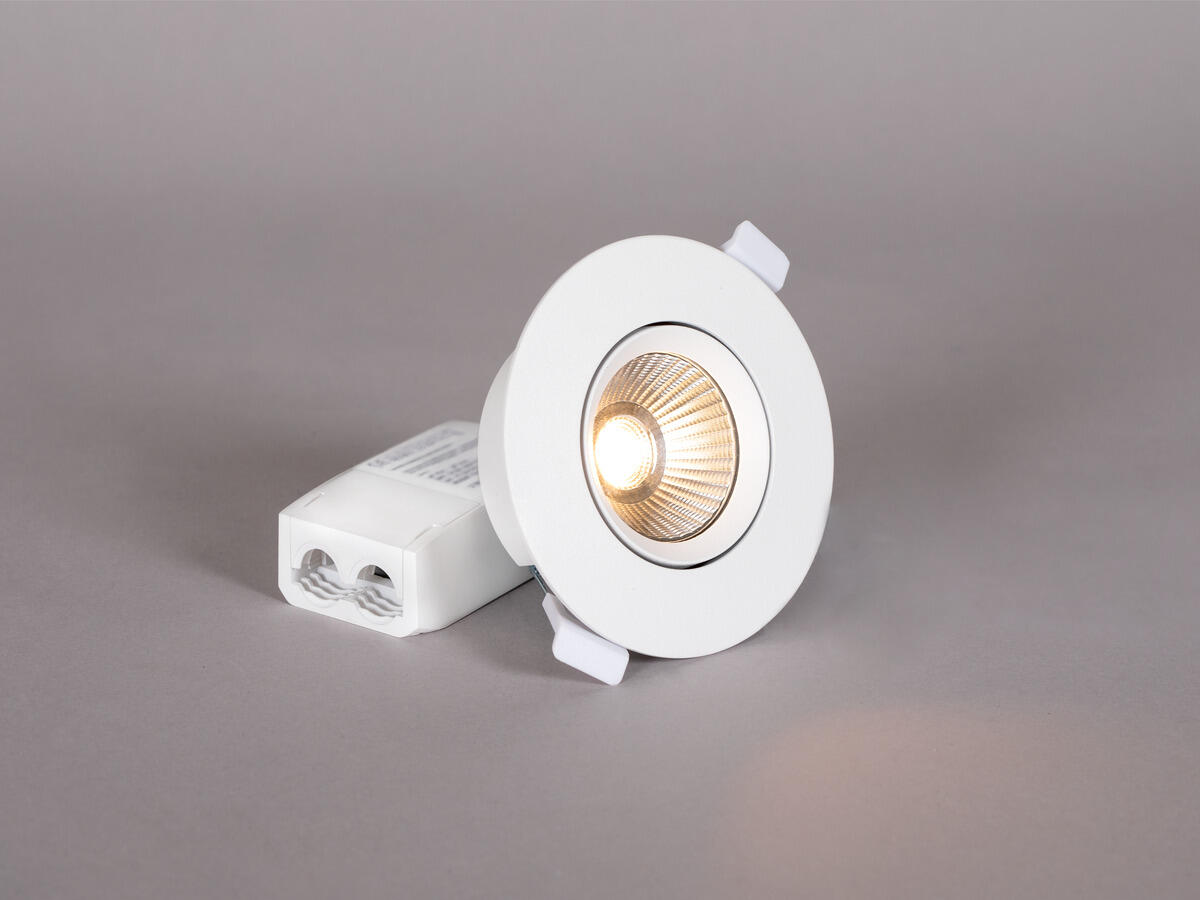

7392971141381	Optic L Quick ISO White 2700K	White	2700	610
7392971141404	Optic L Quick ISO White 4000K	White	4000	670
7392971141442	Optic L Quick ISO Black 4000K	Black	4000	670

Description: GTIN 7392971141435

Item Name Optic L Quick ISO Black 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 640

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >97

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1060

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L88

Lumen maintenance 75 000h L83

Lumen maintenance 100 000h L78

LLMF @ 50 000h 0,88

LLMF @ 100 000h 0,78

Life Time Driver 50 000h/10%
Technical data: Adjustable Yes

Tiltable (°) 20

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 6,5

Power Luminaire (W) 7,5

System Power (W) 7,5

Efficiency Luminaire (lm/W) 85

Efficiency System (lm/W) 85

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,85

Efficiency (%) 86

Constant Current (mA) 180

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Protection Against Overheating 90°C, Overload

Fuse B10 (pcs) 55

Fuse B16 (pcs) 90

Fuse C10 (pcs) 95

Fuse C16 (pcs) 150
Color and material: Material Aluminium

Color Black

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Approved for installation against insulation

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV

Filament Test IEC 695-2-1(°C) 650

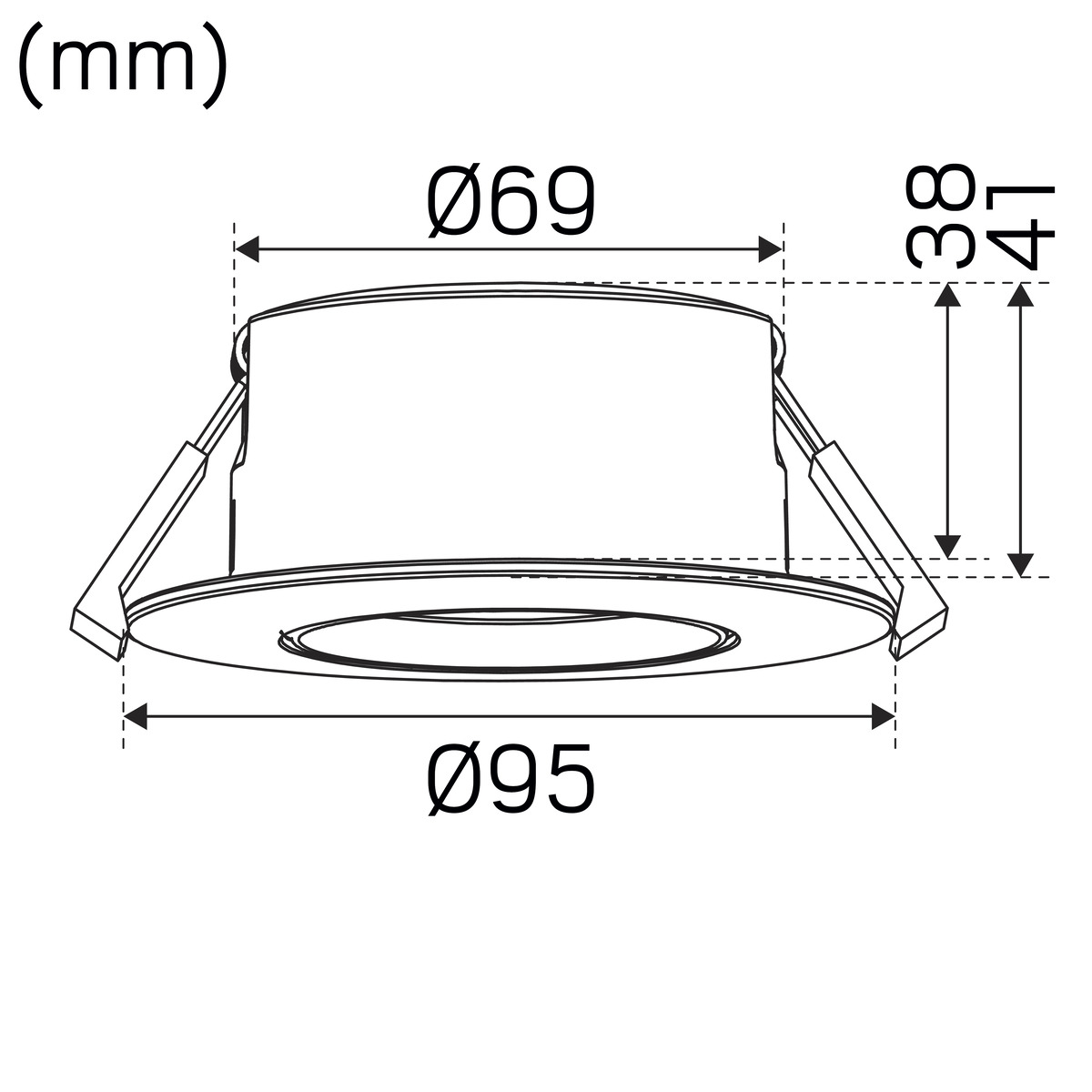

Height (mm) 41

Diameter (mm) 95

Weight (kg) 0,262

Min. Built-in (mm) 170x120x38

Height Recessed Part (mm) 38

Height Exterior Part (mm) 3

Built-in Ø (mm) 83-85
