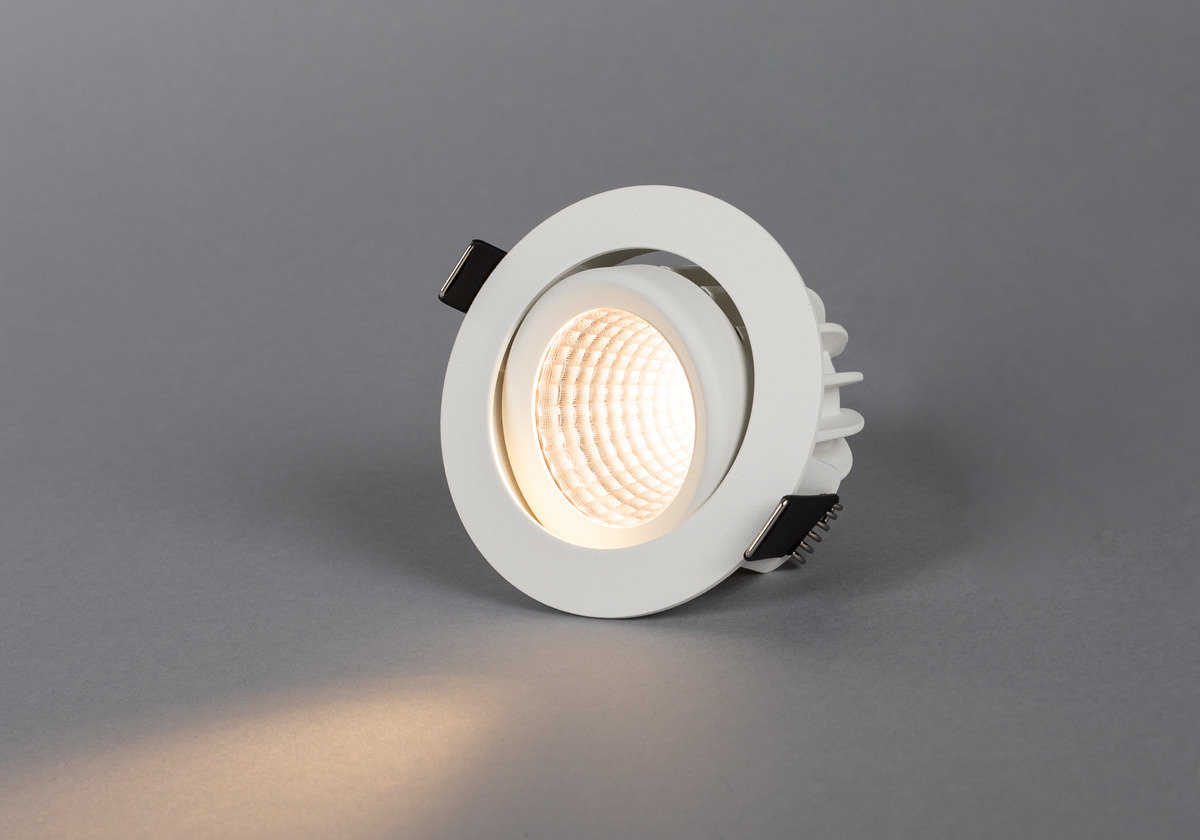

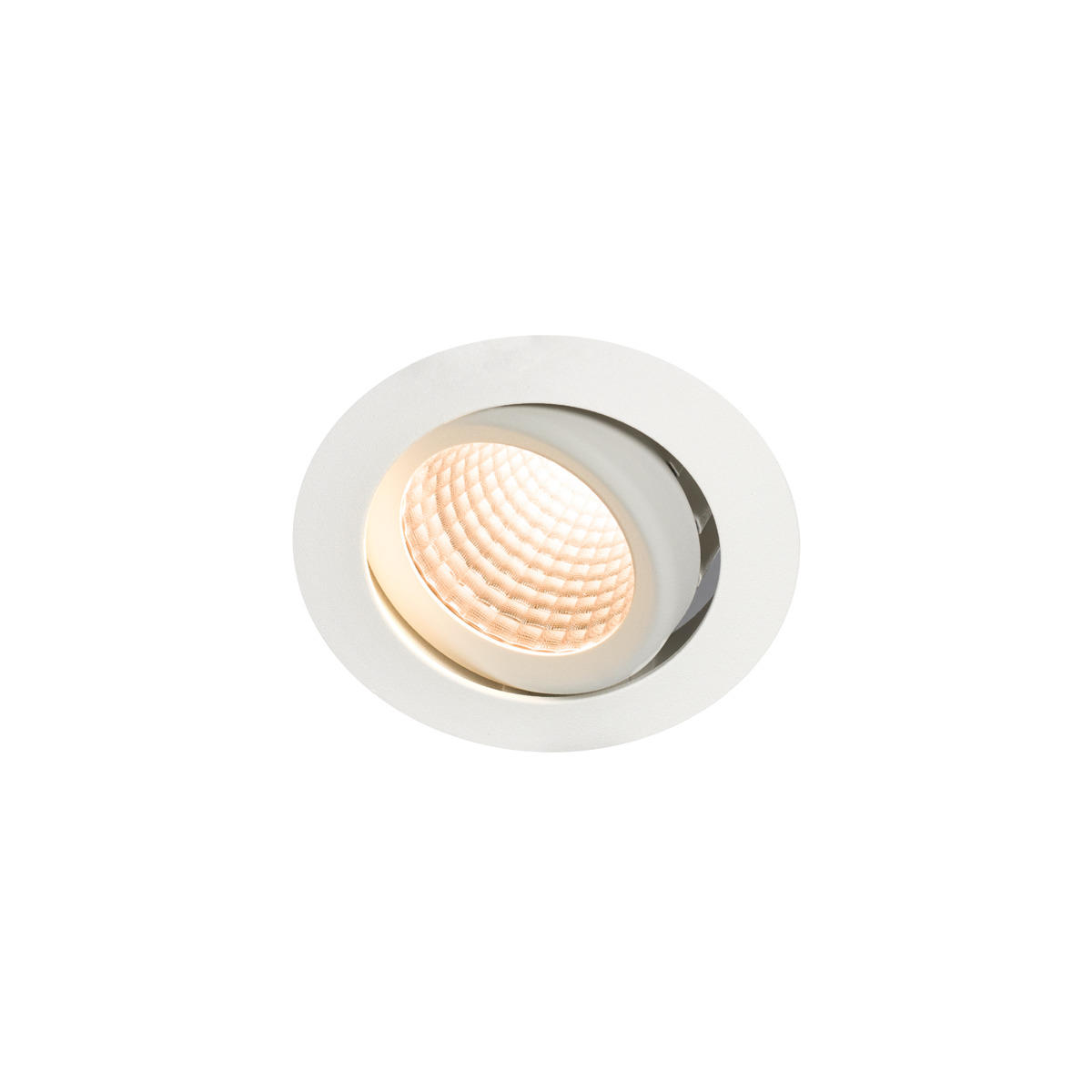

Optic XL Tilt

Push-in, loop-in, loop-out terminal block and screwless strain relief
Comes complete with mains dimming driver or DALI

Powerful LED luminaire for high ceilings, reflector technology with 36° beam angle and high luminous efficacy. Optic XL is available in a fixed and in a 20° tiltable version with a distinct and very glare-free light distribution with very good colour rendering, RA>90. An easily installed and low-build luminaire complete with mains dimmable driver, push-in, loop-in, loop-out terminals and screwless strain relief for easy connection to 230V. Dimmable with the most commonly available dimmers on the market.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)	Type of Dimming
7392971134628	Optic XL Tilt Tune DALI	3000	740	Push 230V, DALI 2
7392971130880	Optic XL Tilt Tune	3000	740	Trailing Edge, Leading Edge
7392971130897	Optic XL Tilt 2700K	2700	910	Trailing Edge, Leading Edge
7392971130903	Optic XL Tilt 3000K	3000	940	Trailing Edge, Leading Edge
7392971135311	Optic XL Tilt 4000K	4000	1025	Trailing Edge, Leading Edge
7392971134635	Optic XL Tilt 2700K DALI	2700	910	Push 230V, DALI 2
7392971134642	Optic XL Tilt 3000K DALI	3000	940	Push 230V, DALI 2

Description: GTIN 7392971134628

Item Name Optic XL Tilt Tune DALI

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 740

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Tune

Colour Temperature (K) 3000

Range Colour Temperature (K) Tune 2000-3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1900

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L88

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L79

LLMF @ 50 000h 0,88

LLMF @ 100 000h 0,79

Life Time Driver 50 000h/10%
Technical data: Adjustable Yes

Tiltable (°) 20

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 12,5

Power Luminaire (W) 15

System Power (W) 15

Efficiency Luminaire (lm/W) 49

Efficiency System (lm/W) 49

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, DALI 2

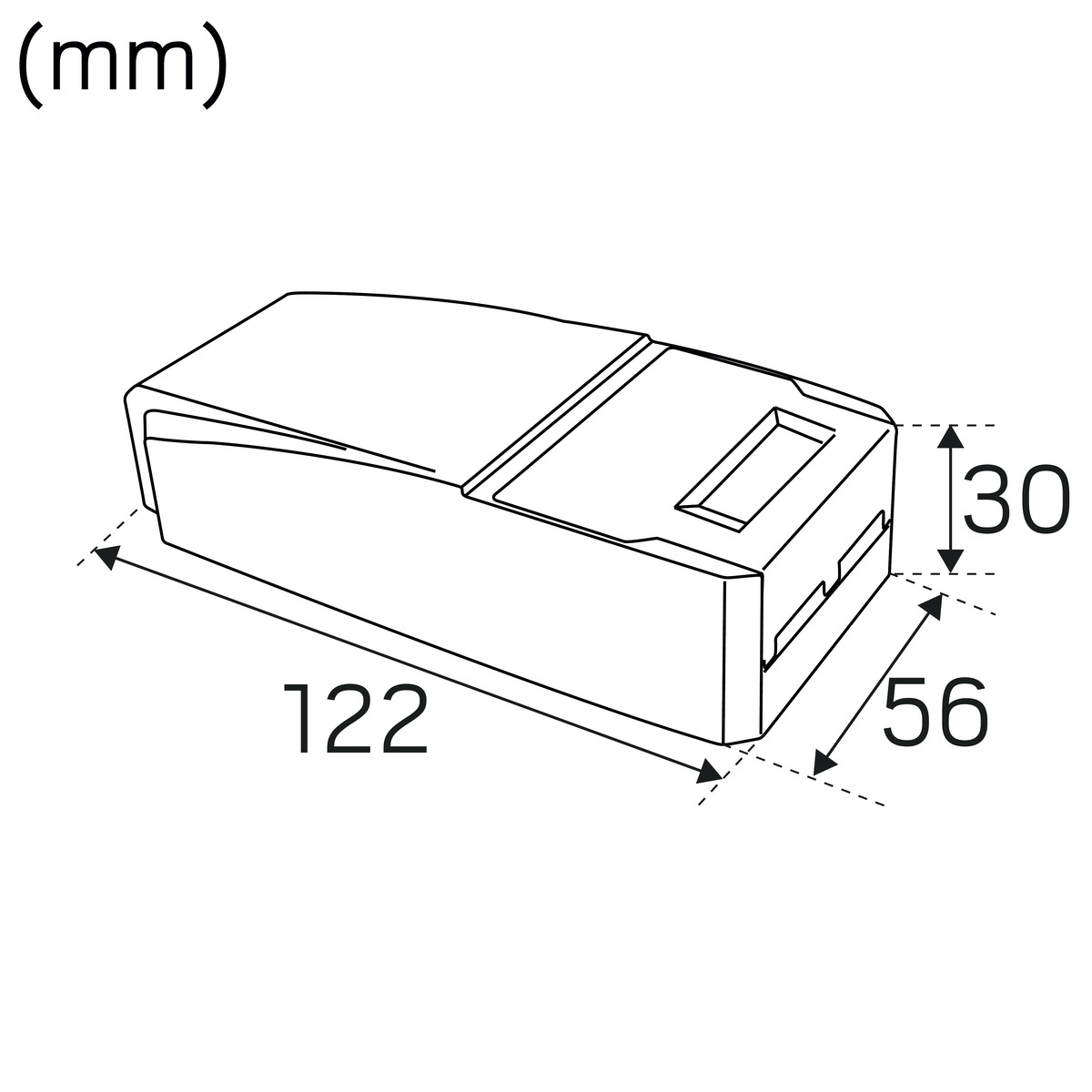

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 4x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Constant Current (mA) 350

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Fuse B10 (pcs) 27

Fuse B16 (pcs) 43

Fuse C10 (pcs) 45

Fuse C16 (pcs) 72
Color and material: Material Diecasted, Aluminium

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-26

Fire Safety Marks Not in insulation without protection cover

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV

Filament Test IEC 695-2-1(°C) 650

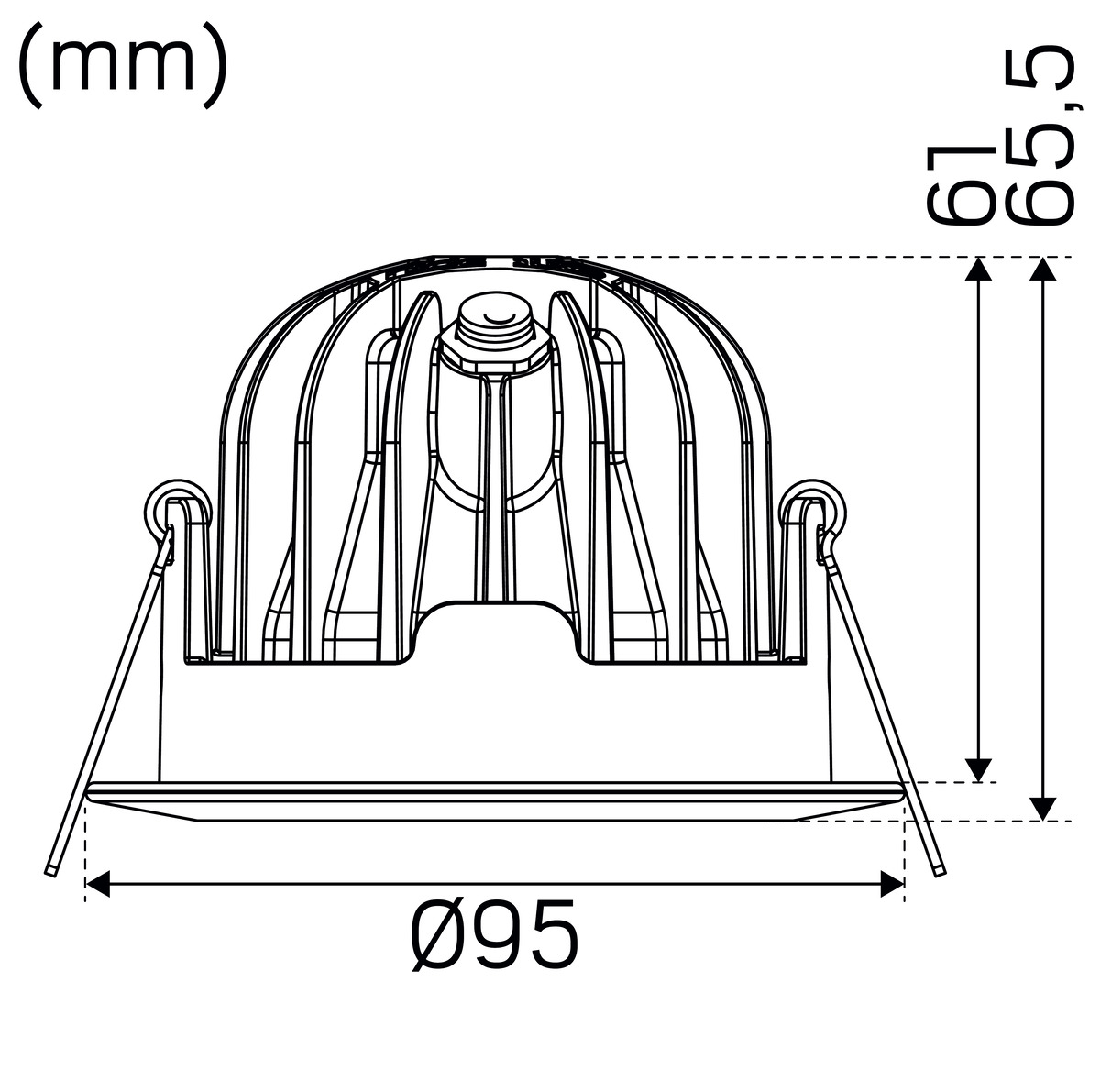

Height (mm) 66

Diameter (mm) 95

Weight (kg) 0,34

Min. Built-in (mm) 300x200x60

Height Recessed Part (mm) 61

Height Exterior Part (mm) 5

Built-in Ø (mm) 83
