Optic XS Tilt

Can be installed both indoors and outdoors
Push-in, loop-in, loop-out terminal block and screwless strain relief

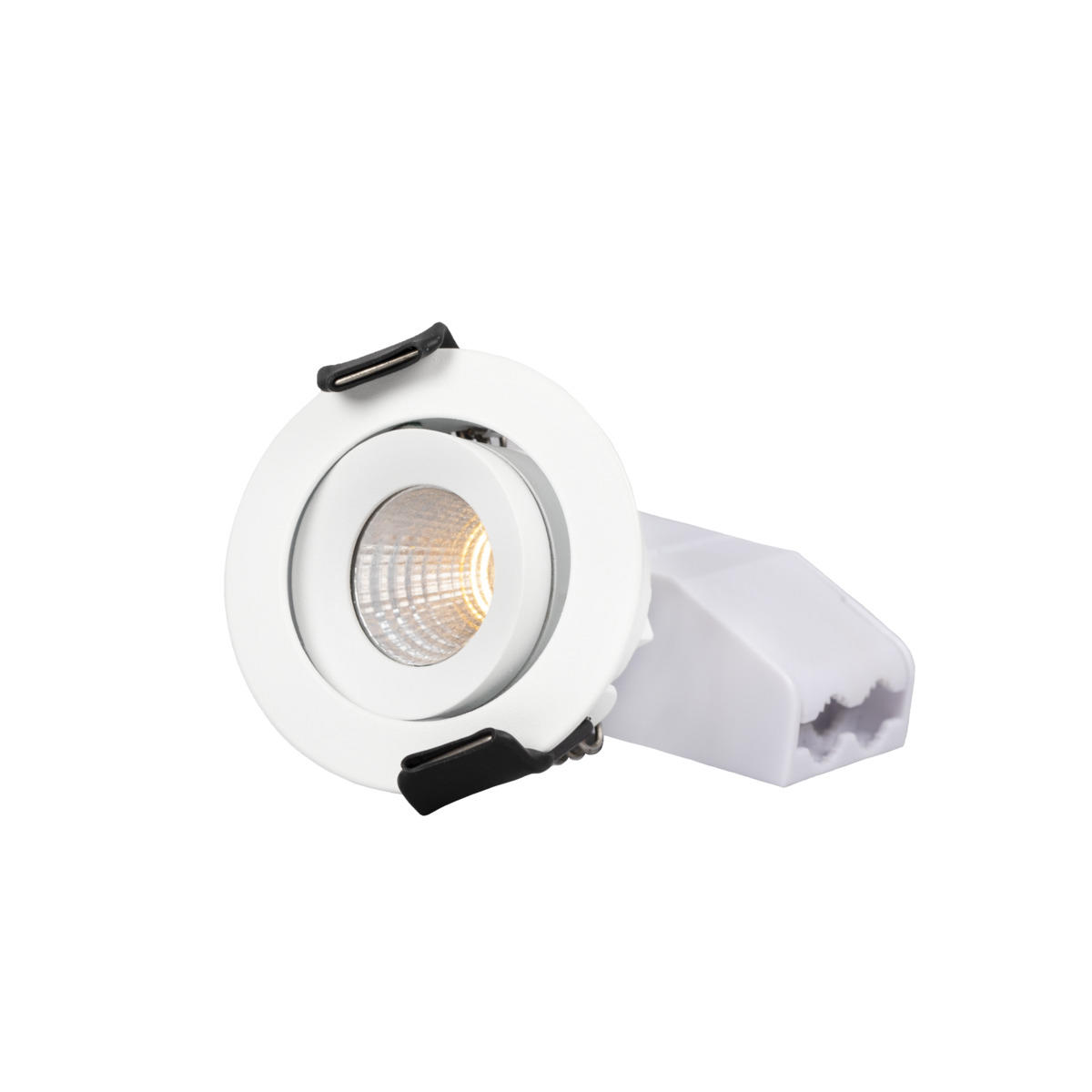

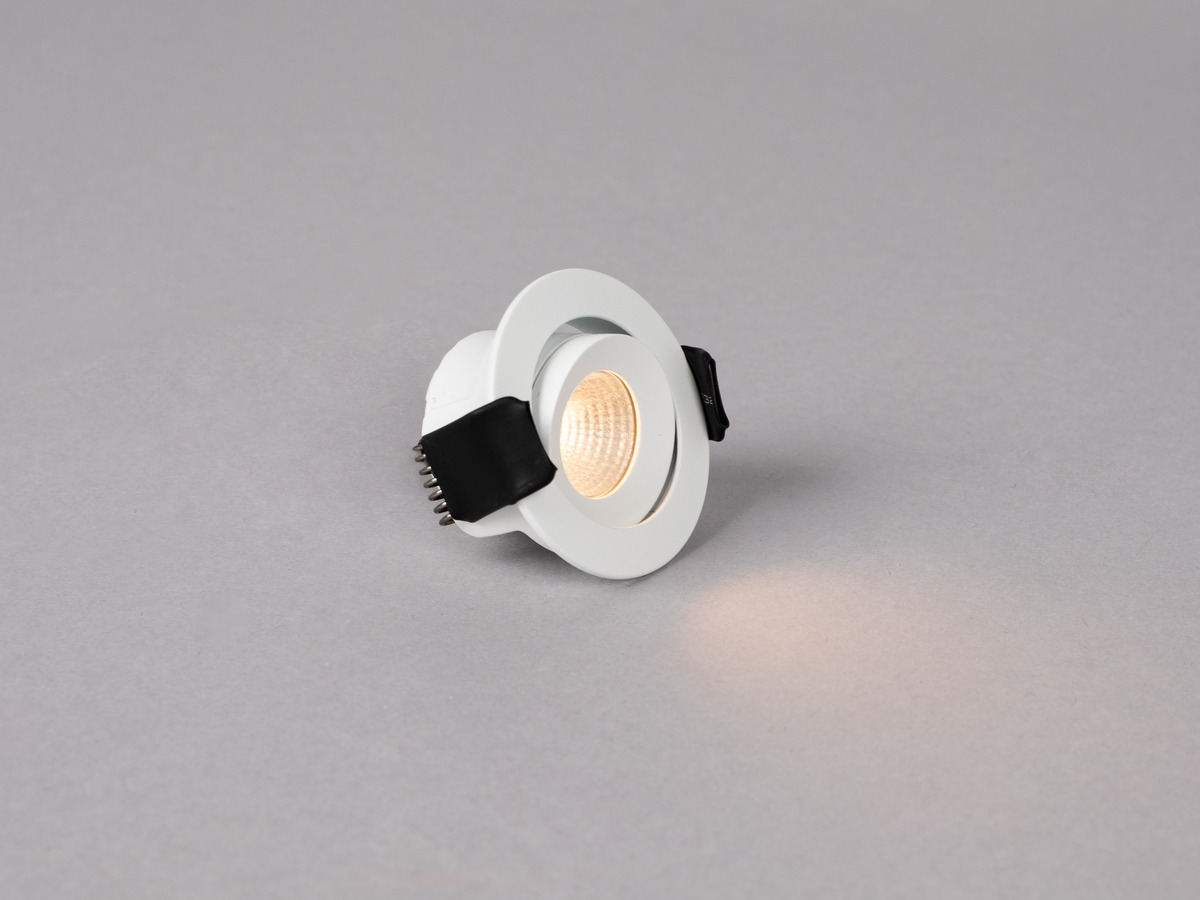

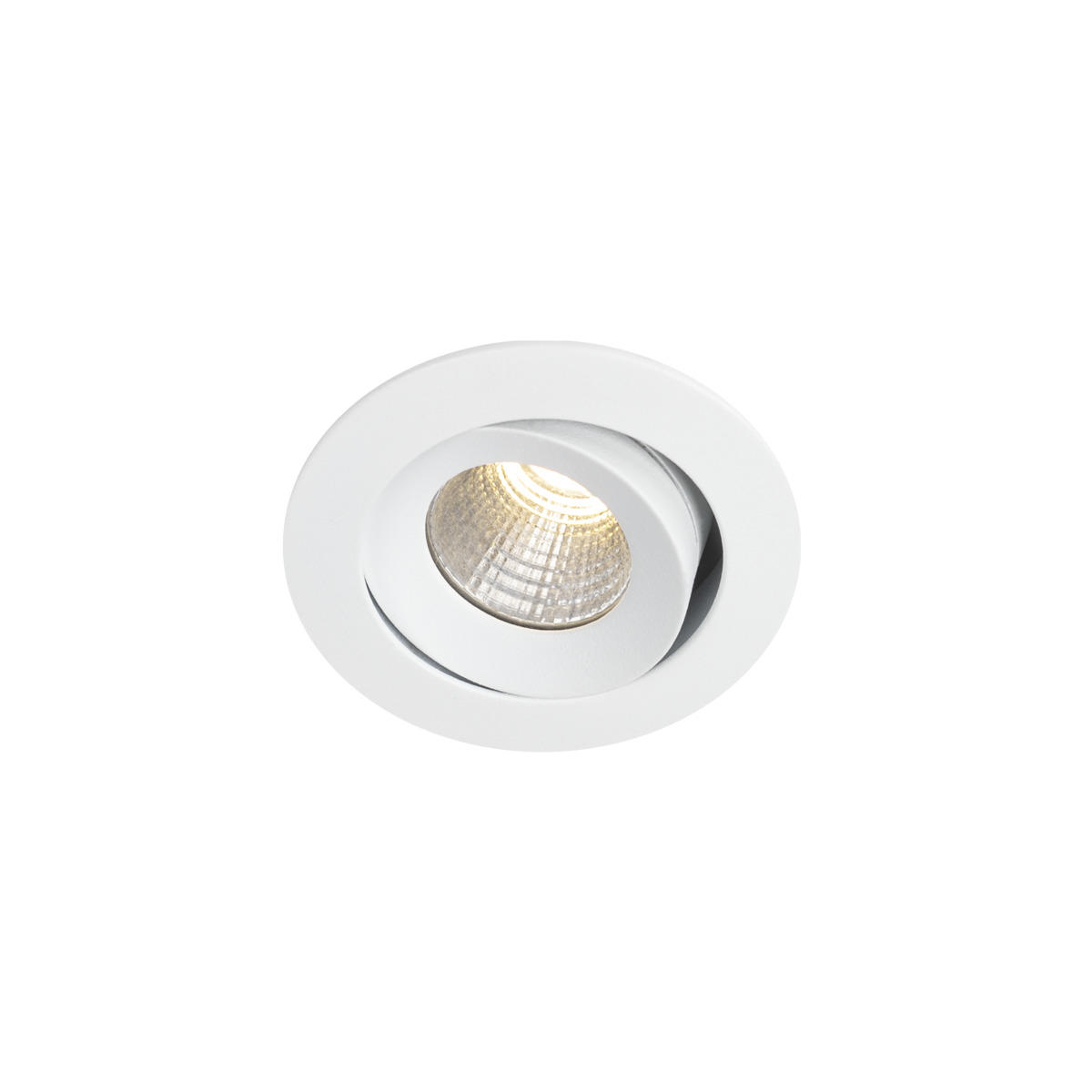

Exclusive small tiltable accent luminaire with well-developed reflector technology. Gives a discrete and glare free light with very good colour rendering, Ra>95. Small and low-build – perfect for secondary spaced boarding 28mm with 13mm gypsum. Beautiful as accent lighting solo or in group when directed lighting is desired. Complete with small mains dimmable driver, push-in, loop-in, loop-out terminals and screwless strain relief for easy installation. Dimmable with the most commonly available dimmers on the market.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971135885	Optic XS Tilt White 2700K	2700	230
7392971135878	Optic XS Tilt White Tune	2700	205
7392971135892	Optic XS Tilt White 3000K	3000	230

Description: GTIN 7392971135885

Item Name Optic XS Tilt White 2700K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 230

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 370

Beam Angle (°) 45

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L90 100 000h Ta 25°C

Nominel Life Time (h) 100000

Life Time Driver 50 000h/10%
Technical data: Adjustable Yes

Tiltable (°) 20

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Voltage Forward (Vf) 14

Power LED (W) 3

Power Luminaire (W) 4

System Power (W) 4

Efficiency Luminaire (lm/W) 58

Efficiency System (lm/W) 58

Containing light source energy efficiency class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

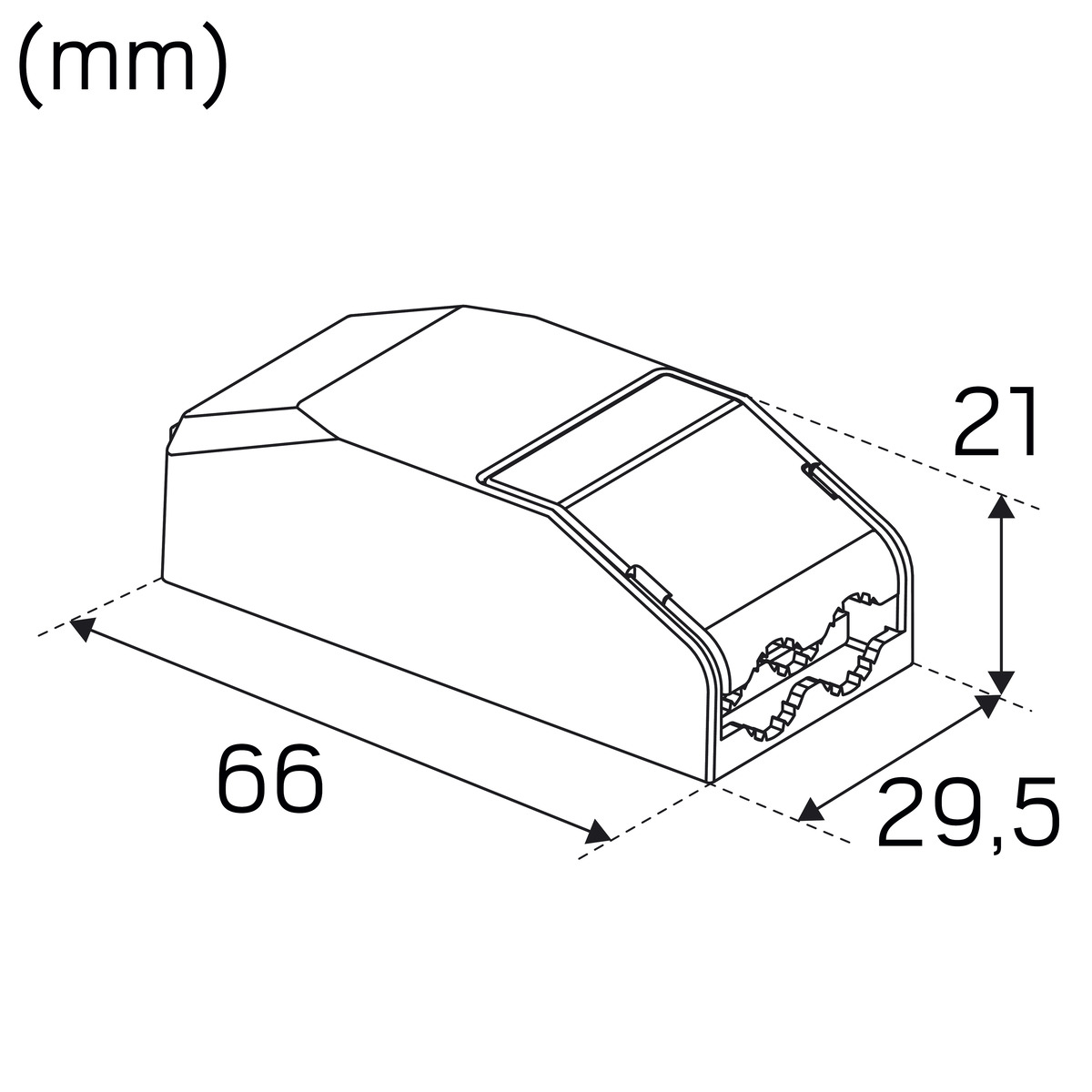

Driver Included Yes

Driver Model Constant Current

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Fuse B10 (pcs) 75

Fuse B16 (pcs) 100

Fuse C10 (pcs) 100

Fuse C16 (pcs) 125
Color and material: Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-13

Fire Safety Marks Not in insulation without protection cover

Protection Cover 7466700, 7466701, 7466702

Approval Marks CE, SELV

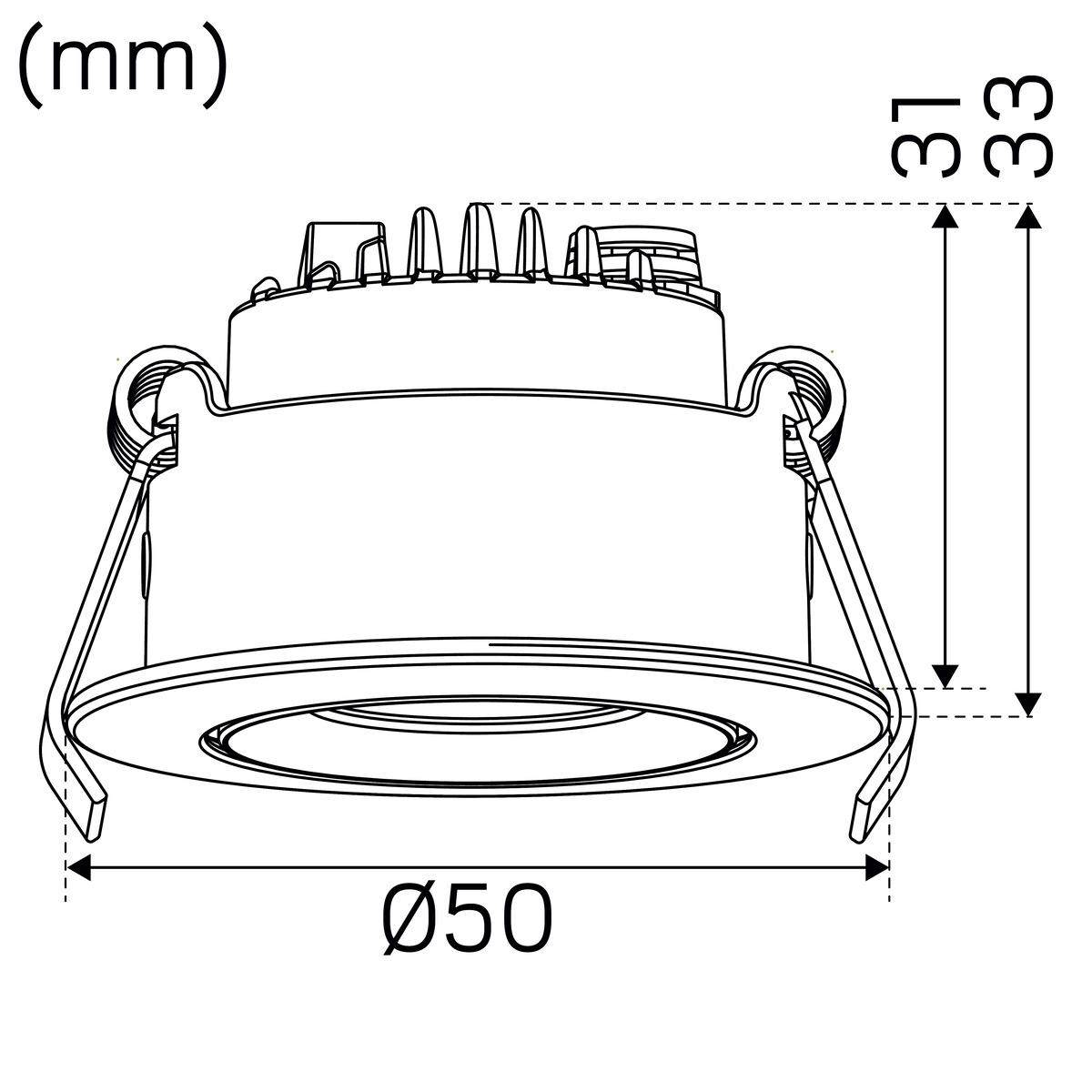

Height (mm) 33

Diameter (mm) 50

Weight (kg) 0,1

Min. Built-in (mm) 200x230x28

Height Recessed Part (mm) 31

Height Exterior Part (mm) 2

Built-in Ø (mm) 44-47
