Globe G2 Surface

Easily installed flat on ceiling or directly over ceiling, junction or appliance box
Change appearance easily with reflectors in various colours

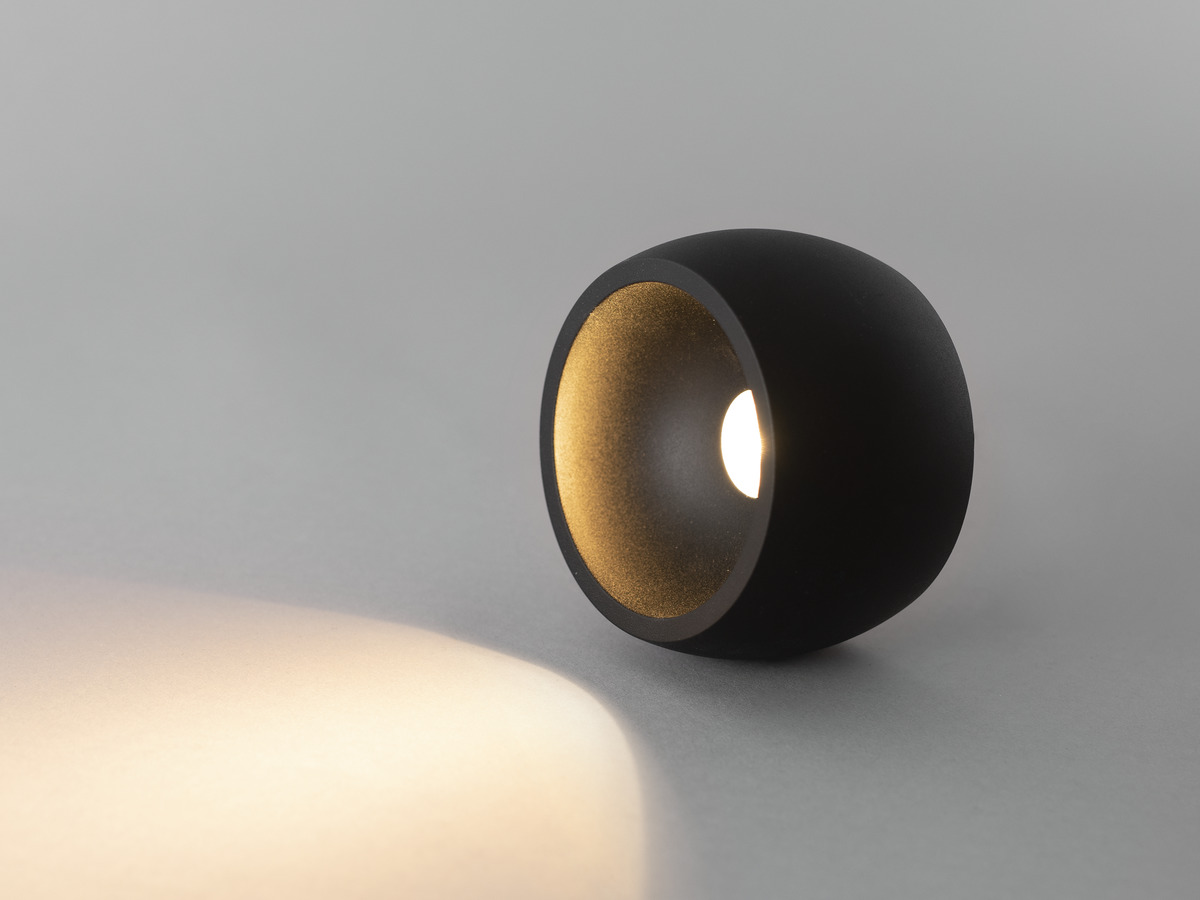

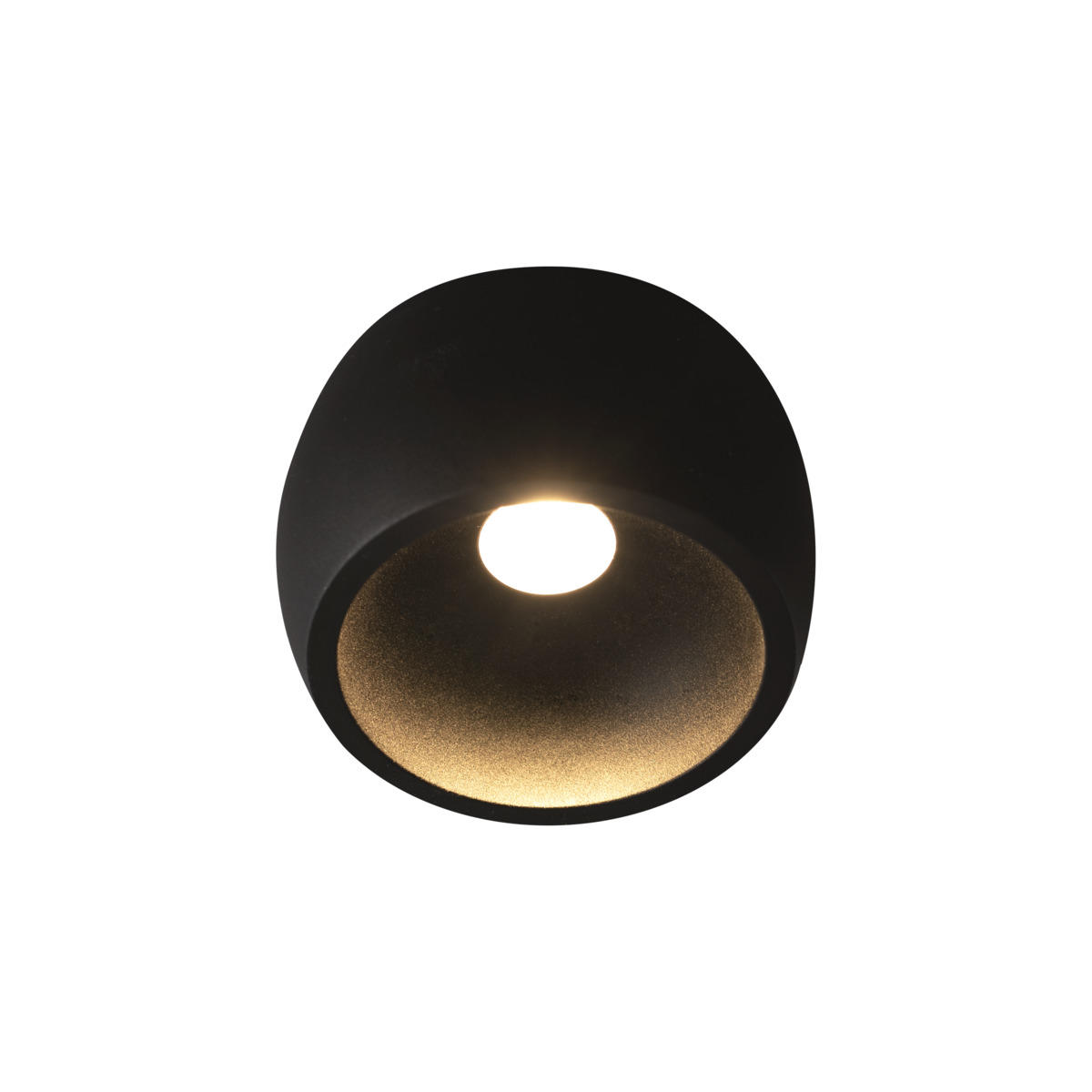

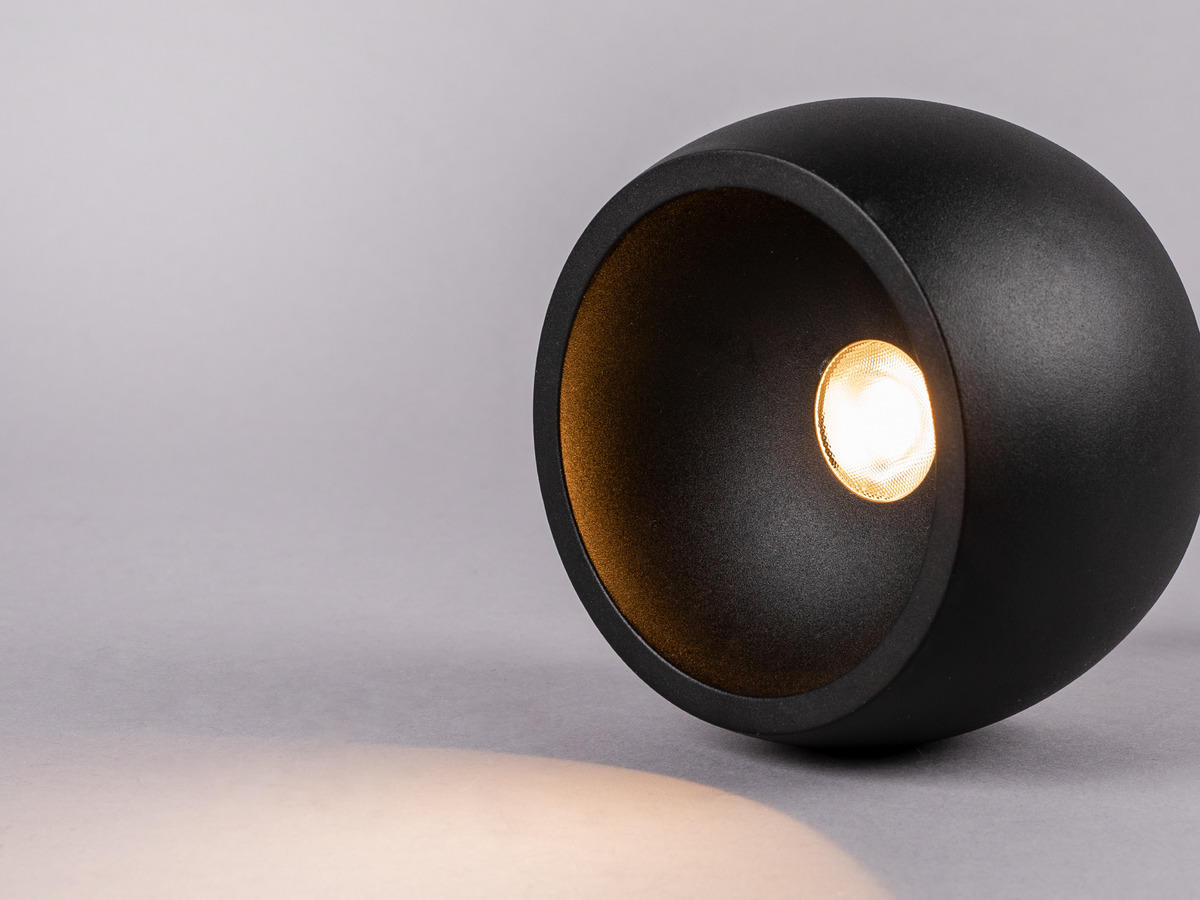

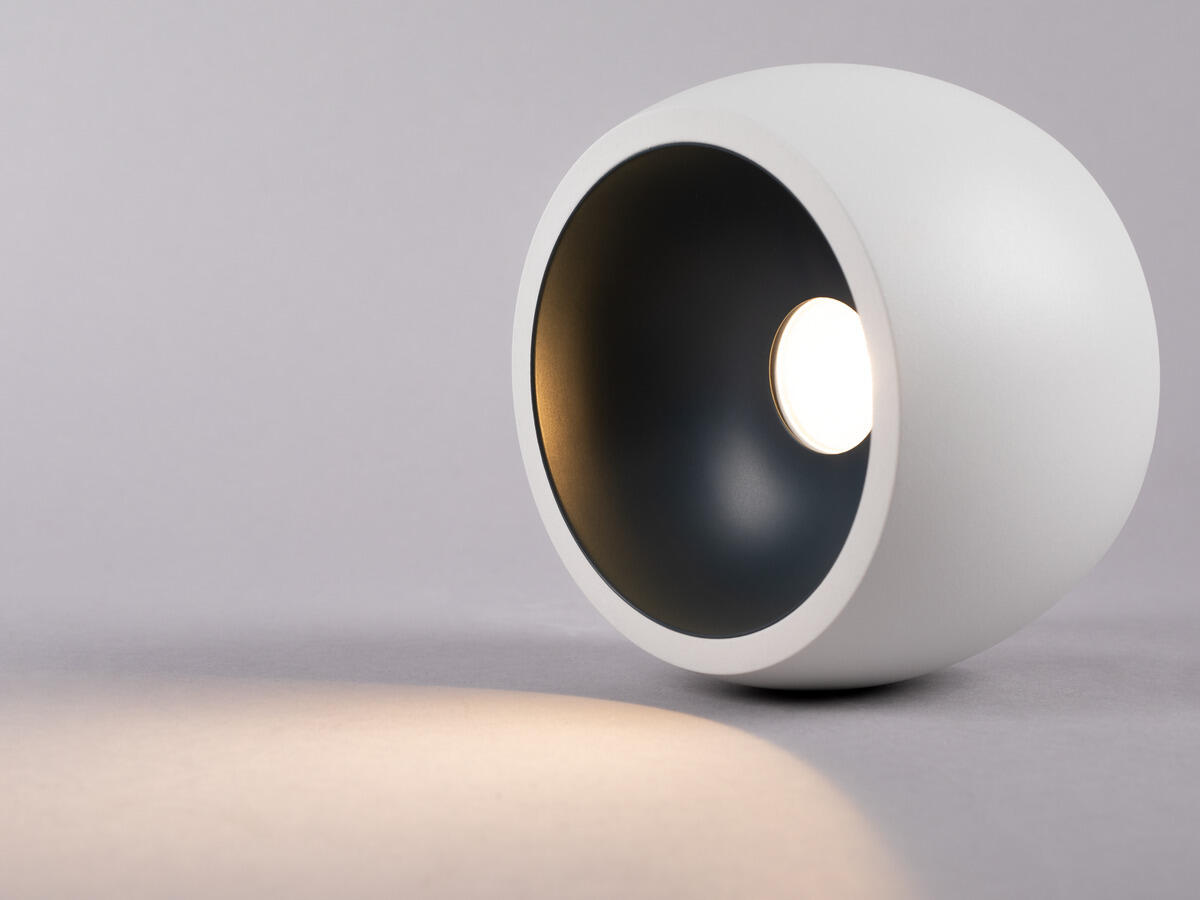

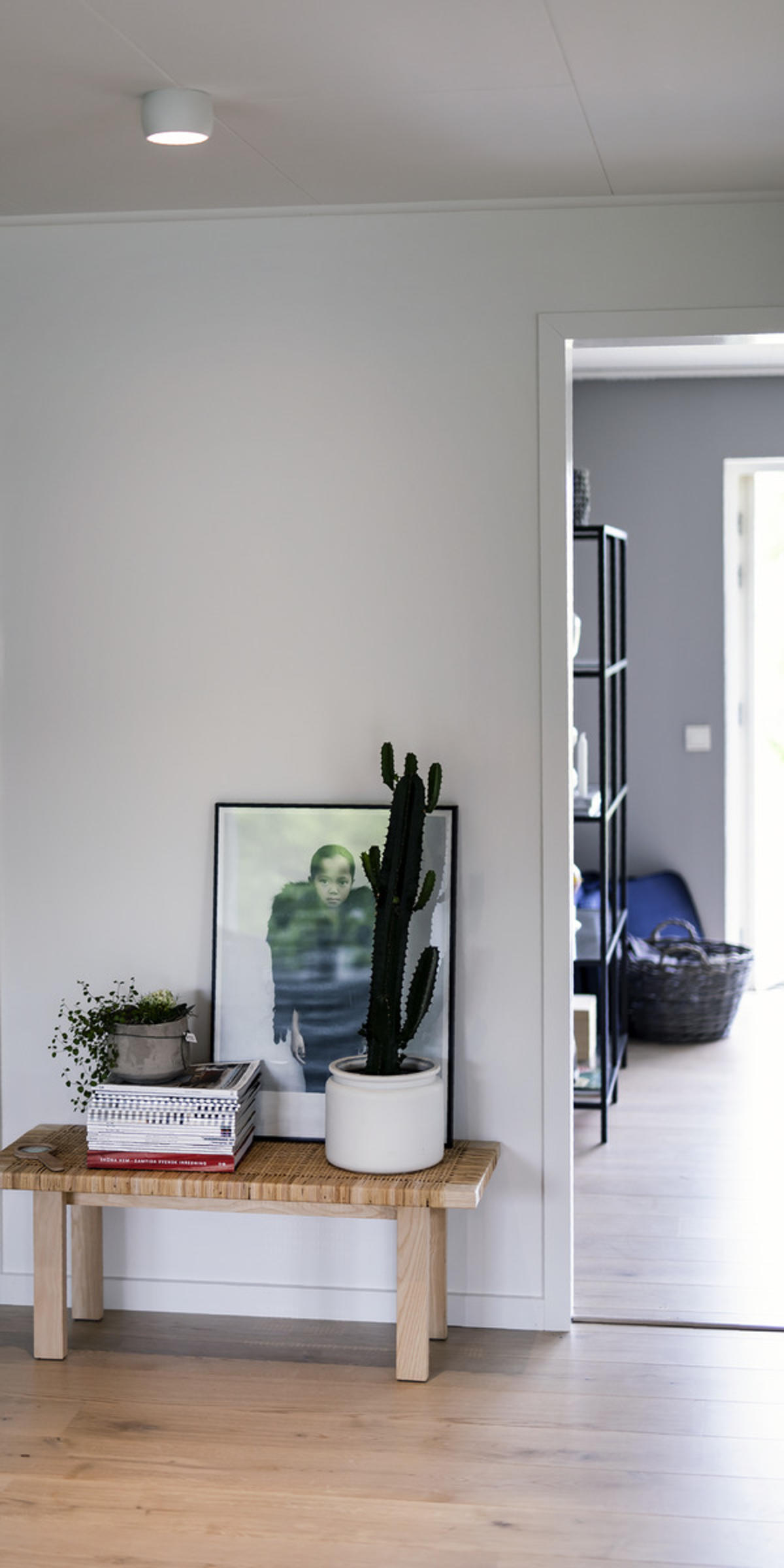

Exclusive surface-mounted downlight in modern design with cupped reflector. Deeply placed light source gives a glare-free light. The appearance of the luminaire can be reinforced with reflectors in various colours to match choices of materials and interior. Globe G2 is the natural choice for homes as well as hotels and restaurants. For surface mounting directly in ceiling or directly across coupling, ceiling or appliance box. Including integrated mains dimmable driver. Dimmable with the most commonly available dimmers on the market.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971136226	Globe G2 Surface Black 3000K	Black	3000	660
7392971136172	Globe G2 Surface White Tune	White	2700	440
7392971136189	Globe G2 Surface White 2700K	White	2700	640
7392971136196	Globe G2 Surface White 3000K	White	3000	680
7392971136202	Globe G2 Surface Black Tune	Black	2700	400
7392971136219	Globe G2 Surface Black 2700K	Black	2700	620

Description: GTIN 7392971136226

Item Name Globe G2 Surface Black 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 660

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1390

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 80 000h Ta 25°C

Nominel Life Time (h) 80000

Life Time Driver 50 000h/3%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 6,5

Power Luminaire (W) 8

System Power (W) 8

Efficiency Luminaire (lm/W) 83

Efficiency System (lm/W) 83

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,75-1,5

Through Wiring Yes

Strain Relief Yes

Constant Current (mA) 180

Operating Temperature -20…+40

Max. Tc (°C) 85

Memory Function Power Failure No

Protection Against Short Circuit, Overheating 110°C, Overload

Fuse B10 (pcs) 60

Fuse B16 (pcs) 90

Fuse C10 (pcs) 73

Fuse C16 (pcs) 110
Color and material: Material Aluminium

Color Black

Environmental Assessment SundaHus
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE, SELV

Filament Test IEC 695-2-1(°C) 650

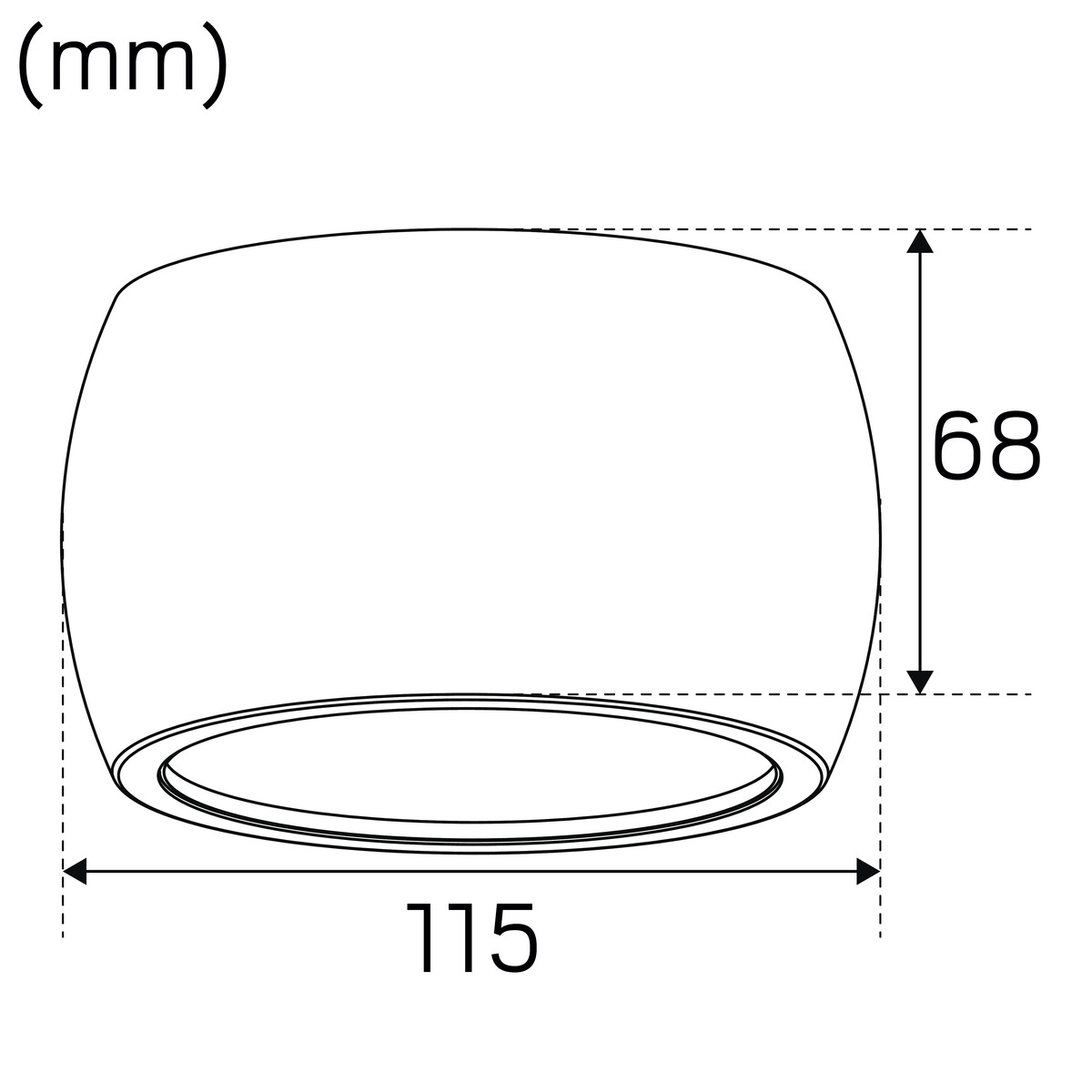

Height (mm) 68

Diameter (mm) 115

Weight (kg) 0,76
