LEDstrip 230V IP65
- LEDstrip IP65 without driver for direct connection to 230V
- Two lumen outputs: Mid, High

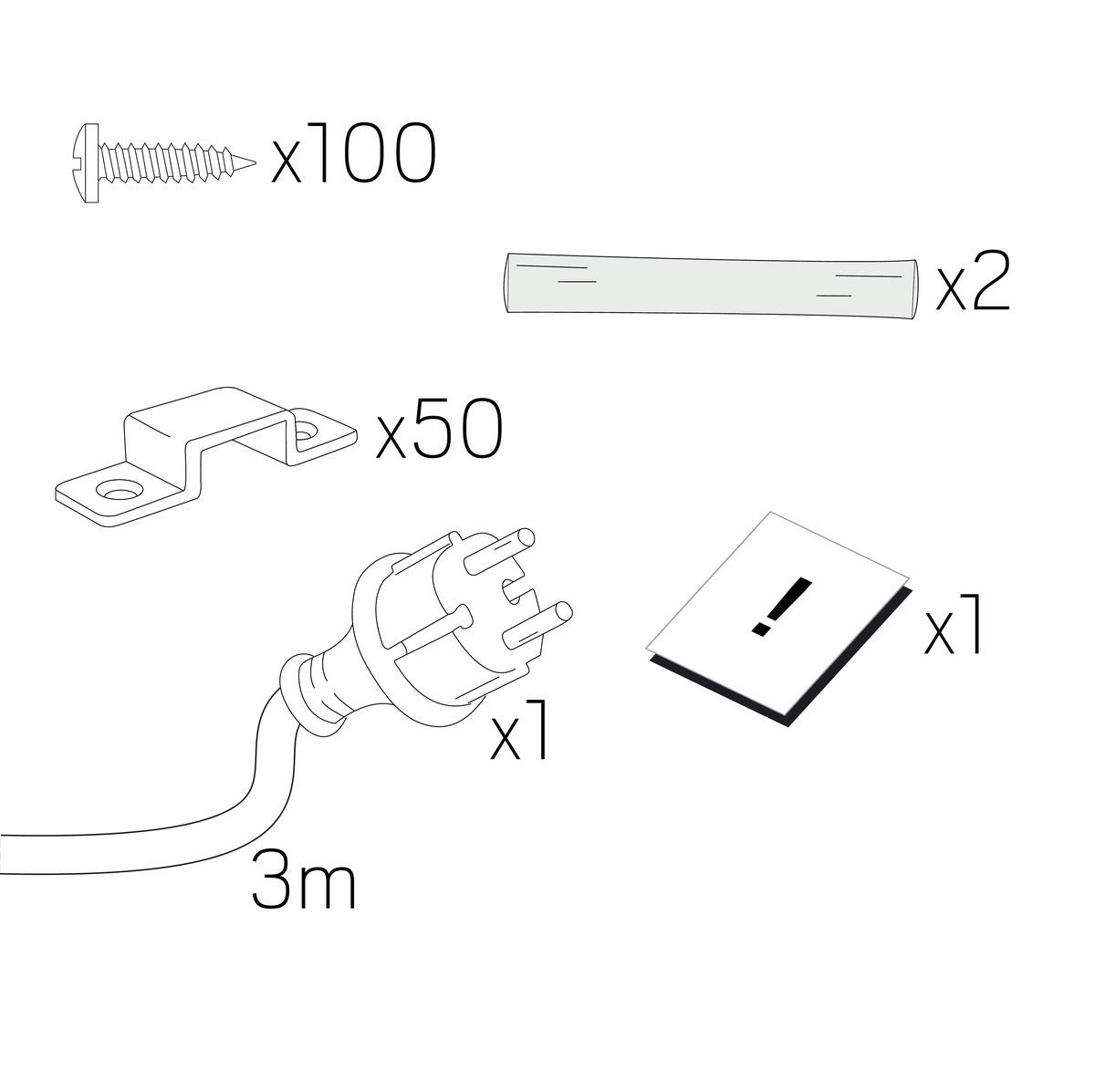

- 10m delivered with adhesive tape, a 3-meter connection cable with plug, clips, connection caps, and end caps
- For the best experience we recommend using an aluminium profile with opal cover if the fitting is visible. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables.
- Max length: 30m. Note, 10 meters for installation on e.g. decks/wooden structures. LED strips should be installed on fixed struc- tures such as buildings, facades, permanent outdoor fixtures, fixed signs, and ceiling/wall niches.
LEDstrip IP65 for direct connection to 230V, cutting increments 10cm. No drivers and limited secondary leads. Perfect for outdoor use comes in three lumen outputs, Low, Mid, High and several color temperatures, not dimmable. We recommend using an aluminium profile with opal cover if the fitting is visible. Comes as standard in roles of 10m with self-adhesive tape, 3m connecting cable with plug, clips and shrink hose for the end cover. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Available made to measure in optional lengths, accessories are ordered separately.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971137667 | LEDstrip 230V IP65 MidLum 2700K 10m | 2700 | 7000 |
|
7392971137674 | LEDstrip 230V IP65 MidLum 2700K lpm | 2700 | 700 |
|
7392971137681 | LEDstrip 230V IP65 MidLum 3000K 10m | 3000 | 7000 |
|
7392971137698 | LEDstrip 230V IP65 MidLum 3000K lpm | 3000 | 700 |
|
7392971137704 | LEDstrip 230V IP65 MidLum 4000K 10m | 4000 | 7000 |
|
7392971137711 | LEDstrip 230V IP65 MidLum 4000K lpm | 4000 | 700 |
|
7392971137728 | LEDstrip 230V IP65 HighLum 2700K 10m | 2700 | 15000 |
|
7392971137735 | LEDstrip 230V IP65 HighLum 2700K lpm | 2700 | 1500 |
|
7392971137742 | LEDstrip 230V IP65 HighLum 3000K 10m | 3000 | 15000 |
|
7392971137759 | LEDstrip 230V IP65 HighLum 3000K lpm | 3000 | 1500 |
|
7392971137766 | LEDstrip 230V IP65 HighLum 4000K 10m | 4000 | 15000 |
|
7392971137773 | LEDstrip 230V IP65 HighLum 4000K lpm | 4000 | 1500 |
LEDstrip 230V IP65 MidLum 2700K 10m
-
GTIN 7392971137667Item Name LEDstrip 230V IP65 MidLum 2700K 10mWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 7000Light Source LEDLight Source Included YesReplaceability Non-replaceaable LEDLED Colour Warm WhiteColour Temperature (K) 2700Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 6Luminous Intensity (cd) 195Beam Angle (°) 120Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1200LED Pitch (mm) 8Life Time L70 90 000h Ta 25°CNominel Life Time (h) 90000
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50, 60Power Luminaire (W) 70System Power (W) 70Efficiency Luminaire (lm/W) 100Efficiency System (lm/W) 100Energy Efficiency Class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable NoConnection (type) Cord SetLength Connection (cm) 300Connection (mm2) 2x1,0Operating TemperatureMax. Tc (°C) 80
- Color and material
-
Material Copper, SiliconeColor White
- Measurement and installation
-

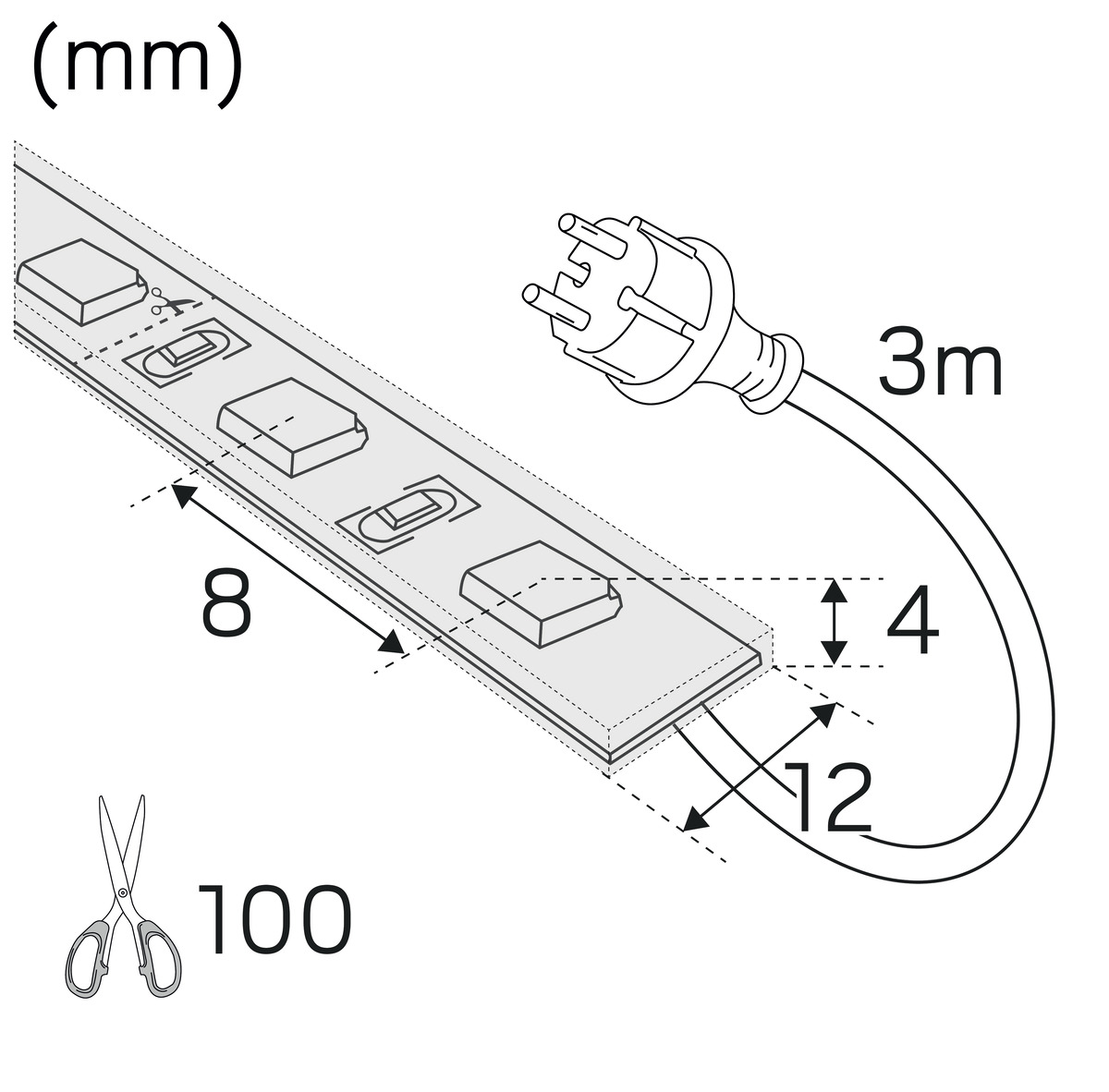

Operating EnvironmentIP Degree of Protection 65Protection Class IIInstallation Surface mountedMounting Installation Clips, Self Adhesive TapeApproval Marks CE, VDEFilament Test IEC 695-2-1(°C) 650Length (mm) 10000Width (mm) 12Height (mm) 4Weight (kg) 0,6
- LEDstrips
-
Min. Bend Radius (mm) 50Min. Length (m) 0,1Max. Length (m) 30Cutting Increments (mm) 100
