LEDstrip 24V IP20 LEDstrip 24V IP20 Lowlum 2700K 5m

Versatile LED strip with three lumen outputs: Low, Mid, High
Use our LEDstrip generator for tips about aluminium profile in installations
Supplied with 2m connection cable at each end, self-adhesive tape and quick connection (5m)
Maximum length: Low 10m, Mid 10m, High 5m
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

LEDstrip 24V IP20 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971149448	LEDstrip 24V IP20 Lowlum 2700K 5m	2700	2450
7392971149455	LEDstrip 24V IP20 Lowlum 2700K lpm	2700	490
7392971149462	LEDstrip 24V IP20 Lowlum 3000K 5m	3000	2550
7392971149479	LEDstrip 24V IP20 Lowlum 3000K lpm	3000	510
7392971149486	LEDstrip 24V IP20 Lowlum 4000K 5m	4000	2700
7392971149493	LEDstrip 24V IP20 Lowlum 4000K lpm	4000	540
7392971149509	LEDstrip 24V IP20 Midlum 2700K 5m	2700	5200
7392971149516	LEDstrip 24V IP20 Midlum 2700K lpm	2700	1115
7392971149523	LEDstrip 24V IP20 Midlum 3000K 5m	3000	5600
7392971149530	LEDstrip 24V IP20 Midlum 3000K lpm	3000	1125
7392971149547	LEDstrip 24V IP20 Midlum 4000K 5m	4000	6200
7392971149554	LEDstrip 24V IP20 Midlum 4000K lpm	4000	1240
7392971149561	LEDstrip 24V IP20 Highlum 2700K 5m	2700	8175
7392971149578	LEDstrip 24V IP20 Highlum 2700K lpm	2700	1635
7392971149585	LEDstrip 24V IP20 Highlum 3000K 5m	3000	9025
7392971149592	LEDstrip 24V IP20 Highlum 3000K lpm	3000	1805
7392971149608	LEDstrip 24V IP20 Highlum 4000K 5m	4000	9325
7392971149615	LEDstrip 24V IP20 Highlum 4000K lpm	4000	1865

Description: GTIN 7392971149448

Item Name LEDstrip 24V IP20 Lowlum 2700K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 2450

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 155

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 350

LED Pitch (mm) 14

Life Time L70 75 000h Ta 25°C

Nominel Life Time (h) 75000

Lumen maintenance 50 000h L82

Lumen maintenance 75 000h L79

LLMF @ 50 000h 0,82
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 3

Power Luminaire (W) 22

System Power (W) 24,2

Efficiency Luminaire (lm/W) 111

Efficiency System (lm/W) 101

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 2x0,5

Operating Temperature -20…+45

Max. Tc (°C) 70
Color and material: Material Copper

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Requires cooling No

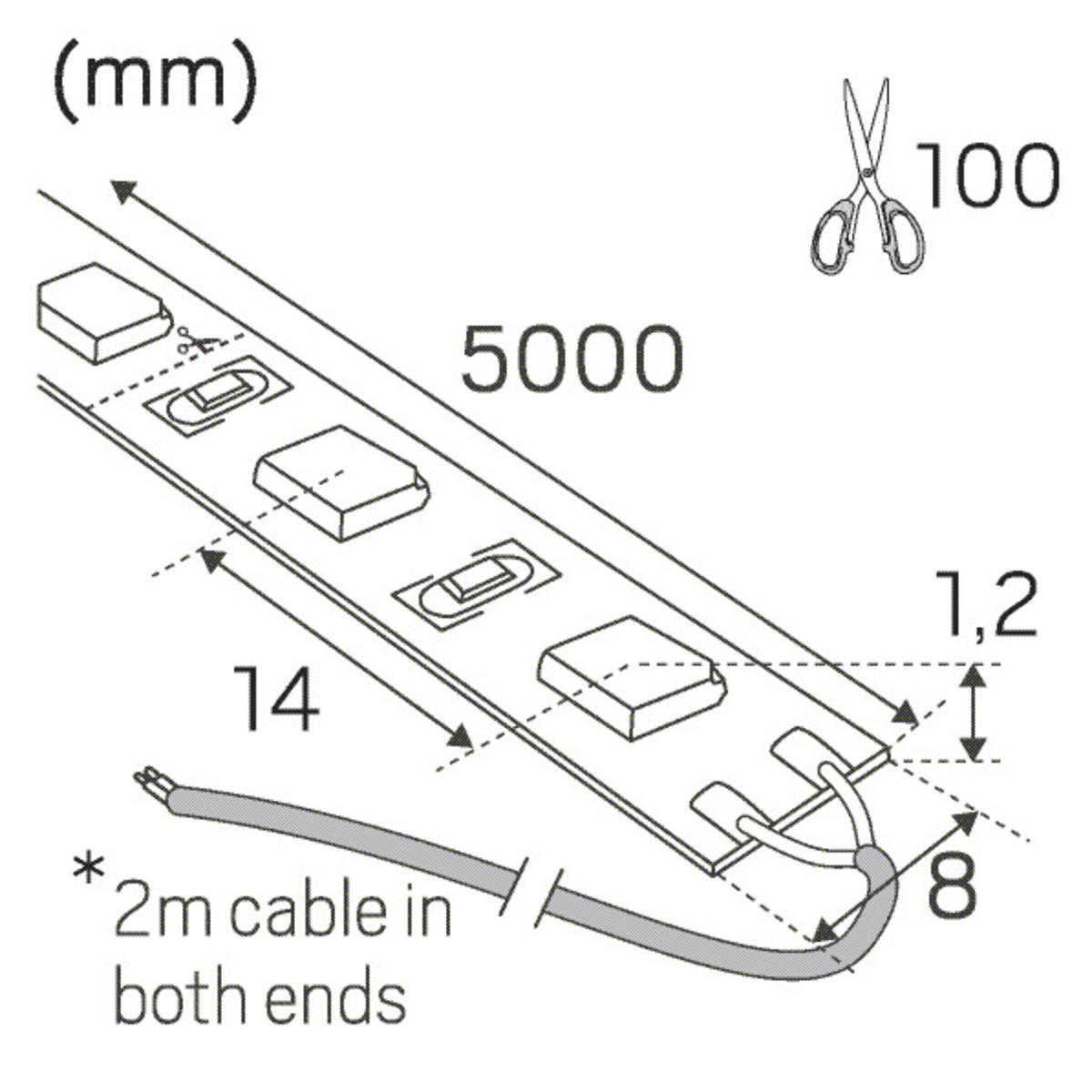

Length (mm) 5000

Width (mm) 8

Height (mm) 2

Weight (kg) 0,192
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,1

Max. Length (m) 10

Cutting Increments (mm) 100

LEDstrip 24V Line IP20

LEDstrip with technology that conceals the LED Chip and electronics under an homogenous phosphorous/silicone layer. Short spacing between the LEDs creates an even illuminated line without profile or cover. COB technology with high lumen output and very good efficiency. Cutting increments of 31,25 mm and seamless joints make it simple to adapt lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing. Maximum length 5m.

LEDstrip 24V RX HDI IP20

LEDstrip with short spacing between LEDs giving high lumen output with very good light quality and colour rendering, Ra>90. Perfect for a homogenous light with opal cover- also with lower profiles. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths with 5cm cut-off intervals. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V RX HD IP20

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V IP67

LEDstrip 24V IP67 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place, indoors or out. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 12V R IP20

Flexible LEDstrips with very good colour rendering, Ra>90, and lumen output adjusted to attaincreate a beautiful fill and raking light. Lighting, for example, to iIlluminate interior design elements, artwork or furnishings with the correct lustre and the best possible colour appearance. Suits our range of aluminium profiles perfectly. Comes with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. LEDstrip 12V has a somewhat lower lumen output than LEDstrip 24V. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V IP20

LEDstrip 24V IP20 Lowlum 2700K 5m
