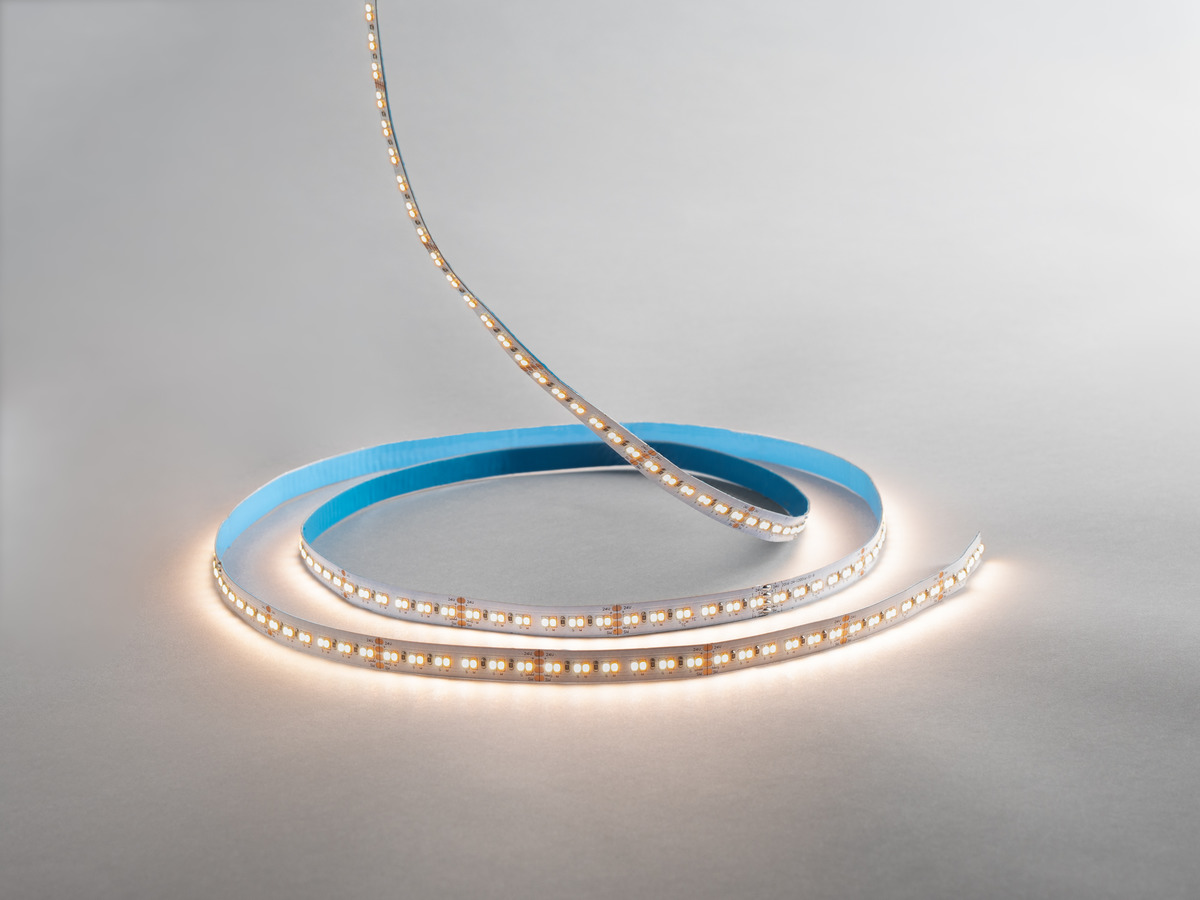

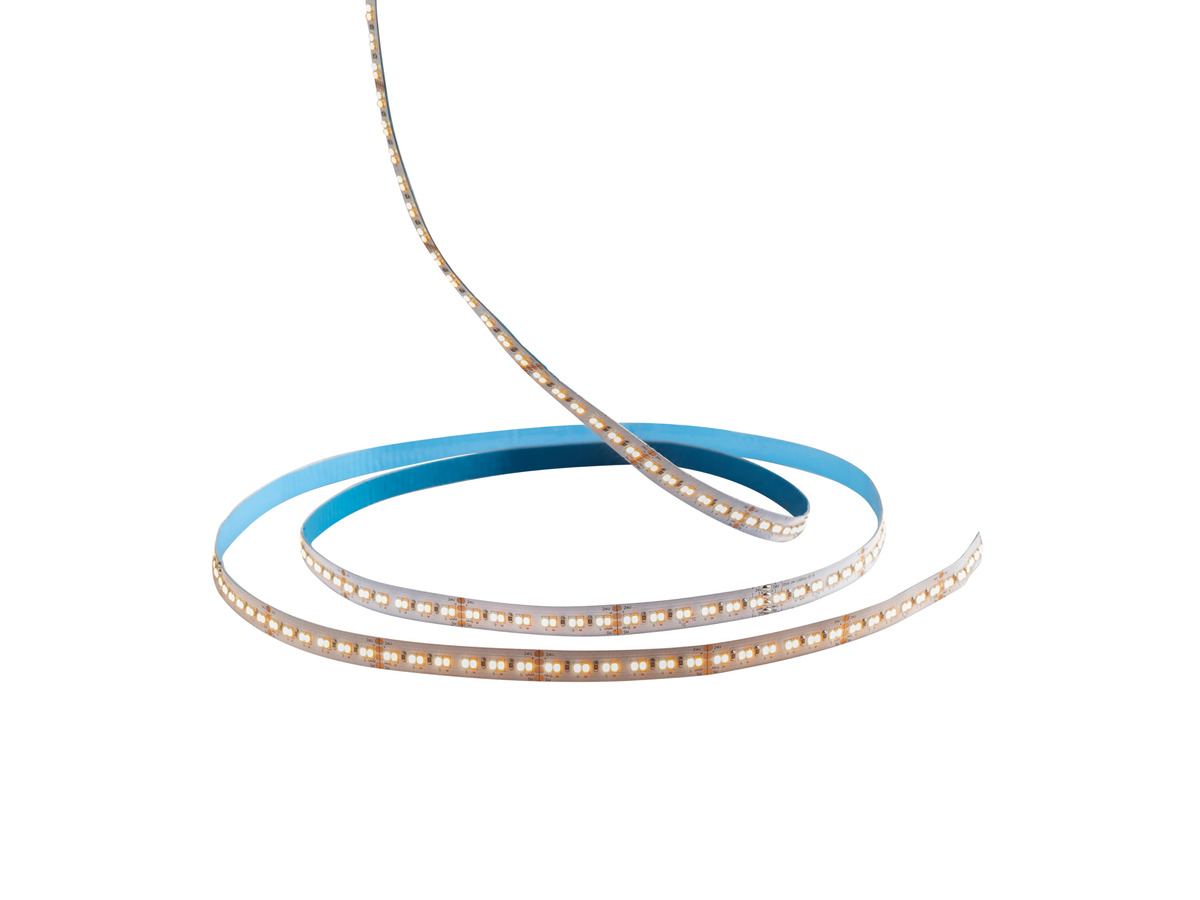

LEDstrip 24V IP20 TW/RGB/RGBW LEDstrip 24V IP20 TW 5m

Versatile LED strip in different clear colours
Use our LEDstrip generator for tips about aluminium profile in installations
Supplied with 2m connection cable at each end, self-adhesive tape and quick connection (5m)
Maximum length: TW 8m, RGB 10m, RGBW 6m
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

Let your imagination flow with LEDstrip 24V, which comes in TW, RGB and RGBW versions. LEDstrips can be adapted for any occasion: a party, a cosy night in or work. Create a gentle, relaxing atmosphere with soft pastel colours or light up the room with lively and energetic nuances. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology, control and placing.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971150123	LEDstrip 24V IP20 TW 5m		8500
7392971150130	LEDstrip 24V IP20 TW lpm		1700
7392971150147	LEDstrip 24V IP20 RGB 5m		2100
7392971150154	LEDstrip 24V IP20 RGB lpm		420
7392971150161	LEDstrip 24V IP20 RGBW 5m	3000	4050
7392971150178	LEDstrip 24V IP20 RGBW lpm	3000	810

Description: GTIN 7392971150123

Item Name LEDstrip 24V IP20 TW 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 8500

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour TW

Range Colour Temperature (K) 2400-6000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 2625

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 600

LED Pitch (mm) 4

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 3

Power Luminaire (W) 95

System Power (W) 104,5

Efficiency Luminaire (lm/W) 89

Efficiency System (lm/W) 81

Energy Efficiency Class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 3x0,5

Operating Temperature -20…+45

Max. Tc (°C) 70
Color and material: Material Copper

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Requires cooling No

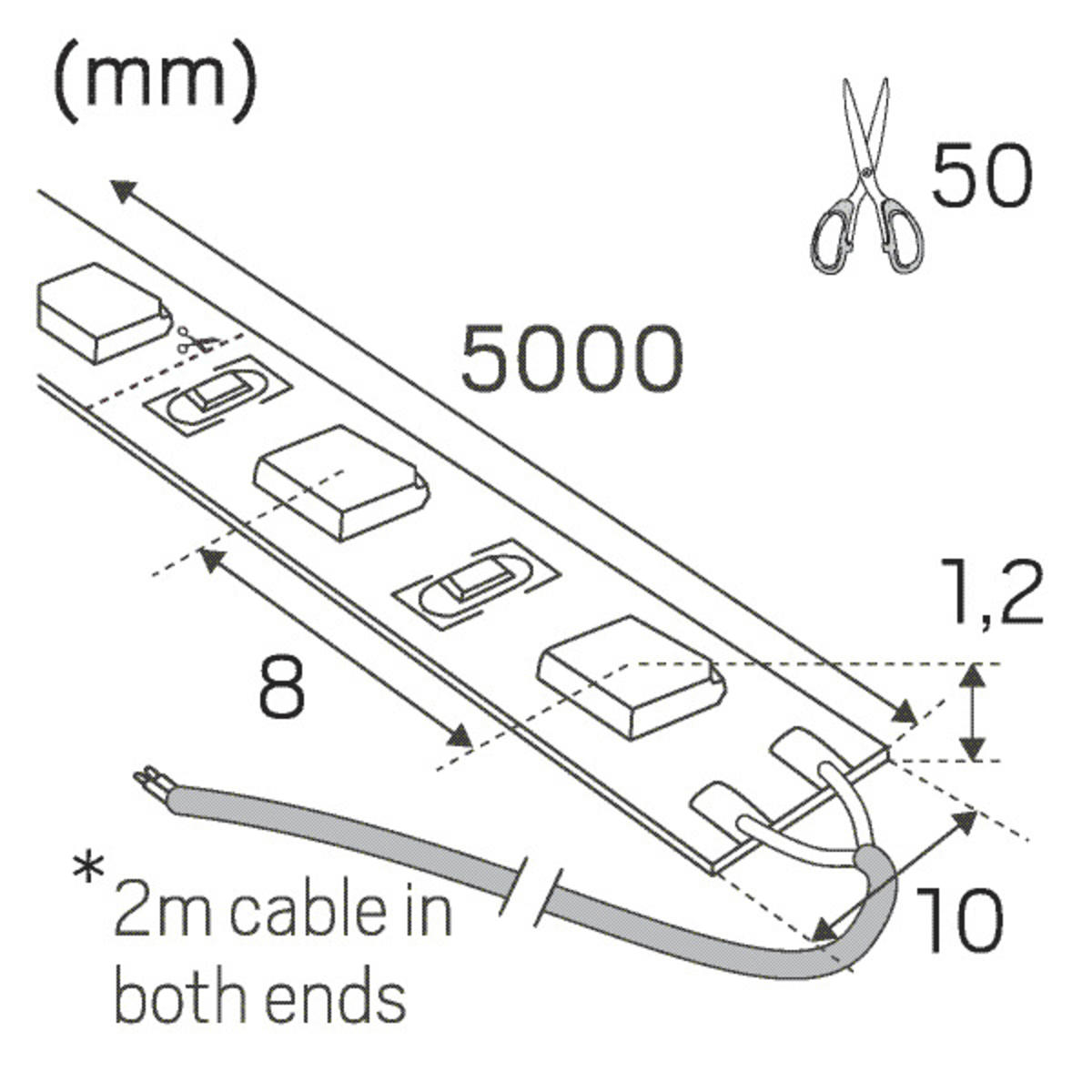

Length (mm) 5000

Width (mm) 10

Height (mm) 2

Weight (kg) 0,1
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,05

Max. Length (m) 8

Cutting Increments (mm) 50

LEDstrip 24V RX Tune IP20

LEDstrip with Tune function for a strengthened feeling of warm light with a very good colour rendering, Ra>90. Gives a warmer LED colour when dimmed; from work lighting during the day to cosy lighting in the evening. LEDstrip RX Tune is perfect for indoor use in both home and public environments. We recommend using an aluminium profile with opal cover if the fitting is visible. Comes with self-adhesive tape and quick connections. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and location.

LEDstrip 24V Neon Top IP67

Top bending LEDstrip, IP67-rated, available in longer lengths with accessories that you can easily fit yourself. Flexible, high quality silicon casing that gives strong, durable protection. Homogenous spot-free lighting without accessories. Comes in 5m rolls with 3m connection cable at one end, 15 clips, screws, one end cap and one end cap for cable for quick and easy installation. Also available made to measure in optional lengths up to 17m (RGB 13m). Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Connects to 24VDC, drivers ordered separately.

LEDstrip 24V IP67 TW/RGB/RGBW

Let your imagination flow with LEDstrip 24V, which comes in TW, RGB and RGBW versions, for use indoors or out. LEDstrips can be adapted for any occasion: a party, a cosy night in or work. Create a gentle, relaxing atmosphere with soft pastel colours or light up an outdoor space with lively and energetic nuances. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology, control and placing.

LEDstrip 24V IP20

LEDstrip 24V IP20 comes with three lumen outputs, Low, Mid and High, to make it easier to find the right light for the right place. Want a subtle and relaxed atmosphere? Choose Low. Need more powerful lighting to bring out specific areas? Choose High. Perfect when you want to adapt the light to create character whatever the environment. Fits perfectly in our range of aluminium profiles. Very good colour rendering, RA > 90. Comes as standard in rolls of five metres with two metre connecting cable at each end, a quick connection and self-adhesive tape for easy installation. Five metre packs contain products to enable you to create three different lengths to suit your needs. LEDstrip 24V is also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V IP20 TW/RGB/RGBW

LEDstrip 24V IP20 TW 5m
