LEDstrip 24V IP67 LEDstrip 24V IP67 Midlum 3000K lpm

Basic version of our 24V LEDstrip, with120 LED/m there is lots of light and good efficiency. The smaller gap between diodes gives a homogeneous light with opal cover also in lower profiles. Comes in 5m lengths with self-adhesive tape, 2m connecting cable at each end, 2 x 10stpcs 10cm shrink hoses, 10pcs clips and 20pcs screws. Also available made to measure in optional lengths with 50mm cut-off intervals and maximum length 10m. Drivers are ordered separately according to required dimmer technology and placing.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971141961	LEDstrip 24V IP67 Midlum 3000K lpm	3000	990
7392971141930	LEDstrip 24V IP67 Midlum 2700K 5m	2700	4850
7392971141947	LEDstrip 24V IP67 Midlum 2700K lpm	2700	970
7392971141954	LEDstrip 24V IP67 Midlum 3000K 5m	3000	4950
7392971141978	LEDstrip 24V IP67 Midlum 4000K 5m	4000	5200
7392971141985	LEDstrip 24V IP67 Midlum 4000K lpm	4000	1040

Description: GTIN 7392971141961

Item Name LEDstrip 24V IP67 Midlum 3000K lpm

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 990

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 315

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

LED Pitch (mm) 8

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L77

Lumen maintenance 75 000h L71

LLMF @ 50 000h 0,77
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 3

Power Luminaire (W) 12

System Power (W) 13,2

Efficiency Luminaire (lm/W) 82

Efficiency System (lm/W) 75

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (mm2) 2x0,5

Operating Temperature -20…+45

Max. Tc (°C) 75
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Clips, Self Adhesive Tape

Approval Marks CE

Requires cooling No

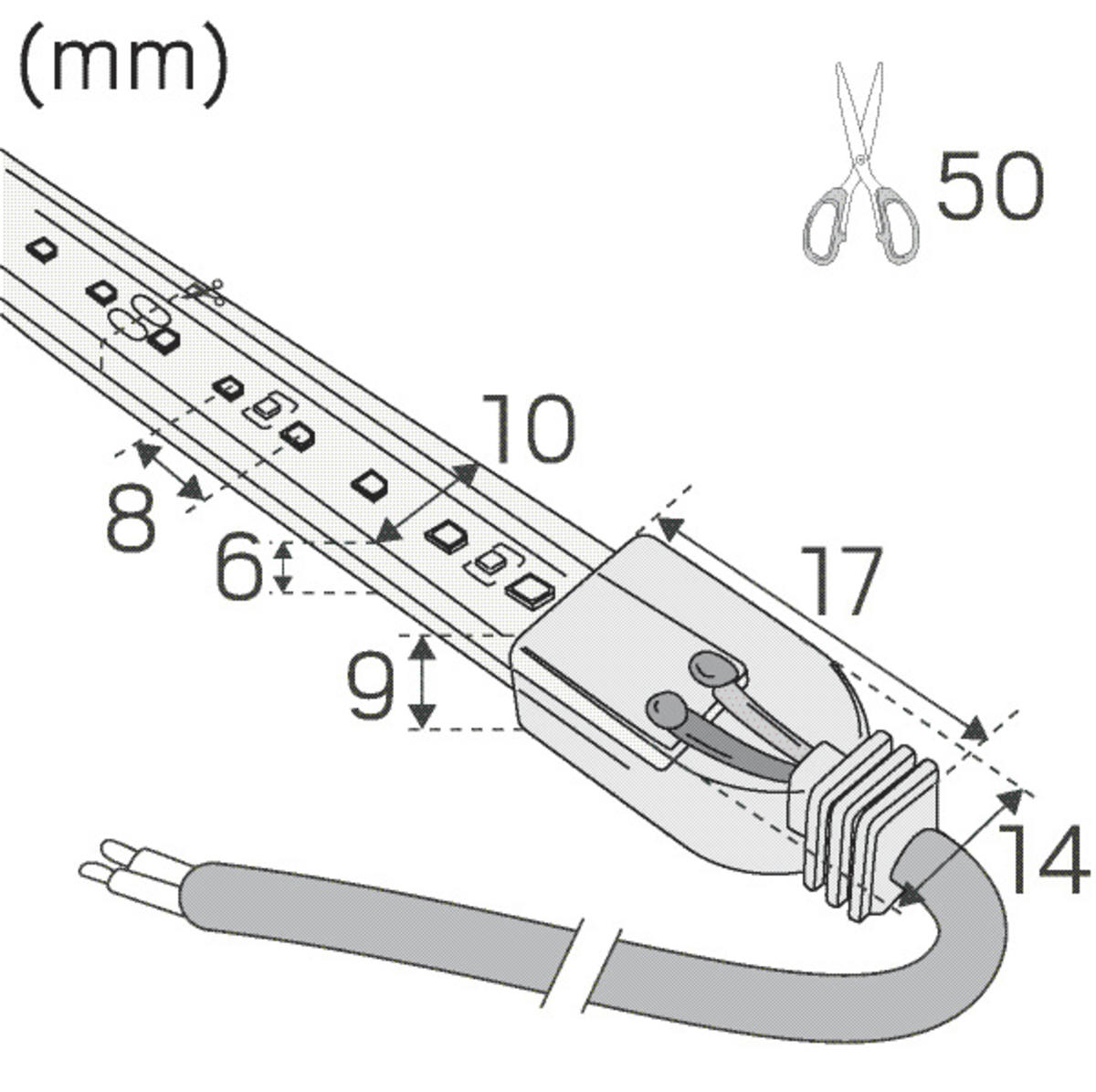

Length (mm) 1000

Width (mm) 10

Height (mm) 6

Weight (kg) 0,08
LEDstrips: Min. Bend Radius (mm) 30

Min. Length (m) 0,05

Max. Length (m) 10

Cutting Increments (mm) 50

LEDstrip 24V Line IP67

LEDstrip with encapsulated opal coloured casing in silicone, which creates an evenly lit line with noout profile or cover. COB technology with small gaps between diodes for very good efficiency. Short cutting increments of 30mm and seamless joints make it simple to create custom lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 2pcs end connections, self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to desired dimmer technology and placing. Maximum length 5m.

LEDstrip 24V RX HD IP67

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90 Comes with 2 m of connecting cable at each end, 2pcs shrink hoses, 10pcs clips, 20pcs screws and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.
