LEDstrip 24V Long IP20

Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

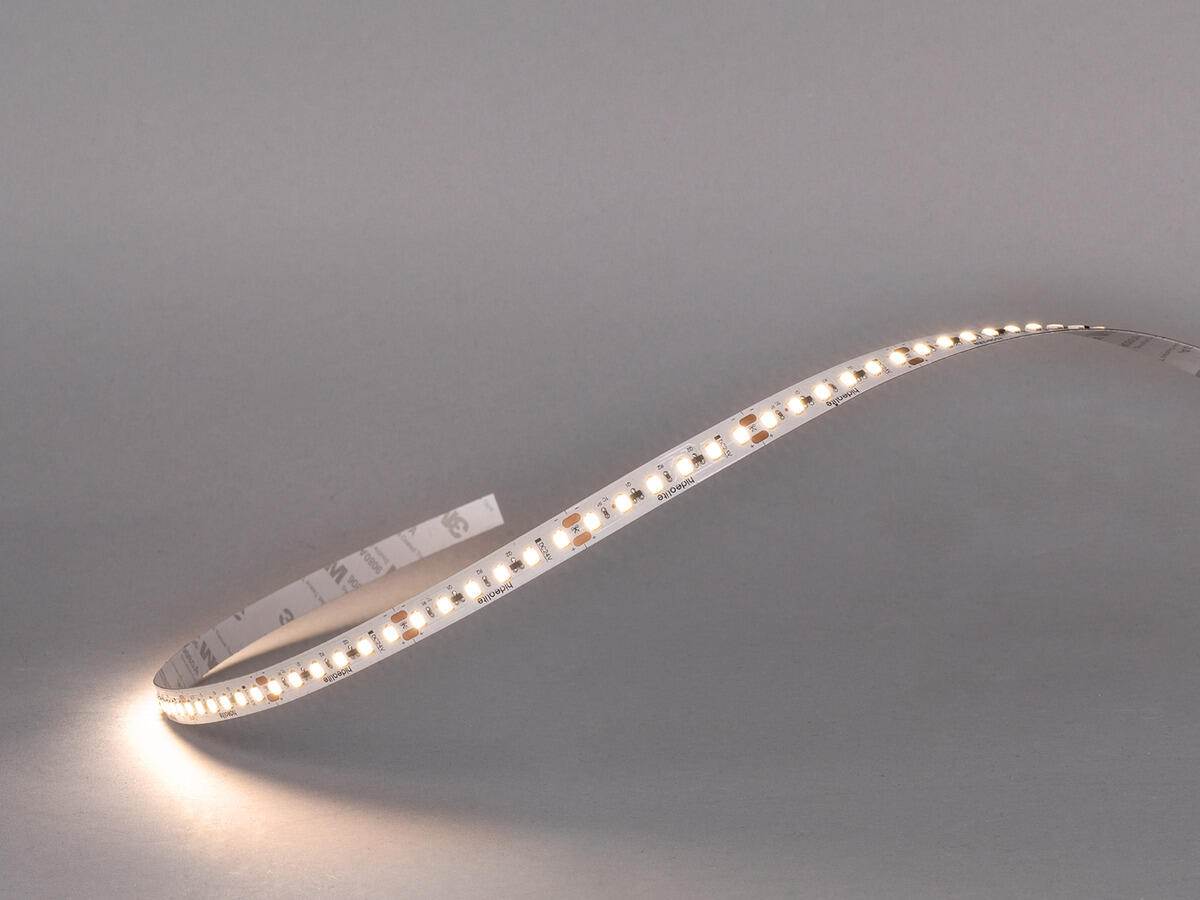

Dimmable LED strip that pulls away in length and creates an even light without interruption in lengths of up to 20m, 40m when feeding from the middle or from two sides, cutting increments of 5cm. Very good colour rendering, Ra> 90. Fits perfectly in our range of aluminium profiles. Opal cover is recommended for visible installation. Ordered in desired length with self-adhesive tape. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Quick joint and quick connection are available as accessories, ordered separately. Driver ordered after desired dimming technology and location.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971137797	LEDstrip 24V Long IP20 MidLum 3000K lpm	3000	700
7392971137780	LEDstrip 24V Long IP20 MidLum 2700K lpm	2700	680
7392971137803	LEDstrip 24V Long IP20 MidLum 4000K lpm	4000	780

Description: GTIN 7392971137797

Item Name LEDstrip 24V Long IP20 MidLum 3000K lpm

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 700

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 220

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 120

LED Pitch (mm) 8

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 2,9

Power Luminaire (W) 8

Efficiency Luminaire (lm/W) 88

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Operating Temperature -25…+45

Max. Tc (°C) 50
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Length (mm) 1000

Width (mm) 10

Height (mm) 2

Weight (kg) 0,05
LEDstrips: Min. Bend Radius (mm) 50

Min. Length (m) 0,05

Max. Length (m) 20

Cutting Increments (mm) 50

LEDstrip 230V IP65

LEDstrip IP65 for direct connection to 230V, cutting increments 10cm. No drivers and limited secondary leads. Perfect for outdoor use comes in three lumen outputs, Low, Mid, High and several color temperatures, not dimmable. We recommend using an aluminium profile with opal cover if the fitting is visible. Comes as standard in roles of 10m with self-adhesive tape, 3m connecting cable with plug, clips and shrink hose for the end cover. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Available made to measure in optional lengths, accessories are ordered separately.

LEDstrip 24V RX HD IP20

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V Long IP20

LEDstrip 24V Long IP20 MidLum 3000K lpm
