LEDstrip 24V Neon Mini IP67
- Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables.

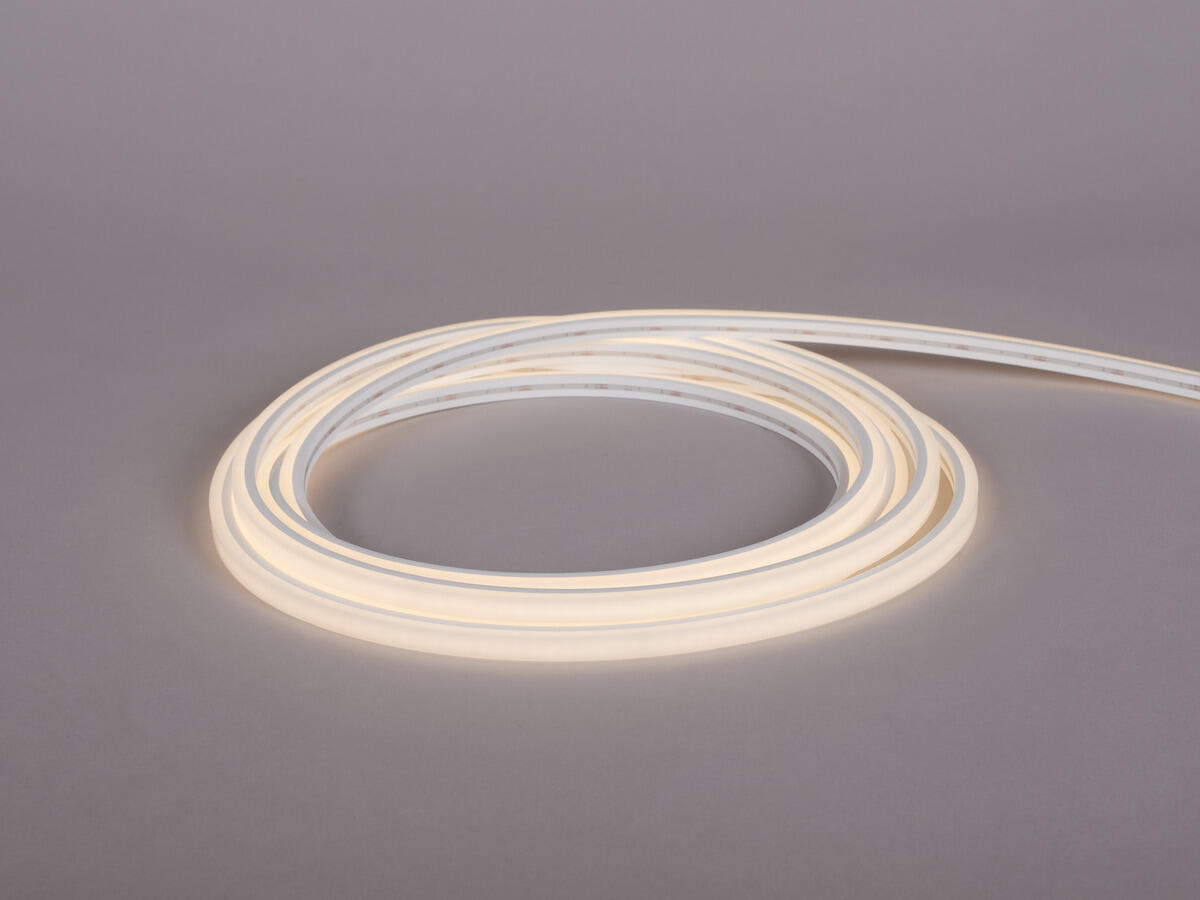

Top bending LEDstrip, IP67-rated, available in longer lengths with smart accessories that you can easily fit yourself. Flexible, high quality silicon casing that gives strong, durable protection. Homogenous spot-free lighting without accessories Comes in 5m rolls with 3m connection cable at one end, 15 clips, screws, one end cap and one end cap for cable for quick and easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Also available made to measure in optional lengths up to 5m. Connects to 24VDC, drivers ordered separately.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971141664 | LEDstrip 24V Neon Mini IP67 4000K lpm | 4000 | 850 |
|
7392971141640 | LEDstrip 24V Neon Mini IP67 3000K 5m | 3000 | 4150 |
|
7392971141657 | LEDstrip 24V Neon Mini IP67 3000K lpm | 3000 | 830 |
LEDstrip 24V Neon Mini IP67 4000K lpm
-
GTIN 7392971141664Item Name LEDstrip 24V Neon Mini IP67 4000K lpmWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 850Light Source LEDLight Source Included YesReplaceability Non-replaceaable LEDLED Colour WhiteColour Temperature (K) 4000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 165Beam Angle (°) 160Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 168LED Pitch (mm) 6Life Time L90 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L98Lumen maintenance 75 000h L97Lumen maintenance 100 000h L95LLMF @ 50 000h 0,98LLMF @ 100 000h 0,95
- Technical data
-
Voltage (type) DCVoltage Interval (V) 24...24Voltage Nominal (V) 24Power Luminaire (W) 10System Power (W) 11Efficiency Luminaire (lm/W) 85Efficiency System (lm/W) 77Energy Efficiency Class (EU) 2019/2015 G
- Operation and Connection
-
Dimmable YesDriver Included NoDriver Model Constant VoltageOperating TemperatureMax. Tc (°C) 85
- Color and material
-
Material Copper, SiliconeColor WhiteEnvironmental Assessment SundaHus
- Measurement and installation
-
Operating EnvironmentIP Degree of Protection 67Protection Class IIIInstallation Surface mountedMounting Installation ClipsApproval Marks CEFilament Test IEC 695-2-1(°C) 650Requires cooling NoLength (mm) 1000Width (mm) 10Height (mm) 10Weight (kg) 0,182
- LEDstrips
-
Min. Bend Radius (mm) 50Min. Length (m) 0,042Max. Length (m) 5Cutting Increments (mm) 35,7
