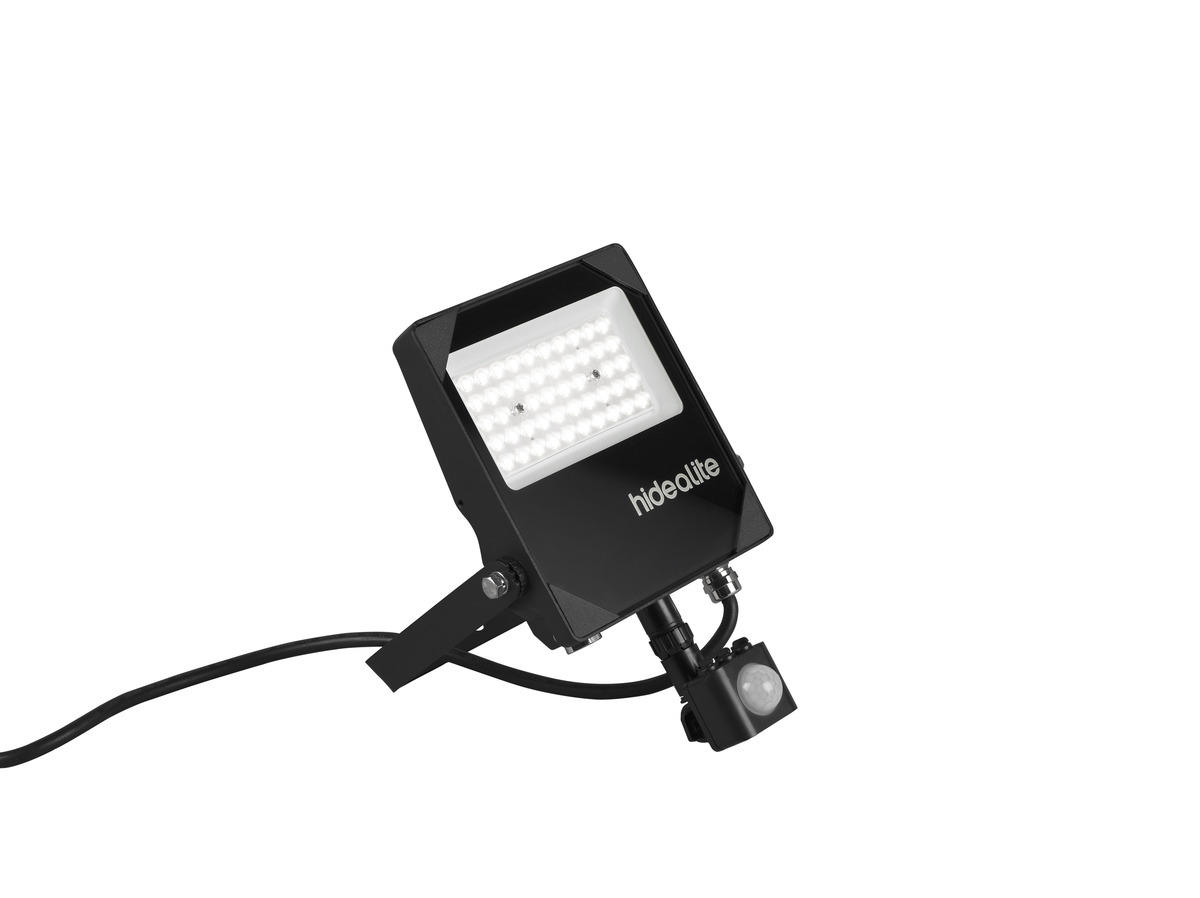

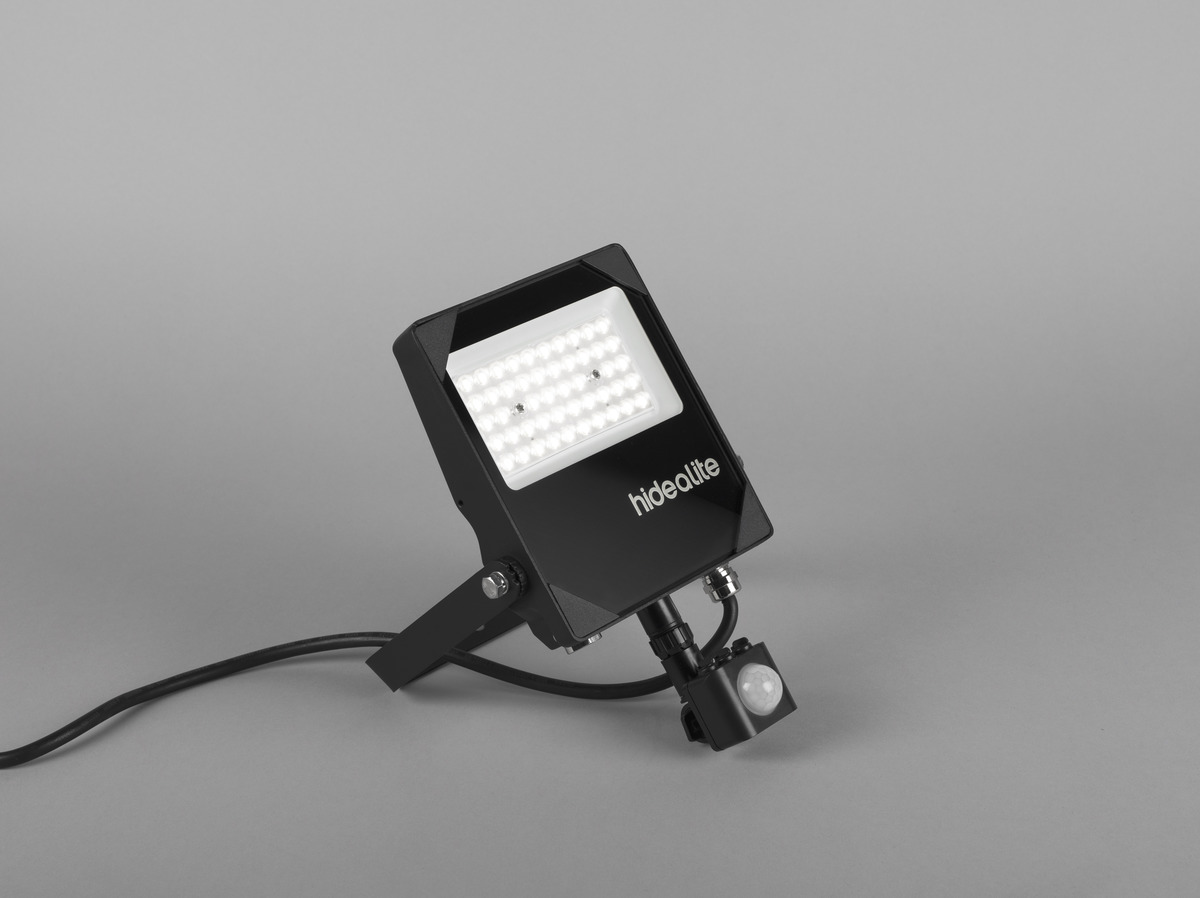

Scout G2 Scout G2 XS 4000K Asym PIR

Robust floodlight in five sizes - perfectly suited for outdoor environments such as warehouse doors or as parking, facade or signage lighting. Scout G2 offers many possibilities, with accessories in various combinations to suit different areas of application. Accessories are supplied with bolts, nuts and screws to permit various combinations. Asymmetric light distribution and high luminous efficacy. Adjustable bracket, fitted with screws. With Scout G2 XS, you can easily change the output with DIP-Switch Power. Comes complete with integrated and replaceable driver and 2m rubber cable for direct 230V connection.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming
7392971146096	Scout G2 XS 4000K Asym PIR	4250	DIP-Switch Power, PIR Sensor
7392971146089	Scout G2 XS 4000K Asym	4250	DIP-Switch Power
7392971146102	Scout G2 S 4000K Asym	7100
7392971146119	Scout G2 S 4000K Asym PIR	7100	PIR Sensor
7392971146126	Scout G2 M 4000K Asym	14000
7392971146133	Scout G2 L 4000K Asym	21050
7392971146140	Scout G2 XL 4000K Asym	28000

Description: GTIN 7392971146096

Item Name Scout G2 XS 4000K Asym PIR

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 4250

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 5

Luminous Intensity (cd) 1360

Beam Angle (°) 150

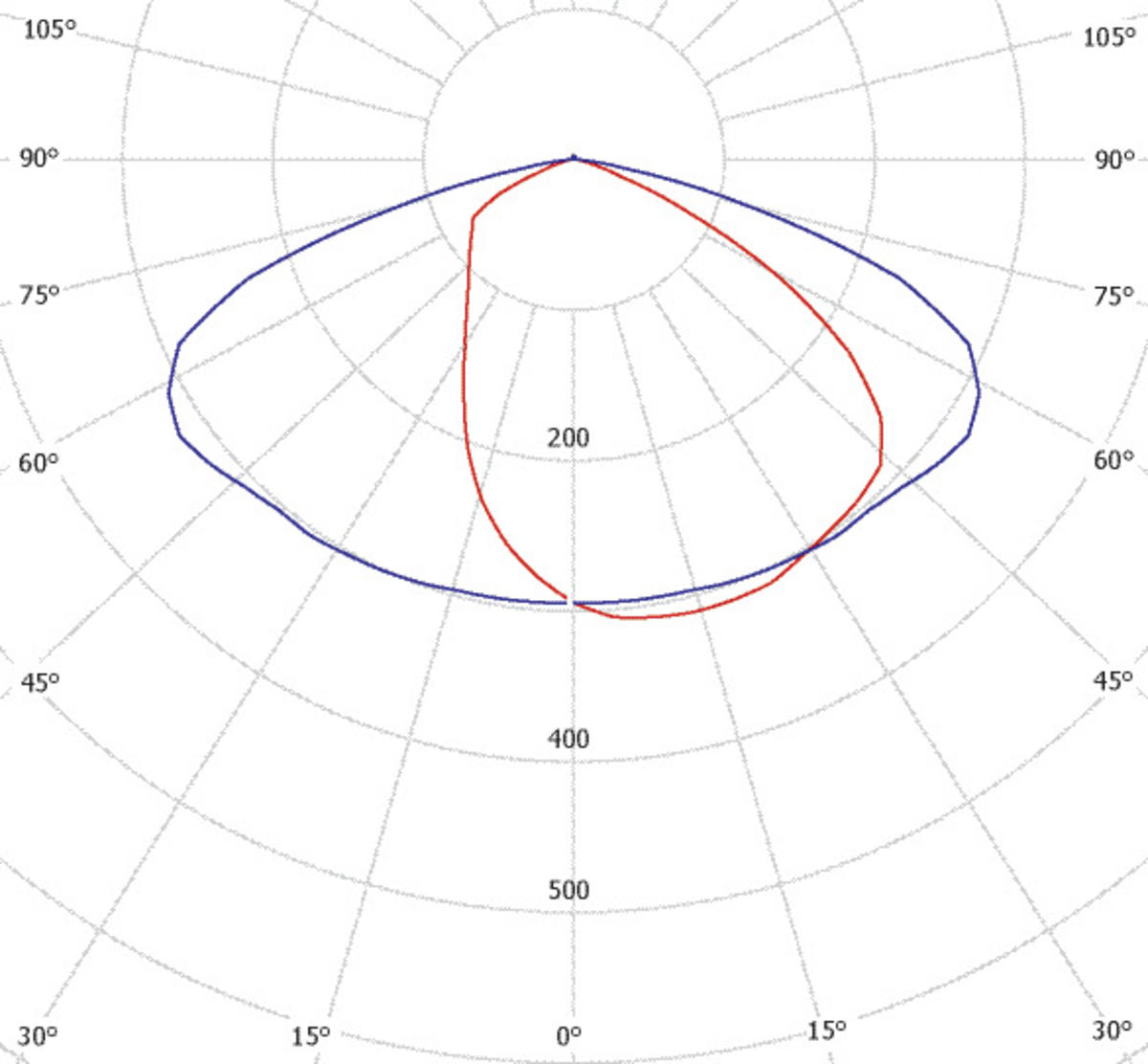

Light sharing Asymmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 48

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L87

Lumen maintenance 75 000h L81

Lumen maintenance 100 000h L75

LLMF @ 50 000h 0,87

LLMF @ 100 000h 0,75

Life Time Driver 50 000h/5%
Technical data: Adjustable Yes

Tiltable (°) 270

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Voltage Forward (Vf) 72

Power LED (W) 27

Power Luminaire (W) 30

System Power (W) 30

Efficiency Luminaire (lm/W) 142

Efficiency System (lm/W) 142

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable No

Type of Dimming DIP-Switch Power, PIR Sensor

Driver Included Yes

Driver Model Constant Voltage

Driver Type Built-in

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 3x1,0

Through Wiring No

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 90

Power loss (W) 3

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,75

THD (%) 25

Constant Current (mA) 870, 430

Operating Temperature -30...+50

Max. Tc (°C) 105

Inrush current (max/time) 30A 343µs

Mains surge protection DM (kV) 4

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 52

Fuse B16 (pcs) 75

Fuse C10 (pcs) 62

Fuse C16 (pcs) 90
Color and material: Material Aluminium

Color Black

Environmental Assessment SundaHus, Byggvarubedömningen

Available in special color No
Measurement and installation: Operating Environment Outdoor

IP Degree of Protection 66

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Fire Safety Marks D-mark

Approval Marks CE

Impact Strength IK08

Filament Test IEC 695-2-1(°C) 850

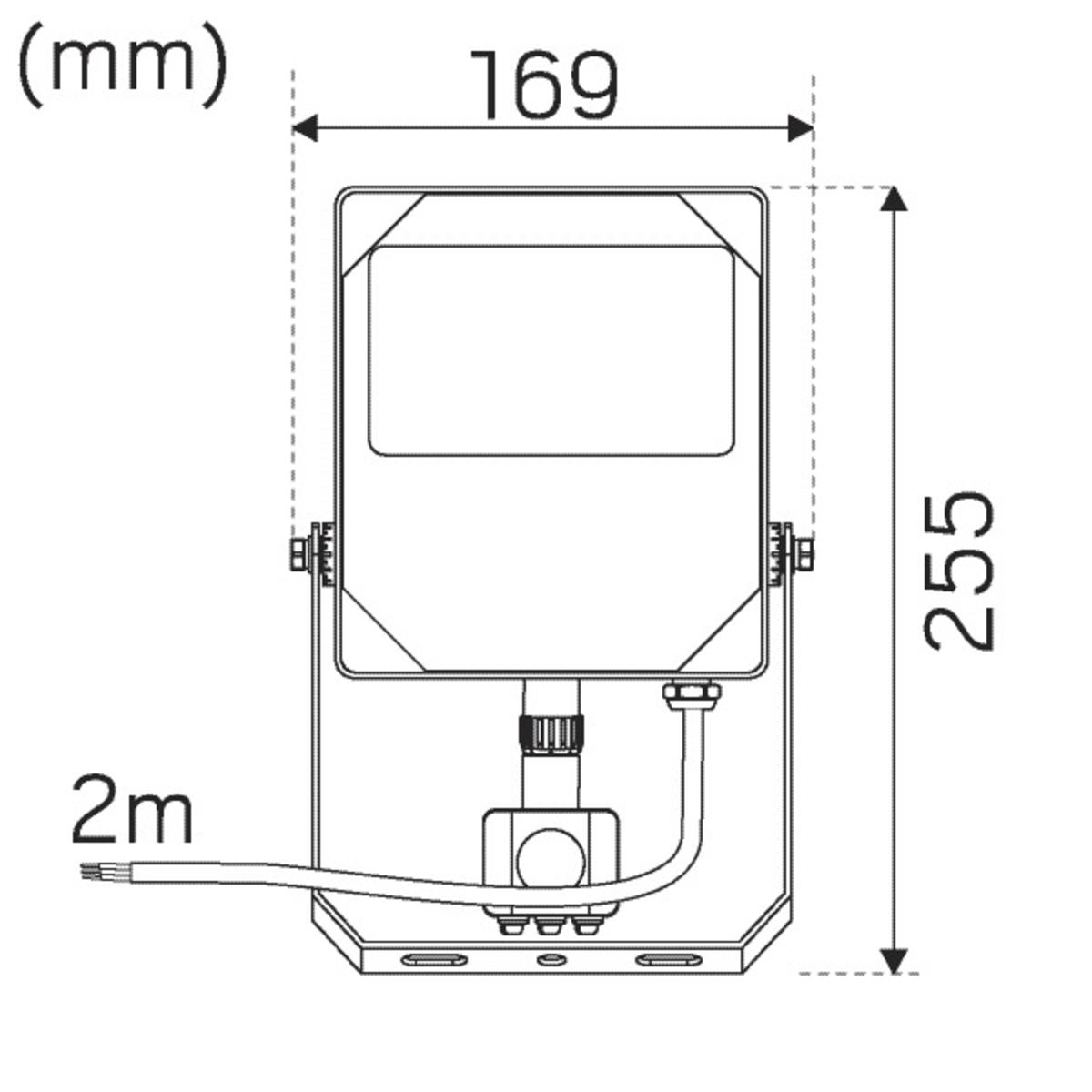

Length (mm) 205

Width (mm) 168

Height (mm) 35

Weight (kg) 1,01

Spare parts

If you need spare parts, contact our customer support

Driver Scout G2 XS On/Off X264
