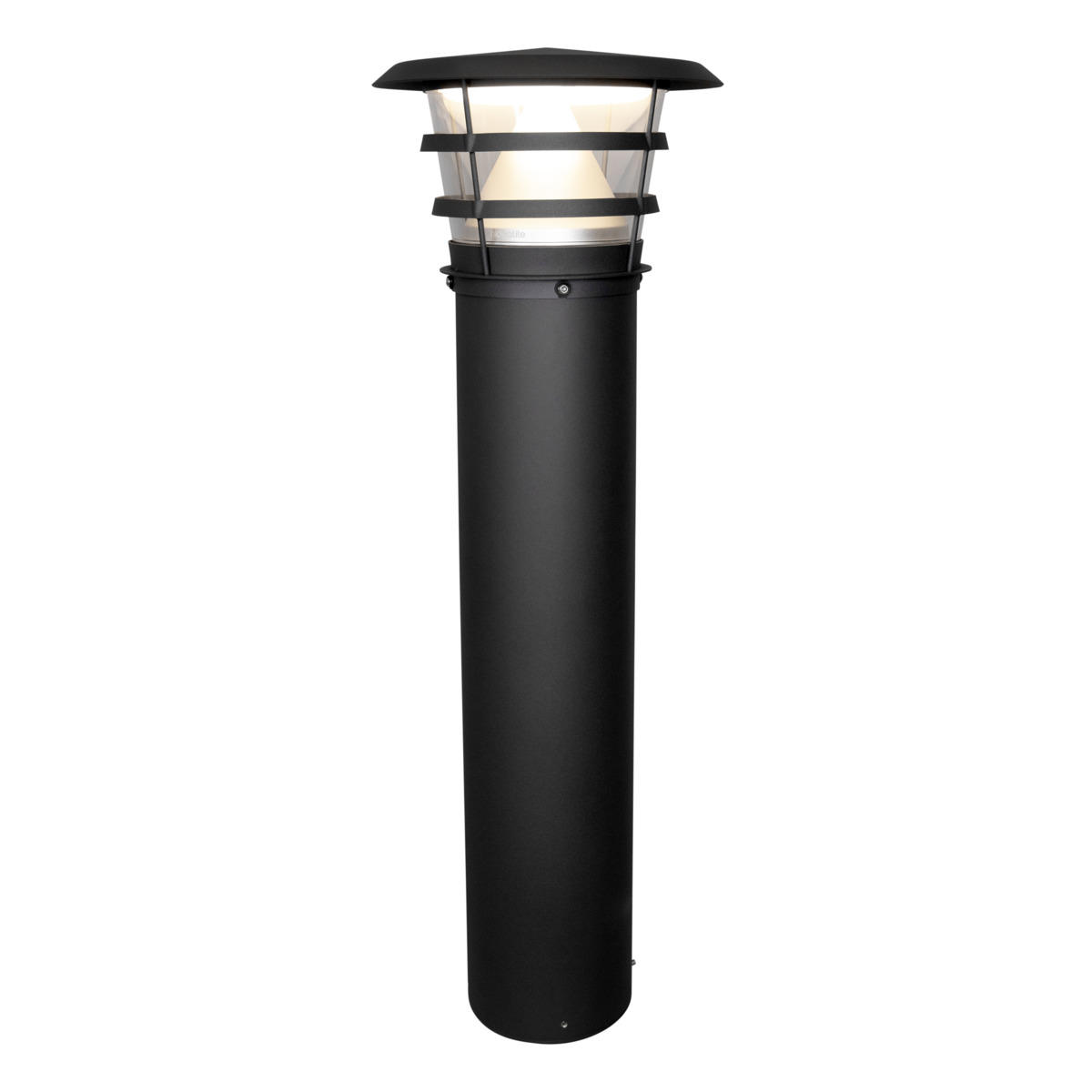

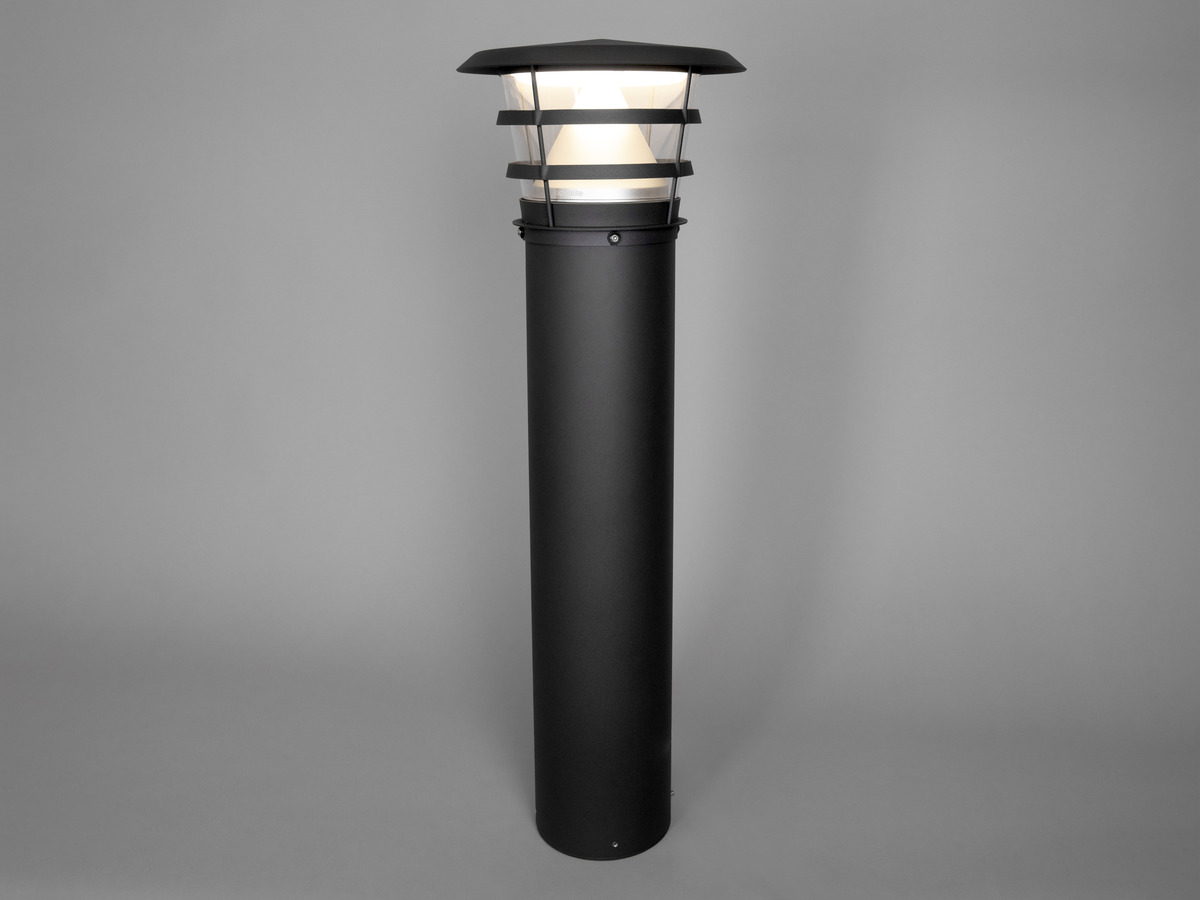

Pave Pillar Pave Pillar Top Deco II Anthracite

Stylish bollard in the Pave family with impressive but simple design for a well lit footpath or entrance. Choose the appearance and increase anti-glare for your luminaire in combination with Top, Deco II and Deco IV. Easily fitted bollard with through wiring, up to 5x16mm2 connection. Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. 4kV surge voltage protection as standard, separate 10kV surge voltage protection available as an accessory. Contact us if you want to paint your Pave in a different colour.

GTIN	Item Name	Color	Luminaire Lumen (lm)	Beam Angle (°)
7392971147130	Pave Pillar Top Deco II Anthracite	Antracit	1010	230
7392971147048	Pave Pillar Grey	Grey	1250	210
7392971147055	Pave Pillar Anthracite	Antracit	1250	210
7392971147062	Pave Pillar Top Grey	Grey	1250	210
7392971147079	Pave Pillar Top Anthracite	Antracit	1250	210
7392971147086	Pave Pillar Deco II Grey	Grey	1010	230
7392971147093	Pave Pillar Deco II Anthracite	Antracit	1010	230
7392971147109	Pave Pillar Deco IV Grey	Grey	670	205
7392971147116	Pave Pillar Deco IV Anthracite	Antracit	670	205
7392971147123	Pave Pillar Top Deco II Grey	Grey	1010	230
7392971147147	Pave Pillar Top Deco IV Grey	Grey	670	205
7392971147154	Pave Pillar Top Deco IV Anthracite	Antracit	670	205

Description: GTIN 7392971147130

Item Name Pave Pillar Top Deco II Anthracite

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1010

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 215

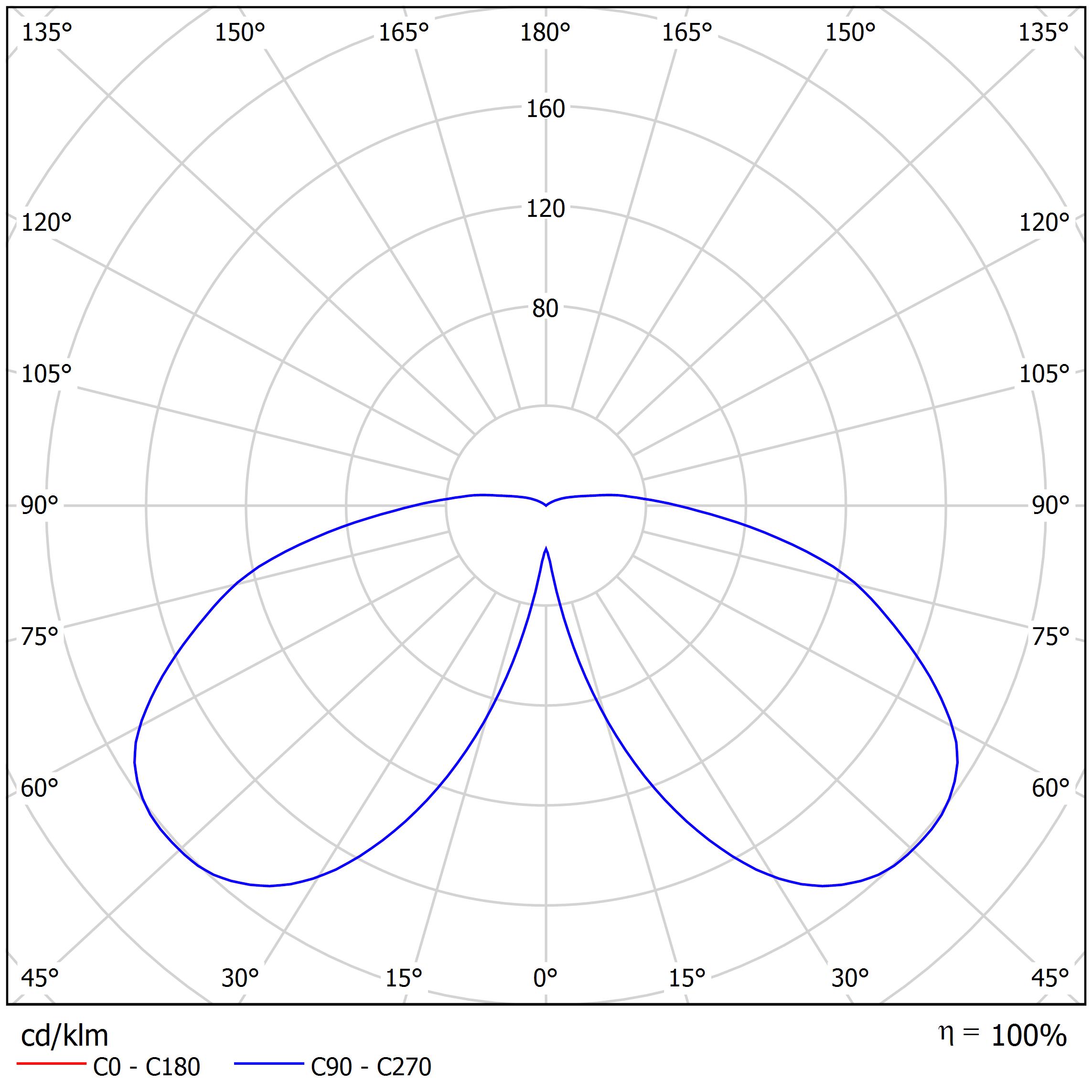

Beam Angle (°) 230

Light sharing Symmetric

Light Outlet Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 48

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L85

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,8

Life Time Driver 100 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 110...305

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Voltage Forward (Vf) 3

Power LED (W) 10,03

Power Luminaire (W) 12,4

System Power (W) 12,4

Efficiency Luminaire (lm/W) 81

Efficiency System (lm/W) 81

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming DIP-Switch Power

Driver Included Yes - replaceable

Driver Model Constant Current

Driver Manufacturer Osram

Connection (type) Cord Set

Connection (mm2) 5x2,5-16,0

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,7

Power loss (W) 2

Leakage current (mA) (at 230 V, 50 Hz, full load) 3,5

THD (%) 20

Standby Power 0,5

Constant Current (mA) 85, 145, 230

Operating Temperature -30...+40

Max. Tc (°C) 90

Protection Against Short Circuit, Overheating 90°C, Overload

Inrush current (max/time) 35A 350µs

Mains surge protection DM (kV) 4

Mains surge protection CM (kV) 6

Fuse B10 (pcs) 6

Fuse B16 (pcs) 10

Fuse C10 (pcs) 11

Fuse C16 (pcs) 18
Color and material: Material Aluminium, Polycarbonate

Color Antracit

Environmental Assessment Byggvarubedömningen

Available in special color Yes
Measurement and installation: Operating Environment Indoor / dry locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE, a Hide-a-lite Choice

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 650

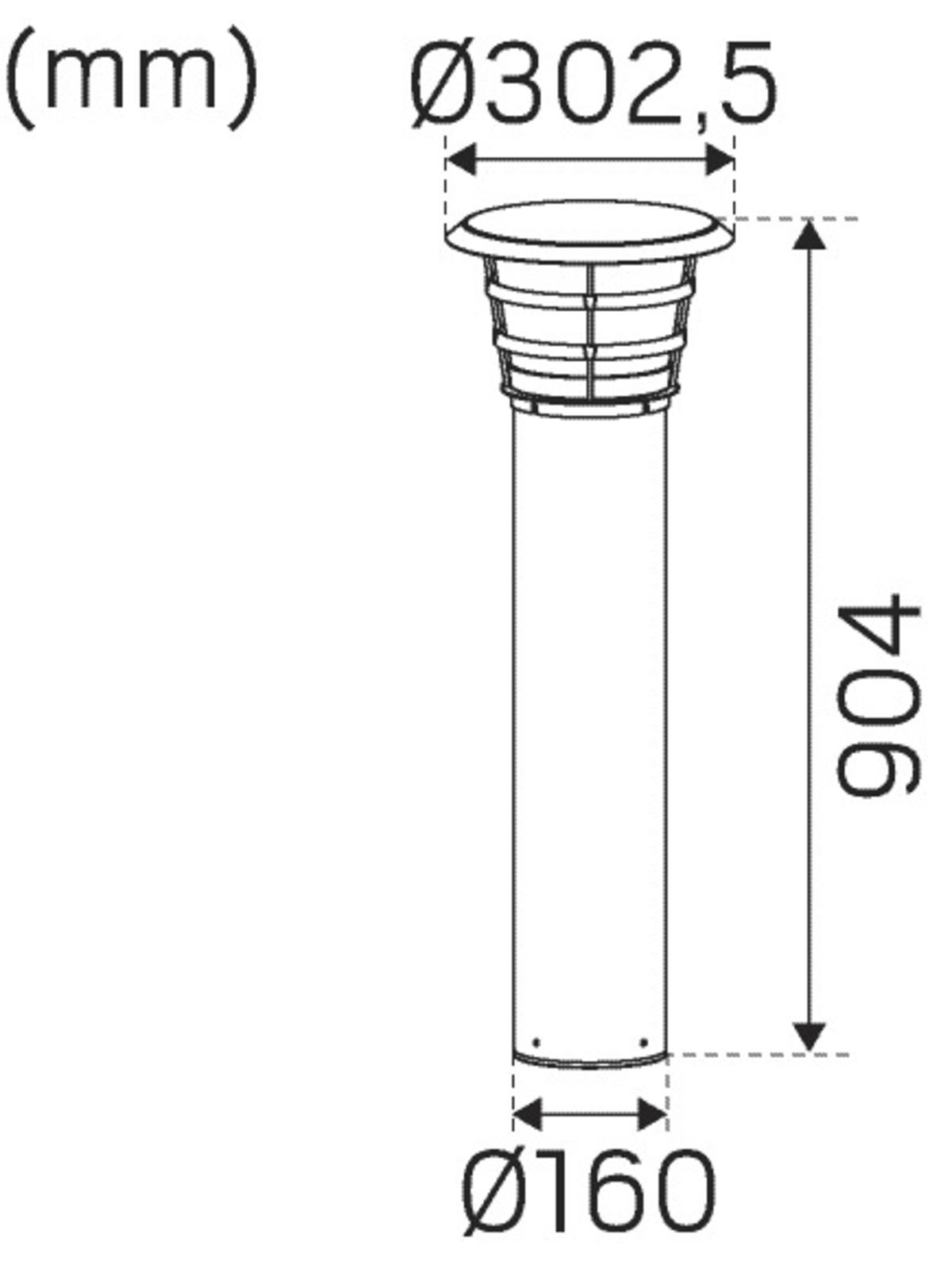

Height (mm) 904

Diameter (mm) 303

Weight (kg) 8,6

Spare parts

If you need spare parts, contact our customer support

LED-Module Pave Pillar X209
Driver Pave Pillar X208
Cover Pave Pillar X217
