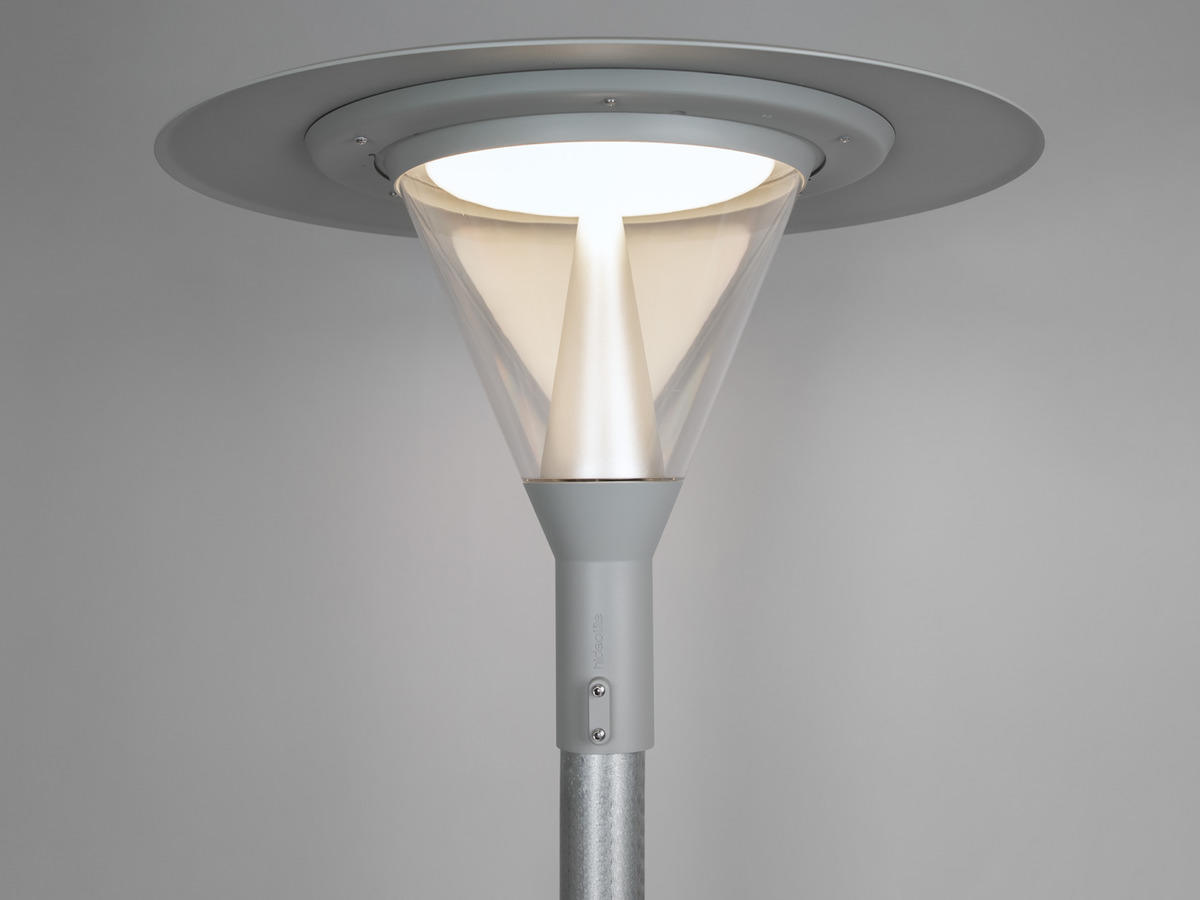

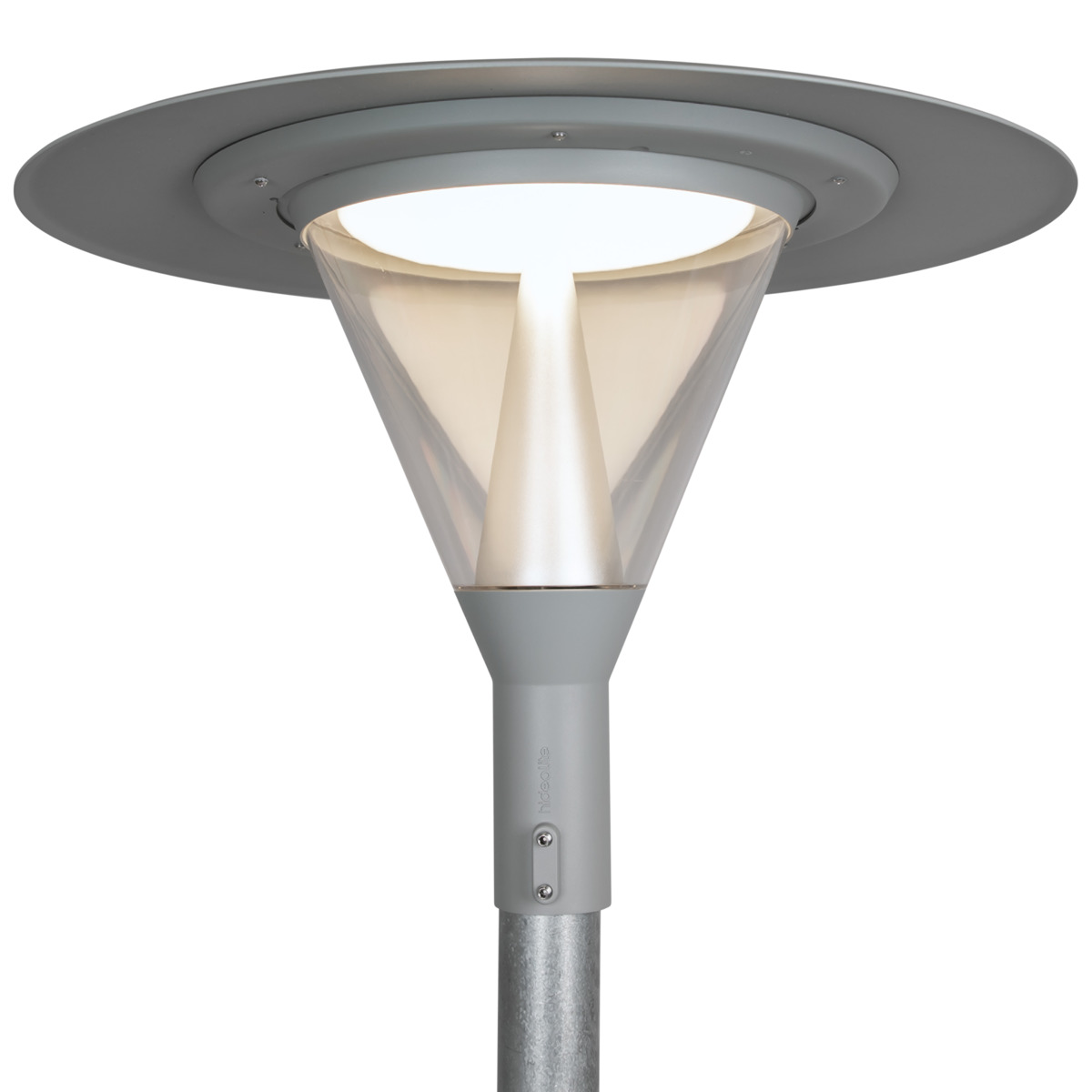

Pave Post

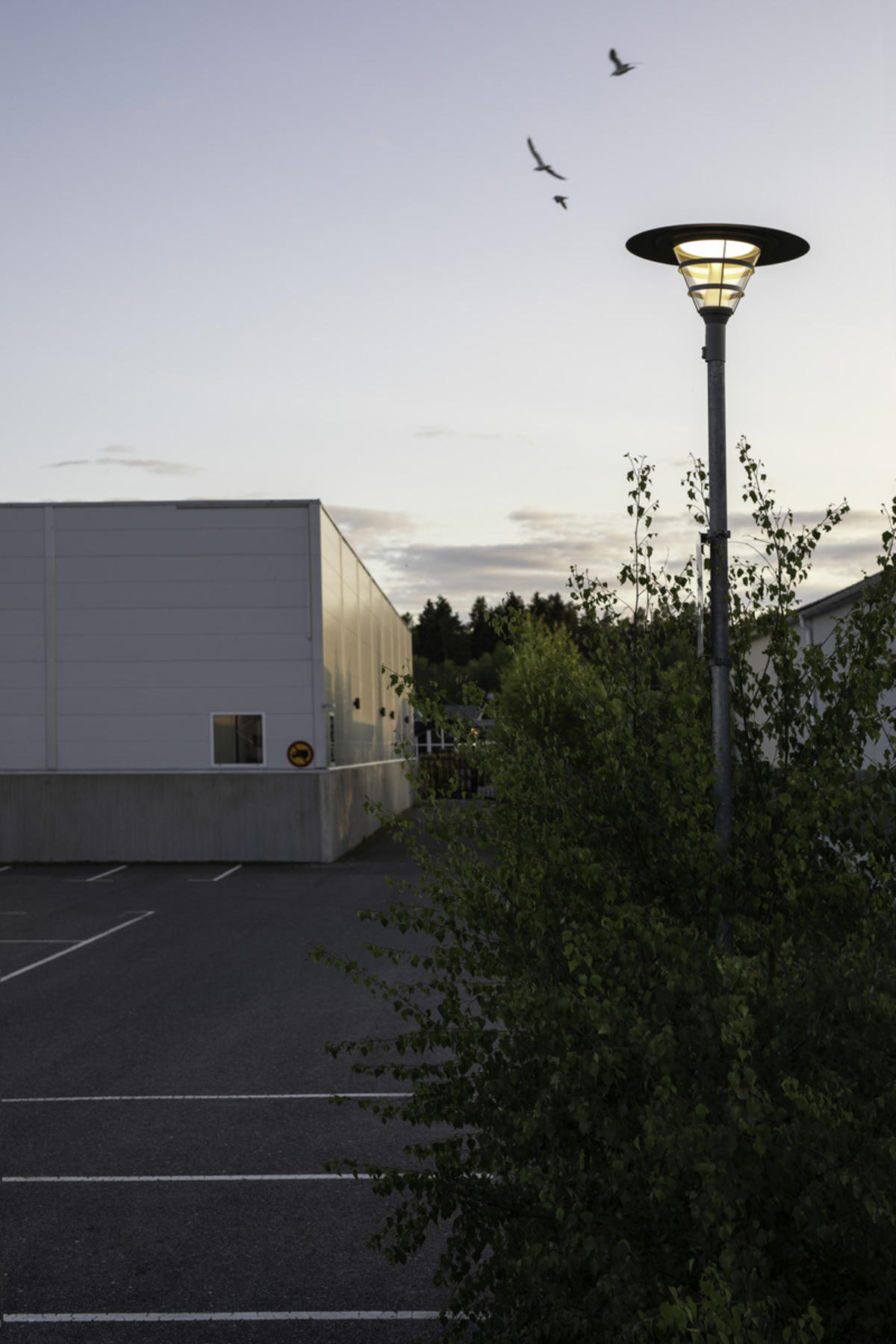

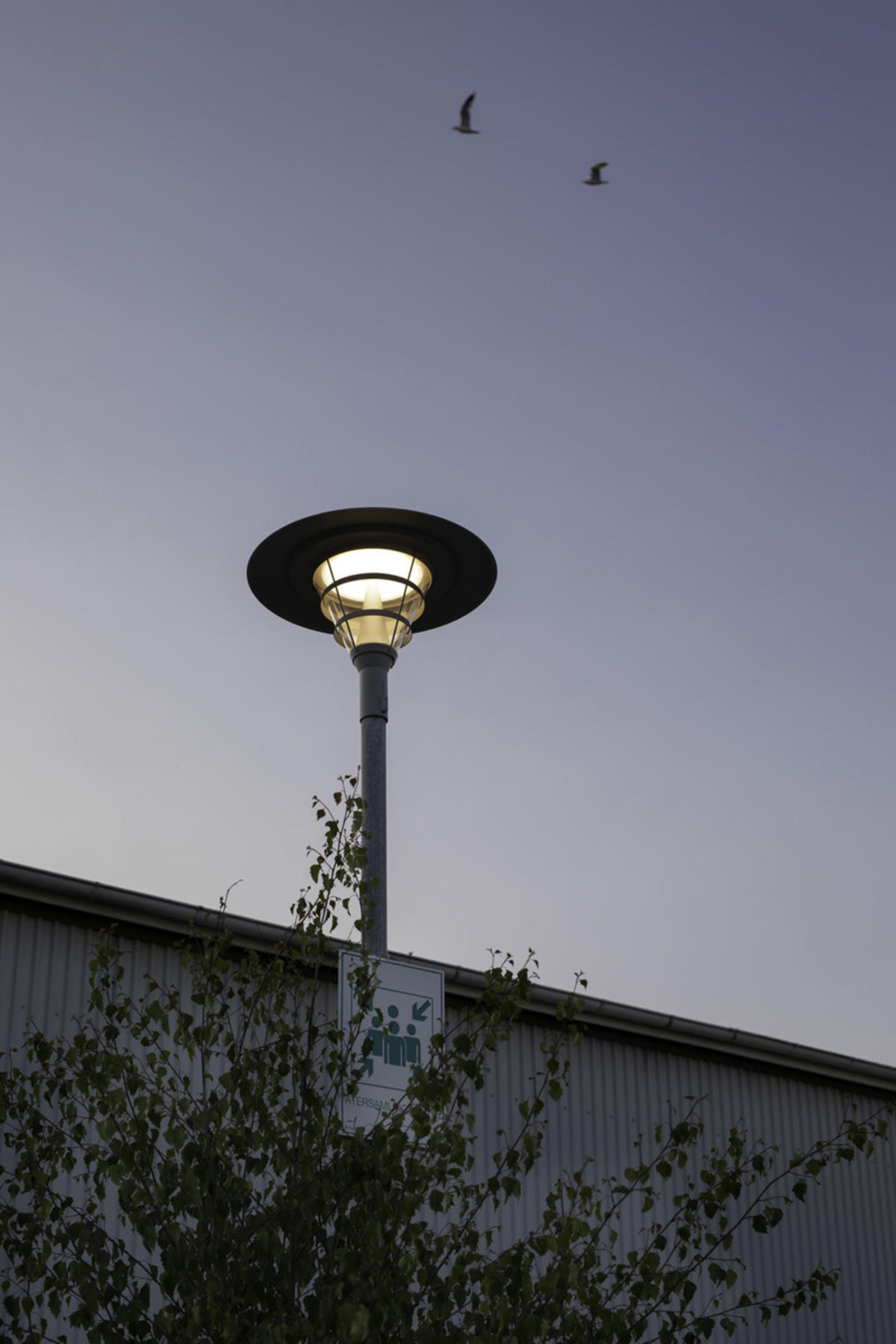

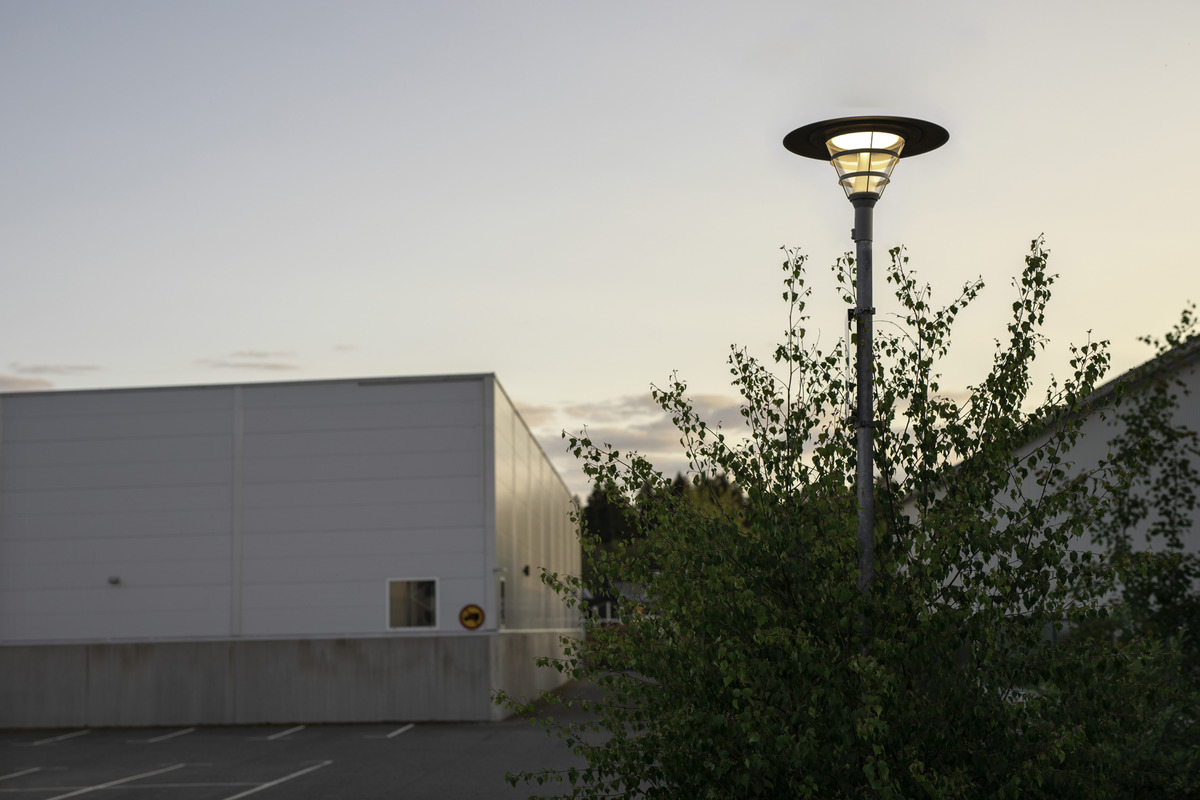

Stylish post luminaire in the Pave family. Perfect outside a large property or car park that needs a lot of light. Choose the appearance and increase anti-glare for your luminaire in combination with Top, Deco II and Deco IV. Post bracket for 60mm posts. Replaceable LED and driver. Selectable lumen output and adjustable colour temperature via DIP-switch. 10kV surge voltage protection as standard. Adapter available as accessory for fitting on 48mm post. Comes with 5m of pre-mounted rubber cable for easy connection.
Variants GTIN Item Name Color Luminaire Lumen (lm)
Pave Post Top Grey 7392971147185 Pave Post Top Grey Grey 3030
Pave Post Anthracite 7392971147178 Pave Post Anthracite Antracit 3030
Pave Post Grey 7392971147161 Pave Post Grey Grey 3030
Pave Post Top Anthracite 7392971147192 Pave Post Top Anthracite Antracit 3030
Pave Post Deco II Grey 7392971147208 Pave Post Deco II Grey Grey 2580
Pave Post Deco II Anthracite 7392971147215 Pave Post Deco II Anthracite Antracit 2580
Pave Post Deco IV Grey 7392971147222 Pave Post Deco IV Grey Grey 1940
Pave Post Deco IV Anthracite 7392971147239 Pave Post Deco IV Anthracite Antracit 1940
Pave Post Top Deco II Grey 7392971147246 Pave Post Top Deco II Grey Grey 2580
Pave Post Top Deco II Anthracite 7392971147253 Pave Post Top Deco II Anthracite Antracit 2580
Pave Post Top Deco IV Grey 7392971147260 Pave Post Top Deco IV Grey Grey 1940
Pave Post Top Deco IV Anthracite 7392971147277 Pave Post Top Deco IV Anthracite Antracit 1940

Pave Post Top Grey

Save as favourite Save as pdf
Description
GTIN 7392971147185
Item Name Pave Post Top Grey
Warranty 5 years

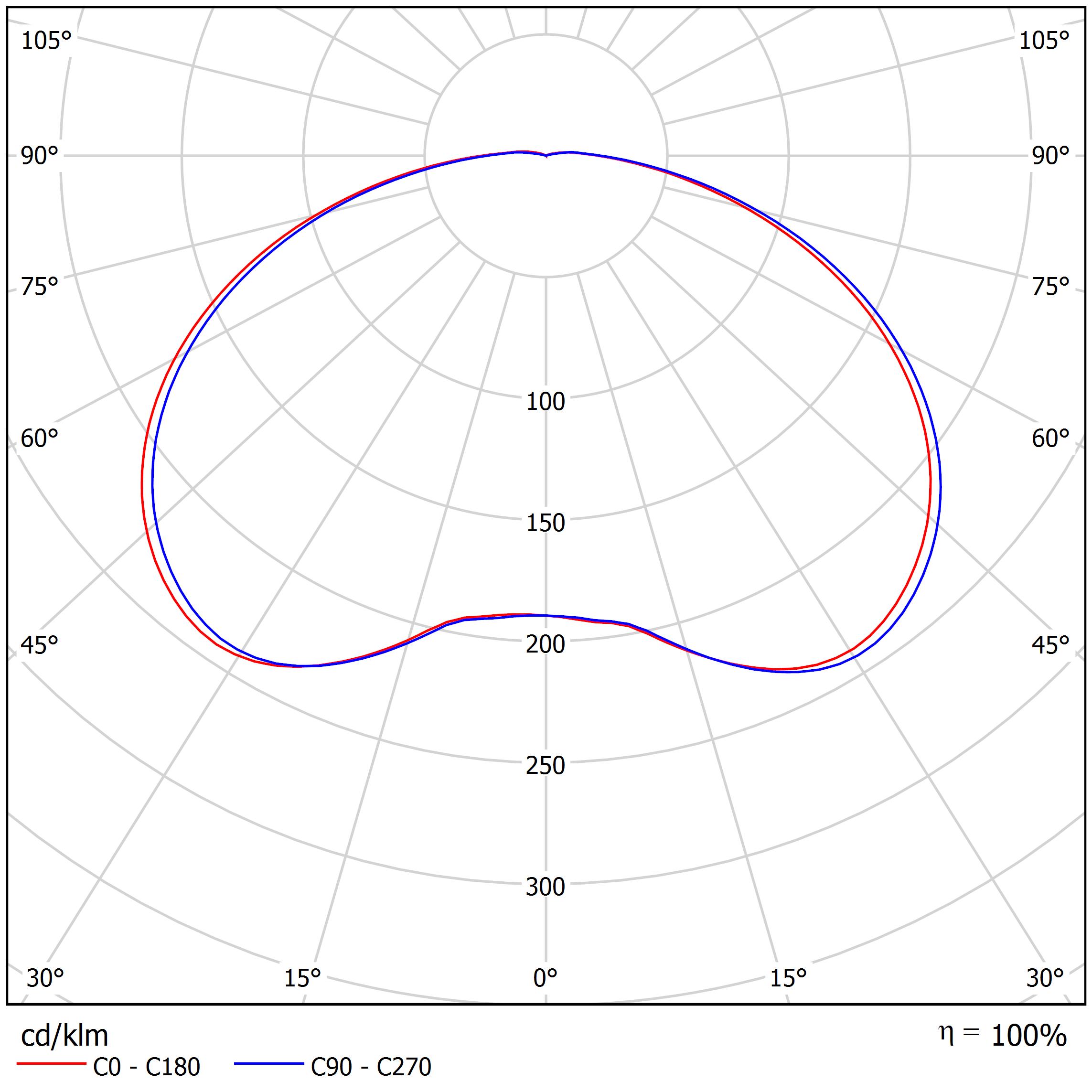

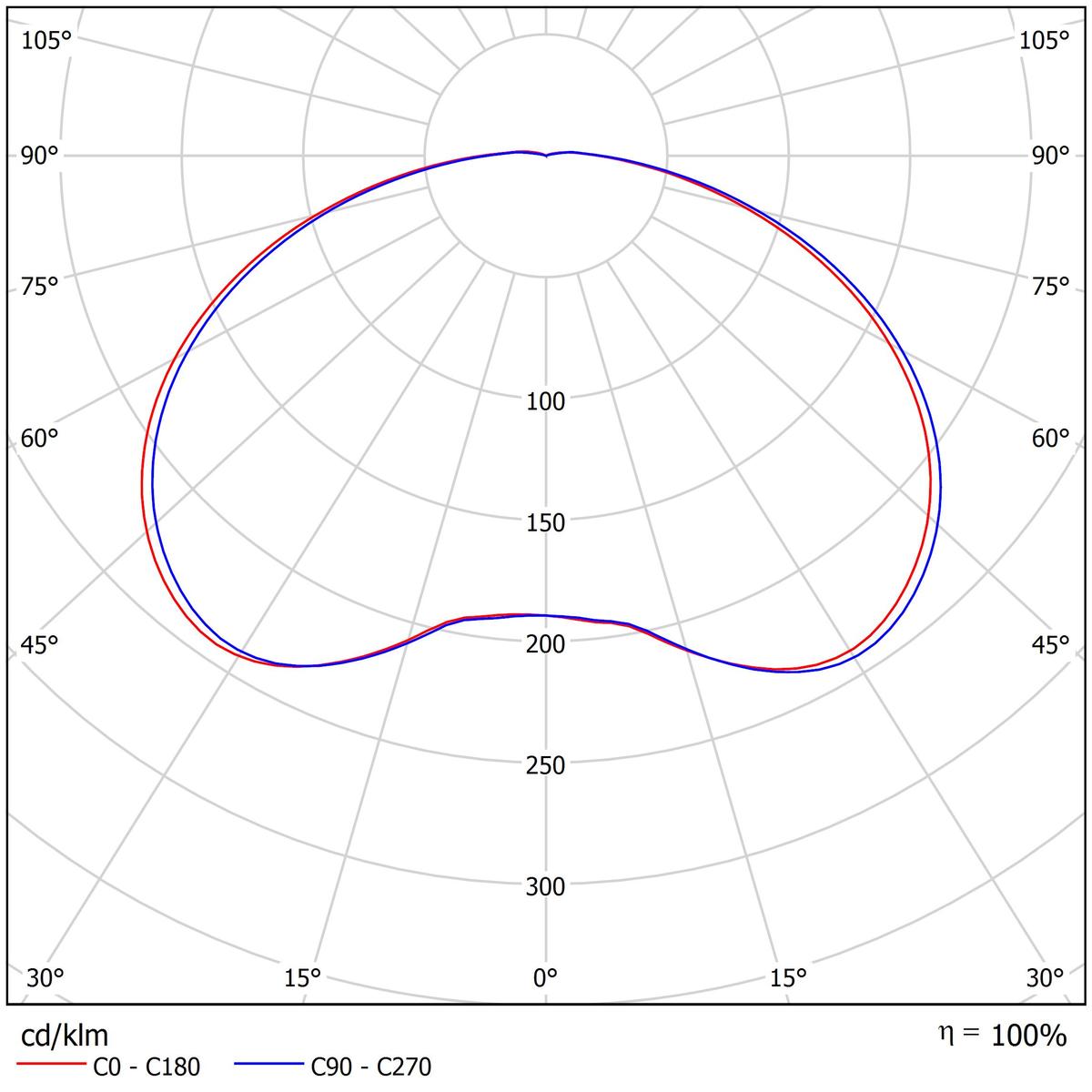

Light Technical Data
Technical data
Operation and Connection
Color and material

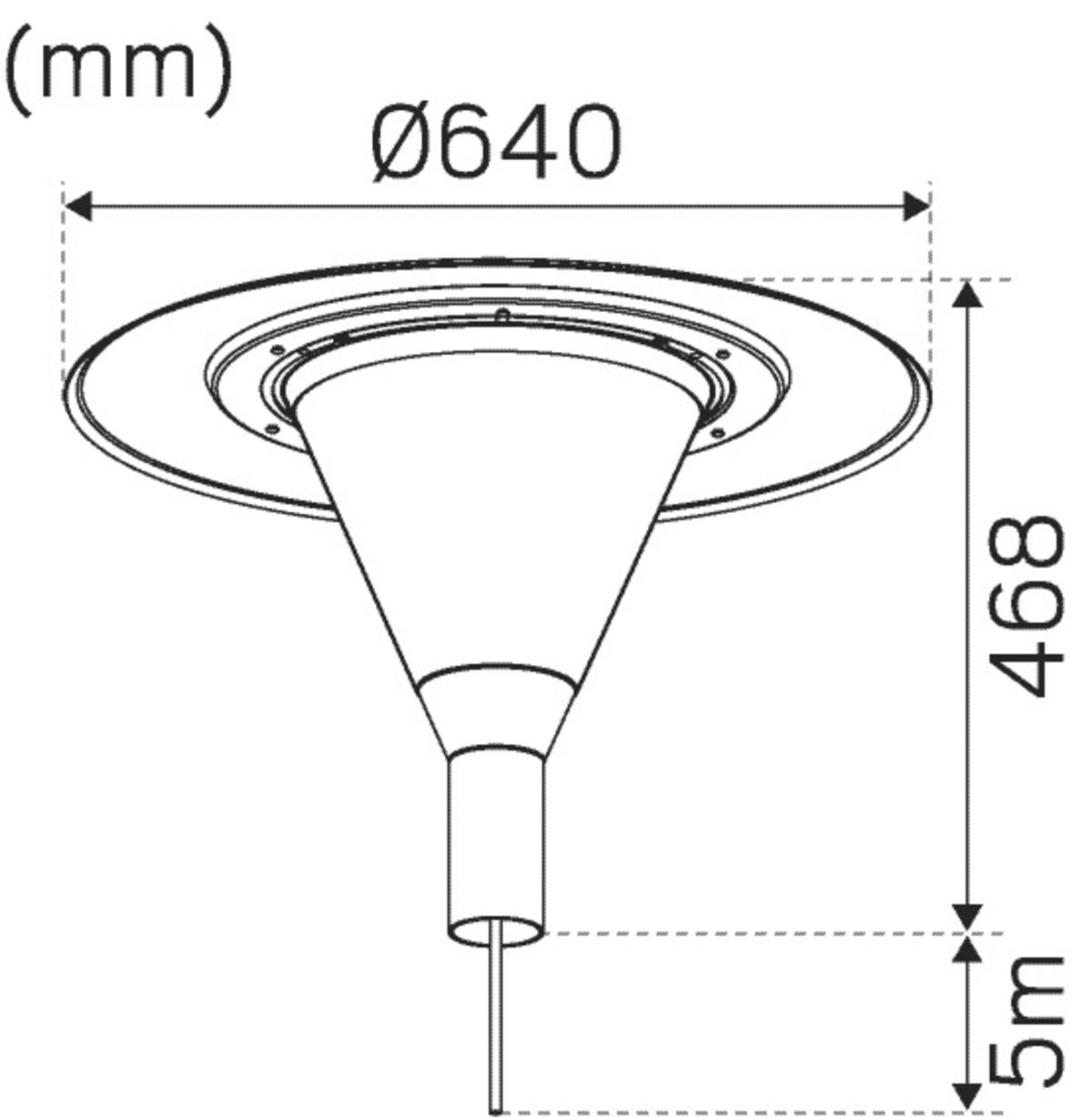

Measurement and installation

Accessories

7771868p.tif

Pave Post adapter 48mm post

Adapter for easy installation of Pave Post post luminaire on 48mm post.

Spare parts

If you need spare parts, contact our customer support

  • LED-Module Pave Post X214
  • Driver Pave Post X210
  • Cover Pave Post X216
