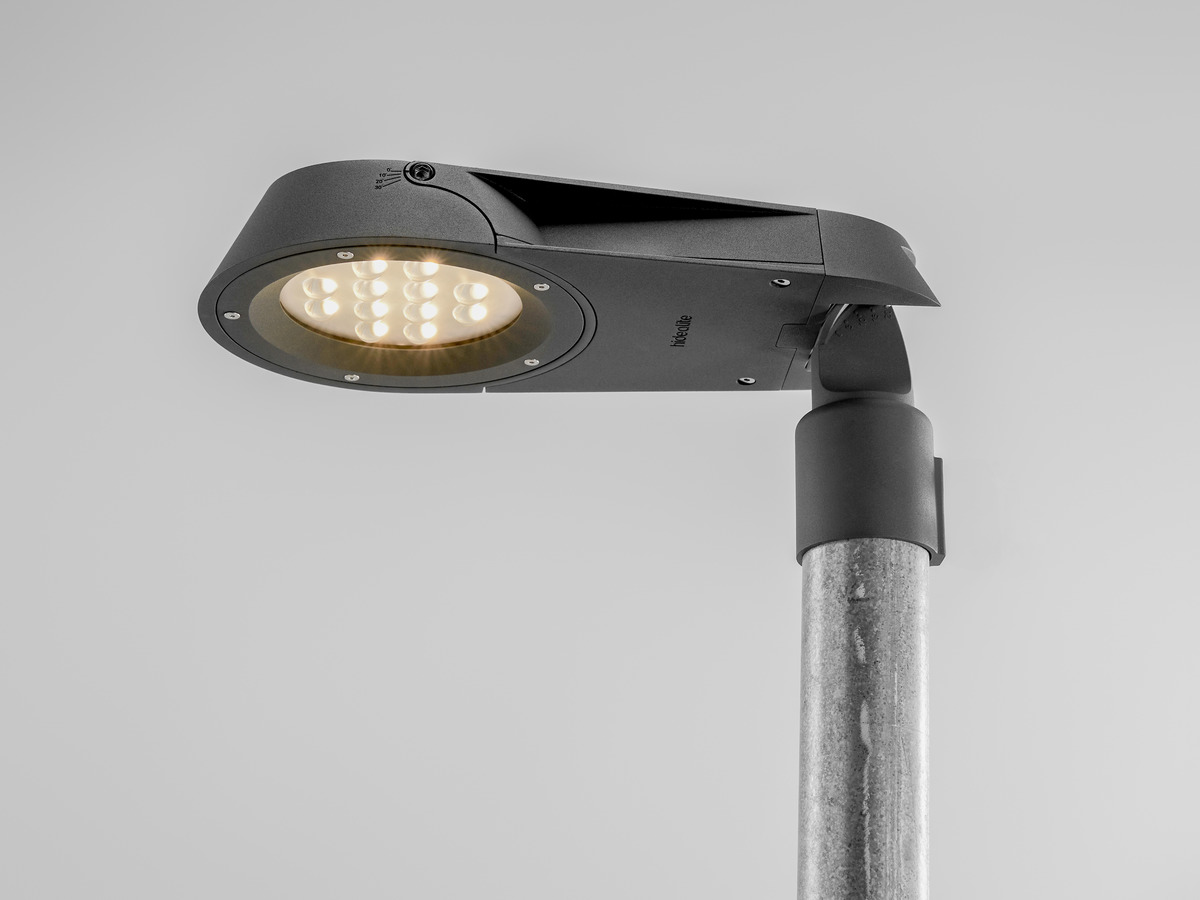

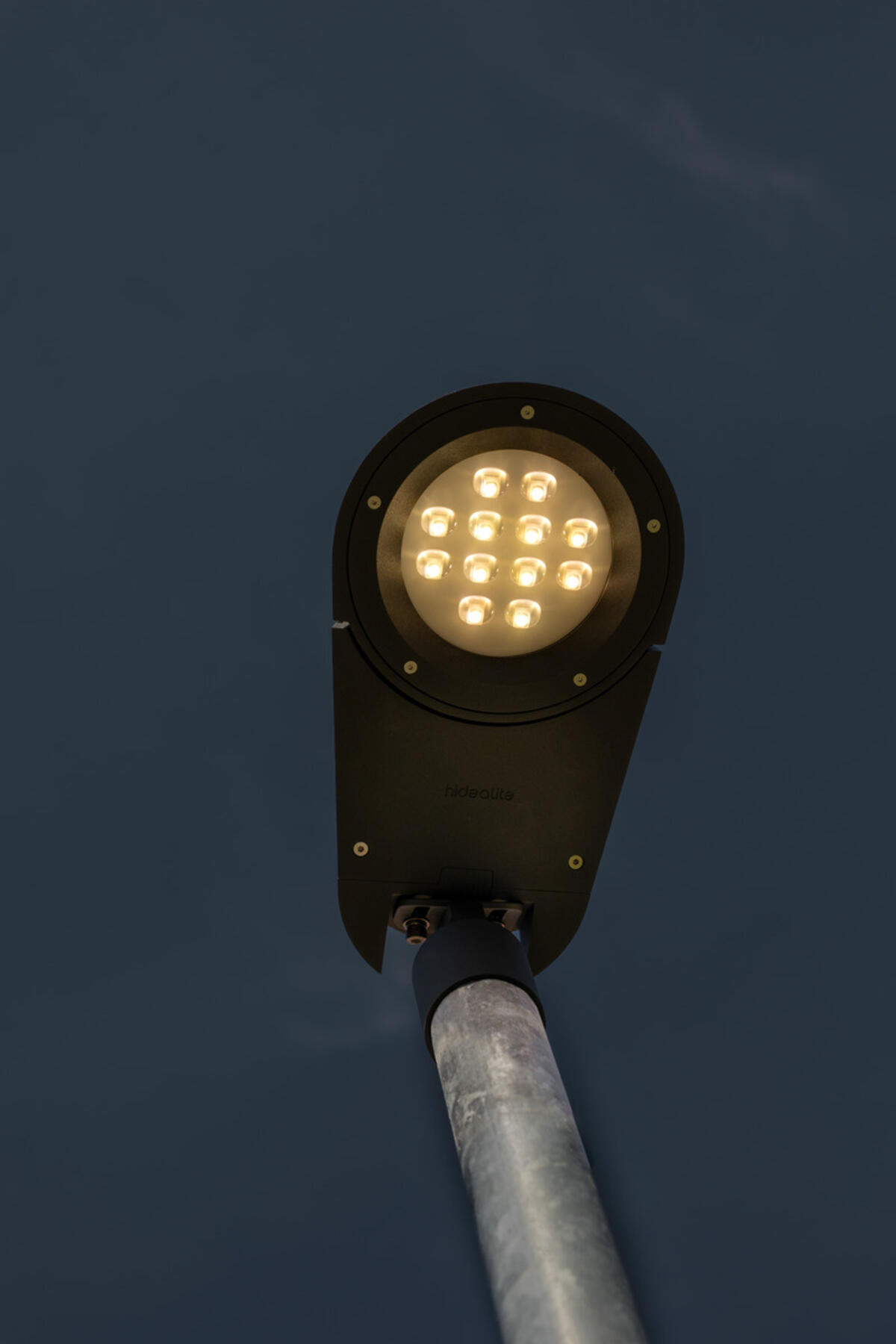

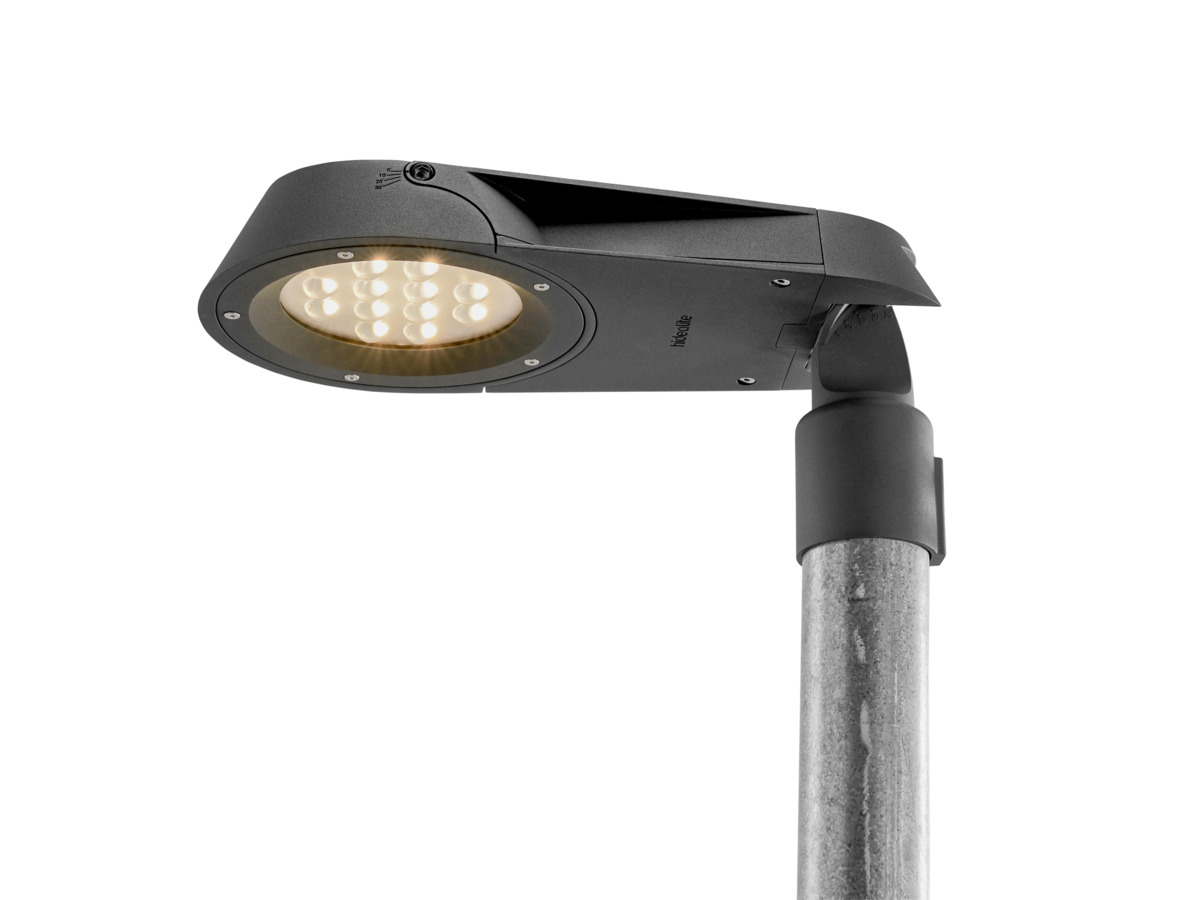

Sharp Post Sharp Post Asym 90°x150° Anthracite

Post luminaire in a sharp design for installation on a post. Select a luminaire with or without asymmetric light distribution
Suitable for posts of 48mm or 60mm diameter. Replaceable LED & driver (Sharp Post Asym), replaceable driver (Sharp Post)

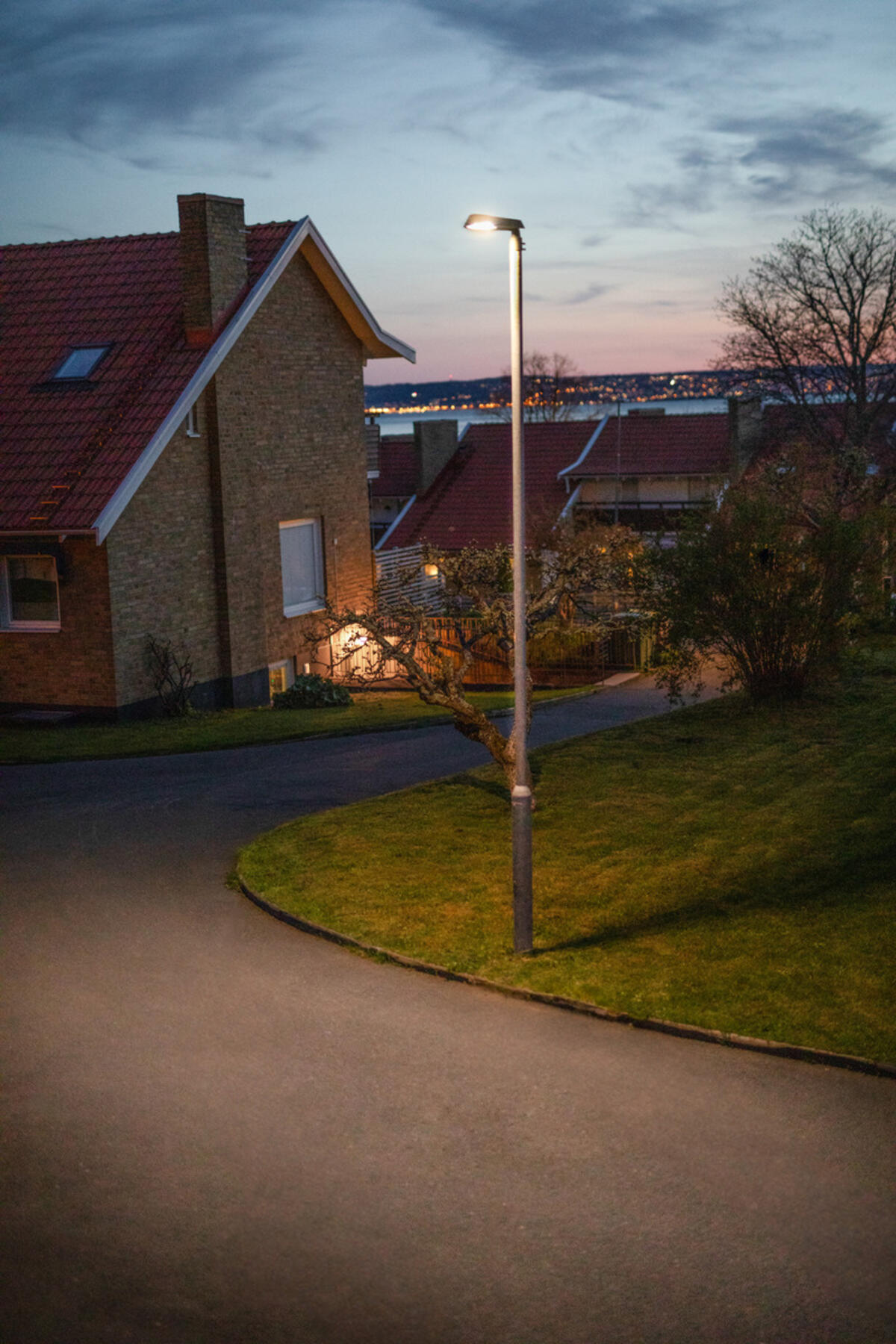

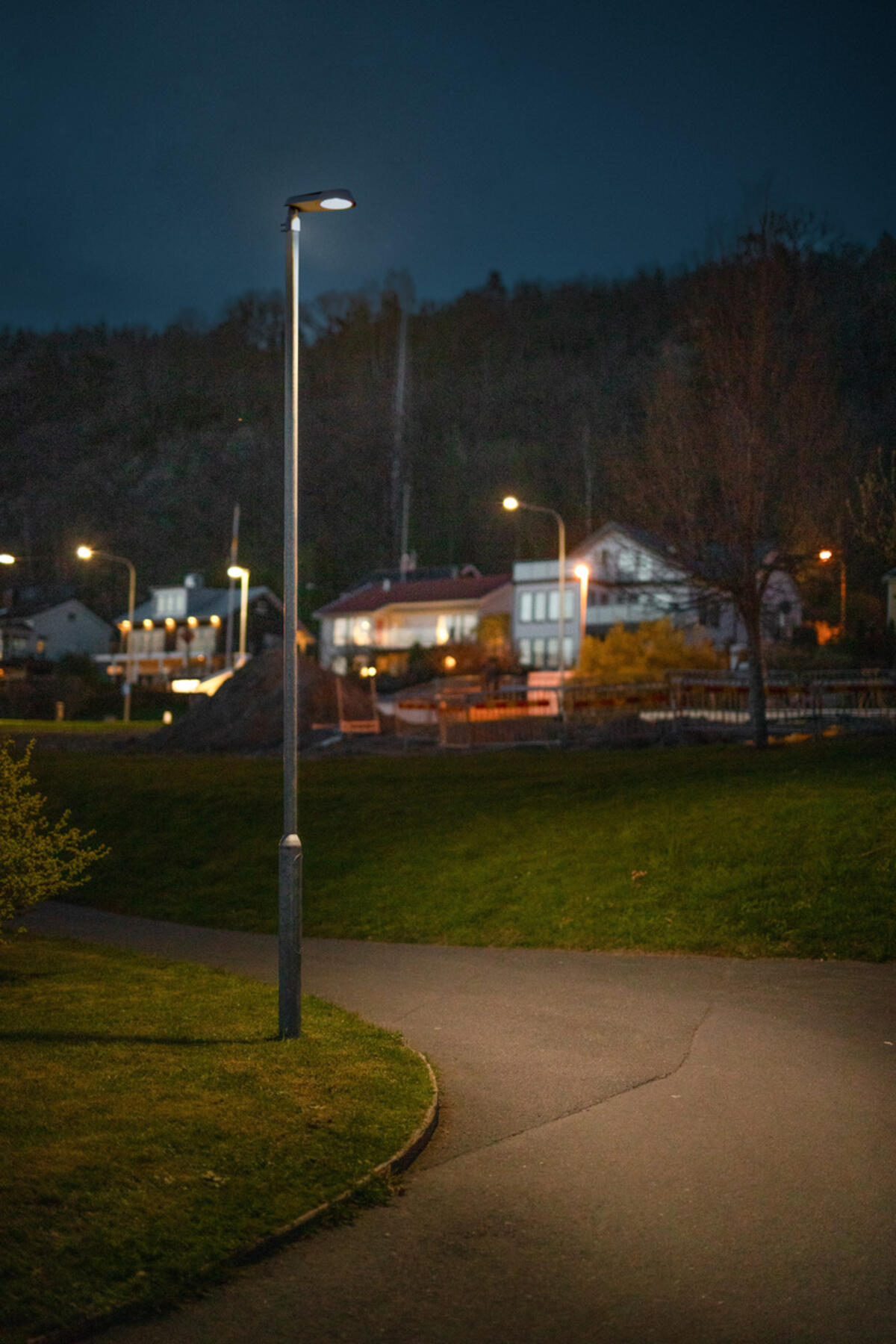

Sharp Post is a post luminaire of sharp design for installation on a post. Choose a luminaire with asymmetrical or symmetrical light distribution as needed. Both Sharp Post and Sharp Post Asym are suitable for mounting on 4-6m posts for small cycle parking areas in office or apartment building car parks. With its asymmetrical light distribution, Sharp Post Asym is good for pedestrian and cycle paths because it distributes the light better along the path. Sharp Post Asym has replaceable LED and driver; the Sharp Post version only has replaceable driver. Adjustable lumen output and selectable colour temperature via DIP-switch. Impact resistant (IK10) with durable powder coating to withstand our Nordic climate. Light can be directed thanks to the adjustable luminaire head. Easily installed with flexible post bracket for posts of 48mm or 60mm diameter. Comes with 5m of pre-mounted rubber cable for easy connection in the post.

GTIN	Item Name	Color	Luminaire Lumen (lm)	Beam Angle (°)
7392971150635	Sharp Post Asym 90°x150° Anthracite	Antracit	3000	150
7392971145242	Sharp Post Grey	Grey	2950	100
7392971145259	Sharp Post Anthracite	Antracit	2950	100
7392971150628	Sharp Post Asym 90°x150° Grey	Grey	3000	150

Description: GTIN 7392971150635

Item Name Sharp Post Asym 90°x150° Anthracite

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 3000

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour White

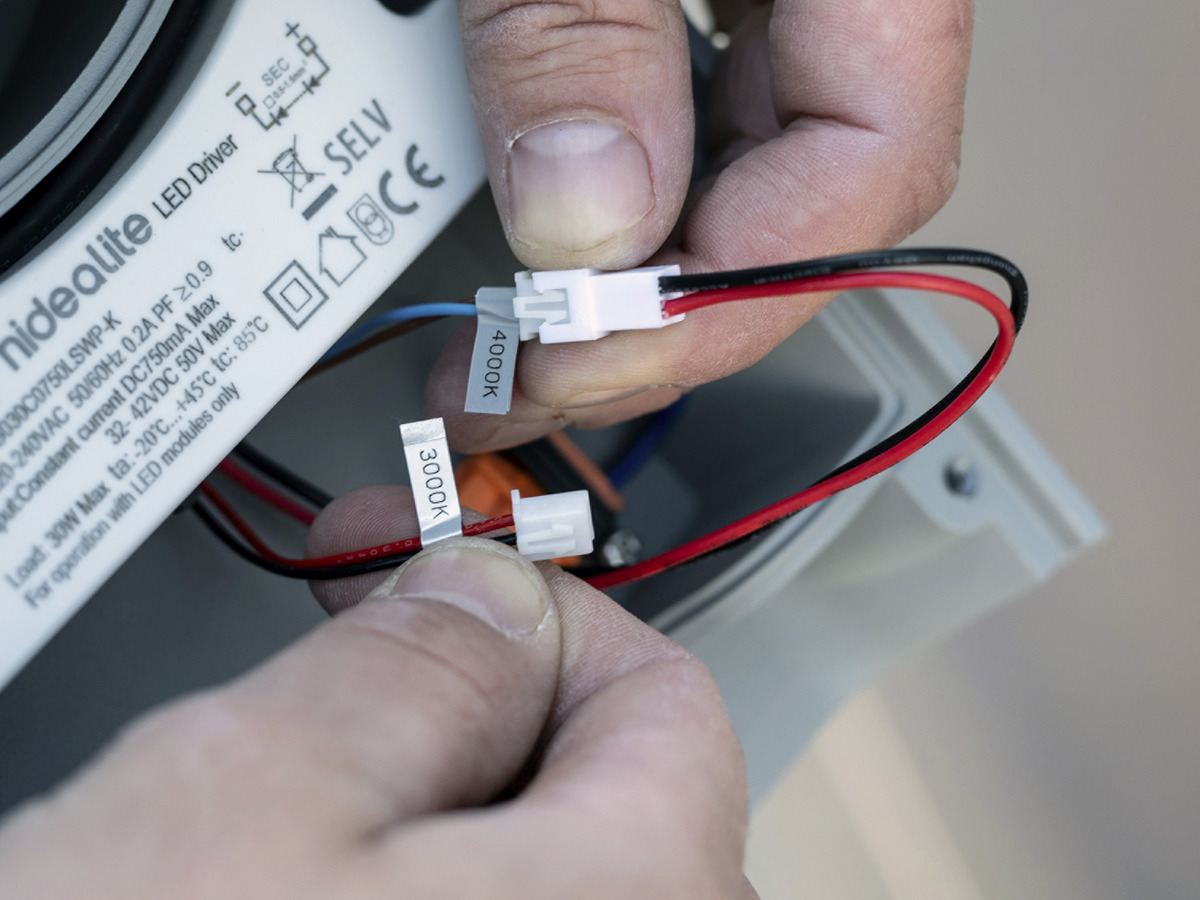

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1700

Beam Angle (°) 150

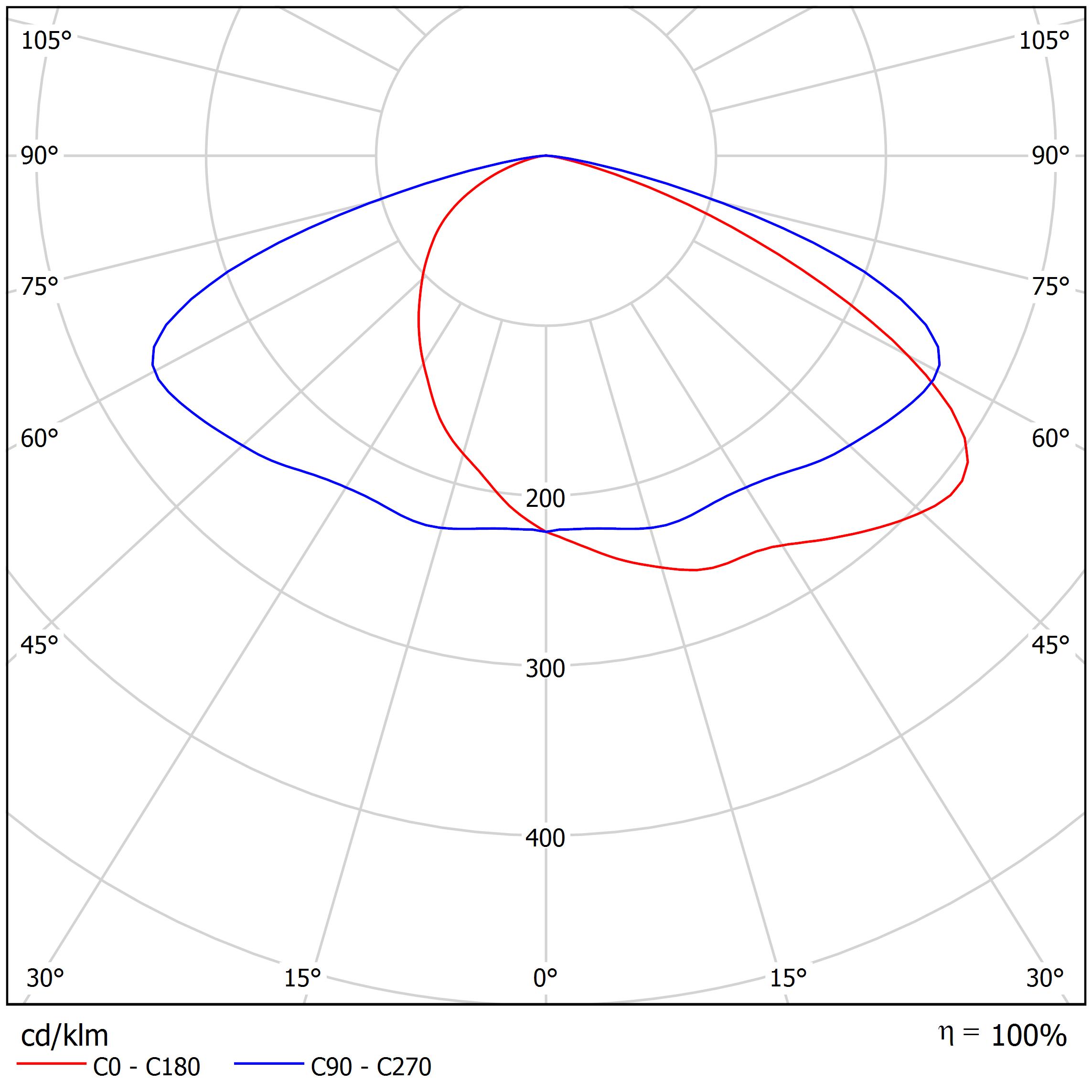

Light sharing Asymmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 12

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L84

Lumen maintenance 75 000h L76

Lumen maintenance 100 000h L70

LLMF @ 50 000h 0,84

LLMF @ 100 000h 0,7

Life Time Driver 50 000h/10%
Technical data: Adjustable Yes

Tiltable (°) 30

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Voltage Forward (Vf) 36

Power LED (W) 27

Power Luminaire (W) 31

System Power (W) 31

Efficiency Luminaire (lm/W) 97

Efficiency System (lm/W) 97

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable No

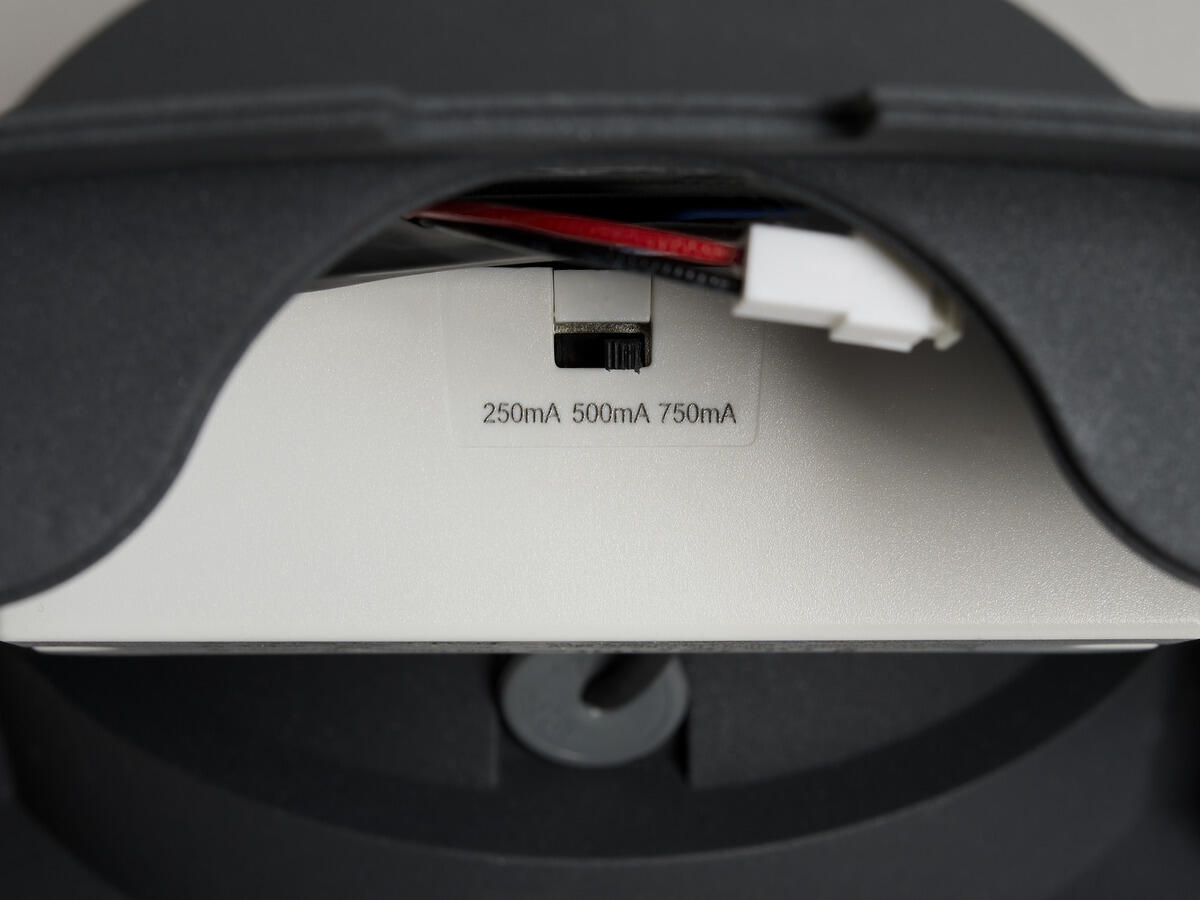

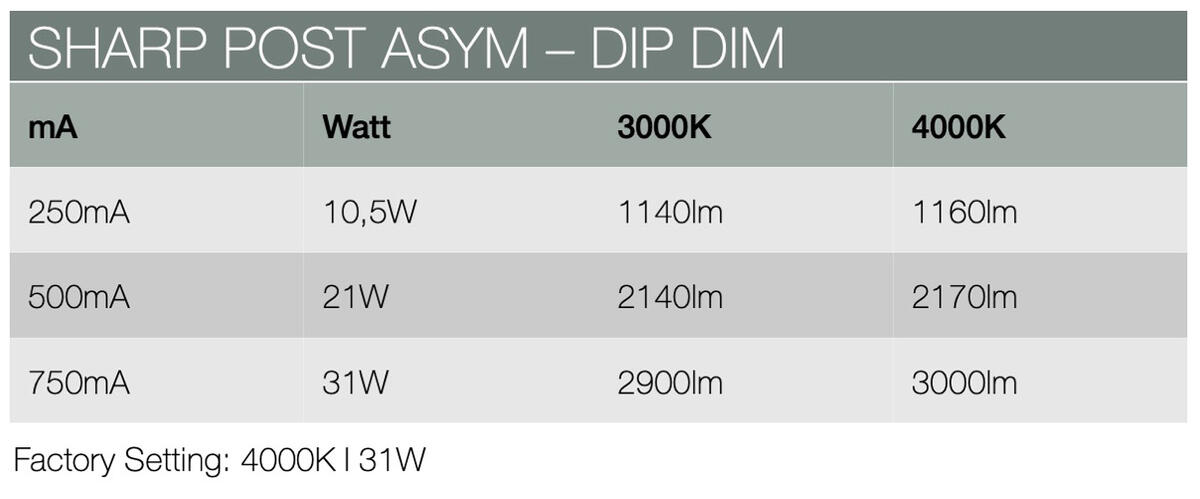

Type of Dimming DIP-Switch Power

Driver Included Yes

Driver Model Constant Current

Driver Manufacturer Hide-a-lite

Connection (type) Quick Terminal

Length Connection (cm) 500

Connection (mm2) 3x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,94

Efficiency (%) 86

Power loss (W) 4,31

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,2

THD (%) 9

Power Interval for Catalogue (W) 31

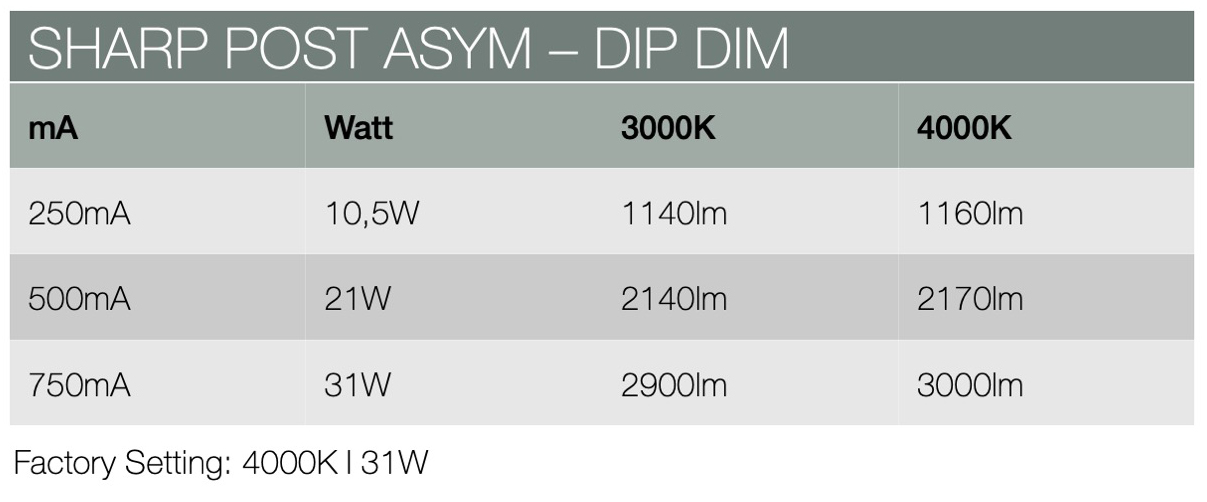

Constant Current (mA) 250, 500, 750

Operating Temperature -20…+50

Max. Tc (°C) 105

Protection Against Short Circuit, Overload

Mains surge protection DM (kV) 1,5

Mains surge protection CM (kV) 1,5

Fuse B10 (pcs) 12

Fuse B16 (pcs) 19

Fuse C10 (pcs) 20

Fuse C16 (pcs) 32
Color and material: Material Aluminium

Color Antracit
Measurement and installation: Operating Environment Indoor / dry locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Post assembly

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK10

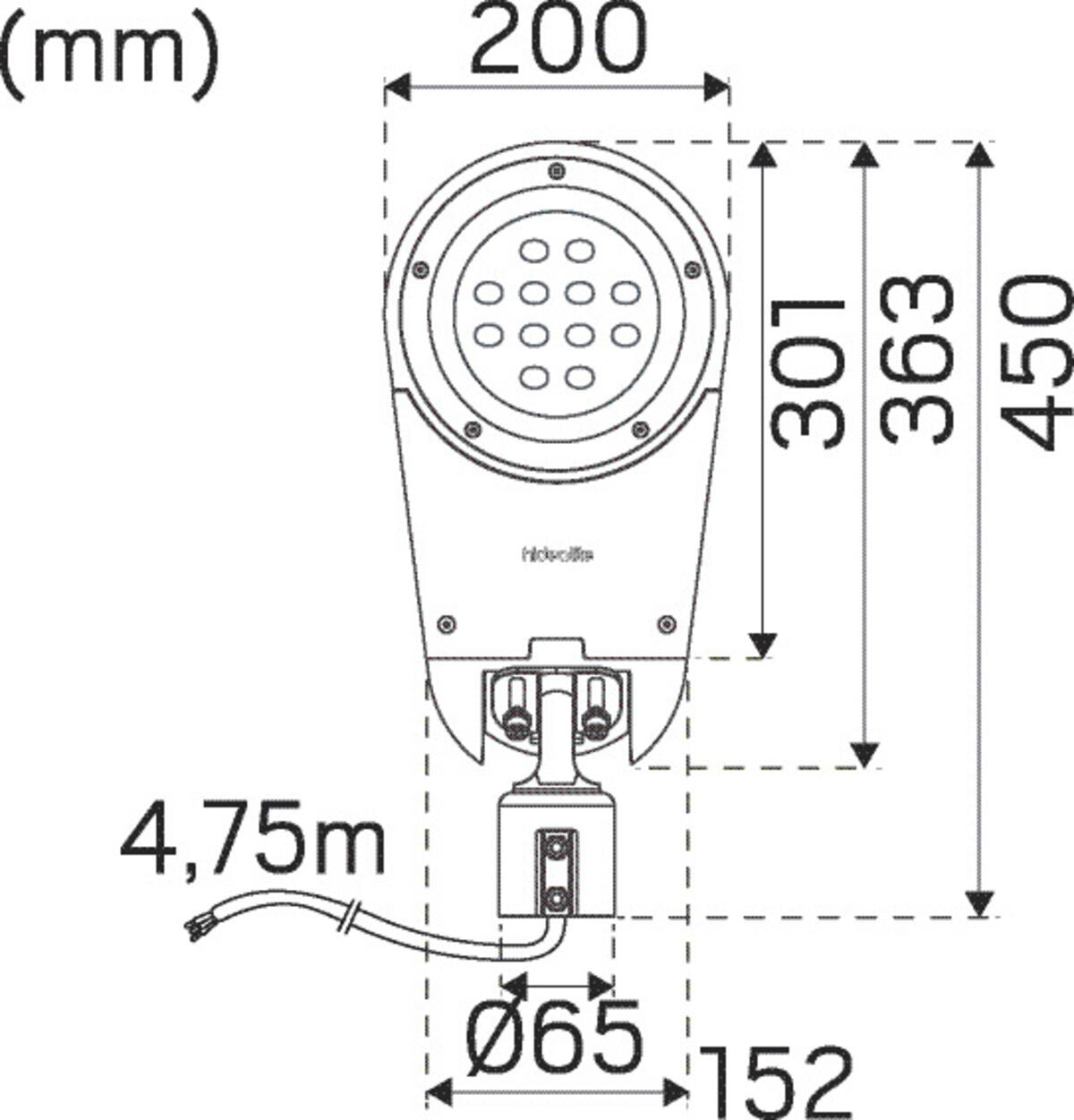

Length (mm) 450

Width (mm) 200

Height (mm) 61

Weight (kg) 2,76
