Cone GU10

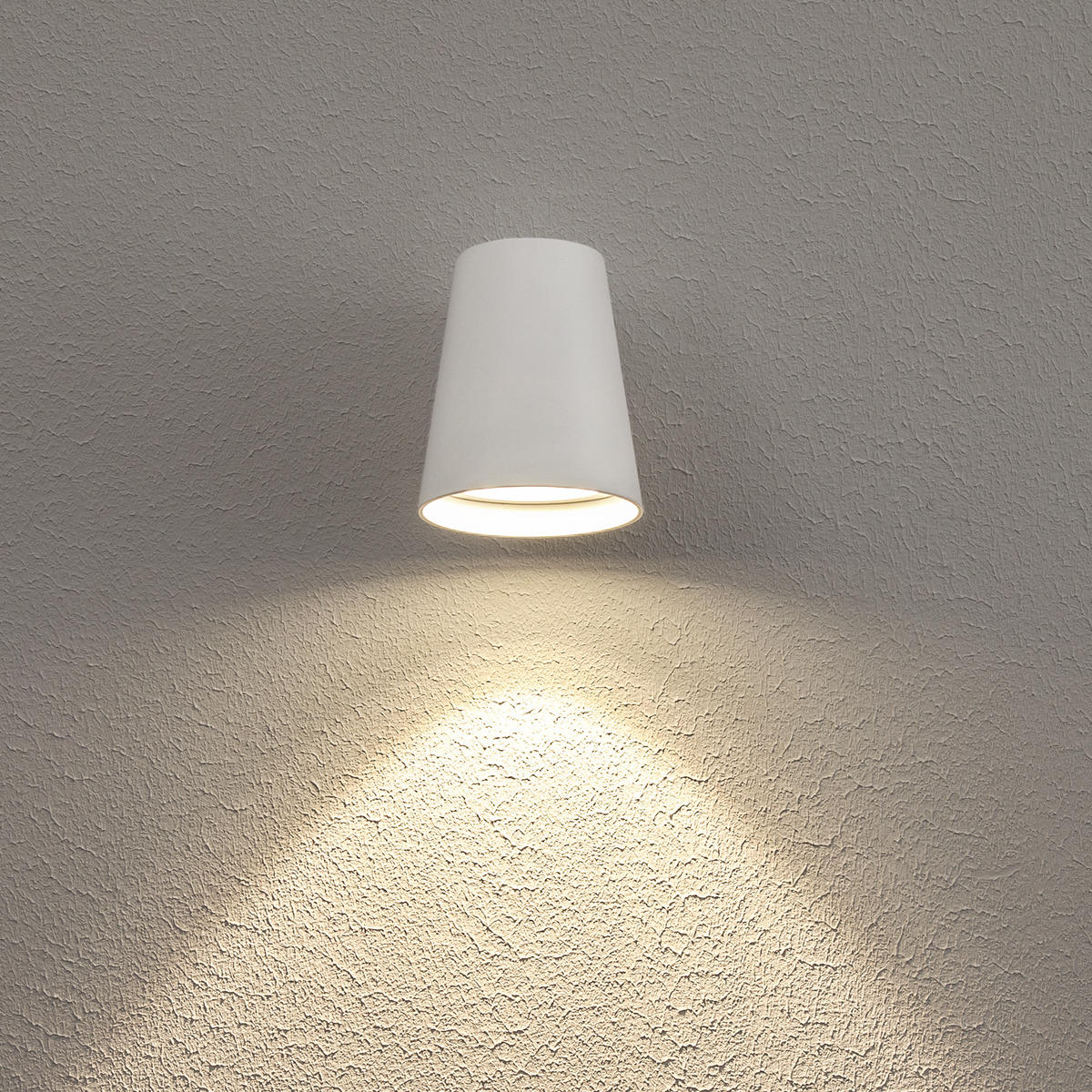

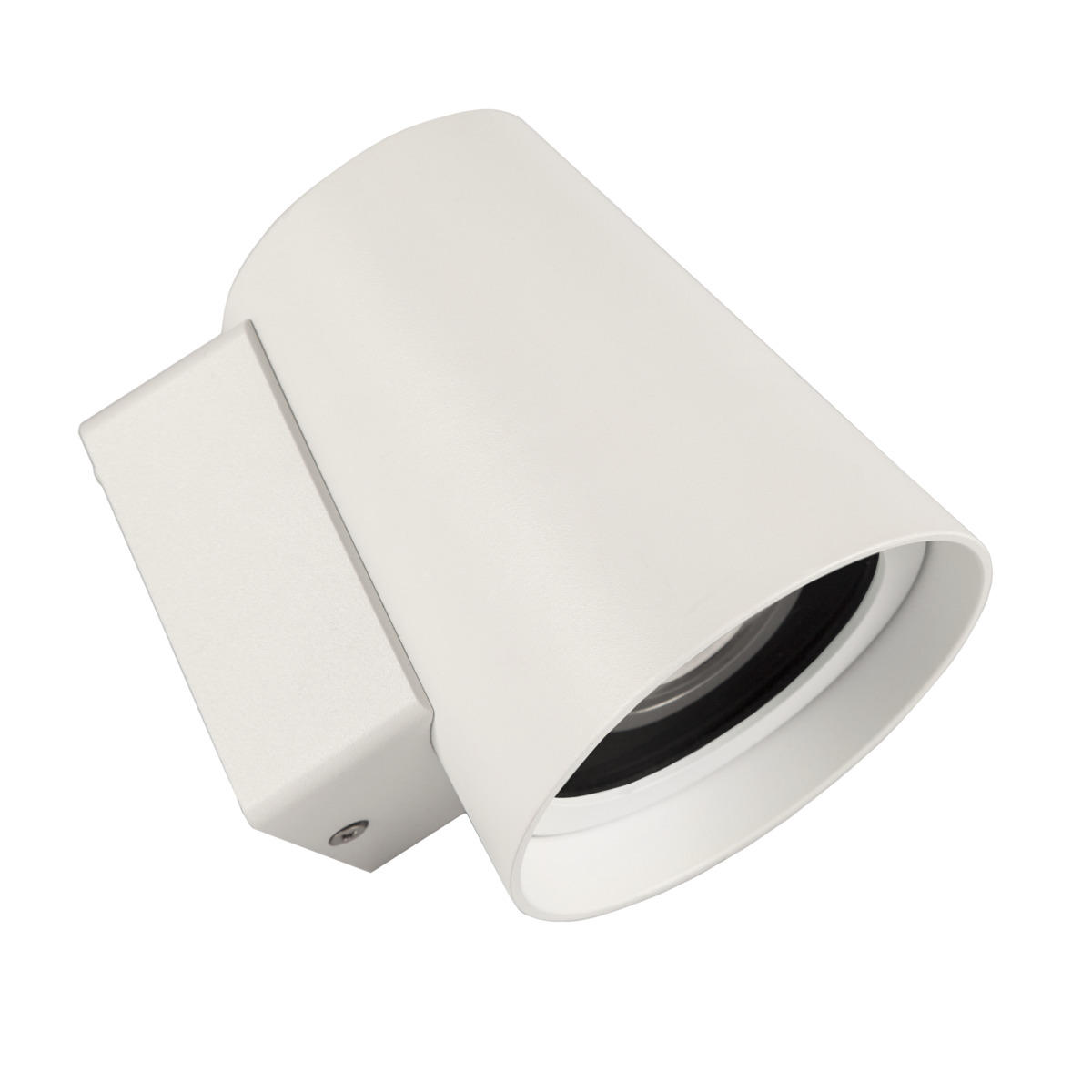

A neat wall fitting with GU10 socket with a clean conical design providing an asymmetrical light spread that lights up the wall and the ground below. Simple installation thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacers for surface-mounted cable routing included. IP54 rated with durable powder coating for tough environments in white, grey or anthracite. The light source can be selected for customised color temperature and luminous intensity.

GTIN	Item Name	Color
7392971133119	Cone White	White
7392971133133	Cone Anthracite	Antracit
7392971133126	Cone Grey	Grey

Description: GTIN 7392971133119

Item Name Cone White

Warranty 5 years

Type .
Light Technical Data: Light Source Included No

Lamp Holder (type) GU10
Technical data: Adjustable No

Voltage (type) AC

Voltage Nominal (V) 230
Operation and Connection: Dimmable Yes

Driver Included No

Connection (type) Quick Terminal

Connection (mm2) 5x0,75-2,5

Through Wiring Yes

Strain Relief Yes

Power Interval for Catalogue (W) 50
Color and material: Material Aluminium

Color White

Environmental Assessment SundaHus
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 54

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK09

Width (mm) 105

Height (mm) 140

Depth (mm) 135

Weight (kg) 0,54

Peak E27

Wall luminaire in classic design for large and small facades that creates a wide light distribution and illuminates both wall and ground. With E27 base, you can choose your own light source (not included). IP23 classification with durable powder coating to withstand our Nordic climate. Easily installed thanks to separate rear element and push-in, loop-in, loop-out terminal block for direct connection to 230V. Rear element also with integrated spirit level for easier installation. Comes with spacers for surface-mounted cable routing.

Cone

A neat wall fixture with a clean conical design. LED COB with reflector optics providing an asymmetrical light spread that lights up the wall and the ground below. Simple installation thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacers for surface-mounted cable routing included. IP54 rated with durable powder coating for tough environments. Integrated driver with adjustable light level via DIP-Switch Power. Can be dimmed using external driver, see user instructions.

Milo I GU10

Wall-mounted luminaire with timeless design with downward light emission. GU10 socket allowing the selection of colour temperature and luminous intensity. Separate rear element with dual cable bushings and push-in, loop-in, loop-out terminal block for easy installation. IP55 design with anodised and powder-coated housing for rough outdoor climate. Delivered with spacers for surface-mounted cable routing.

Round Single III

Wall-mounted luminaire with down light IP54 rated for striking illumination of facades and entrances, etc.Pure aluminium luminaire, anti-corrosion treated and enamelled with two coats of polyester based powder enamel. For installation on walls indoor and out with concealed connection. Comes with GU10 fitting for alternative light sources for direct connection to 230V.

Edge

Wall luminaire in timeless design with wide angle light distribution for facades and walls. Integrated phase dimmable driver for adjustment to desired light level via DIP-Switch Power. Impact resistant (IK10) IP65 luminaire with durable powder coating to withstand our Nordic climate. Easy to install thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacer for surface-mounted cable routing included. Dimmable with most common dimmers on the market.
