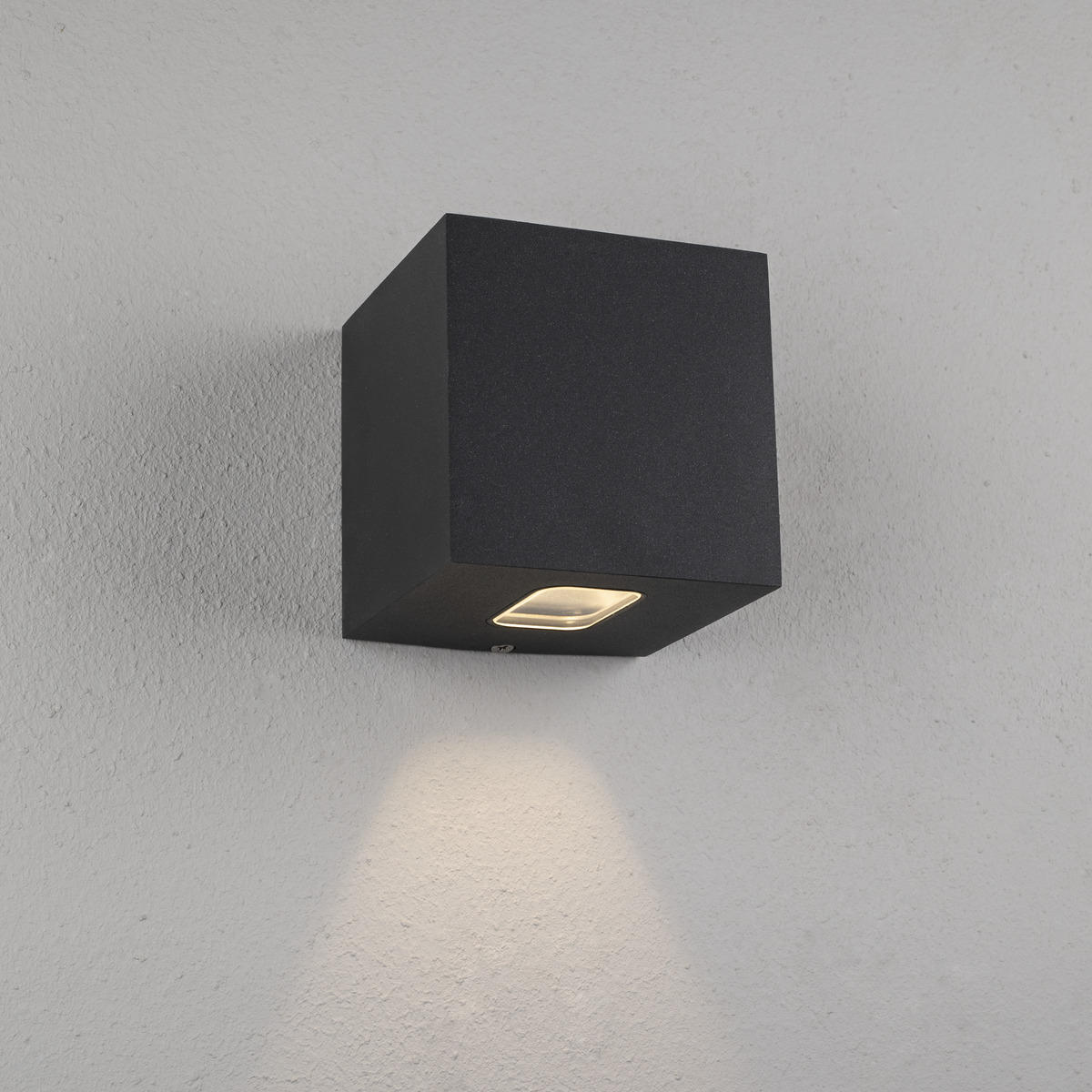

Cube I
- Separate rear element with double cable bushings for easy installation
- High IK classification, IP65 and durable powder coating

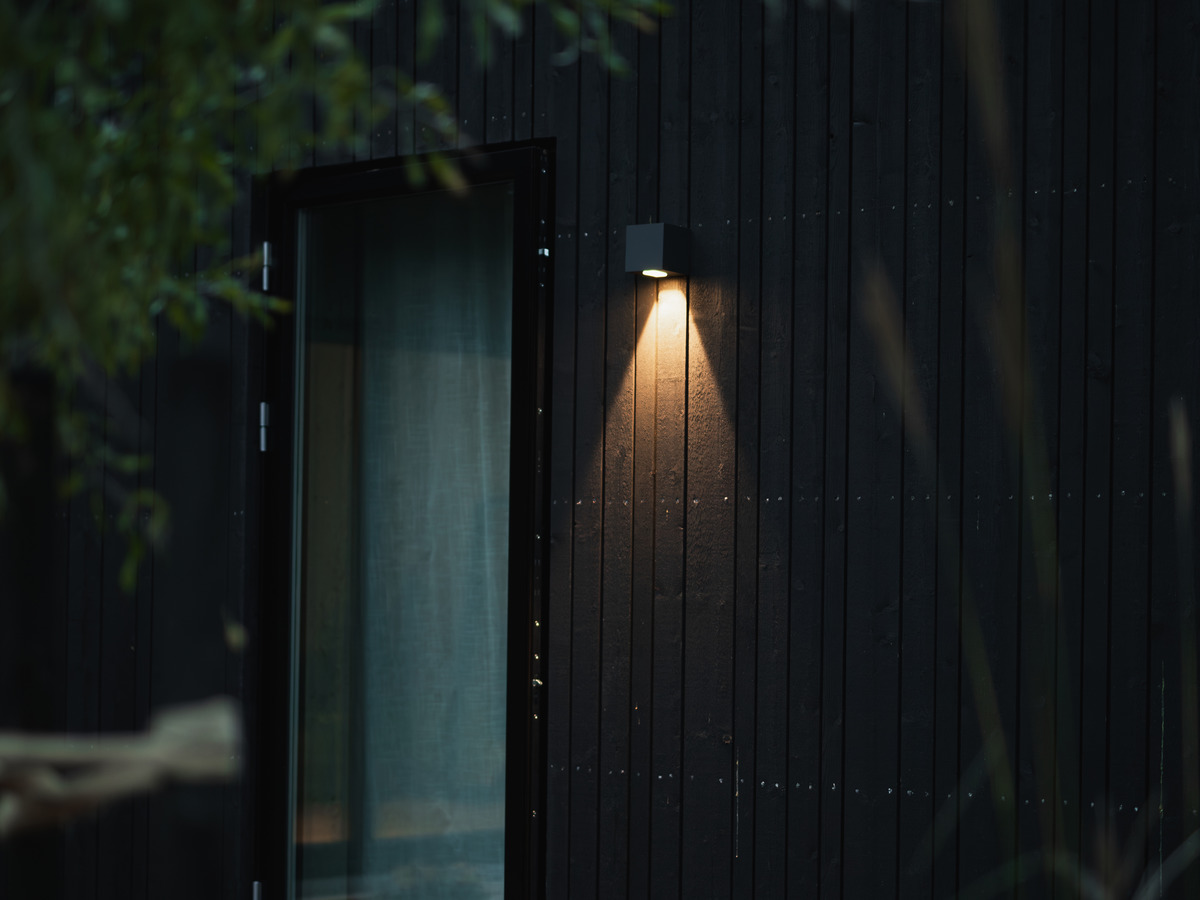

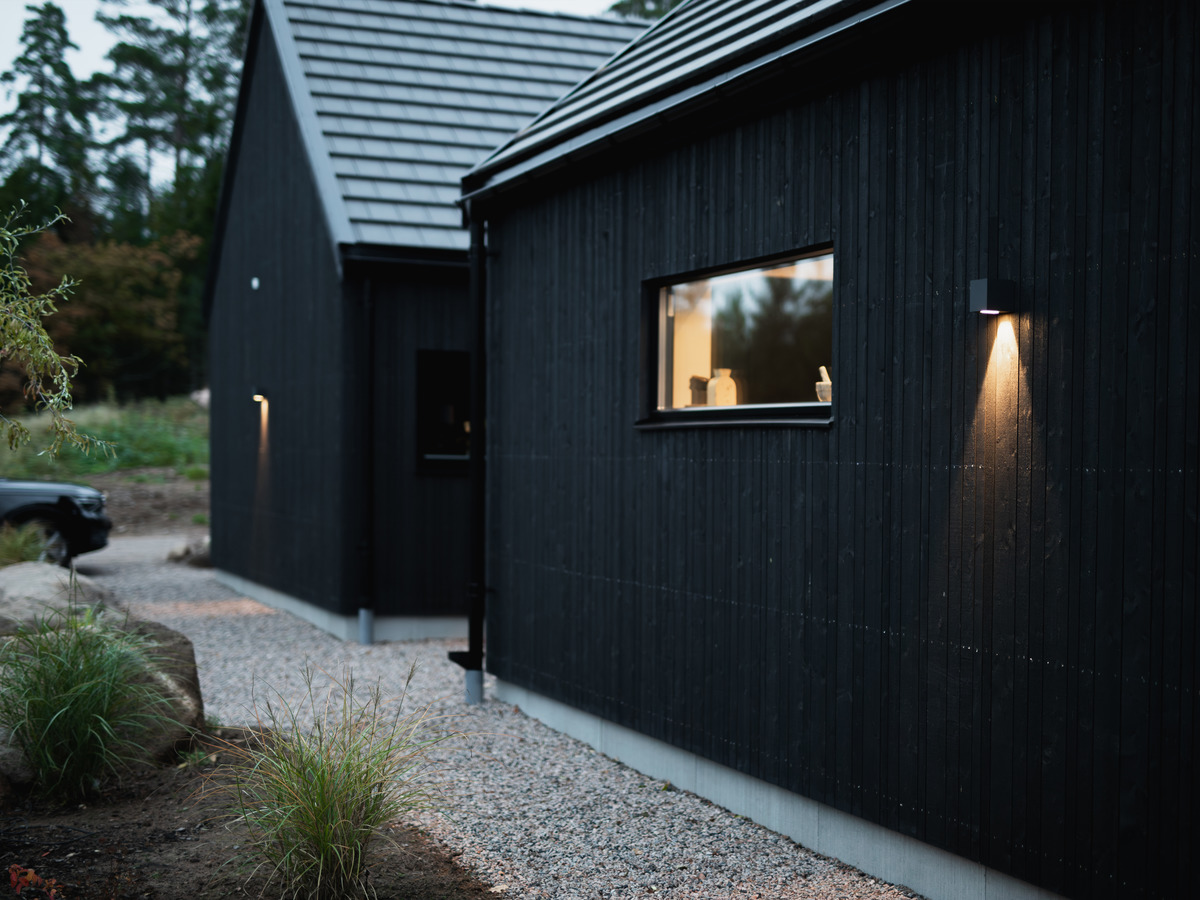

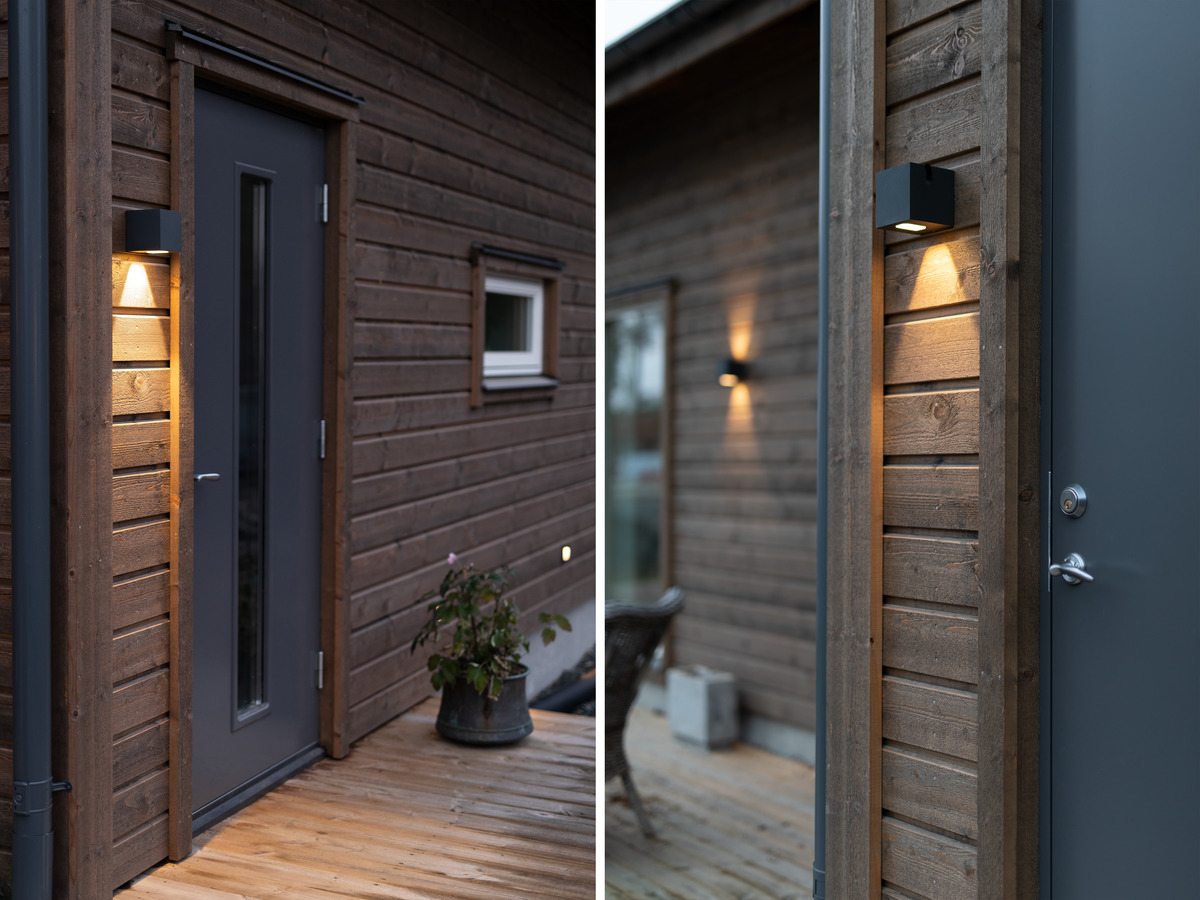

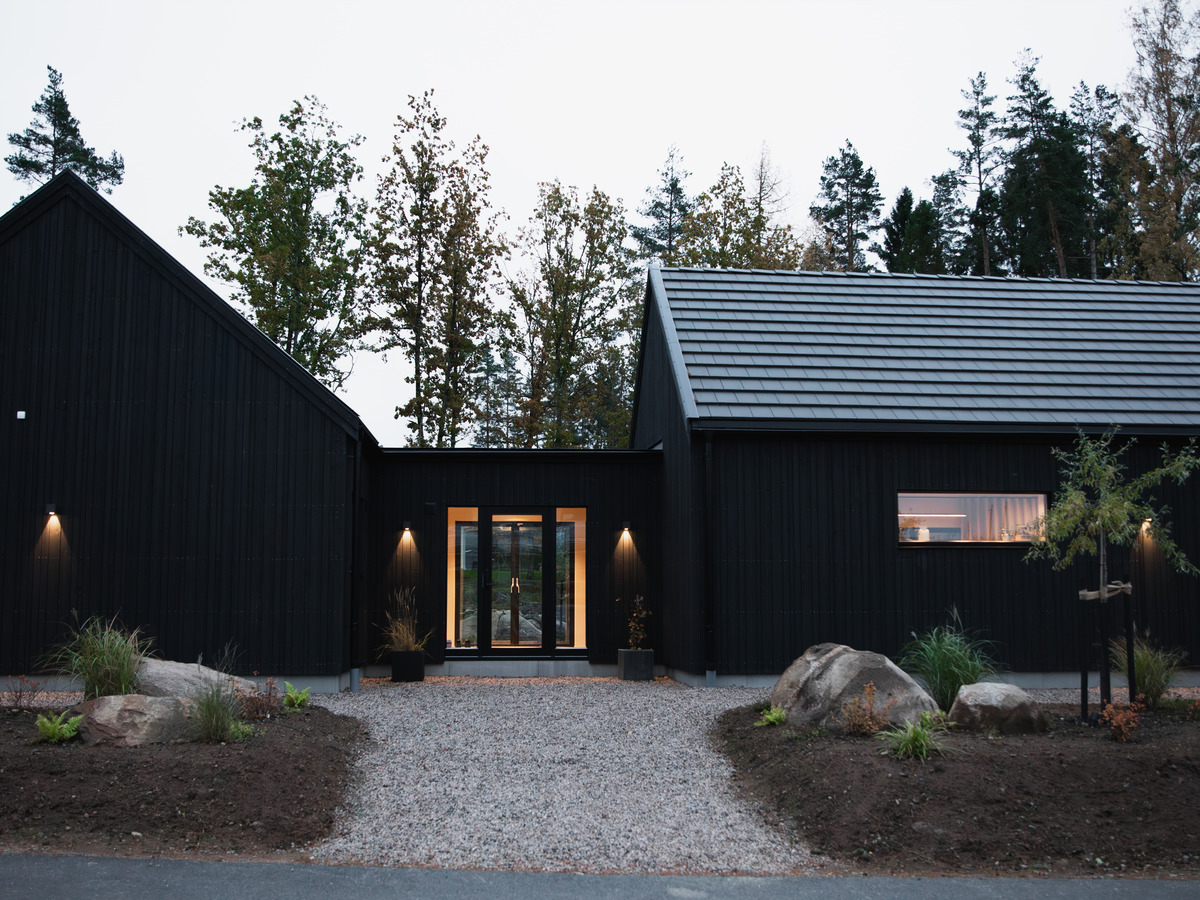

Timeless facade favourite with integrated phase dimmable driver and downward light emission. Light up the facade, creating a welcoming impression and easily dim the light to the desired level. Impact resistant (IK10) IP65 luminaire with durable powder coating to withstand our Nordic climate. Easy to install thanks to separate rear element with dual cable bushings and push-in terminal block for through wiring. Spacer for surface-mounted cable routing included. Dimmable with most common dimmers on the market.
| Variants | GTIN | Item Name | Color |
|---|---|---|---|
|
7392971140209 | Cube I Anthracite 3000K | Antracit |
|
7392971140186 | Cube I White 3000K | White |
|
7392971140193 | Cube I Grey 3000K | Grey |
Cube I Anthracite 3000K
-
GTIN 7392971140209Replaces 7392971129013Item Name Cube I Anthracite 3000KWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 155Light Source LEDLight Source Included YesReplaceability Non-replaceaable LED, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 190Beam Angle (°) 60Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L92Lumen maintenance 75 000h L89Lumen maintenance 100 000h L87LLMF @ 50 000h 0,92LLMF @ 100 000h 0,87Life Time Driver 50 000h/5%Flicker (PstLM) 0,68
- Technical data
-
Voltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50Voltage Forward (Vf) 9,2Power LED (W) 2,7Power Luminaire (W) 4System Power (W) 4Efficiency Luminaire (lm/W) 39Efficiency System (lm/W) 39Containing light source energy efficiency class (EU) 2019/2015 G
- Operation and Connection
-
Dimmable YesType of Dimming Trailing EdgeDriver Included YesDriver Model Constant CurrentDriver Type Built-inConnection (type) Quick TerminalConnection (mm2) 3x0,5-2,5Through Wiring YesPower Factor ʎ 0,98Power loss (W) 0,93Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5Constant Current (mA) 300Operating TemperatureMax. Tc (°C) 80Dimming secondary side AMInrush current (max/time) 0,98A 45µsMains surge protection DM (kV) 0,5Mains surge protection CM (kV) 1,25Fuse B10 (pcs) 26Fuse B16 (pcs) 42Fuse C10 (pcs) 44Fuse C16 (pcs) 71
- Color and material
-
Material AluminiumColor AntracitEnvironmental Assessment Byggvarubedömningen
- Measurement and installation
-

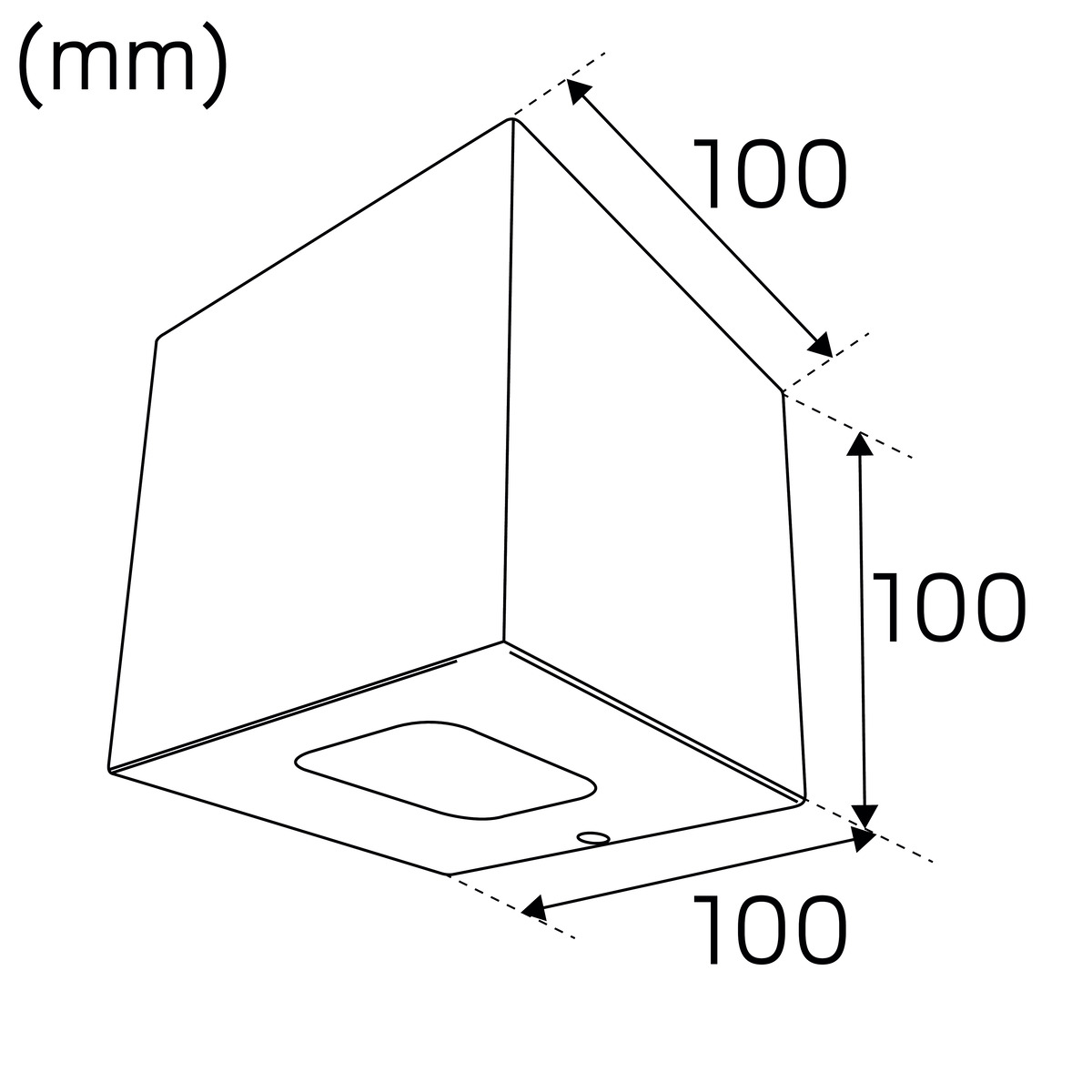

Operating EnvironmentIP Degree of Protection 65Protection Class IInstallation Surface mountedMounting Installation Screw MountingApproval Marks CEImpact Strength IK10Filament Test IEC 695-2-1(°C) 650Width (mm) 100Height (mm) 100Depth (mm) 100Weight (kg) 1,12
