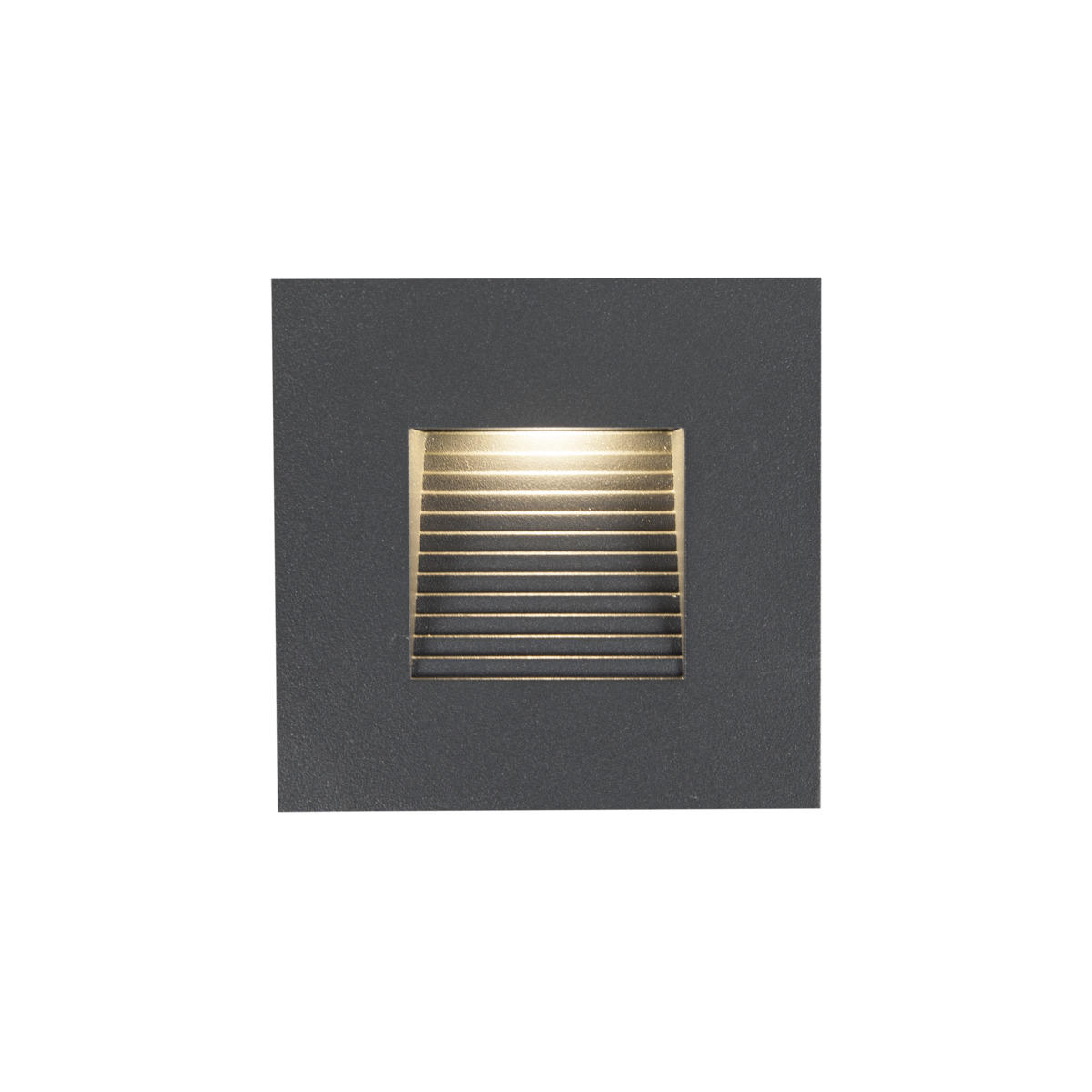

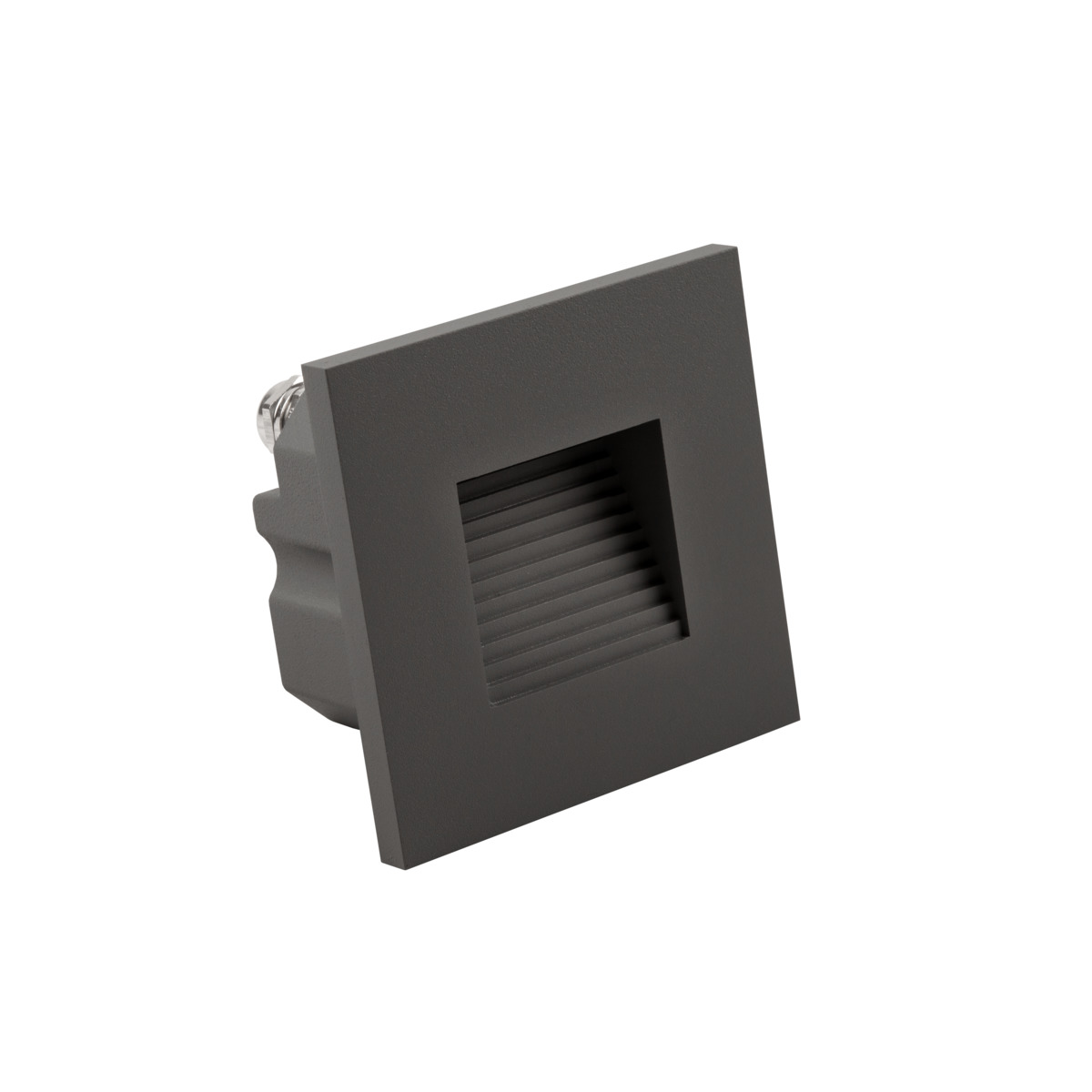

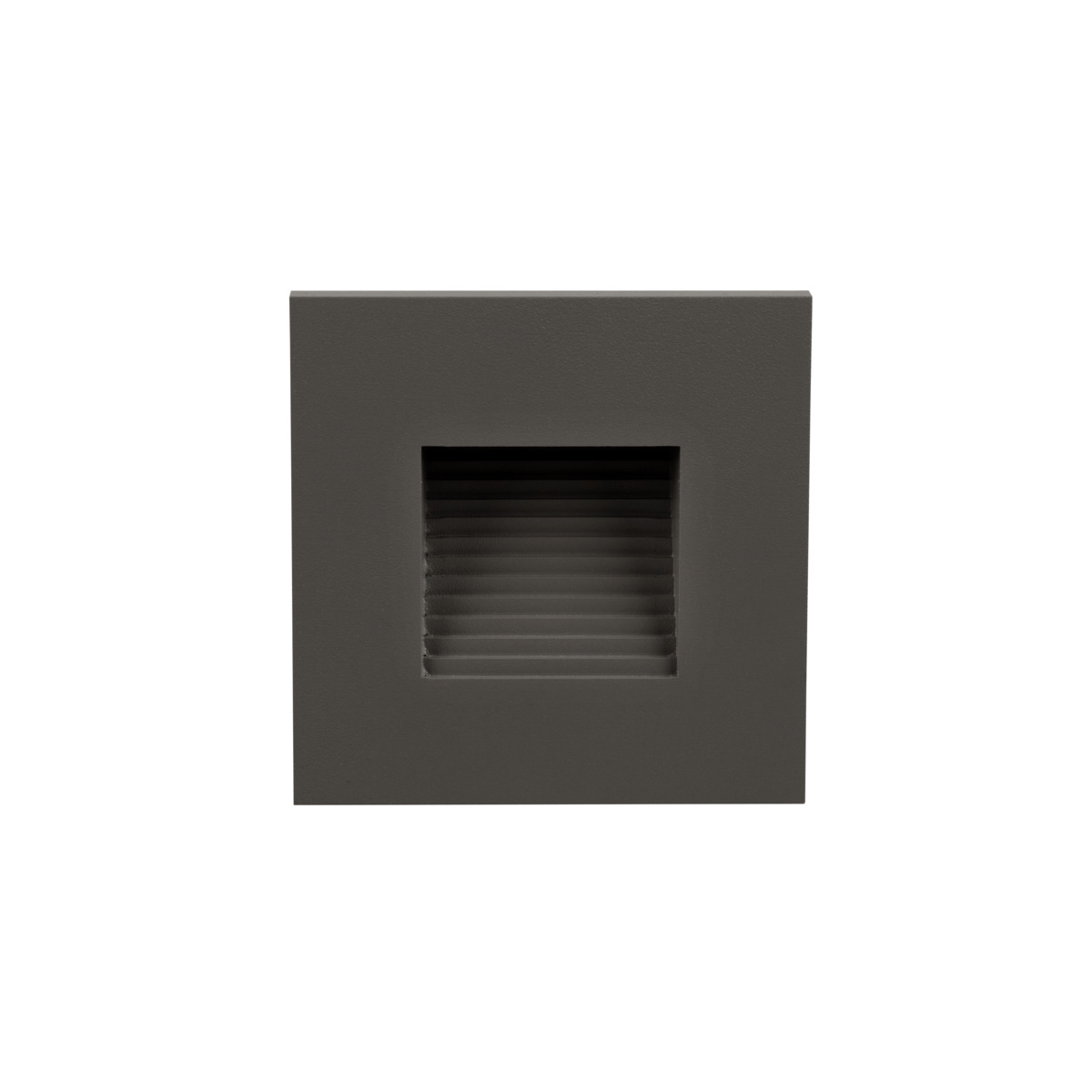

Indicate Multi

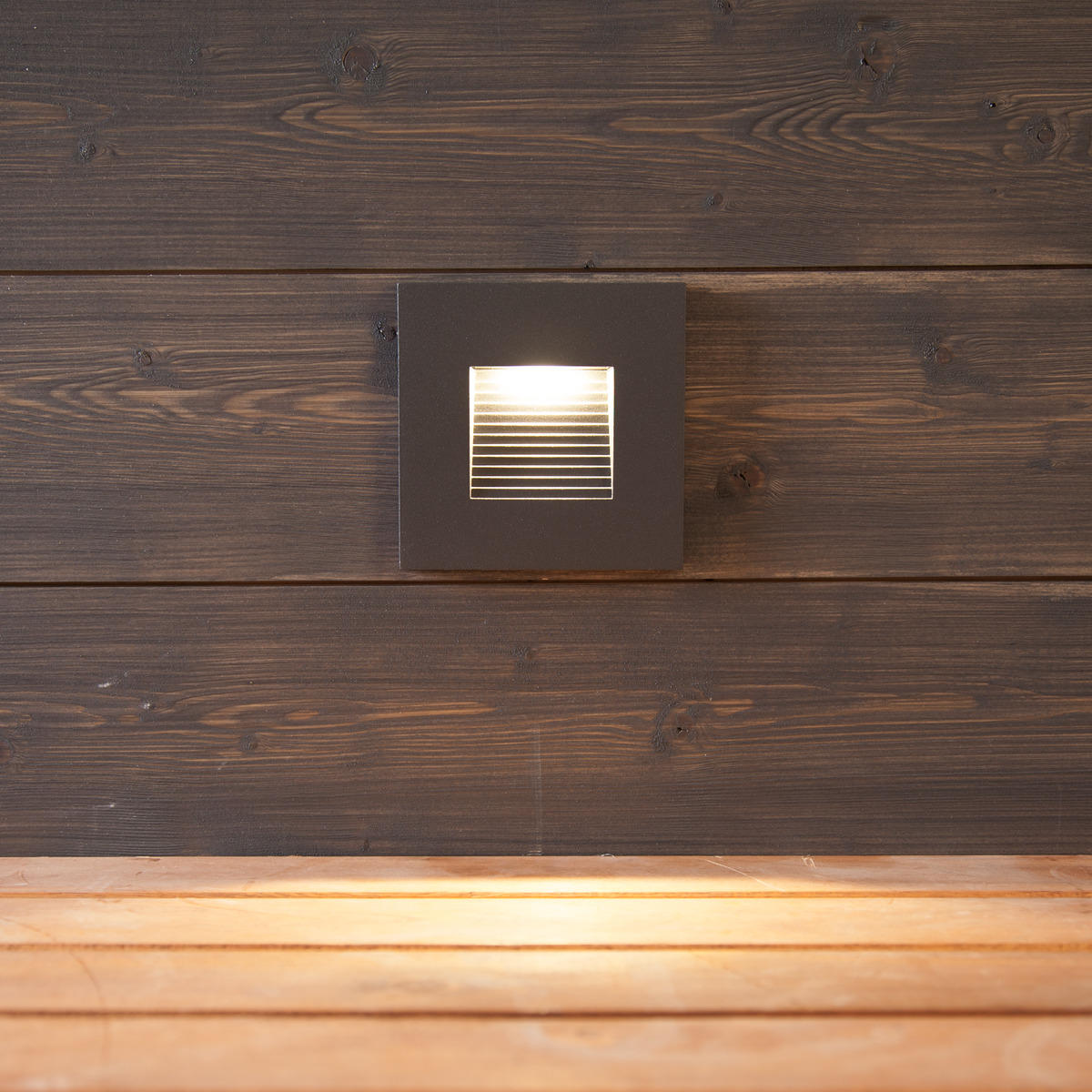

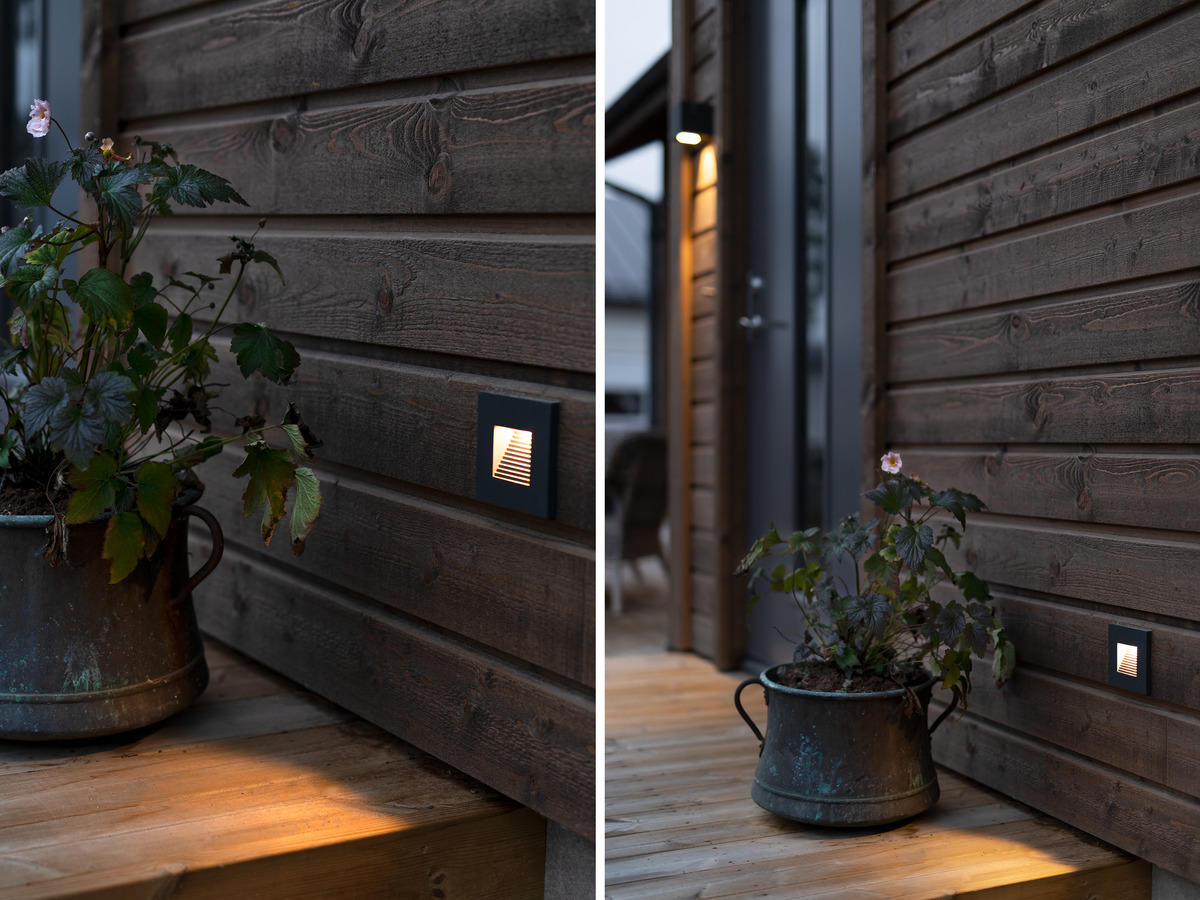

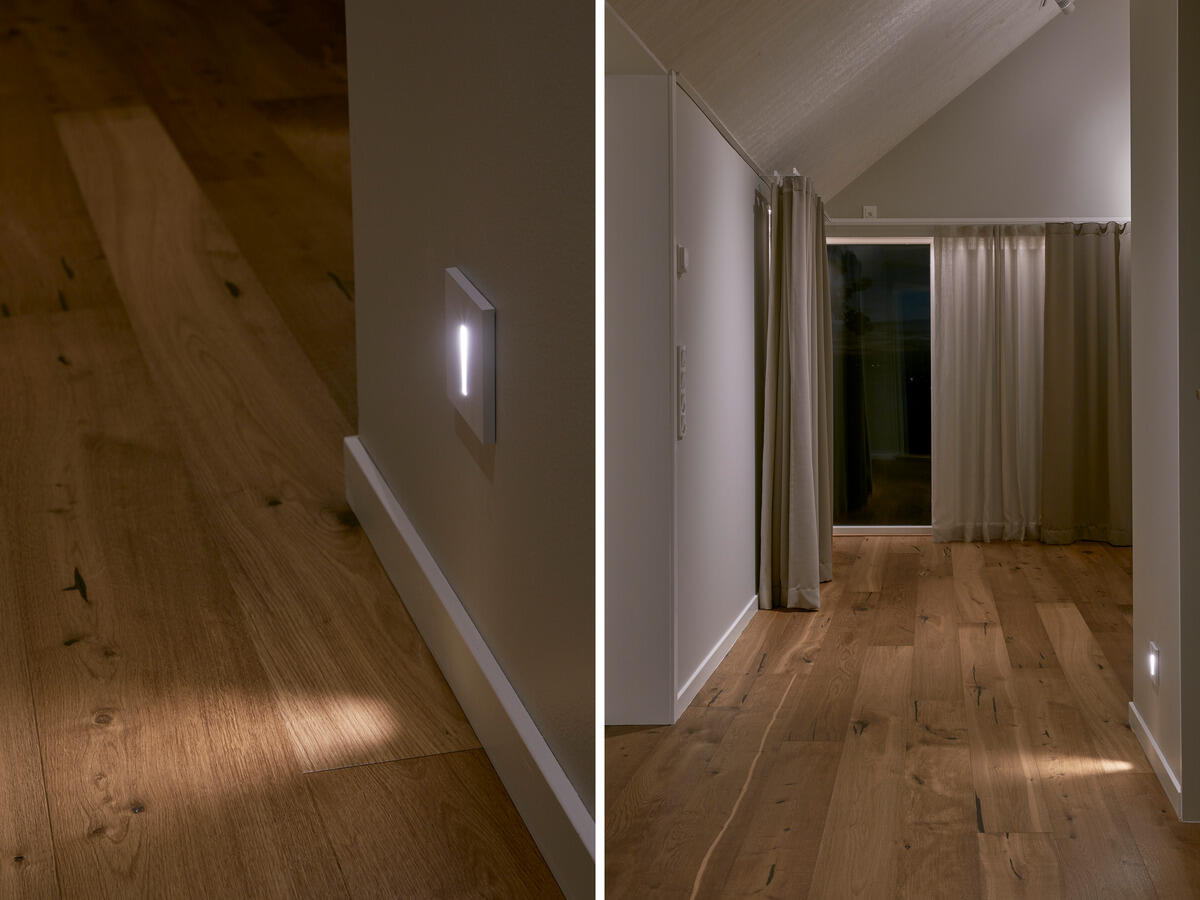

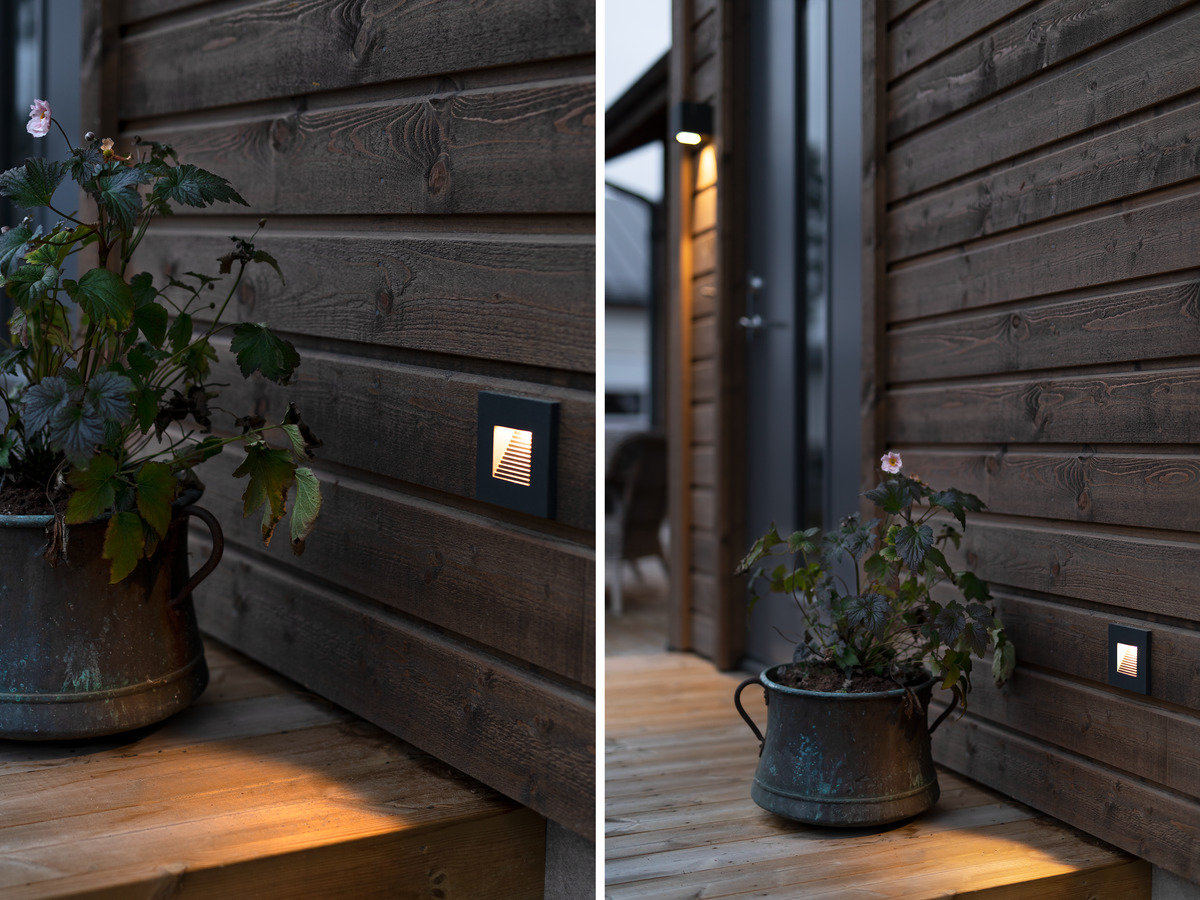

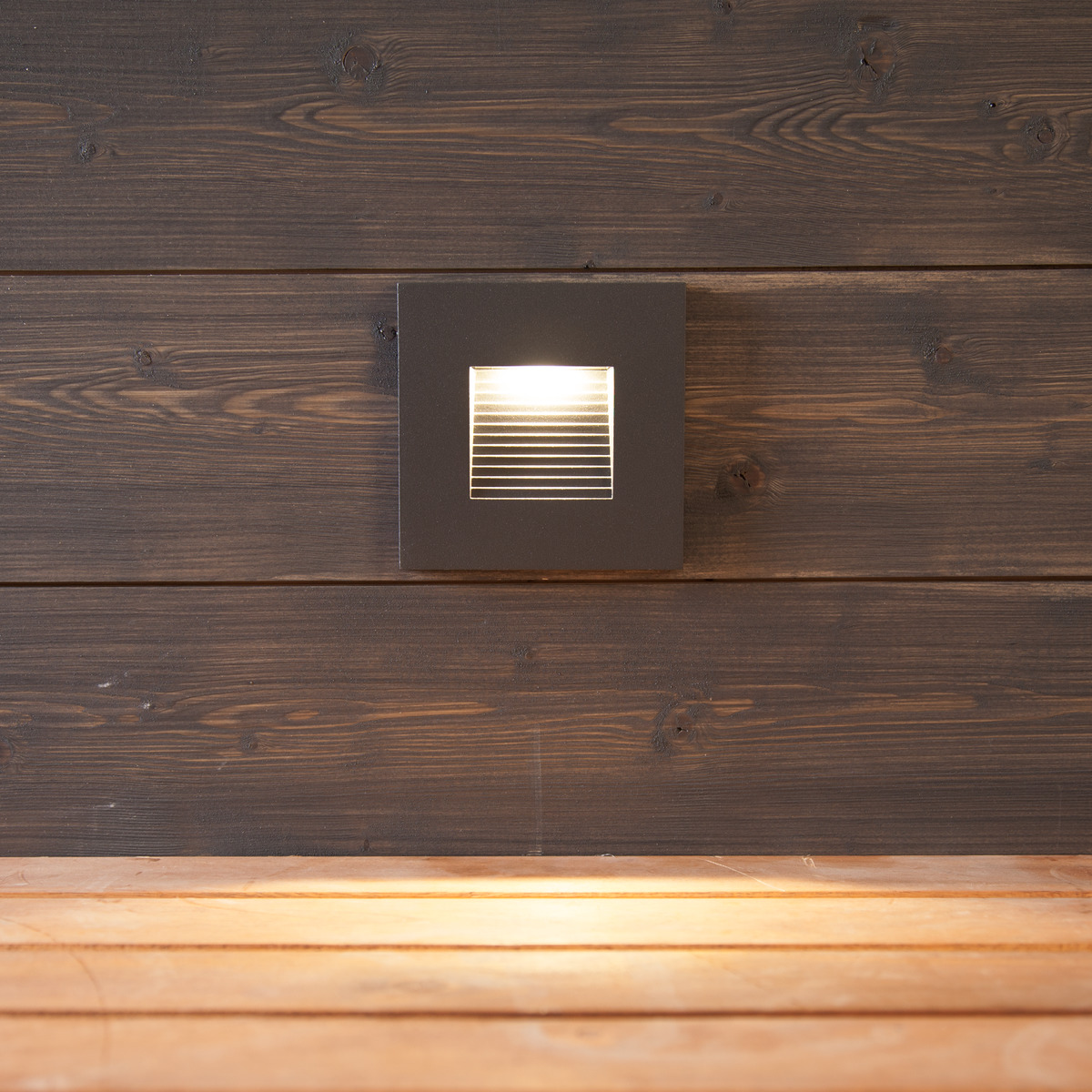

Decorative lighting with multichip technology for wall recesses with stylish design. Installed to highlight or illuminate alleys, walls or stairways. Integrated driver for direct 230V connection. Classified IP65, suitable both inside and out with 3000K for halogen character. Note! The build dimensions depend on method of installation. Please follow the user instructions. Comes with plastic mounting box.

GTIN	Item Name	Color	Luminaire Lumen (lm)
7392971127620	Indicate Multi Anthracite	Antracit	20
7392971124780	Indicate Multi White	White	35
7392971124797	Indicate Multi Grey	Grey	25

Description: GTIN 7392971127620

Item Name Indicate Multi Anthracite

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 20

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 25

Light sharing Asymmetric

Light Outlet Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 2

Power Luminaire (W) 2

System Power (W) 2

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Operating Temperature -25…+40
Color and material: Material Aluminium

Color Antracit

Environmental Assessment SundaHus
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Built-in

Mounting Installation Screw Mounting

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

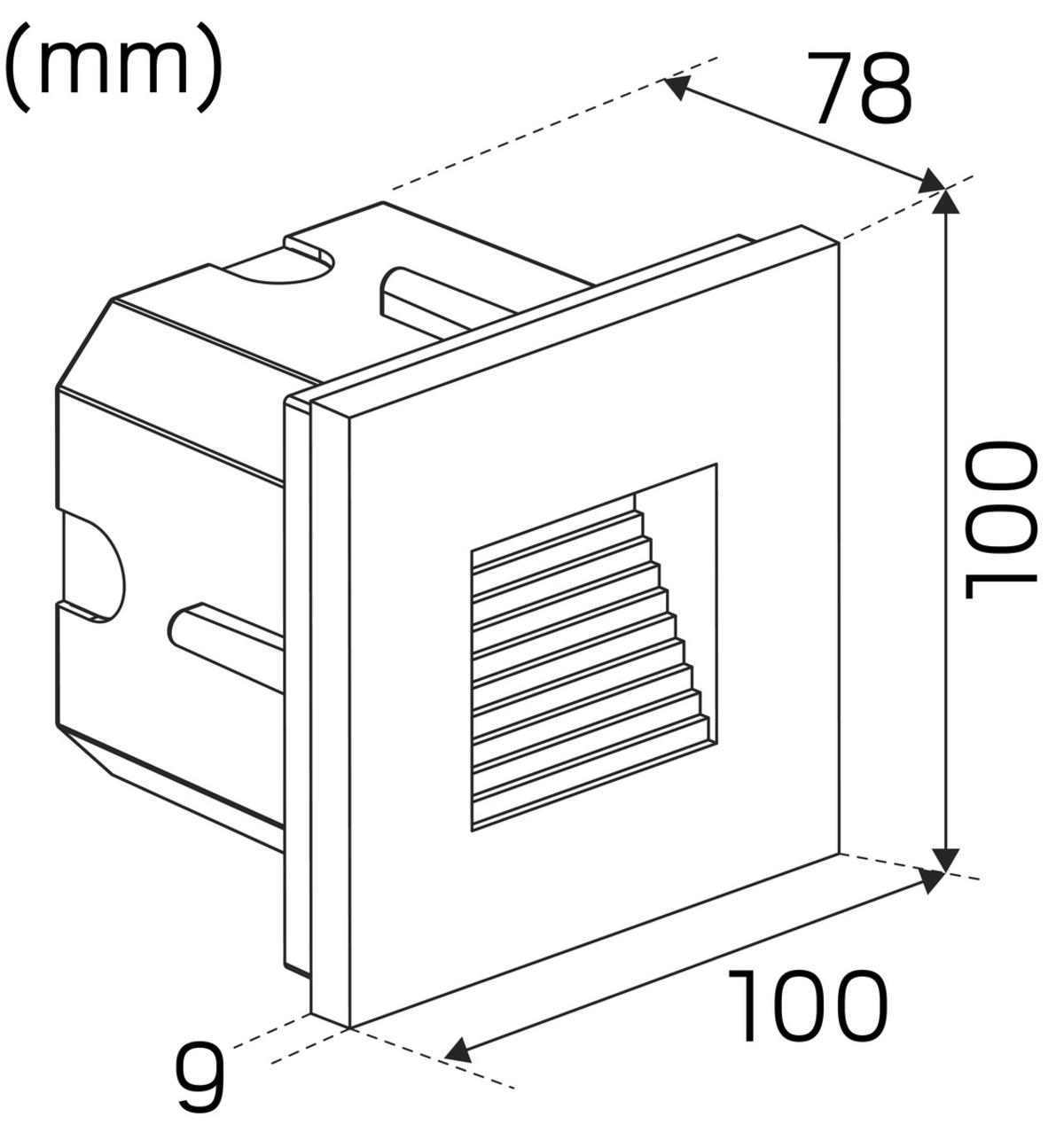

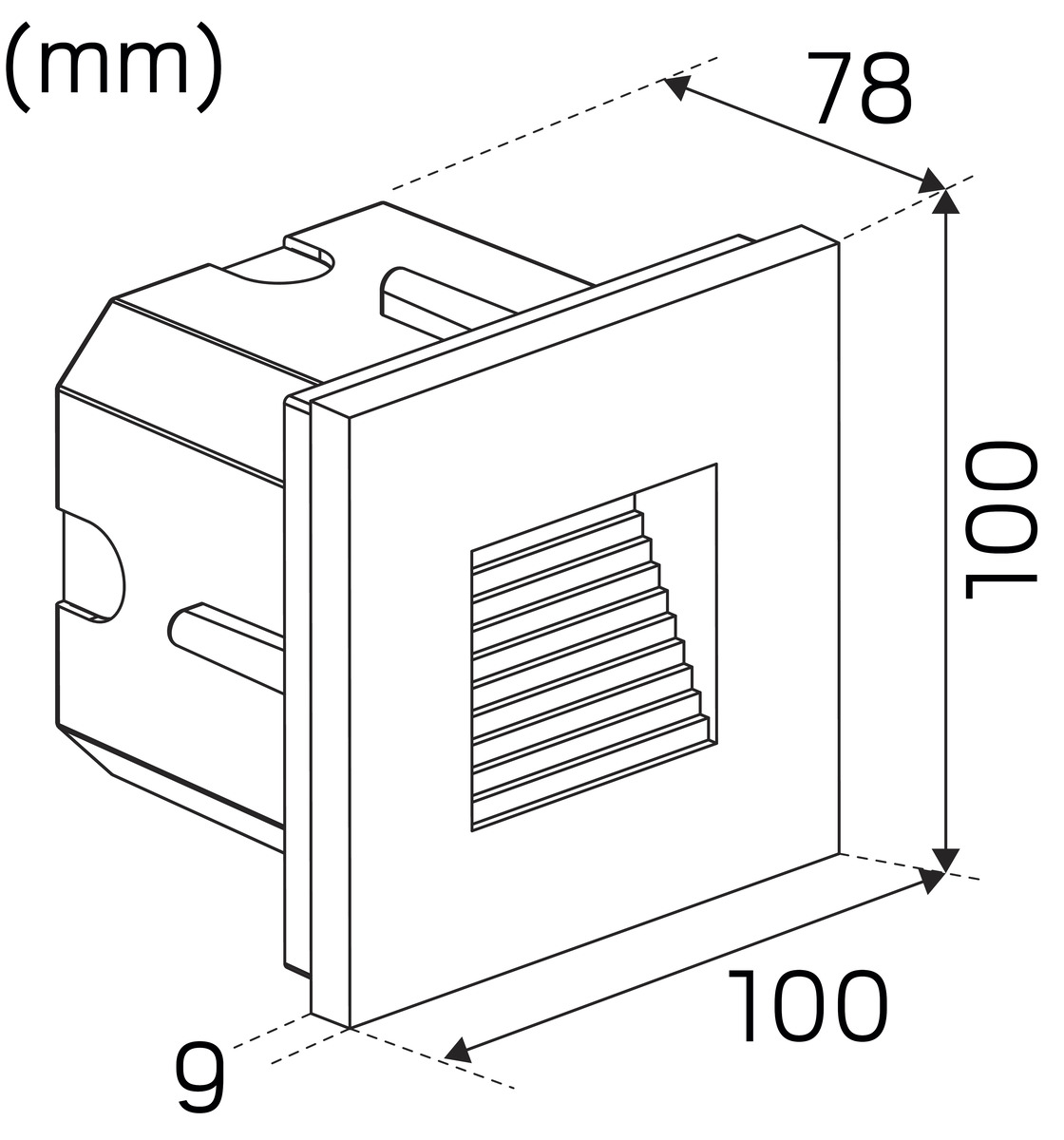

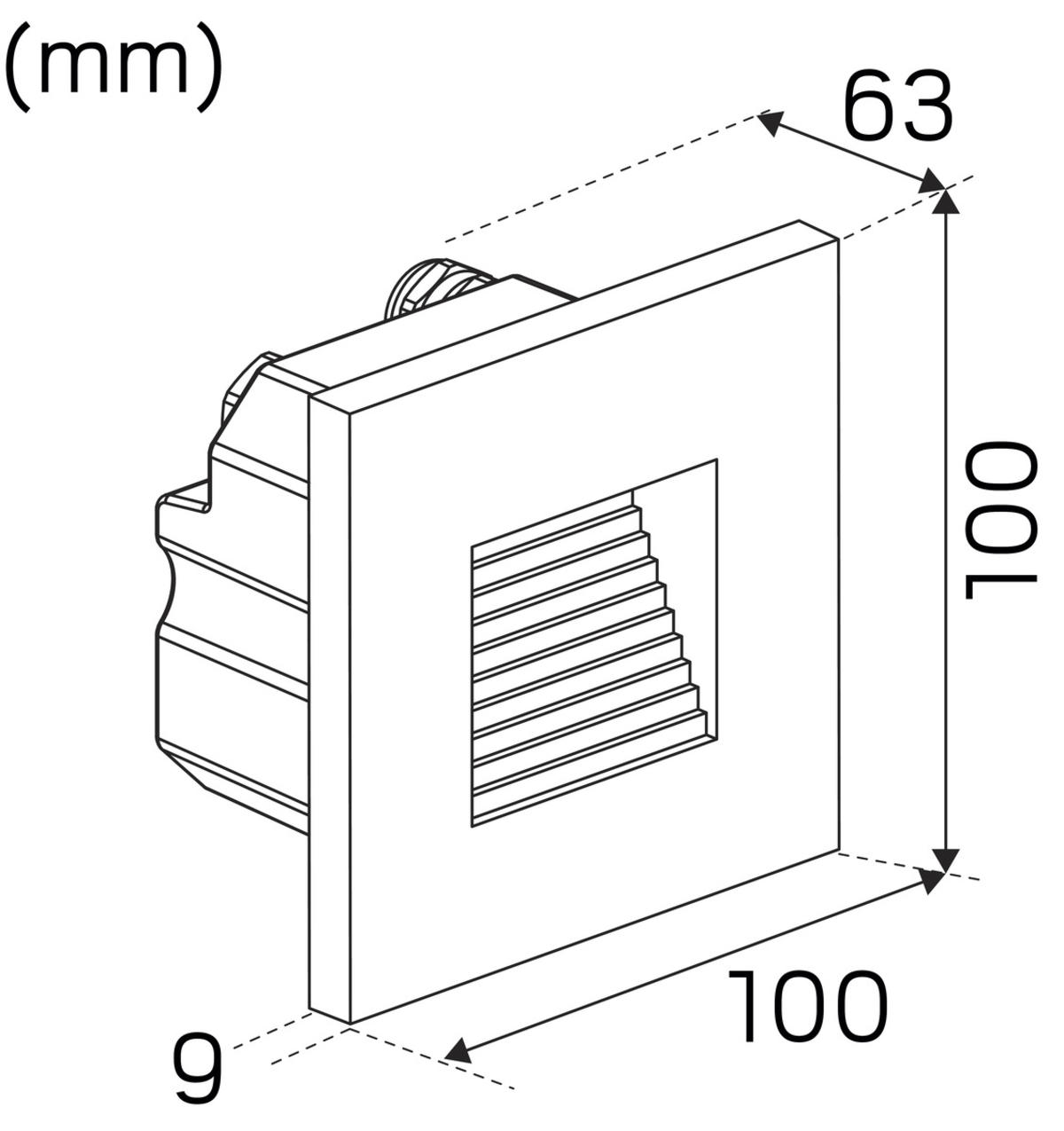

Width (mm) 100

Height (mm) 100

Depth (mm) 72

Weight (kg) 0,42

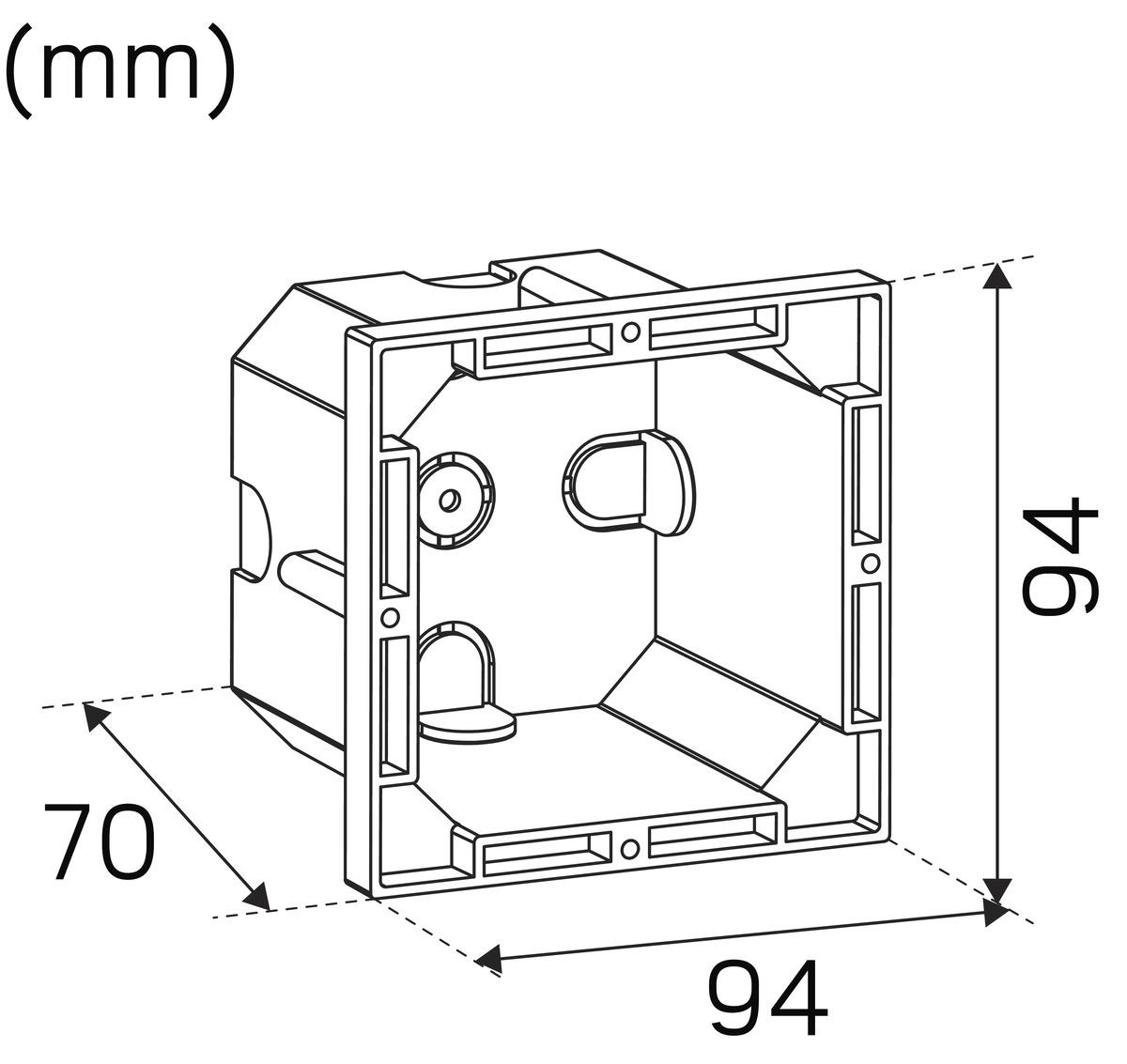

Min. Built-in (mm) 95x95x70

Height Recessed Part (mm) 63

Height Exterior Part (mm) 9

Built-in LxB (mm) 77x77
