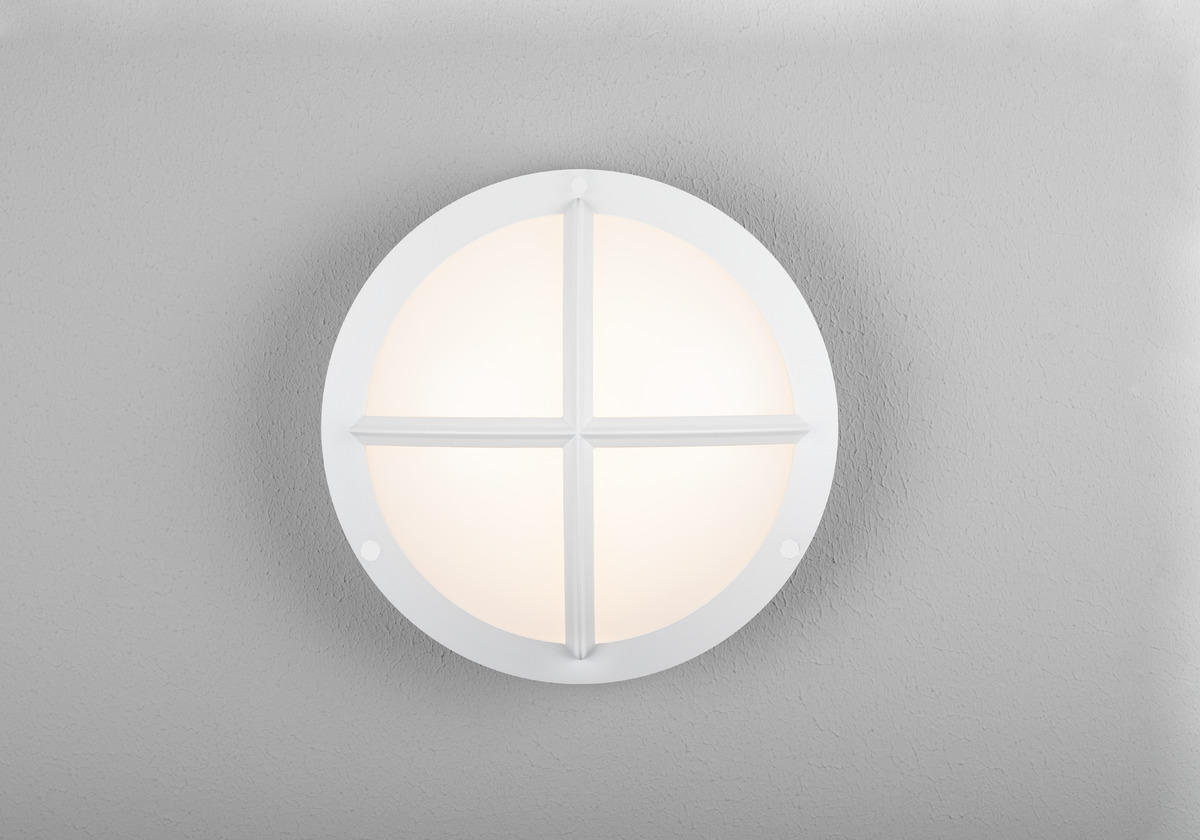

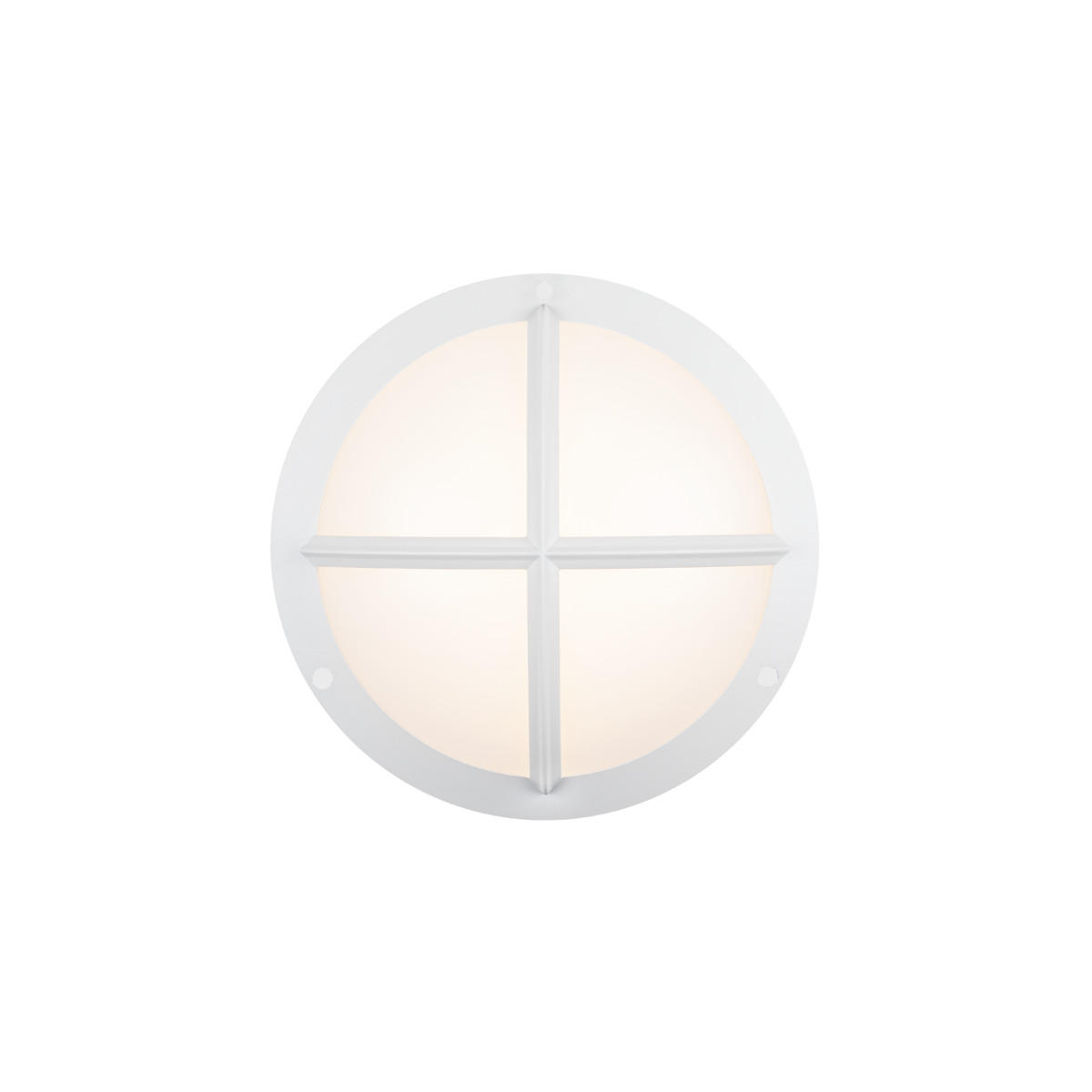

Moon Public Cross I IK10

Selectable colour temperature via DIP-Switch ColourTemp
Complete with replaceable LED module, connects directly to 230V
Diffuser of impact resistant and UV resistant polycarbonate for harsh environments (IK10)

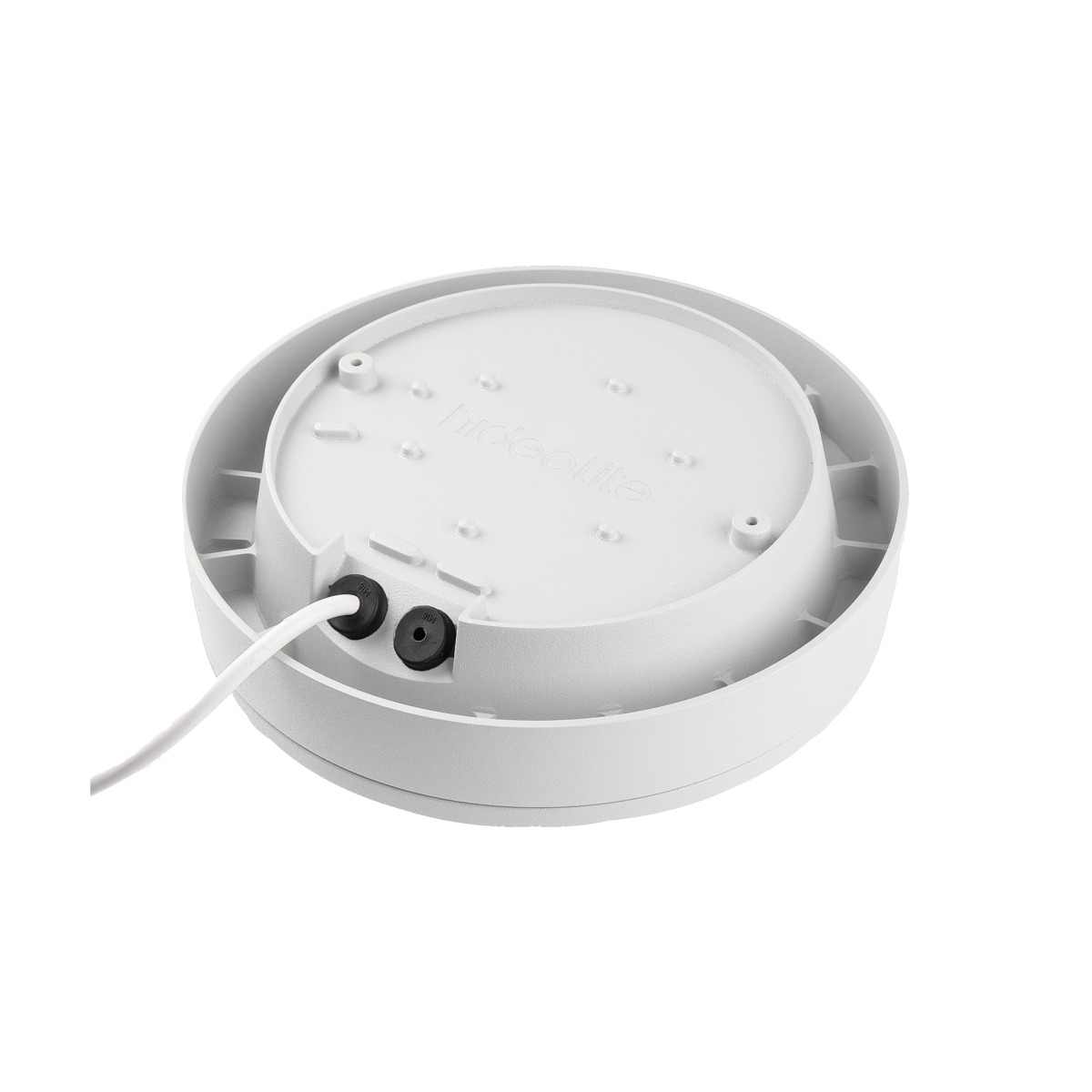

Raised rear element for surface-mounted cable routing

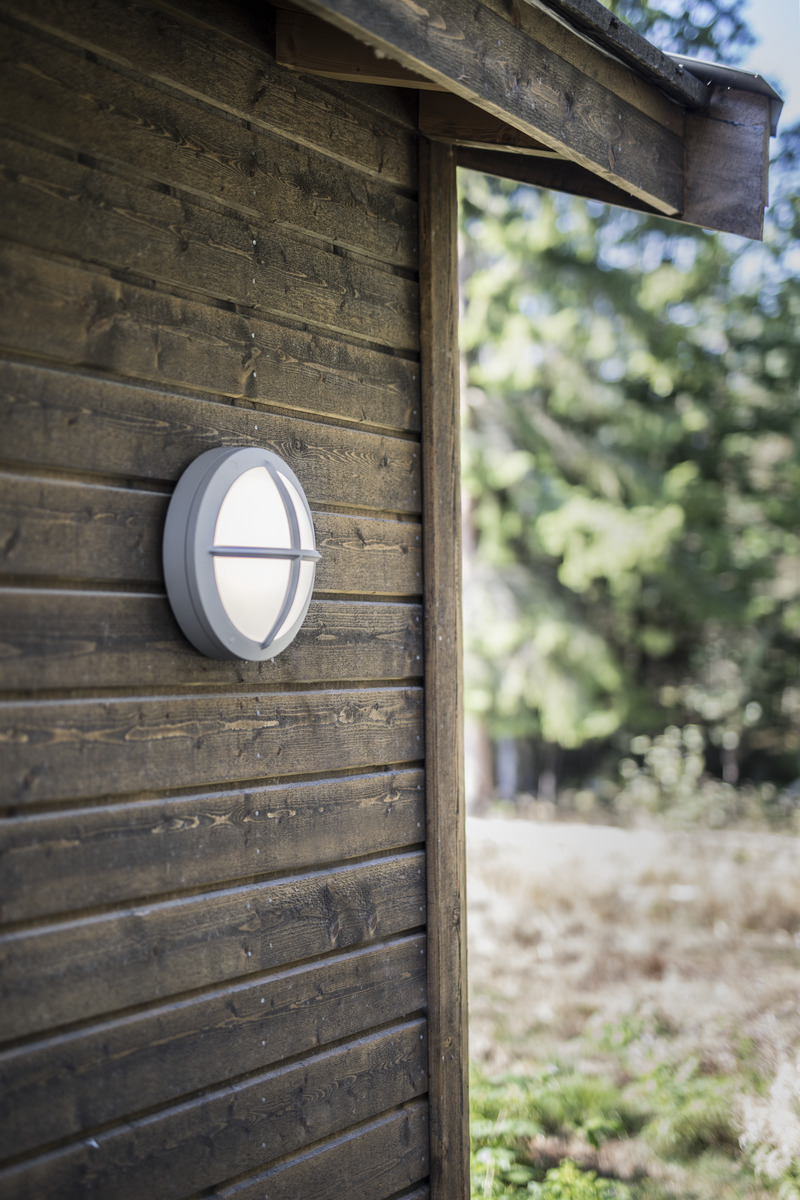

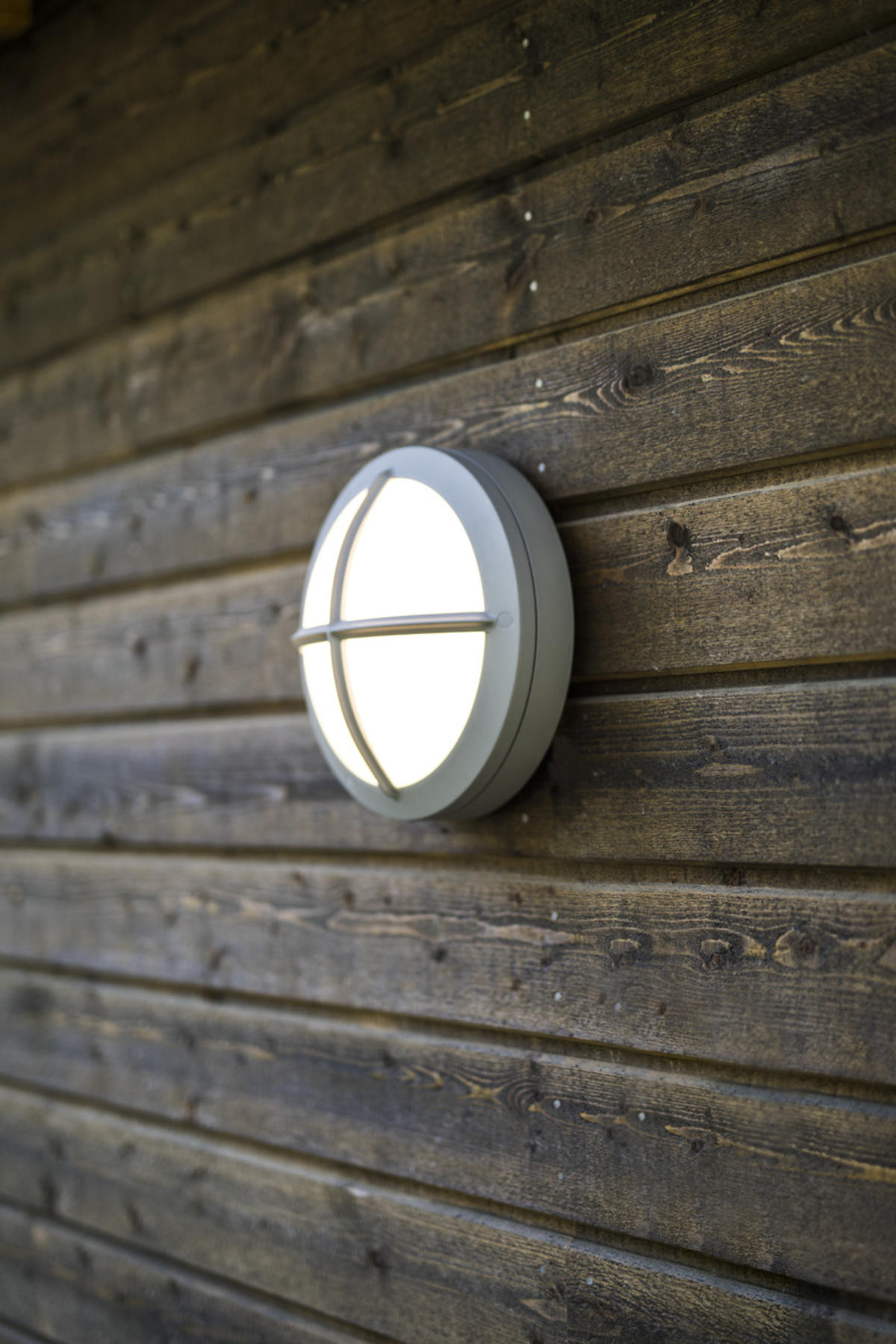

Stylish wall plafond light in IP65 model for outdoor lighting: residential areas, tunnels, pathways, in garages and industrial properties. Impact resistant UV treated polycarbonate enables this luminaire to withstand rough use (IK10). Complete with quick connection and the possibility of through wiring in the luminaire and a high rear element for surface mounted cable. Selectable colour temperature via DIP-Switch ColourTemp. Integrated and exchangeable LED module for easy installation directly to 230V and for simple maintenance.

GTIN	Item Name	Color	Luminaire Lumen (lm)
7392971134338	Moon Public Cross I IK10 White	White	1240
7392971134345	Moon Public Cross I IK10 Grey	Grey	1130
7392971134352	Moon Public Cross I IK10 Anthracite	Antracit	1080

Description: GTIN 7392971134338

Item Name Moon Public Cross I IK10 White

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1240

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 4

Luminous Intensity (cd) 370

Beam Angle (°) 110

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 60

Life Time L80 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L85

Lumen maintenance 75 000h L78

Lumen maintenance 100 000h L72

LLMF @ 50 000h 0,85

LLMF @ 100 000h 0,72

Life Time Driver 50 000h/10%
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 13

Power Luminaire (W) 16

System Power (W) 16

Efficiency Luminaire (lm/W) 78

Efficiency System (lm/W) 78

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,75-2,5

Through Wiring Yes

Strain Relief Yes

Operating Temperature -35...+45

Max. Tc (°C) 85

Fuse B10 (pcs) 43

Fuse B16 (pcs) 63

Fuse C10 (pcs) 50

Fuse C16 (pcs) 77
Color and material: Material Diecasted, Aluminium

Material Housing/Enclosure Polycarbonate

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE, a Hide-a-lite Choice

Impact Strength IK10

Filament Test IEC 695-2-1(°C) 650

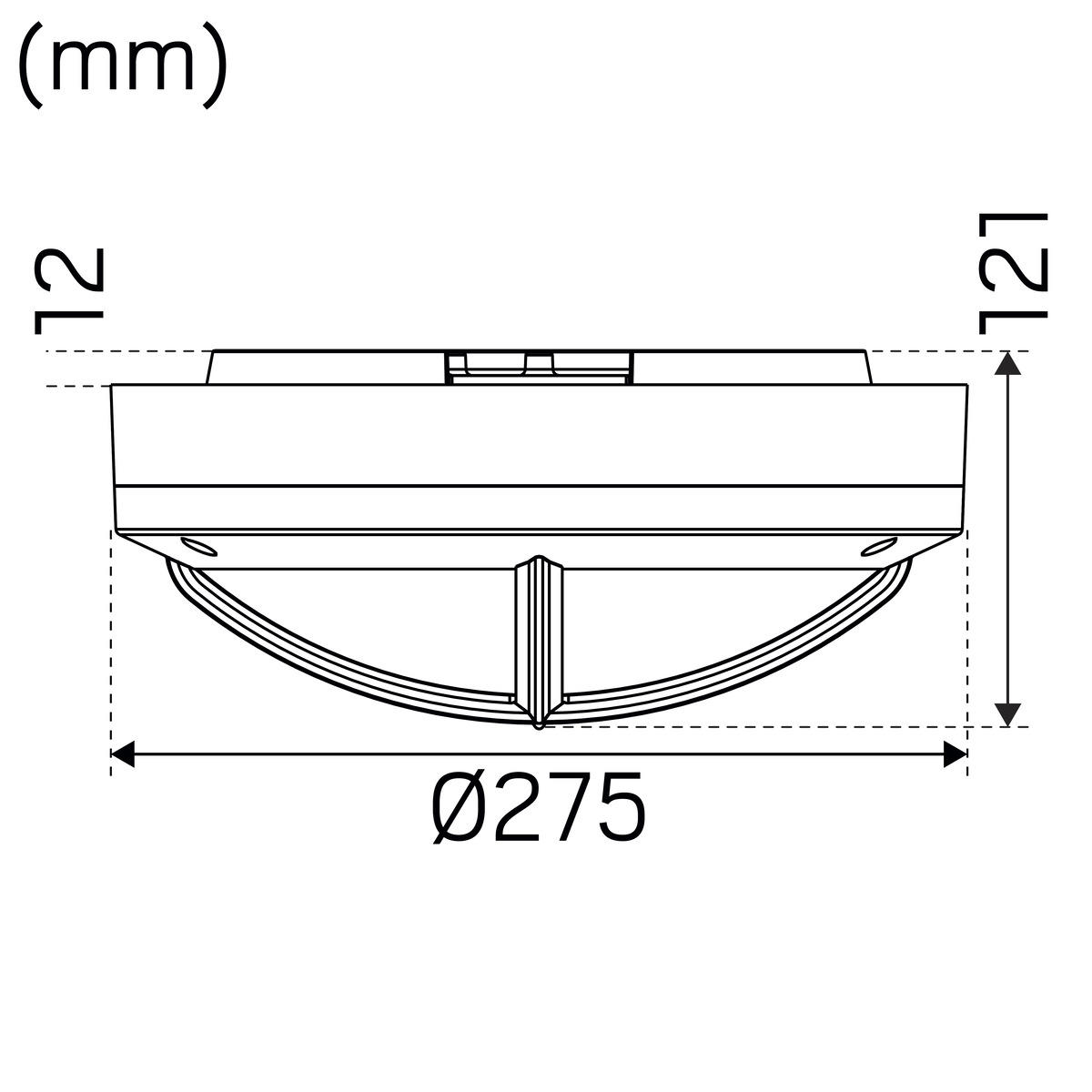

Height (mm) 121

Diameter (mm) 275

Weight (kg) 1,7
