Focus Spot Micro

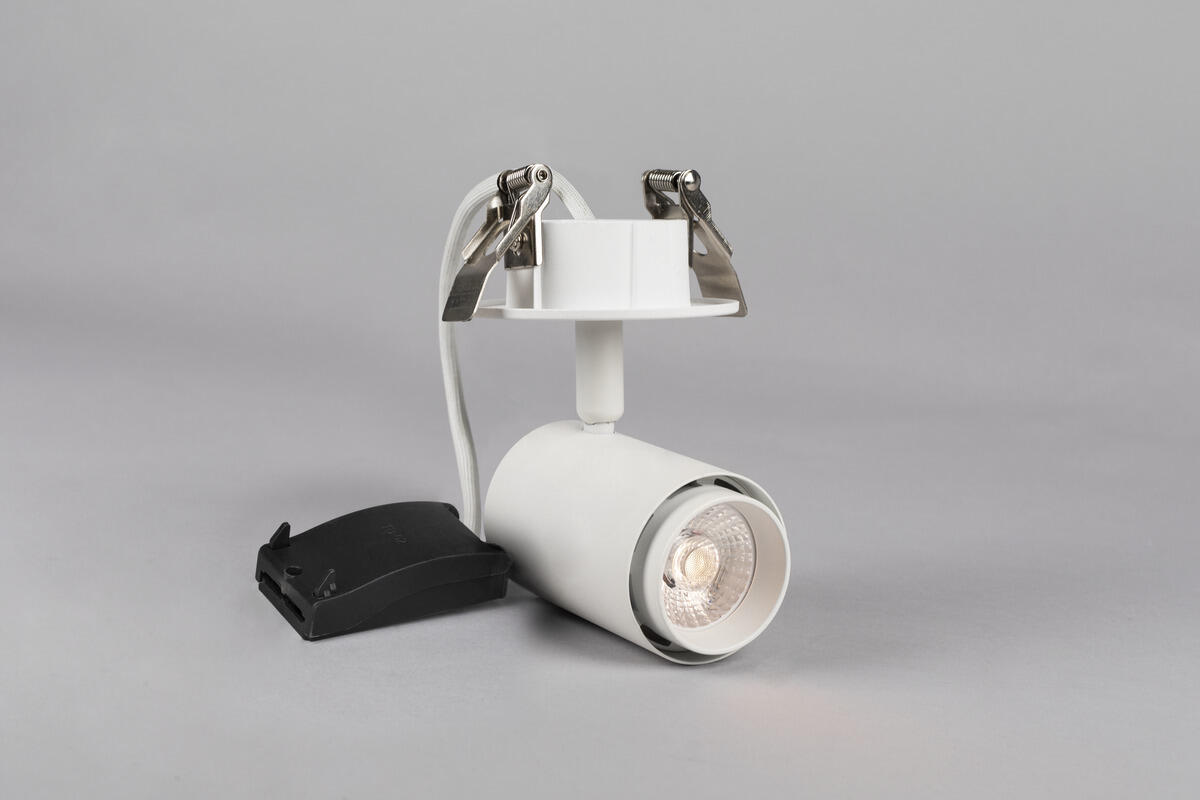

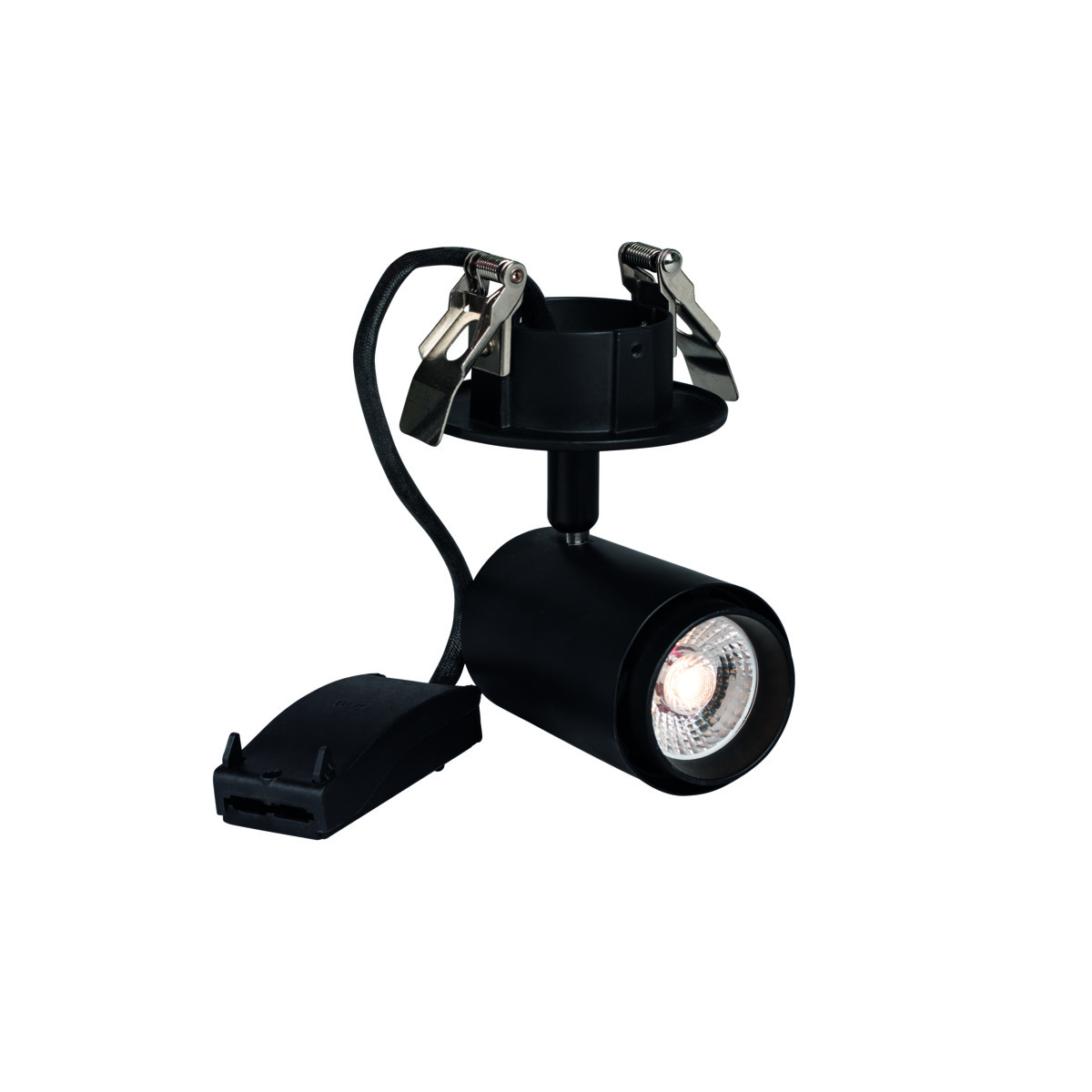

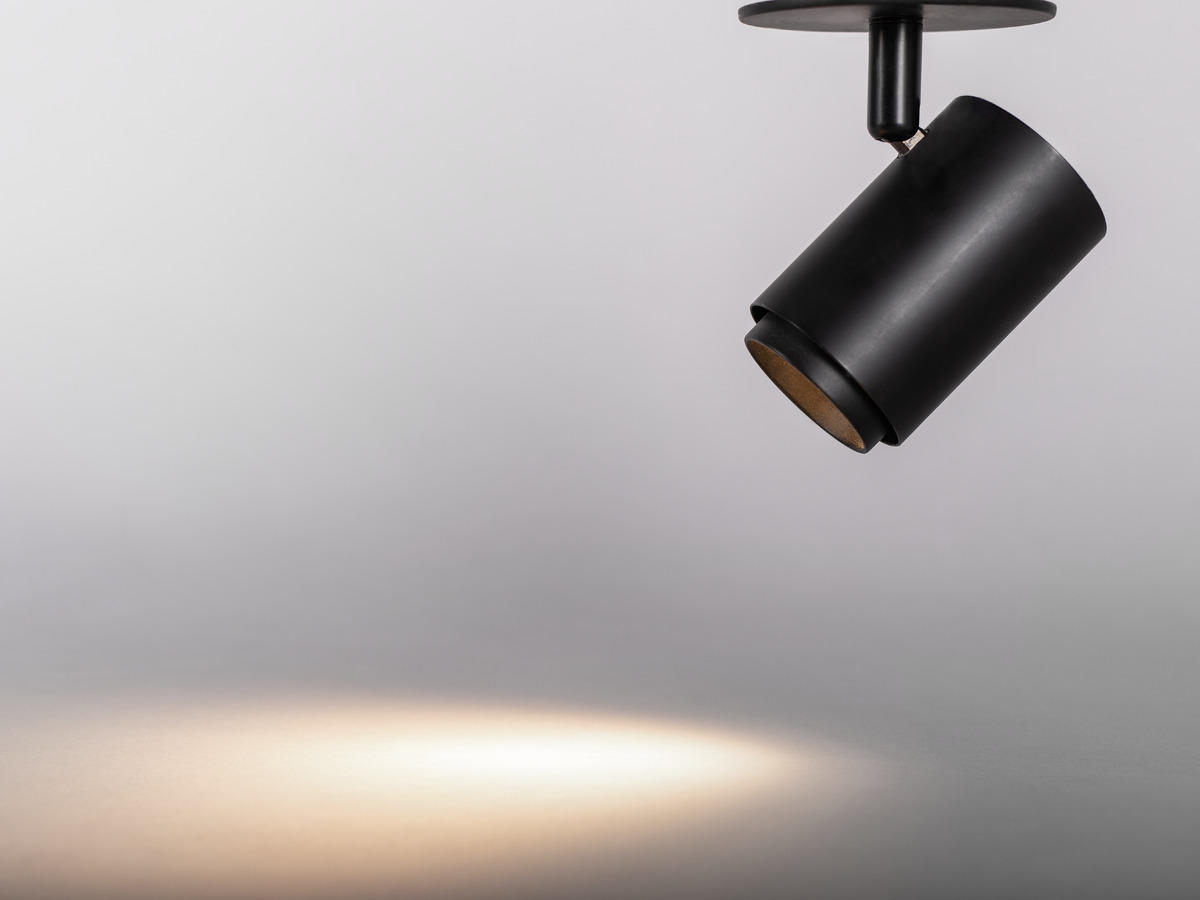

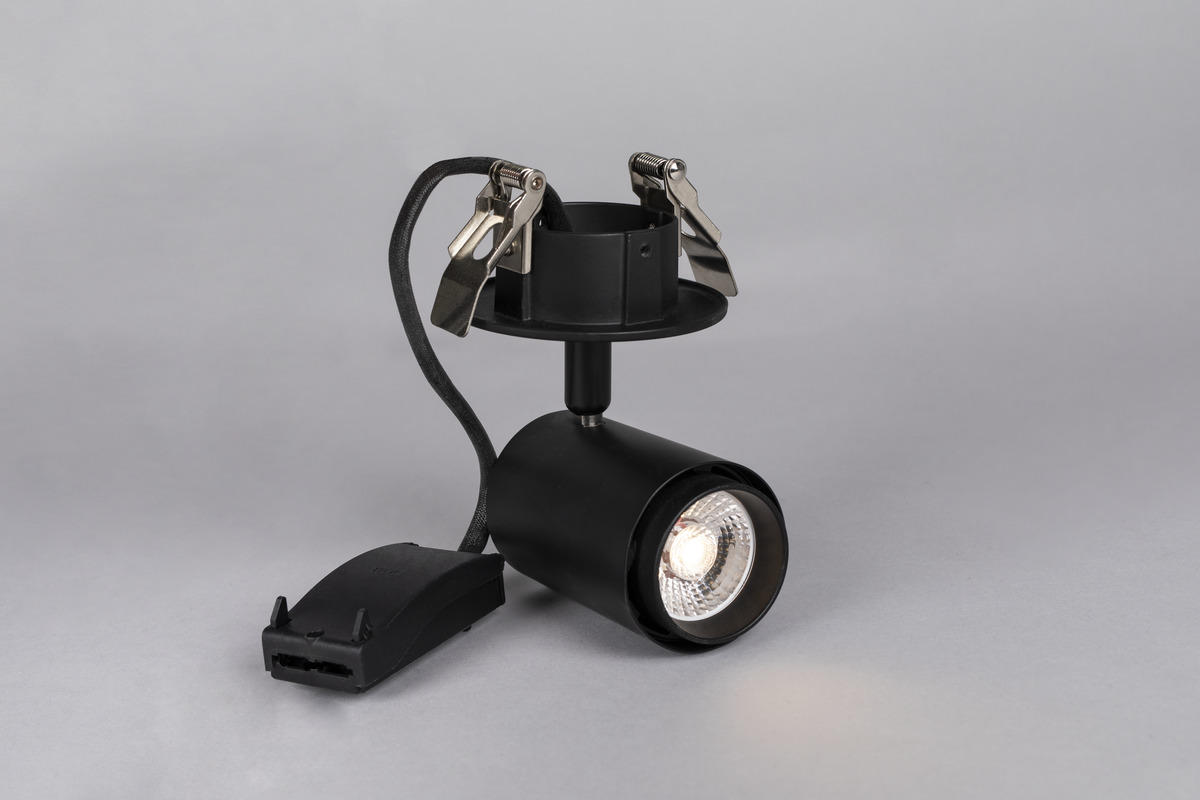

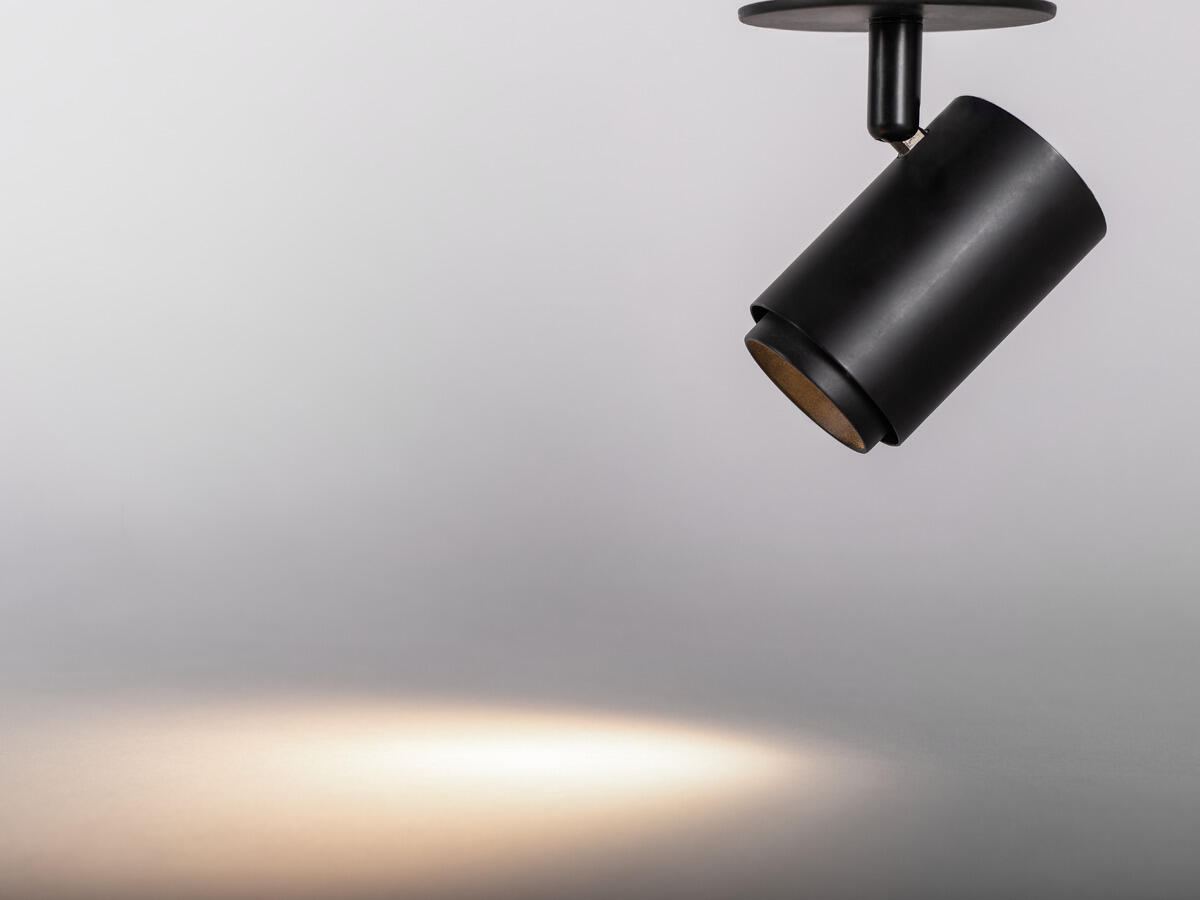

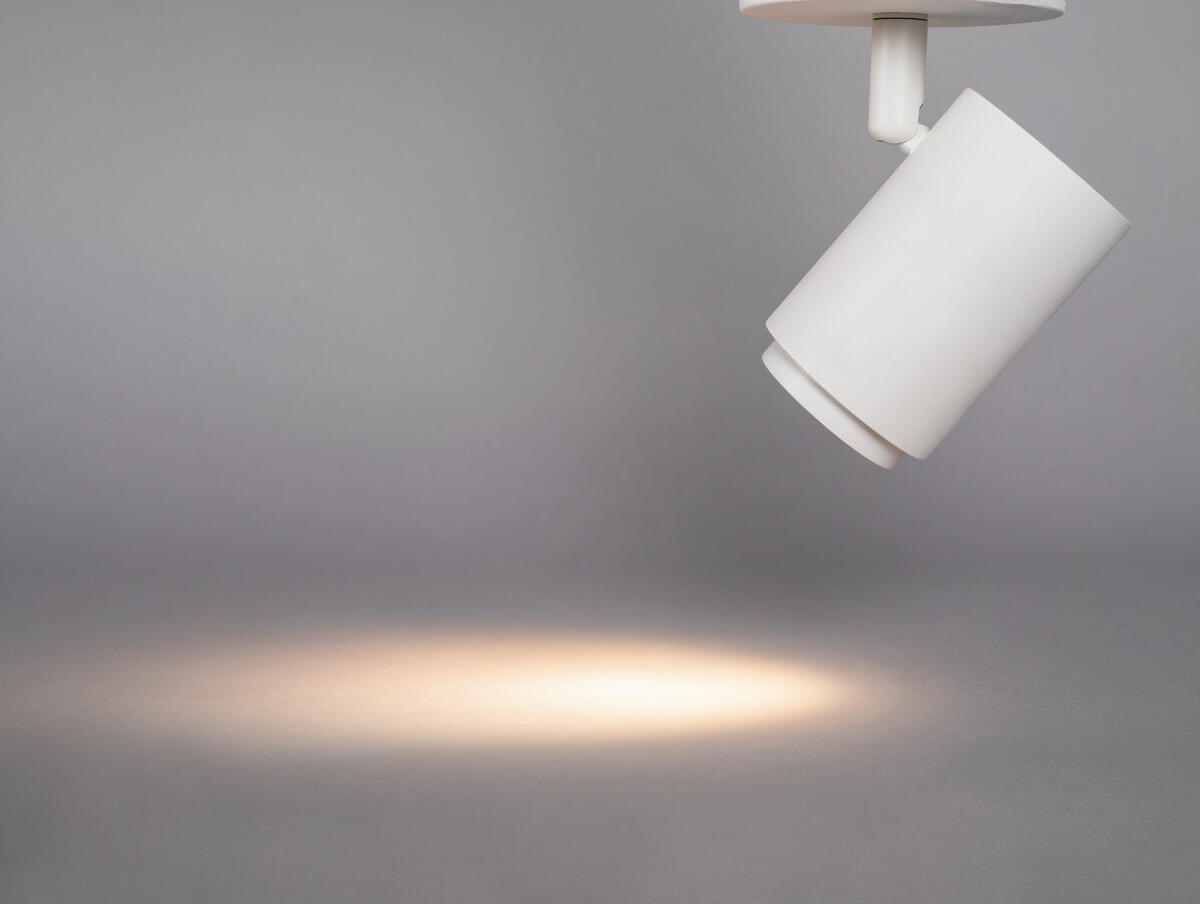

Discrete, compact and highly glare-free spotlight with fixing bracket for recessed installation. 230V luminaire with integrated phase dimmable driver. Adjustable 90° and rotatable 355° - replacing existing recessed downlights with a spotlight to better direct the light. Fits perfectly in both home and public environments, such as small premises, hotel rooms and shops. Simple installation with push-in, loop-in, loop-out terminal block in separate connection box. Accessories available to change the light distribution, screen off and increase anti-glare.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971138565	Focus Spot Micro Black Tune	Black	3000	620
7392971138534	Focus Spot Micro White Tune	White	3000	620
7392971138558	Focus Spot Micro White 3000K	White	3000	680
7392971138572	Focus Spot Micro Black 2700K	Black	2700	630

Description: GTIN 7392971138565

Item Name Focus Spot Micro Black Tune

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 620

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour Tune

Colour Temperature (K) 3000

Range Colour Temperature (K) Tune 2000-3000

Colour Rendering Index (Ra) >95

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1280

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L91

Lumen maintenance 75 000h L86

Lumen maintenance 100 000h L82

LLMF @ 50 000h 0,91

LLMF @ 100 000h 0,82

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,065

Stroboscopic effect (SVM) 0,323
Technical data: Adjustable Yes

Tiltable (°) 90

Rotatable (°) 350

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 8,5

Power Luminaire (W) 10

System Power (W) 10

Efficiency Luminaire (lm/W) 62

Efficiency System (lm/W) 62

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Length Connection (cm) 25

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 80

Standby Power 1

Operating Temperature -20…+40

Max. Tc (°C) 85

Protection Against Short Circuit, Overload

Fuse B10 (pcs) 40

Fuse B16 (pcs) 64

Fuse C10 (pcs) 67

Fuse C16 (pcs) 107
Color and material: Material Aluminium

Color Black
Measurement and installation: Operating Environment Indoor / damp locations

IP Degree of Protection 21

Protection Class I

Installation Ceiling, Built-in

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 3-30

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

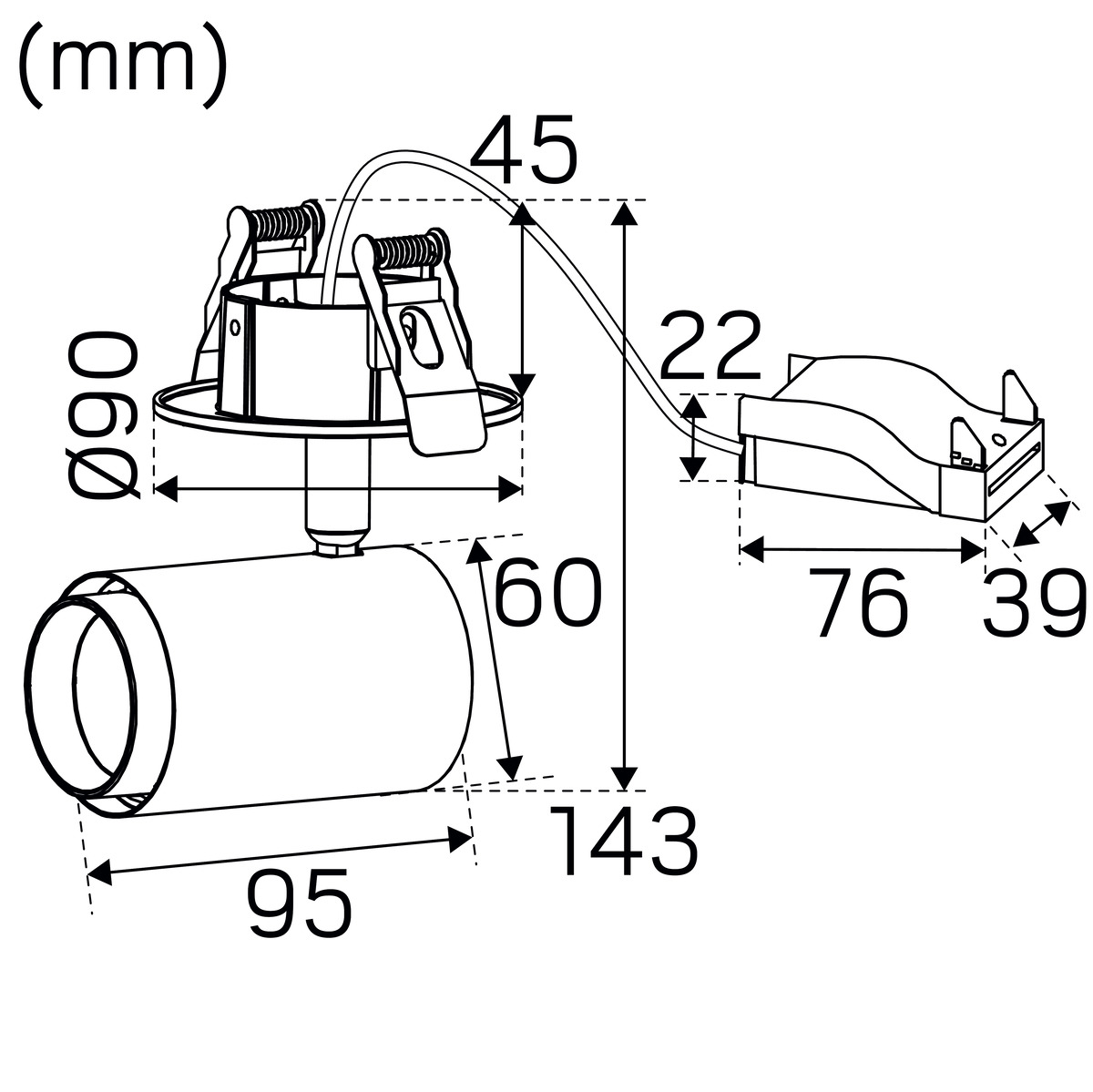

Length (mm) 95

Width (mm) 90

Height (mm) 143

Diameter (mm) 60

Weight (kg) 0,44

Height Recessed Part (mm) 45

Height Exterior Part (mm) 98

Built-in Ø (mm) 70-85

Optic Spot

Discrete, compact and highly glare-free spotlight with fixing bracket for recessed installation in ceilings. 230V luminaire with integrated dimmable driver. Replaceable LED and driver – built for the future Adjustable 90° and rotatable 355° – when installing the luminaire in a sloping ceiling, it is easier to direct the light towards specific areas, such as walls or pictures, which gives a better result than with recessed downlights. Using the DIP-Switch colour temp function, colour temperature is easily adjusted with the touch of a button on the back of the luminaire. Our luminaire with reflector technology is optimised to create a highly glare-free and sharp light distribution that directs the light on whatever you want to highlight. For improved glare reduction, the Honeycomb accessory can be added to the luminaire. You can easily replace the reflector with a lens accessory to adjust the light distribution as needed.

Focus Track Micro Kit

Stylish and compact anti-glare luminaire with integrated mains dimmable driver. The latest LED technology and Comfort Lens provides superb light quality with high luminous comfort. Focus Track Micro 1-phase is an excellent fit for the home and for public environments, such as smaller premises, hotel rooms and shops. The kit comprises three luminaires together with 1 m 1-phase track, including connector, straight connector and end cap.

Focus Track GU10

Stylish tracklight luminaire for 1-phase LiteTrac. Fits perfectly in both home and public environments, for example small premises, hotel rooms and shops; you can choose and replace light sources yourself. Honeycomb baffle are available as accessories to change the appearance and decrease glare. Also available as a kit. Compatible with our LiteTrac system; can be extended or changed as needed.

Focus Spot Micro

Focus Spot Micro Black Tune

Accessories

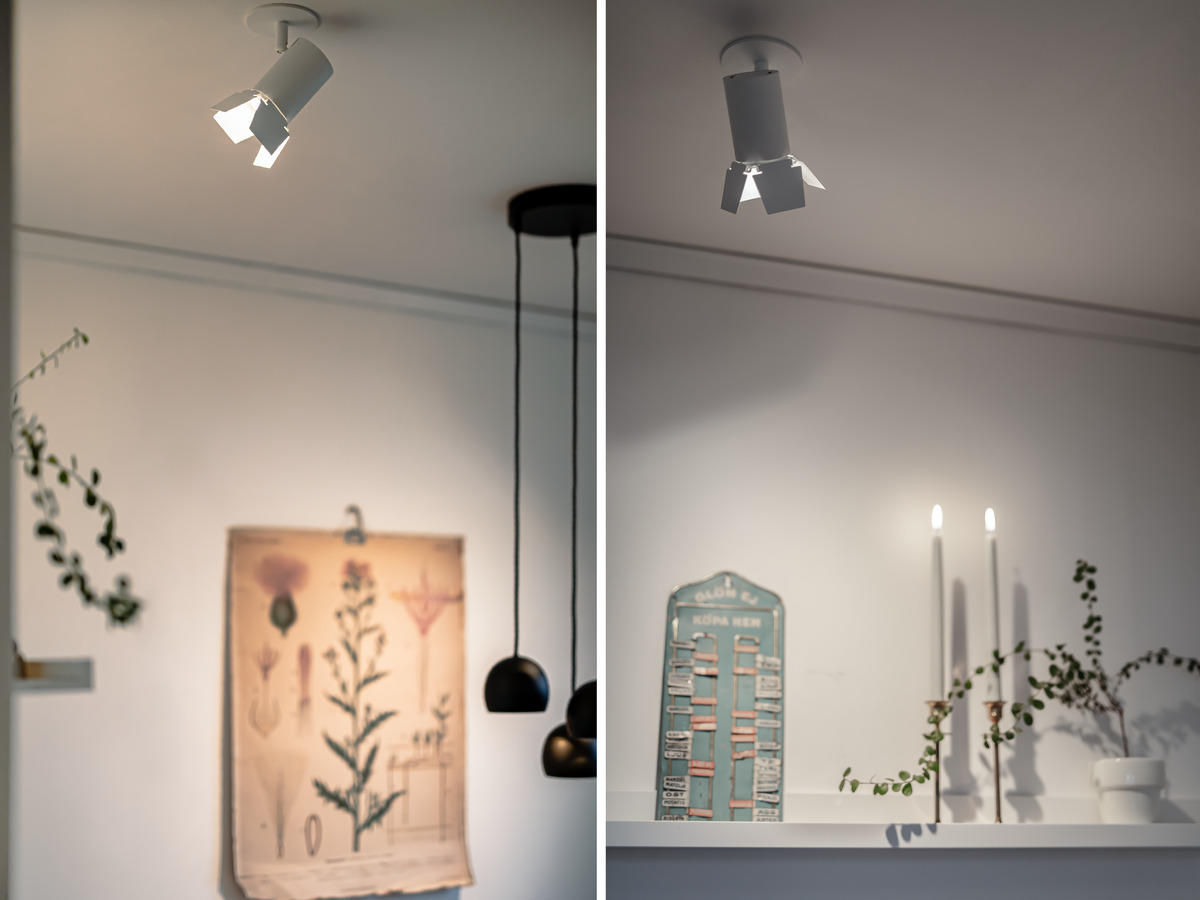

Barndoors Focus 49mm White
