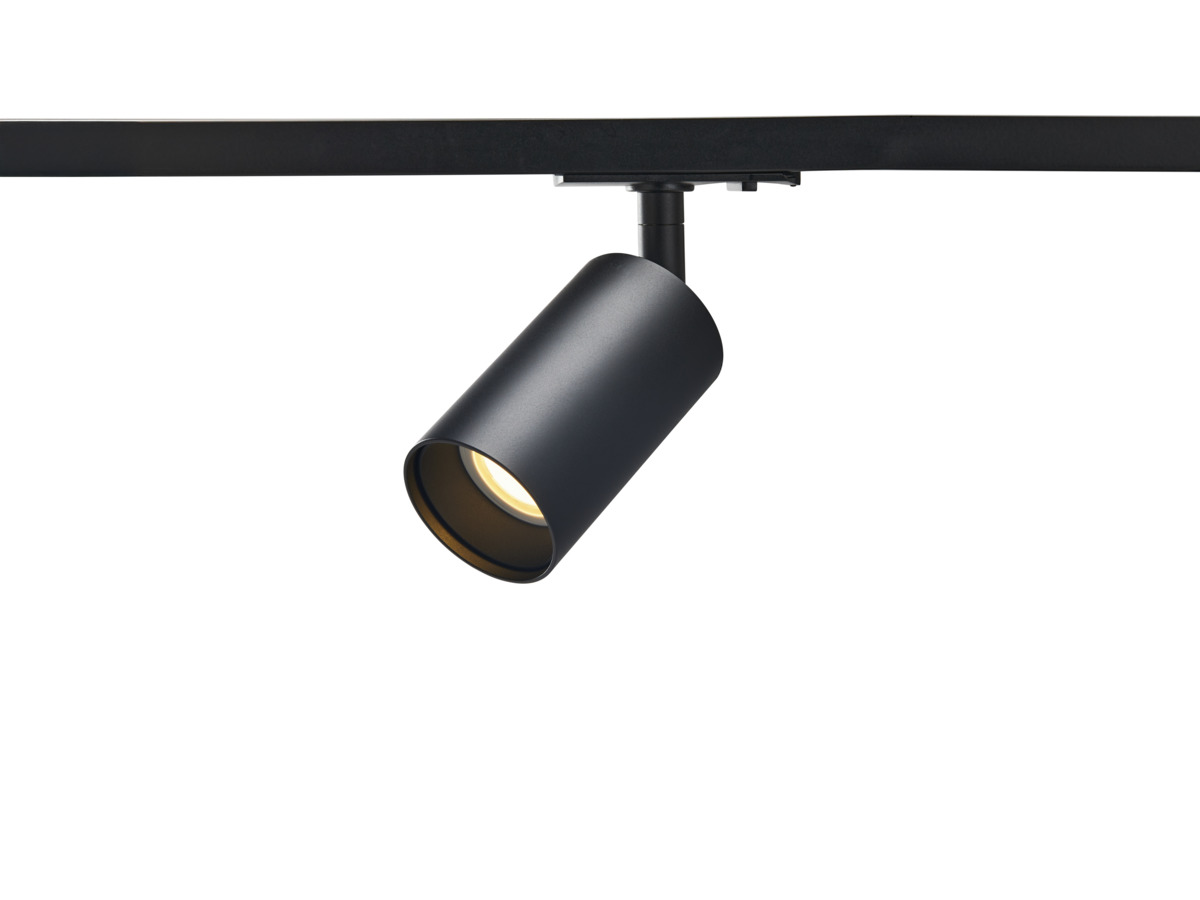

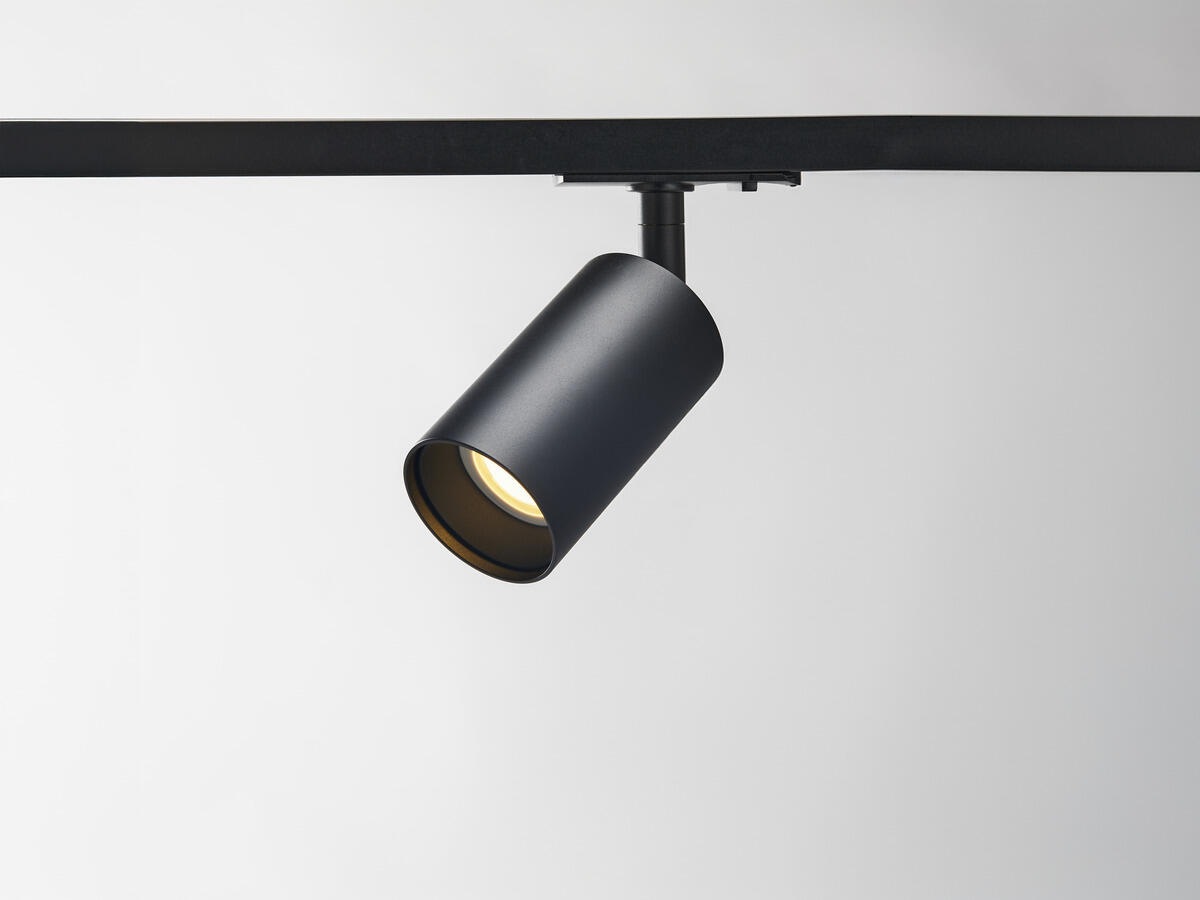

Focus Track GU10 Focus Track GU10 1-phase Black

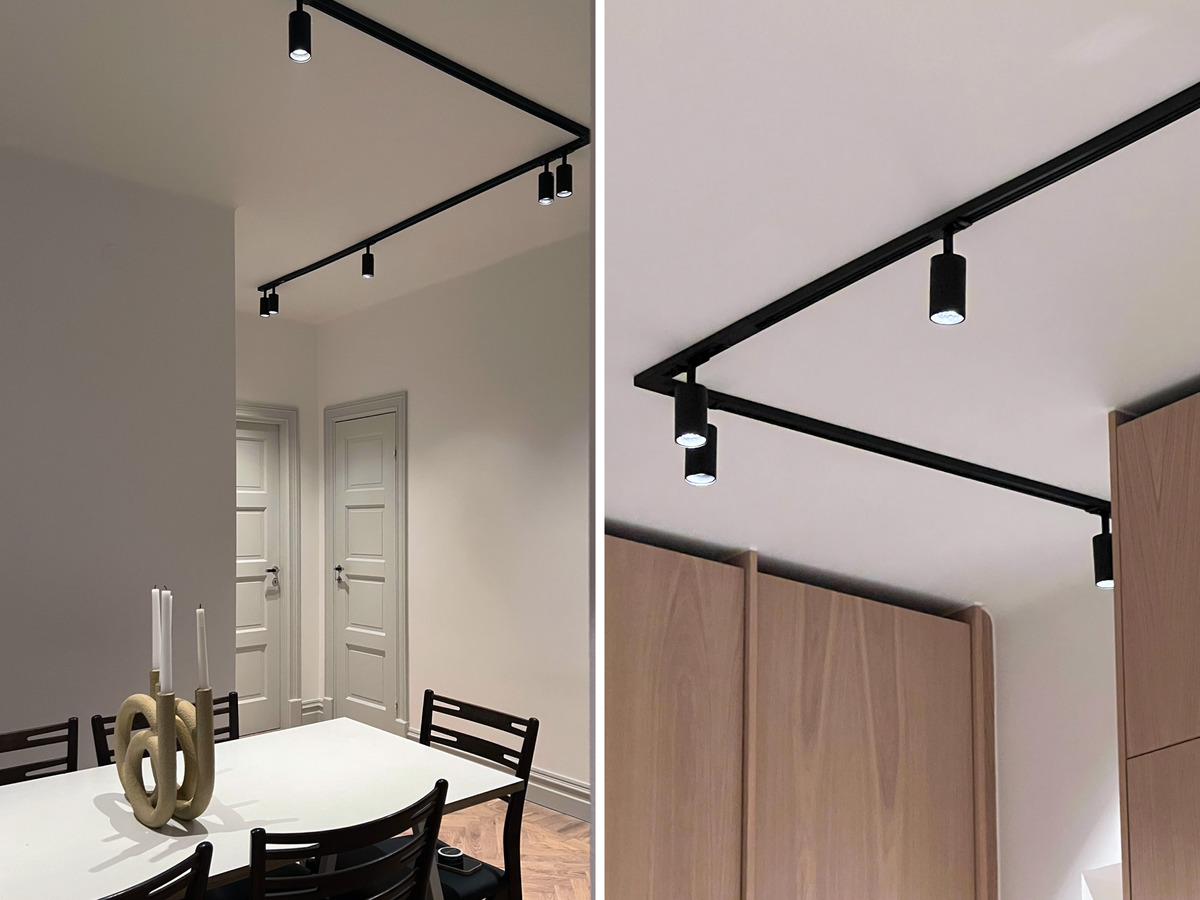

Stylish tracklight luminaire for 1-phase LiteTrac. Fits perfectly in both home and public environments, for example small premises, hotel rooms and shops; you can choose and replace light sources yourself. Honeycomb baffle are available as accessories to change the appearance and decrease glare. Also available as a kit. Compatible with our LiteTrac system; can be extended or changed as needed.

Variants	GTIN	Item Name	Color
	7392971141466	Focus Track GU10 1-phase Black	Black
	7392971141459	Focus Track GU10 1-phase Vit	White

Description: GTIN 7392971141466

Item Name Focus Track GU10 1-phase Black

Warranty 5 years
Light Technical Data: Lamp Holder (type) GU10
Technical data: Adjustable Yes

Tiltable (°) 90

Rotatable (°) 350

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230
Operation and Connection: Dimmable Yes

Connection (type) 1-phase adapter

Power Interval for Catalogue (W) 35

Operating Temperature -20…+45
Color and material: Material Aluminium

Color Black
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Surface mounted

Mounting Installation 1-phase Adapter

Approval Marks CE

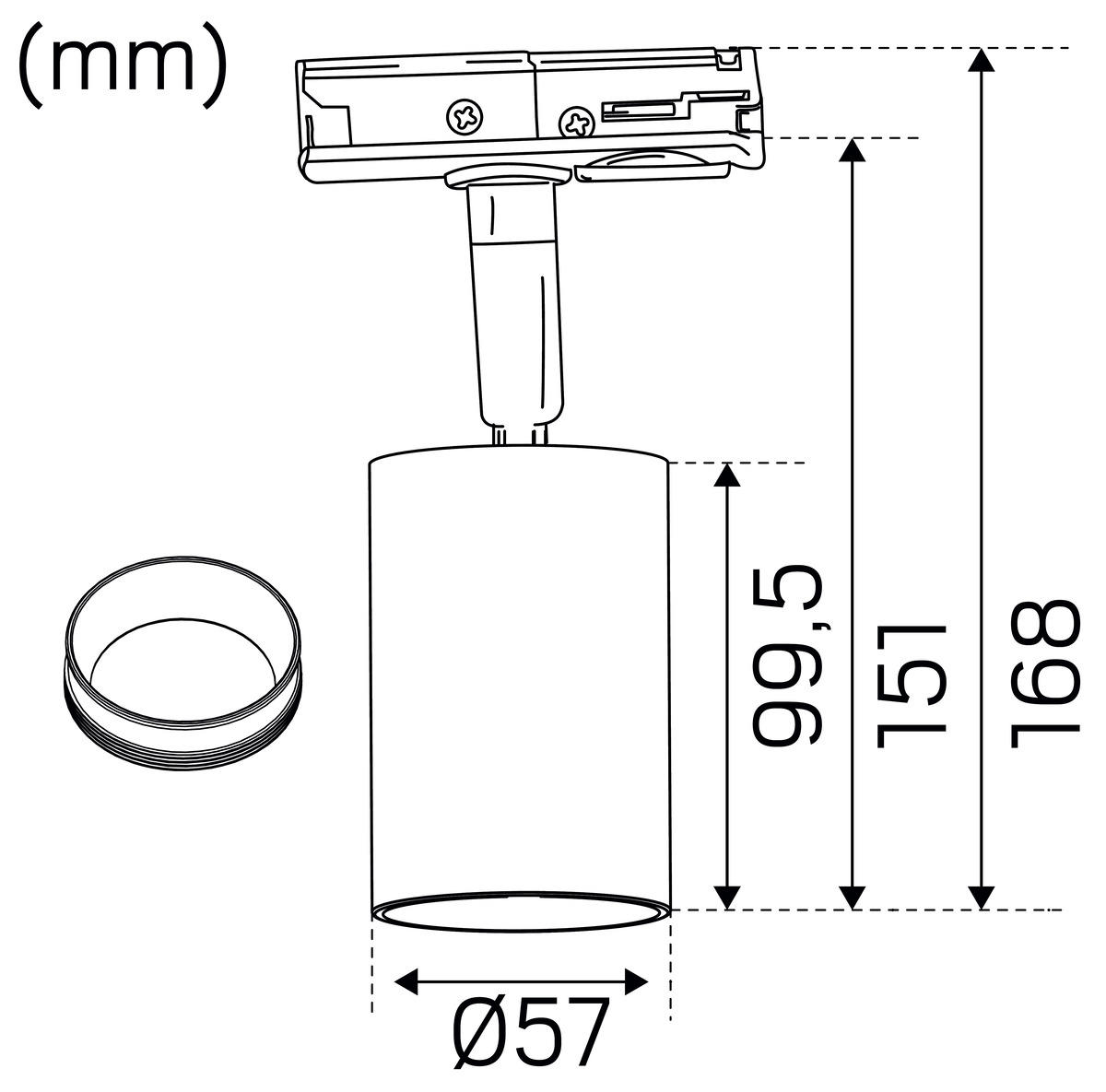

Height (mm) 168

Diameter (mm) 57

Weight (kg) 0,238

Focus Track GU10 Kit

Stylish tracklight supplied as a versatile kit. Fits perfectly in both home and public environments, for example small premises, hotel rooms and shops; you can choose and replace light sources yourself. The kit has 4 luminaires, together with 2 x 1m 1-phase tracks and accessories to create one or two units. Honeycomb baffle are available as accessories to change the appearance and decrease glare. Compatible with our LiteTrac system; can be extended or changed as needed.

Focus Spot Micro

Discrete, compact and highly glare-free spotlight with fixing bracket for recessed installation. 230V luminaire with integrated phase dimmable driver. Adjustable 90° and rotatable 355° - replacing existing recessed downlights with a spotlight to better direct the light. Fits perfectly in both home and public environments, such as small premises, hotel rooms and shops. Simple installation with push-in, loop-in, loop-out terminal block in separate connection box. Accessories available to change the light distribution, screen off and increase anti-glare.

Optic Track 1-Phase

Minimalist, dimmable tracklights with replaceable LED and driver – built for the future. Using the DIP-Switch colour temp function, colour temperature is easily adjusted with the touch of a button on the back of the luminaire (not Tune). With reflector technology, high luminous efficacy is ensured with distinct and clear light distribution – perfect as accent lighting when you want to direct the light onto what you want to highlight, but also as general lighting in both private and public environments. Low-build adapter for 1-phase track. For improved glare reduction, the Honeycomb accessory can be added to the luminaire. You can easily replace the reflector with a lens accessory to adjust the light distribution as needed. The kit contains four luminaires, two 1m 1-phase tracks, two connections, two end caps and one straight connector.

Focus Track GU10

Focus Track GU10 1-phase Black

Accessories

Honeycomb Focus Track GU10

LiteTrac Track 1-phase 2m White

Monopoint LiteTrac 1-phase White
