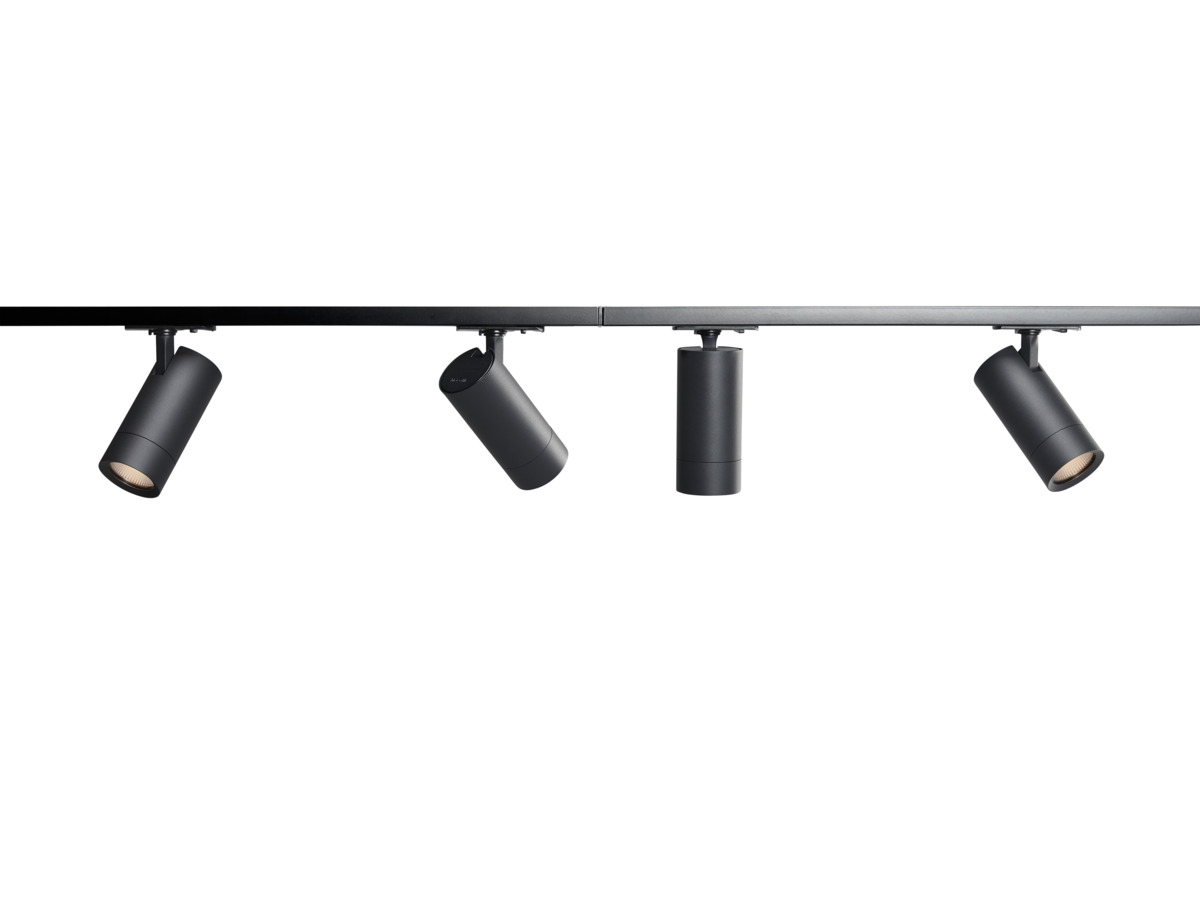

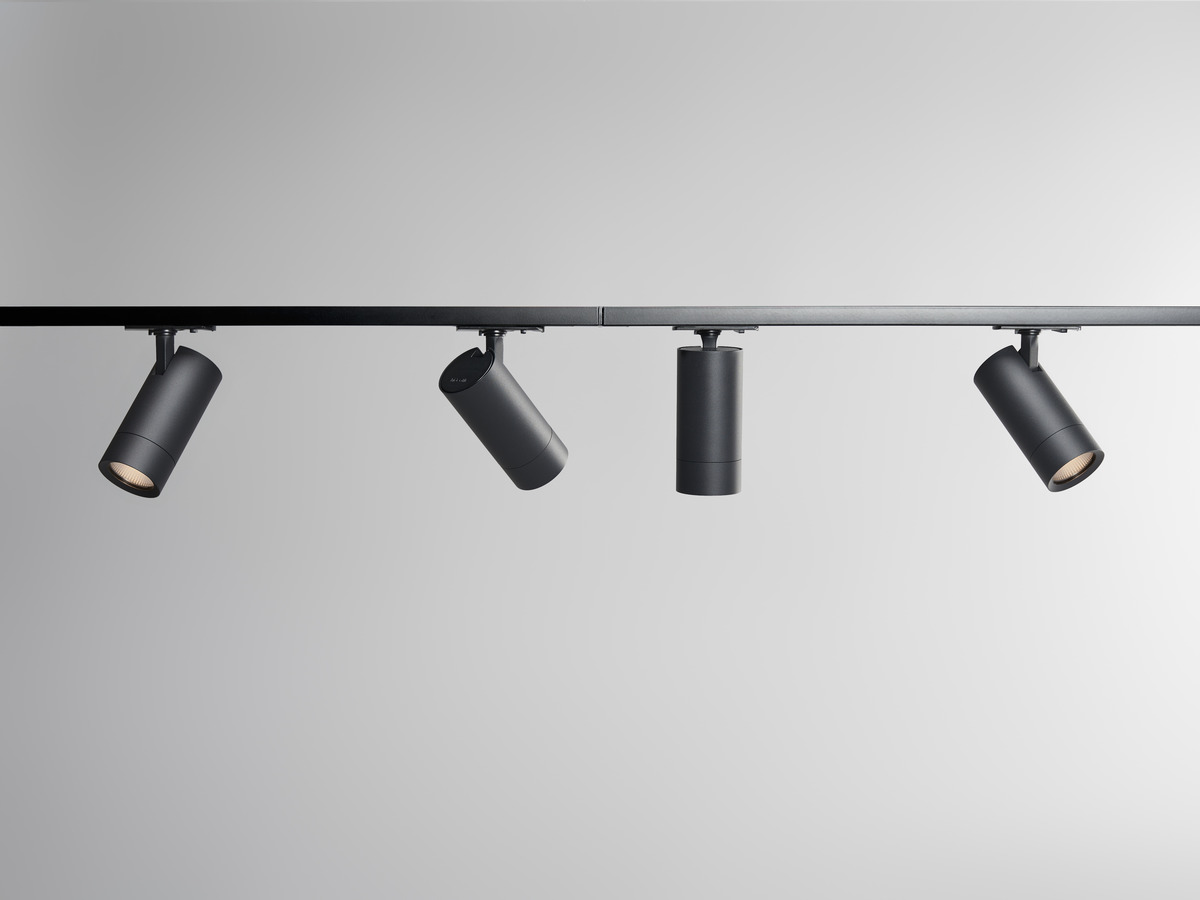

Optic Track 1-Phase Optic Track XS Kit 1-phase 36° Black

Minimalist, dimmable tracklights with reflector technology
1-phase adapter
Replaceable LED and driver
Selectable colour temperature via DIP-switch Colour Temp (not Tune)

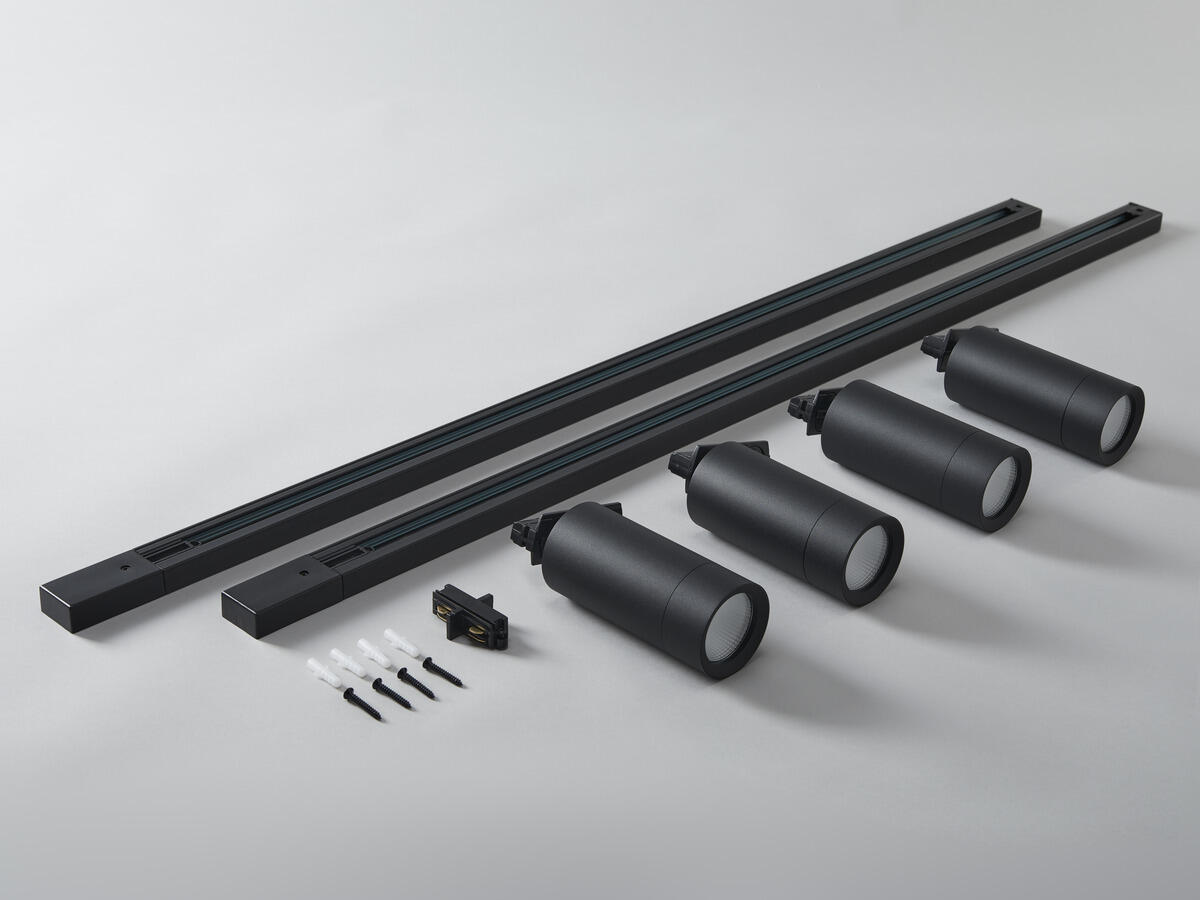

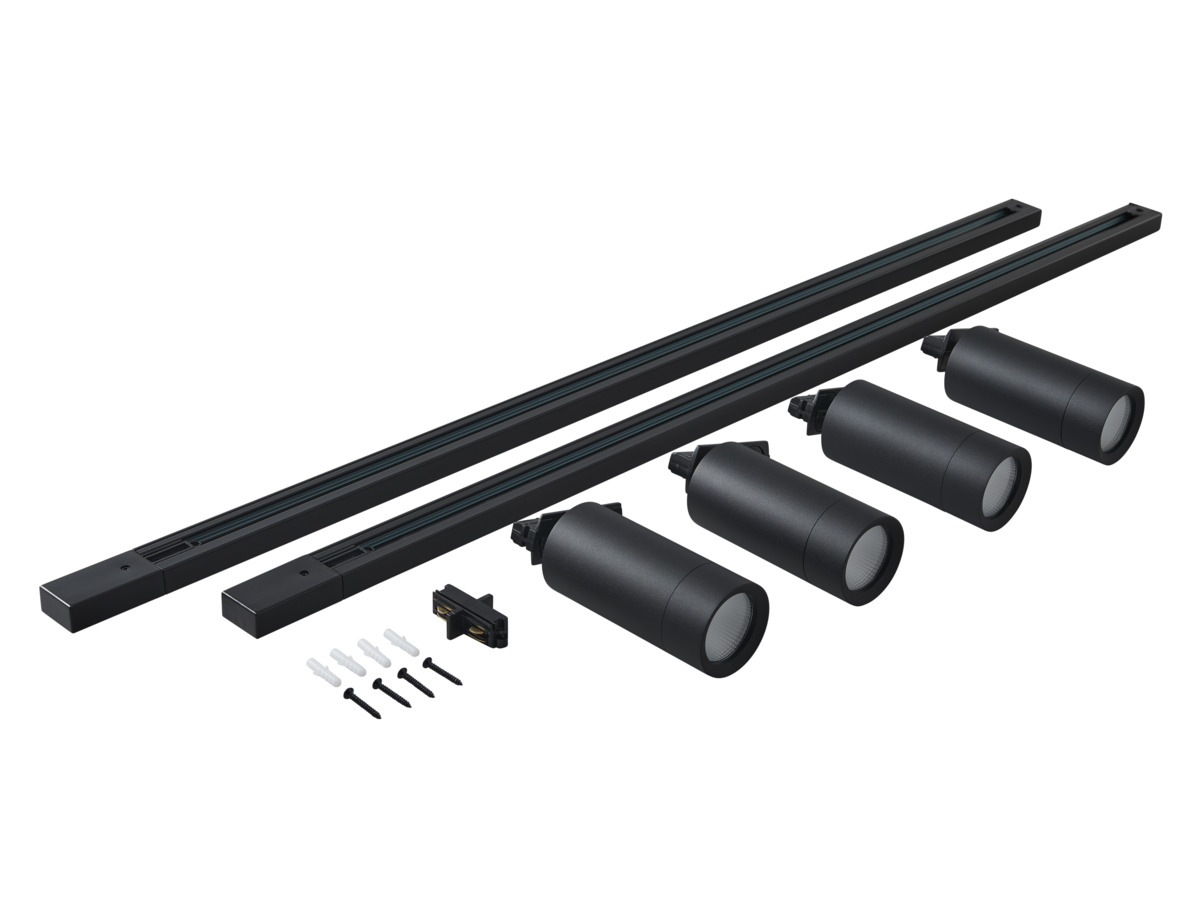

Accessories available for modifying light pattern and anti-glare. The kit contains four luminaires, two 1m 1-phase tracks, two connections, two end caps and one straight connector

Minimalist, dimmable tracklights with replaceable LED and driver – built for the future. Using the DIP-Switch colour temp function, colour temperature is easily adjusted with the touch of a button on the back of the luminaire (not Tune). With reflector technology, high luminous efficacy is ensured with distinct and clear light distribution – perfect as accent lighting when you want to direct the light onto what you want to highlight, but also as general lighting in both private and public environments. Low-build adapter for 1-phase track. For improved glare reduction, the Honeycomb accessory can be added to the luminaire. You can easily replace the reflector with a lens accessory to adjust the light distribution as needed. The kit contains four luminaires, two 1m 1-phase tracks, two connections, two end caps and one straight connector.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971151380	Optic Track XS Kit 1-phase 36° Black	Black	2700, 3000	770
7392971151274	Optic Track XXS 1-phase 36° White Tune	White	2700	270
7392971151281	Optic Track XXS 1-phase 36° White	White	2700, 3000	390
7392971151298	Optic Track XXS 1-phase 36° Black Tune	Black	2700	270
7392971151304	Optic Track XXS 1-phase 36° Black	Black	2700, 3000	390
7392971151311	Optic Track XXS Kit 1-phase 36° White	White	2700, 3000	390
7392971151328	Optic Track XXS Kit 1-phase 36° Black	Black	2700, 3000	390
7392971151335	Optic Track XS 1-phase 36° White Tune	White	3000	680
7392971151342	Optic Track XS 1-phase 36° White	White	2700, 3000	770
7392971151359	Optic Track XS 1-phase 36° Black Tune	Black	3000	680
7392971151366	Optic Track XS 1-phase 36° Black	Black	2700, 3000	770
7392971151373	Optic Track XS Kit 1-phase 36° White	White	2700, 3000	770

Description: GTIN 7392971151380

Item Name Optic Track XS Kit 1-phase 36° Black

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 770

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 2700, 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 2000

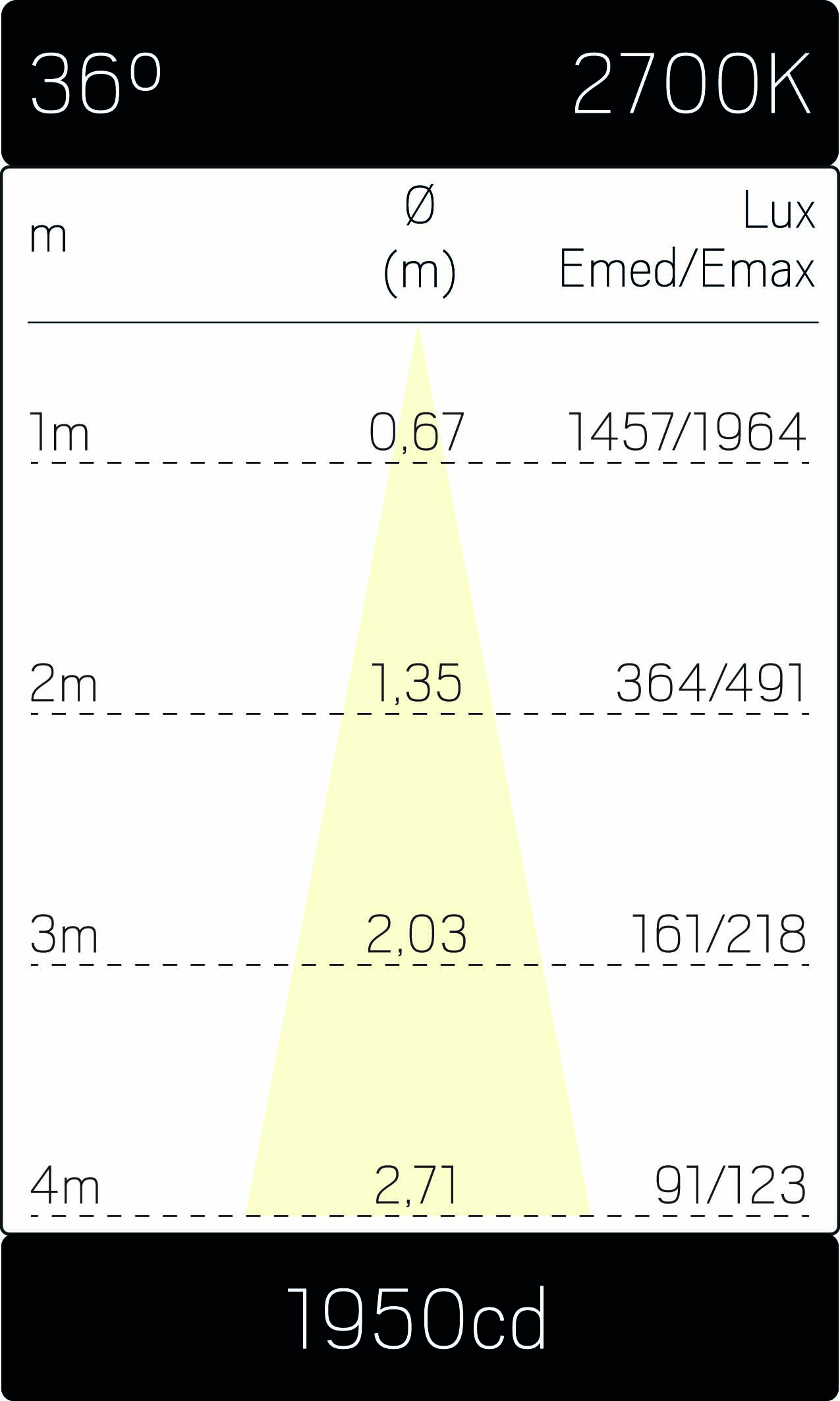

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L90

Lumen maintenance 75 000h L84

Lumen maintenance 100 000h L81

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,81

Life Time Driver 100 000h/8%
Technical data: Adjustable Yes

Tiltable (°) 90

Rotatable (°) 350

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 8,1

Power Luminaire (W) 9,7

System Power (W) 9,7

Efficiency Luminaire (lm/W) 79

Efficiency System (lm/W) 79

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge

Driver Included Yes - replaceable

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Hide-a-lite

Connection (type) 1-phase adapter

Power Factor ʎ 0,9

Efficiency (%) 83

Power loss (W) 1,6

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05

THD (%) 16

Constant Current (mA) 220

Operating Temperature -20…+40

Max. Tc (°C) 85

Dimming secondary side AM

Memory Function Power Failure No

Protection Against Short Circuit, Overheating 120°C, Overload

Inrush current (max/time) 3A 42µs

Mains surge protection DM (kV) 1

Mains surge protection CM (kV) 2

Fuse B10 (pcs) 46

Fuse B16 (pcs) 75

Fuse C10 (pcs) 75

Fuse C16 (pcs) 125
Color and material: Material Aluminium

Color Black
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Light-track mounting

Mounting Installation 1-phase Adapter

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

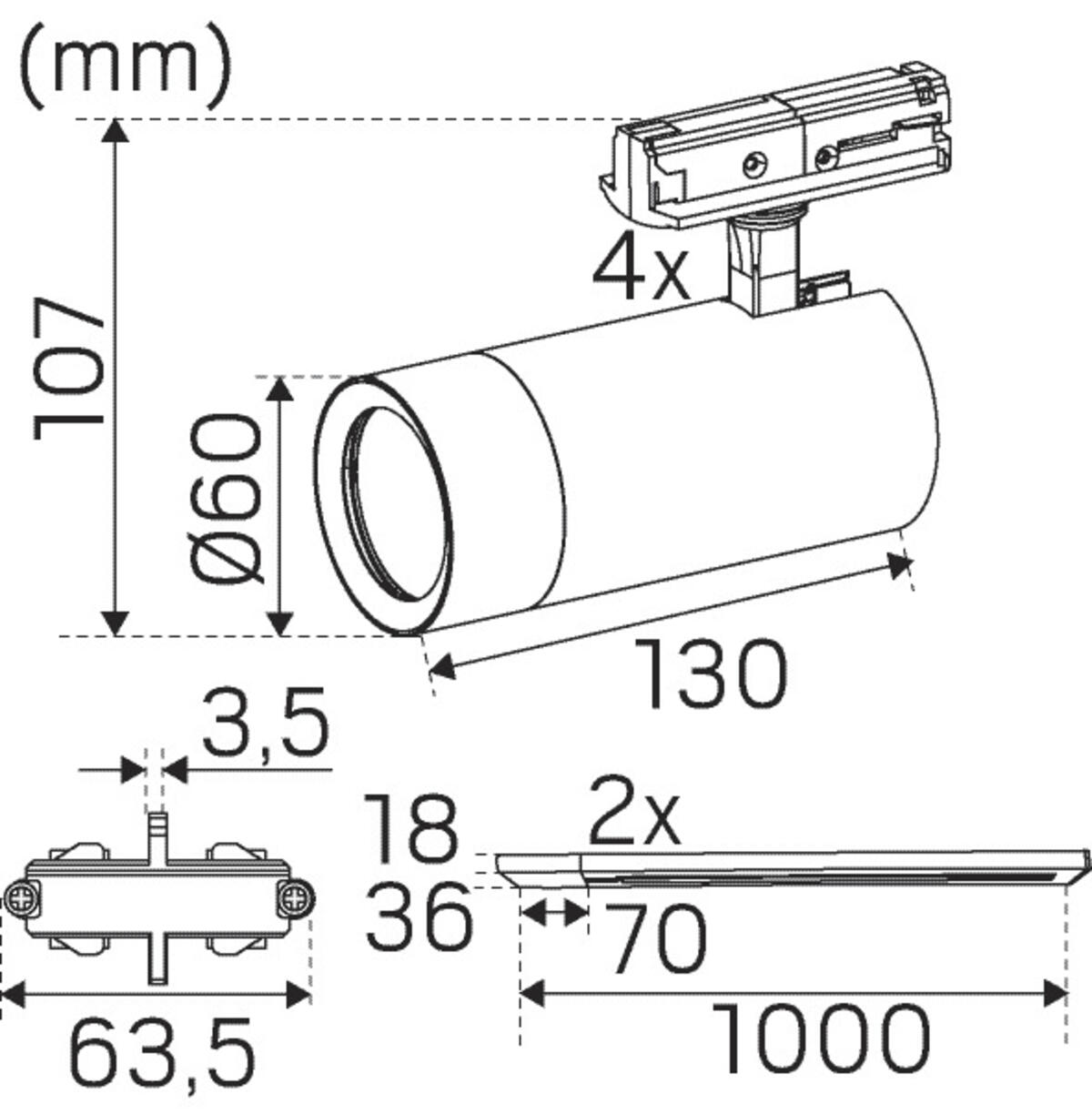

Length (mm) 130

Height (mm) 107

Diameter (mm) 60

Weight (kg) 3,2
