Q-Box Mini Q-Box Mini 3-pole/Linect

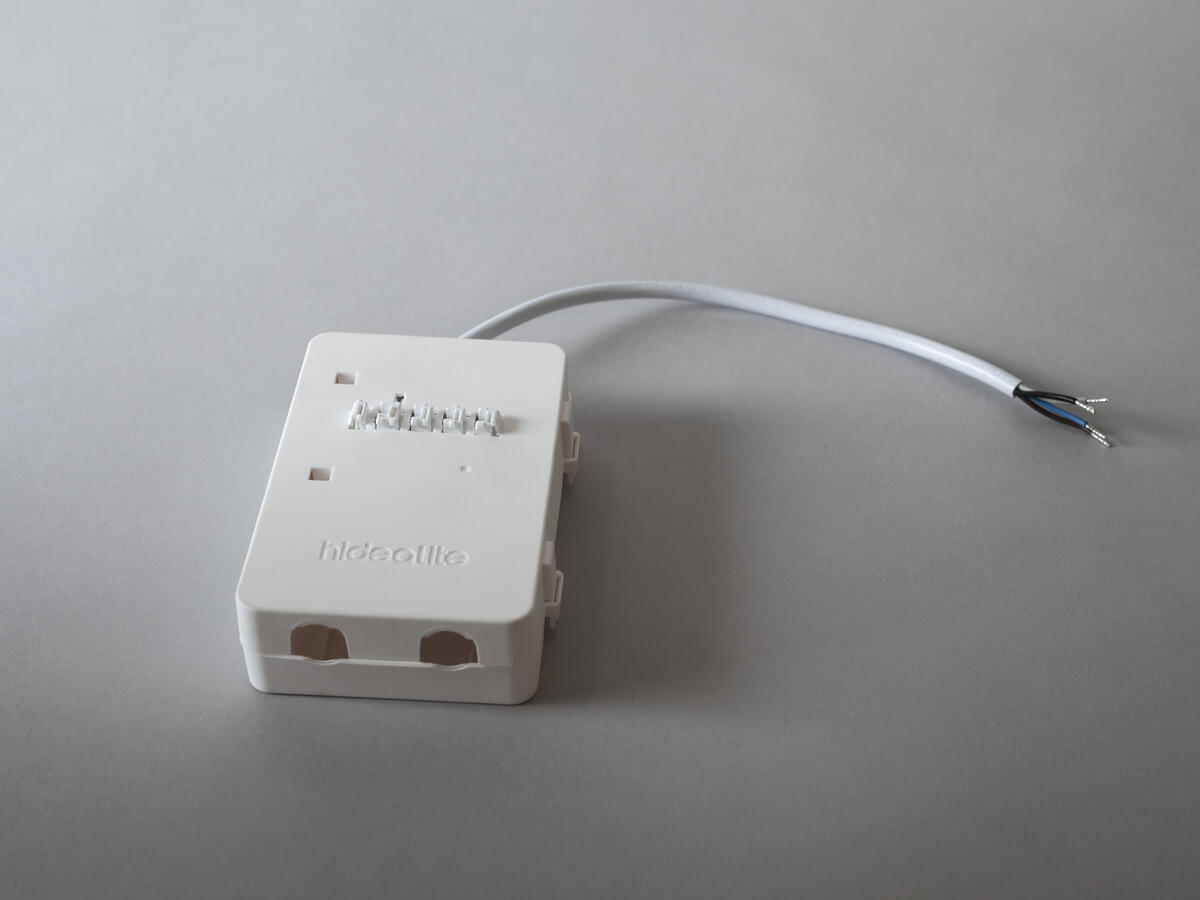

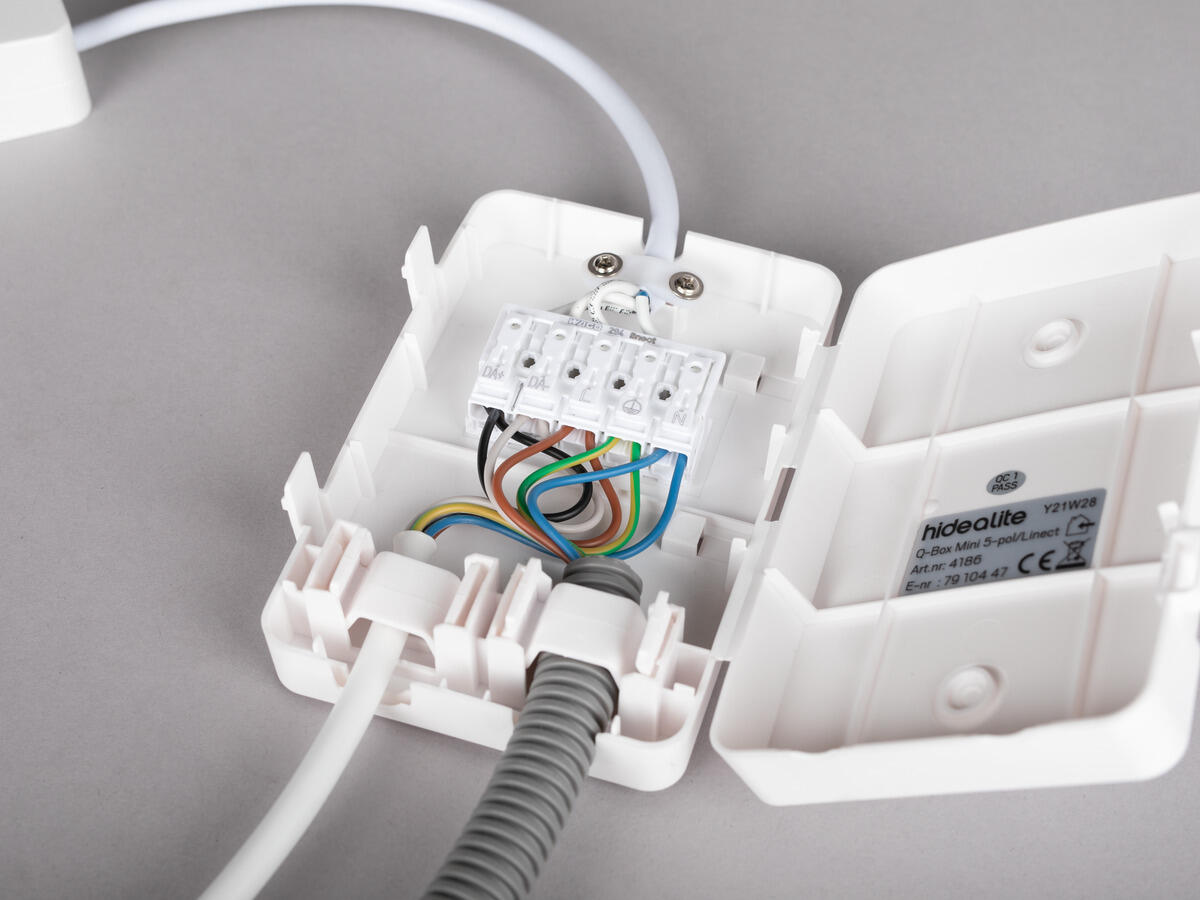

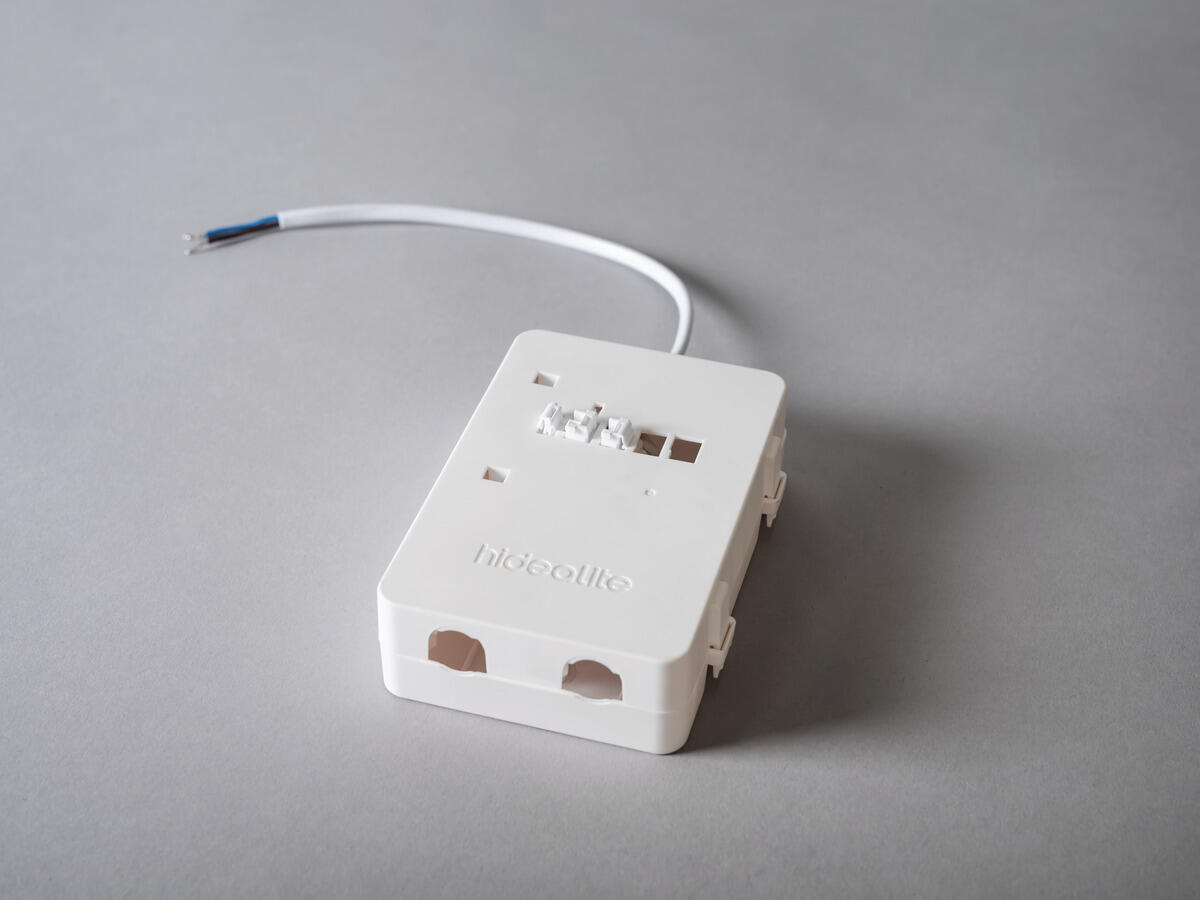

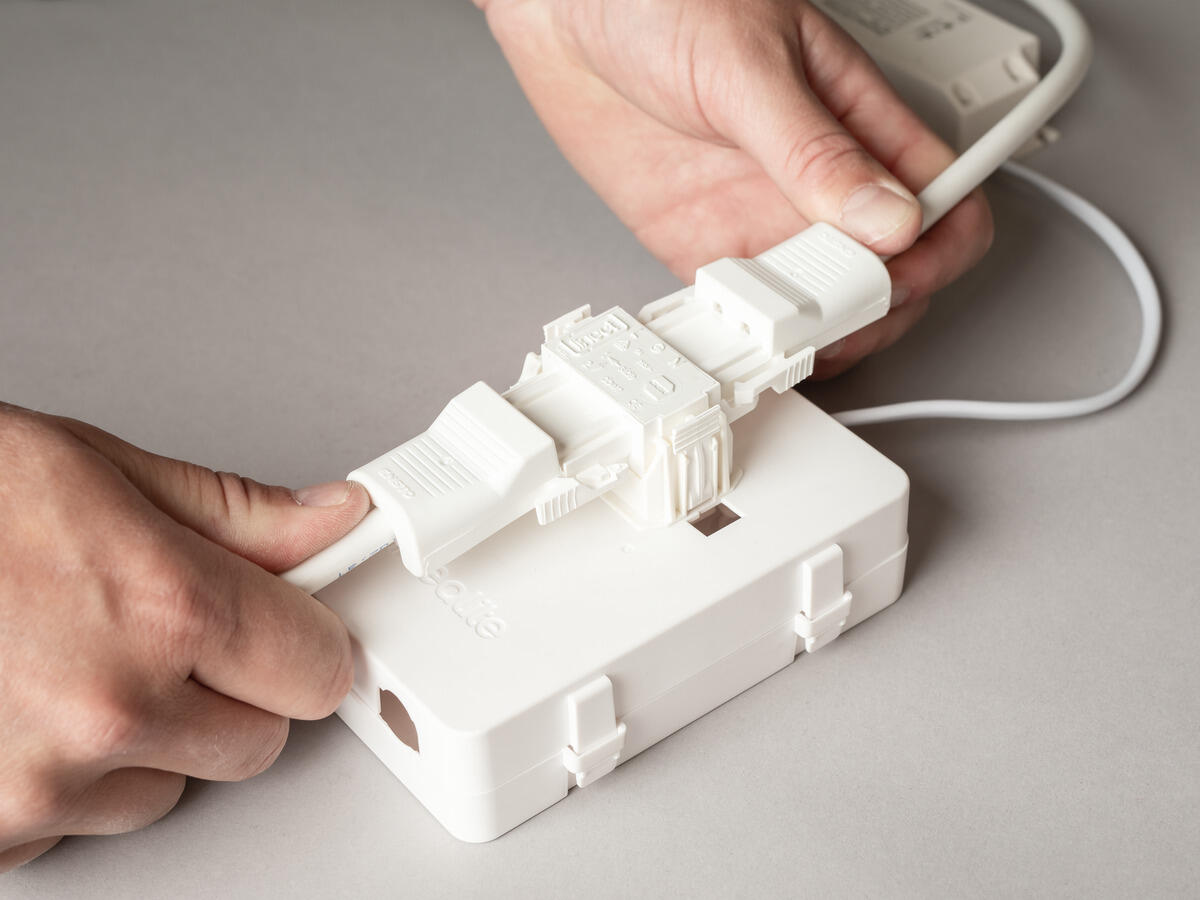

Q-Box Mini is a connection box with a 2-in-1 function in plastic, for traditional through wiring to a terminal block or the Linect quick-connection system. The connection box gives a quick and tool-free installation, with 3 of 5 pole push-in terminals for through wiring and screwless strain relief for cable or flex hose 16mm. Prepared for the universal quick connection system Linect 3 and 5 pole systems and is compatible with systems on the market such as Wieland, Ensto, Wago/Winsta.

Variants	GTIN	Item Name
	7392971143804	Q-Box Mini 3-pole/Linect
	7392971143811	Q-Box Mini 5-pole/Linect

Description: GTIN 7392971143804

Item Name Q-Box Mini 3-pole/Linect

Warranty 5 years
Operation and Connection: Connection (type) Linect, Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Connection Secondary (type) Open Cable End

Length Connection Secondary (cm) 30

Secondary Connection (mm2) 2x0,75

Operating Temperature -25…+45
Color and material: Material Polyamide PA6

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Installation Built-in, Surface mounted

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Length (mm) 130

Width (mm) 85

Height (mm) 34

Weight (kg) 0,095

Min. Built-in (mm) 200x100x60

Built-in Ø (mm) 86
