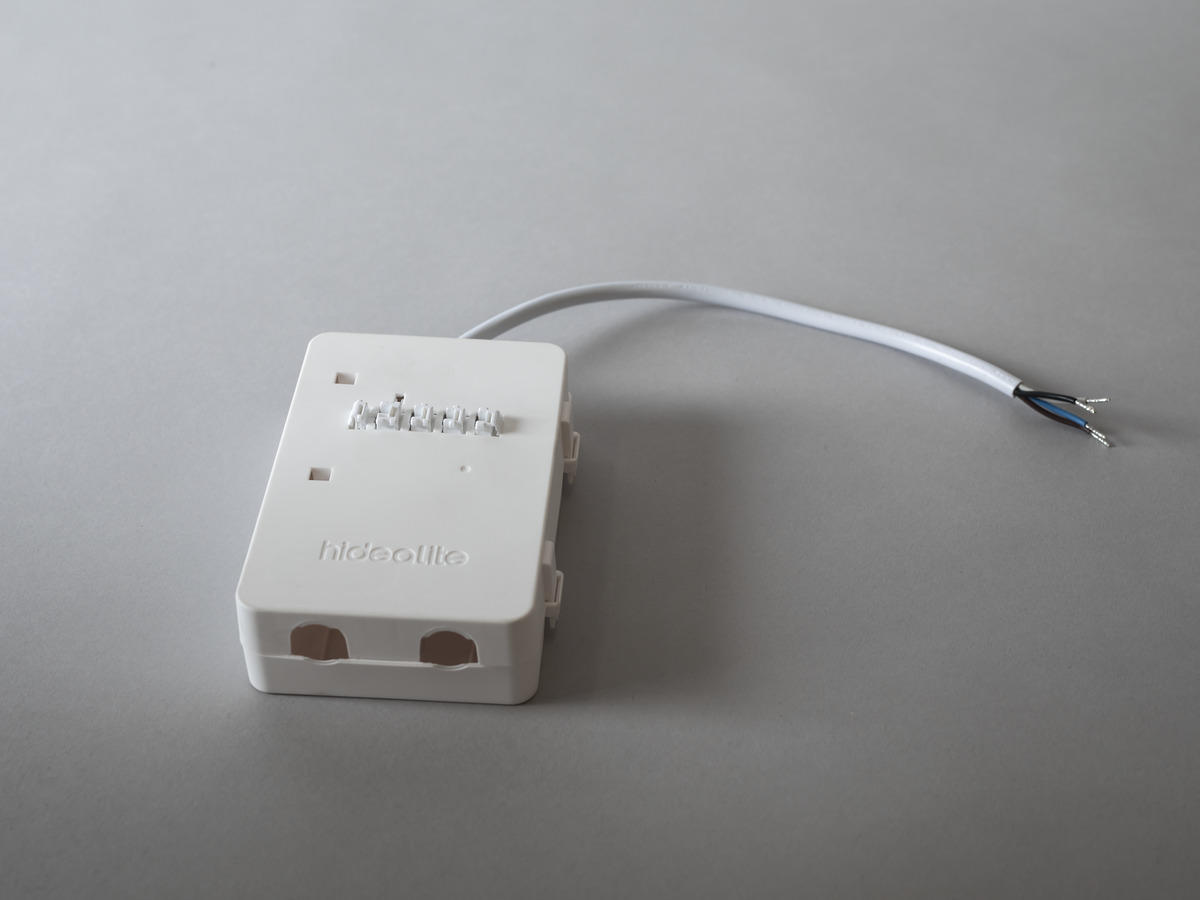

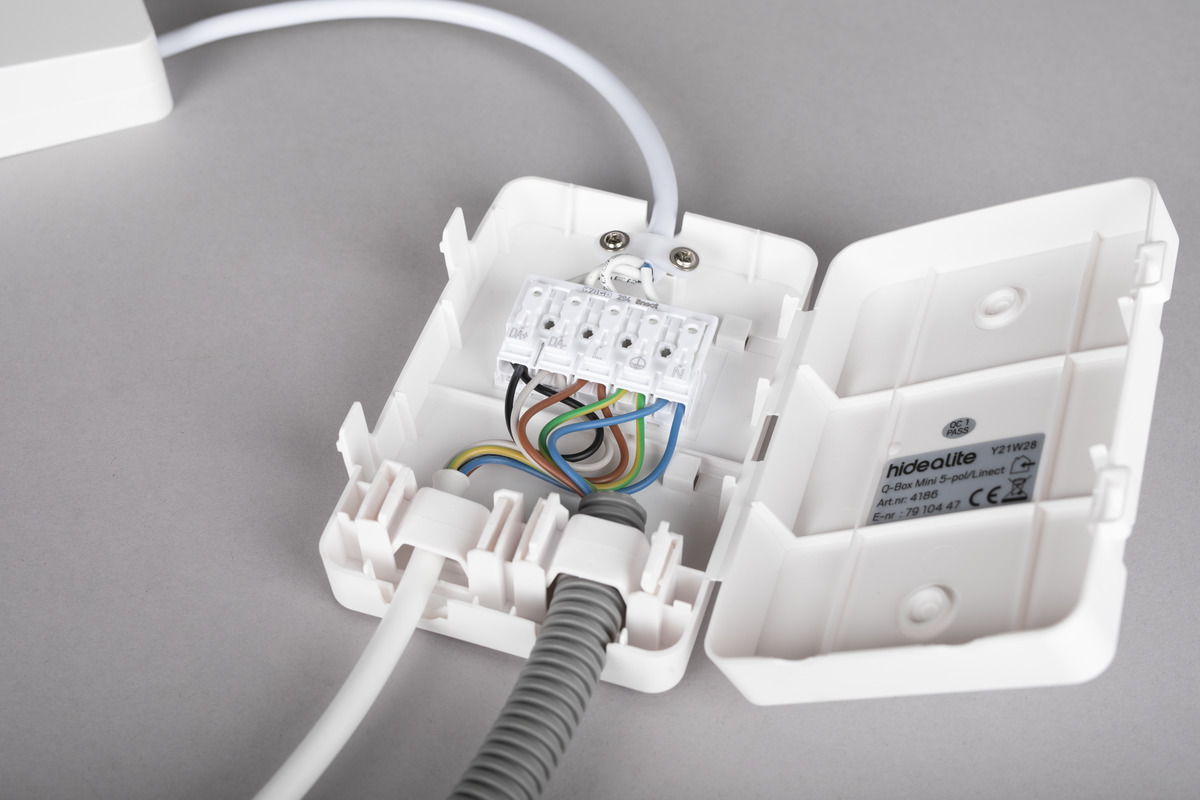

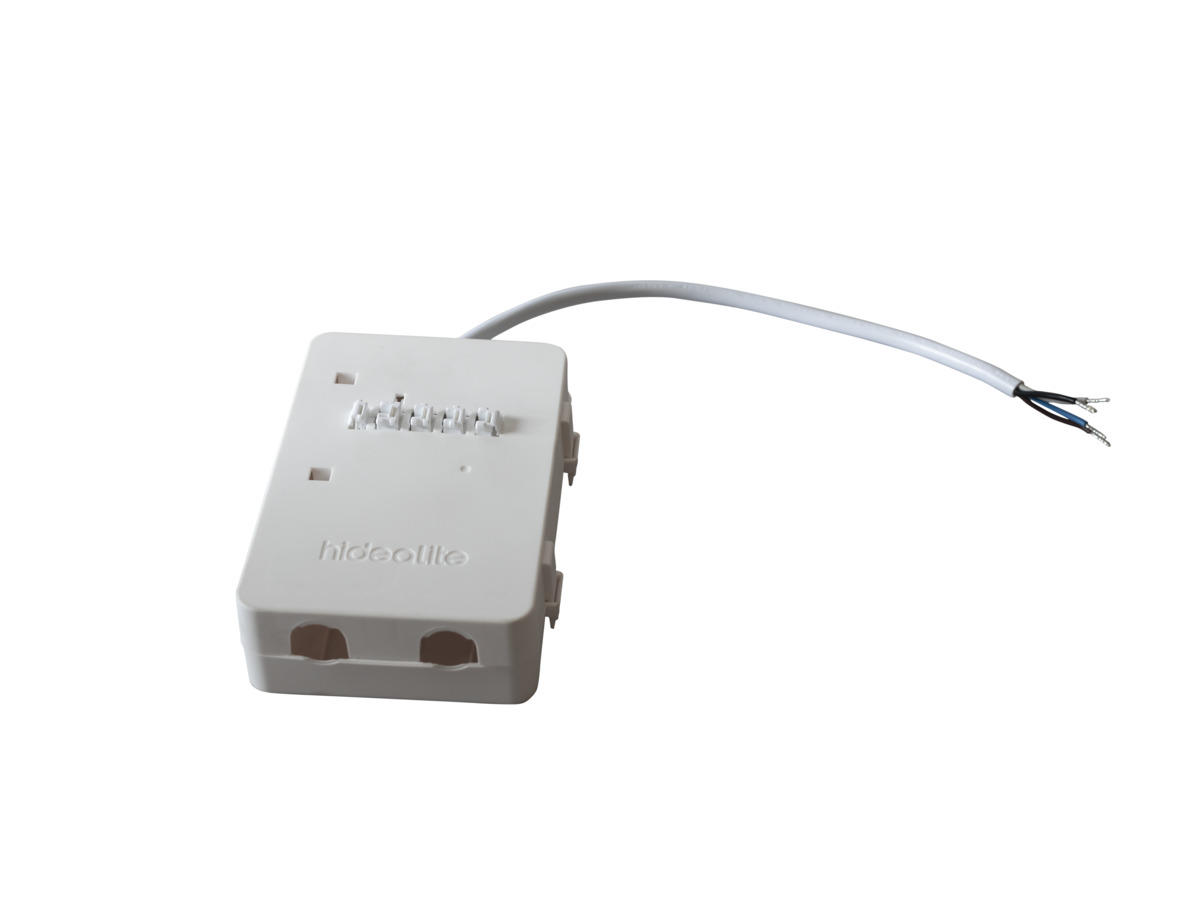

Q-Box Mini is a connection box with a 2-in-1 function in plastic, for traditional through wiring to a terminal block or the Linect quick-connection system. The connection box gives a quick and tool-free installation, with 3 of 5 pole push-in terminals for through wiring and screwless strain relief for cable or flex hose 16mm. Prepared for the universal quick connection system Linect 3 and 5 pole systems and is compatible with systems on the market such as Wieland, Ensto, Wago/Winsta.

Variants	GTIN	Item Name
	7392971143811	Q-Box Mini 5-pole/Linect
	7392971143804	Q-Box Mini 3-pole/Linect

Description: GTIN 7392971143811

Item Name Q-Box Mini 5-pole/Linect

Warranty 5 years
Operation and Connection: Connection (type) Linect, Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Connection Secondary (type) Open Cable End

Length Connection Secondary (cm) 30

Secondary Connection (mm2) 4x0,75

Operating Temperature -25…+45
Color and material: Material Polyamide PA6

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Installation Built-in, Surface mounted

Fire Safety Marks Not in insulation without protection cover

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

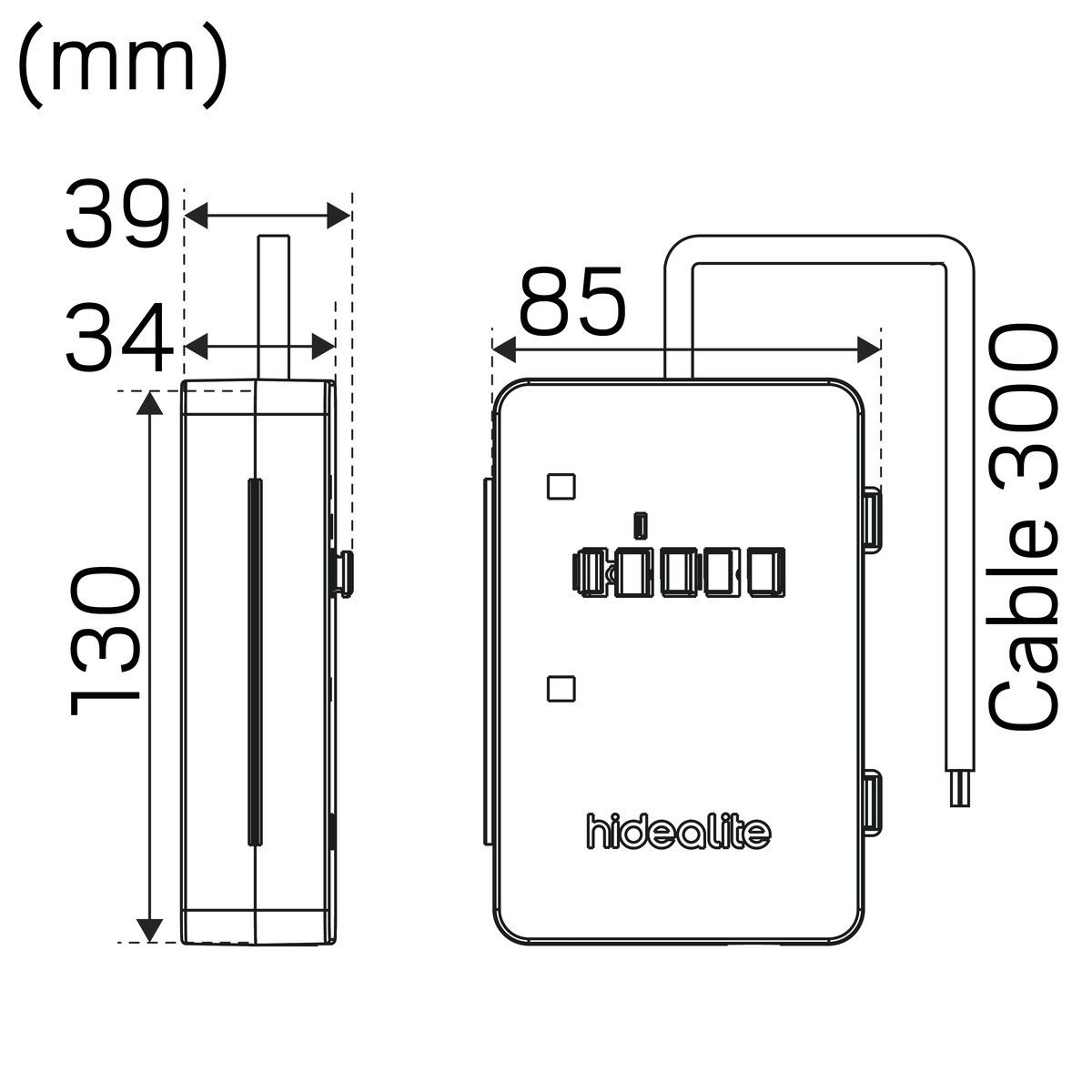

Length (mm) 130

Width (mm) 85

Height (mm) 34

Weight (kg) 0,113

Min. Built-in (mm) 200x100x60

Built-in Ø (mm) 86

Q-Box

Stand-alone driver casing in white halogen-free plastic for indoor use. With push-in terminal blocks 8 x 0.5-2.5 mm² for connecting driver. Suitable for through wiring between drivers or luminaires, possible through wiring for both incoming power and lighting control. Can be used to conceal drivers or as a connection point. Q-box is most suited for use with our Jolly drivers and requires no tools. Screwless strain relief and through wiring for a service-friendly installation.

S-Box

Convenient and discreet box for external drivers that cannot be built in or hidden away. Service-friendly with easy access to your drivers. Fits most of our drivers for indoor use, which are easily installed in the box. S-box contains quick connection terminal blocks (8x0.5-2.5mm 2) for connection of drivers and strain relief for both in- and outgoing cables. Knockouts for surface-mounted cable on the ends. Best installed over ceiling and junction boxes for concealed connection.

D-Box

Functional inset box of halogen-free plastic (V0) that gathers and conceals you drives in one and the same place. For installation between battens. Install your drivers on the enclosed DIN track or fasten them freely on the mounting plate. Knockouts, 4x16 mm and 1x20 mm, are present on all sides for easy installation. The insert box can easily be concealed by painting or wall-papering directly over the cover. Comes complete with 2x DIN tracks, 1x mounting plate and 1x cover and spacer.
