Highlite IP65 Highlite IP65 L 90° 4000K

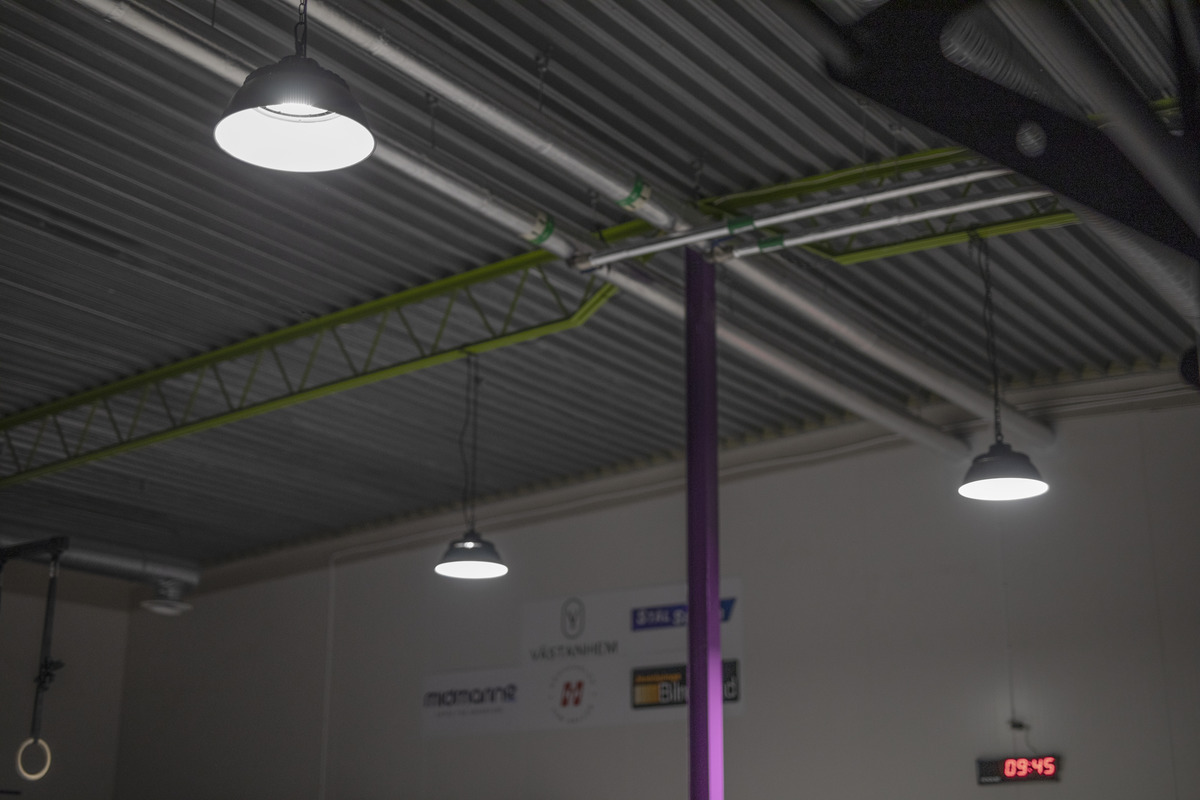

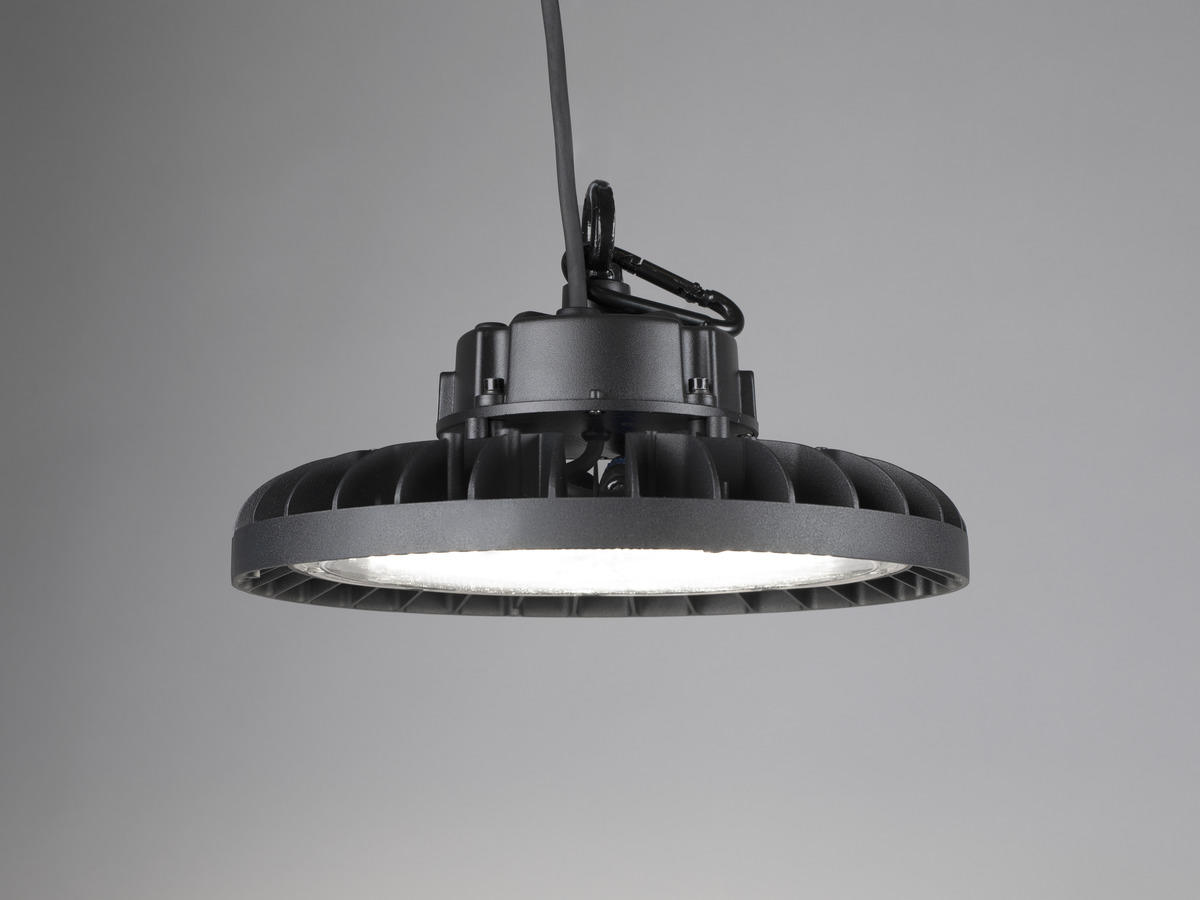

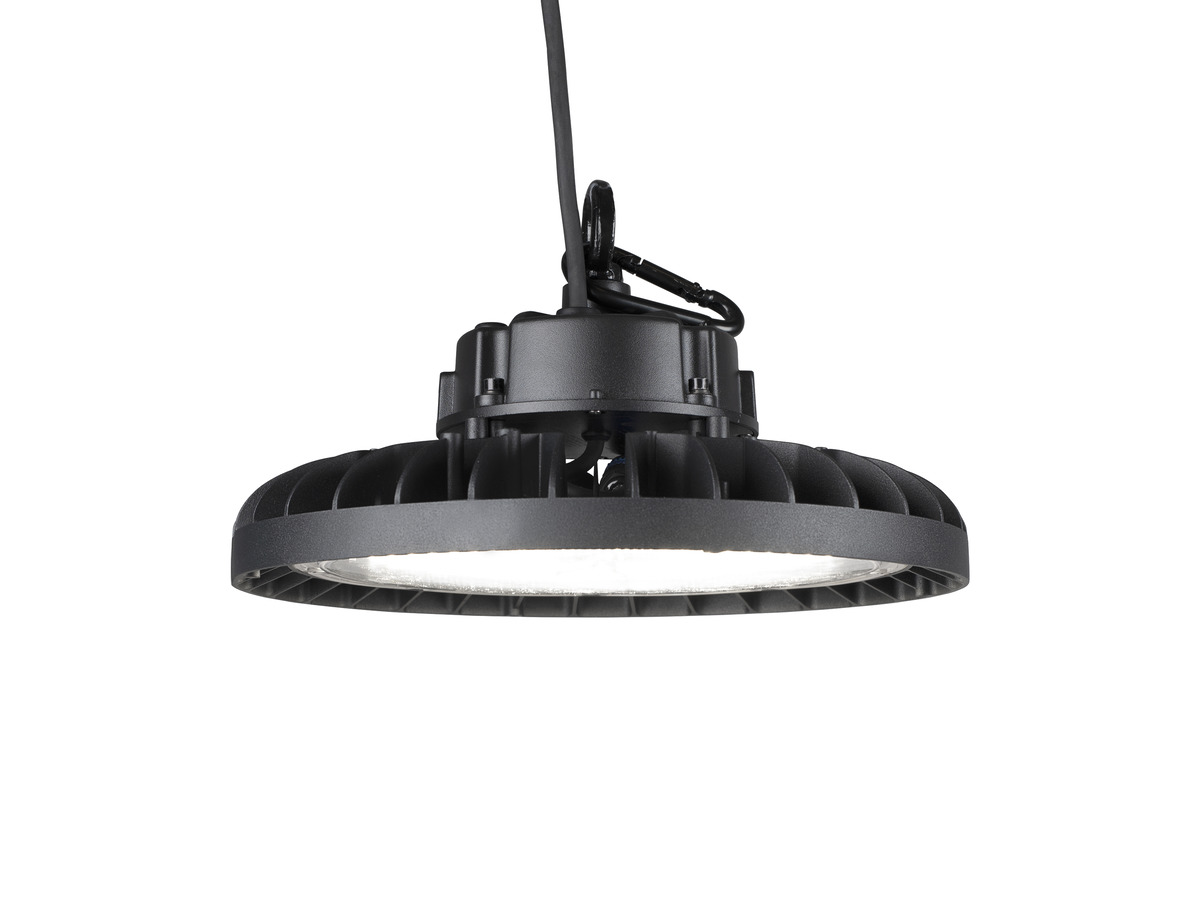

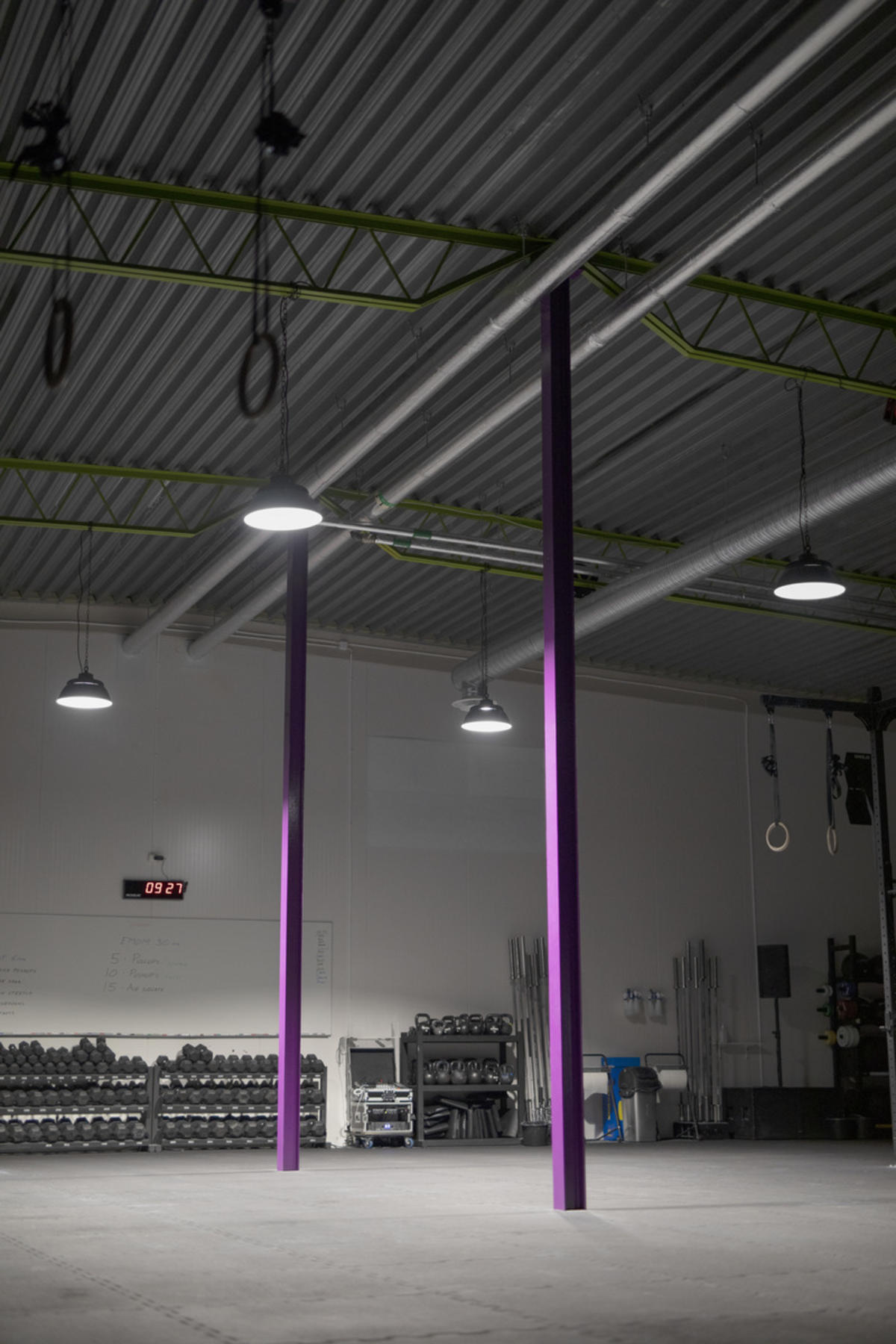

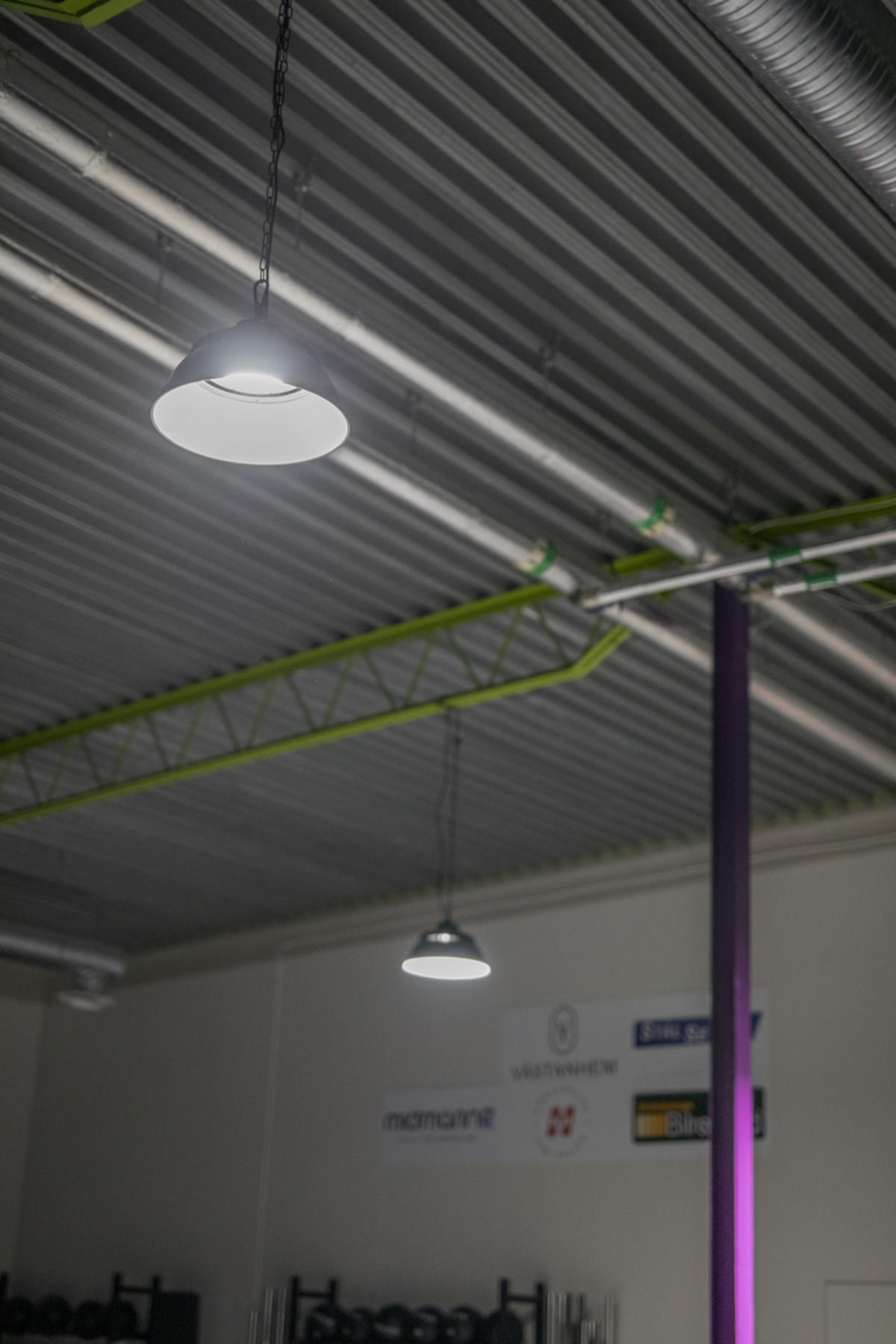

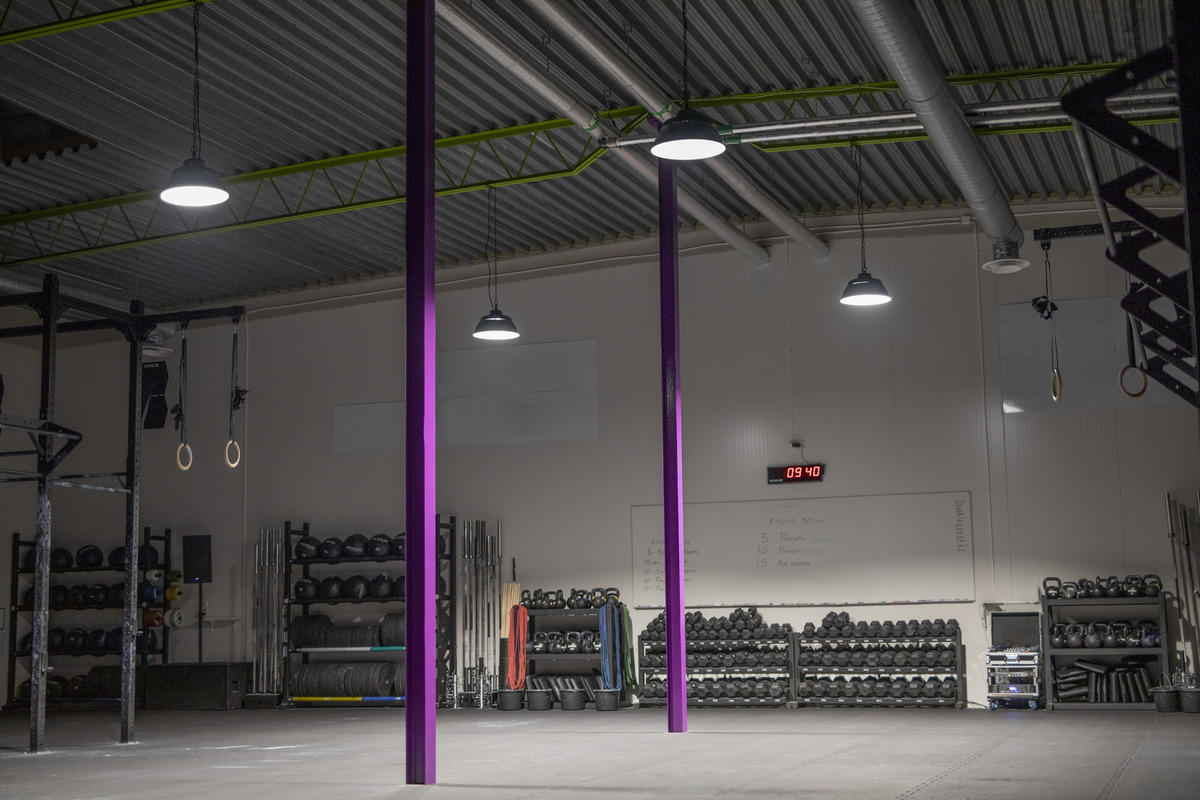

Highly efficient highbay fixture where the most important features are maximum light and minimum maintenance. Highlite IP65 is an industrial luminaire adapted for the factory environment, as well as for the crossfit center or the supermarket. Mounted as a pendant or in a fixed ceiling with an adjustable ceiling and wall bracket as an accessory. Other accessories include reflectors to change the appearance and a strong chain for suspension. Replaceable driver, three meter connection cable and simple installation with the snap hook provided.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming	Beam Angle (°)
7392971145983	Highlite IP65 L 90° 4000K	29900	OnOff	90
7392971145914	Highlite IP65 S 60° 4000K	16100	OnOff	60
7392971145921	Highlite IP65 S 90° 4000K	15800	OnOff	90
7392971145938	Highlite IP65 S 120° 4000K	16400	OnOff	120
7392971145945	Highlite IP65 S 60° 4000K DALI	15000	DALI 2	60
7392971145952	Highlite IP65 S 90° 4000K DALI	15100	DALI 2	90
7392971145969	Highlite IP65 S 120° 4000K DALI	15100	DALI 2	120
7392971145976	Highlite IP65 L 60° 4000K	30200	OnOff	60
7392971145990	Highlite IP65 L 120° 4000K	31500	OnOff	120
7392971146003	Highlite IP65 L 60° 4000K DALI	29000	DALI 2	60
7392971146010	Highlite IP65 L 90° 4000K DALI	29500	DALI 2	90
7392971146027	Highlite IP65 L 120° 4000K DALI	29800	DALI 2	120

Description: GTIN 7392971145983

Item Name Highlite IP65 L 90° 4000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 29900

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 5

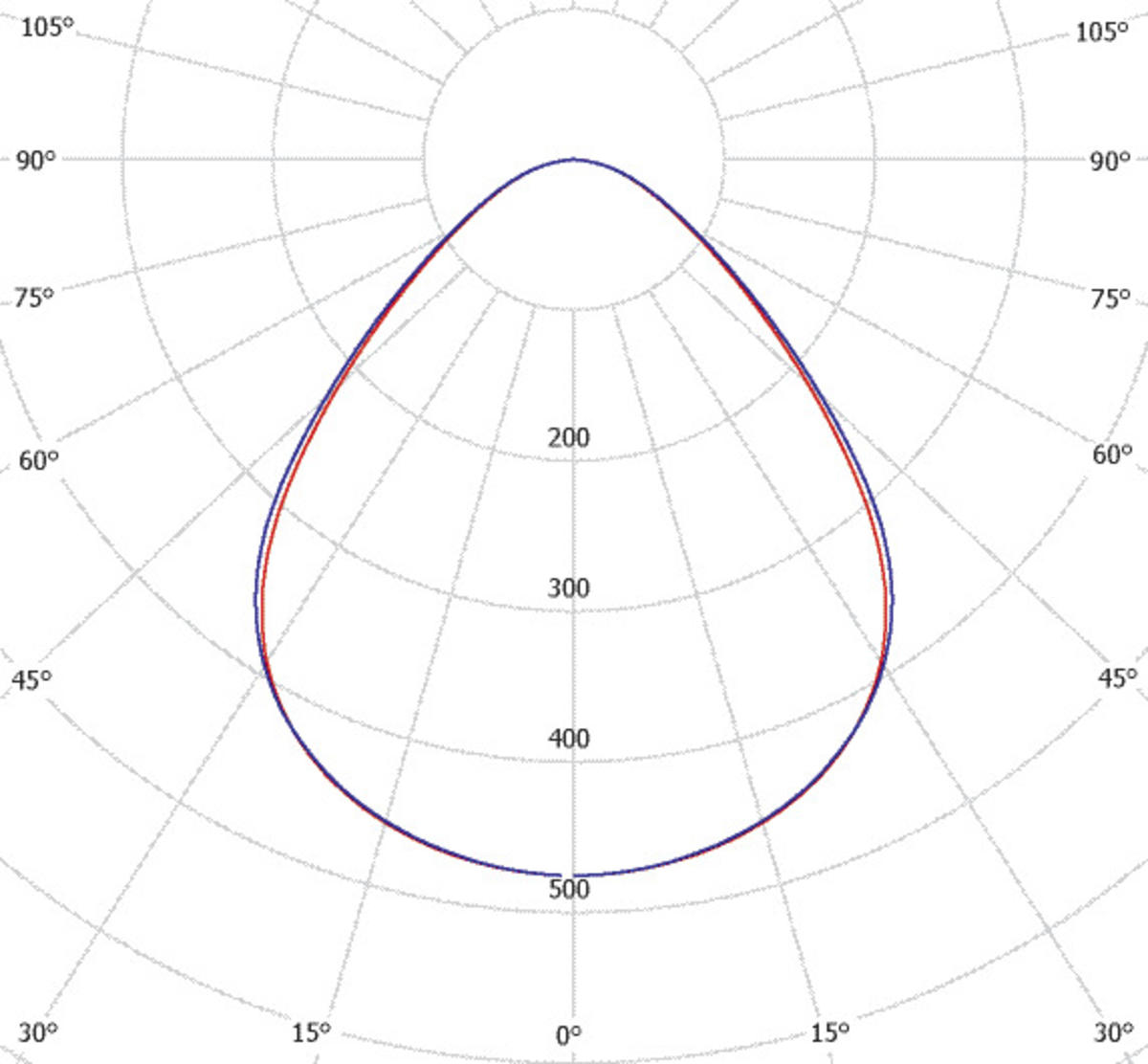

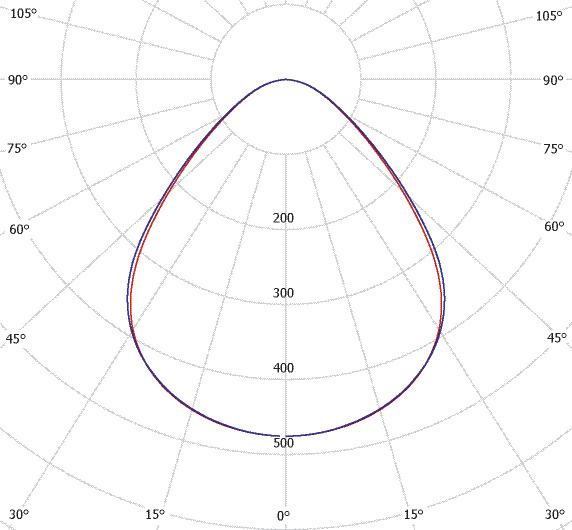

Luminous Intensity (cd) 14300

Beam Angle (°) 90

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

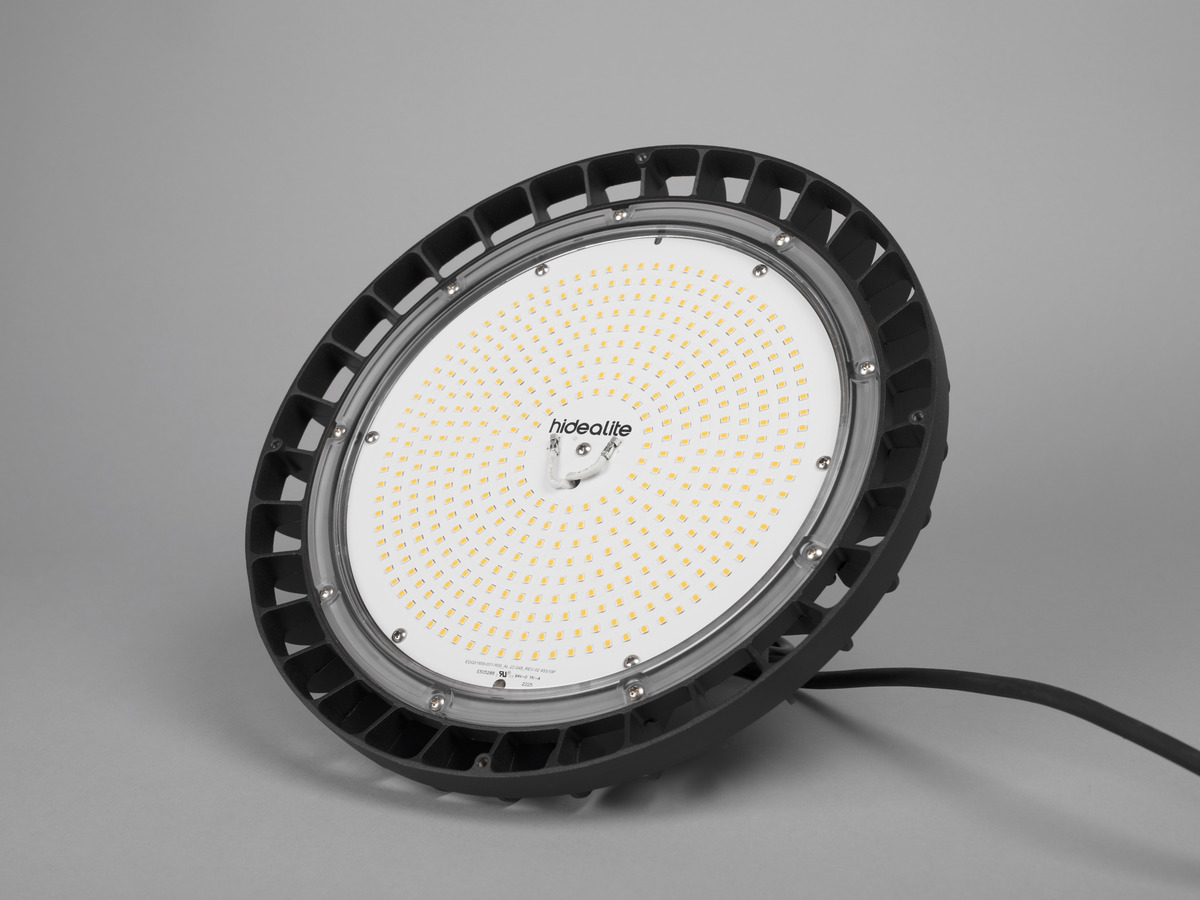

Number of LED (pcs) 900

Life Time L70 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L88

Lumen maintenance 100 000h L77

LLMF @ 50 000h 0,88

LLMF @ 100 000h 0,77

Life Time Driver 100 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 192

Power Luminaire (W) 200

System Power (W) 200

Efficiency Luminaire (lm/W) 150

Efficiency System (lm/W) 150

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Open Cable End

Length Connection (cm) 300

Connection (mm2) 3x1,0

Through Wiring No

Strain Relief Yes

Power Factor ʎ 0,98

Efficiency (%) 95

Power loss (W) 8

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,75

THD (%) 20

Standby Power 0,5

Constant Current (mA) 850

Operating Temperature -20…+40

Max. Tc (°C) 85

Inrush current (max/time) 100A 300µs

Mains surge protection DM (kV) 6

Mains surge protection CM (kV) 6

Fuse B10 (pcs) 2

Fuse B16 (pcs) 4

Fuse C10 (pcs) 4

Fuse C16 (pcs) 7
Color and material: Material Aluminium

Color Black

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 65

Protection Class I

Installation Pendant, Wire-cable installation

Mounting Installation Hook

Fire Safety Marks D-mark

Approval Marks CE

Impact Strength IK08

Filament Test IEC 695-2-1(°C) 650

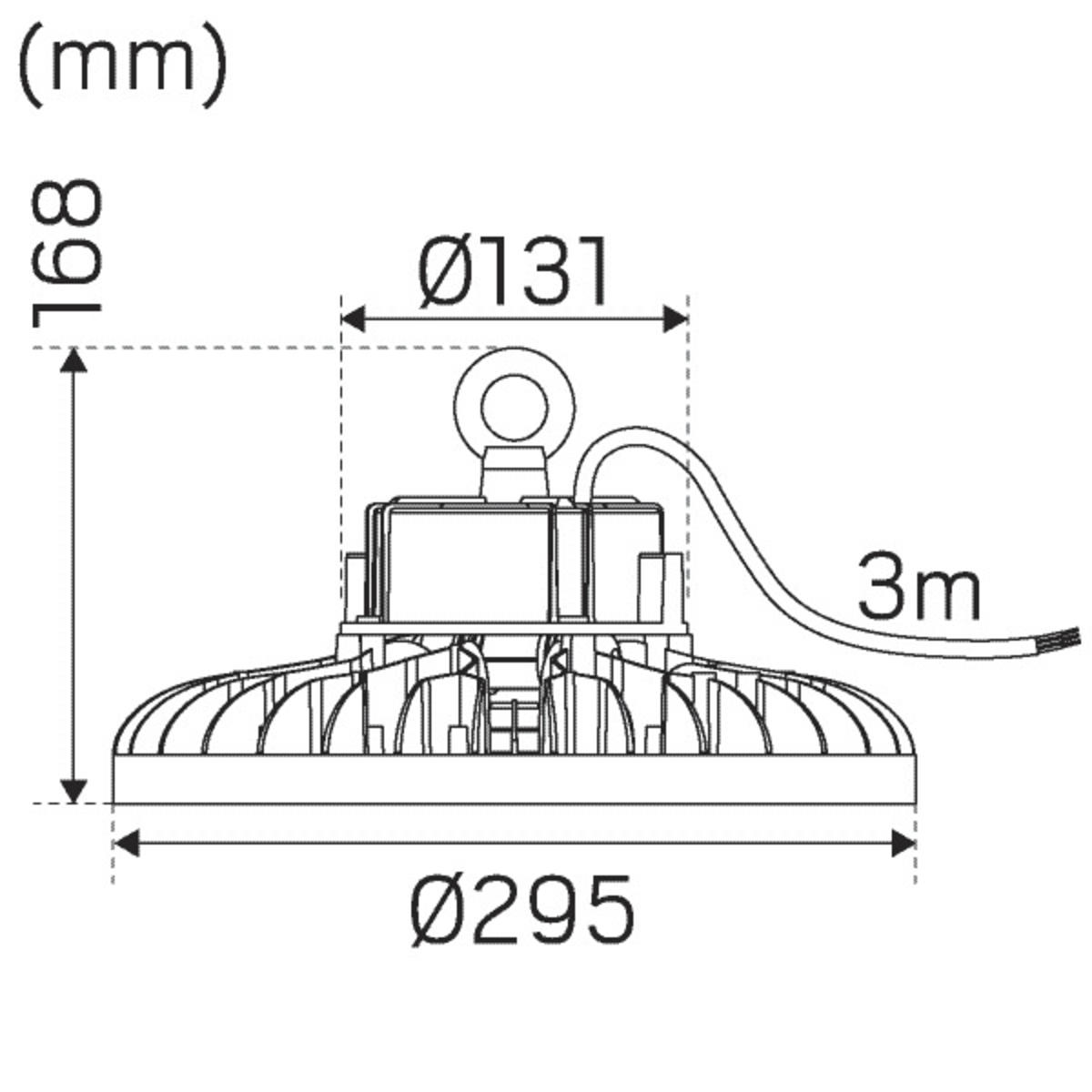

Height (mm) 168

Diameter (mm) 295

Weight (kg) 2,55

Spare parts

If you need spare parts, contact our customer support
