Moon Slim
- Adjusted for concealed or surface mounted cable routing
- Selectable colour temperature via DIP-Switch ColourTemp
- Choose from several different control options
- Available as emergency lighting - module can also be fitted on existing luminaire as an accessory
- Base and cover made of recycled ocean plastic

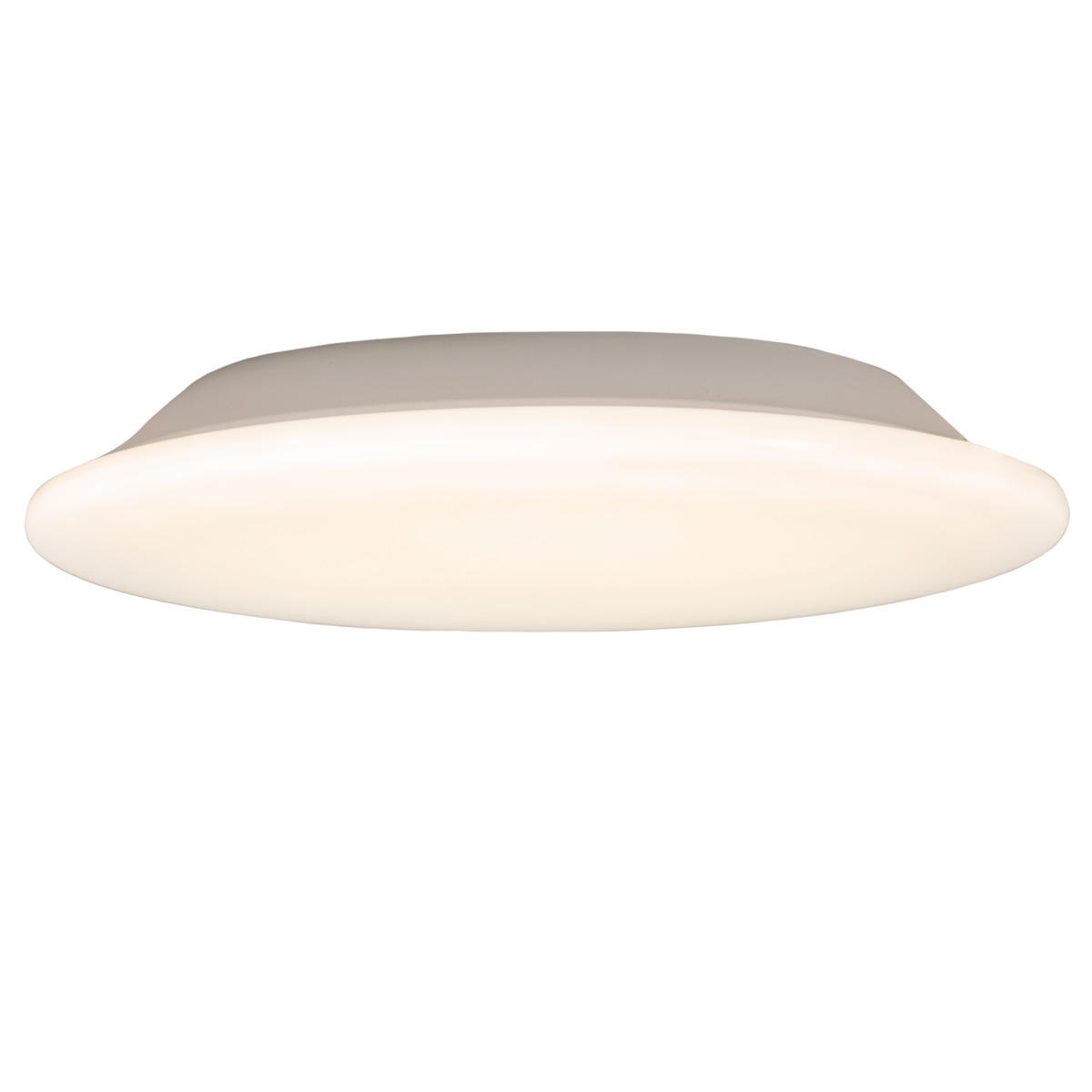

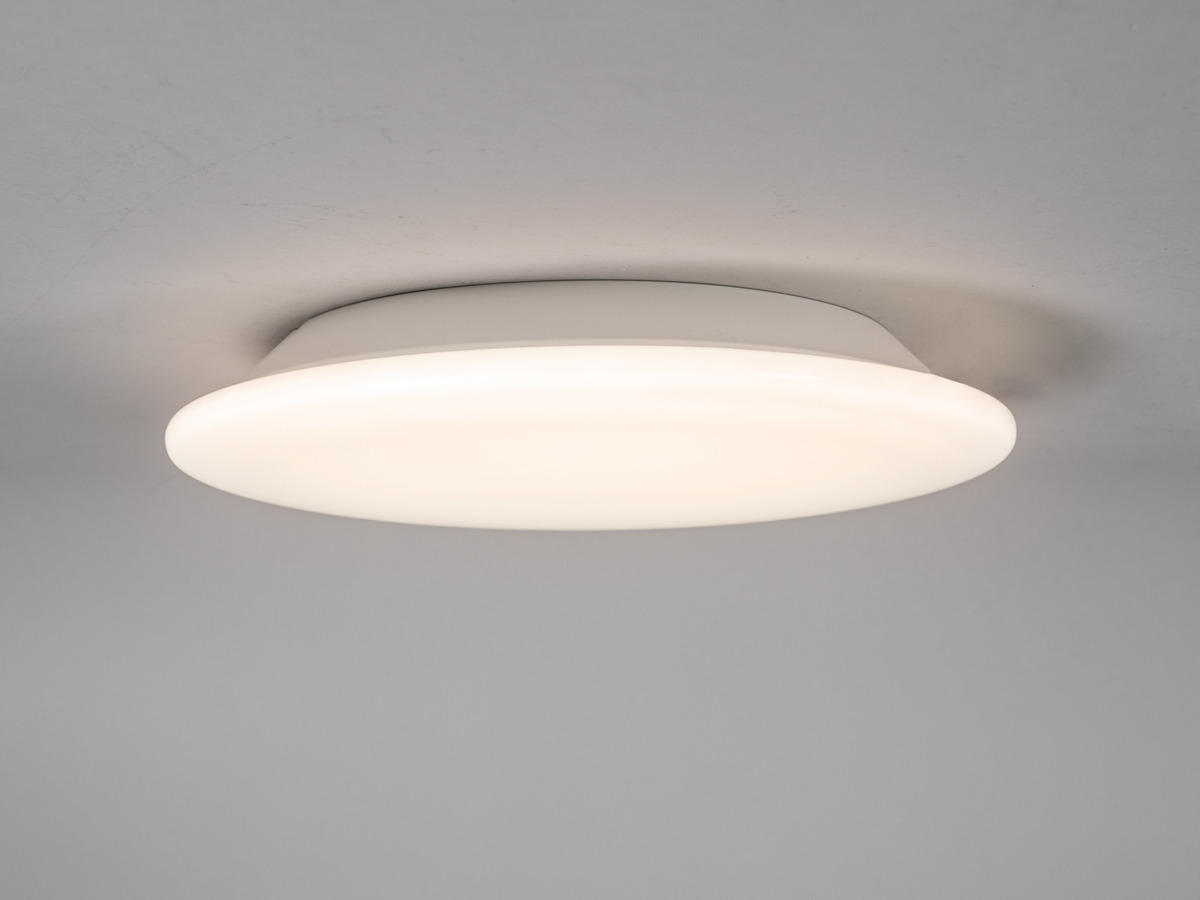

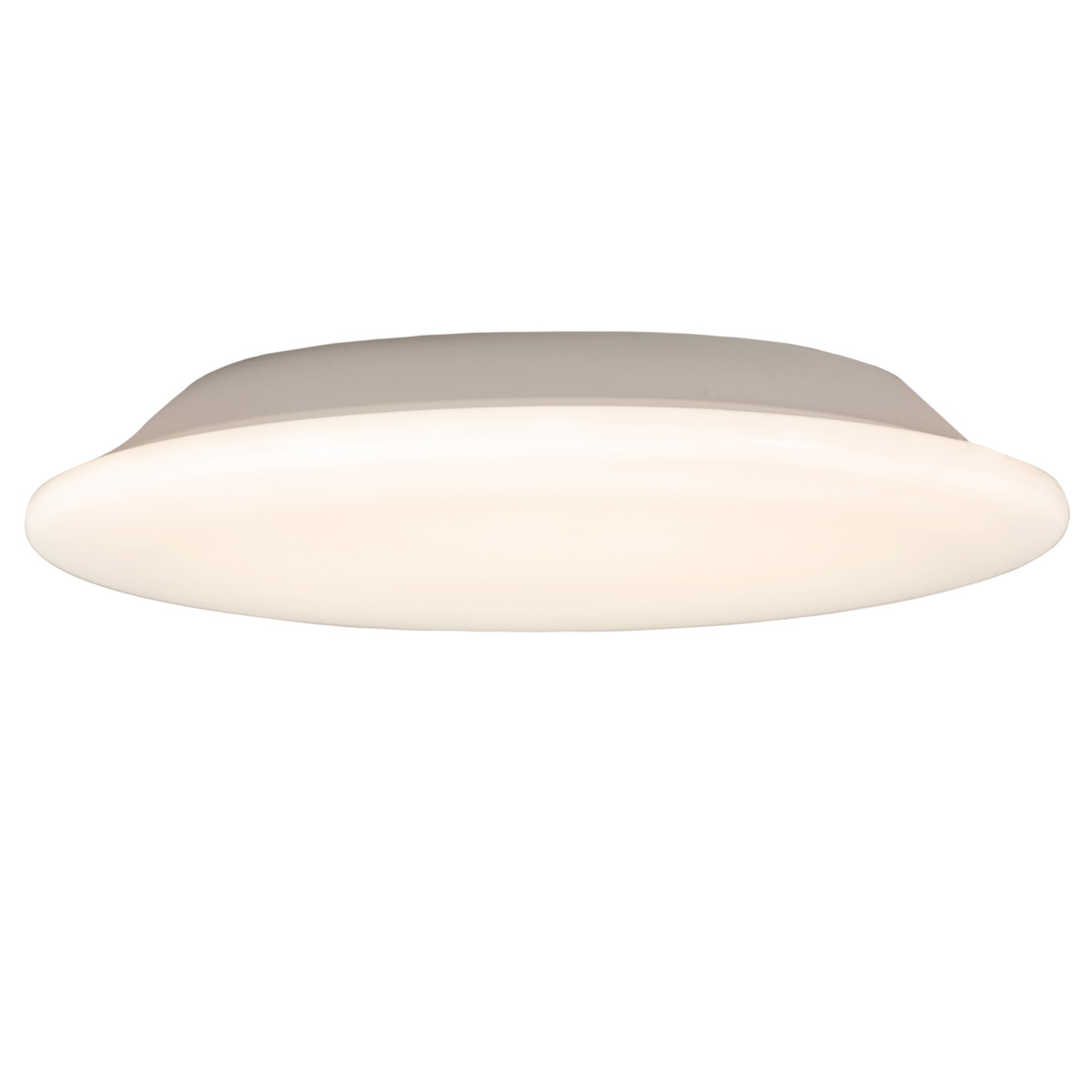

Low-build LED Plafond in slim design with a pleasant uplight that evens out contrasts towards the ceiling or wall. Consists of recycled ocean plastic. Selectable colour temperature via DIP-Switch ColourTemp 3000K or 4000K. Easily installed IP44 luminaire with long lifetime and high lumen output, comes complete with built-in driver; choose between many different control alternatives, selected models (Moon 380, 380S, 320SC, 380SC, 320 Bluetooth, 380 Bluetooth, 320 DALI, 380 DALI) can also be equipped with emergency lights. Comes with screw holes that fit over a ceiling box, two entrances at the bottom, one of which is centred. Cable bushings for surface-mounted cable routing from two sides.
| Variants | GTIN | Item Name | Luminaire Lumen (lm) | Type of Dimming |
|---|---|---|---|---|
|
7392971145556 | Moon Slim EM 380 | 2300 | Trailing Edge, Leading Edge |
|
7392971141244 | Moon Slim 255 | 1180 | Trailing Edge, Leading Edge |
|
7392971141251 | Moon Slim 320 | 1700 | Trailing Edge, Leading Edge |
|
7392971145303 | Moon Slim 380 | 2300 | Trailing Edge, Leading Edge |
|
7392971142081 | Moon Slim PIR 255 | 1180 | PIR Sensor |
|
7392971142098 | Moon Slim PIR 320 | 1700 | PIR Sensor |
|
7392971141268 | Moon Slim S 255 | 1180 | Microwave Sensor |
|
7392971141275 | Moon Slim S 320 | 1700 | Microwave Sensor |
|
7392971145310 | Moon Slim S 380 | 2300 | Microwave Sensor |
|
7392971145327 | Moon Slim SC 320 | 1750 | Basic light, Microwave Sensor |
|
7392971145334 | Moon Slim SC 380 | 2300 | Basic light, Microwave Sensor |
|
7392971145341 | Moon Slim Bluetooth 320 | 1750 | Bluetooth, Push 230V, Microwave Sensor |
|
7392971145358 | Moon Slim Bluetooth 380 | 2300 | Bluetooth, Push 230V, Microwave Sensor |
|
7392971145365 | Moon Slim DALI 320 | 1750 | Push 230V, DALI 2 |
|
7392971145372 | Moon Slim DALI 380 | 2300 | Push 230V, DALI 2 |
|
7392971145563 | Moon Slim S EM 380 | 2300 | Microwave Sensor |
|
7392971145570 | Moon Slim SC EM 320 | 1750 | Basic light, Microwave Sensor |
|
7392971145587 | Moon Slim SC EM 380 | 2300 | Basic light, Microwave Sensor |
|
7392971145594 | Moon Slim Bluetooth EM 320 | 1750 | Bluetooth, Push 230V, Microwave Sensor |
|
7392971145600 | Moon Slim Bluetooth EM 380 | 2300 | Bluetooth, Push 230V, Microwave Sensor |
|
7392971145617 | Moon Slim DALI EM 320 | 1750 | Push 230V, DALI 2 |
|
7392971145624 | Moon Slim DALI EM 380 | 2300 | Push 230V, DALI 2 |
Moon Slim EM 380
-
GTIN 7392971145556Item Name Moon Slim EM 380Warranty 5 years
- Light Technical Data
-

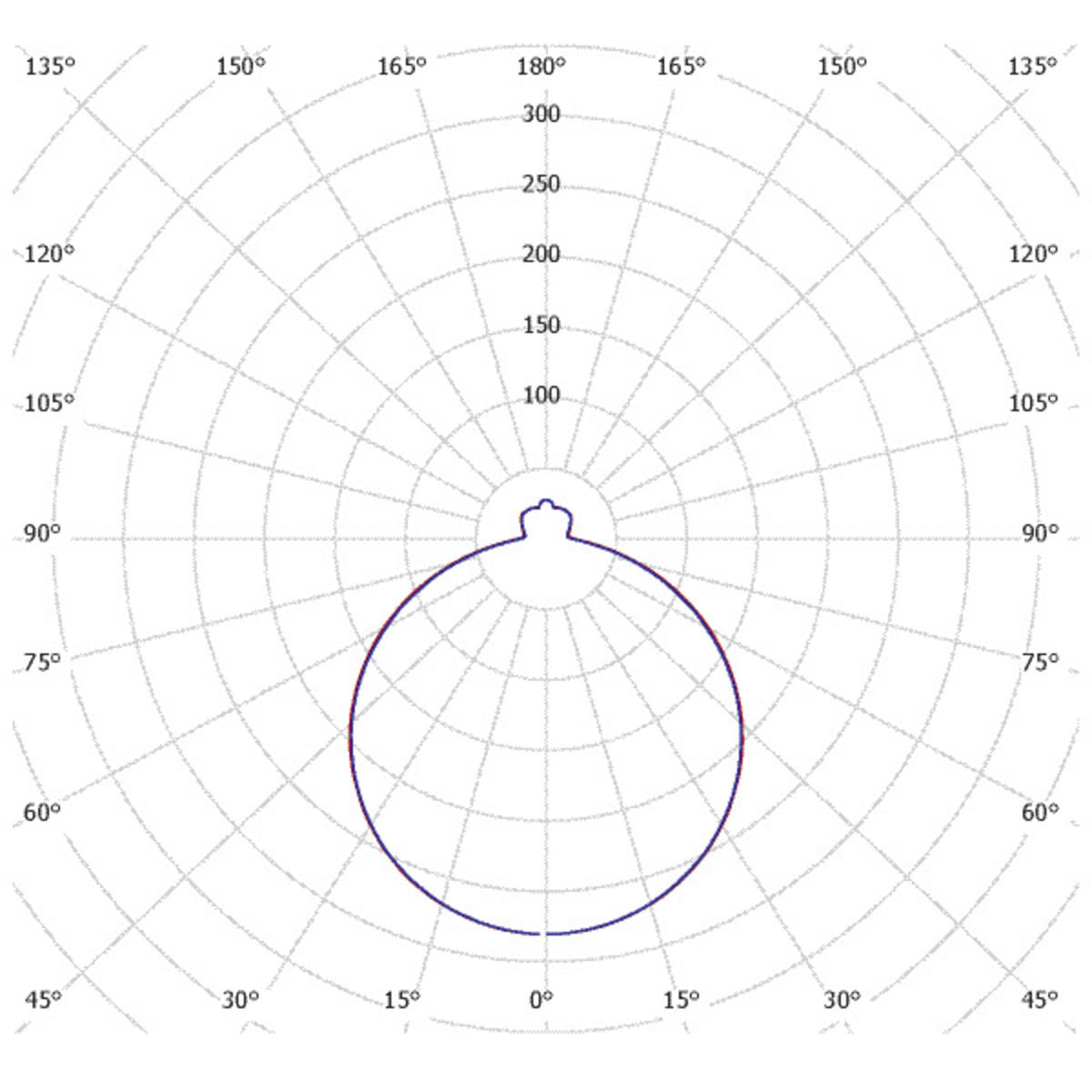

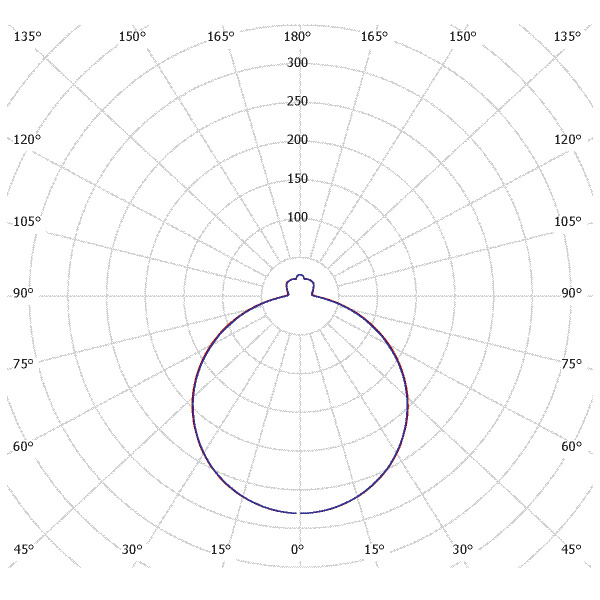

Luminaire Lumen (lm) 2300Light Source LEDLight Source Included YesReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour WhiteColour Temperature (K) 3000, 4000Colour Rendering Index (Ra) >80Colour Consistency (SDCM) 3Luminous Intensity (cd) 640Beam Angle (°) 120Light sharing SymmetricLight Outlet Direct, IndirectNumber of Lamps (pcs) 1Number of LED (pcs) 104Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L91Lumen maintenance 75 000h L87Lumen maintenance 100 000h L83LLMF @ 50 000h 0,91LLMF @ 100 000h 0,83Life Time Driver 50 000h/10%Flicker (PstLM) 0,41Stroboscopic effect (SVM) 0,024
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50Power LED (W) 20,7Power Luminaire (W) 25System Power (W) 25Efficiency Luminaire (lm/W) 92Efficiency System (lm/W) 92Containing light source energy efficiency class (EU) 2019/2015 D
- Operation and Connection
-
Dimmable YesType of Dimming Trailing Edge, Leading EdgeDriver Included YesDriver Model Constant CurrentDriver Type Built-inConnection (type) Quick TerminalConnection (mm2) 5x0,5-2,5Through Wiring YesStrain Relief YesPower Factor ʎ 0,9Efficiency (%) 83Power loss (W) 6,74Leakage current (mA) (at 230 V, 50 Hz, full load) 0,0073Constant Current (mA) 500Operating TemperatureMax. Tc (°C) 85Dimming secondary side AMInrush current (max/time) 3A 100µsMains surge protection DM (kV) 1Fuse B10 (pcs) 19Fuse B16 (pcs) 30Fuse C10 (pcs) 32Fuse C16 (pcs) 511,5
- Color and material
-
Material Recycled, PlasticColor WhiteEnvironmental Assessment Byggvarubedömningen, EPD
- Measurement and installation
-

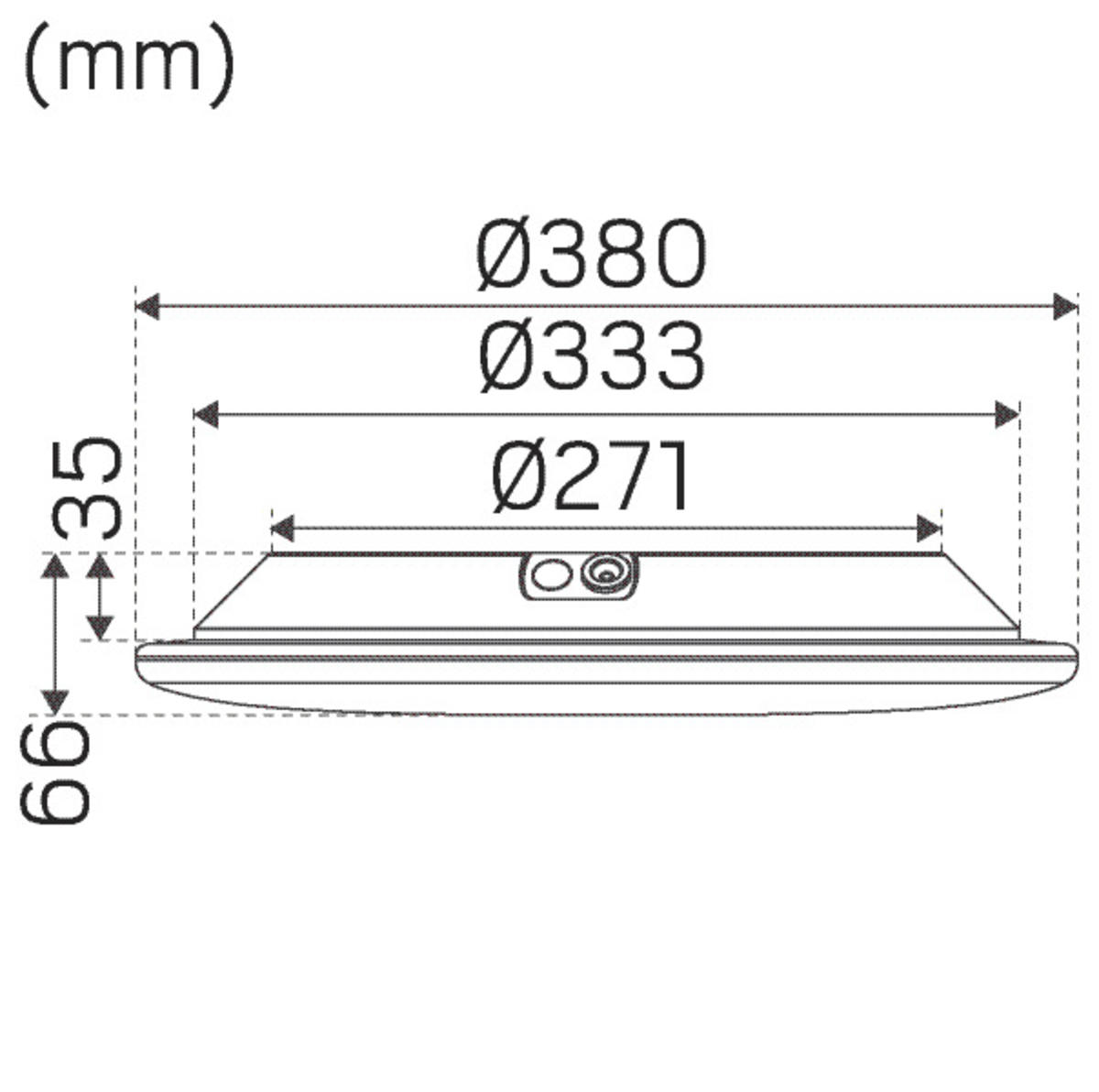

Operating EnvironmentIP Degree of Protection 44Protection Class IIInstallation Surface mountedMounting Installation Screw MountingApproval Marks CE, a Hide-a-lite ChoiceFilament Test IEC 695-2-1(°C) 650Height (mm) 66Diameter (mm) 380Weight (kg) 1,275
Spare parts
If you need spare parts, contact our customer support
- LED-Module Moon Slim 380 X331
- Driver Moon Slim 380 X323
- Cover Moon Slim 380 X276
