Moon Slim Moon Slim S EM 380

Adjusted for concealed or surface mounted cable routing
Selectable colour temperature via DIP-Switch ColourTemp
Choose from several different control options
Available as emergency lighting - module can also be fitted on existing luminaire as an accessory
Base and cover made of recycled ocean plastic

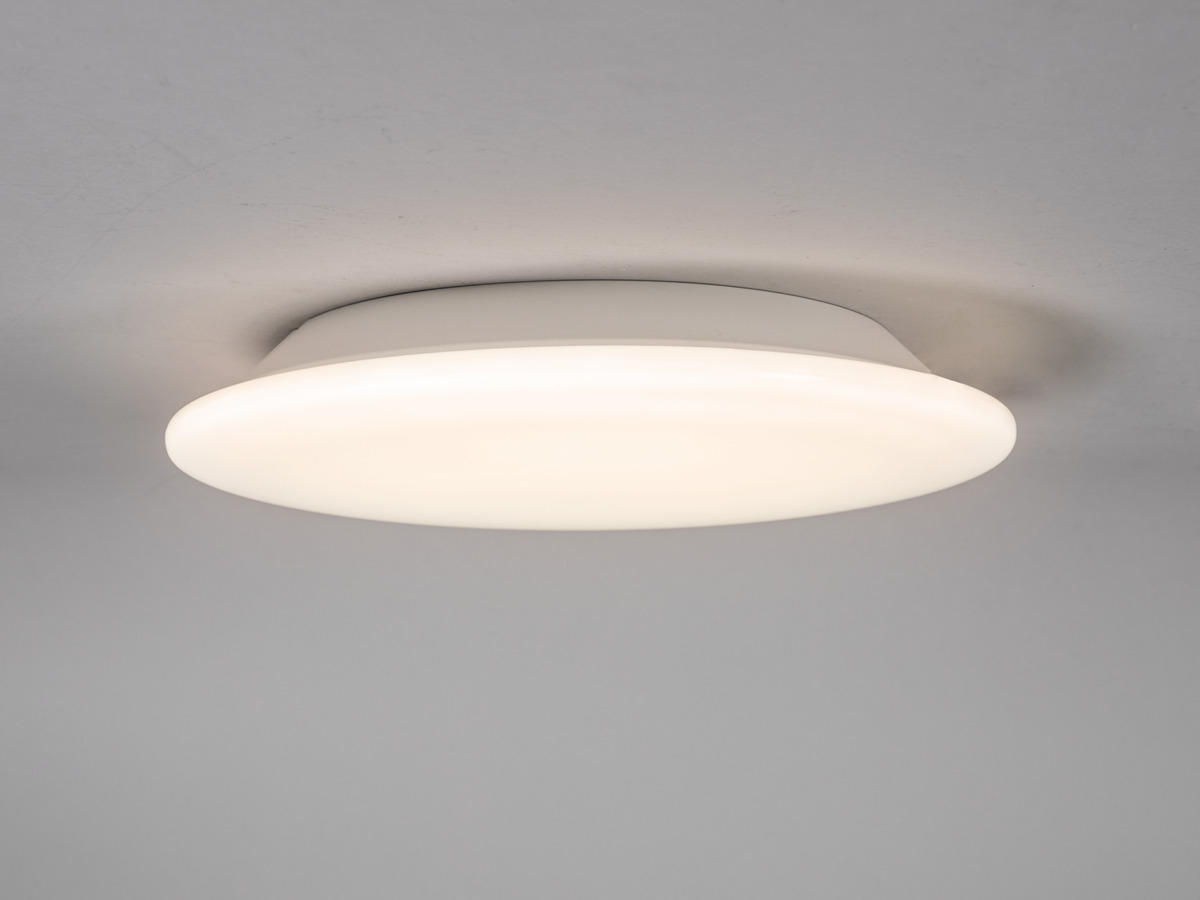

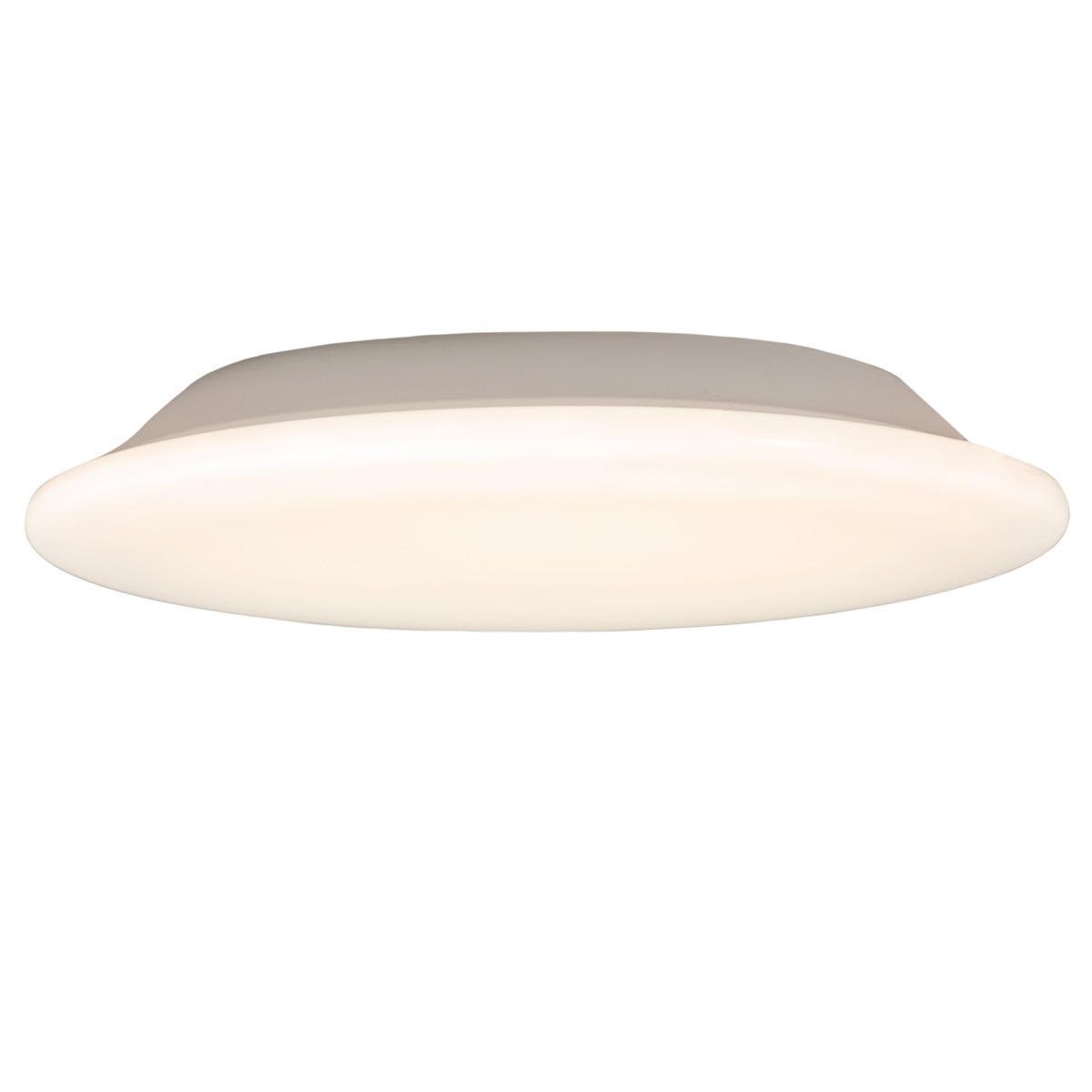

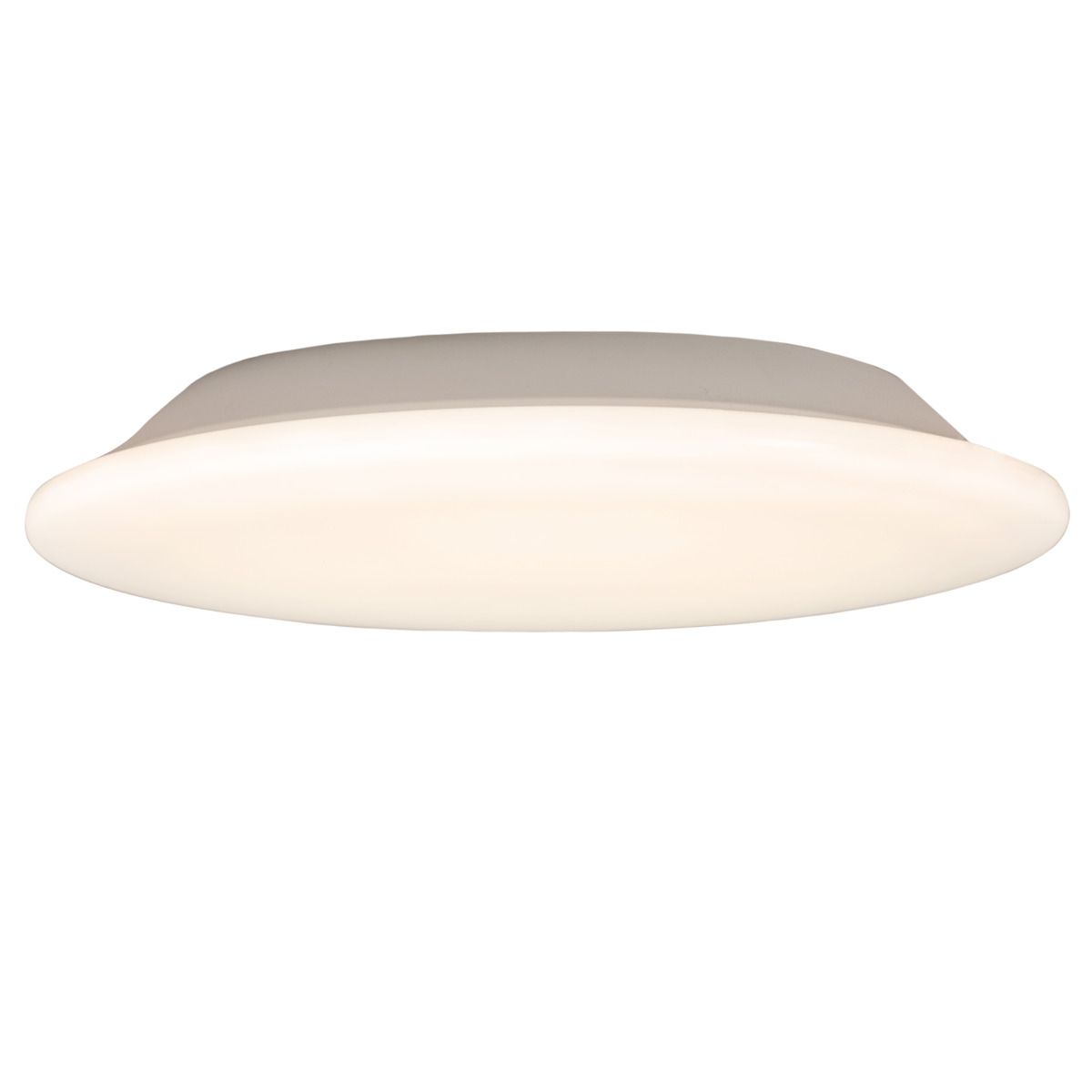

Low-build LED Plafond in slim design with a pleasant uplight that evens out contrasts towards the ceiling or wall. Consists of recycled ocean plastic. Selectable colour temperature via DIP-Switch ColourTemp 3000K or 4000K. Easily installed IP44 luminaire with long lifetime and high lumen output, comes complete with built-in driver; choose between many different control alternatives, selected models (Moon 380, 380S, 320SC, 380SC, 320 Bluetooth, 380 Bluetooth, 320 DALI, 380 DALI) can also be equipped with emergency lights. Comes with screw holes that fit over a ceiling box, two entrances at the bottom, one of which is centred. Cable bushings for surface-mounted cable routing from two sides.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming
7392971145563	Moon Slim S EM 380	2300	Microwave Sensor
7392971141244	Moon Slim 255	1180	Trailing Edge, Leading Edge
7392971141251	Moon Slim 320	1700	Trailing Edge, Leading Edge
7392971145303	Moon Slim 380	2300	Trailing Edge, Leading Edge
7392971142081	Moon Slim PIR 255	1180	PIR Sensor
7392971142098	Moon Slim PIR 320	1700	PIR Sensor
7392971141268	Moon Slim S 255	1180	Microwave Sensor
7392971141275	Moon Slim S 320	1700	Microwave Sensor
7392971145310	Moon Slim S 380	2300	Microwave Sensor
7392971145327	Moon Slim SC 320	1750	Basic light, Microwave Sensor
7392971145334	Moon Slim SC 380	2300	Basic light, Microwave Sensor
7392971145341	Moon Slim Bluetooth 320	1750	Bluetooth, Push 230V, Microwave Sensor
7392971145358	Moon Slim Bluetooth 380	2300	Bluetooth, Push 230V, Microwave Sensor
7392971145365	Moon Slim DALI 320	1750	Push 230V, DALI 2
7392971145372	Moon Slim DALI 380	2300	Push 230V, DALI 2
7392971145556	Moon Slim EM 380	2300	Trailing Edge, Leading Edge
7392971145570	Moon Slim SC EM 320	1750	Basic light, Microwave Sensor
7392971145587	Moon Slim SC EM 380	2300	Basic light, Microwave Sensor
7392971145594	Moon Slim Bluetooth EM 320	1750	Bluetooth, Push 230V, Microwave Sensor
7392971145600	Moon Slim Bluetooth EM 380	2300	Bluetooth, Push 230V, Microwave Sensor
7392971145617	Moon Slim DALI EM 320	1750	Push 230V, DALI 2
7392971145624	Moon Slim DALI EM 380	2300	Push 230V, DALI 2

Description: GTIN 7392971145563

Item Name Moon Slim S EM 380

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 2300

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional, Replaceable Control gear by professional

LED Colour White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

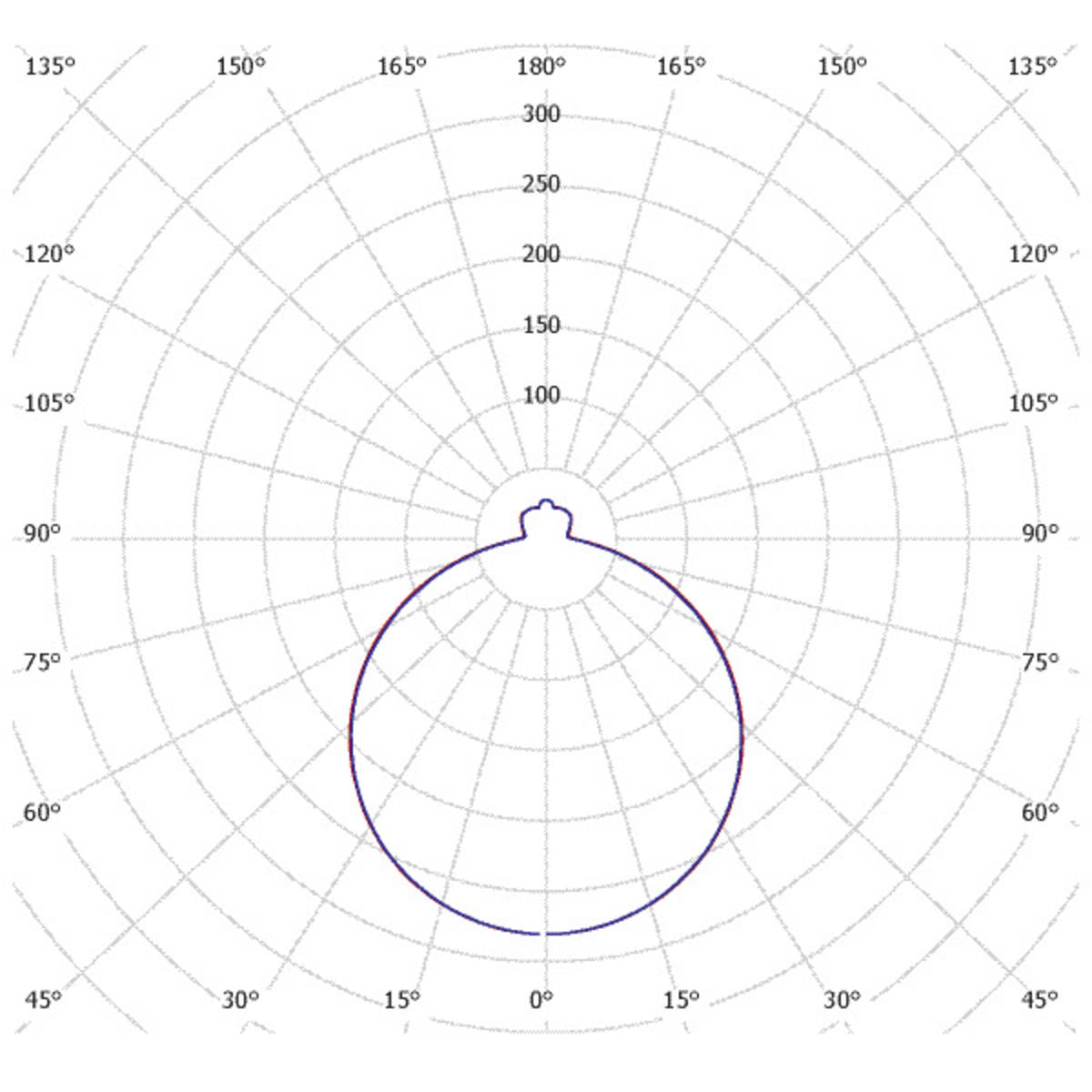

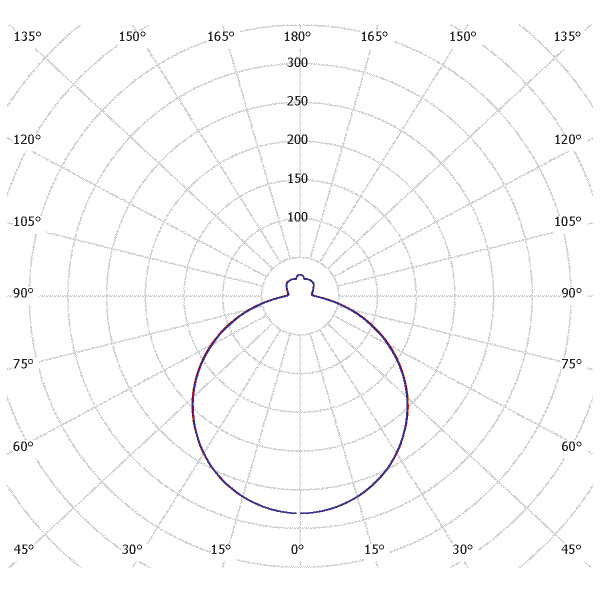

Luminous Intensity (cd) 640

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct, Indirect

Number of Lamps (pcs) 1

Number of LED (pcs) 104

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L91

Lumen maintenance 75 000h L87

Lumen maintenance 100 000h L83

LLMF @ 50 000h 0,91

LLMF @ 100 000h 0,83

Life Time Driver 50 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50

Power LED (W) 20,5

Power Luminaire (W) 25

System Power (W) 25

Efficiency Luminaire (lm/W) 92

Efficiency System (lm/W) 92

Containing light source energy efficiency class (EU) 2019/2015 D
Operation and Connection: Dimmable No

Type of Dimming Microwave Sensor

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 5x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Power Factor ʎ 0,9

Efficiency (%) 82

Power loss (W) 6,96

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,0073

Constant Current (mA) 500

Operating Temperature 0...+40

Max. Tc (°C) 85

Inrush current (max/time) 3A 1020µs

Mains surge protection DM (kV) 0,5

Fuse B10 (pcs) 19

Fuse B16 (pcs) 30

Fuse C10 (pcs) 32

Fuse C16 (pcs) 51

1,5
Color and material: Material Recycled, Plastic

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class II

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE, a Hide-a-lite Choice

Filament Test IEC 695-2-1(°C) 650

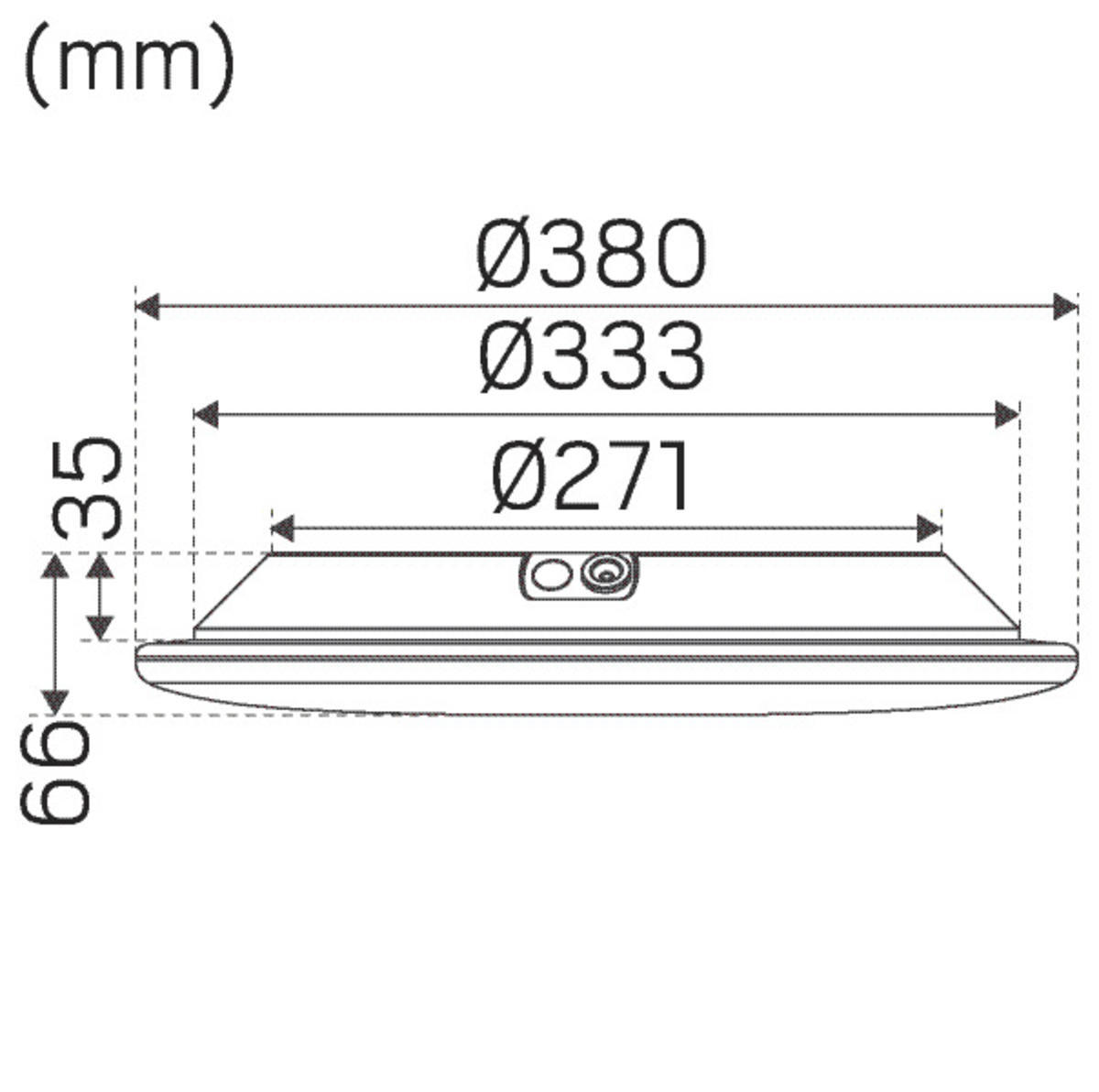

Height (mm) 66

Diameter (mm) 380

Weight (kg) 1,315

Spare parts

If you need spare parts, contact our customer support

Driver Moon Slim 380 S X325
Cover Moon Slim 380 X276
LED-Module Moon Slim 380 X331
