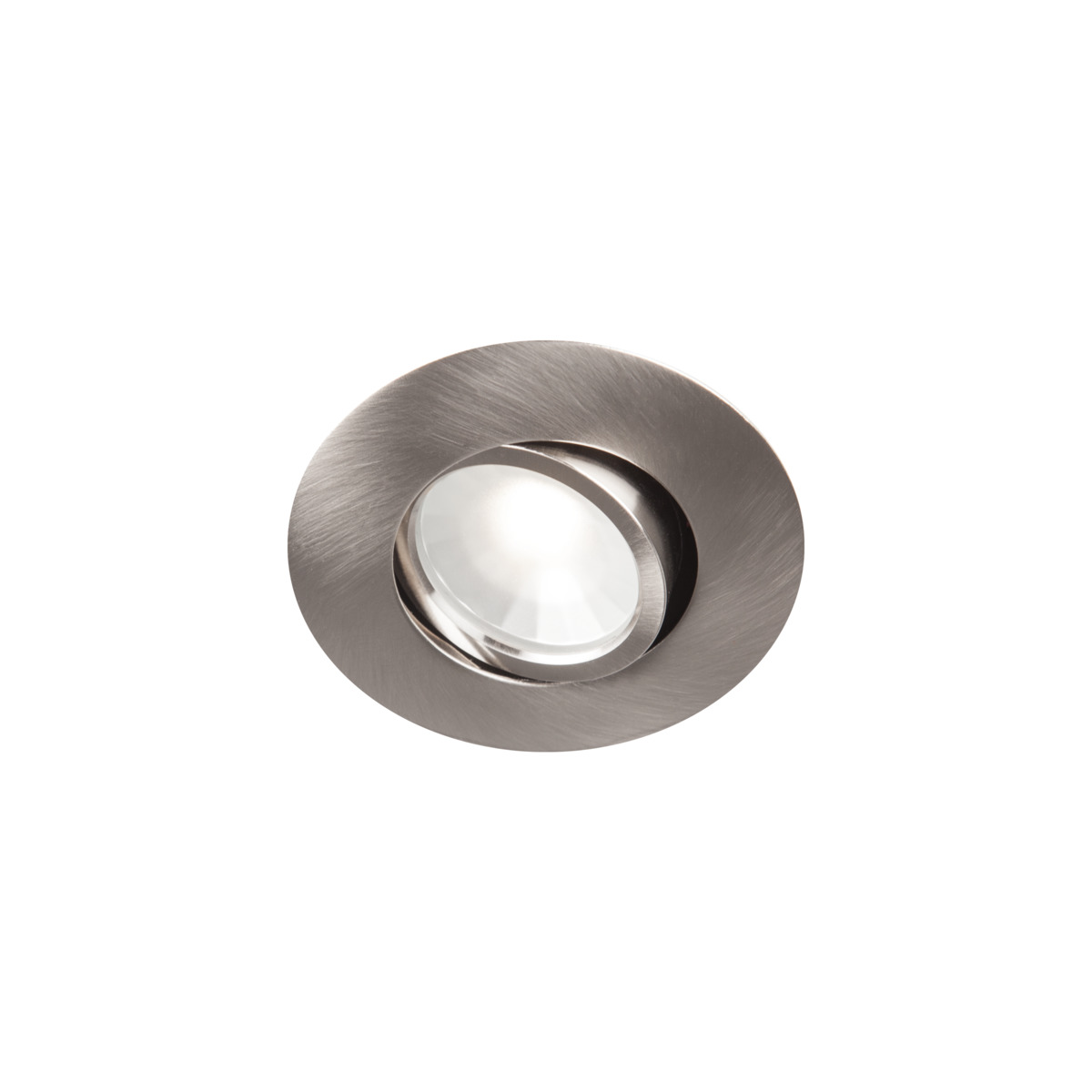

1218 Smart

Integrated push-in terminal for easy and smart series connection

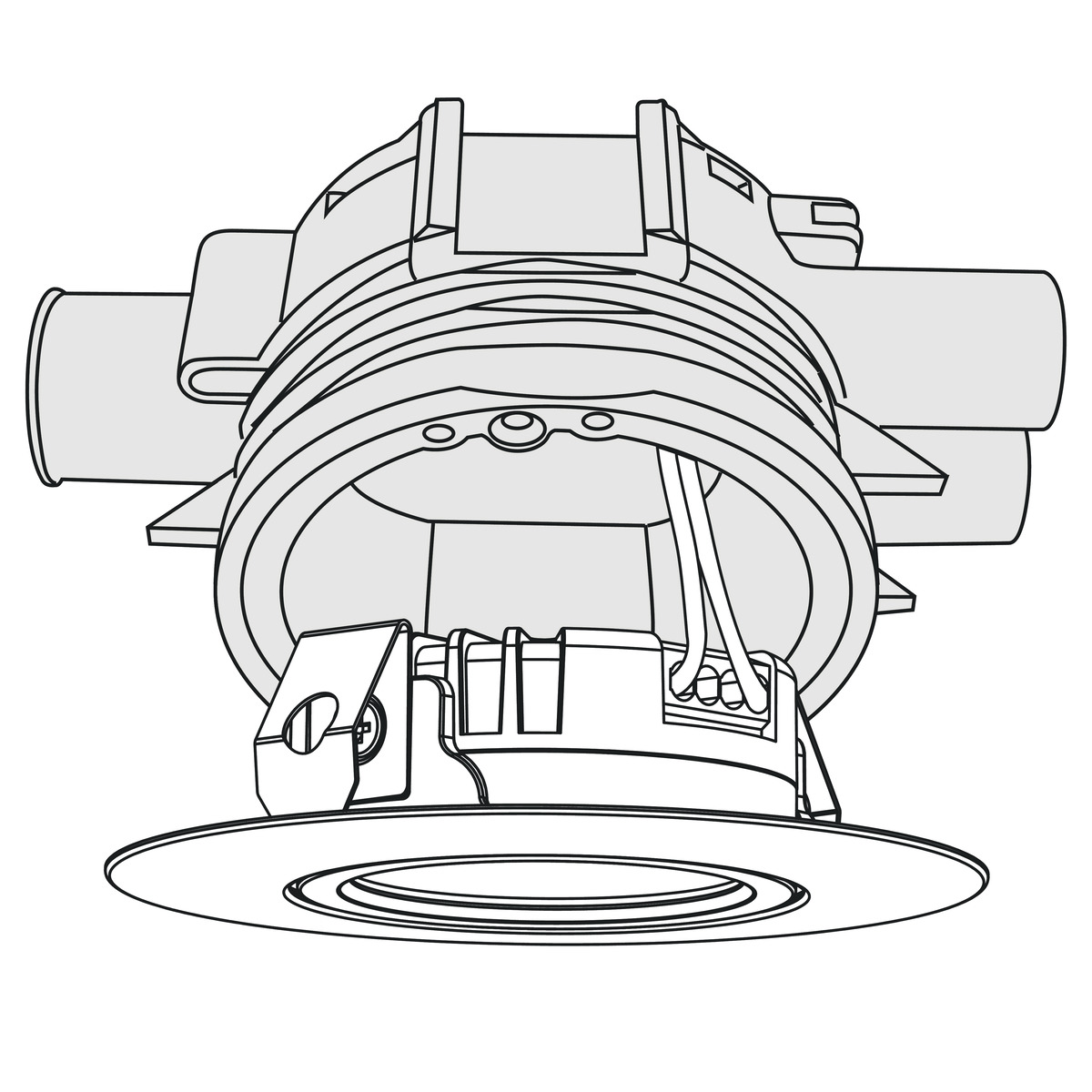

Low-build minidownlight IP44 with integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints and minimises sources of error. Adapted for installation in appliance box and normal cut-out with tension springs. Energy efficient 3.2W/350mA replaces 25-30W halogen fittings with very good colour rendering, RA > 90. Very suitable for recessing into suspended ceilings. Cord set 2m with mini-contact included.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971130828	1218 Smart Brushed steel 3000K	Brushed Steel	3000	300
7392971130798	1218 Smart White 2700K	White	2700	290
7392971130804	1218 Smart White 3000K	White	3000	300
7392971130811	1218 Smart Brushed steel 2700K	Brushed Steel	2700	290

Description: GTIN 7392971130828

Item Name 1218 Smart Brushed steel 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 300

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 220

Beam Angle (°) 70

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 60 000h Ta 25°C

Nominel Life Time (h) 60000
Technical data: Adjustable Yes

Tiltable (°) 15

Voltage (type) DC

Voltage Forward (Vf) 8,7

Power LED (W) 3,2

Power Luminaire (W) 3,2

System Power (W) 3,5

Efficiency Luminaire (lm/W) 94

Efficiency System (lm/W) 86

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

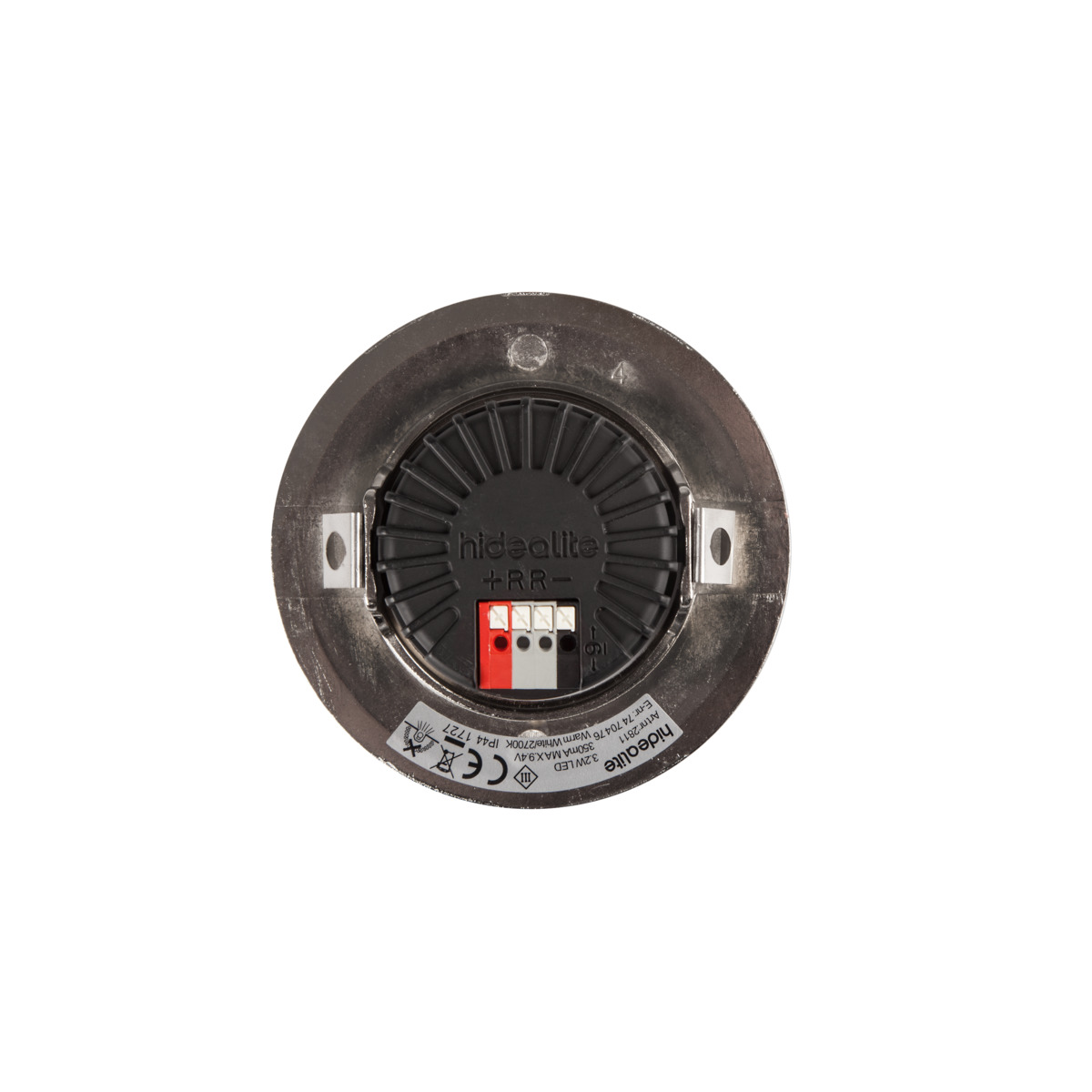

Connection (type) Quick Terminal

Through Wiring No

Strain Relief No

Constant Current (mA) 350

Operating Temperature -15...+40

Max. Tc (°C) 105
Color and material: Material Aluminium

Color Brushed Steel

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in

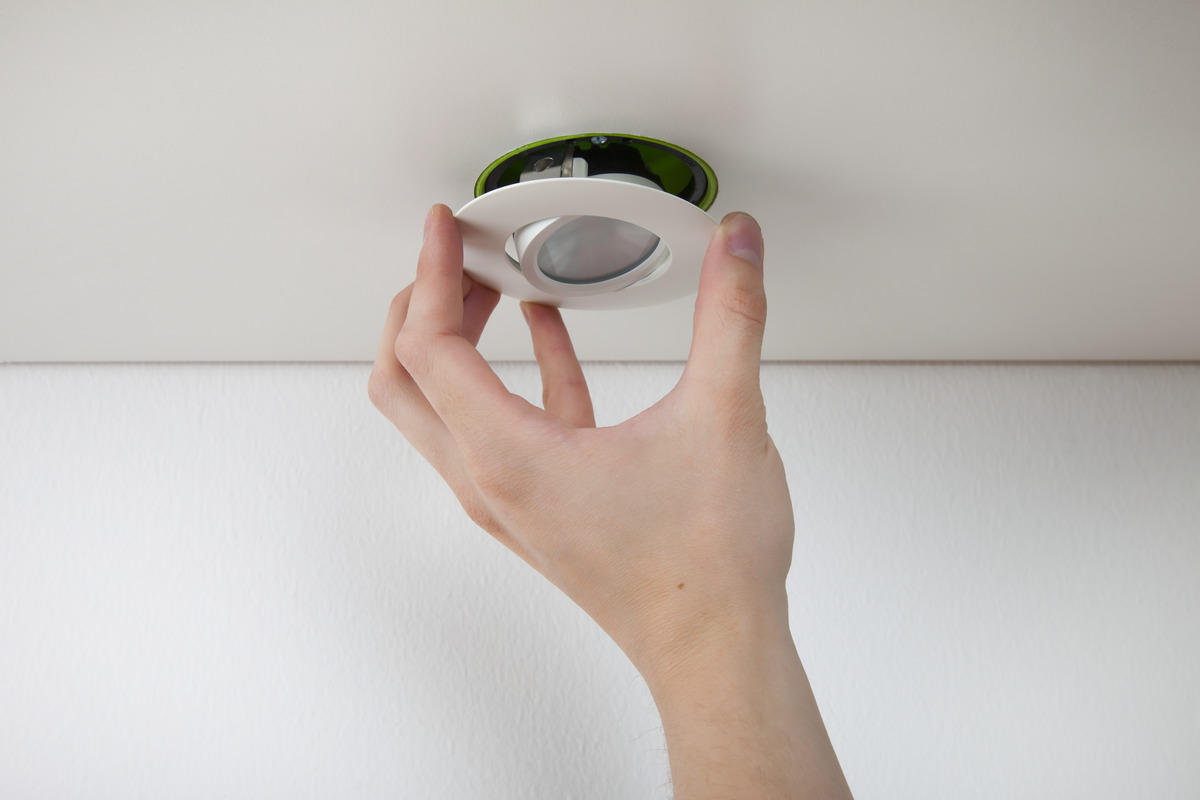

Mounting Installation Mounting Spring

Ceiling Thickness Interval (mm) 5

Fire Safety Marks MM-mark, Not in insulation without protection cover

Approval Marks CE

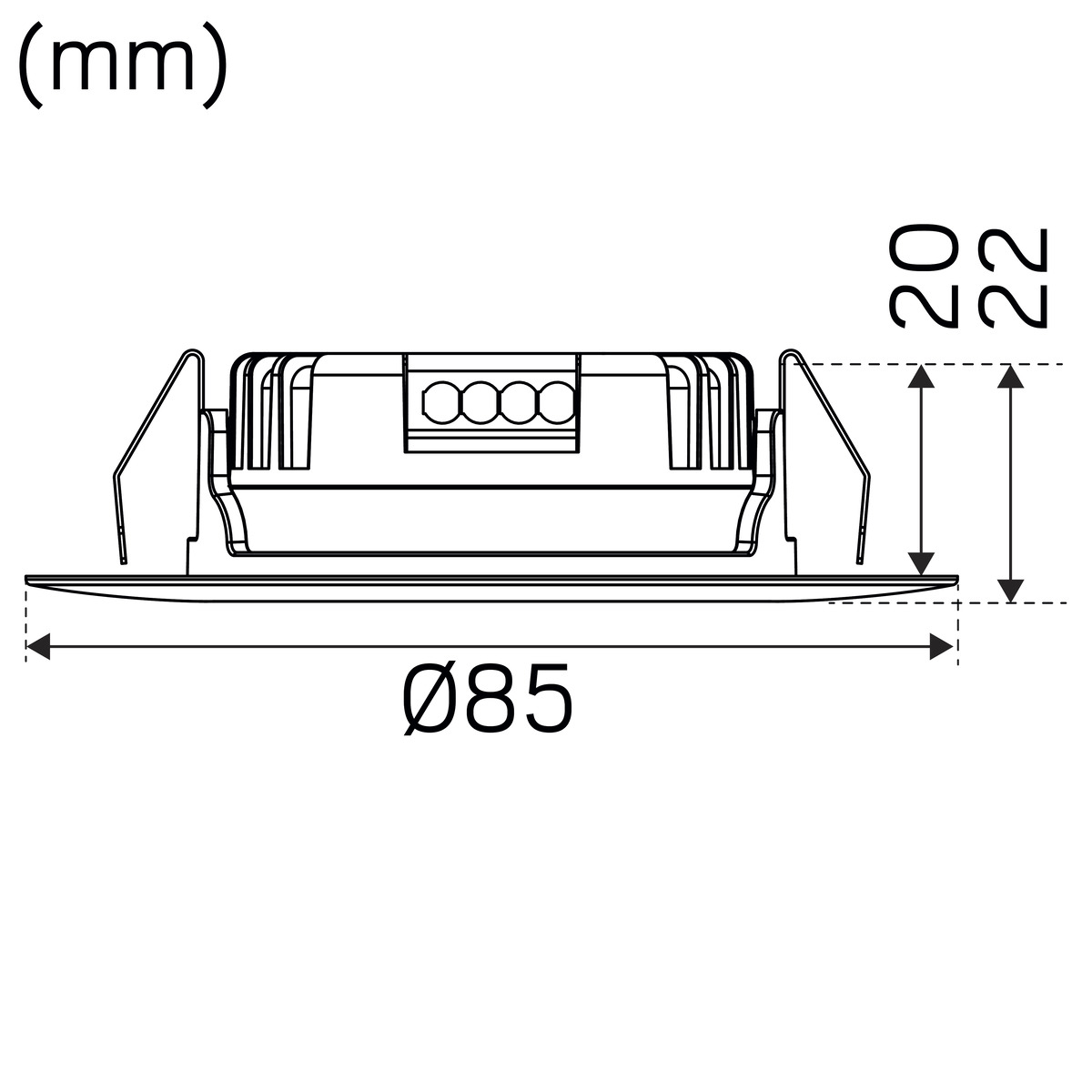

Height (mm) 22

Diameter (mm) 85

Weight (kg) 0,0842

Min. Built-in (mm) Ø58x20

Height Recessed Part (mm) 20

Height Exterior Part (mm) 2

Built-in Ø (mm) 58

1218 12V

Dimmable LED downlight IP44 for connection to 12V AC/DC. Tiltable fixture for installation in appliance box or in normal 57-60mm cut-out with tension springs. Push-in terminals integrated in the back cover makes it easy to use existing wiring, transformer and dimmer when changing older halogen fittings. Connects to 12V AC/DC (only dimmable with AC). Can be dimmed very low with standard dimmers, see our dimmer list for more info.

Comfort Quick ISO

Low-build LED downlight, installation height of just 32 mm, approved by Nemko for installation directly against insulation. The latest LED technology and Comfort Lens provides superb light quality with high luminous comfort. Complete with mains dimmable driver, push-in, loop-in, loop-out terminals and strain relief for cable or flex hose 16 mm. Dimmable with the most commonly available dimmers on the market.

1218 Smart

1218 Smart Brushed steel 3000K

Accessories

Converter Round DALI/PUSH 350/700mA 9W

Connecting cable 2x0,5mm 20m
