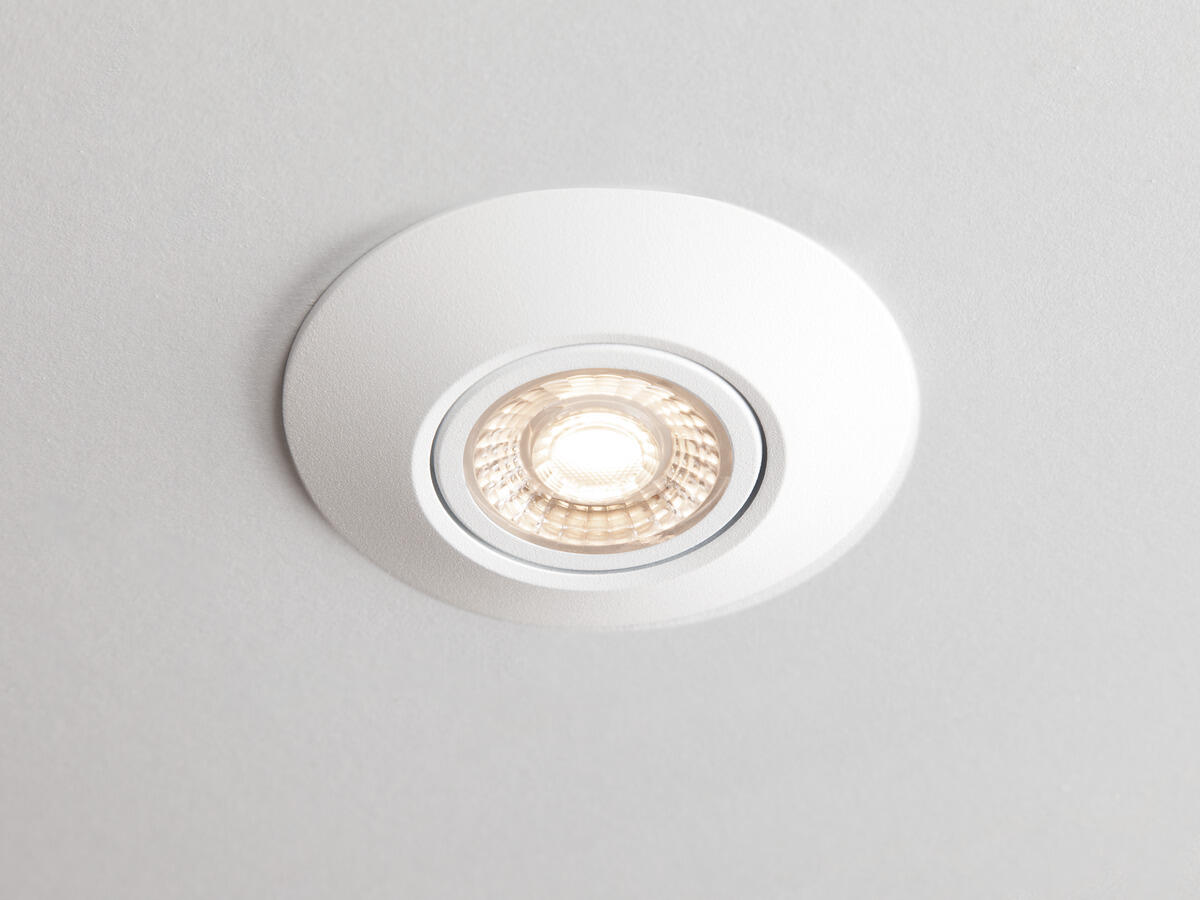

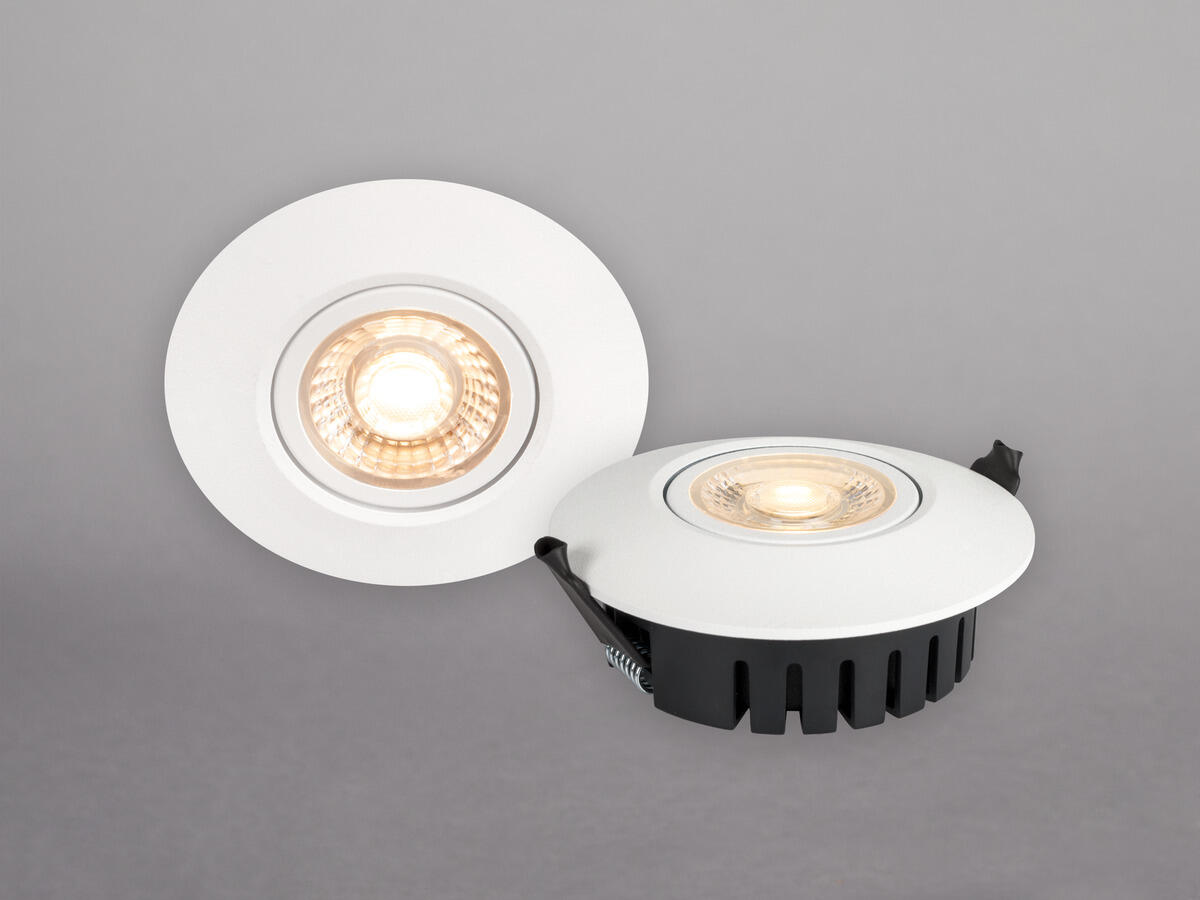

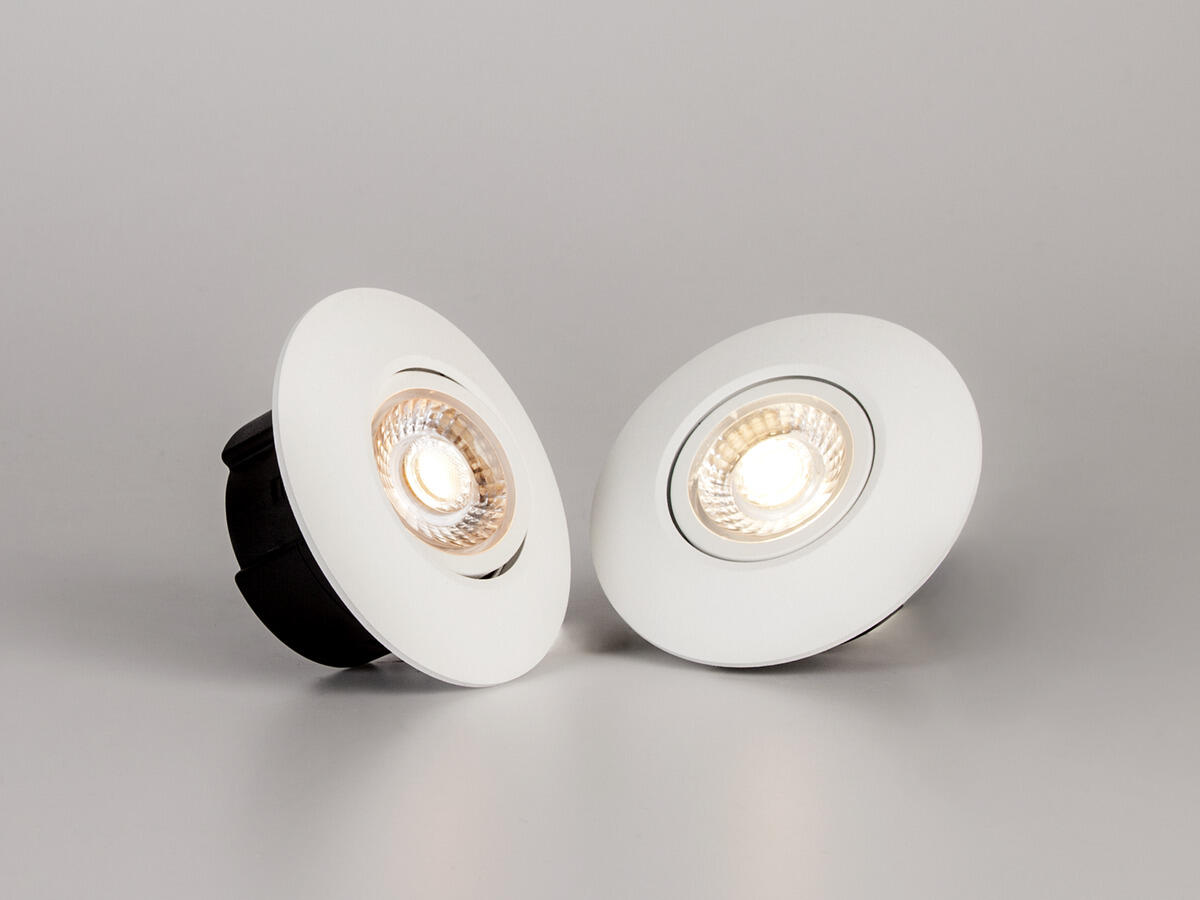

Comfort Smart ISO

Suitable for most ceiling and junction boxes with Swedish, Norwegian and Finnish standard

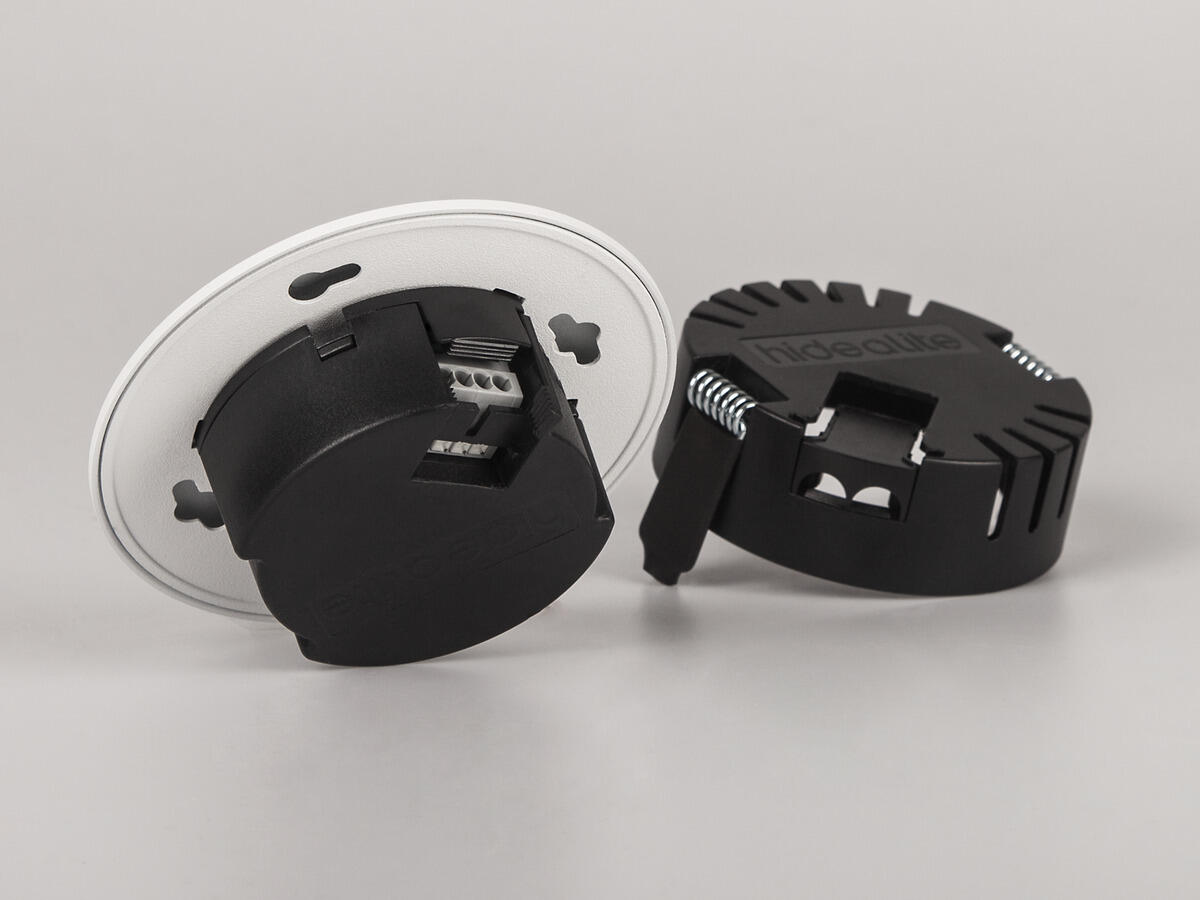

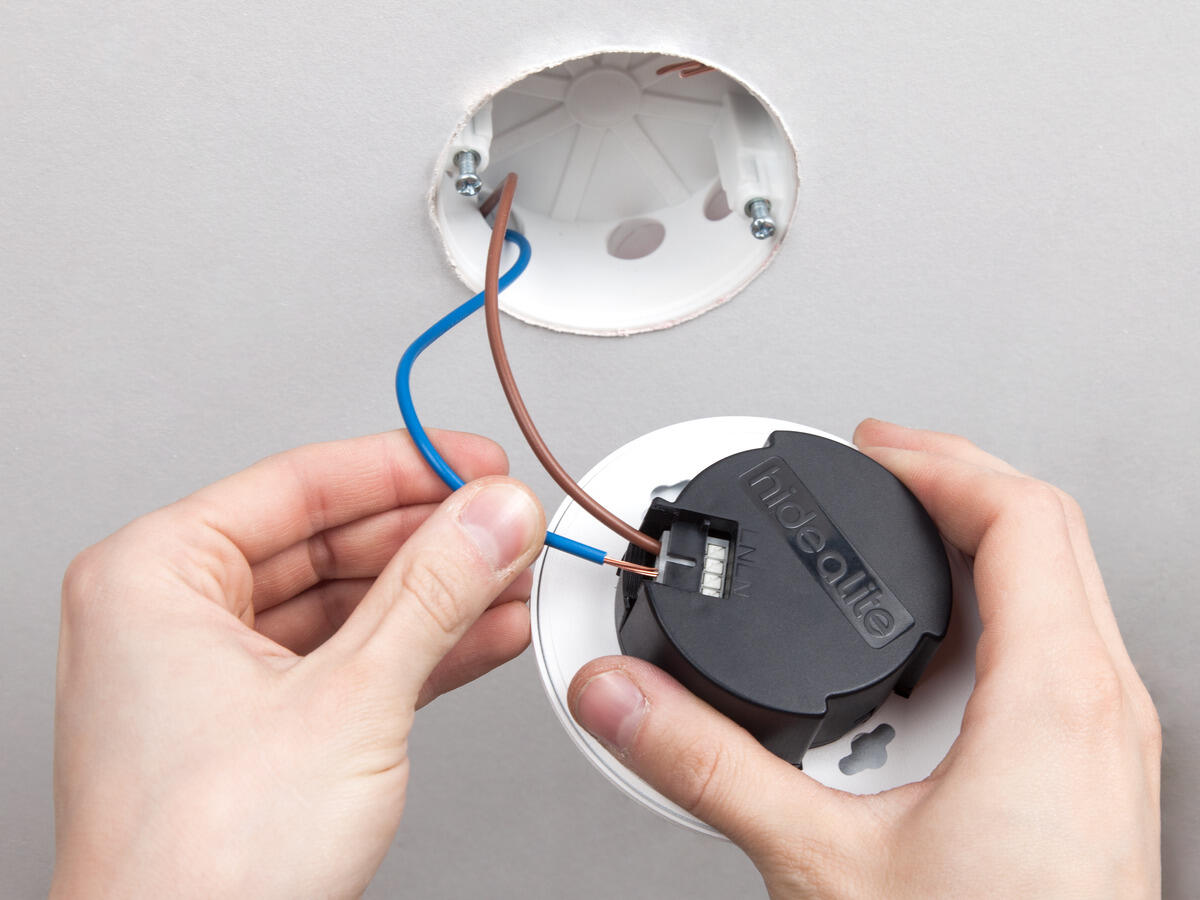

Mains dimmable driver and push-in, loop-in, loop-out terminal block integrated into the housing

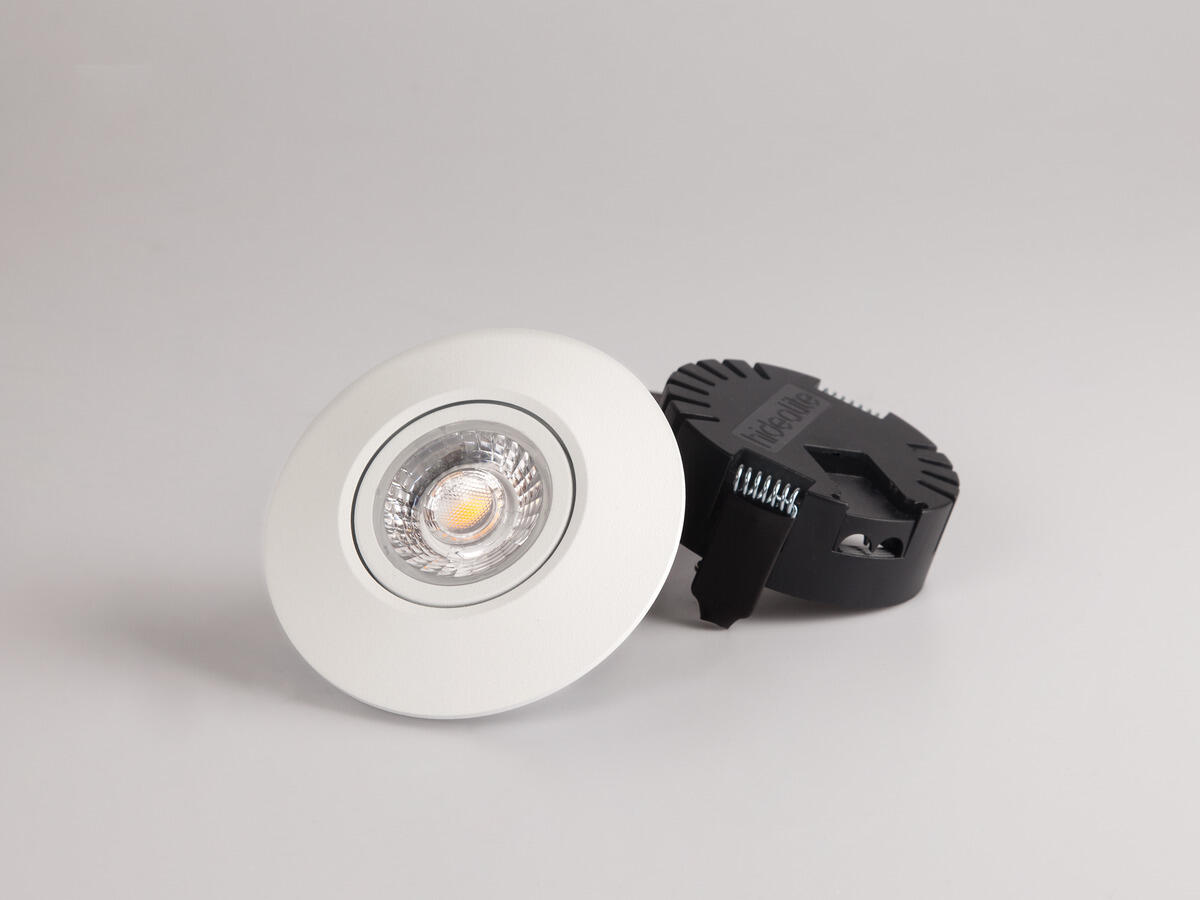

Can be mounted directly against insulation with included ISO cover with springs
Can be mounted in concrete ceiling with embedding box
List of recommended dimmers, see www.hidealite.se

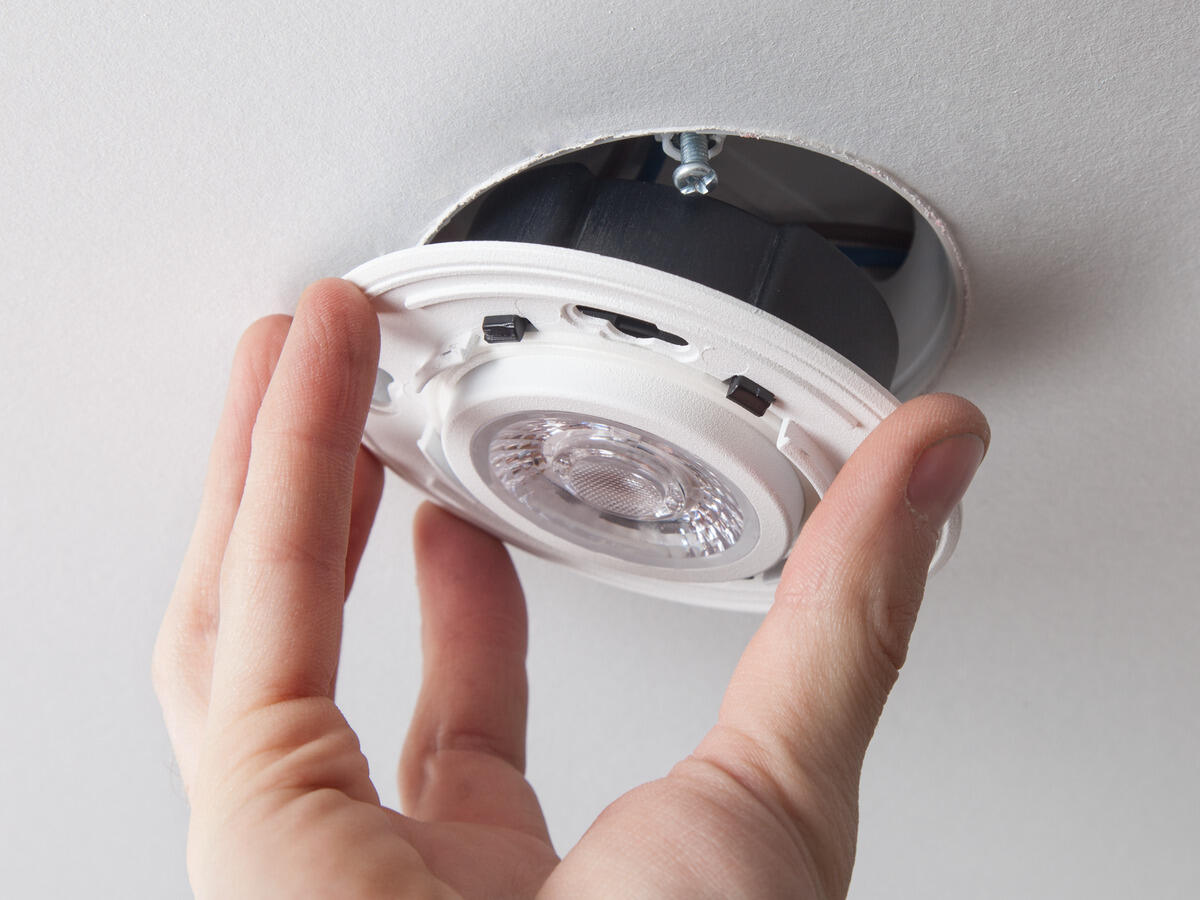

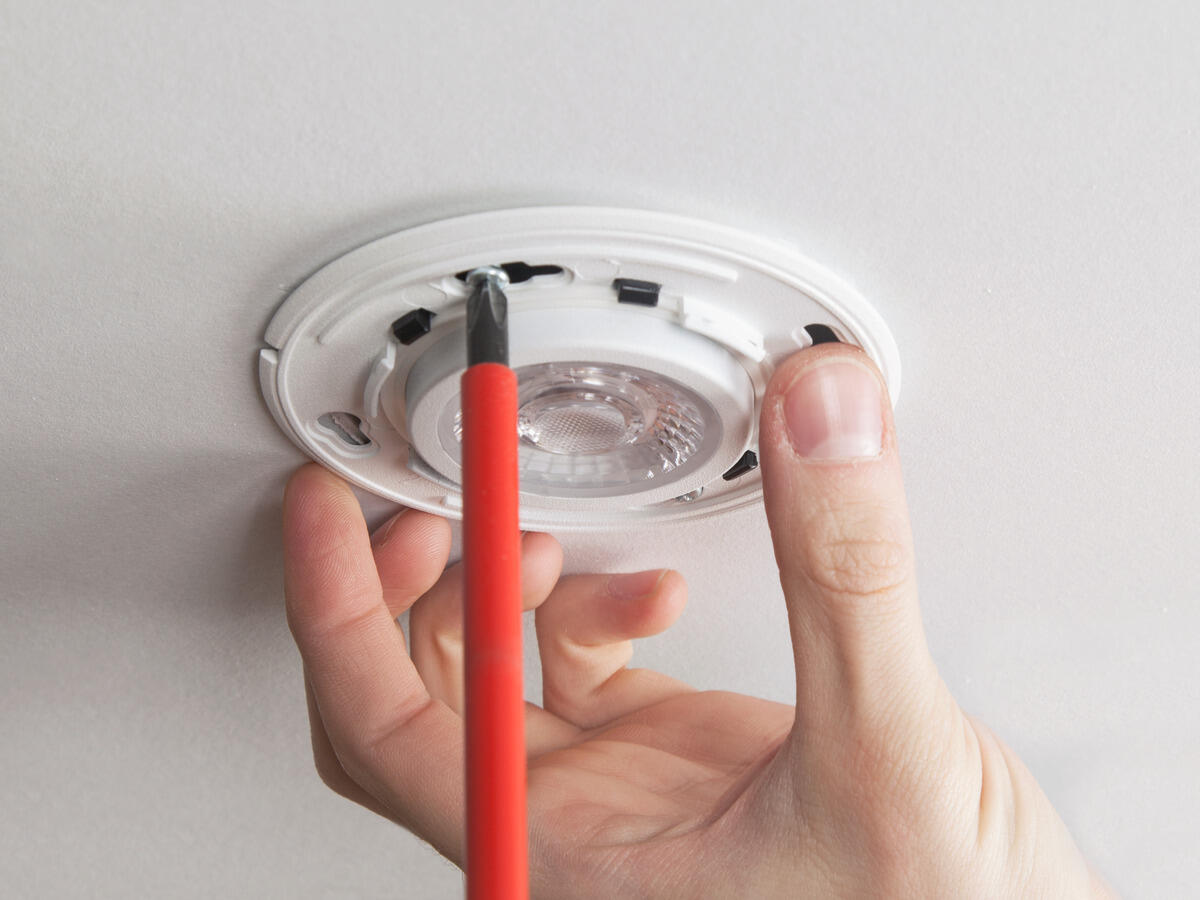

Smart, easily installed downlight for 230V with Comfort Lens. Mains dimmable driver and push-in, loop-in, loop-out terminal block integrated into the housing. Adapted for ceiling and junction boxes with keyhole mounting or directly against insulation together with the ISO cover included. Minimum box depth 30mm. Complete, energy-efficient fixture that requires very little space, also suitable for embedment with box in concrete ceiling. Useable in all rooms thanks to its IP44 rating.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971132457	Comfort Smart ISO White 3000K	3000	450
7392971132464	Comfort Smart ISO White Tune	2700	350
7392971132440	Comfort Smart ISO White 2700K	2700	420

Description: GTIN 7392971132457

Item Name Comfort Smart ISO White 3000K

Warranty 5 years

Type .
Light Technical Data: Luminaire Lumen (lm) 450

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Non-replaceable Control gear

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 940

Beam Angle (°) 36

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L70 100 000h Ta 45°C

Nominel Life Time (h) 100000

LLMF @ 50 000h 0,95

LLMF @ 100 000h 0,93

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,018

Stroboscopic effect (SVM) 0,074
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 4,8

Power Luminaire (W) 6

System Power (W) 6

Efficiency Luminaire (lm/W) 75

Efficiency System (lm/W) 75

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Type of Dimming Trailing Edge, Leading Edge

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 4x0,5-1,5

Through Wiring Yes

Strain Relief Yes

Operating Temperature -20…+40

Max. Tc (°C) 80

Memory Function Power Failure No

Protection Against Short Circuit, Overload

Fuse B10 (pcs) 68

Fuse B16 (pcs) 110

Fuse C10 (pcs) 114

Fuse C16 (pcs) 184
Color and material: Material Aluminium

Material Housing/Enclosure Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class II

Installation Built-in

Mounting Installation Mounting Spring, Screw Mounting

Ceiling Thickness Interval (mm) 3-20

Fire Safety Marks Approved for installation against insulation

Approval Marks CE, SELV

Height (mm) 36

Diameter (mm) 100

Weight (kg) 0,206

Min. Built-in (mm) Ø68x30

Height Recessed Part (mm) 27

Height Exterior Part (mm) 9

Built-in Ø (mm) 83
