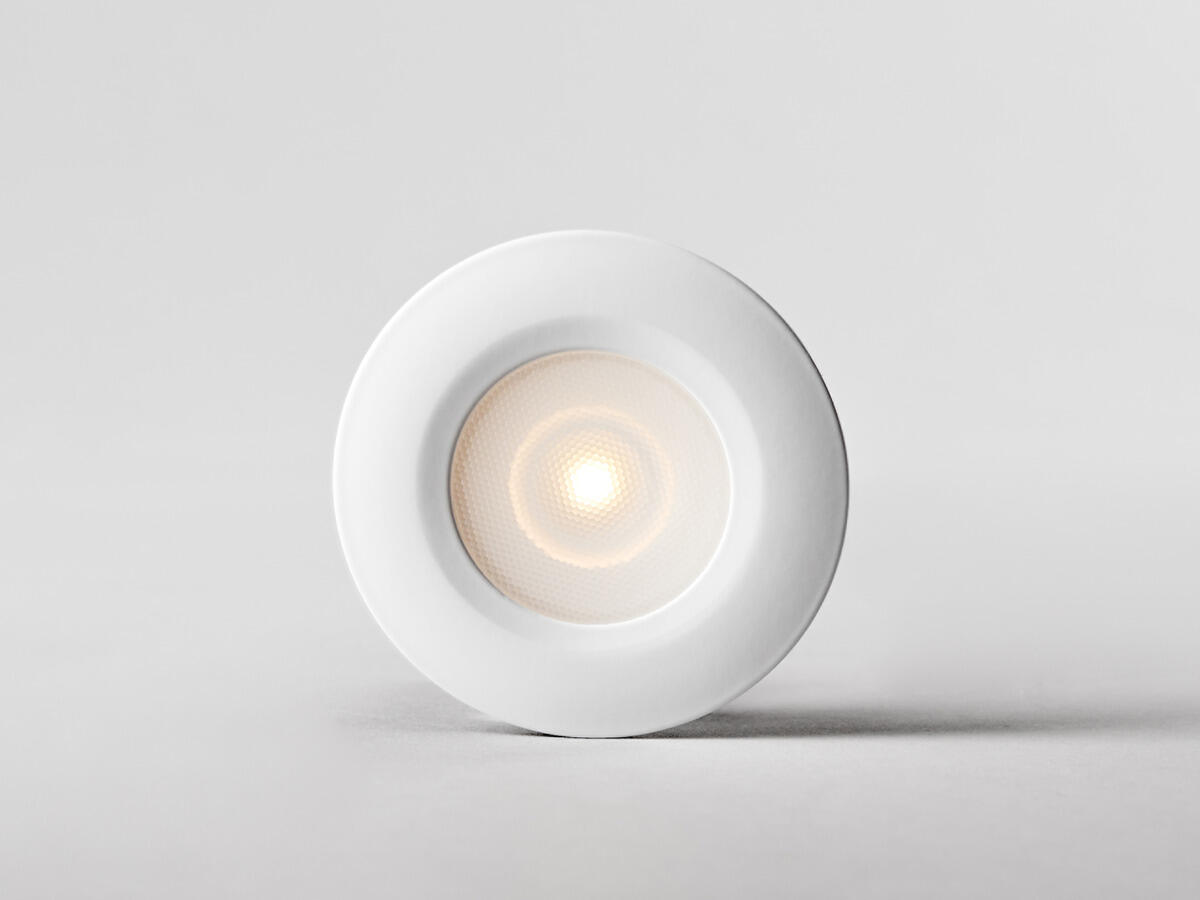

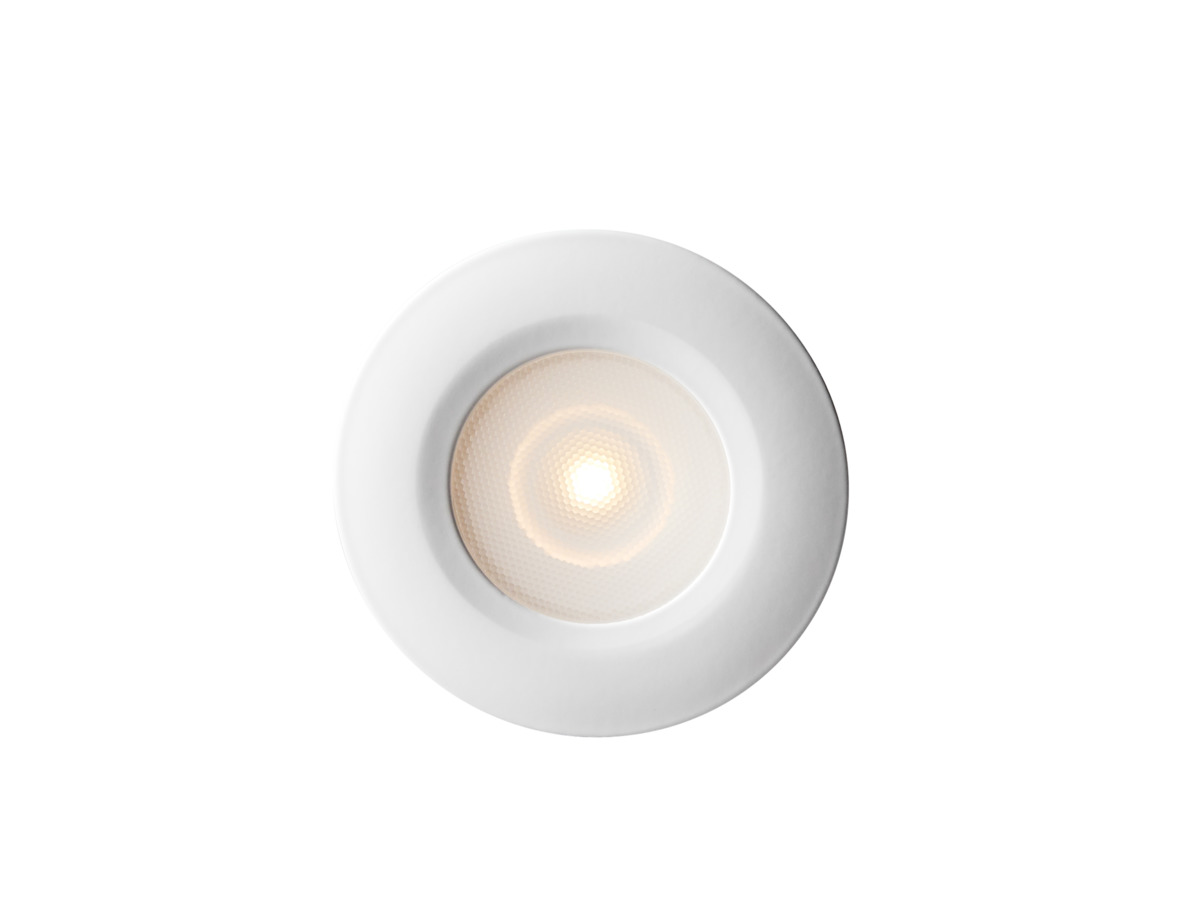

Thin G2

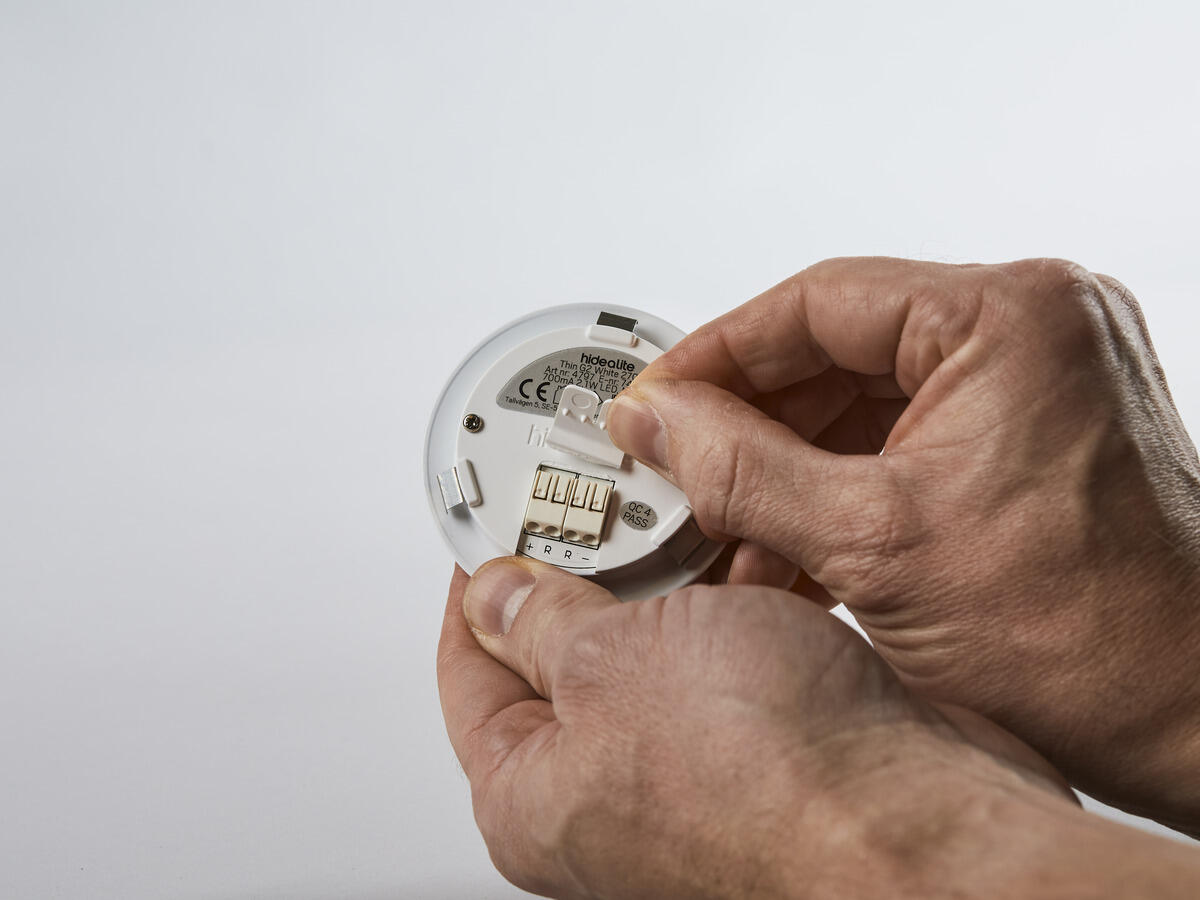

- Build height: 10mm when you remove the plastic tabs (standard 12mm)

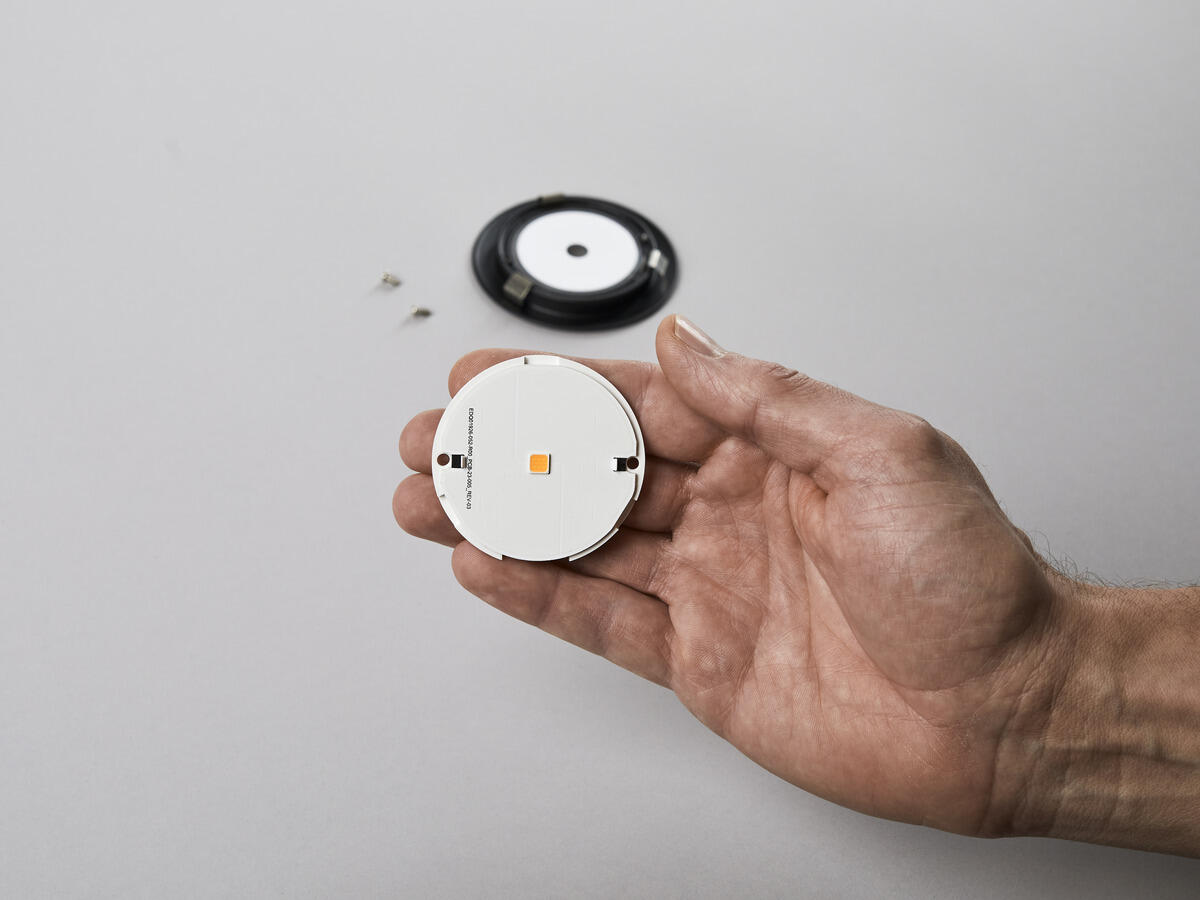

- Replaceable LED and recycled ocean plastic

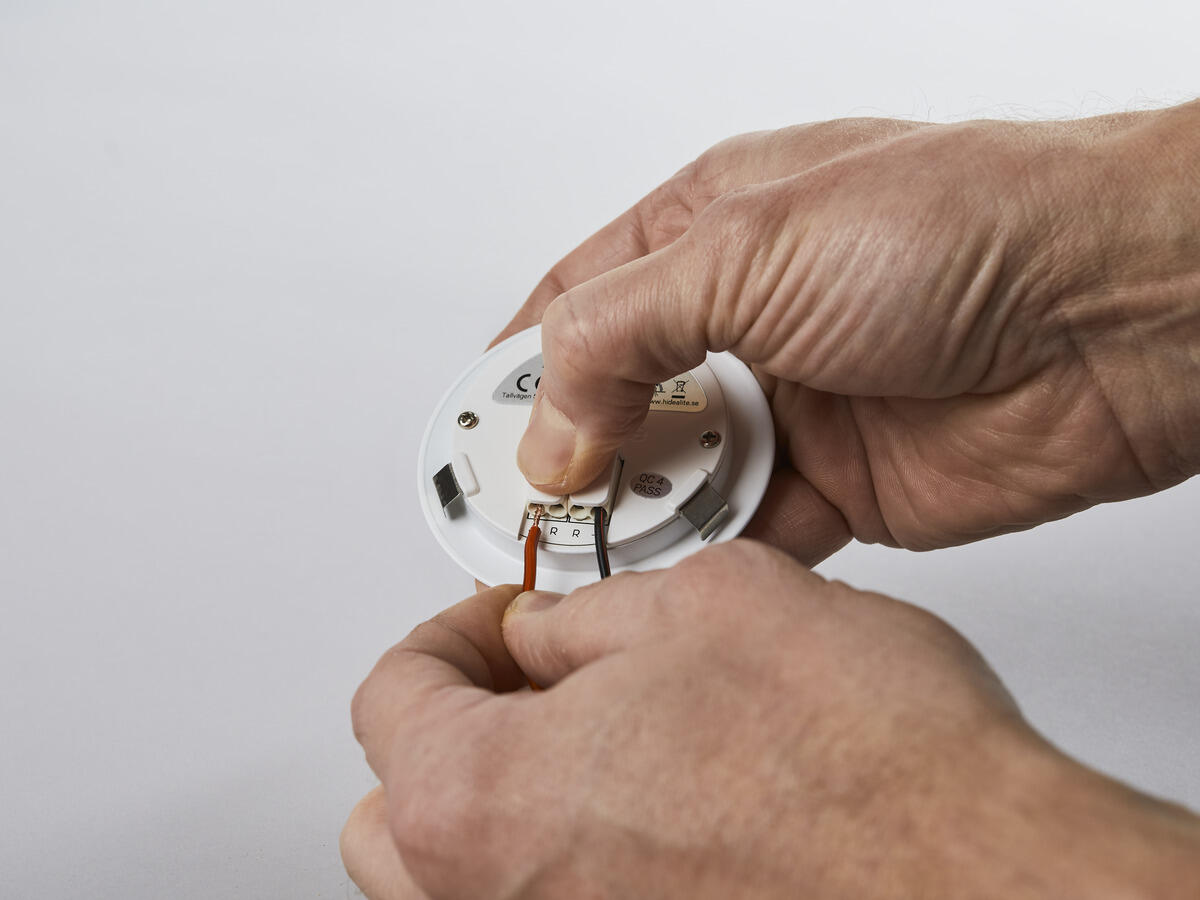

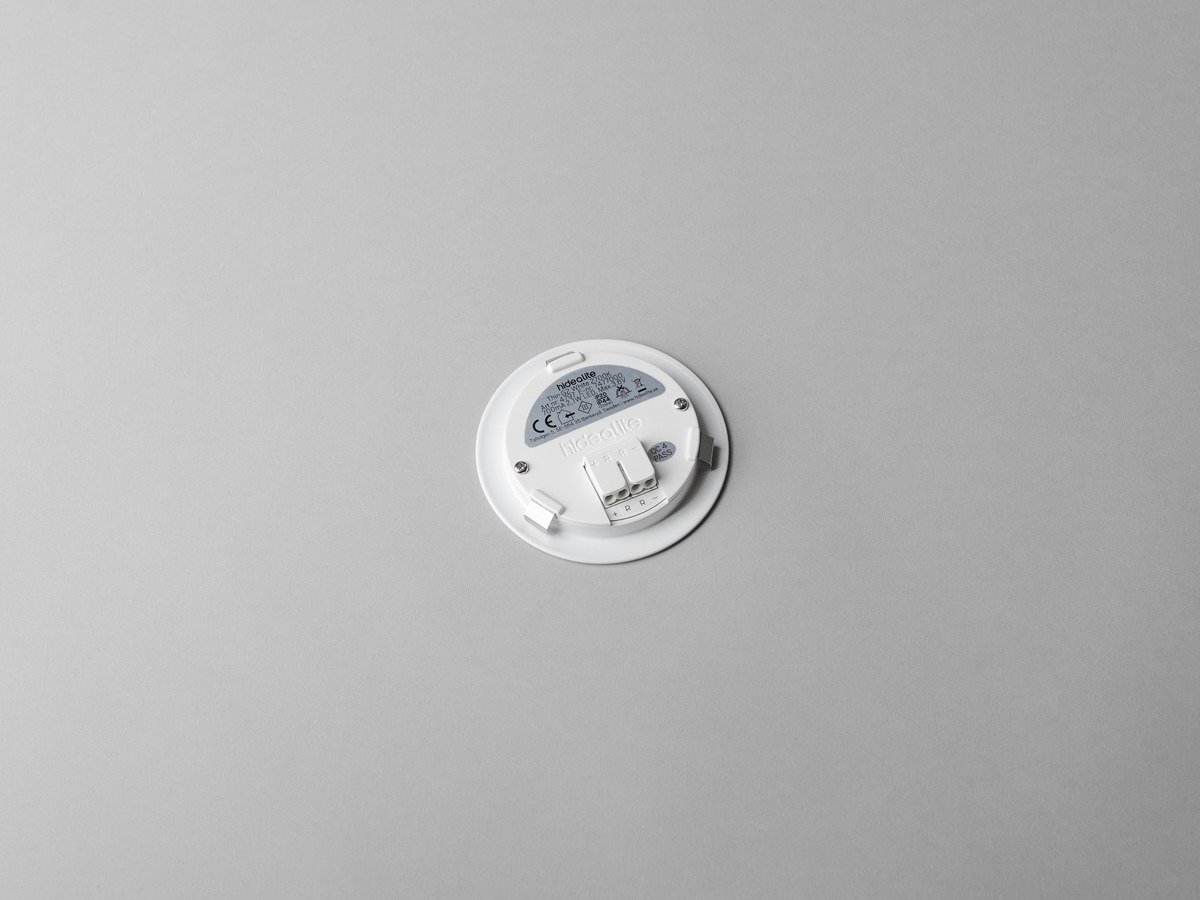

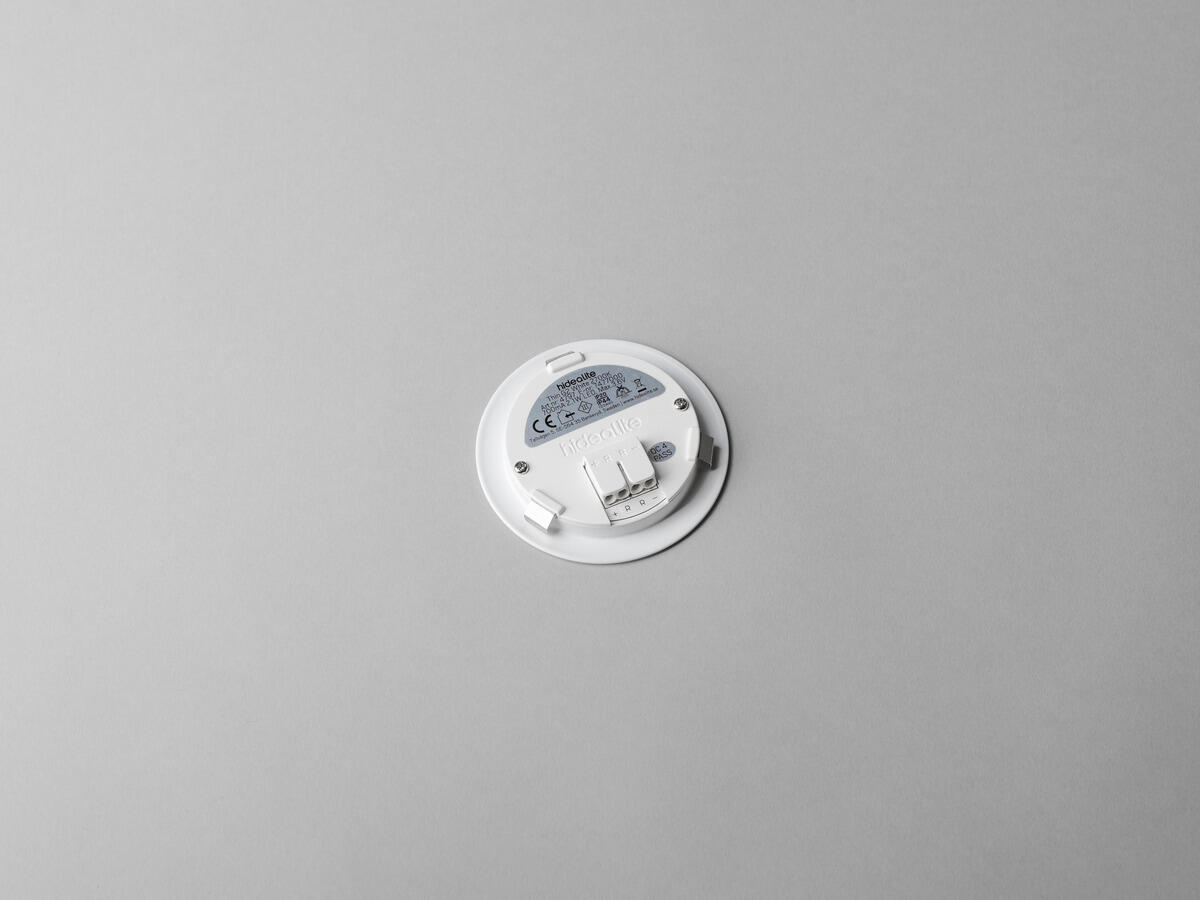

- Integrated push-in terminal for easy and smart series connection
- Use previously installed cabling, avoid external joints and connect directly to the luminaire
- Spacer ring for surface mounting available as accessory

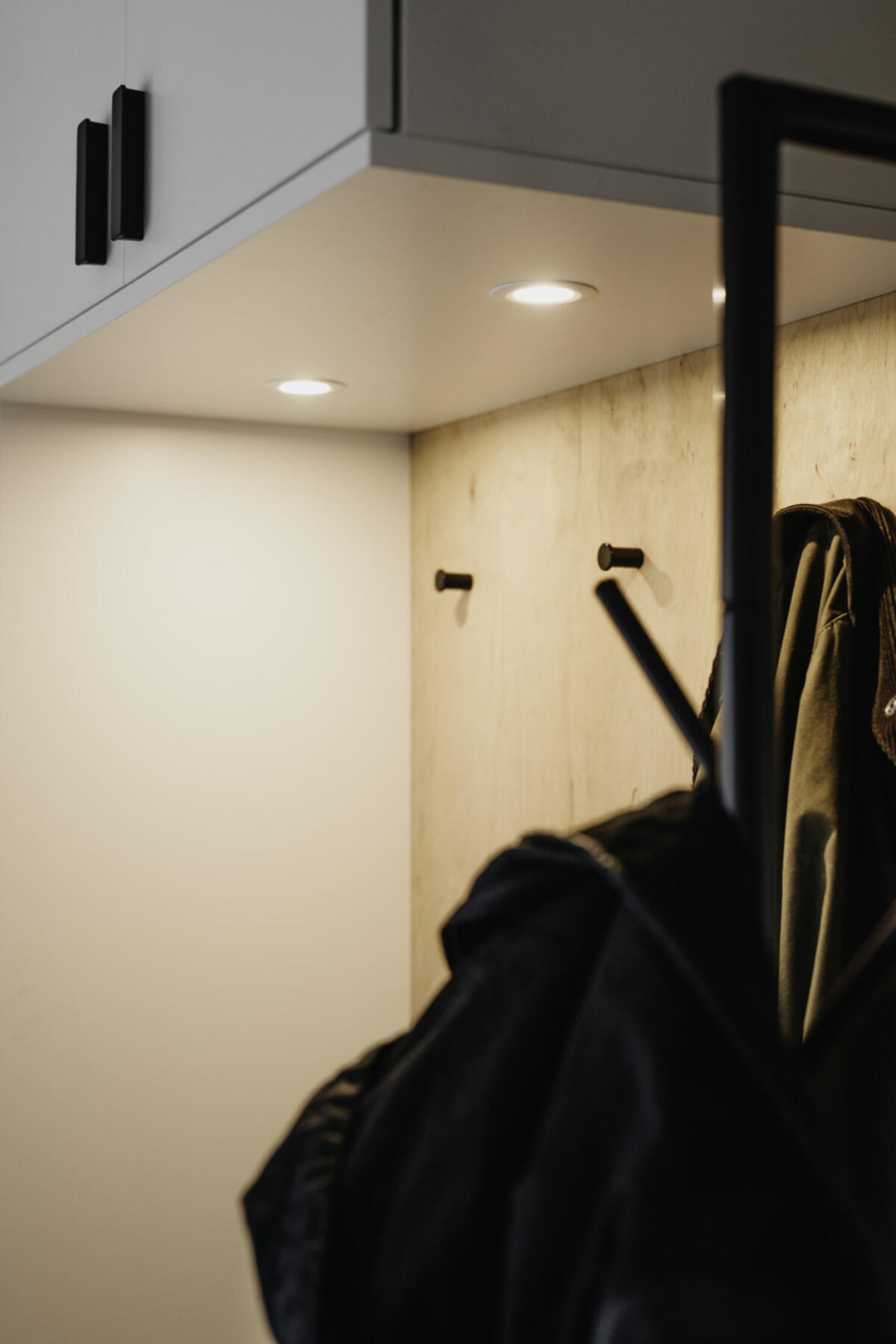

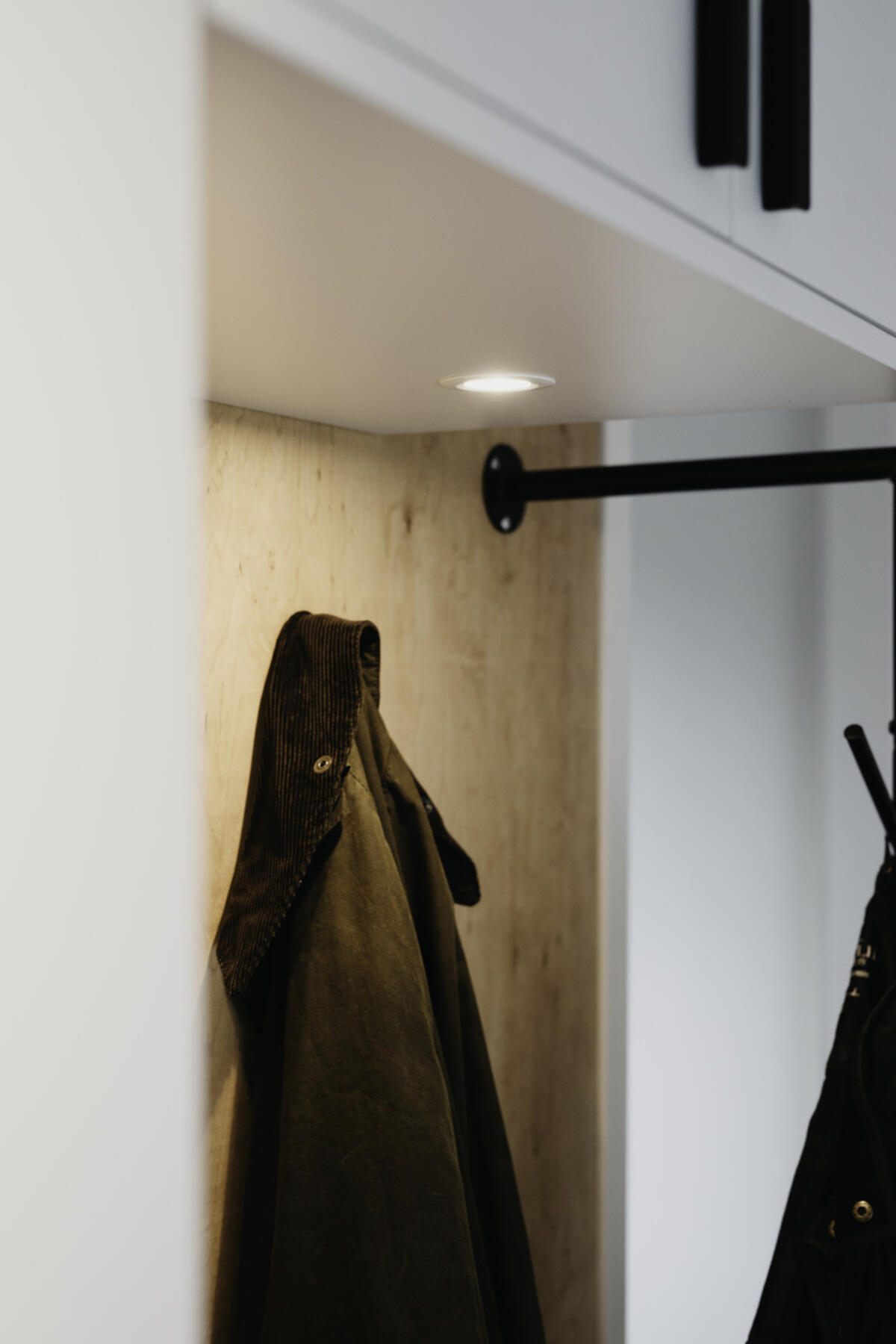

Thin downlight IP44 for thin sheet material, down to 13mm. Luminaire with a neat format and great possibilities – its discrete design makes it perfect for under cabinets and shelves. The wide beam light distribution creates even fill-in light. Simple, tool-free installation, replaceable LED. Integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints, minimises the risk of faults and simplifies troubleshooting. Thin G2 is available as a single luminaire or in a smart 6-pack for easier transport and less packaging. Spacer ring for surface mounting available as an accessory. Drivers are ordered separately.

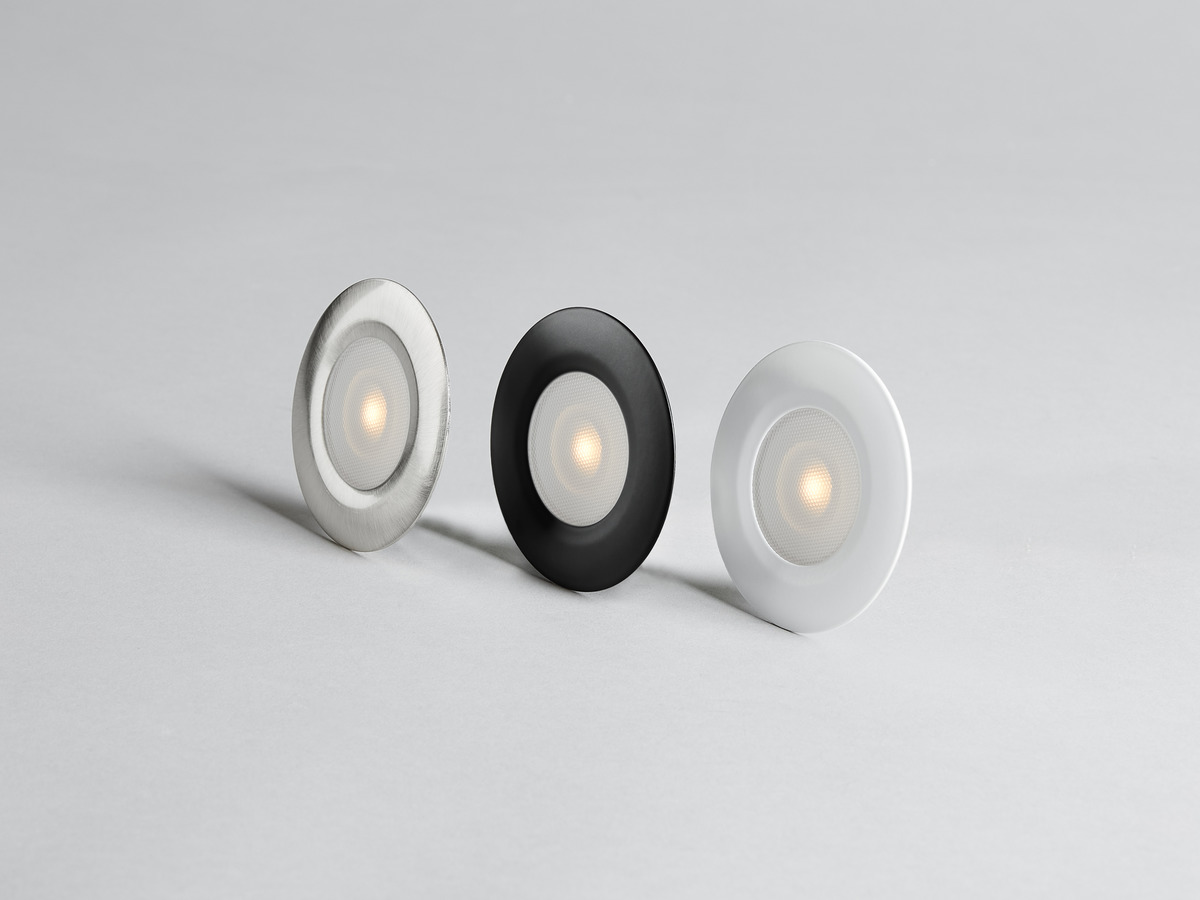

| Variants | GTIN | Item Name | Color | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|---|
|
7392971148861 | Thin G2 White 2700K | White | 2700 | 225 |
|
7392971148878 | Thin G2 White 3000K | White | 3000 | 240 |
|
7392971148885 | Thin G2 BS 2700K | Brushed Steel | 2700 | 215 |
|
7392971148892 | Thin G2 BS 3000K | Brushed Steel | 3000 | 230 |
|
7392971148908 | Thin G2 Black 2700K | Black | 2700 | 205 |
|
7392971148915 | Thin G2 Black 3000K | Black | 3000 | 220 |
|
7392971148922 | Thin G2 White 2700K 6-pack | White | 2700 | 225 |
|
7392971148939 | Thin G2 White 3000K 6-pack | White | 3000 | 240 |
Thin G2 White 2700K
-
GTIN 7392971148861Item Name Thin G2 White 2700KWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 225Light Source LEDLight Source Included YesReplaceability Replaceable LED by professionalLED Colour Warm WhiteColour Temperature (K) 2700Colour Rendering Index (Ra) >90Colour Consistency (SDCM) 3Luminous Intensity (cd) 100Beam Angle (°) 90Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L93Lumen maintenance 75 000h L89Lumen maintenance 100 000h L86LLMF @ 50 000h 0,93LLMF @ 100 000h 0,86
- Technical data
-
Adjustable NoVoltage (type) DCVoltage Forward (Vf) 3Power LED (W) 2,1Power Luminaire (W) 2,1System Power (W) 2,3Efficiency Luminaire (lm/W) 107Efficiency System (lm/W) 98Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesDriver Included NoDriver Model Constant CurrentConnection (type) Quick TerminalConnection (mm2) 3x0,2-0,75Through Wiring YesStrain Relief NoConstant Current (mA) 700Operating TemperatureMax. Tc (°C) 85
- Color and material
-
Material Aluminium, PlasticColor WhiteEnvironmental Assessment Byggvarubedömningen

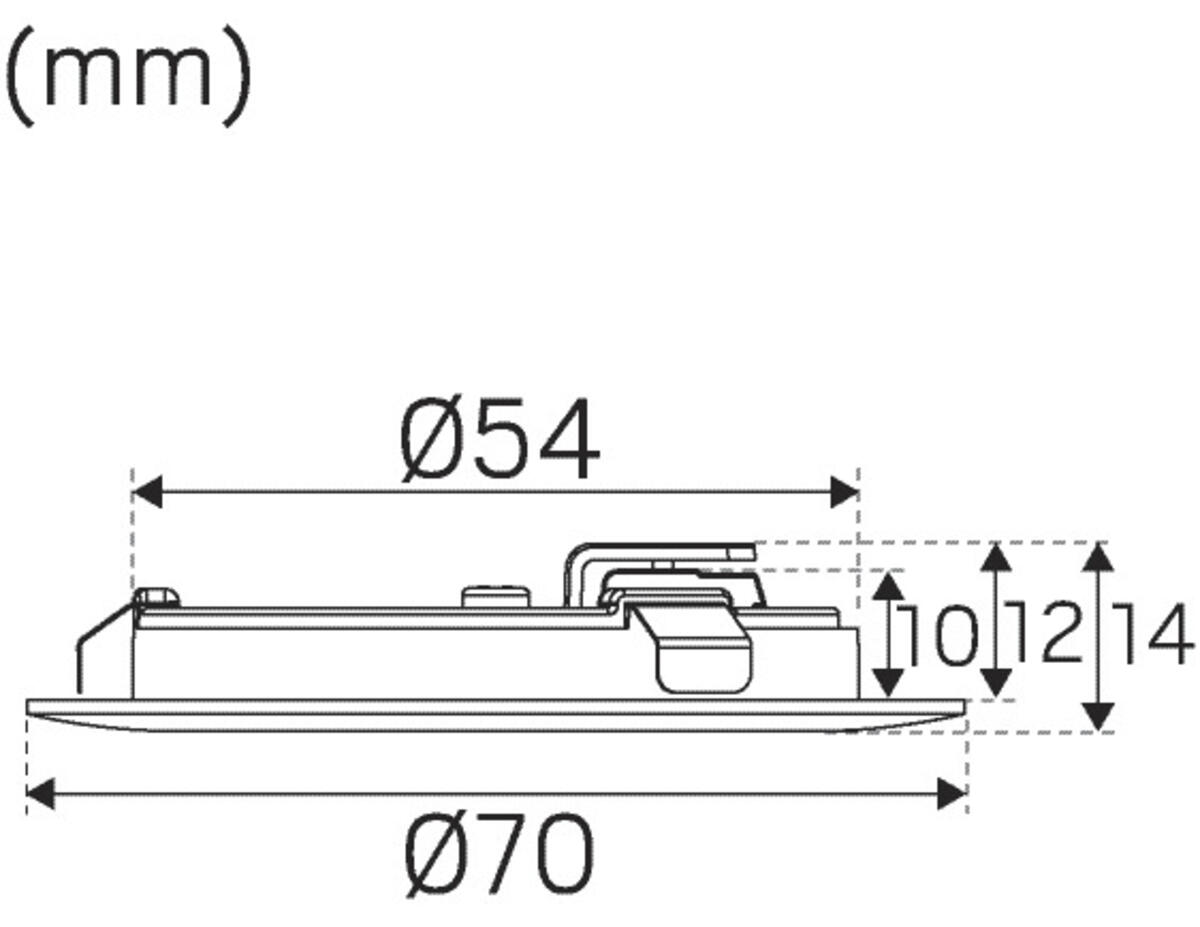

- Measurement and installation
-
Operating EnvironmentIP Degree of Protection 44Protection Class IIIInstallation Built-in, Surface mountedMounting Installation Tension SpringCeiling Thickness Interval (mm) 2Height Surface Mounted (mm) 15Fire Safety Marks MM-mark, Not in insulation without protection coverApproval Marks CEImpact Strength IK08Filament Test IEC 695-2-1(°C) 650Height (mm) 14Diameter (mm) 70Weight (kg) 0,036Min. Built-in (mm) Ø56x12Height Recessed Part (mm) 12Height Exterior Part (mm) 2Built-in Ø (mm) 56-59
