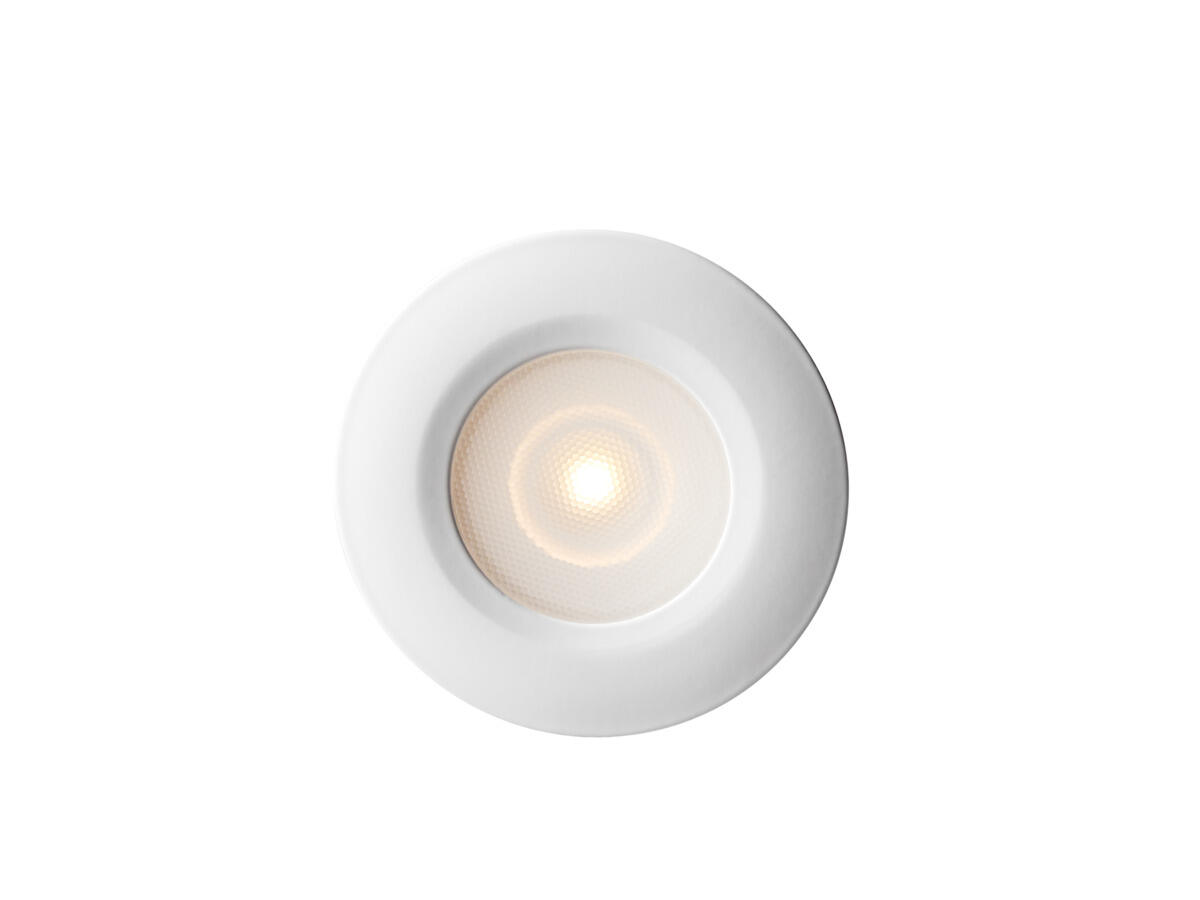

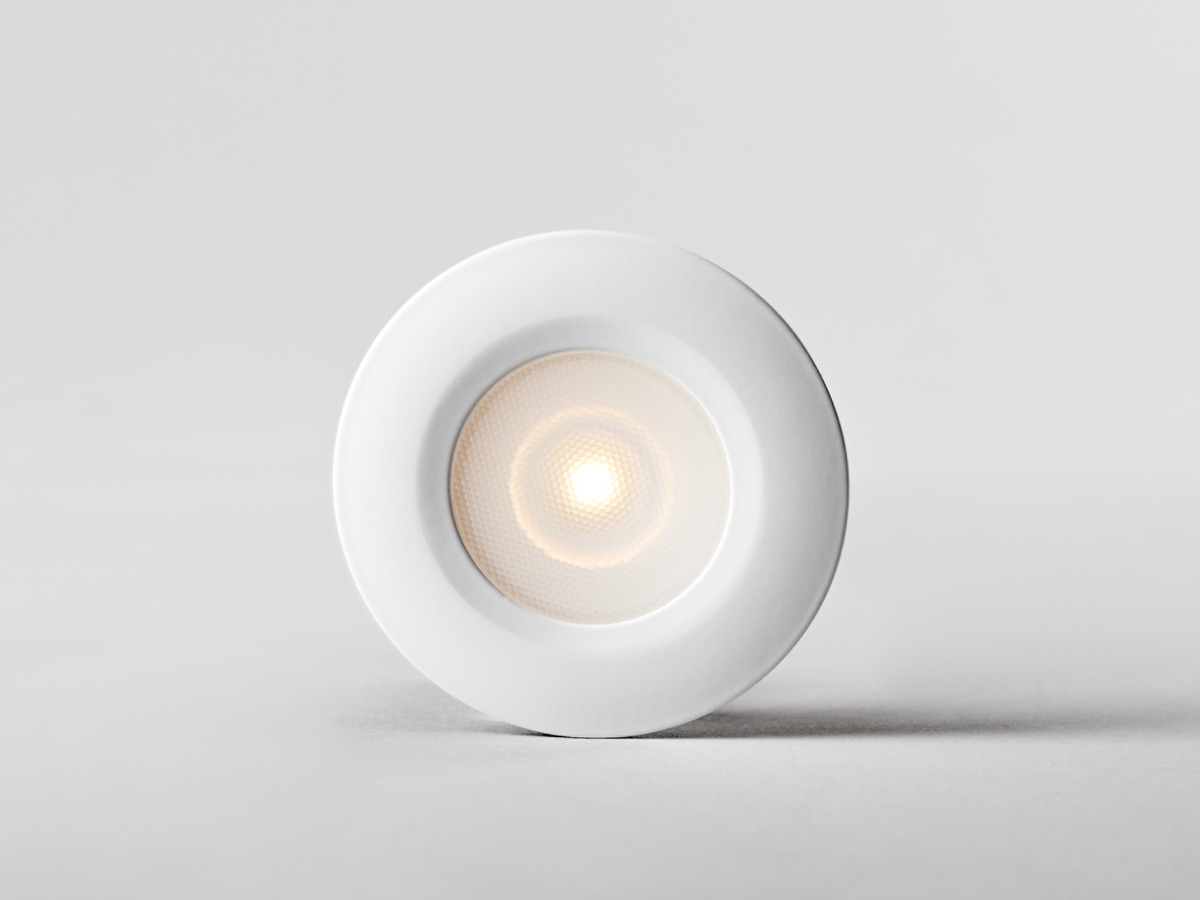

Thin G2 Thin G2 White 3000K

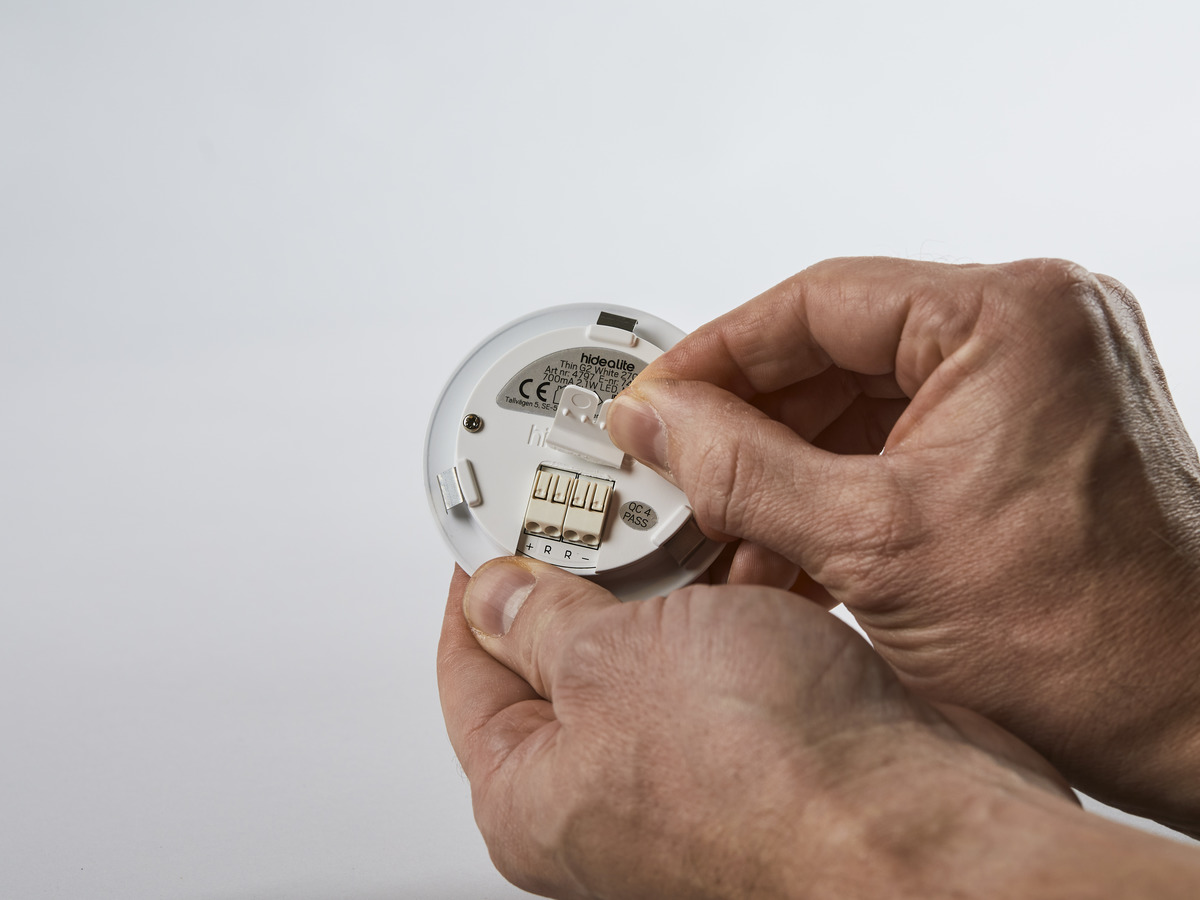

Build height: 10mm when you remove the plastic tabs (standard 12mm)

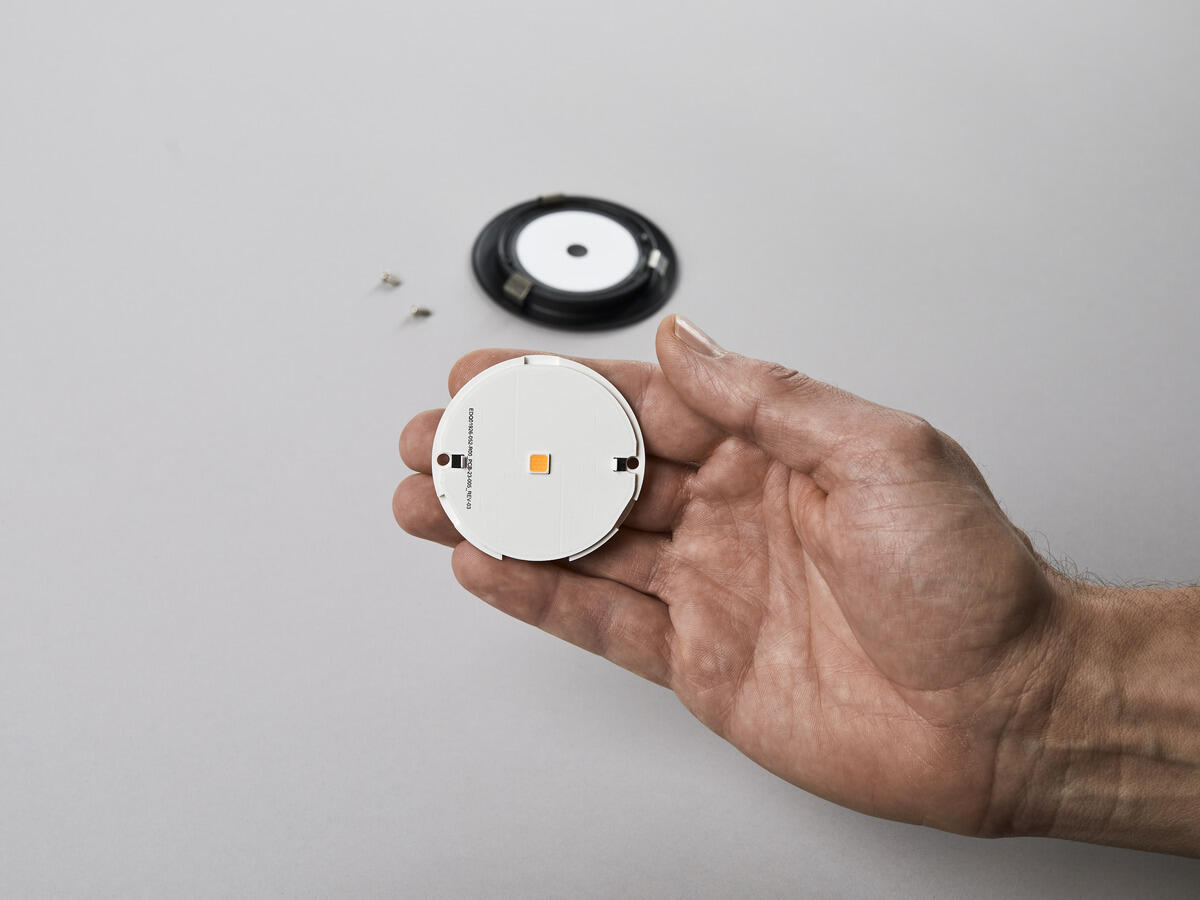

Replaceable LED and recycled ocean plastic

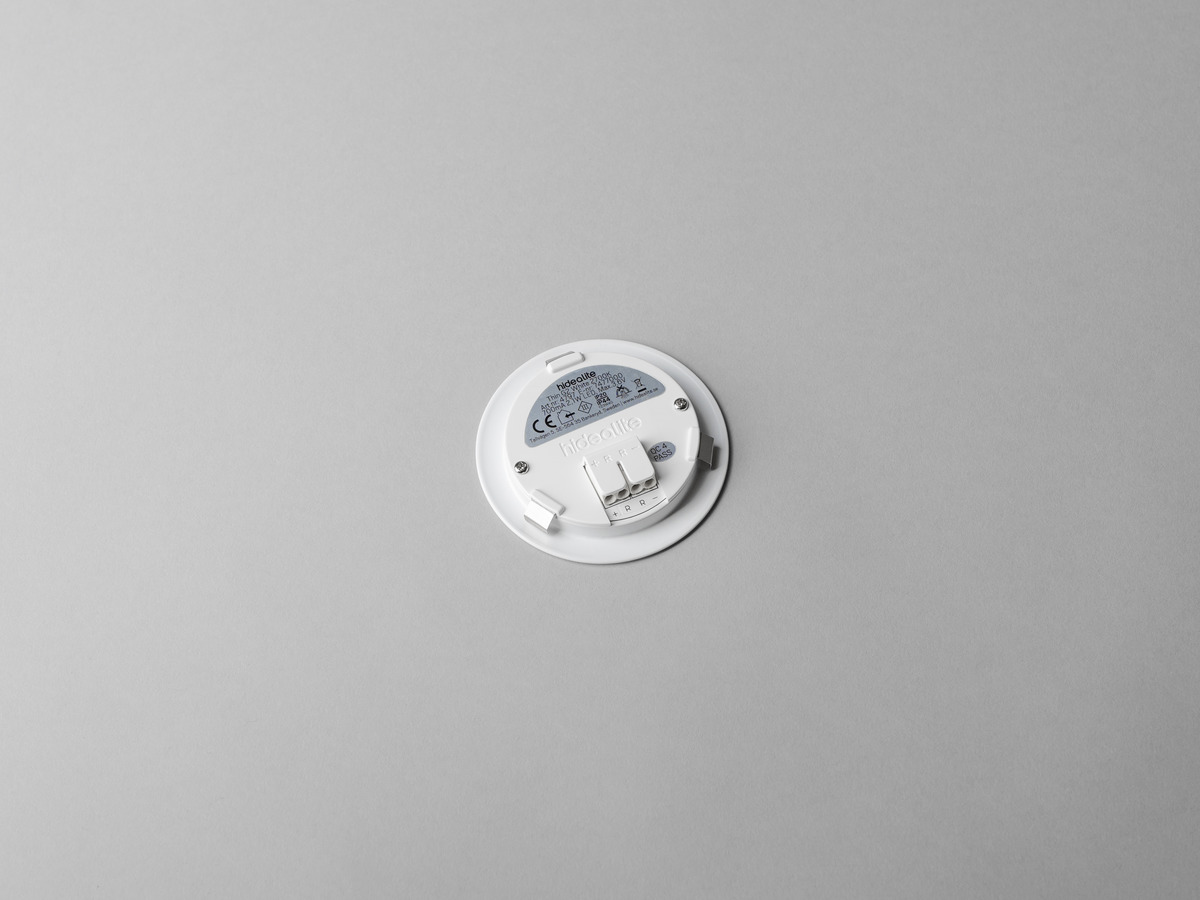

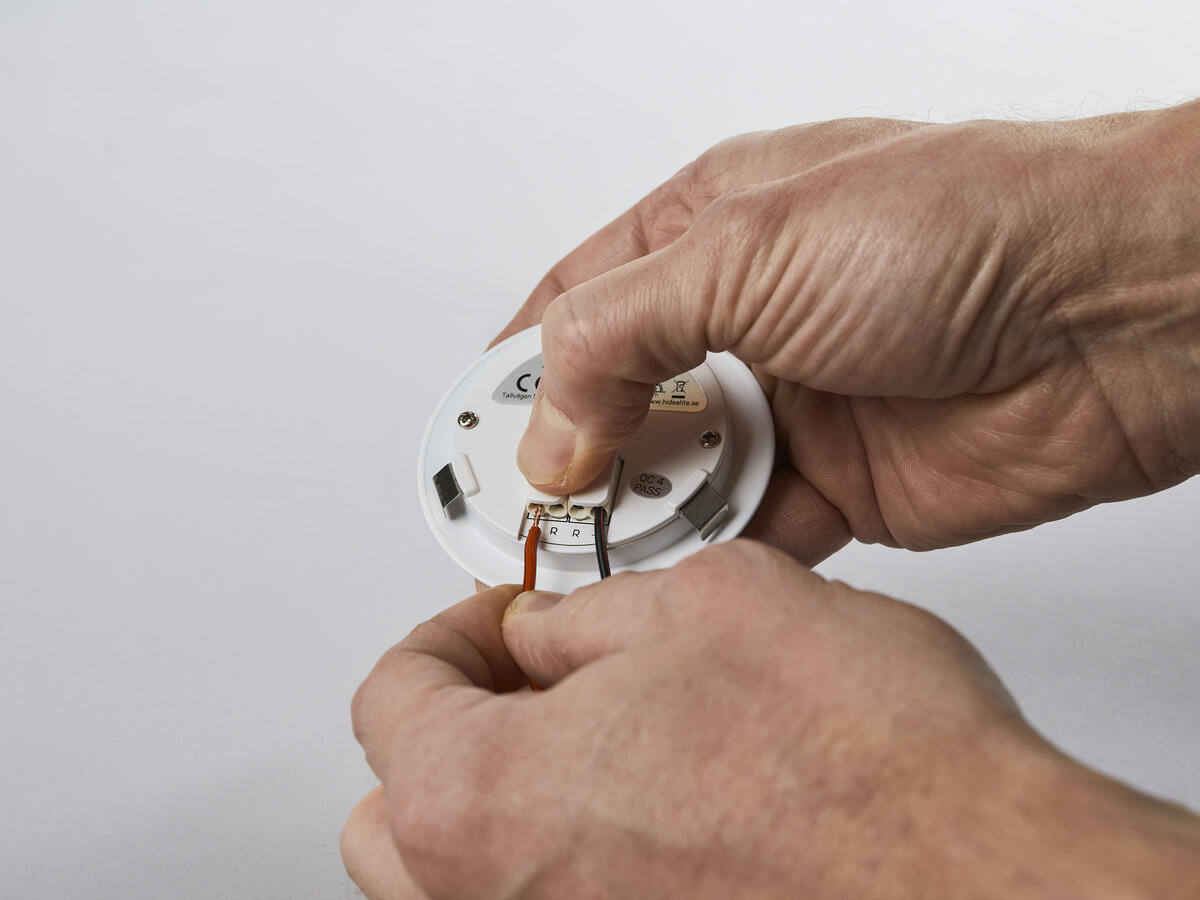

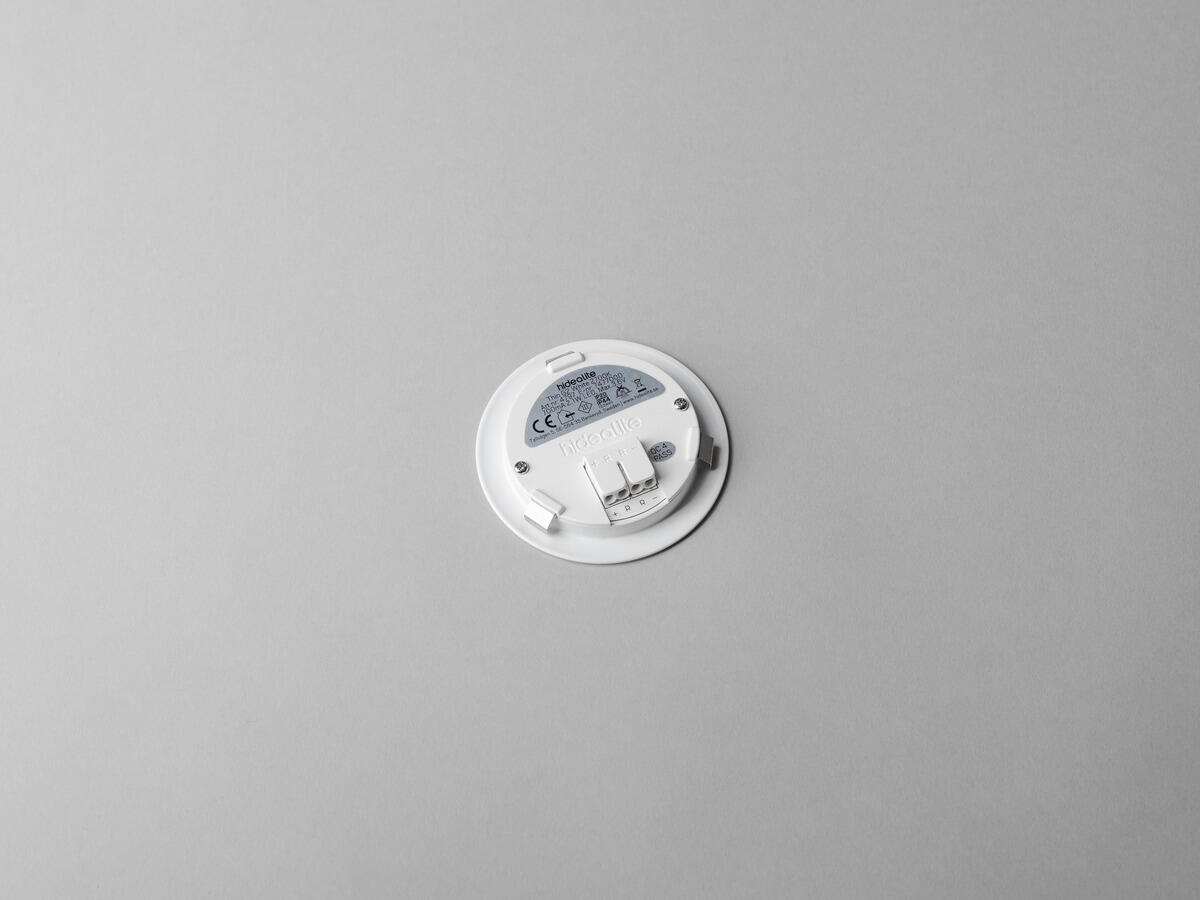

Integrated push-in terminal for easy and smart series connection
Use previously installed cabling, avoid external joints and connect directly to the luminaire
Spacer ring for surface mounting available as accessory

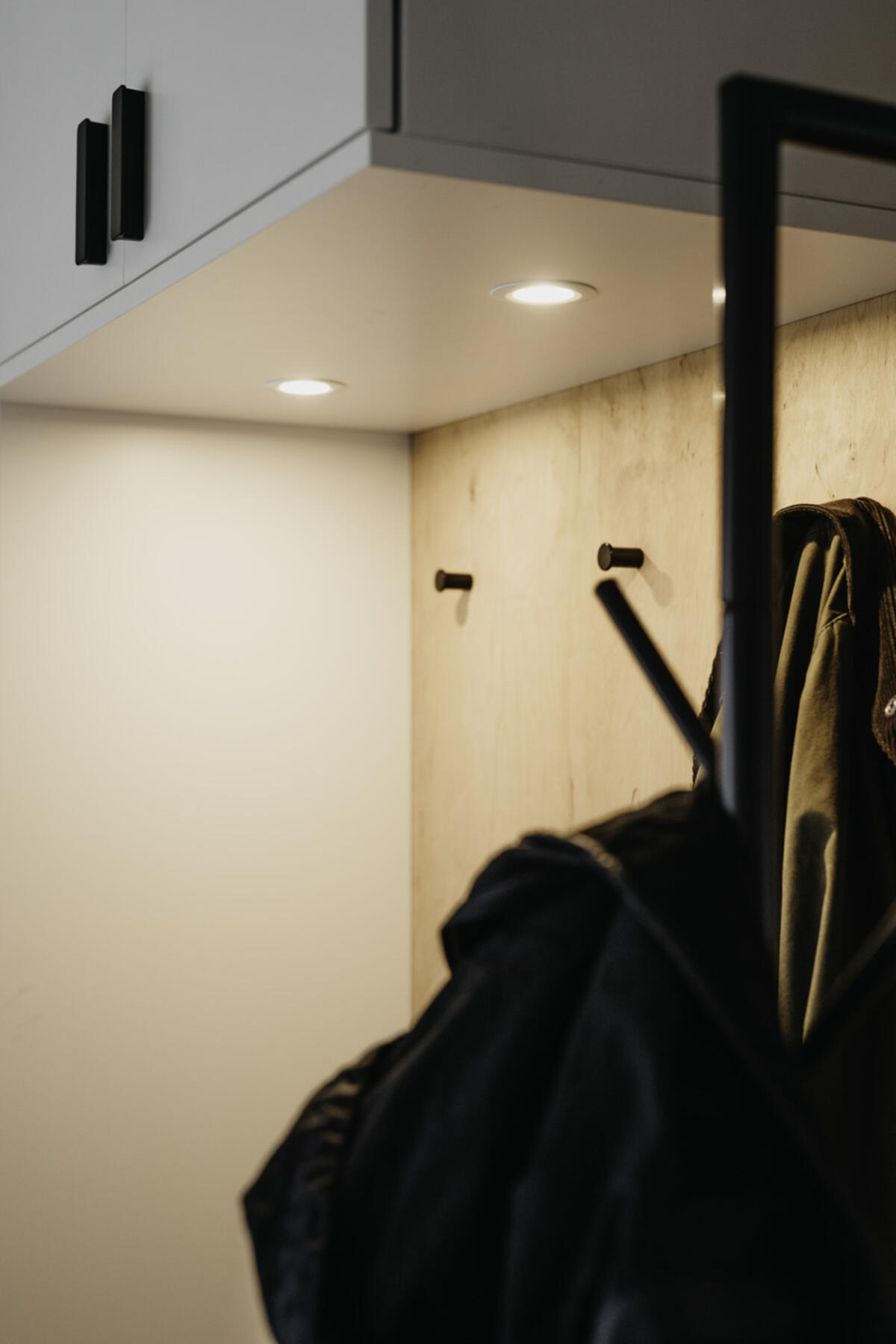

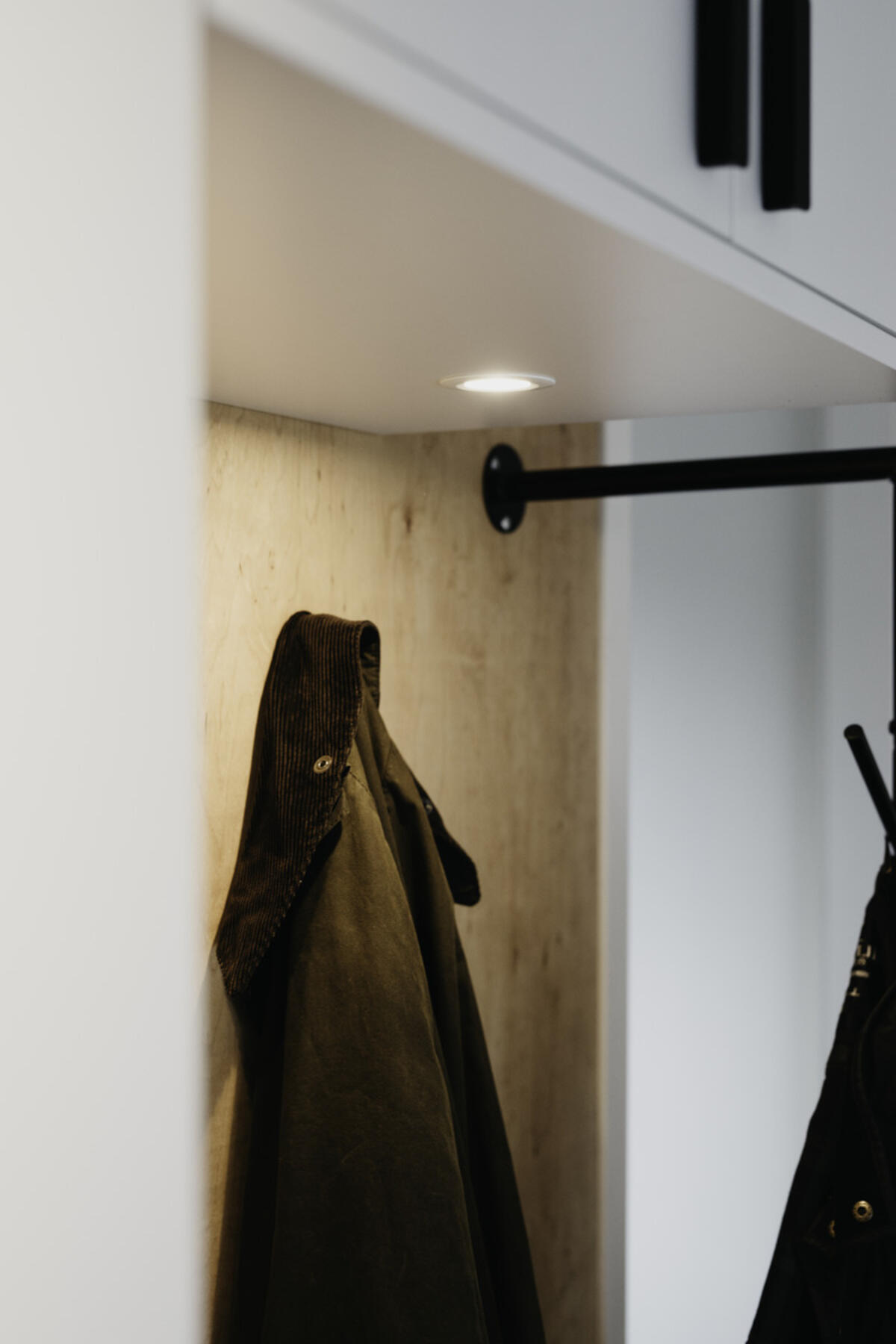

Thin downlight IP44 for thin sheet material, down to 13mm. Luminaire with a neat format and great possibilities – its discrete design makes it perfect for under cabinets and shelves. The wide beam light distribution creates even fill-in light. Simple, tool-free installation, replaceable LED. Integrated push-in terminal for simplified and smart series connection, eliminates the hassle of external joints, minimises the risk of faults and simplifies troubleshooting. Thin G2 is available as a single luminaire or in a smart 6-pack for easier transport and less packaging. Spacer ring for surface mounting available as an accessory. Drivers are ordered separately.

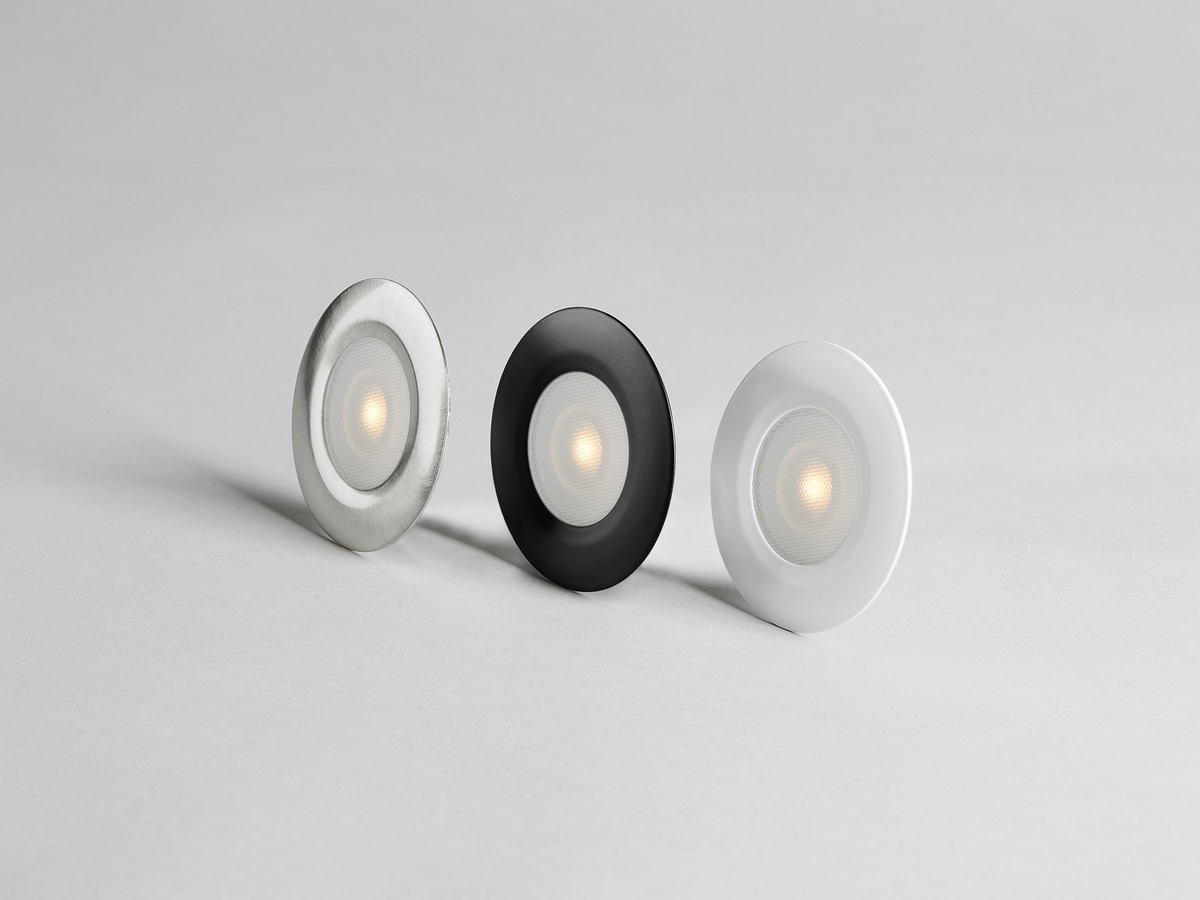

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)
7392971148878	Thin G2 White 3000K	White	3000	240
7392971148861	Thin G2 White 2700K	White	2700	225
7392971148885	Thin G2 BS 2700K	Brushed Steel	2700	215
7392971148892	Thin G2 BS 3000K	Brushed Steel	3000	230
7392971148908	Thin G2 Black 2700K	Black	2700	205
7392971148915	Thin G2 Black 3000K	Black	3000	220
7392971148922	Thin G2 White 2700K 6-pack	White	2700	225
7392971148939	Thin G2 White 3000K 6-pack	White	3000	240

Description: GTIN 7392971148878

Item Name Thin G2 White 3000K

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 240

Light Source LED

Light Source Included Yes

Replaceability Replaceable LED by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 105

Beam Angle (°) 90

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 1

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 100000

Lumen maintenance 50 000h L93

Lumen maintenance 75 000h L89

Lumen maintenance 100 000h L86

LLMF @ 50 000h 0,93

LLMF @ 100 000h 0,86
Technical data: Adjustable No

Voltage (type) DC

Voltage Forward (Vf) 3

Power LED (W) 2,1

Power Luminaire (W) 2,1

System Power (W) 2,3

Efficiency Luminaire (lm/W) 114

Efficiency System (lm/W) 104

Containing light source energy efficiency class (EU) 2019/2015 E
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Current

Connection (type) Quick Terminal

Connection (mm2) 3x0,2-0,75

Through Wiring Yes

Strain Relief No

Constant Current (mA) 700

Operating Temperature -20…+40

Max. Tc (°C) 85
Color and material: Material Aluminium, Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations, Indoor / damp locations, Indoor / wet locations, Indoor / bathroom (ceiling area 1)

IP Degree of Protection 44

Protection Class III

Installation Built-in, Surface mounted

Mounting Installation Tension Spring

Ceiling Thickness Interval (mm) 2

Height Surface Mounted (mm) 15

Fire Safety Marks MM-mark, Not in insulation without protection cover

Approval Marks CE

Impact Strength IK08

Filament Test IEC 695-2-1(°C) 650

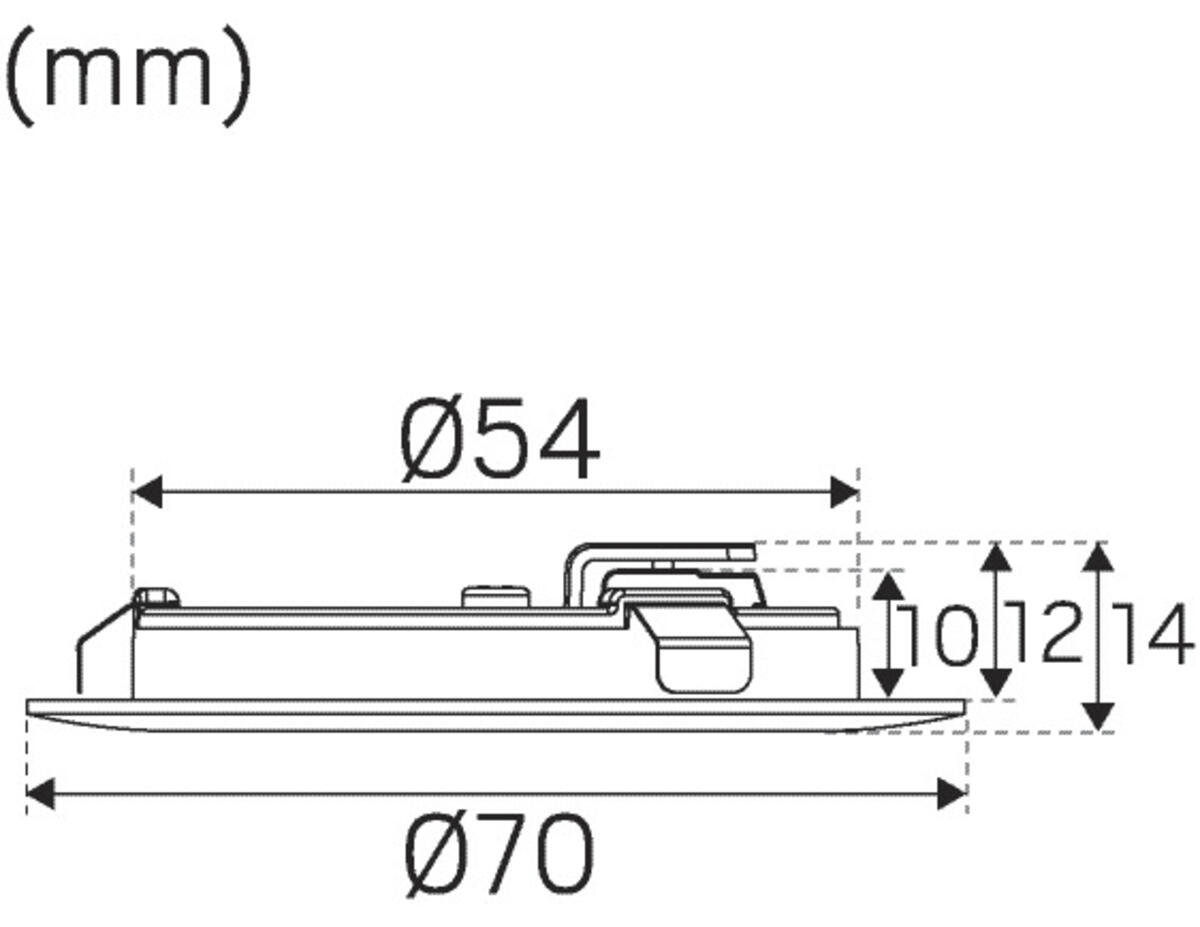

Height (mm) 14

Diameter (mm) 70

Weight (kg) 0,036

Min. Built-in (mm) Ø56x12

Height Recessed Part (mm) 12

Height Exterior Part (mm) 2

Built-in Ø (mm) 56-59
