LEDstrip 24V Line IP67 LEDstrip 24V Line IP67 Opal MidLum 4000K 5m

For a homogenous light – even without cover
Fits excellent for all our aluminium profiles
Comes with self-adhesive tape and 2m connecting cable
Maximum length 5m, 512LED/m
Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

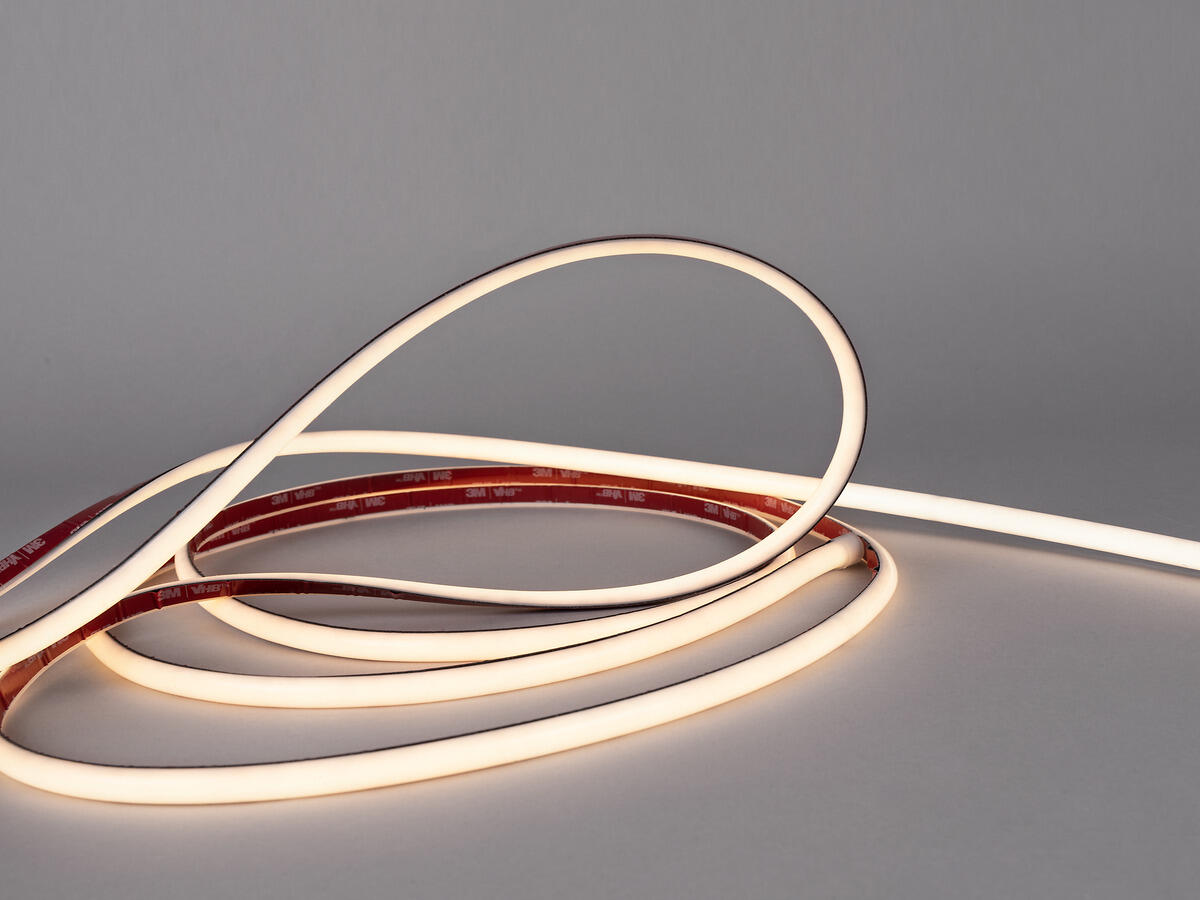

LEDstrip with encapsulated opal coloured casing in silicone, which creates an evenly lit line with noout profile or cover. COB technology with small gaps between diodes for very good efficiency. Short cutting increments of 30mm and seamless joints make it simple to create custom lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 2pcs end connections, self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to desired dimmer technology and placing. Maximum length 5m.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971140087	LEDstrip 24V Line IP67 Opal MidLum 4000K 5m	4000	4500
7392971140049	LEDstrip 24V Line IP67 Opal MidLum 2700K 5m	2700	3750
7392971140056	LEDstrip 24V Line IP67 Opal MidLum 2700K lpm	2700	750
7392971140063	LEDstrip 24V Line IP67 Opal MidLum 3000K 5m	3000	4000
7392971140070	LEDstrip 24V Line IP67 Opal MidLum 3000K lpm	3000	800
7392971140094	LEDstrip 24V Line IP67 Opal MidLum 4000K lpm	4000	900

Description: GTIN 7392971140087

Item Name LEDstrip 24V Line IP67 Opal MidLum 4000K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 4500

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour White

Colour Temperature (K) 4000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 215

Beam Angle (°) 130

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 2560

LED Pitch (mm) 2

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L71

LLMF @ 50 000h 0,71
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Voltage Forward (Vf) 3,2

Power Luminaire (W) 50

System Power (W) 55

Efficiency Luminaire (lm/W) 90

Efficiency System (lm/W) 82

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Open Cable End

Length Connection (cm) 200

Connection (mm2) 2x0,75

Operating Temperature -25…+45

Max. Tc (°C) 65
Color and material: Material Copper, Silicone

Color White
Measurement and installation: Operating Environment Indoor / bathroom (ceiling area 1), Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

Filament Test IEC 695-2-1(°C) 650

Requires cooling No

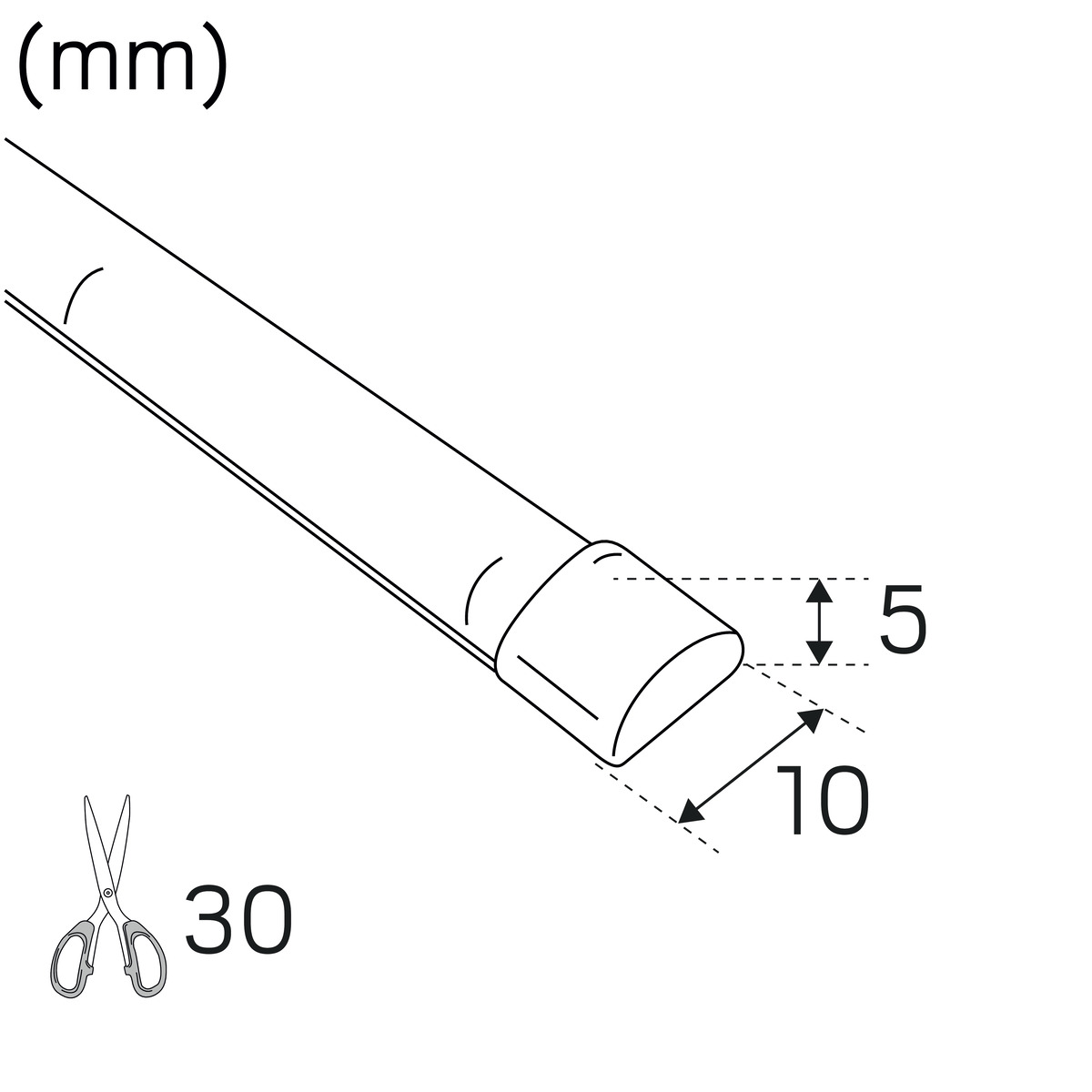

Length (mm) 5000

Width (mm) 10

Height (mm) 5

Weight (kg) 0,48
LEDstrips: Min. Bend Radius (mm) 50

Min. Length (m) 0,33

Max. Length (m) 5

Cutting Increments (mm) 31,25

LEDstrip 24V Line IP20

LEDstrip with technology that conceals the LED Chip and electronics under an homogenous phosphorous/silicone layer. Short spacing between the LEDs creates an even illuminated line without profile or cover. COB technology with high lumen output and very good efficiency. Cutting increments of 31,25 mm and seamless joints make it simple to adapt lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing. Maximum length 5m.

LEDstrip 24V Line IP67

LEDstrip 24V Line IP67 Opal MidLum 4000K 5m
