LEDstrip 24V Line IP67
- For a homogenous light – even without cover
- Fits excellent for all our aluminium profiles
- Comes with self-adhesive tape and 2m connecting cable (5m)
- Maximum length 5m, 512LED/m
- Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables
LEDstrip with encapsulated opal coloured casing in silicone, which creates an evenly lit line with noout profile or cover. COB technology with small gaps between diodes for very good efficiency. Short cutting increments of 30mm and seamless joints make it simple to create custom lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 2pcs end connections, self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to desired dimmer technology and placing. Maximum length 5m.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971140094 | LEDstrip 24V Line IP67 Opal MidLum 4000K lpm | 4000 | 900 |
|
|
7392971140049 | LEDstrip 24V Line IP67 Opal MidLum 2700K 5m | 2700 | 3750 |
|
|
7392971140056 | LEDstrip 24V Line IP67 Opal MidLum 2700K lpm | 2700 | 750 |
|
|
7392971140063 | LEDstrip 24V Line IP67 Opal MidLum 3000K 5m | 3000 | 4000 |
|
|
7392971140070 | LEDstrip 24V Line IP67 Opal MidLum 3000K lpm | 3000 | 800 |
|
|
7392971140087 | LEDstrip 24V Line IP67 Opal MidLum 4000K 5m | 4000 | 4500 |
LEDstrip 24V Line IP67 Opal MidLum 4000K lpm
-
GTIN 7392971140094Item Name LEDstrip 24V Line IP67 Opal MidLum 4000K lpmWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 900Light Source LEDLight Source Included YesReplaceability Non-replaceaable LEDLED Colour WhiteColour Temperature (K) 4000Colour Rendering Index (Ra) >90Colour Consistency (SDCM) 3Luminous Intensity (cd) 215Beam Angle (°) 130Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 512LED Pitch (mm) 2Life Time L70 50 000h Ta 25°CNominel Life Time (h) 50000Lumen maintenance 50 000h L71LLMF @ 50 000h 0,71
- Technical data
-
Voltage (type) DCVoltage Interval (V) 24...24Voltage Nominal (V) 24Voltage Forward (Vf) 3,2Power Luminaire (W) 10System Power (W) 11Efficiency Luminaire (lm/W) 90Efficiency System (lm/W) 82Energy Efficiency Class (EU) 2019/2015 F
- Operation and Connection
-
Dimmable YesDriver Included NoDriver Model Constant VoltageOperating TemperatureMax. Tc (°C) 65
- Color and material
-
Material Copper, SiliconeColor White
- Measurement and installation
-

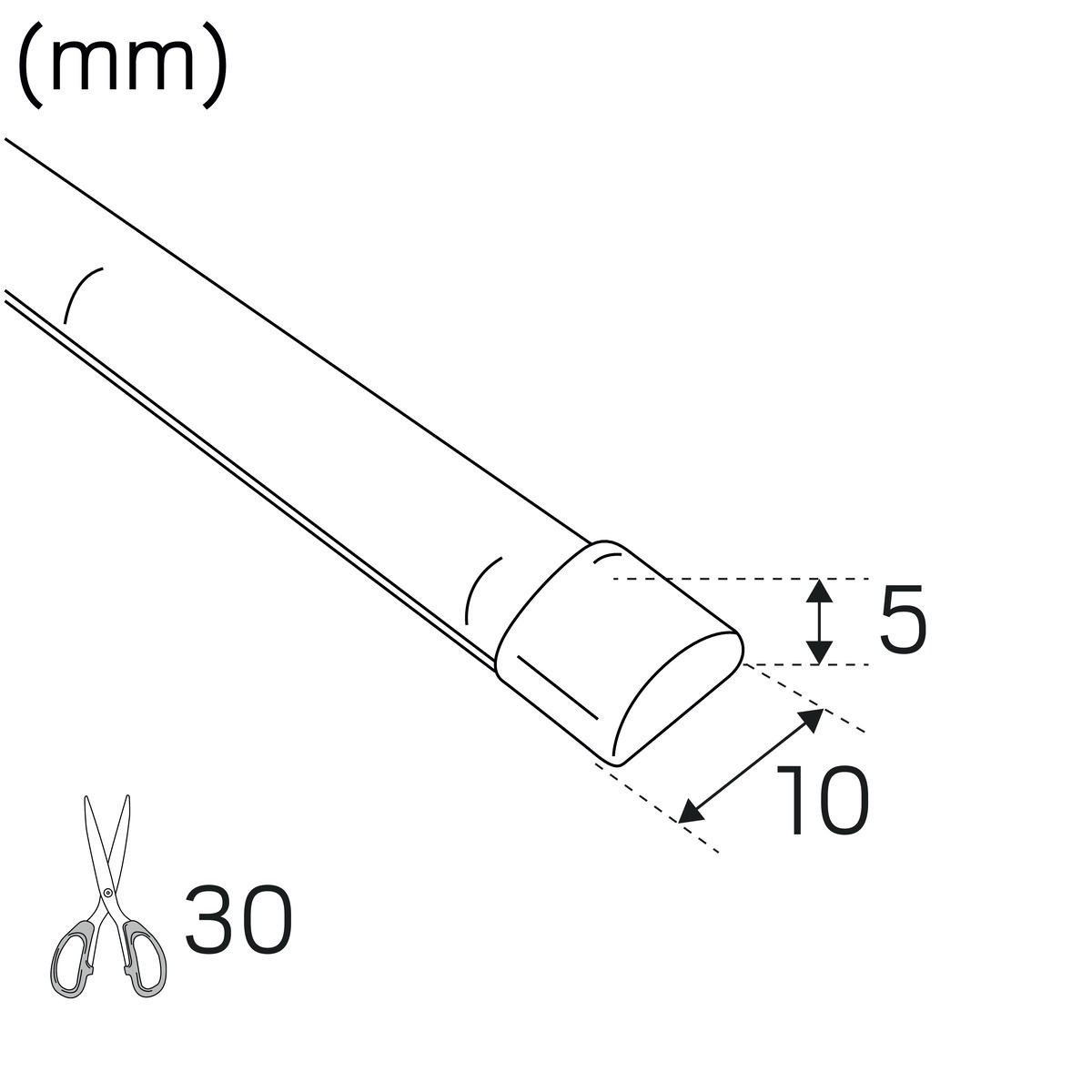

Operating EnvironmentIP Degree of Protection 67Protection Class IIIInstallation Surface mountedMounting Installation Self Adhesive TapeApproval Marks CEFilament Test IEC 695-2-1(°C) 650Requires cooling NoLength (mm) 1000Width (mm) 10Height (mm) 5Weight (kg) 0,096
- LEDstrips
-
Min. Bend Radius (mm) 50Min. Length (m) 0,33Max. Length (m) 5Cutting Increments (mm) 31,25
