LEDstrip RX HD IP67

Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

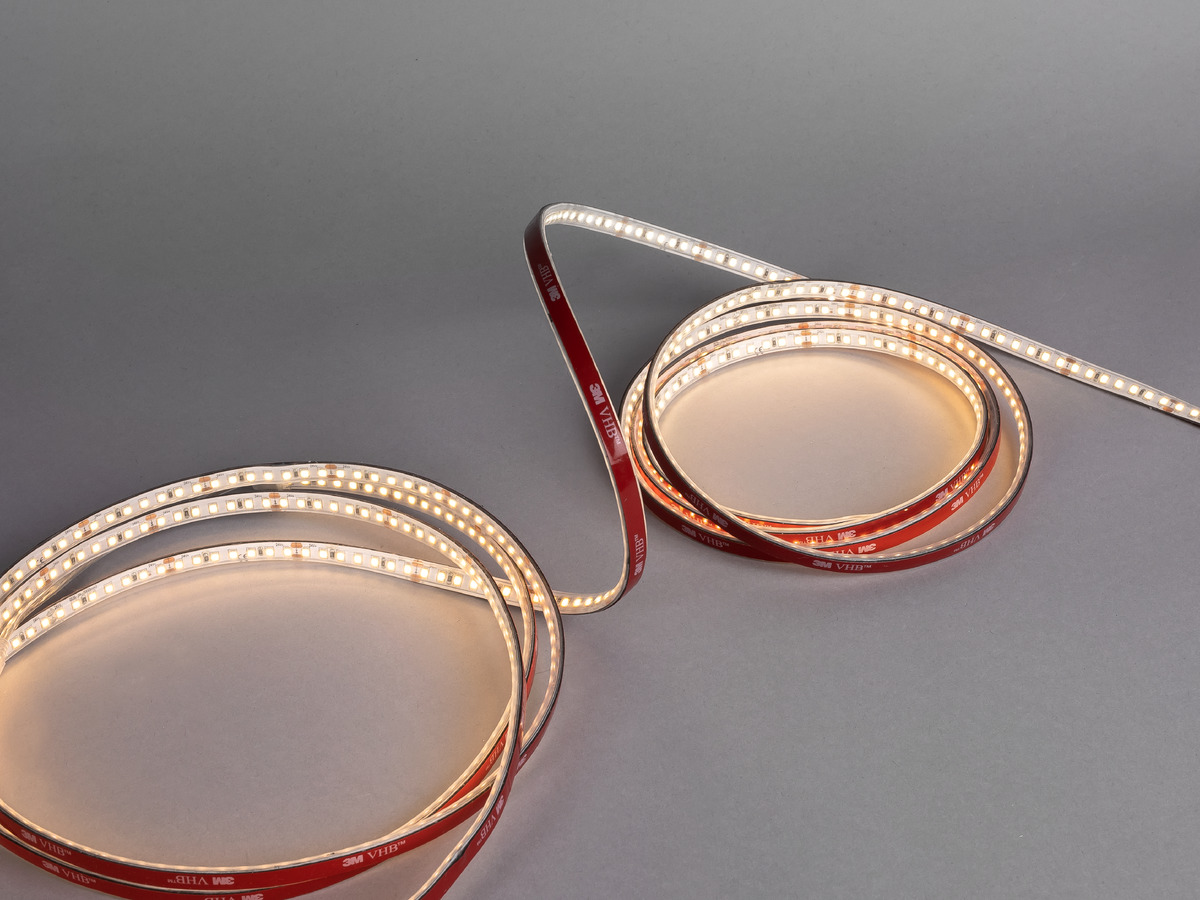

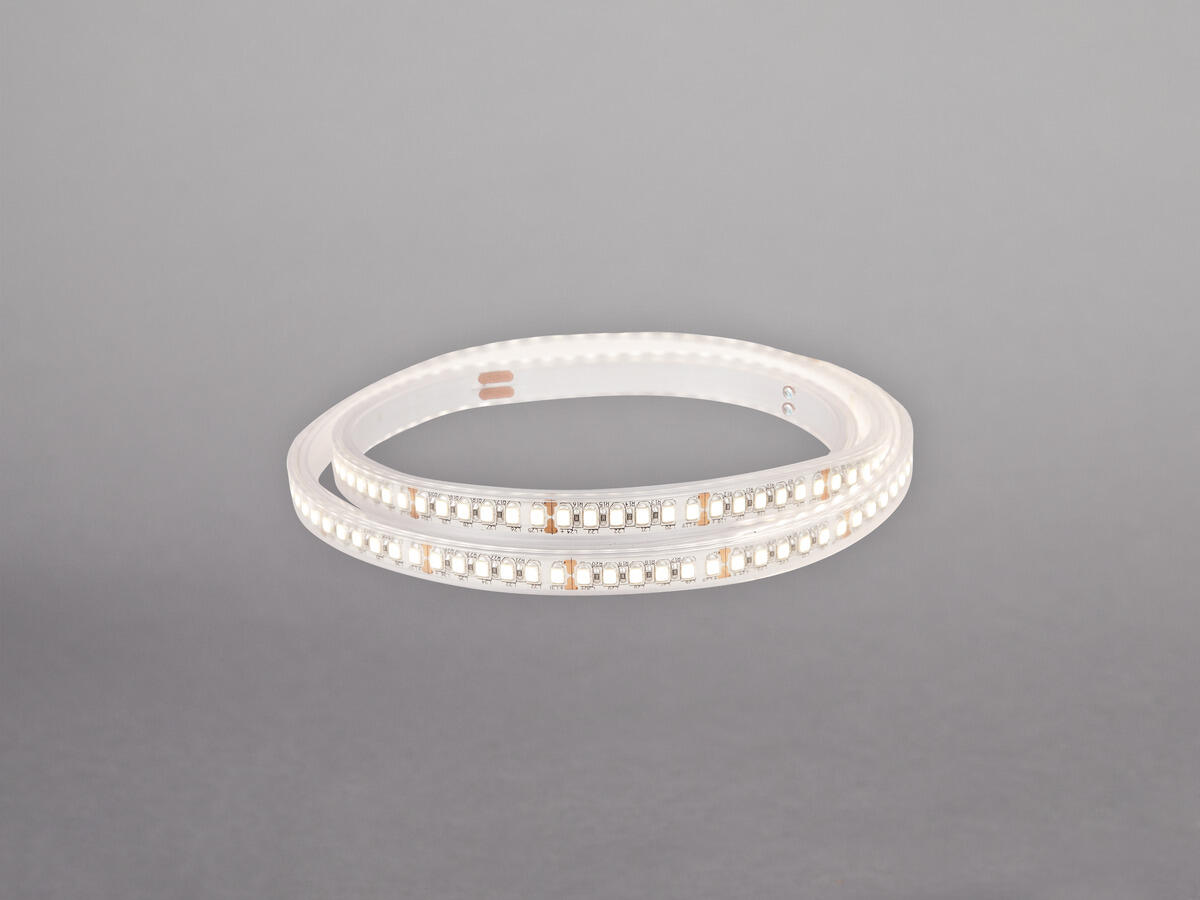

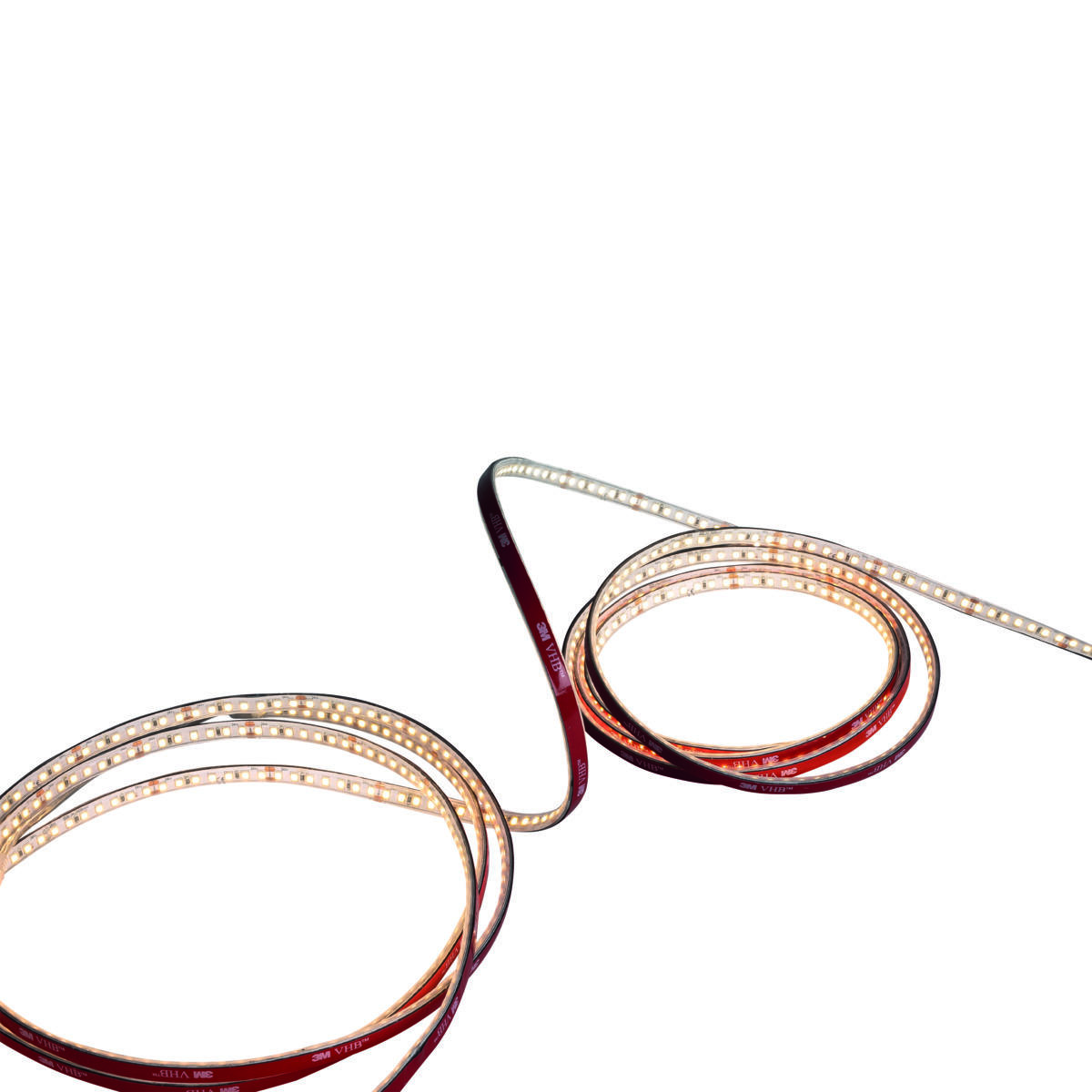

Professional LEDstrip with close LED spacing to create a homogenous light with opal cover - also for low profiles. High lumen output and very good colour rendering, Ra>90 Comes with 2 m of connecting cable at each end, 2pcs shrink hoses, 10pcs clips, 20pcs screws and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to required dimmer technology and placing.

GTIN	Item Name	Colour Temperature (K)	Luminaire Lumen (lm)
7392971138664	LEDstrip RX HD IP67 24V 2700K lpm	2700	1100
7392971127569	LEDstrip RX HD IP67 24V 3000K 5m	3000	5750
7392971127576	LEDstrip RX HD IP67 24V 3000K lpm	3000	1150

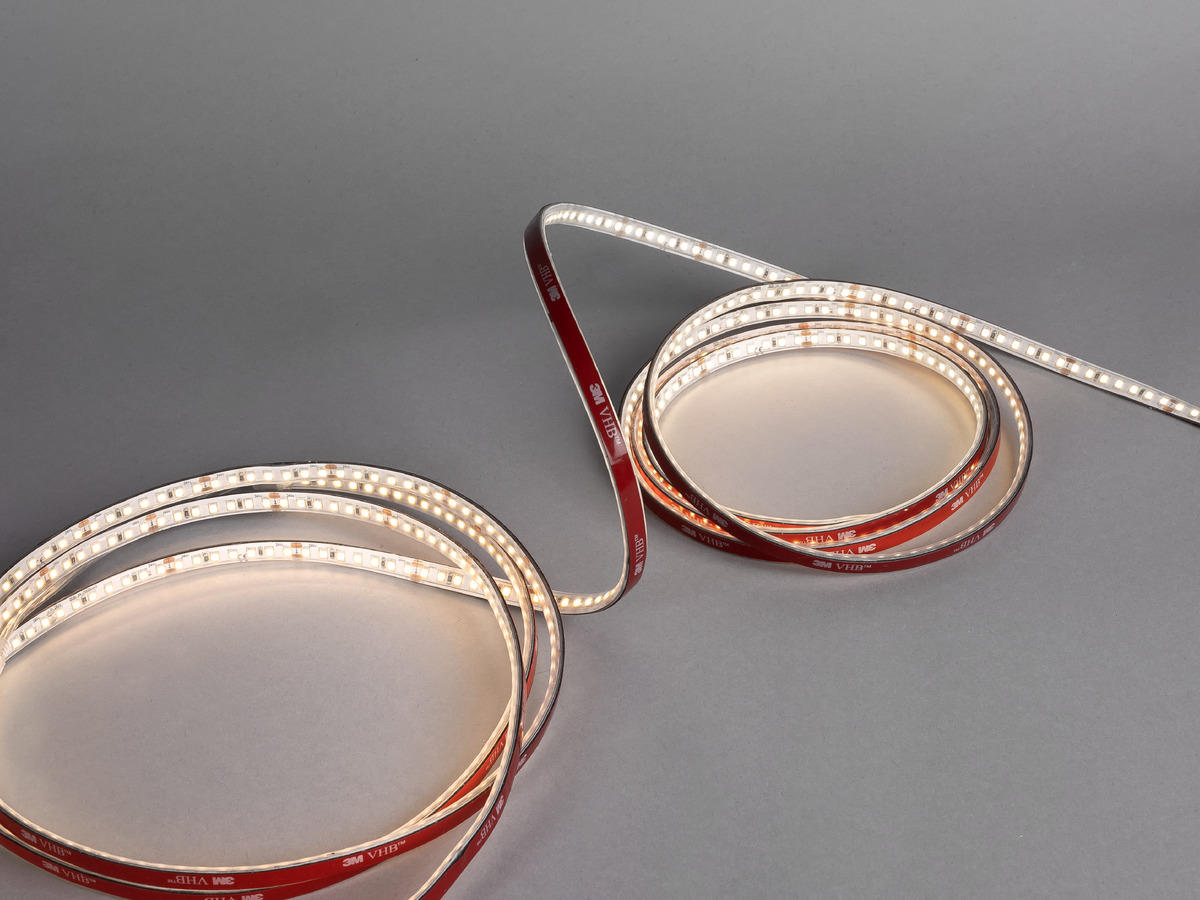

7392971138688	LEDstrip RX HD IP67 24V 4000K lpm	4000	1200

Description: GTIN 7392971138664

Item Name LEDstrip RX HD IP67 24V 2700K lpm

Warranty 5 years

Type lpm
Light Technical Data: Luminaire Lumen (lm) 1100

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 2700

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 320

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 168

LED Pitch (mm) 6

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L79

LLMF @ 50 000h 0,79
Technical data: Voltage (type) DC

Voltage Interval (V) 24...24

Voltage Nominal (V) 24

Power Luminaire (W) 12,5

System Power (W) 13,75

Efficiency Luminaire (lm/W) 88

Efficiency System (lm/W) 80

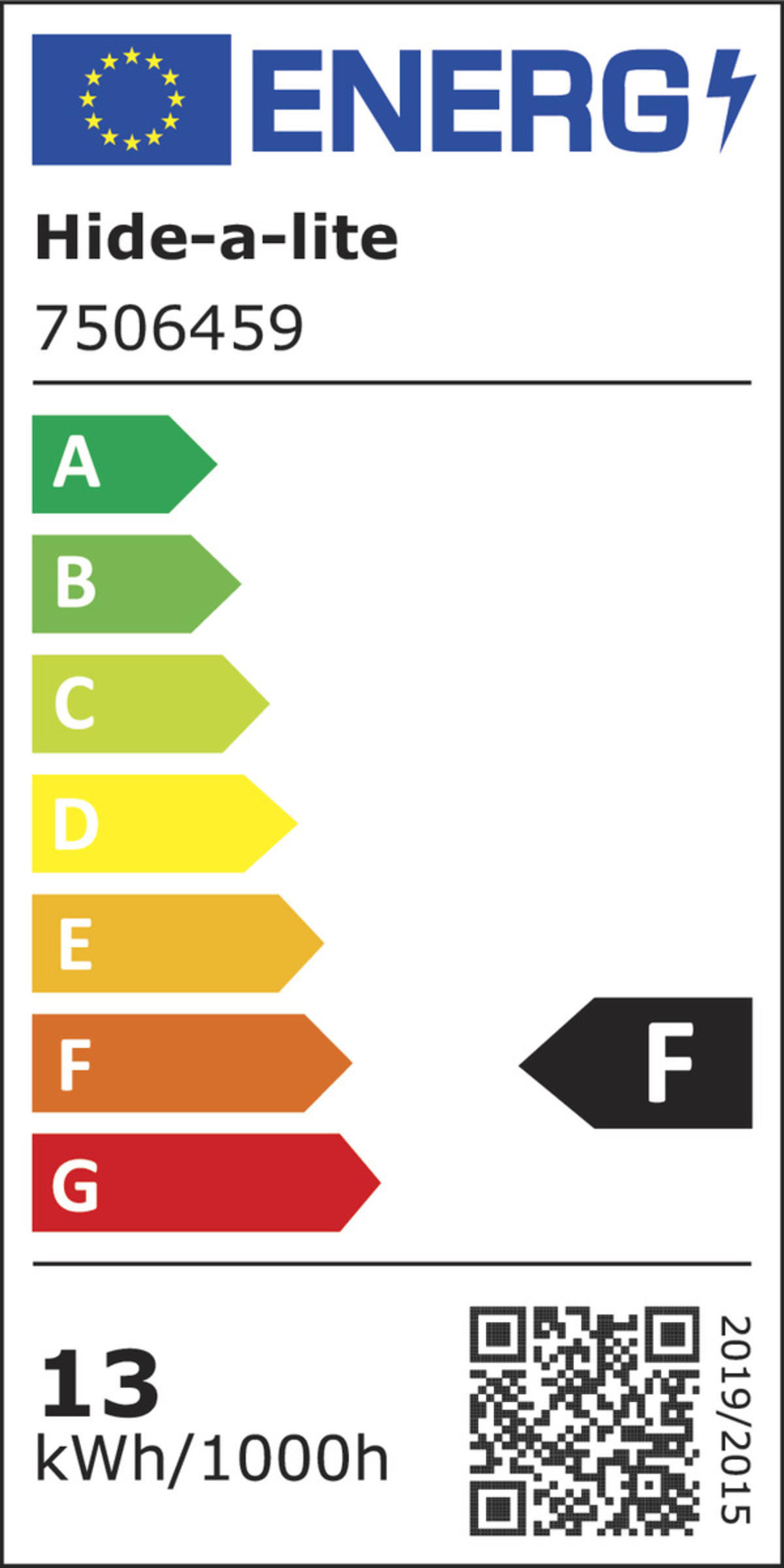

Energy Efficiency Class (EU) 2019/2015 F
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Operating Temperature -20…+45

Max. Tc (°C) 70
Color and material: Material Copper, PVC

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations, Outdoor

IP Degree of Protection 67

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape, Clips

Approval Marks CE

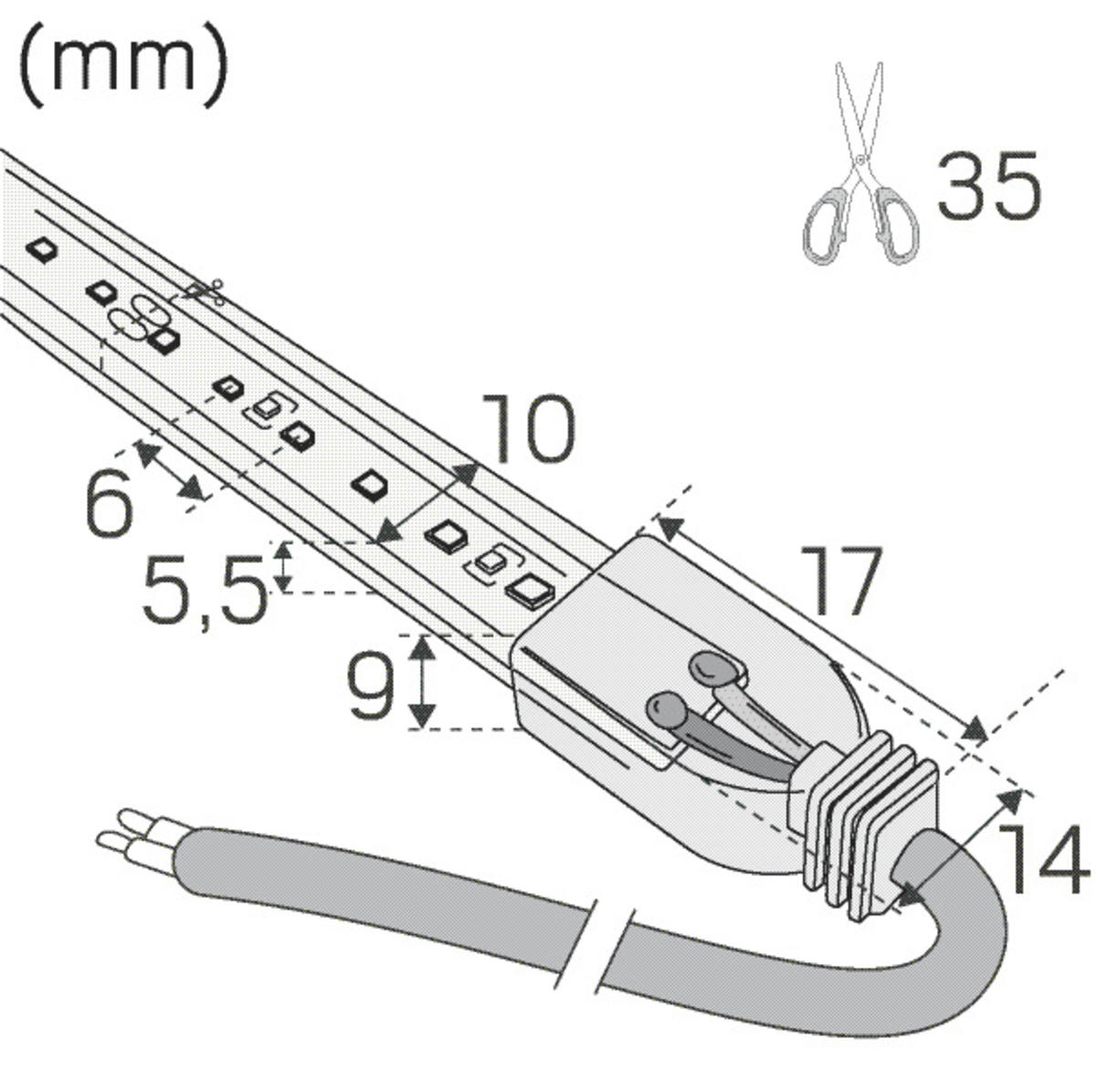

Length (mm) 1000

Width (mm) 10

Height (mm) 6

Weight (kg) 0,083
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,036

Max. Length (m) 10

Cutting Increments (mm) 35,7

LEDstrip 24V IP67

Basic version of our 24V LEDstrip, with120 LED/m there is lots of light and good efficiency. The smaller gap between diodes gives a homogeneous light with opal cover also in lower profiles. Comes in 5m lengths with self-adhesive tape, 2m connecting cable at each end, 2 x 10stpcs 10cm shrink hoses, 10pcs clips and 20pcs screws. Also available made to measure in optional lengths with 50mm cut-off intervals and maximum length 10m. Drivers are ordered separately according to required dimmer technology and placing.

LEDstrip 24V Line IP67

LEDstrip with encapsulated opal coloured casing in silicone, which creates an evenly lit line with noout profile or cover. COB technology with small gaps between diodes for very good efficiency. Short cutting increments of 30mm and seamless joints make it simple to create custom lengths. Comes as standard in rolls of five metres with 2 m connecting cable at each end, 2pcs end connections, self-adhesive tape for easy installation. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. Drivers are ordered separately according to desired dimmer technology and placing. Maximum length 5m.

LEDstrip 24V RX HD IP67

LEDstrip RX HD IP67 24V 2700K lpm
